Technical Specifications and Architecture

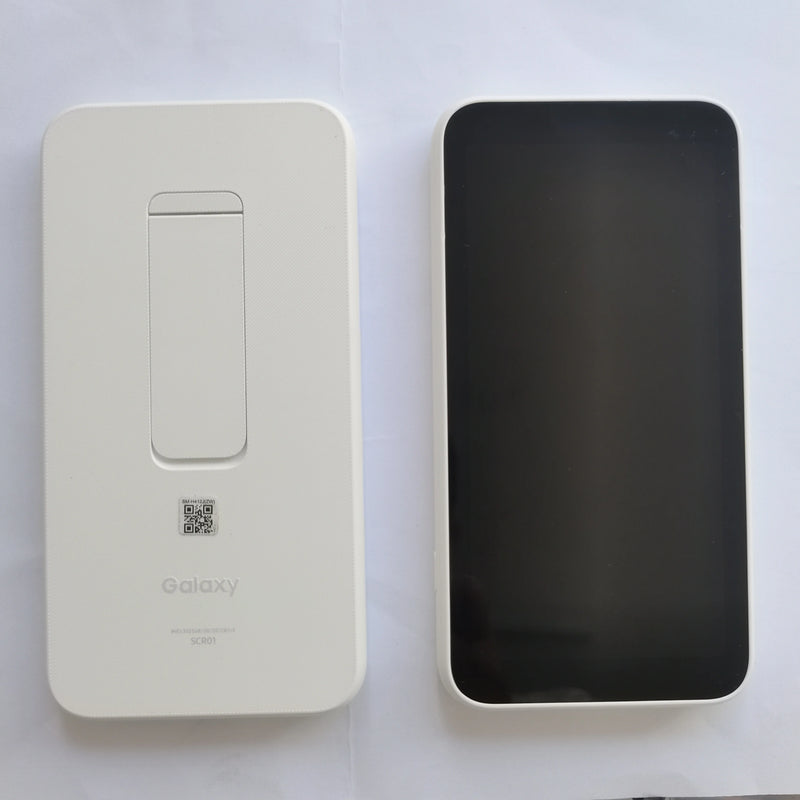

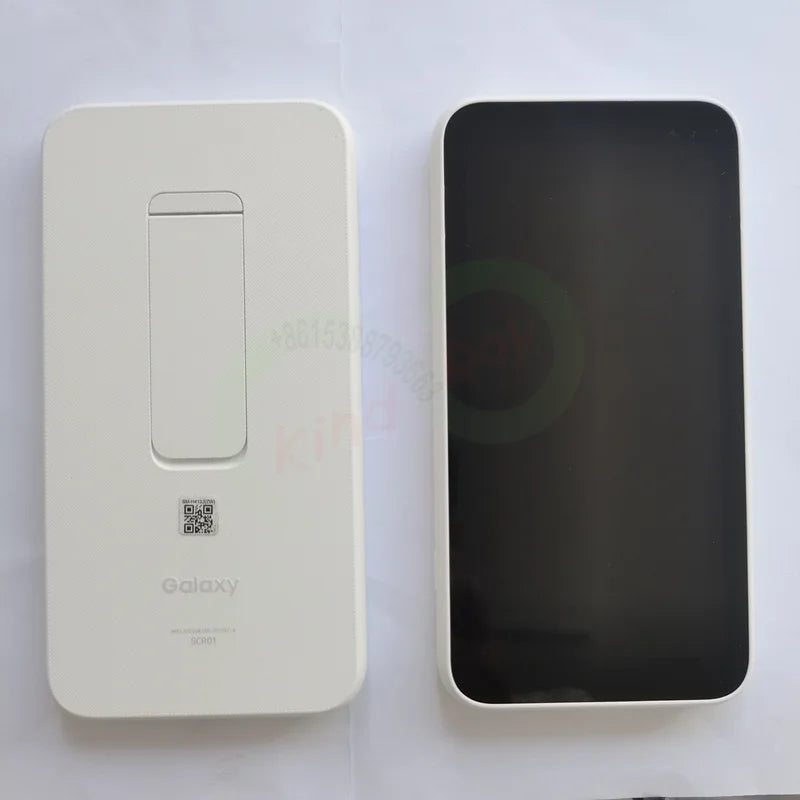

The Galaxy 5G Mobile Wi-Fi, model SCR01, is an unlocked portable hotspot that turns a 5G or 4G LTE SIM into a personal Wi-Fi network for up to ten devices, with no phone tethering. It pairs a sub-6 GHz 5G and LTE modem with a dual-band Wi-Fi access point, runs on a 5,000 mAh battery, and is controlled from a 5.3-inch TFT touchscreen. It charges over USB-C, has one USB 2.0 port, measures about 147 by 76 by 10.9 mm, weighs around 203 g, supports Windows 8.1 or later and macOS 10.9 or later, is CE marked, and is sold pre-owned with selectable condition grades.

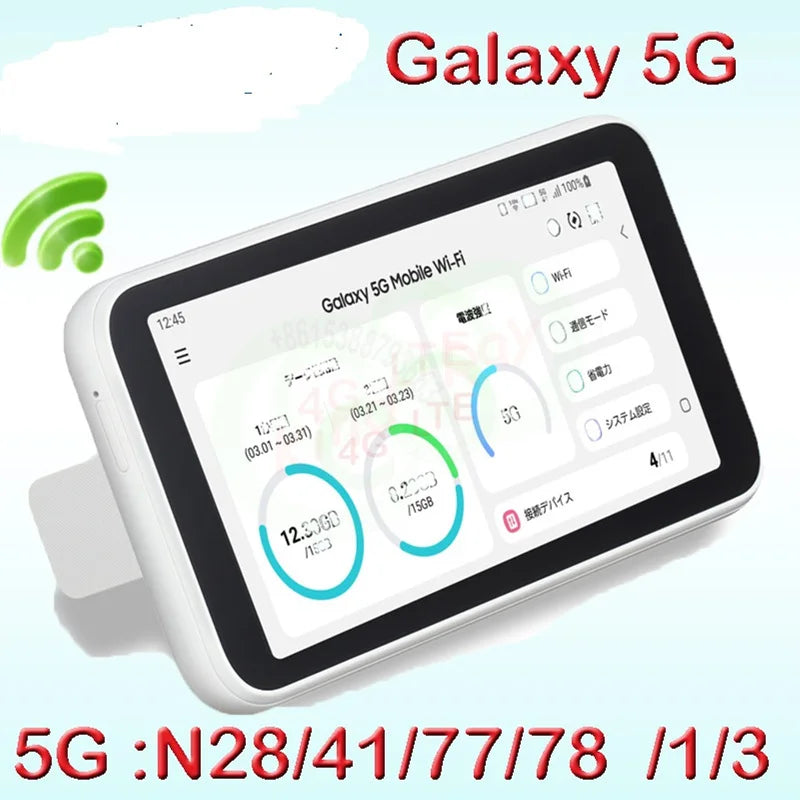

A mobile hotspot, or MiFi, combines two radios: a cellular modem that connects to the network through the SIM exactly as a phone does, and a Wi-Fi access point that shares that connection with nearby laptops, phones and tablets. A dedicated chip handles the cellular link, so no phone is tethered or drained. The cellular side covers 5G New Radio bands n28, n41, n77 and n78 and 4G LTE bands B1, B3, B17 and B18 in FDD plus B41 in TDD, all sub-6 GHz rather than short-range millimetre-wave, so coverage behaves like ordinary mobile data.

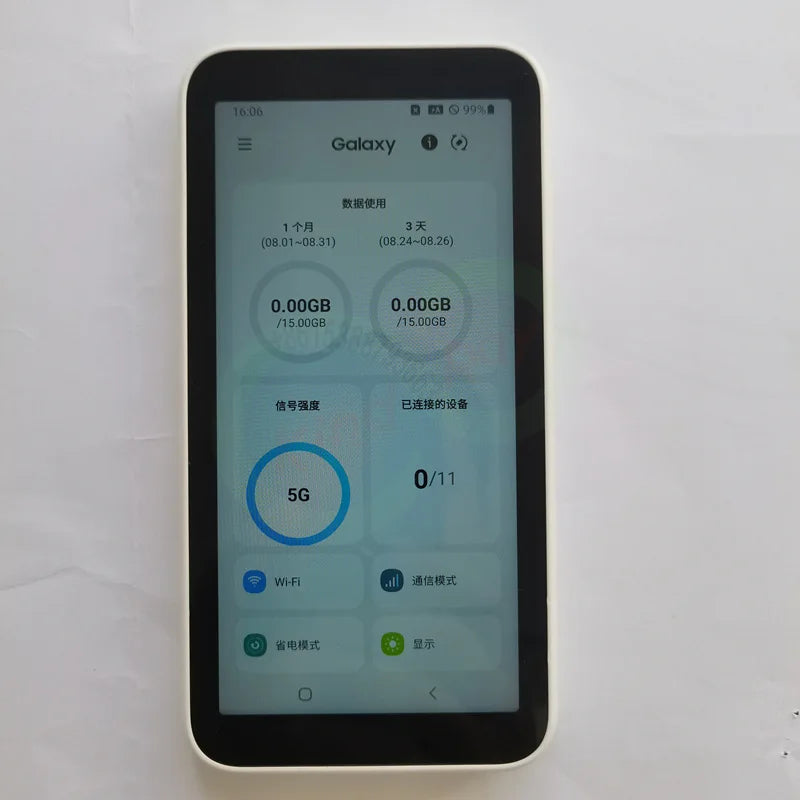

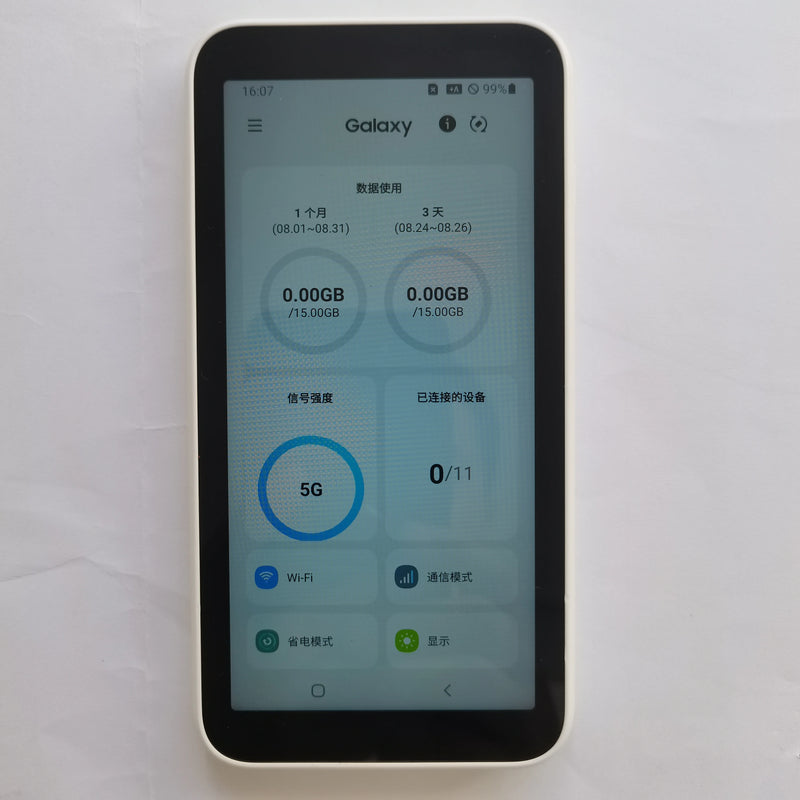

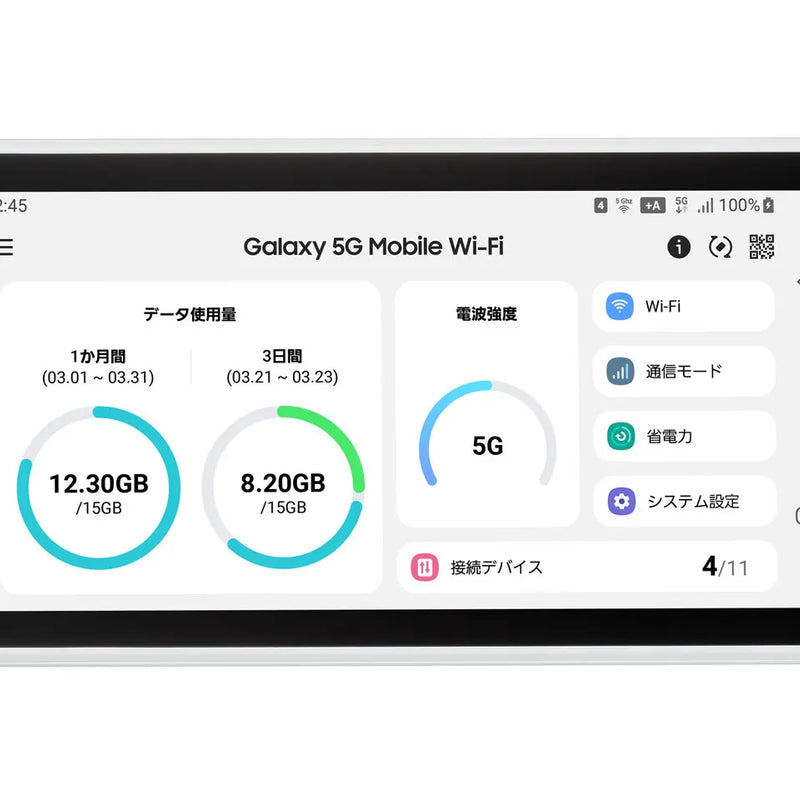

On paper the modem reaches up to 2.2 Gbps download and 183 Mbps upload through carrier aggregation under ideal conditions. The Wi-Fi runs 802.11a/b/g/n/ac on both bands, with 2.4 GHz rated up to 450 Mbps and 5 GHz up to 867 Mbps, serving up to ten devices. The touchscreen shows signal, data usage, battery and connected devices, and the 5,000 mAh battery is rated for roughly 1,000 minutes of use and about 790 hours of standby, recharging over USB-C in about 140 to 160 minutes.

Performance Benchmarking and Real-World Limits

The single most important factor is band compatibility, which must be checked before purchase. A hotspot can only connect on the bands it supports, so the carrier and SIM must use the listed 5G and LTE bands. Where they match, performance is excellent; where they do not, the device cannot connect at all. These bands are common in many regions but not universal, so confirming them with the intended carrier is the essential first step.

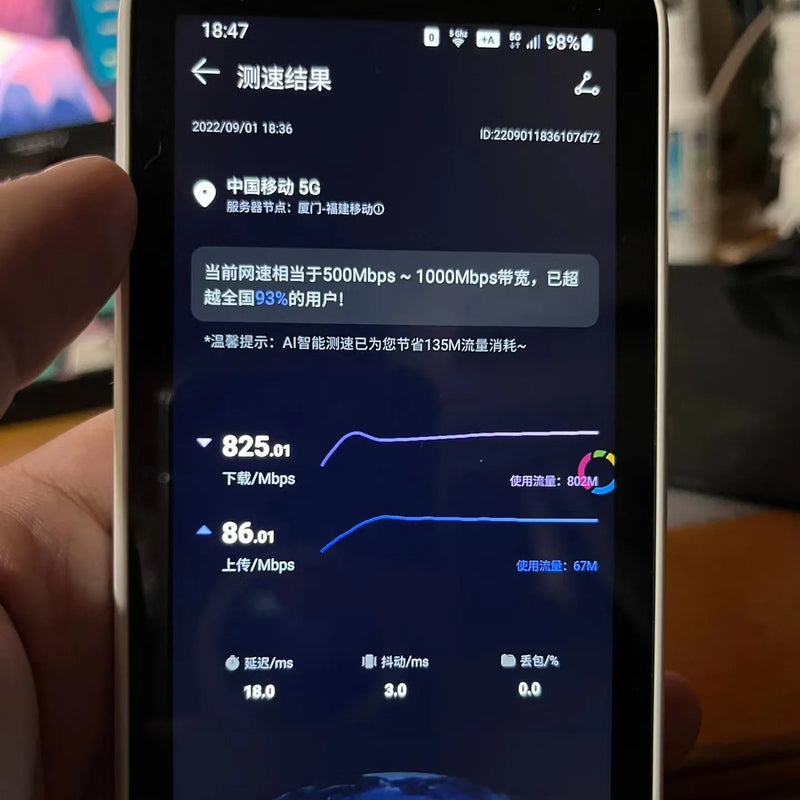

The 2.2 Gbps figure is a theoretical peak. Real-world sub-6 GHz 5G usually delivers from around 100 Mbps to several hundred megabits per second depending on network, spectrum, distance and congestion, still far faster than 4G and ample for streaming, calls and multi-device use. Locally, the 5 GHz Wi-Fi is fastest at close range while 2.4 GHz reaches further, and ten active devices share the available throughput.

Two limits matter most. The device is 4G and 5G only, with no 3G or 2G fallback, so it finds no service where only older networks exist, which makes coverage checking vital for travel and rural use. And on this unit the 5G band can be disabled by a factory reset, after which it must be re-enabled in settings. Battery life of roughly sixteen hours of active use covers a day away from power, and the pre-owned grade sets cosmetic expectations while function is unchanged.

Step-by-Step Setup Guide

Getting online takes only a few minutes with a compatible SIM.

• Confirm your carrier uses the supported 5G or LTE bands and obtain a data SIM in the correct size.

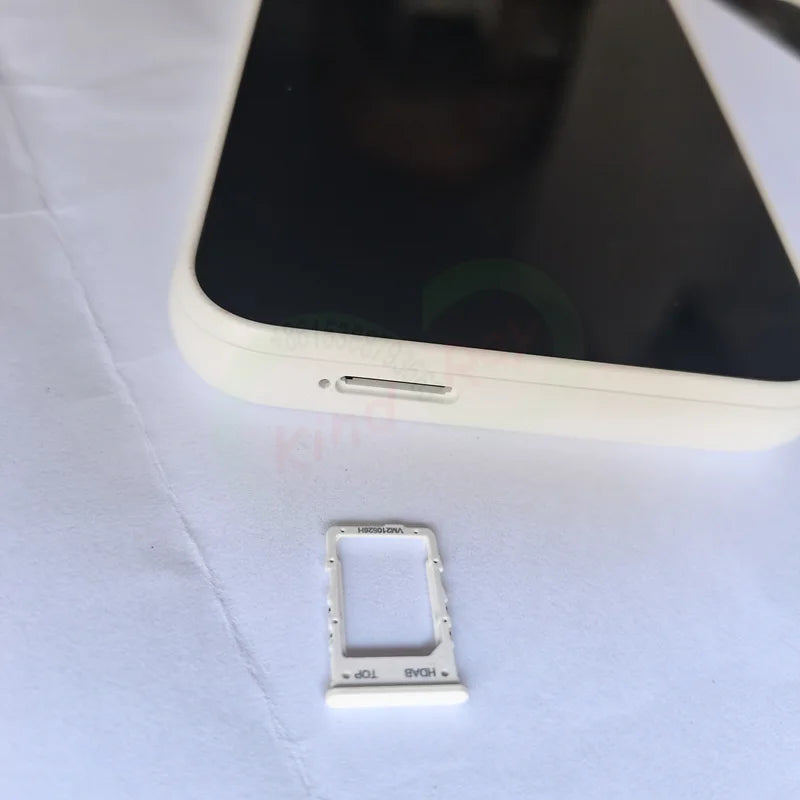

• Insert the SIM and press the power button to switch the unit on.

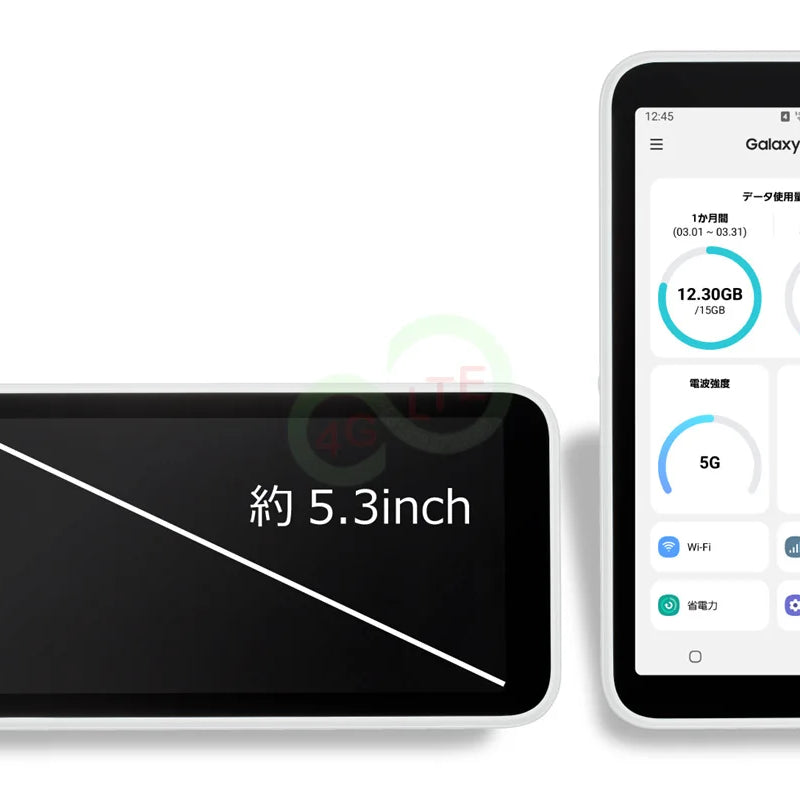

• Use the 5.3-inch touchscreen for first-time setup, entering the carrier APN if it is not set automatically.
• On your device, open the Wi-Fi list, select the hotspot network shown on its screen, and enter the password.
• Prefer the 5 GHz network for speed at close range and 2.4 GHz for reach.

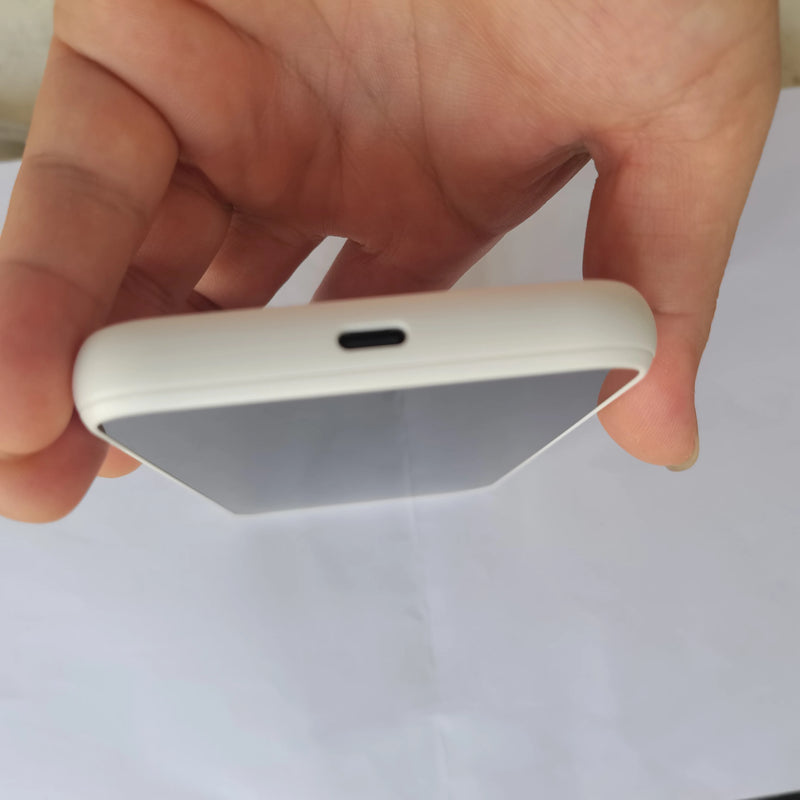

• Recharge over USB-C as needed; it works while charging.

If 5G is inactive after a reset, re-enable it in the device settings.

Troubleshooting and Maintenance Manual

Most issues relate to the SIM, the bands or signal.

No service. Confirm the SIM is active and seated, the carrier bands match, and the APN is correct. With no 3G or 2G fallback, a location with only older coverage shows no service.

5G gone after a reset. A factory reset can switch off the 5G band on this unit; re-enable it in settings and it returns where 5G coverage exists.

Slow speeds. Check the signal and move toward a window or higher ground, since 5G and LTE weaken with distance and obstructions; the unit may fall back from 5G to LTE in weak areas. Disconnecting idle devices frees bandwidth.

Cannot add a device. The limit is ten; disconnect an idle device to make room.

For maintenance, keep the unit cool under heavy use, charge it with a good USB-C supply, avoid leaving the battery fully flat for long, and apply firmware updates from settings if offered. As a pre-owned product, check the battery and ports on arrival.

Ecosystem and Integration

Being unlocked, it works with a data SIM from any carrier whose bands it supports, making it flexible for travel, remote work and as a backup when home broadband fails. It serves internet to anything with Wi-Fi, and its USB 2.0 port and USB-C charging round out connectivity. For a household it is a portable second line; for a traveller it replaces costly roaming with a local SIM; for a worksite or vehicle it brings connectivity where fixed lines do not reach.

The rule that governs everything is band and coverage compatibility: because it is 4G and 5G only with no 3G or 2G fallback, it excels on modern networks and matching carriers and is the wrong tool where only older networks exist. Within that envelope it is a capable, self-contained connectivity hub with simple on-screen controls, and checking the supported bands against the intended SIM before buying ensures it fits a given network.
