SPECIFICATIONS

Applicable Bicycle: Mountain Bicycles

Braking System: Disc Brake

Brand Name: PASAK

Finishing: Anode Oxidation

High-concerned chemical: None

Model Number: HB16AM35

Origin: Mainland China

Size: 29"

Spoke Hole: 32H

Wheel Material: Alloy

is_customized: Yes

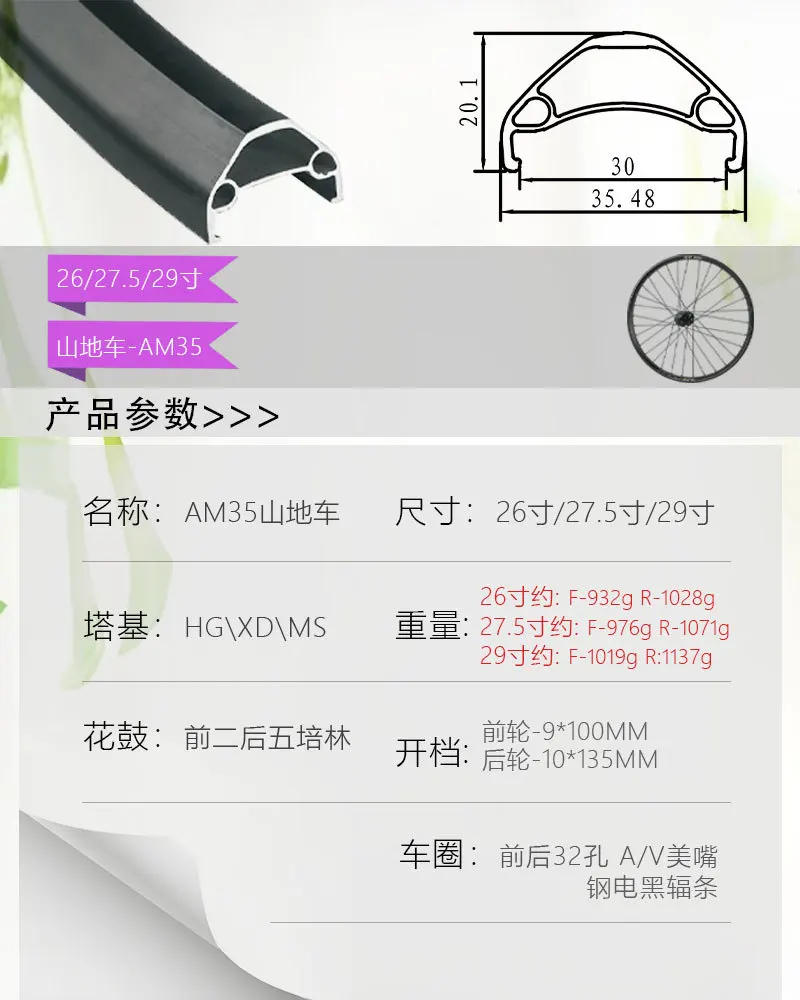

Product Informations:

Brand: PASAK

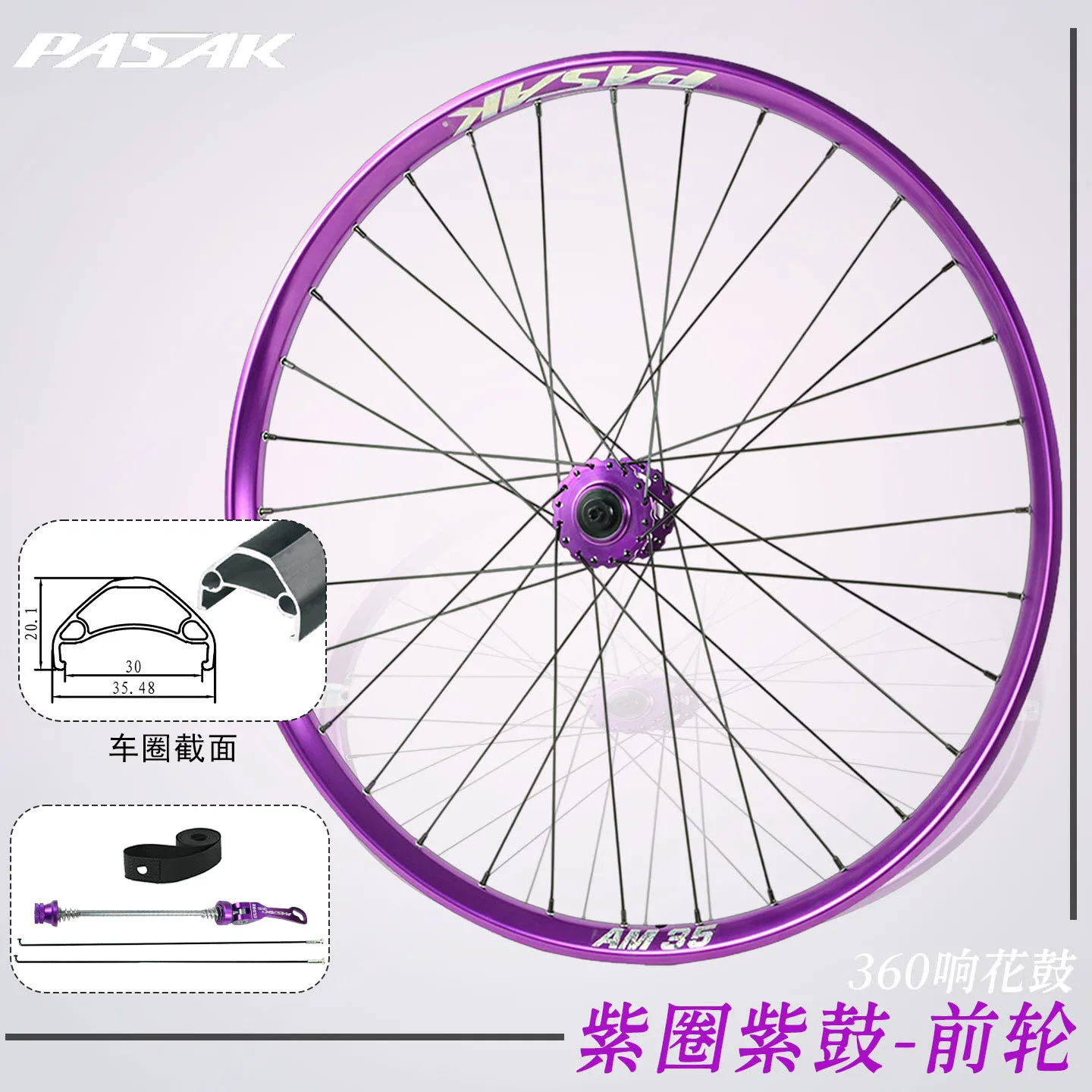

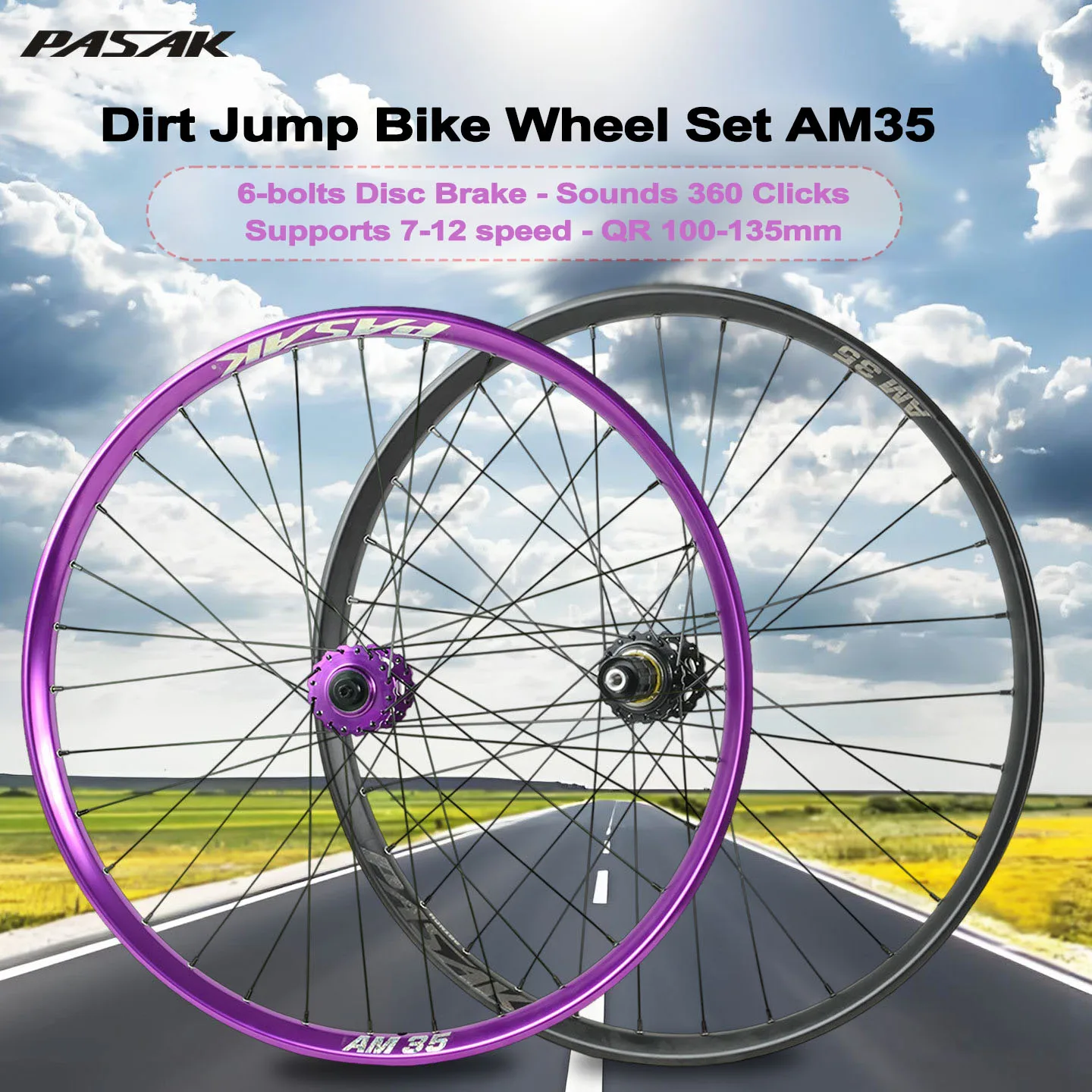

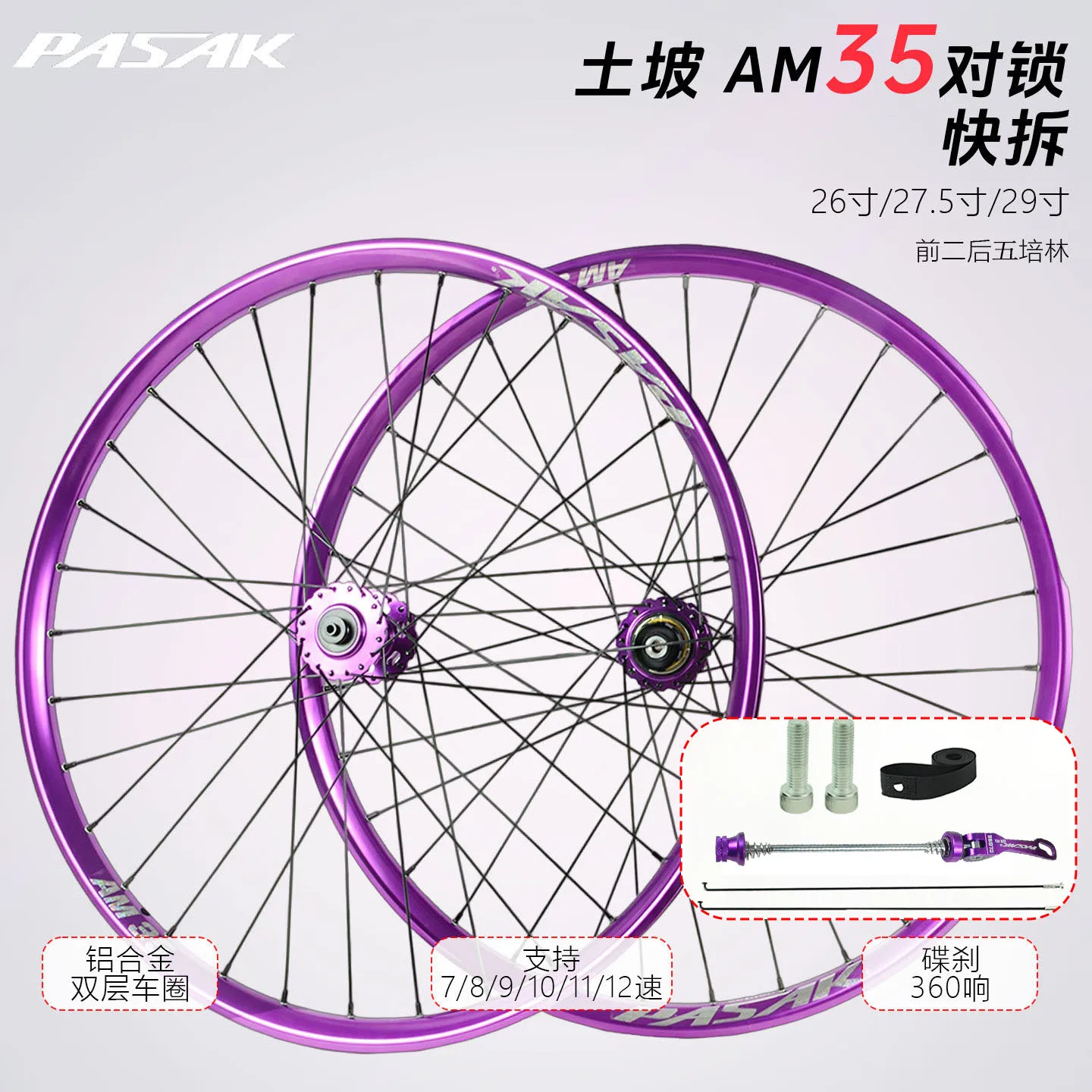

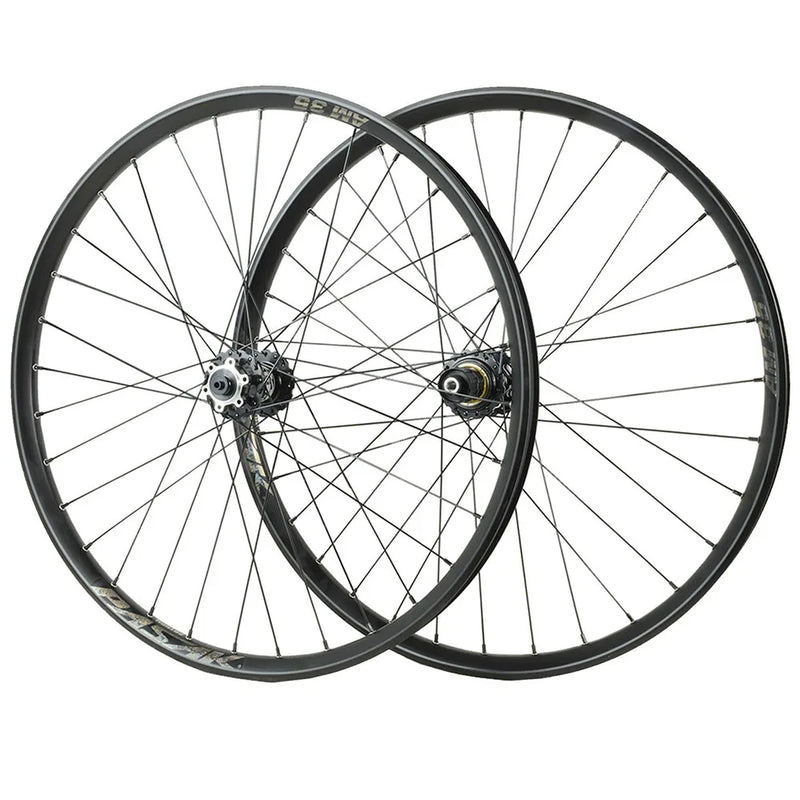

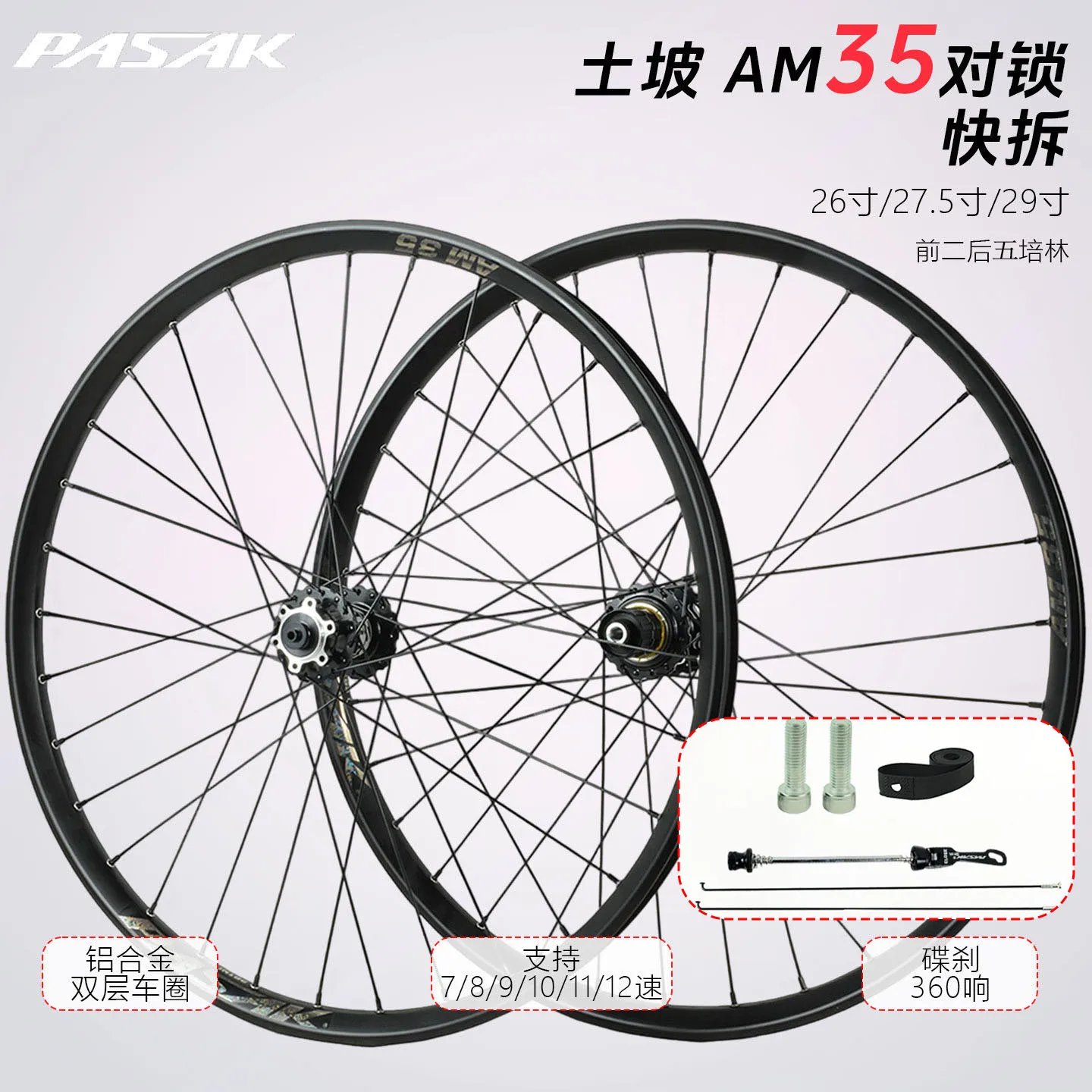

Item Name: AM DH BICYCLE WHEELSET

Model Number: HB16AM35

Size: 26/27.5/29 inch

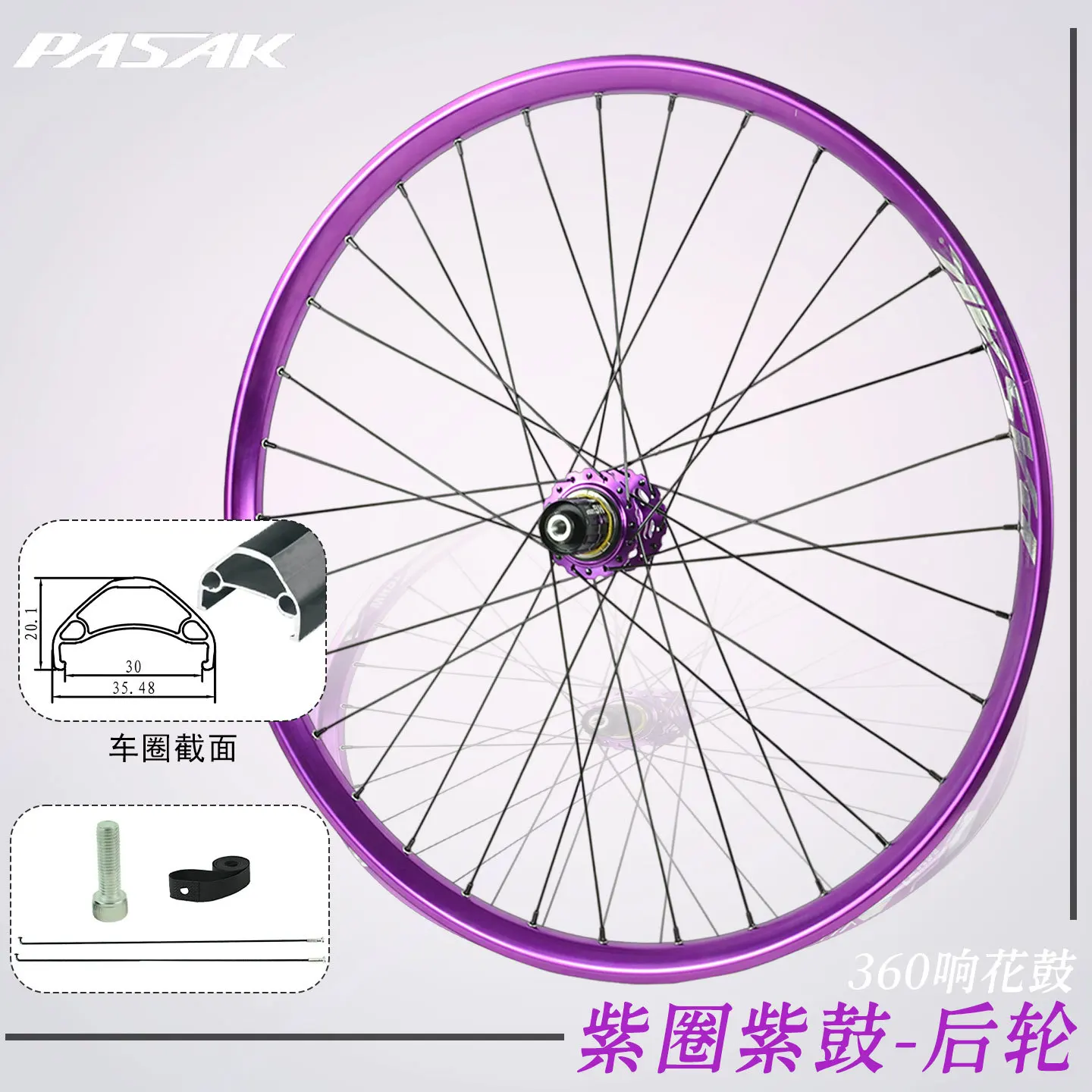

Color: Black/Purple

Specs:

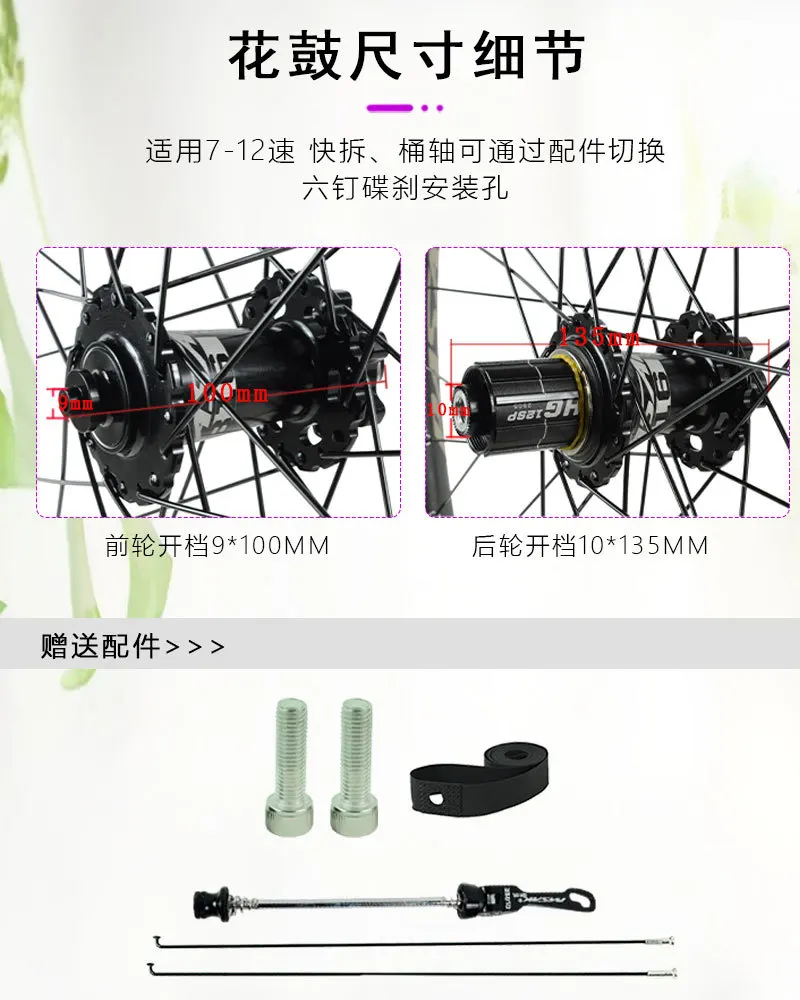

Front wheel QR(quick release lever) 9X100mm

Rear wheel bolts lock 10x135mm

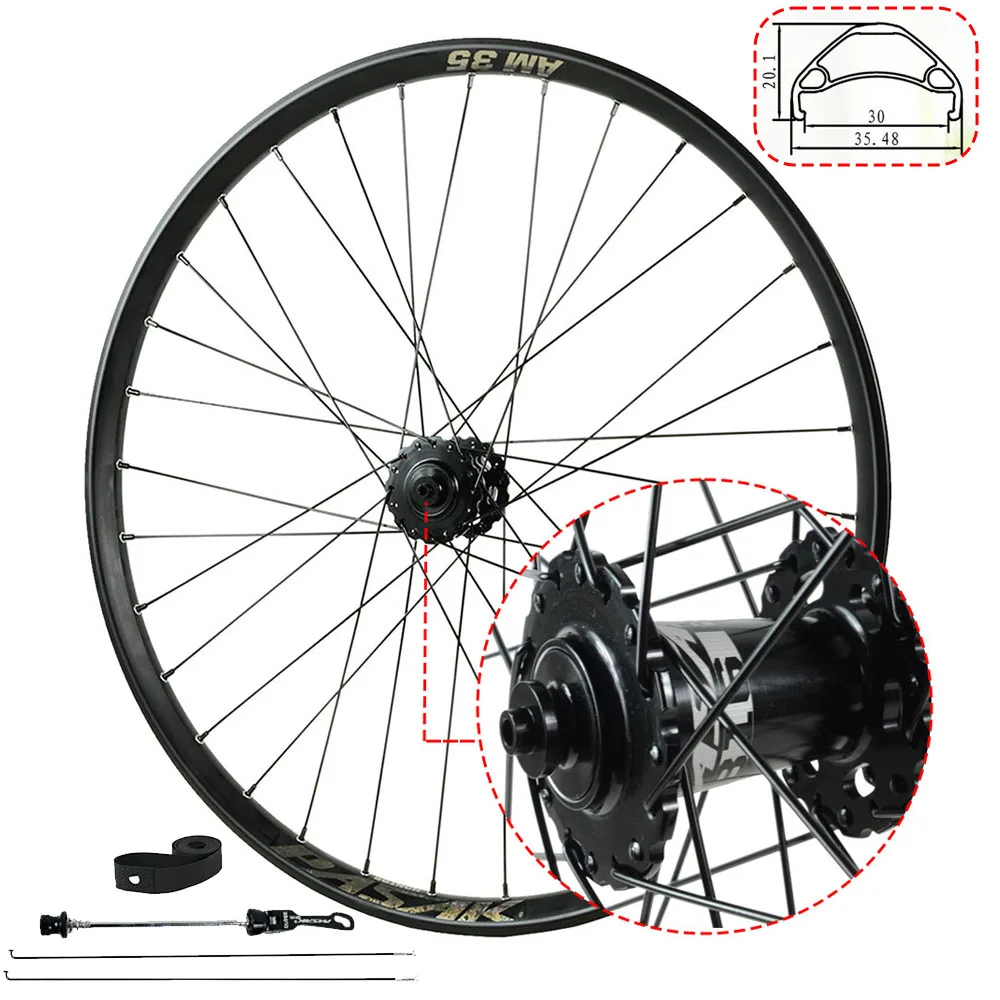

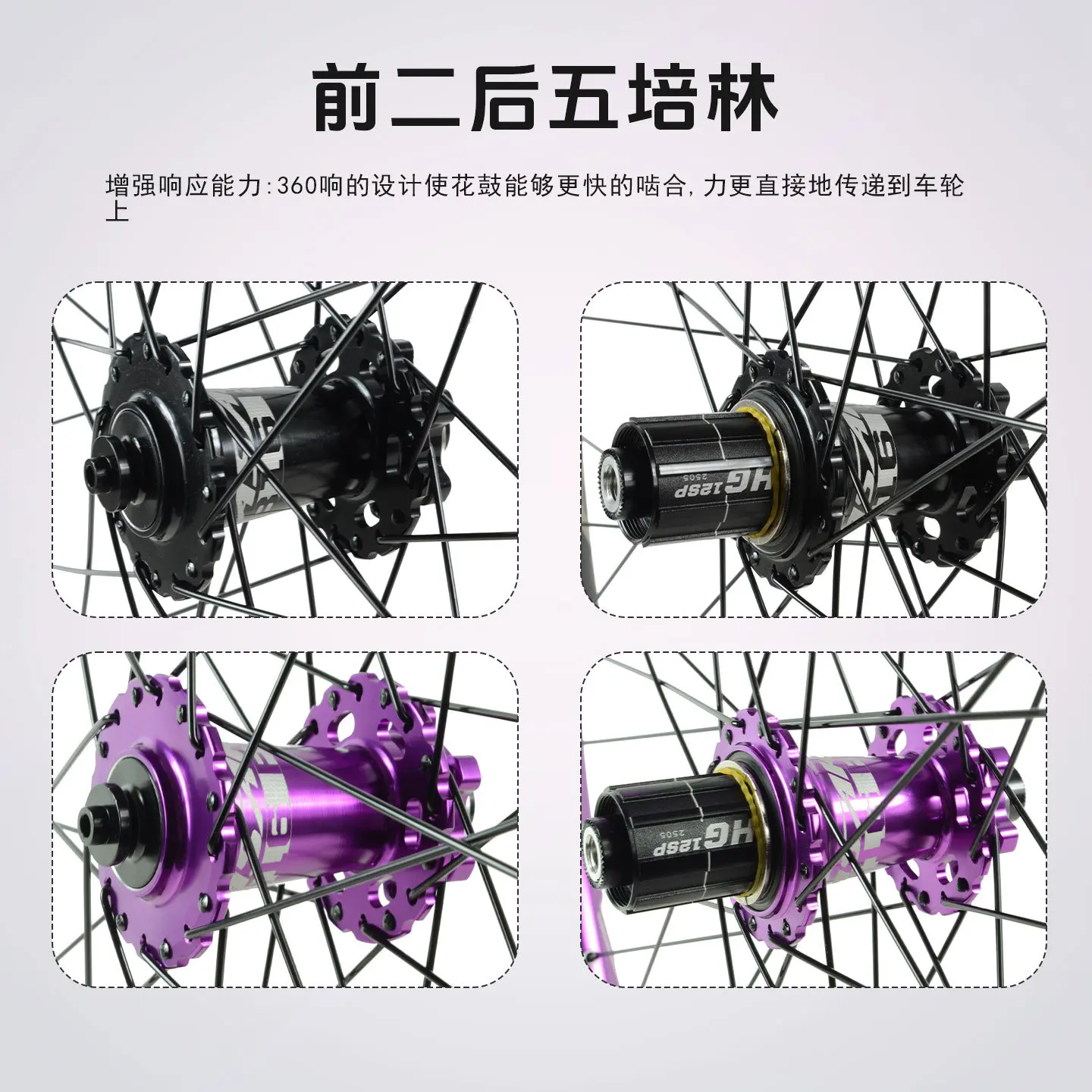

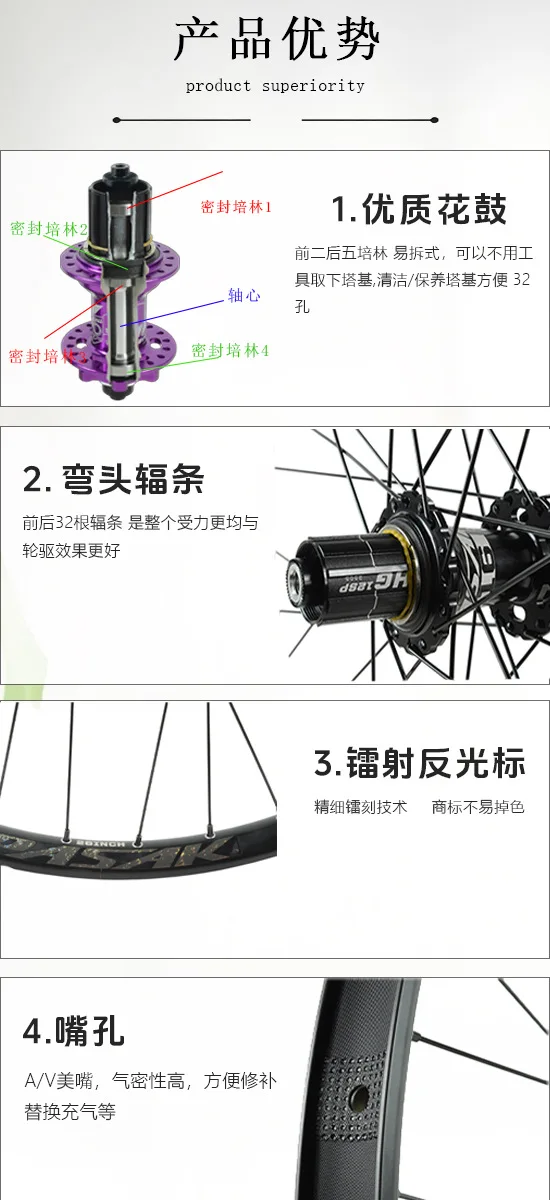

Hub:

Front 2 and rear 5 bearings

Hub body easy disassembly type allows the base to be removed without tools, making cleaning and maintenance of the base convenient. Aluminum alloy, 32 holes, 6-bolts disc brake.

Sounds 360 clicks.

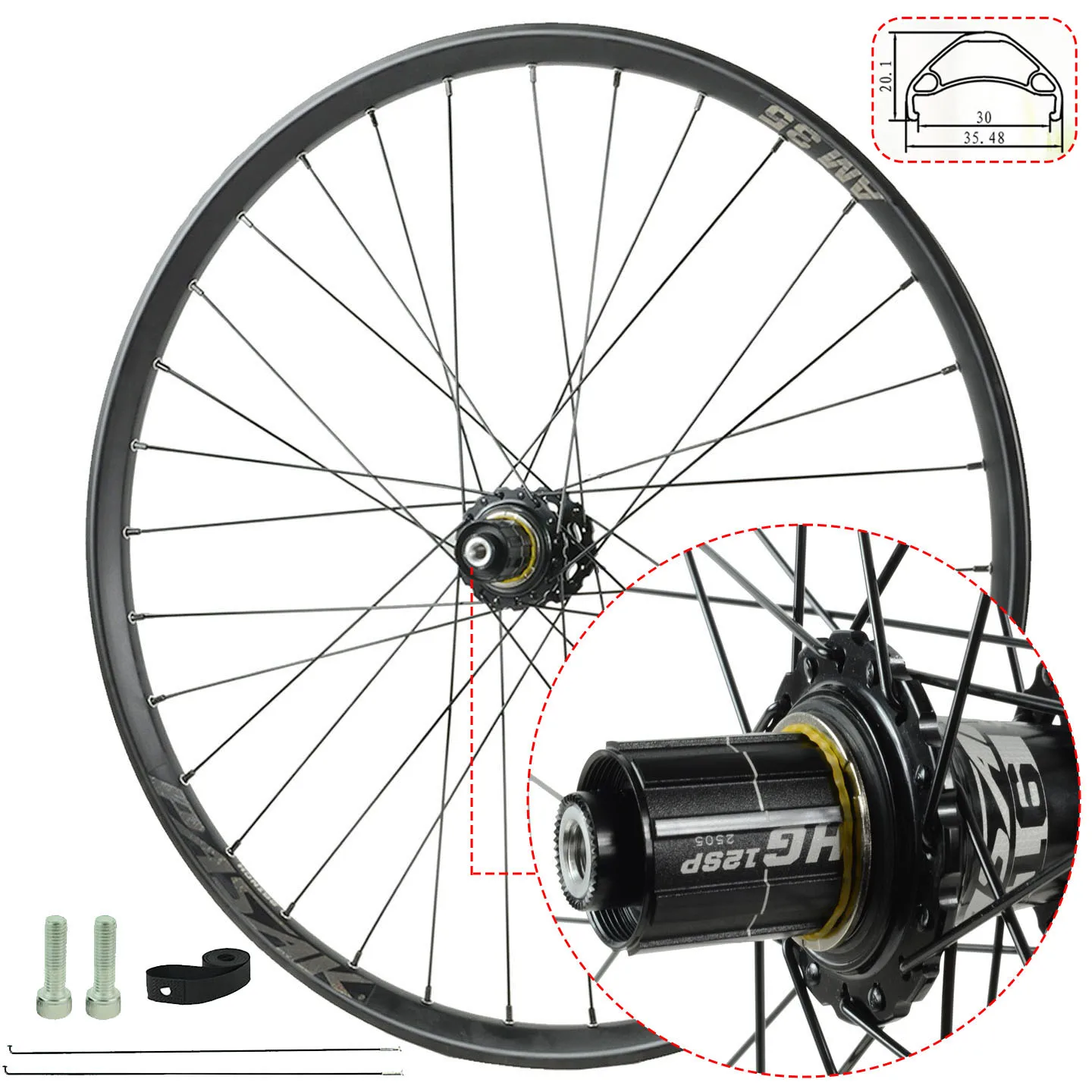

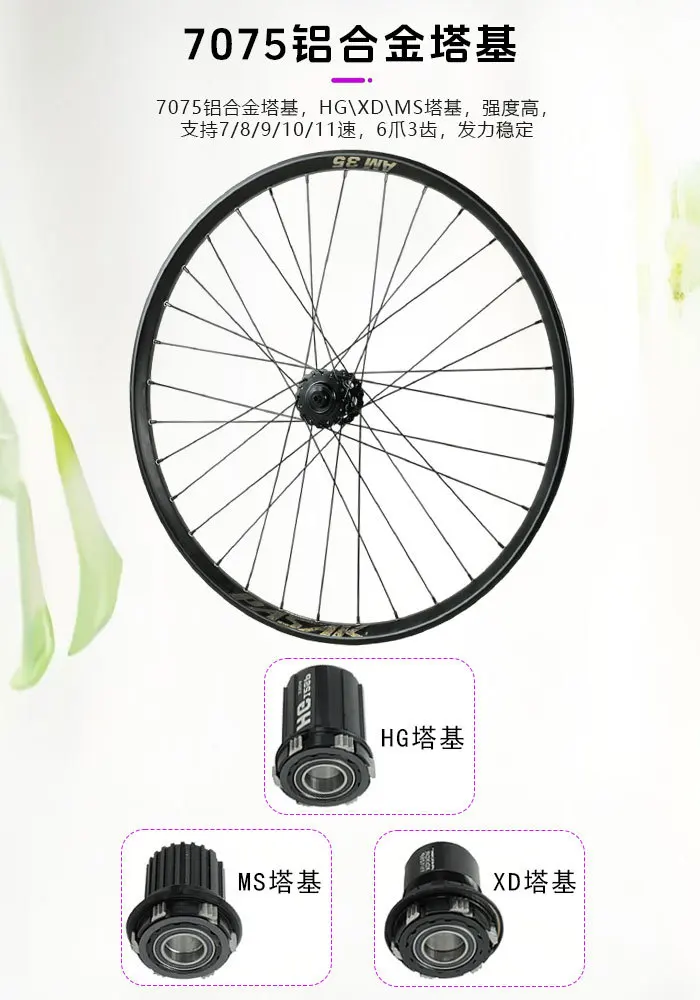

Hub body:

HG 12-speed aluminum alloy 7075 six-pawls base (8-11 speed installation requires an additional gasket, 12-speed flywheel directly installed), 7-speed cassette requires an additional 3 gaskets

MS micro-spline 12-speed

XD 11/12 speed

Spokes:

45# steel electric black spokes, 14mm copper nipples.

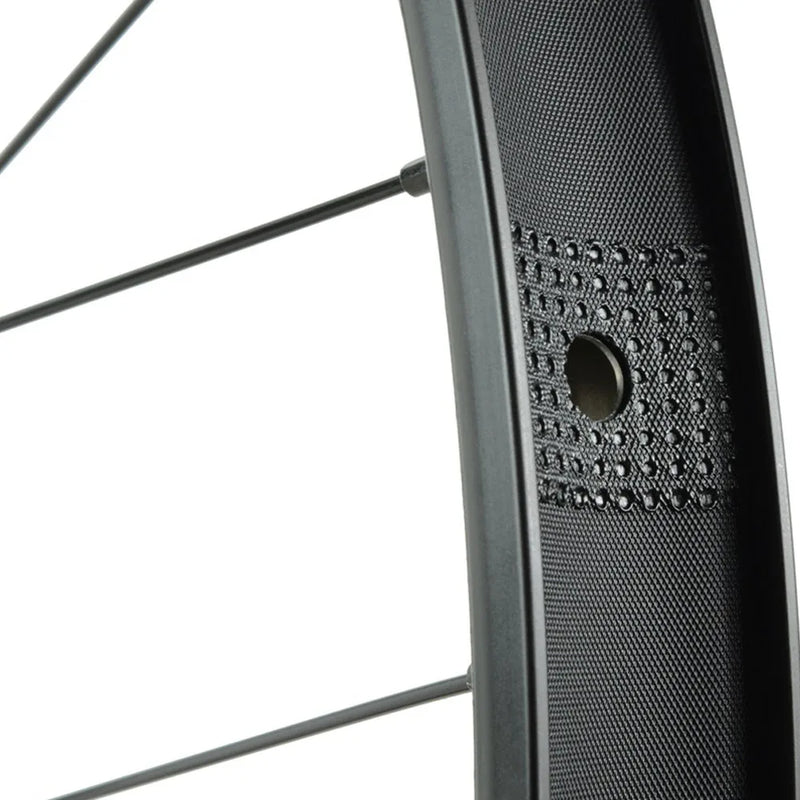

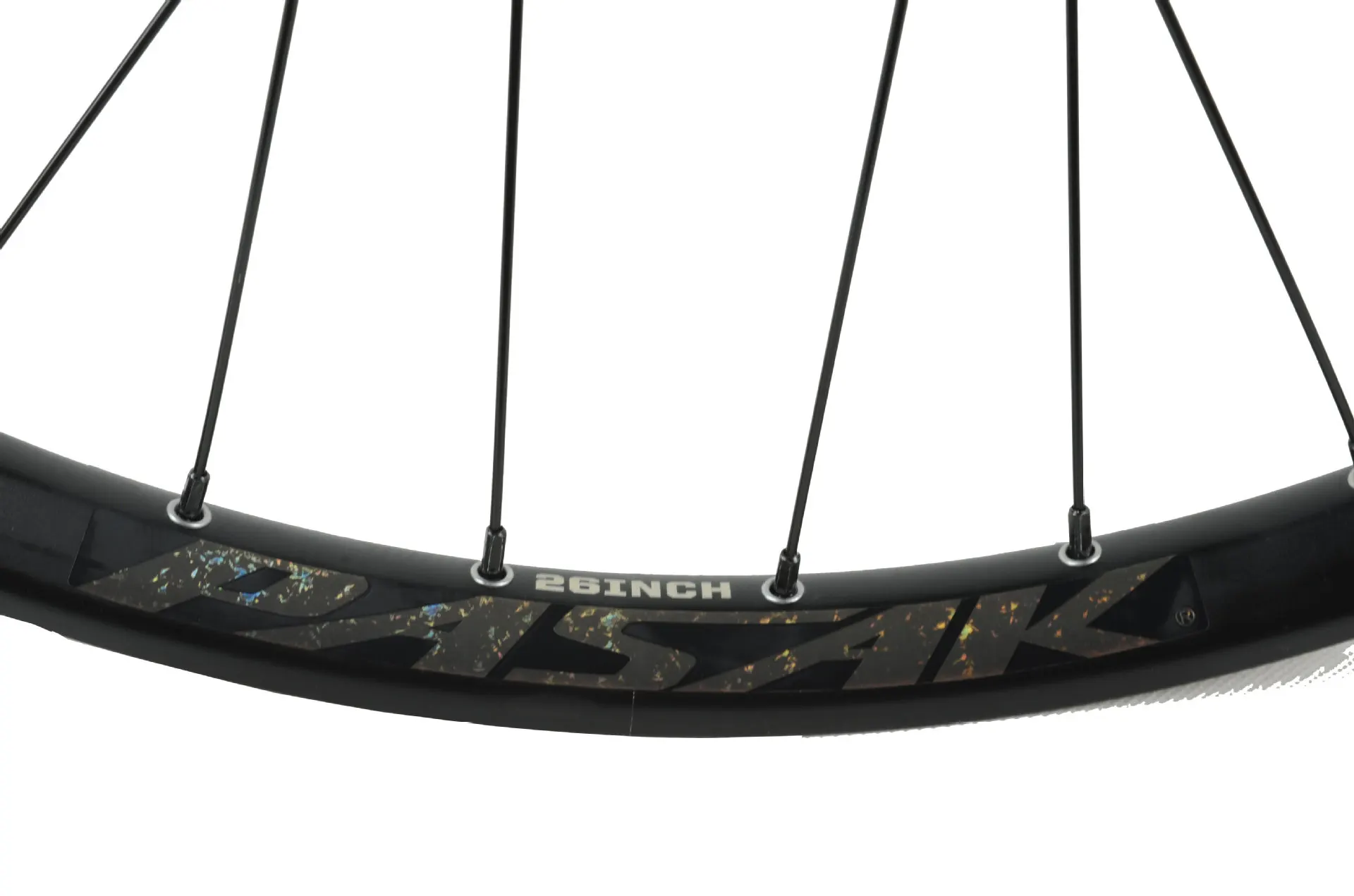

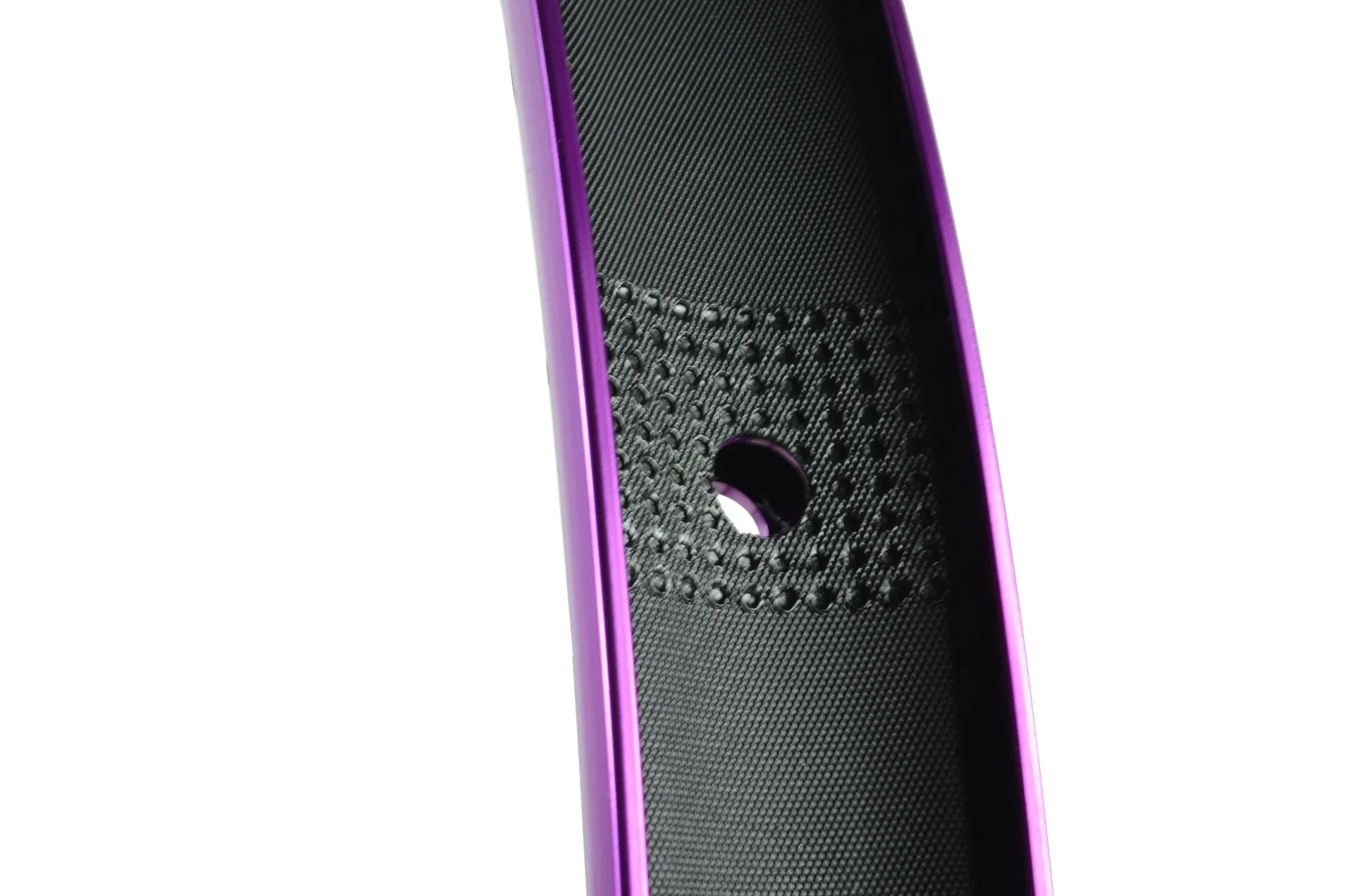

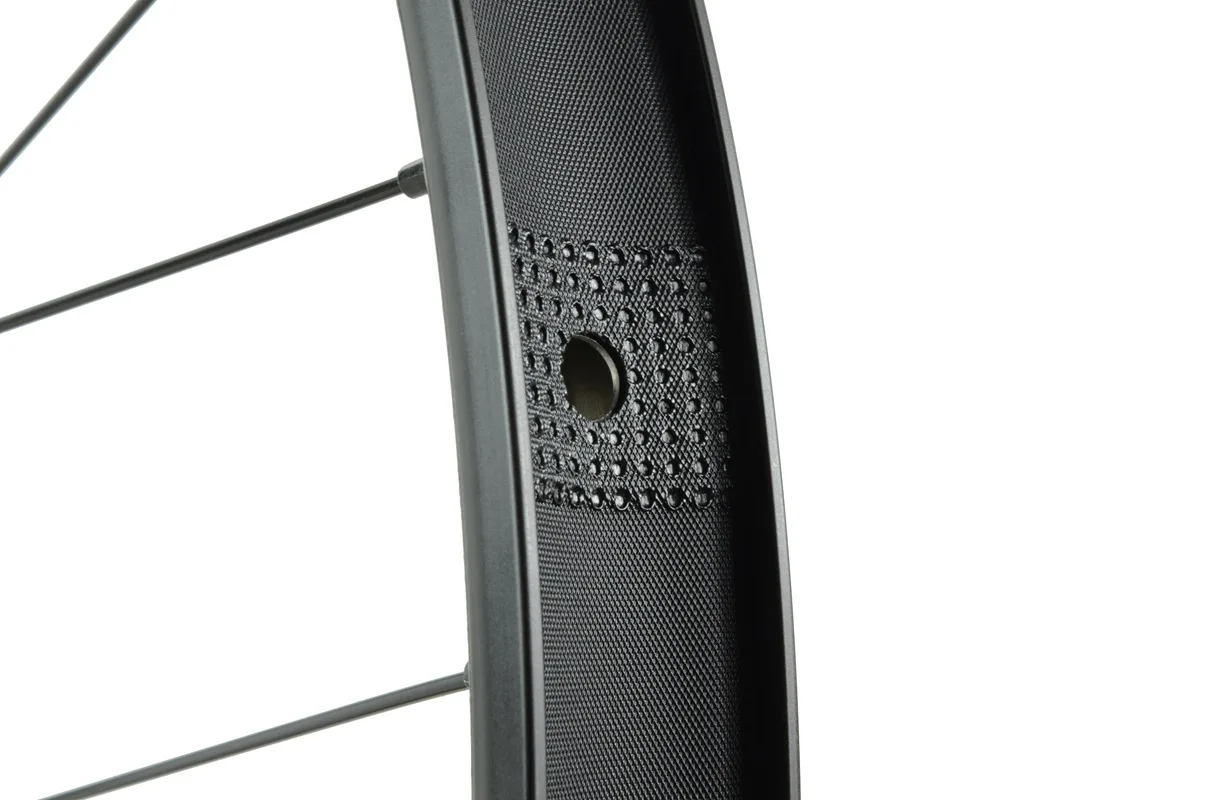

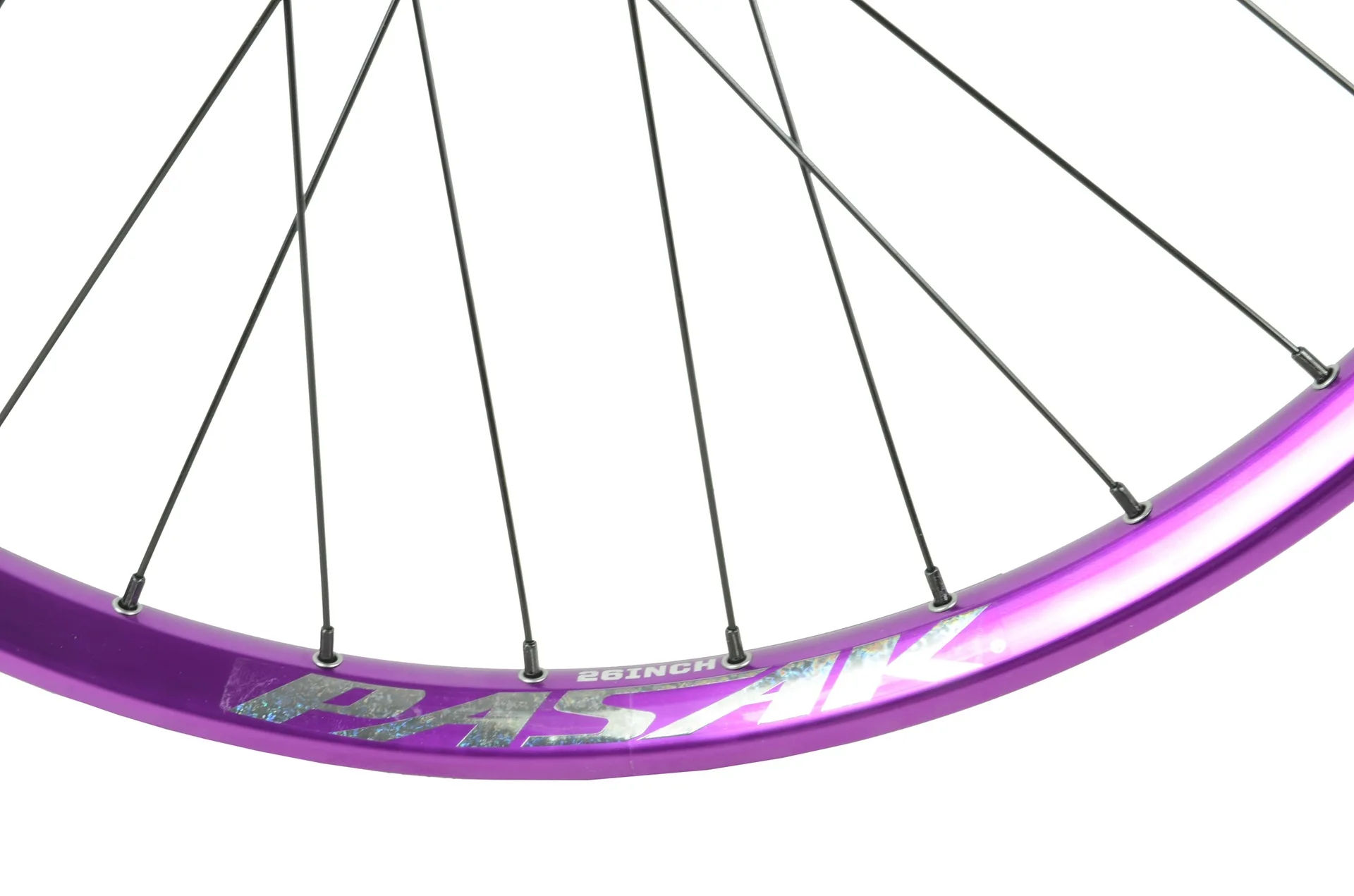

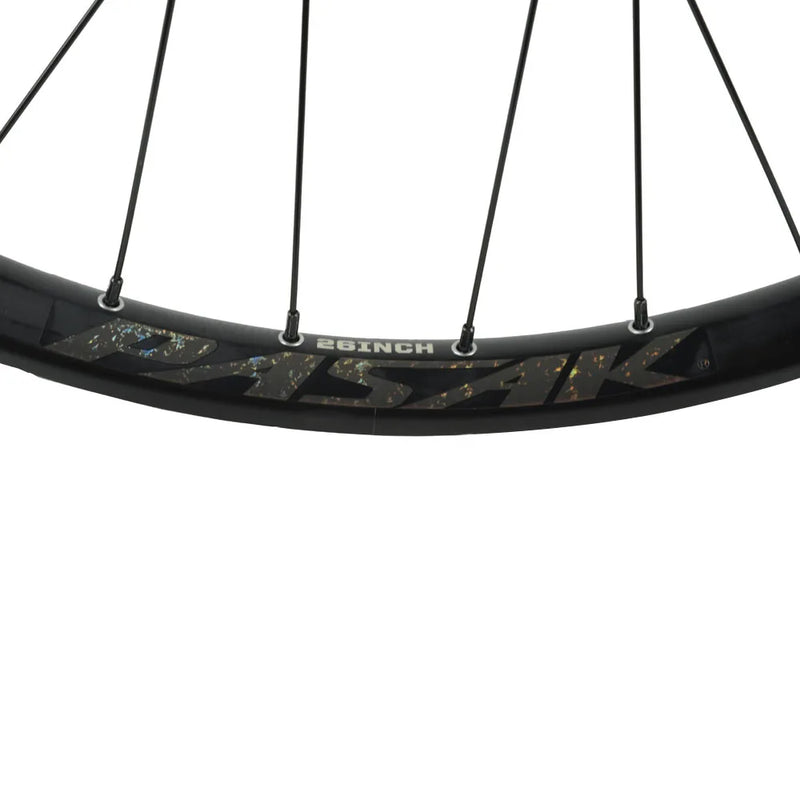

Rims:

26/27.5/29 inch aluminum alloy double-layer rims,

32 holes,

Schrader valve rims

Anodized treatment

Range of tire width usage:

26/27.5/29x1.5-2.8 tires

Weight:

26 inches: Front wheels 932 grams, rear wheels 1028 grams;

27.5 inches: Front wheels 976 grams, rear wheels 1071 grams;

29 inches: front wheels 1019 grams, rear wheels 1137 grams

(including the weight of nylon tire pads, excluding the weight of quick-release tires)

Package Contents:

wheelset x 1 pair

quick release lever 1pc (front wheel)

Bolts 2pcs (rear wheel)

Tire tape 2pcs

Spokes 2pcs

HG hub body Spacer 1pc

Note:

The wheelset is sent to HG base by default. If you need XD or MS, please note "XD" or "MS" when placing an order, or inform the customer service. Thank you.
