9Pin USB Splitter Motherboard Female Interface Header 1 | SAMAG

Technical Specifications and Architecture

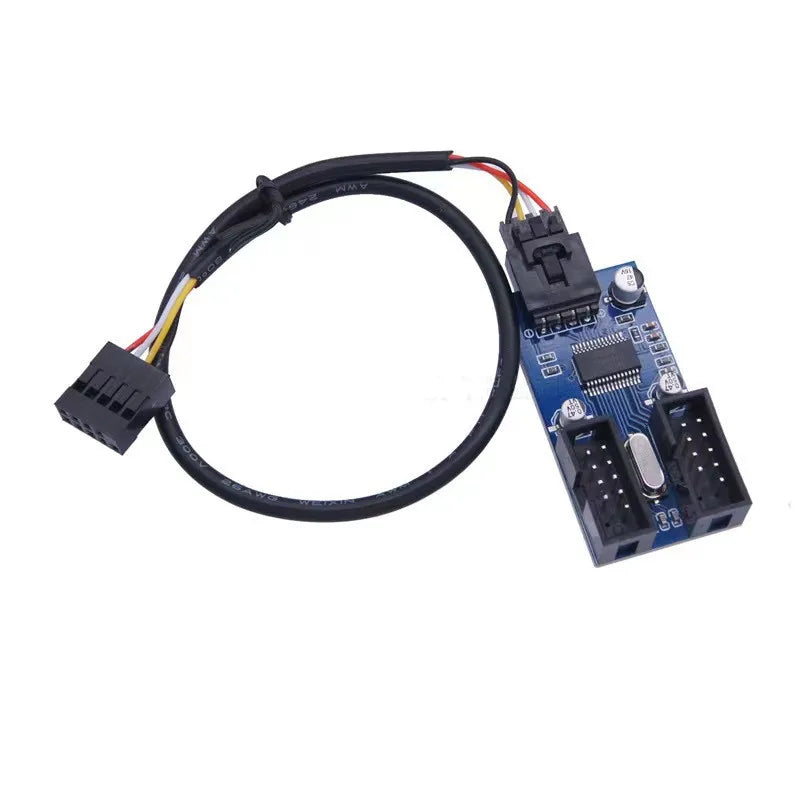

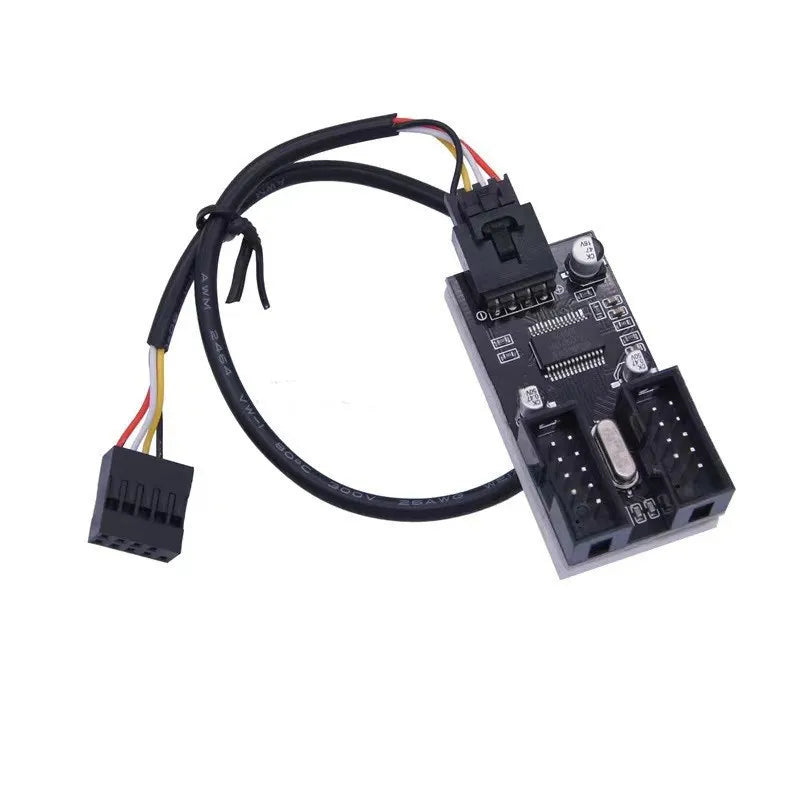

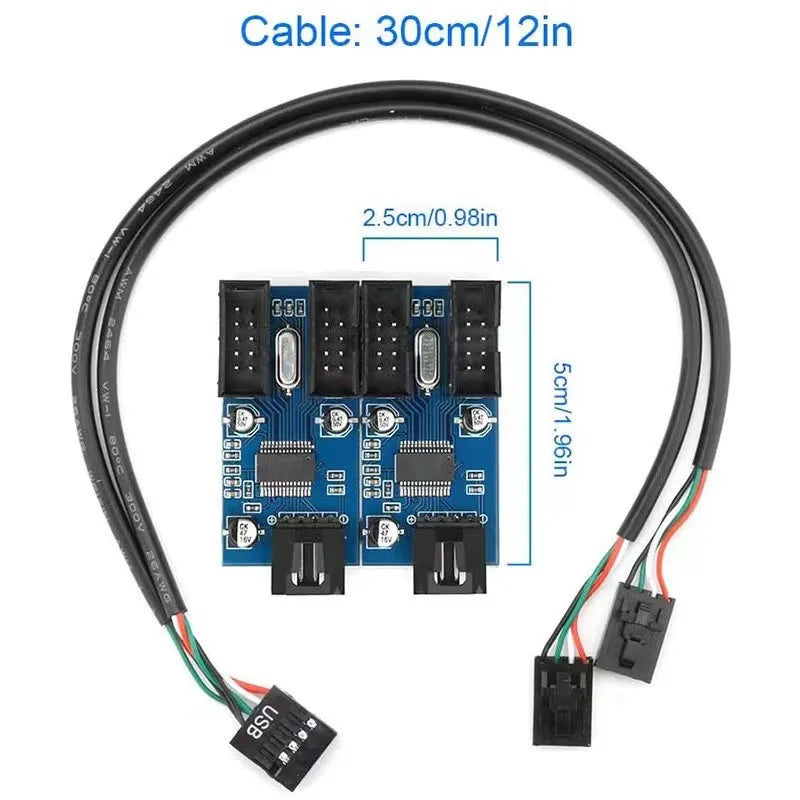

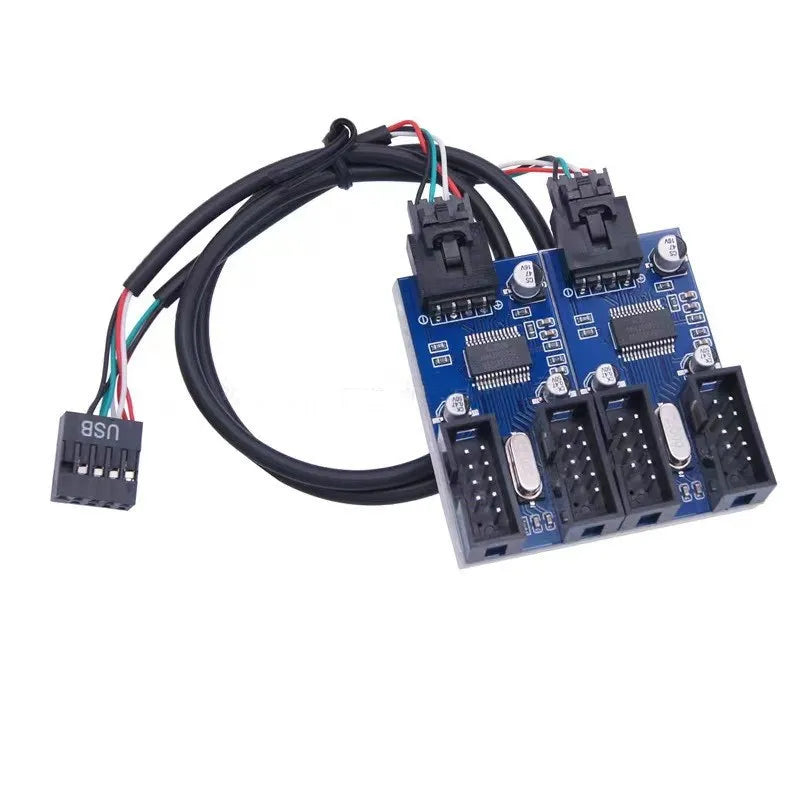

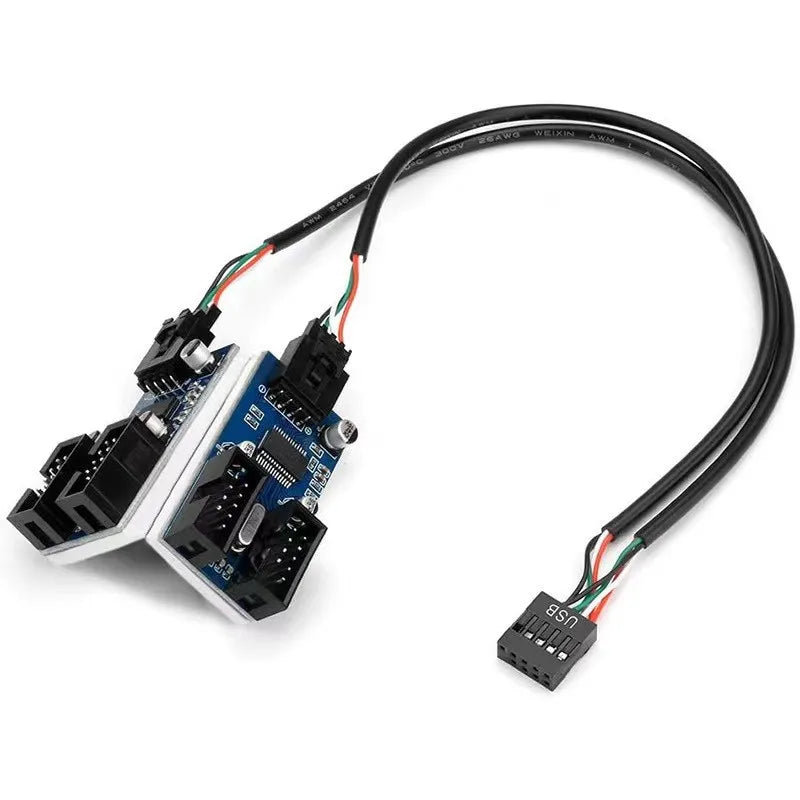

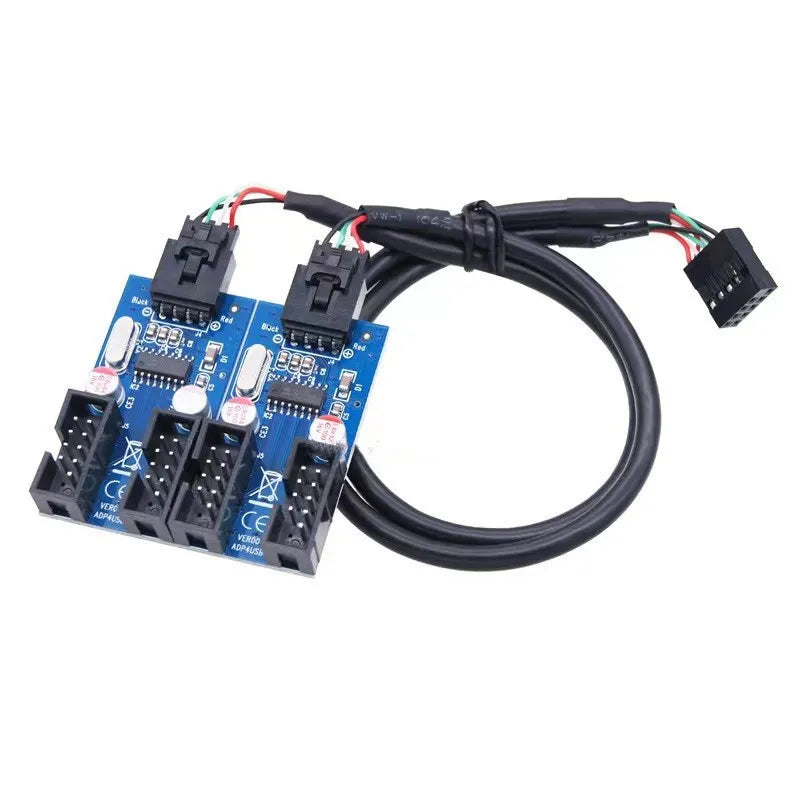

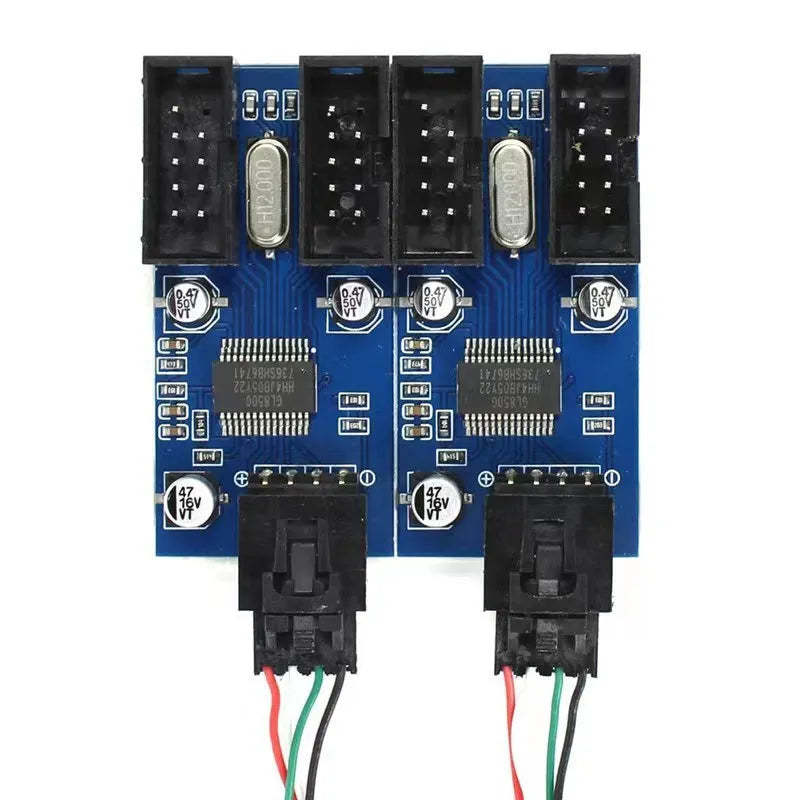

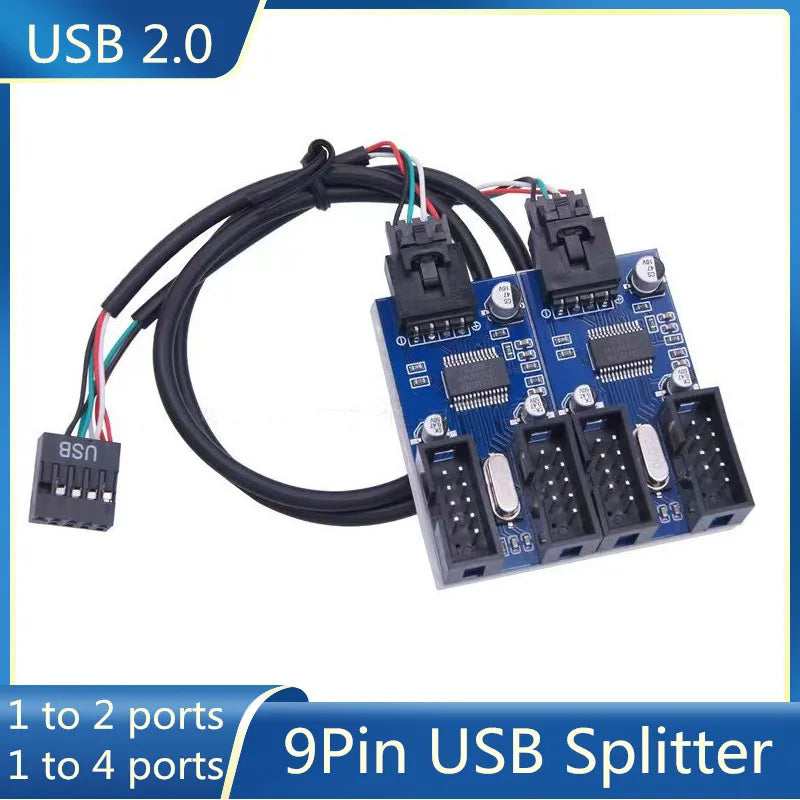

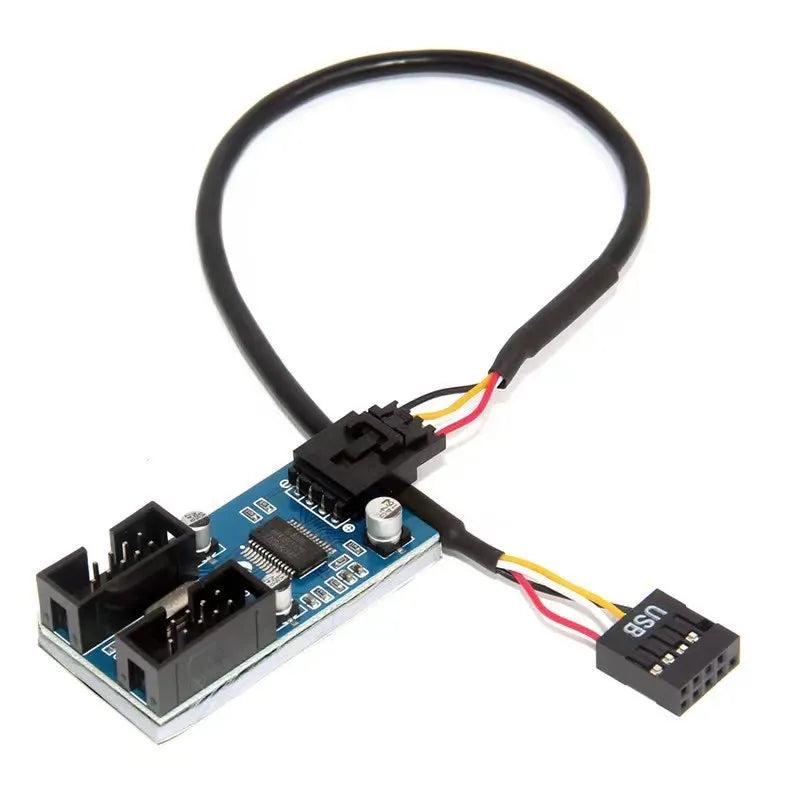

This is an internal USB 2.0 9-pin header splitter that expands a single motherboard USB header into two or four, letting you connect more front-panel ports and internal USB devices than the board provides on its own. It comes in 1-to-2 and 1-to-4 configurations, uses roughly 30 cm leads for flexible routing inside the case, includes a self-adhesive backplate so it can be fixed neatly to the chassis, and is built from plastic and metal. It works on any system, since internal USB headers are an operating-system-independent hardware standard, and is compatible with Windows, Linux and macOS machines.

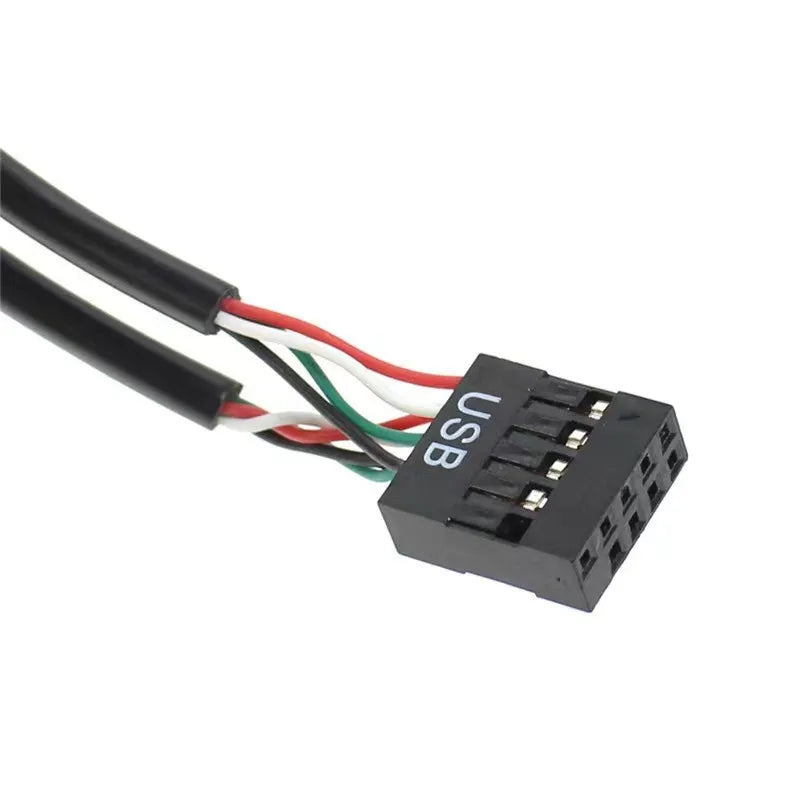

To understand the splitter it helps to know what a motherboard USB 2.0 header is. The standard internal USB 2.0 header is a 9-pin connector that carries two complete USB 2.0 ports: each port uses four signal and power contacts, which accounts for eight pins, and the ninth position is keyed, with one hole blocked or one pin missing, so a connector can only be fitted the correct way around. Cases route their front-panel USB ports to these headers, and many internal accessories, such as card readers, fan and lighting controllers, internal hubs and wireless modules, connect to them as well. Because a typical board provides only one or two such headers, builders frequently run out.

The splitter solves that shortage by wiring one upstream header out to two or four downstream headers in parallel. Crucially, it is a passive distribution device: it does not add a USB controller, so the new headers all share the bandwidth and power of the single header they branch from. This is the key fact that determines what the splitter is and is not suited to, as the performance section explains.

Performance and Real-World Limits

Because the downstream headers share one upstream USB 2.0 connection, the splitter is best understood as a way to connect more devices, not as a way to add more total bandwidth. USB 2.0 provides a shared pool of throughput, and every device on the splitter draws from the same pool. For the low-bandwidth devices that typically need internal headers, this is rarely a concern: front-panel ports used for charging, keyboards and dongles, all-in-one cooler pumps, RGB lighting controllers, fan hubs and Bluetooth or wireless modules each use very little bandwidth, and several can coexist comfortably.

The limit appears only when multiple devices try to move large amounts of data through the shared header at the same time, for example copying files simultaneously from two high-capacity drives plugged into front-panel ports that both trace back to the same split header. In that situation the available speed is divided between them. Power is shared in the same way, so a large number of power-hungry devices on a single split header can exceed what the header is designed to supply. Spreading high-demand devices across separate headers, and reserving the splitter for low-demand internal accessories, keeps everything running reliably.

For its intended role, enabling a build with more internal USB devices than the board has headers for, the splitter performs exactly as needed, and the shared-bandwidth behaviour is a non-issue for the controllers, lighting hubs and front-panel connections that make up the vast majority of internal USB use.

Step-by-Step Installation Guide

Installation is quick but demands care with orientation, since the pins are delicate.

• Power the computer down fully and switch off or unplug it at the mains before working inside the case.
• Locate a free USB 2.0 9-pin header on the motherboard. Do not confuse it with the larger USB 3.0 header, which has 19 or 20 pins in a different shape and is not compatible.
• Note the keying: the blocked hole on the connector aligns with the missing pin on the header, so the plug fits only one way. Never force it.
• Press the splitter upstream connector onto the header gently and squarely until seated.
• Connect your front-panel cable or internal devices to the downstream headers, observing the same keyed orientation on each.
• Peel the backing from the self-adhesive plate and fix the splitter to a clear surface inside the case so it does not rest against other components.
• Close the case, power on, and confirm the connected devices are recognised.

Troubleshooting and Maintenance

The few problems that occur with a header splitter are almost always mechanical.

A connected device does not work. First confirm the upstream connector is on a USB 2.0 header and not a USB 3.0 header, which it cannot use. Then check orientation: a connector fitted the wrong way, or shifted by one row of pins, will not function and can be corrected by reseating it using the keyed pin as a guide. Inspect for bent header pins, which are easy to straighten gently if caught early.

Two devices interfere or slow down. This is the shared-bandwidth behaviour; move one of them to a different header on the board so they no longer share the same upstream connection.

Intermittent connection. Ensure the splitter is seated fully and that its adhesive mount holds it still, since movement inside the case can loosen a partially seated connector.

The splitter needs no maintenance beyond keeping it clear of moving parts such as fans and ensuring its connectors stay seated. It has no electronics to fail, so a unit that is correctly fitted to a USB 2.0 header will simply continue to work.

Ecosystem and Integration

This splitter is aimed squarely at PC builders and upgraders whose motherboards do not provide enough internal USB 2.0 headers for everything they want to connect. Modern builds place heavy demand on these headers: liquid-cooler pumps and displays, addressable RGB and fan controllers, internal card readers, front-panel USB ports, and internal Bluetooth or wireless modules all compete for the one or two headers a board typically offers. By turning a single header into two or four, the splitter makes such a build possible without a new motherboard.

It integrates with any standard internal USB 2.0 header and any device or cable that uses one, regardless of operating system, since this is purely a hardware connection. The boundary to remember is that it is strictly a USB 2.0 9-pin device: it does not split the larger USB 3.0 headers, and it shares rather than multiplies bandwidth and power, so it is ideal for low-demand internal accessories and front-panel connections rather than for running several high-throughput devices at once. Used that way, it is a simple and reliable way to expand a build internal USB capacity.
