600mbps 2.4GHz 5GHz Dual Band USB Wifi Adapter Wireless | SAMAG

Technical Specifications and Architecture

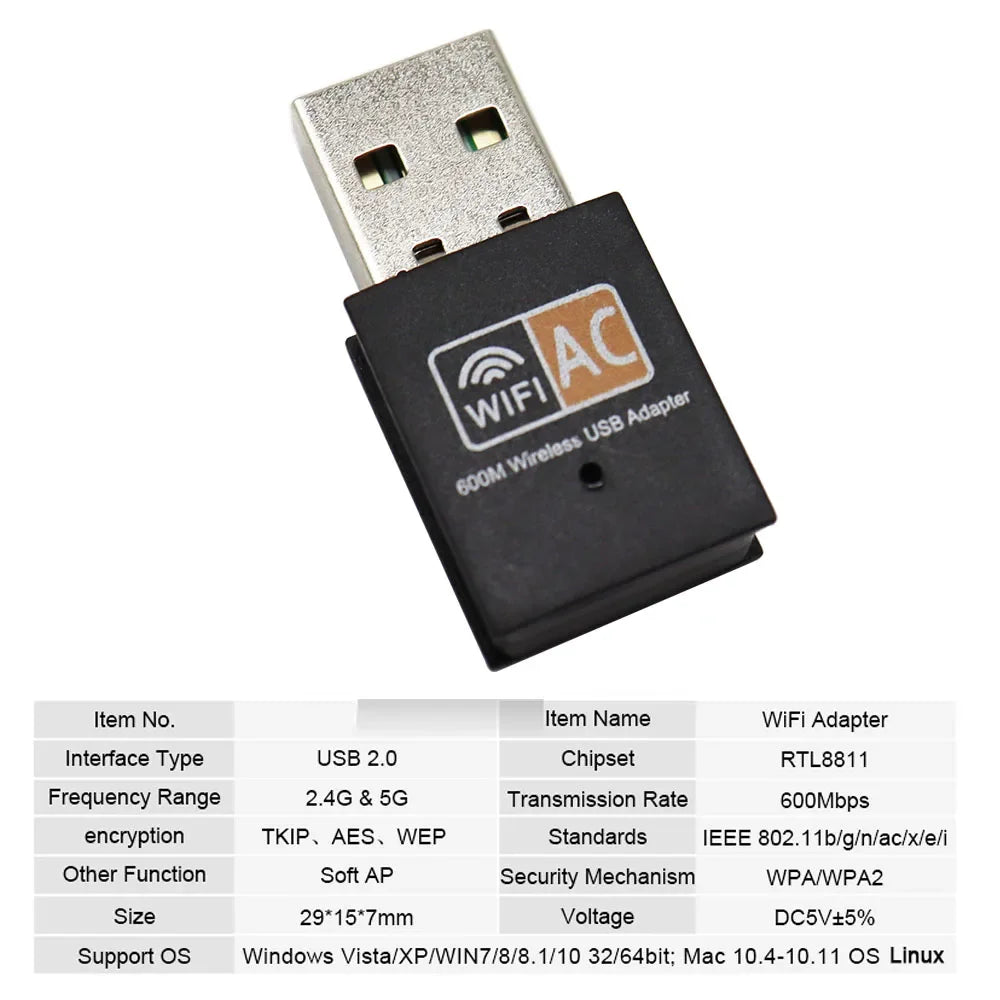

This dual-band USB Wi-Fi adapter adds 2.4 GHz and 5 GHz wireless networking to any desktop or laptop through a single USB port, in a compact body measuring just 29 by 15 by 7 mm. It is built around a Realtek RTL8811 chipset, supports the 802.11ac standard with backward compatibility for 802.11a, b, g and n, and is rated at a combined link speed of up to 600 Mbps. It connects over a USB 2.0 interface, transmits at up to 20 dBm of RF power, and supports WEP, WPA-PSK and WPA2-PSK encryption along with a soft access-point mode and WPS push-button setup. Drivers are provided for Windows XP through Windows 10, macOS 10.4 through 10.11, and Linux.

A USB Wi-Fi adapter is, in essence, a complete miniature radio. The RTL8811 chip combines the radio front end, which converts between analogue radio waves and digital signals, with the baseband processor that handles the 802.11 protocol, and it presents the result to the host computer as a standard network interface over USB. A small internal antenna is integrated into the housing. This single-chip, single-antenna design is what allows the adapter to be so small, and it also defines its capabilities: it is a one spatial stream, or 1x1, device, which sets the ceiling for how fast each band can run.

The 600 Mbps headline figure is the arithmetic sum of the two bands rather than a single simultaneous speed, and understanding this prevents disappointment. On the 5 GHz band the adapter reaches 433 Mbps using an 80 MHz channel under 802.11ac, and on the 2.4 GHz band it reaches 150 Mbps under 802.11n with a 40 MHz channel; 433 plus 150 rounds up to the advertised 600. In practice the adapter associates with one band at a time, so the meaningful figure is the speed of whichever band is in use, not the total. This is standard for the entire category of dual-band adapters and is not unique to this model.

Performance Benchmarking and Real-World Limits

Several factors place the real-world throughput of this adapter well below the 600 Mbps label, and all of them are inherent to a compact 1x1 USB 2.0 design rather than defects. The first is the difference between PHY rate and actual throughput: wireless protocols spend a large share of airtime on management and acknowledgement overhead, so usable throughput typically runs at roughly 50 to 65 percent of the negotiated link rate. A 433 Mbps connection on 5 GHz therefore delivers somewhere in the region of 200 to 300 Mbps of real data at close range.

The second factor is the USB 2.0 interface. USB 2.0 has a raw ceiling of 480 Mbps and a usable payload ceiling closer to 300 Mbps after protocol overhead. This is enough for the adapter real-world speeds, but it does mean the interface itself would cap any throughput beyond roughly 300 Mbps, so the adapter is well matched to its USB link rather than being held back dramatically by it. The third factor is the single internal antenna: a small antenna captures less signal than the larger external antennas found on bigger adapters, which reduces range and the speed sustained at a distance, particularly through walls. Portability is the trade-off the compact form factor makes.

Band choice shapes the experience more than any other setting. The 5 GHz band offers the highest speed and far less interference, because it has many non-overlapping channels and is less crowded by neighbouring networks and household devices, but its higher frequency means shorter range and weaker wall penetration. The 2.4 GHz band reaches further and passes through obstacles better, but it is slower and heavily congested by other Wi-Fi networks, Bluetooth, and microwave ovens. For streaming, video calls and gaming near the router, 5 GHz is the better choice; for a weak signal at the far end of a home, 2.4 GHz often proves more stable. The 20 dBm transmit power, equivalent to 100 mW, is the standard regulatory maximum for consumer Wi-Fi, so range is governed mainly by antenna size and environment rather than by output power.

Step-by-Step Installation Guide

Bringing the adapter online takes only a few minutes, with driver installation being the one step that matters most.

• Plug the adapter into a free USB port; a rear port on a desktop, or a port with clear space on a laptop, gives the antenna the best position.
• Install the driver for your operating system. Current versions of Windows may install a basic driver automatically, but for full speed and the soft access-point feature, install the Realtek RTL8811 driver supplied on the bundled disc or downloaded from the chipset maker.
• On Linux, install or build the rtl8811au driver appropriate to your distribution and kernel; many recent distributions include it.
• Once the driver is loaded, open your operating system network settings, select your wireless network, and enter its password.
• Prefer the 5 GHz version of your network name where one is offered, for the fastest connection at close range.
• To share a connection, enable the soft access-point mode in the driver utility to turn the computer into a Wi-Fi hotspot.

If WPS is supported by your router, pressing the WPS button on the router and triggering WPS from the adapter utility can connect the two without typing the password.

Troubleshooting and Maintenance Manual

Nearly every issue with a USB Wi-Fi adapter is one of four kinds: a missing driver, a band or congestion problem, a power-management interruption, or an encryption mismatch. The diagnostics below address each.

Adapter not recognised or no networks shown. This is almost always a driver issue. Confirm the correct RTL8811 driver for your exact operating system is installed; on a fresh Windows install the device may appear as an unknown device until the driver is added. Reseat the adapter in a different USB port to rule out a port fault.

Slow or unstable speeds. Check which band you are on: a 2.4 GHz connection in a crowded area will be slow regardless of the adapter. Move closer to the router, switch to the 5 GHz network, and keep the adapter clear of USB 3.0 ports and metal cases, which can radiate interference at 2.4 GHz. Remember that real throughput of a 1x1 adapter is a fraction of the link rate, so a few hundred megabits per second on 5 GHz is normal and healthy.

Connection drops intermittently. The usual culprit is USB power management. In Windows, disable USB selective suspend for the device and set the adapter power management to maximum performance, which stops the system from powering the radio down. Keeping the driver current also resolves many stability issues.

Cannot connect to a secured network. Match the encryption type: WPA2-PSK is the modern, secure choice and should be used wherever possible. WEP is included only for legacy equipment and is no longer secure, so avoid it on any network you control. The adapter does not support the newer WPA3 standard, so a router set to WPA3-only must offer a WPA2 or mixed mode for the adapter to join.

Maintenance is minimal: keep the driver up to date, keep the adapter physically clear of obstructions and strong interference sources, and remove it gently by the body rather than tugging on it. There are no serviceable parts inside.

Ecosystem and Integration

The adapter suits any situation where a computer lacks built-in wireless or needs an upgrade to dual-band. It is a natural fit for a desktop tower with no Wi-Fi card, for reviving an older laptop whose internal radio has failed, and for home-theatre or small-form-factor PCs that sit away from a wired connection. On Linux it can serve single-board computers and media centres where the rtl8811au driver is available. The soft access-point mode adds a second role, letting a wired desktop share its connection as a temporary hotspot for phones or other devices.

The most important compatibility boundary to plan around is the operating-system support. Driver coverage runs from Windows XP through Windows 10 and across Linux, but on the Apple side it reaches only to macOS 10.11 El Capitan. Modern macOS releases are not supported, so this adapter is not a solution for a current Mac. Within the Windows and Linux world, however, it is broadly compatible and driver installation is the only setup requirement. As a single-stream USB 2.0 device it is designed for everyday browsing, streaming and video calls rather than for saturating a gigabit internet plan, and it performs best when matched to that role and connected on the 5 GHz band at reasonable range.
