SPECIFICATIONS

After-sale Service: Shop's Three Guarantees

Application: For Commercial

Battery Included: no

Brand Name: JTZYJTZY

Double-sided Printing: No

High-concerned chemical: None

Interface Type: USB/Bluetooth/Ethernet/Serial

Max Paper Size: 104mm

Max. Resolution: 203dpi

Origin: Mainland China

Paper Feed Mode: Automatic and manual

Print Speed: 28ppm

Signal Connection Type: None

Supports Network Printing: Wired/Wireless

Type: ISBN Printer

Voltage: 100-240V

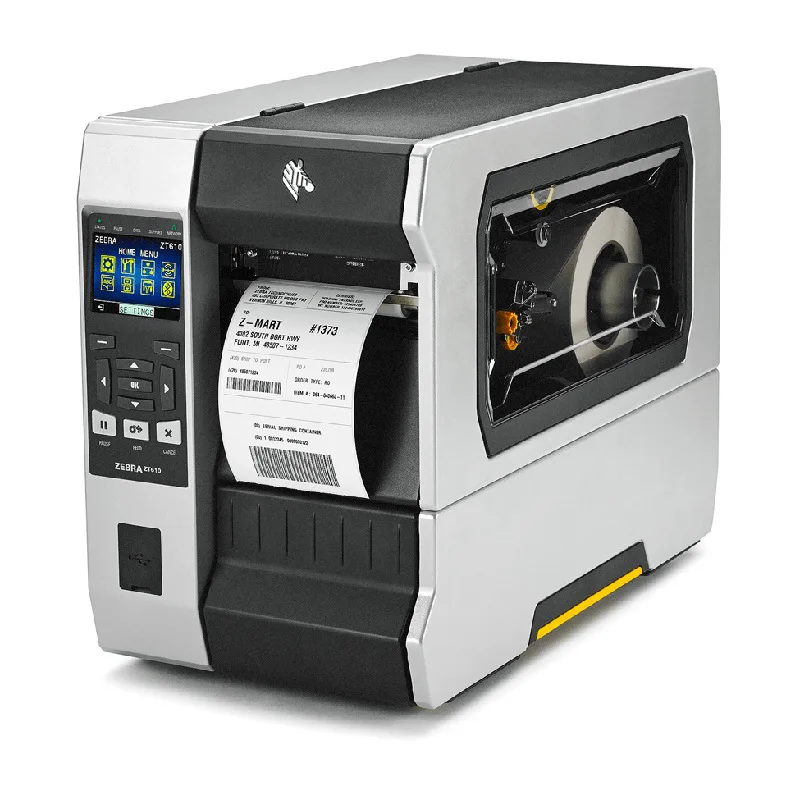

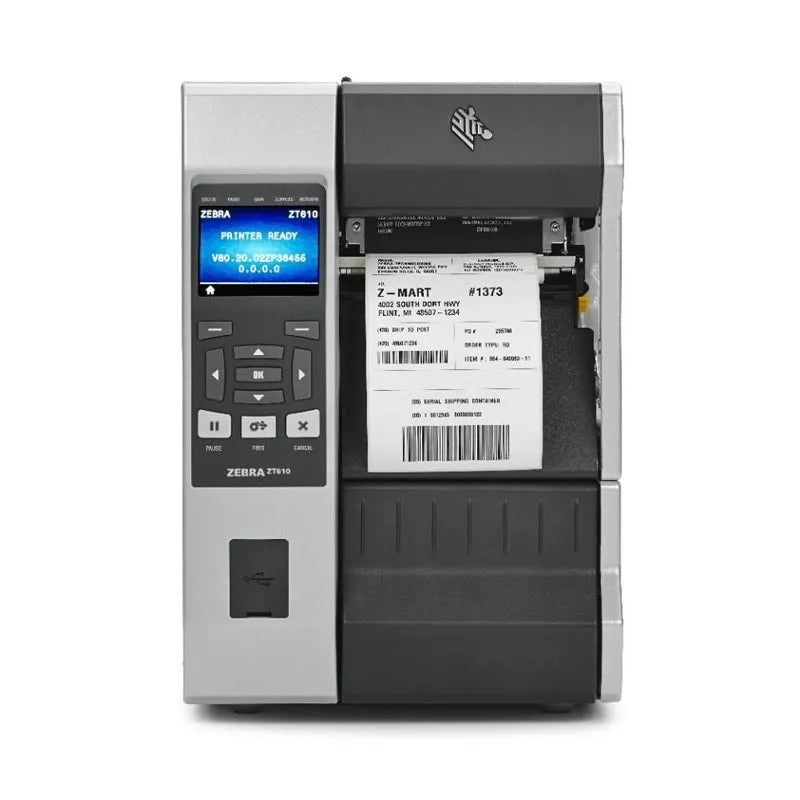

Zebra ZT610 detailed specifications and parameters

Standard features

●Print method: Thermal transfer and thermal printing

●Body design: Metal frame and foldable metal media cover with large clear windows

●Side-mounted consumable paths, simplified media and ribbon installation

●Print heads with Element Energy Equalizer Quality (E3) technology help to achieve excellent printing

●Communication: High-speed USB2.0, RS-232 Serial, Gigabit Ethernet, Bluetooth 4.0

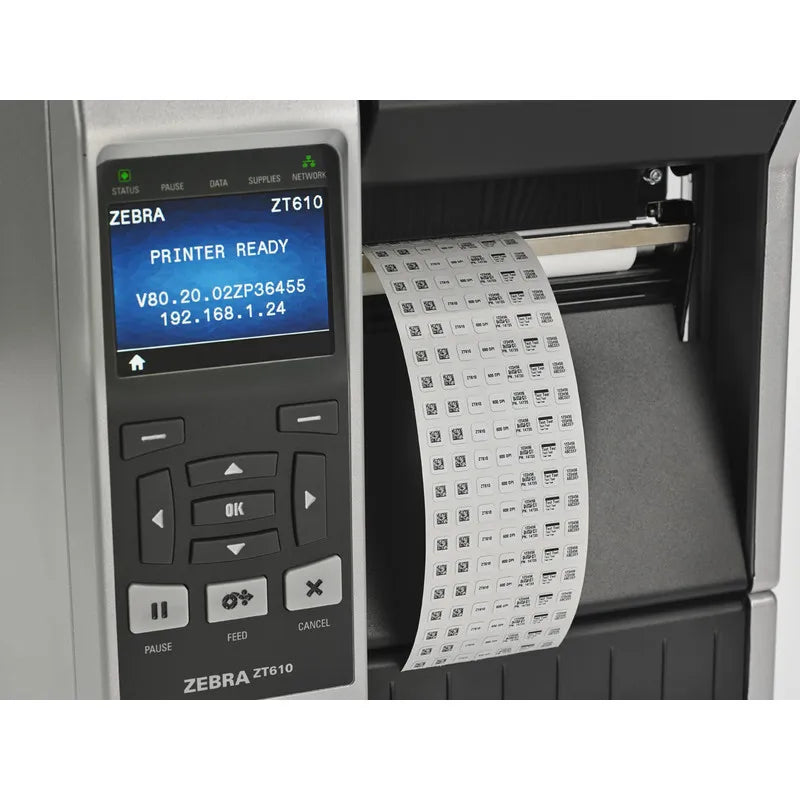

●Highly intuitive color display turns red when the printer is in an error state, allowing operators to confirm the status of the printer from a distance

●Simplified icon menu navigation system classifies settings as different logical function groups

Printing specifications

●Resolution: 203dpi (8dots/mm), 300dpi (12dot/mm) (optional), 600dpi (24dot/mm) (optional)

●Memory: 1GB RAM, 2GB Flash

●Maximum printing width: 4.09 inches/104 mm

●Maximum printing length: 203dpi: 3810mm; 300dpi: 3302mm; 600dpi: 762mm

●Maximum printing speed: 14 inches/second (356 mm/second)

●Medium sensor: transmission and reflective

Media Features

● Media Width (Label and Backsheet): 0.79 inches/20 mm to 4.5 inches/114 mm

● Minimum Label Length: 0.24 inches/6mm (Bringback mode); 0.51 inches/13mm (Strip mode); 0.12 inches/3mm (Tear mode); 1.5 inches/38mm (Knife Mode)

● Maximum Media Roll Size: 8 inches/203 mm, Core Outer Diameter 3 inches/76 mm Core Inner Diameter

● Media Thickness: 0.003 inches/0.076 mm to 0.009 inches/0.23 mm Knife Mode, 0.012 inches/0.305 mm Non-Knife Mode ● Media Type: Continuous paper, die-cut paper, notched paper, black label paper

●GAP detection standard: label spacing: 2-4mm, optimal spacing 3mm; notch: W6mm*L3mm; hole: 3mm diameter ●Medium printing error: ZT610-203DPI/ZT610-300DPI: Vertical: ±0.3mm (speed 4 inches and below), ±0.5mm (speed 5-6 inches), ±1.5mm (speed 6 inches or above); Horizontal: ±1.5mm ZT610-600DPI: Vertical: ±0.2mm (2-inch and below speed, tear/rewind/peel mode), ±0.4mm (2-inch and below speed, cutter mode), ±0.43mm (3-6-inch speed, tear/cutter mode), ±0.37mm (3-6-inch speed, roll/peel mode)

Charcoal belt characteristics

●Maximum outer diameter: 450 m: 3.2 inches/81.3 mm, core outer diameter 1 inches/25.4 mm Core inner diameter ●Standard length: 1476'/450 m

●Width: 0.79 inches/20 mm to 4.33 inches/110 mm

●Character belt setting: Charcoal belt ink is winding outward

Barcode pattern:

●1D barcode: Code 11, Code 39, Code 93, Code 128 with A/B/C subset and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabarand Planet Code

●2D barcode: Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, TLC 39, MicroPDF RSS-14 (and additional code), Aztec
