SPECIFICATIONS

Brand Name: Yeego

Capacity: 33L

High-concerned chemical: None

Origin: Mainland China

Refrigeration Type: Thermoelectric Refrigerator

Shelf Quantity: < 4 Layers

Temperature Control: Electronic Temperature

Temperature Zone: Single-Zone

Product Overview

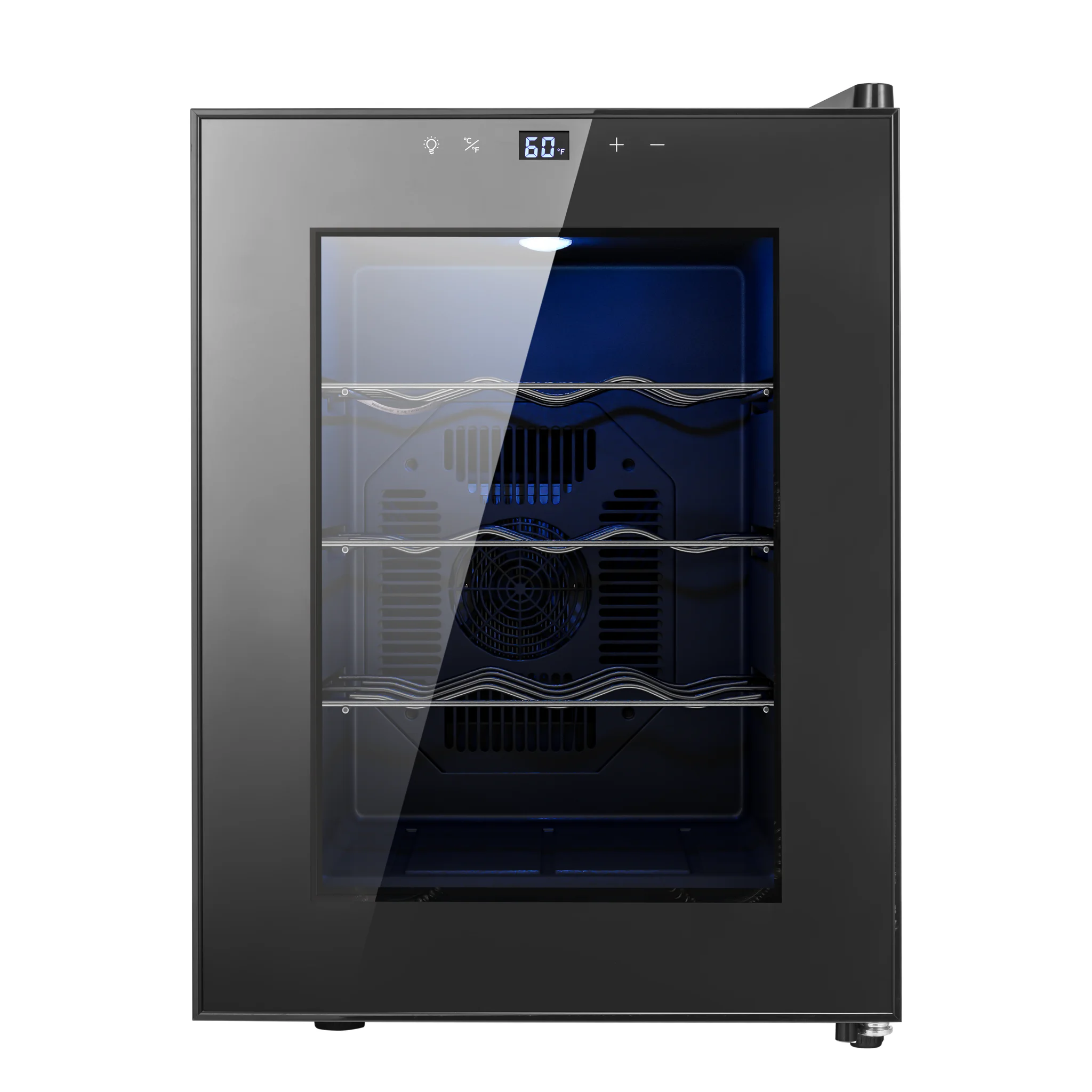

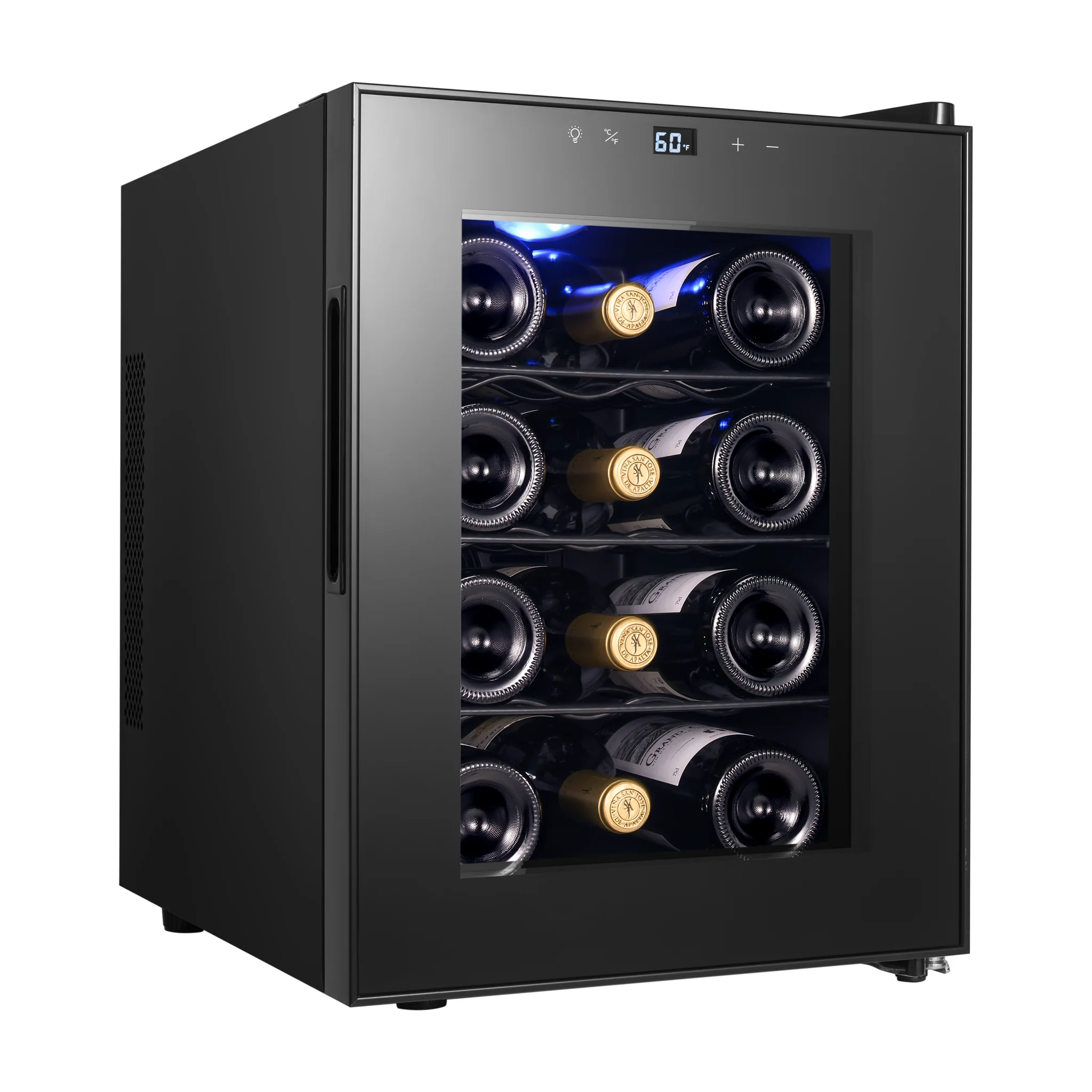

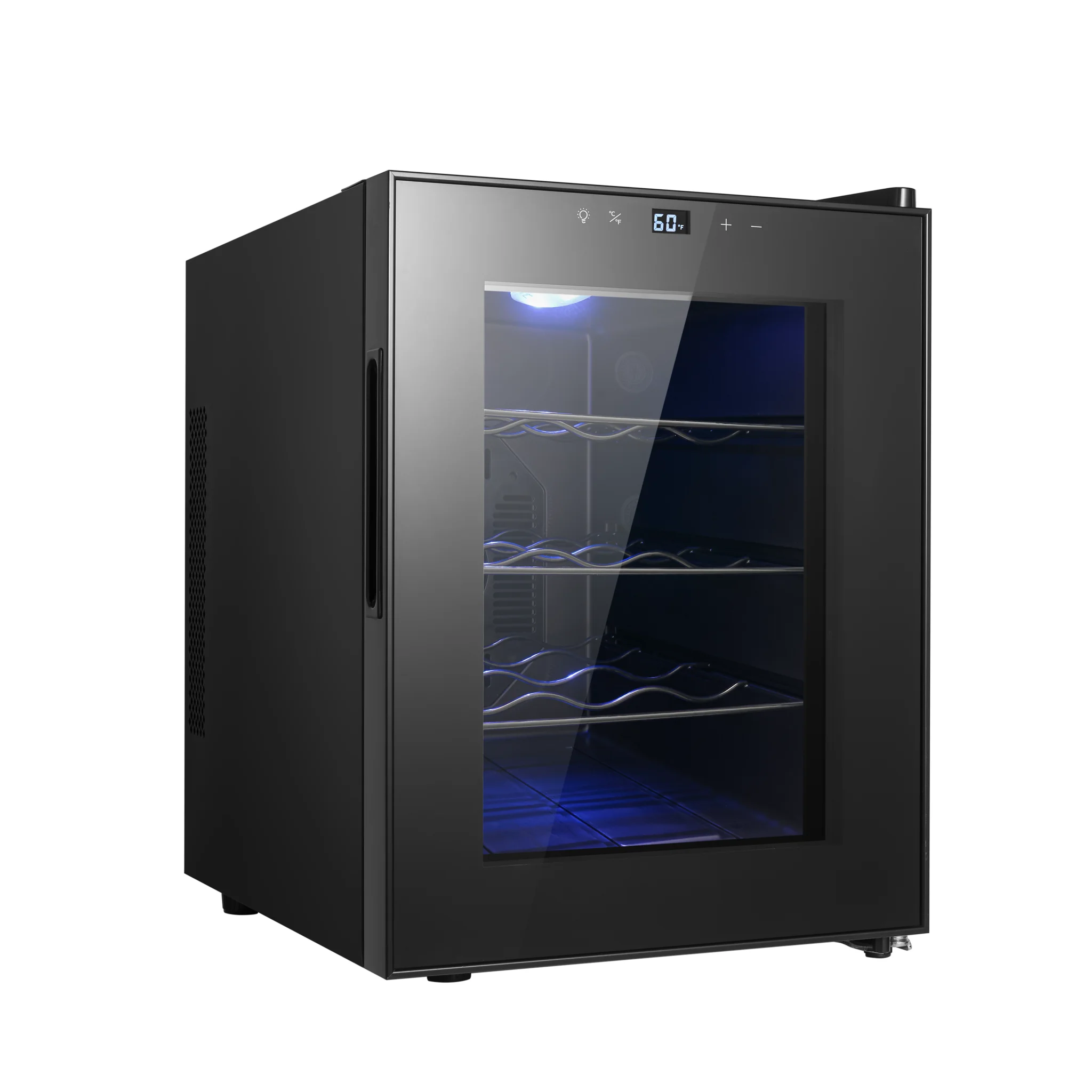

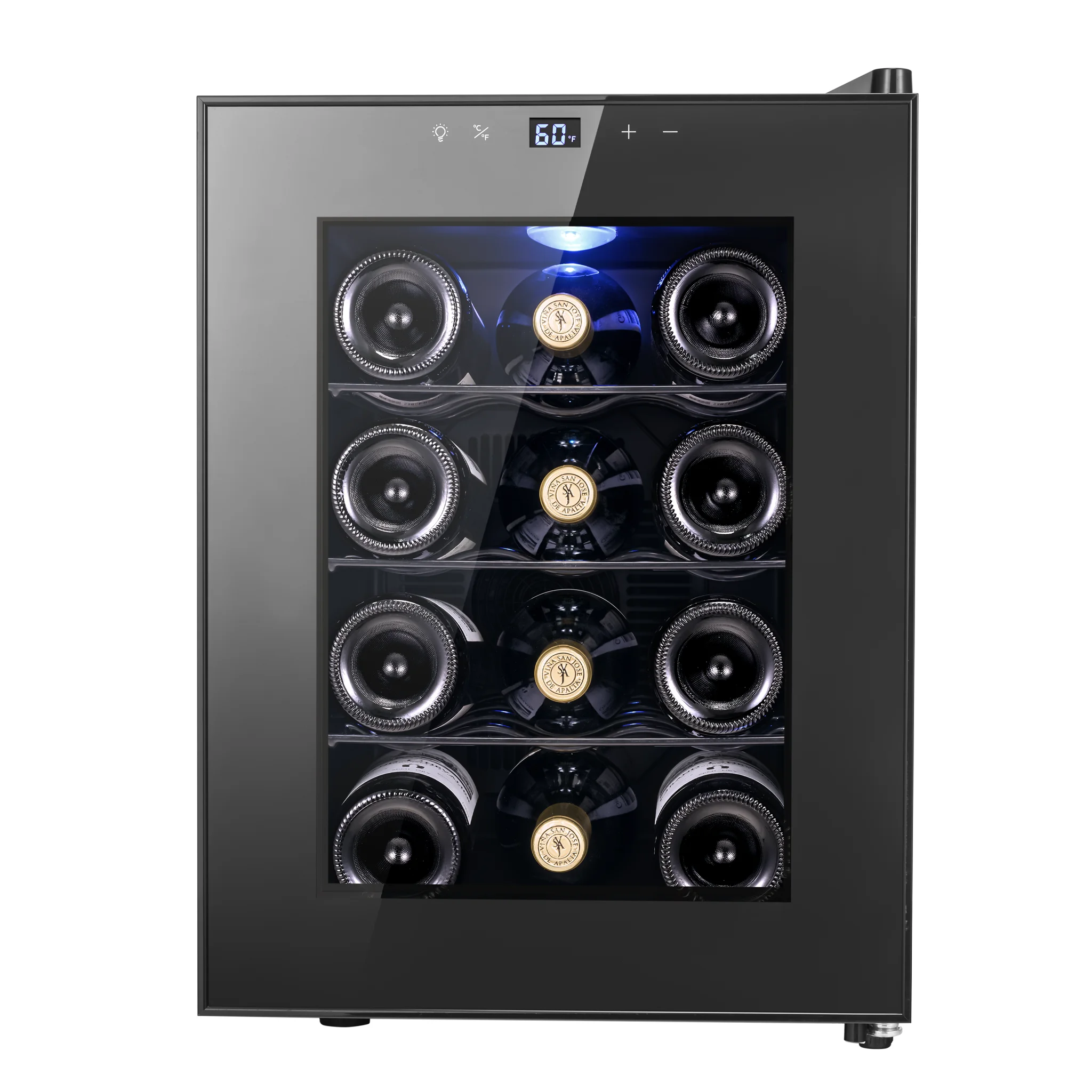

This CW-33FD single temperature zone semiconductor red wine constant temperature wine cabinet is designed with a compact vertical body specifically for home living rooms, dining cabinets, study rooms, and small apartment units. With a capacity of 33L, it can stably store 12 standard red wines. Adopting semiconductor refrigeration mode, no compressor operation vibration, electronic precise constant temperature control, certified by CETL and DOE North America, compatible with 115V 60Hz American standard voltage, silent operation does not disturb the home environment. It can store red wine at a constant temperature or be embedded in a dining cabinet for soft decoration display. Small constant temperature wine cabinets are preferred for home wine collection.

List of complete core parameters

Basic volume, electrical and certification parameters

Product model: CW-33FD; Customer customized model: YG-CW-33FD

Temperature zone specification: single temperature zone; Maximum bottling capacity: 12 standard red wine bottles

Effective volume: 33L (1.17 cubic feet)

Climate type: N, SN; Rated operating noise: 38dB, ultra quiet operation

Rated power: 60W; voltage/frequency: 115V/60Hz (North American standard power supply)

Authoritative certification: CETL, DOE energy efficiency certification

Annual power consumption: (kw. h/year) Low power consumption Long term operation Energy saving

Temperature control range: 5-18 ℃ (40-65 ℉), factory default setting of 54 ℉

Cooling method: Semiconductor thermoelectric cooling

Overall dimensions, weight, and packaging logistics

Product dimensions (width x depth x height): 345 x 490 x 470mm

Net weight: 13kg; outer packaging size: 440 × 575 × 540mm

Gross weight: 15kg

Packaging Solution: Customized Packaging for Customers

Container loading capacity: 40HQ can load 480 units without palletizing, highlighting the cost advantage of bulk export logistics

Detailed explanation of refrigeration system and temperature control function

1. Silent semiconductor refrigeration system, no vibration and no damage to the liquor

The whole machine adopts thermoelectric semiconductor refrigeration chips for cooling, abandoning the traditional compressor structure. It operates without mechanical vibration and will not disturb the sedimentation of the wine in the bottle. It can be stored for a long time without damaging the taste of the wine;

Supporting independent dual fans for heat dissipation and cooling: KD12225LS heat dissipation fan, TD9020LS cold dissipation fan, with uniform cold air circulation and consistent temperature throughout the box; No refrigerant injection, environmentally friendly and safe, no leakage hazards for home use.

2. Electronic precision digital temperature control, temperature can be freely switched

Electronic control solution: integrated electronic temperature control, digital electronic screen display, integrated display screen on the door body, allowing for intuitive viewing of real-time temperature upon opening the door;

Power board model: CD-120-PJ1, stable and reliable operation;

Support one click free switching between Celsius/Fahrenheit, adapted to the usage habits of overseas users;

Single channel NTC temperature sensing probe real-time collects temperature inside the box, with minimal temperature control fluctuations; Equipped with power-off memory function, it automatically uses the original temperature setting when restarting in case of unexpected power failure, without the need for repeated debugging.

3. Humanized configuration of lighting and operation

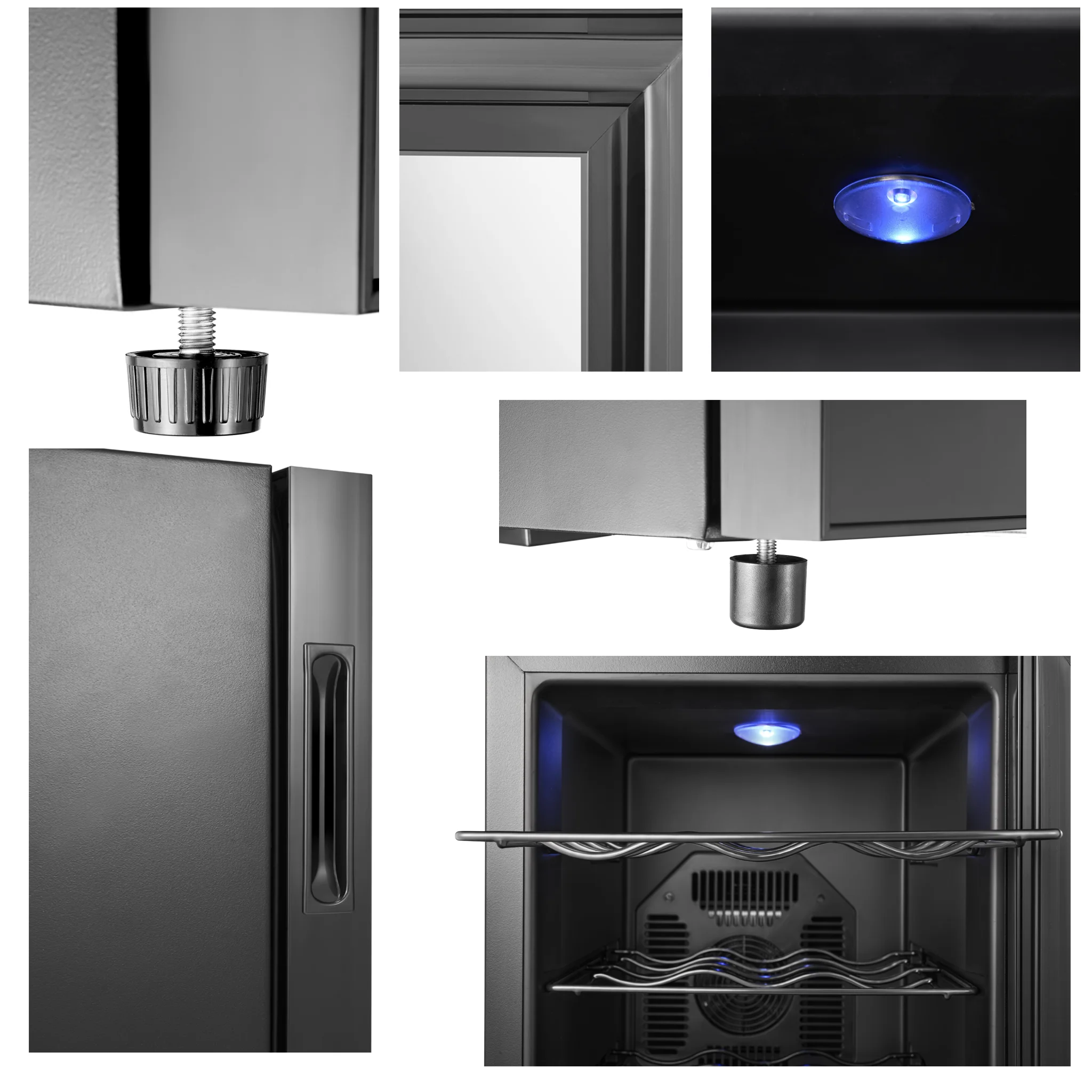

The box is equipped with a blue LED ambient light, which can be independently controlled by touch buttons to turn on and off the light. It provides a strong atmosphere for picking up wine at night and can also light up to display wine products;

No overheating alarm, door opening alarm, WIFI remote control, deodorizer, automatic defrosting, solenoid valve, temperature locking function, simplified electronic components, lower failure rate, long-term stability and durability for household use.

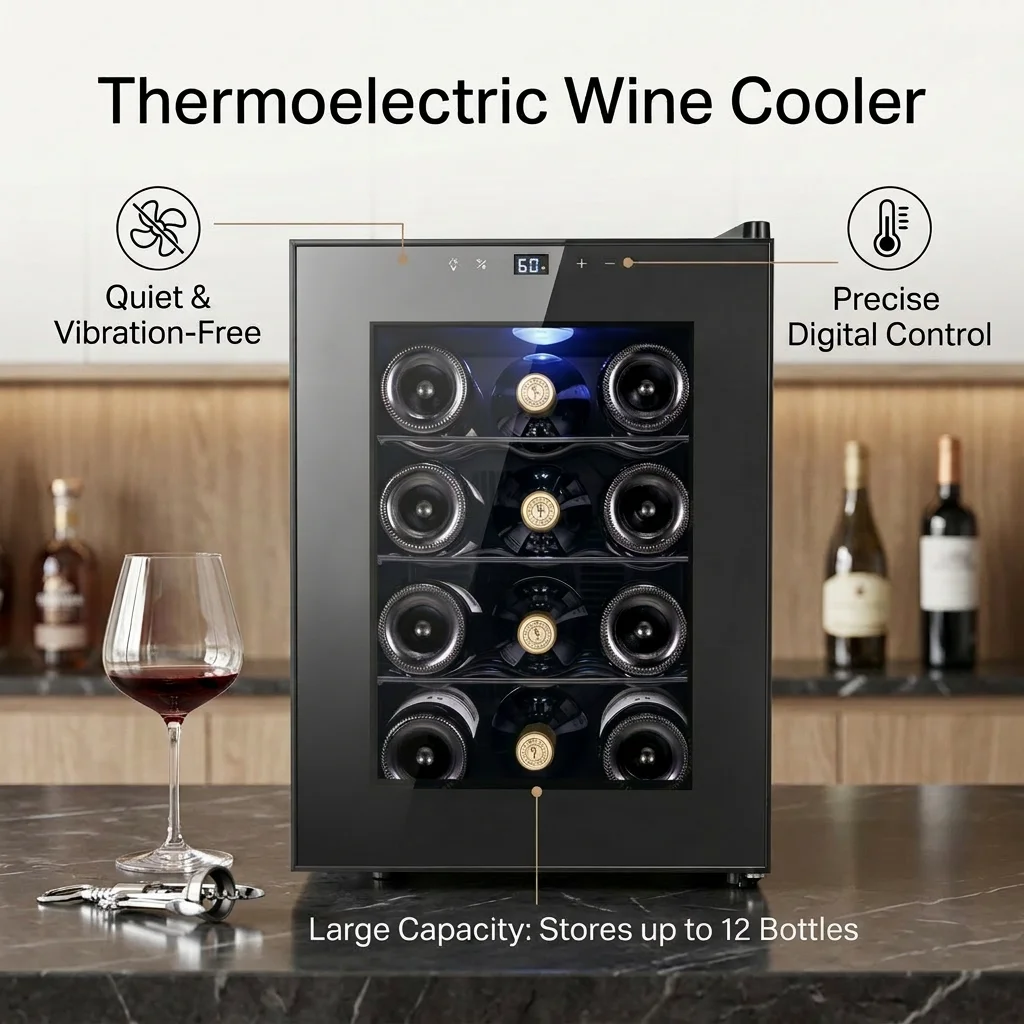

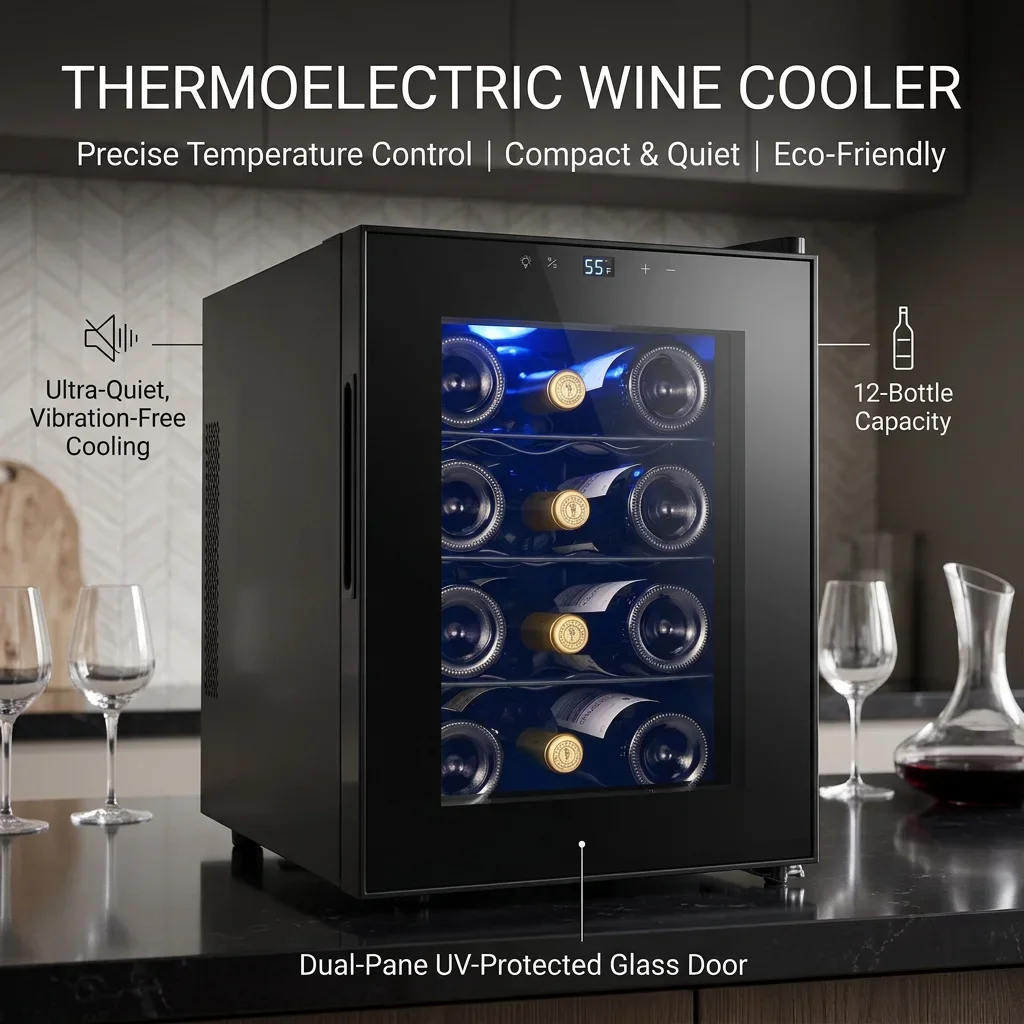

Core advantages of the product

【 Zero Vibration Collected Red Wine 】 Semiconductor thermoelectric refrigeration, no compressor mechanical vibration, will not break up the sediment of red wine, suitable for long-term aging and storage of fine wine;

Ultra quiet and home friendly: The operating noise is as low as 38dB, and when placed in the living room, bedroom, or dining cabinet, there is no noise interference during nighttime operation, which does not affect home rest;

【 Compact and Versatile Embedding 】 The body is exquisite and compact, with a concealed handle and no outward protrusion design, which can be directly embedded into dining cabinets, cabinet spaces, small apartments, and exclusive wine cabinets;

Full compliance certification in North America: CETL+DOE dual authoritative certification, 115V American standard voltage, directly used in the North American market, no need for secondary testing;

[Blue Light Luxury Display] Built in blue LED ambient light, touch switch controllable, not only a constant temperature wine storage device, but also a soft decoration display ornament in the living room;

Thick foaming and strong cold locking: 36.5mm thick cyclopentane foam layer, excellent thermal insulation and cold locking performance, 60W low-power operation, low electricity cost for year-round use.

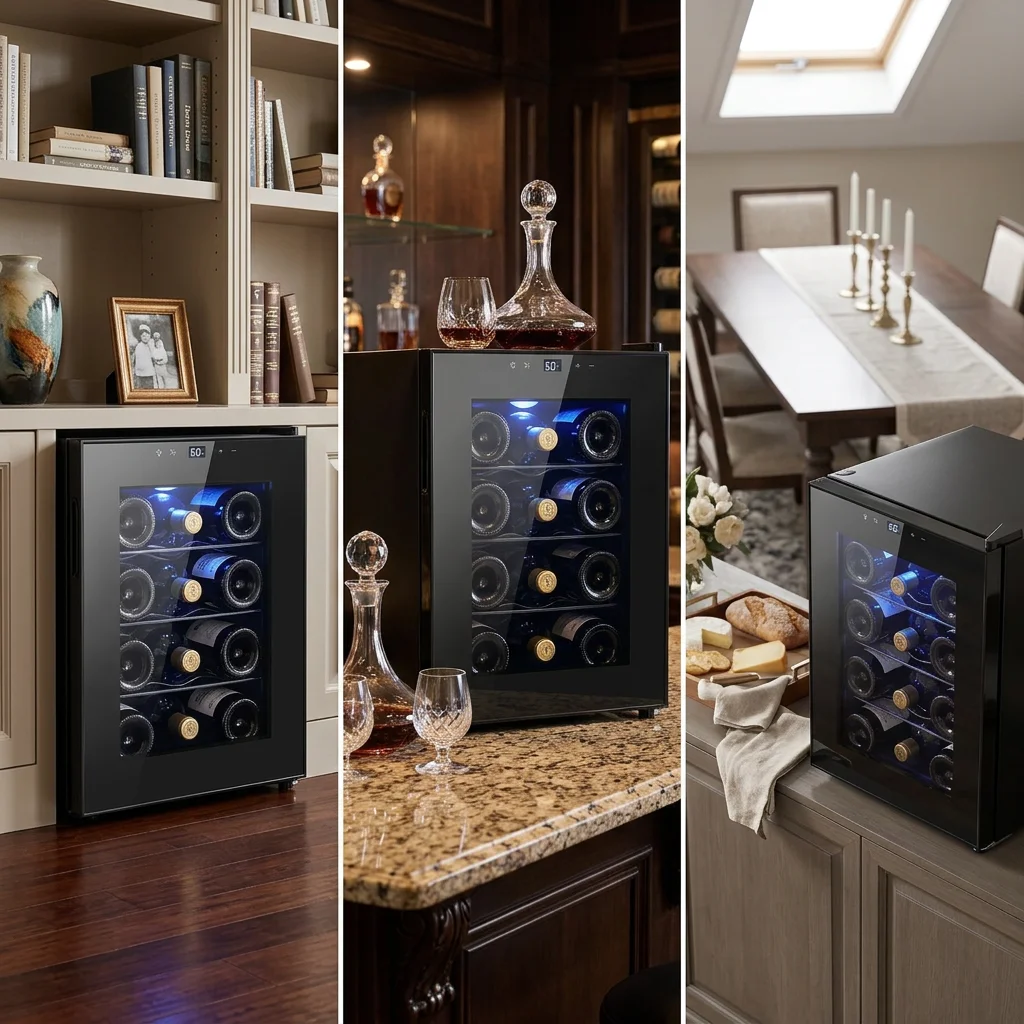

Applicable scenarios

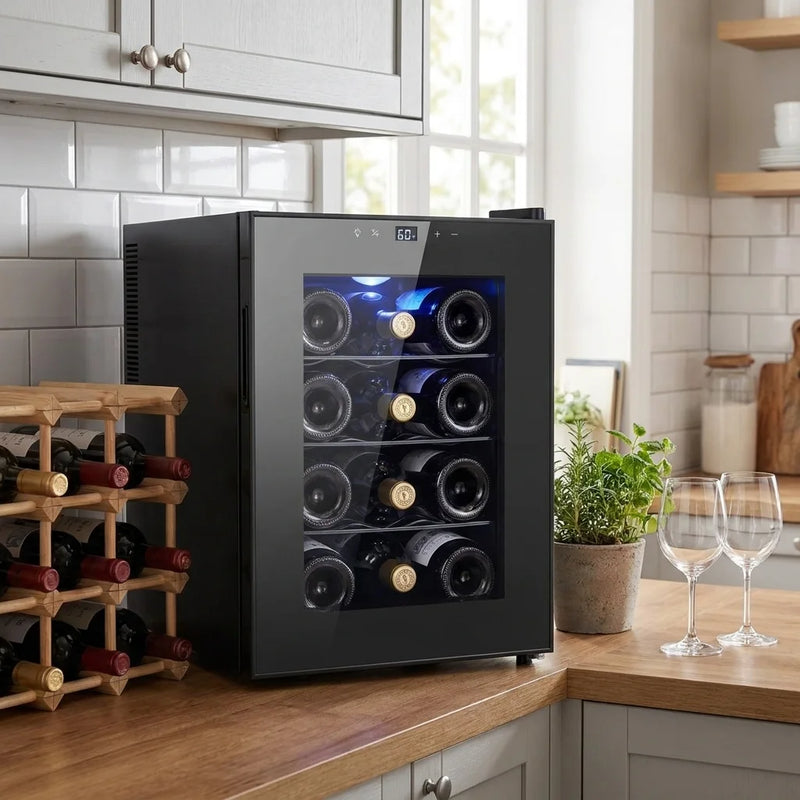

🏠 Home use scenarios: small-sized apartments, villa dining cabinets, living room wine areas, study rooms, collecting bottled wines such as dry red, dry white, sparkling wine, etc;

🏨 Homestay/room amenities: boutique homestays and resort hotels come with small temperature controlled wine cabinets to enhance the overall level of room amenities;

🍷 Red wine distributors and home retailers, catering to the independent storage needs of overseas households.
