Processors

Intel Celeron J1900, 2M Cache, 4 cores 4 threads, 2.00GHz, up to 2.42GHz

Intel Celeron N2830, 1M Cache, 2 cores 2 threads, 2.16GHz, up to 2.41GHz

Memory Types

SODIMM-DDR3L 1.35V RAM, max 8GB

Hard Disk Types

1x mSATA SSD

support extra 1x 2.5 inch SATA HDD/SSD

Network Interfaces

intel i226V 2.5G network card

N2830 has intel i211 ethernet or intel i226V two version,

Expansion

1x Mini PCI-E slot for WiFi/Bluetooth/3G/4G LTE module,

1x SIM card slot on-board

buyer need to add WiFi/3G/4G LTE module please contact us.

Features

Support WOL, PXE, Automatically power on after power loss

OS Support

Windows, Linux, Ubuntu, CENTOS, EXSI, Pfsense, OPNsense, OpenWRT

USB Ports

J1900/N2830: 1x USB2.0, 1x USB3.0

Display Port

1x VGA,

1x HDMI

Construction

Fanless passive cooling

Case

Aluminum Case

Dimension

135x129x40mm

Netweight

1.0Kg

Operating

Temperature

-20℃ to +60℃

RH

5%~95% @30℃，Non-condensing

Power Adapter

Input AC100-240V, Output DC12V-3A

Package List

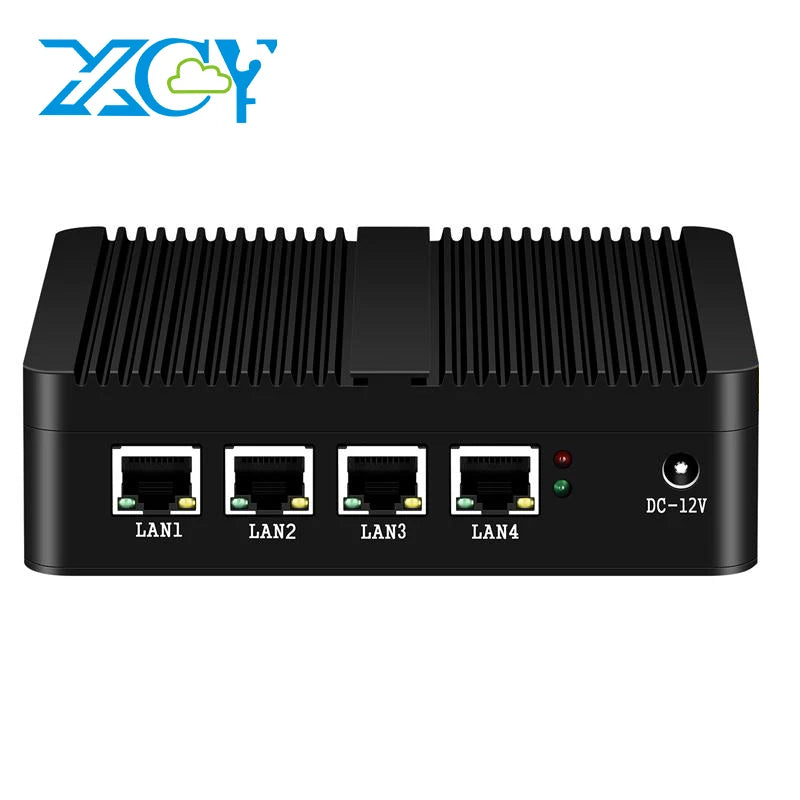

1x X30A machine

1x AC Adapter

1x Power cord ( EU AU US UK type plug shipped according to buyer’s address )

1x User manual
