CPU options

intel Core i3-6167U, 2 cores 4 threads, 3M Cache, 2.70GHz
intel Core i5-7267U,2 cores 4 threads,4M Cache,3.10GHz, up to 3.50GHz
intel Core i5-8350U,4 cores 8 threads,6M Cache,1.70GHz, up to 3.60GHz
intel Core i3-10110U,2 cores 4 threads,4M Cache,2.10GHz, up to 4.10GHz
intel Core i7-10710U,6 cores 12 threads,12M Cache,1.10GHz, up to 4.70GHz

intel Core i3-1215U, 6 cores 8 threads, 10M Cache, up to 4.40GHz

intel Core i5-1235U, 10 cores 12 threads, 12M Cache, up to 4.40GHz

intel Core i5-1335U, 10 cores 12 threads, 12M Cahce, up to 4.60GHz

Memory Types

i3-6167U i5-7267U i5-8350U : SODIMM DDR4,1 slot
i3-10110U i7-10710U: SODIMM DDR4, 2x slots

i3-1215U, i5-1235U, i5-1335U: SODIMM DDR5, 1 slot

Hard Drive Types

Support 1x M.2 NVME SSD 2280

support 1x 2.5 inch SATA

Graphics

Processor Graphics

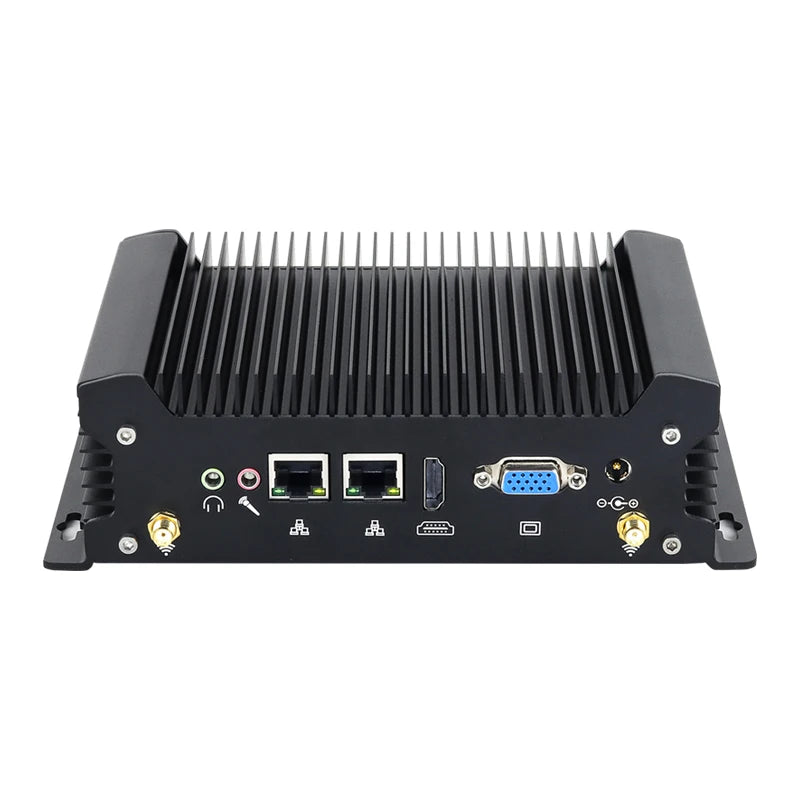

Ethernet

2 x GbE RJ45 Realtek 8111H,

support Wake on LAN, PXE

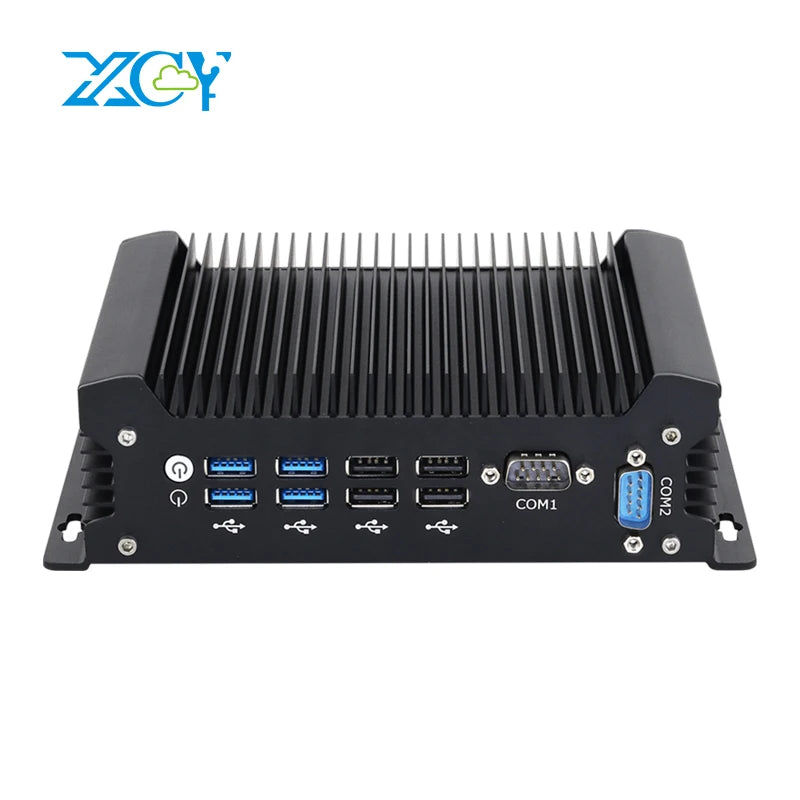

USB

4 x USB3.0, 4 x USB2.0

COM

2 x DB9 RS232

Display

1 x HDMI

1 x VGA

Support independently video output

Audio

1x Earphone IN,

1x Microphone

Wireless

1x Mini PCIe slot for WiFi/BT/4G LTE

1x SIM card slot on-board

OS Support

Windows 10/11

Ubuntu

LINUX

Others

Support Wake on LAN, PXE, Watchdog, Auto power on after power loss

Working Voltage

DC12V-19V

Dimension

193.9 x 127 x 57.2 mm

Netweight

1KG

Storage Temperature

-30℃ to +70℃

Working Temperature

-20℃ to +60℃

Relative Humidity

10%~90% @30℃，non-condensing

Cooling

Fanless passive cooling

Package

1x Mini PC
1x AC Adapter
1x Power Cord
1x User guide

Please NOTE: mini PC comes without 4G LTE module installed, please contact us if you need to add to mini PC.
