SPECIFICATIONS

Brand Name: SLMPLEFUN

Certification: RoHS,CE,ce,FCC,ROHS

Choice: yes

Control method: WiFi + ewelink 2.4GHz + Voice

Current: 10A

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Features: Group control

Features2: Timing function

Features3: Inching mode

Features4: Modify the switch into a WiFi smart switch

High-concerned chemical: None

Is Smart Device: Yes

Item Type: SWITCHES

Material: Plastic

Max current: 10A

Model Number: ew7484

Origin: Mainland China

Receiver module size: 64*48*16 mm

Remote battery: 2*AAA battery(Not included)

Remote size: 115*33*14 mm

Support Platform: Android 5.0 & IOS 10 or higher

Switch Type: APP Control

Warranty: 1 year ,Normal service life: 5 years

WiFI standard: 802.11 b/g/n 2.4GHz

Work with: Alexa Google Home IFTTT

Working voltage: DC 7-48V or USB 5V

semi_Choice: yes

NOTE
●Fast delivery within 24 hours,AliExpress standard logistics free shipping.Faster logistics.
●Hello, friend, thank you for visiting our store. In order to meet the needs of different customers, our purchase page has multiple options to choose from.
please buy according to your own needs, thank you.



What is eWeLink
eWeLink is an APP platform that supports multiple brands of smart devices, including Sonoff. It uses 2.4GHz Bluetooth technology. It realizes the connection between diverse smart hardware and integrates popular smart speakers, such as Amazon Alexa and Google Home. Additionally, eWeLink partners with IFTTT as the ultimate home control hub.

---

Advantages

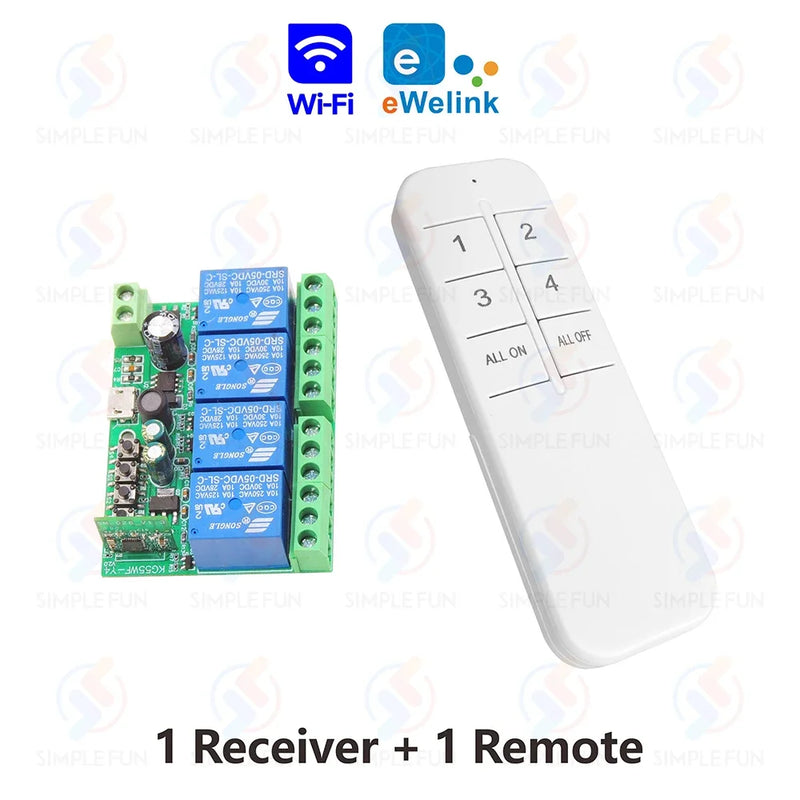

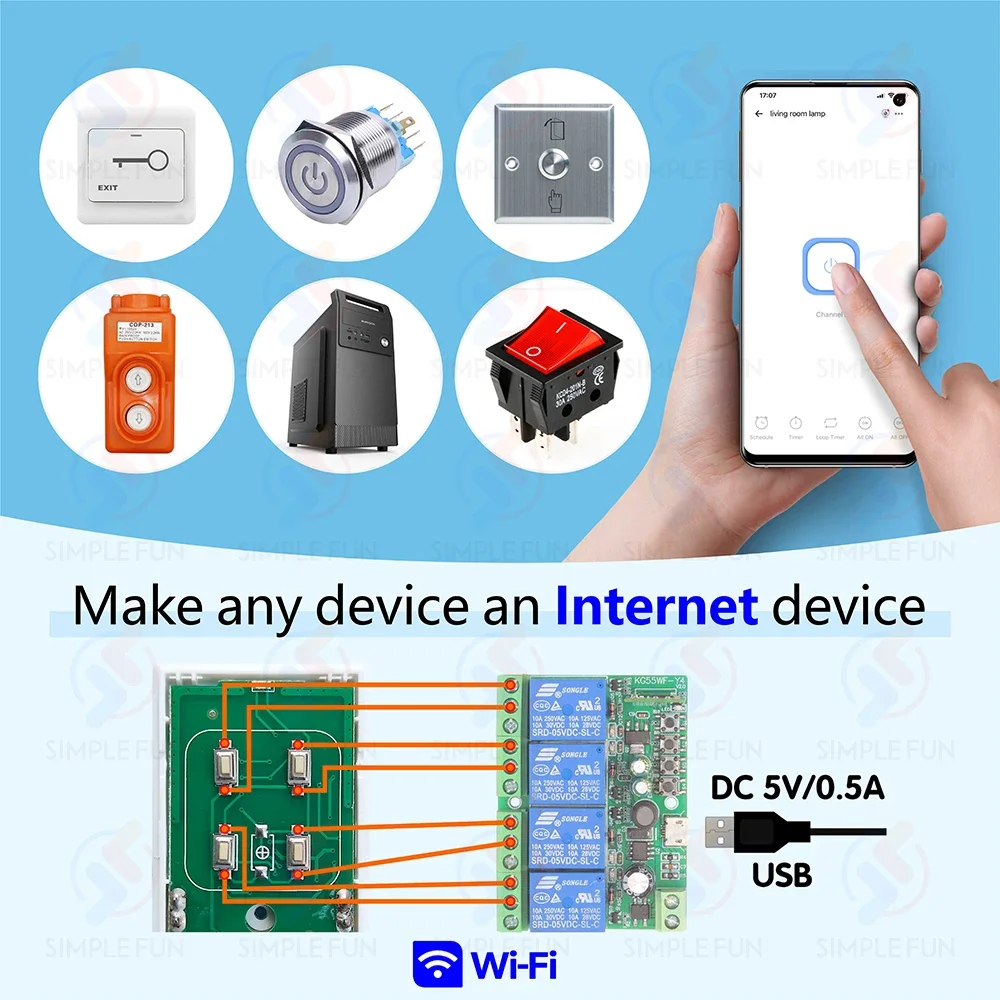

▶Make any device an Internet device
•Wide range of applications, can be used to connect lights/DC and AC motors/garage doors, etc.
•It can be used to transform button switches or remote controls to turn the device into an Internet device and achieve intelligence.

▶Two input power modes
USB 5V or DC 7-48V power supply are available

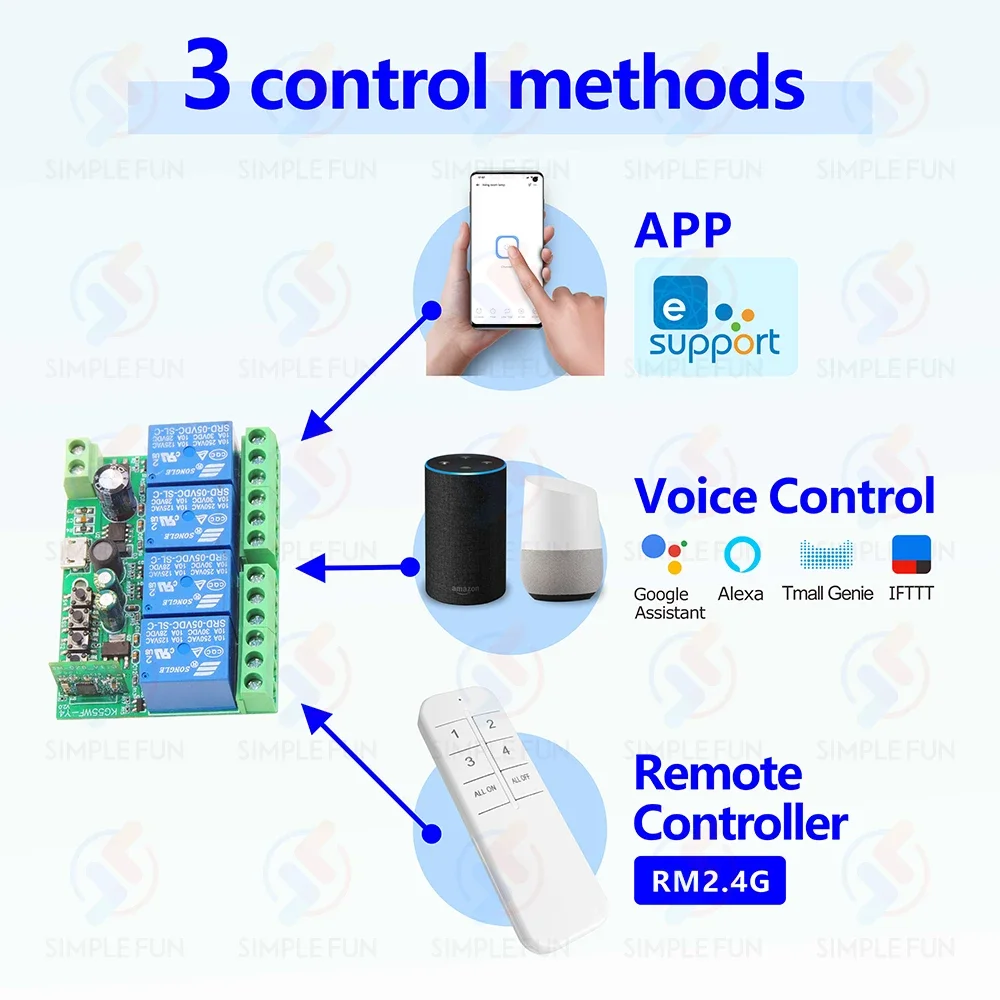

▶3 control methods
It supports 3 control methods:
•WiFi ewelink APP control
•2.4GHz remote controller
•Voice control.

▶APP control:
After pairing with the APP, you can control this switch (wifi function) on the ewelink APP anytime and anywhere

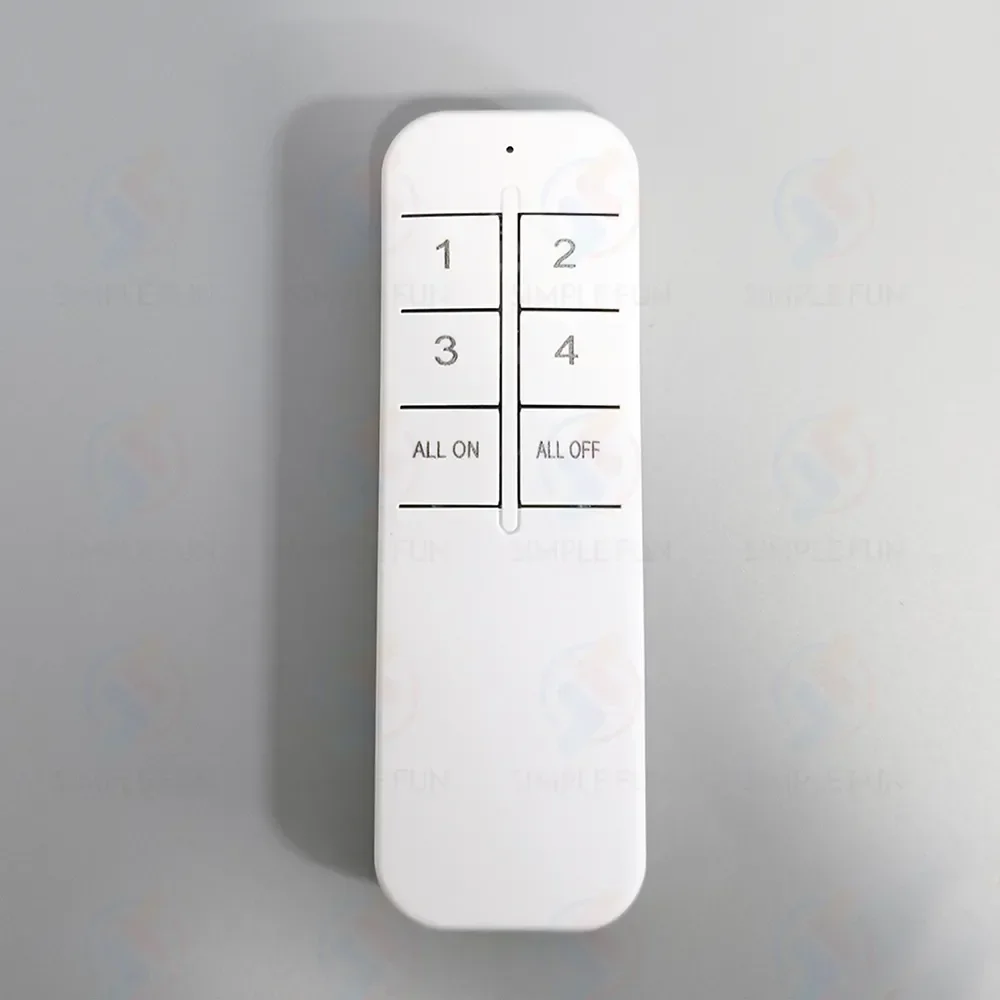

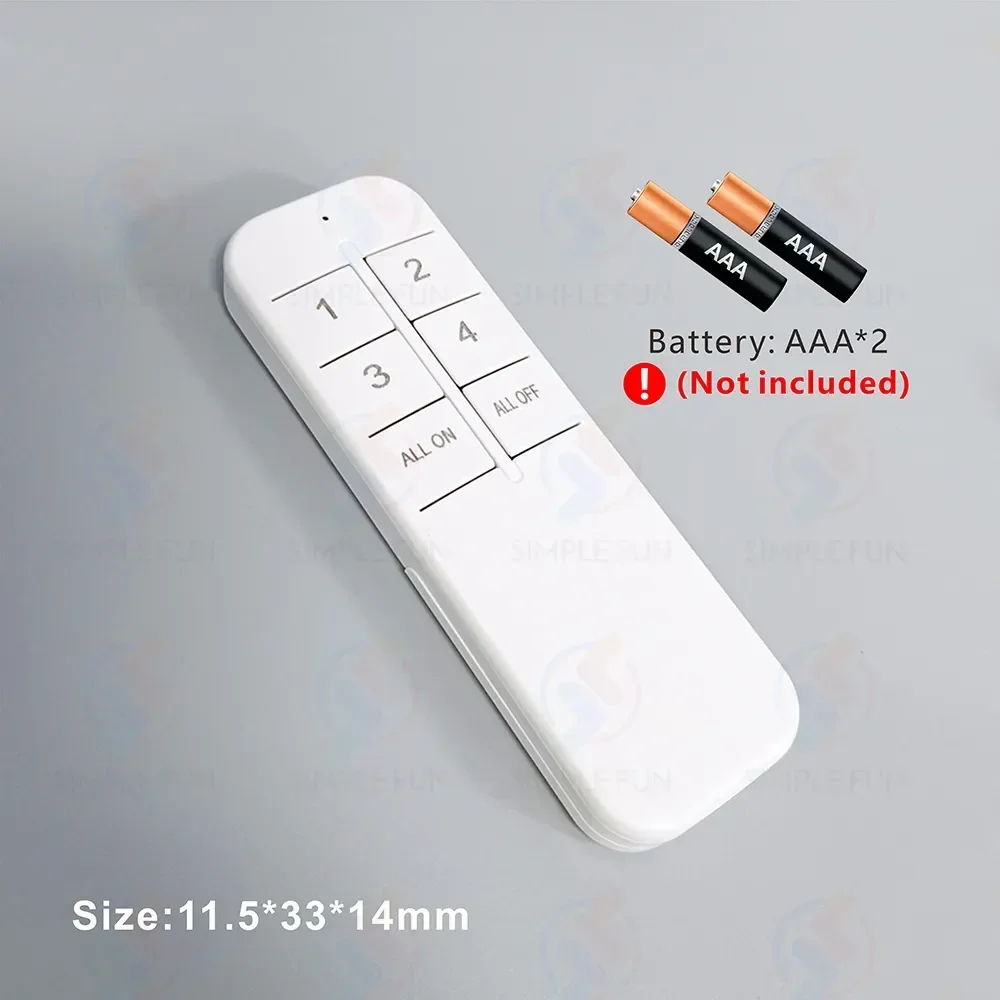

▶2.4GHz remote controller:
The receiver supports RM2.4G remote controller control, and the control range can reach 20m in open areas.
One button on the remote control can control one channel of the receiver. The remote control has ALL ON and ALL OFF functions.

▶Voice control:
Works with Alexa, Google home, IFTTT, etc. and can be controlled by voice.

▶30A high current,Easy and safe to use:
The working voltage of the receiver is 90-250V, and the maximum carrying current is 30A. It is safer and can meet the usage requirements of most equipment.

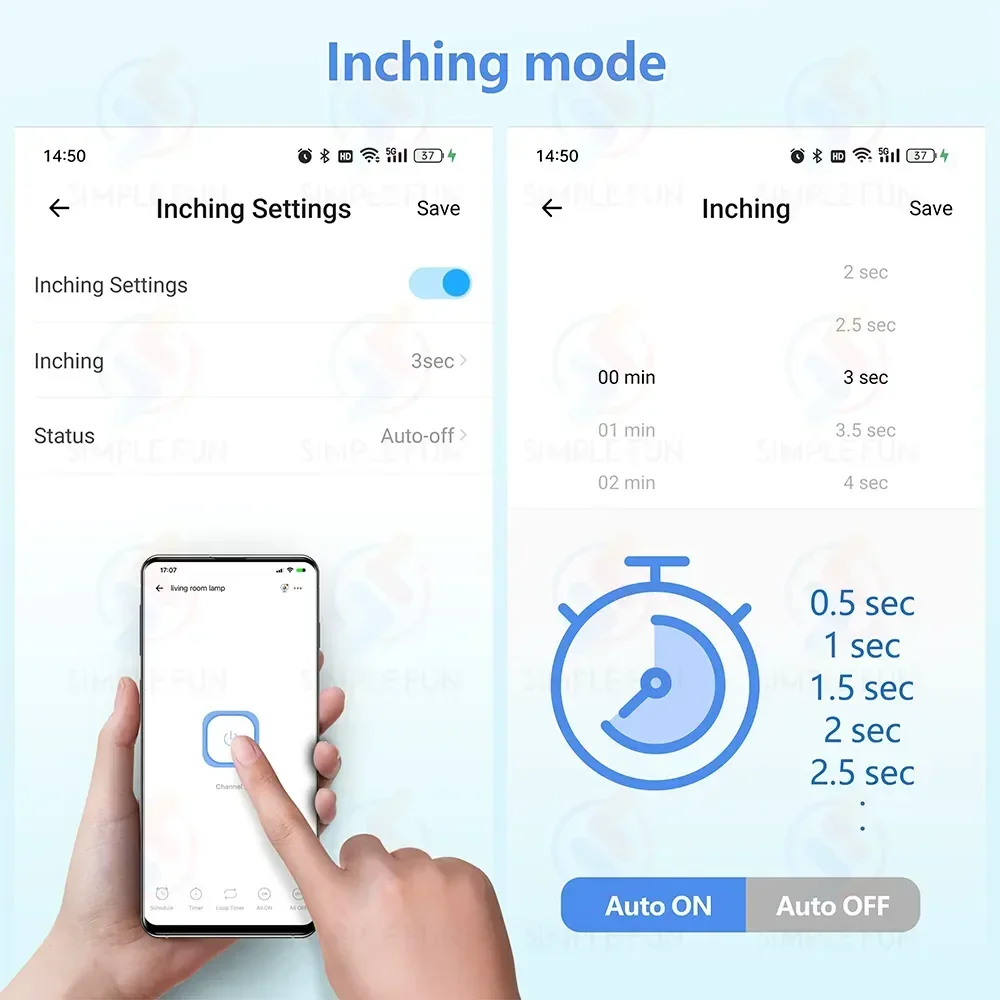

▶Inching mode:
You can set up this mode on your phone.In this mode, you can set up smart switch ON OFF automatically after XXX seconds(You can set up the exact timing)

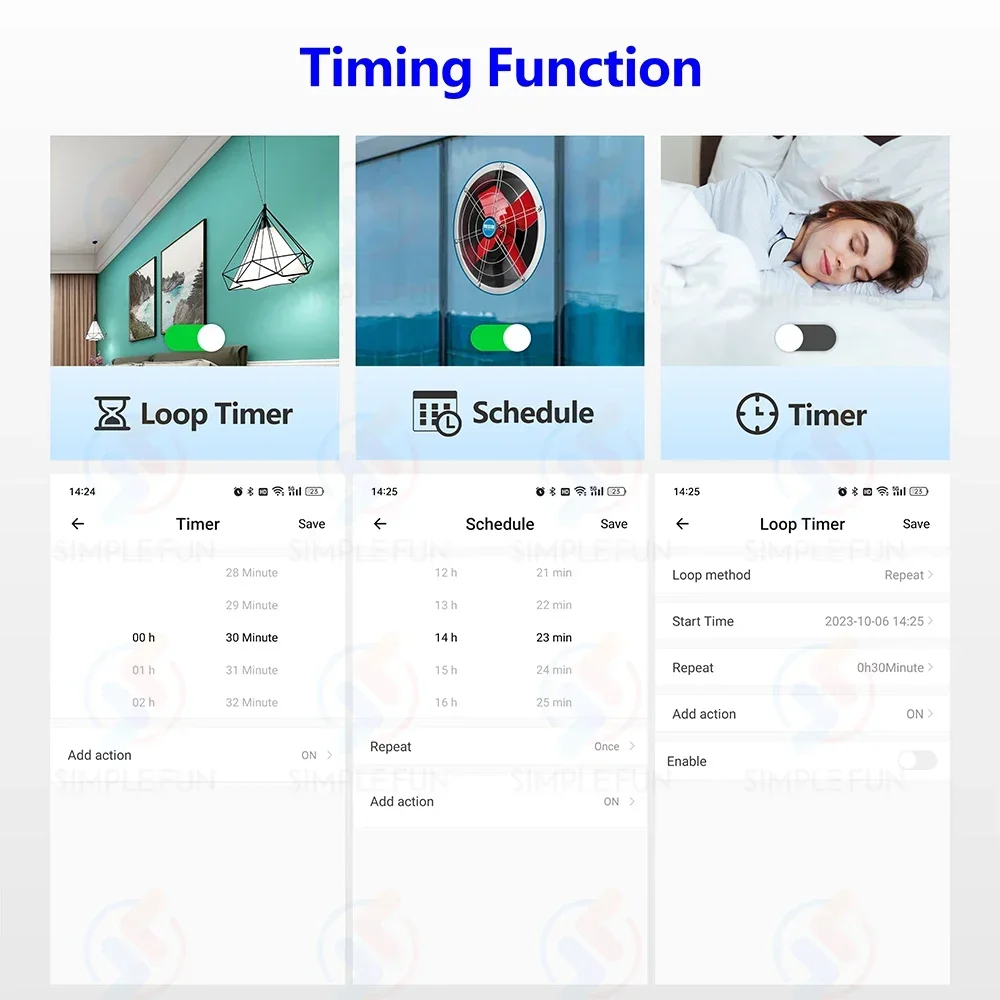

▶Timing function:
You can set timers/countdowns/schedules or create usage scenarios, for example you can set lights to automatically turn on at dusk and turn off at dawn.

▶Group control:
For example, all smart lamps can be set as a group and turned off with one click. One smart switch can be controlled by multiple mobile phones. Share it with your family and make it easy for everyone to control. Great for hard-to-reach lights without a switch.

---

Details description

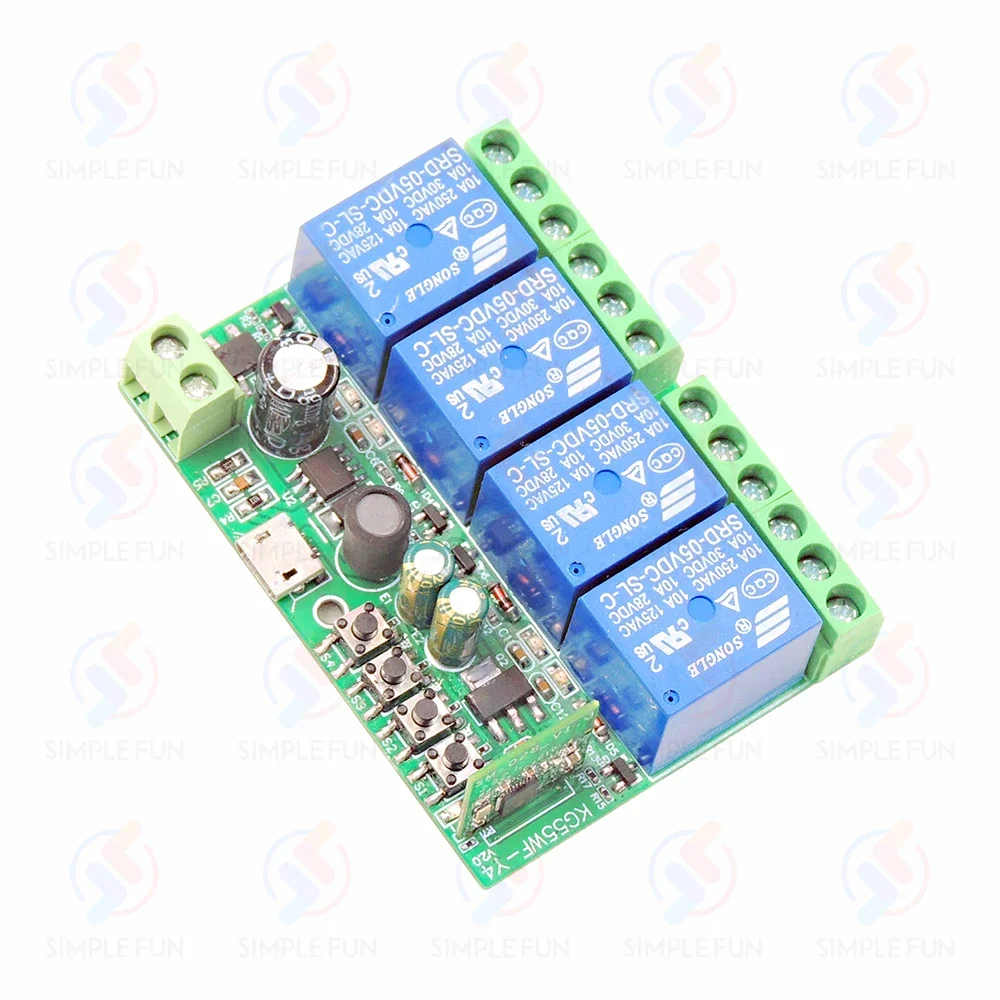

•Wide range of applications, can be used to connect lights/DC and AC motors/garage doors, etc.

●It can be used to transform button switches or remote controls to turn the device into an Internet device and achieve intelligence.

●It supports 3 control methods:

●APP control:
you can control this switch (wifi function) on the ewelink APP anytime and anywhere

●2.4GHz remote controller:
RM2.4G remote controller control,the control range can reach 20m in open areas.
One button on the remote control can control one channel of the receiver. The remote control has ALL ON and ALL OFF functions.

●Voice control:
Works with Alexa, Google home, IFTTT, etc. and can be controlled by voice.

●Inching mode:
You can set up this mode on your phone.In this mode, you can set up smart switch ON OFF automatically after XXX seconds(You can set up the exact timing)

●Timing function:
You can set timers/countdowns/schedules or create usage scenarios, for example you can set lights to automatically turn on at dusk and turn off at dawn.

●Group control:
For example, all smart lamps can be set as a group and turned off with one click. One smart switch can be controlled by multiple mobile phones. Share it with your family and make it easy for everyone to control. Great for hard-to-reach lights without a switch.

---

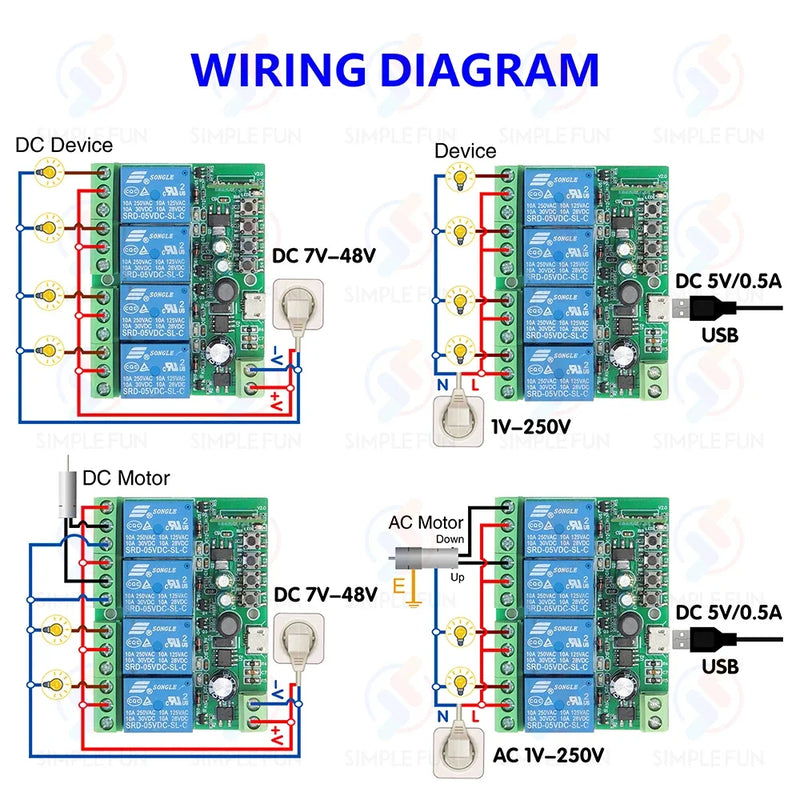

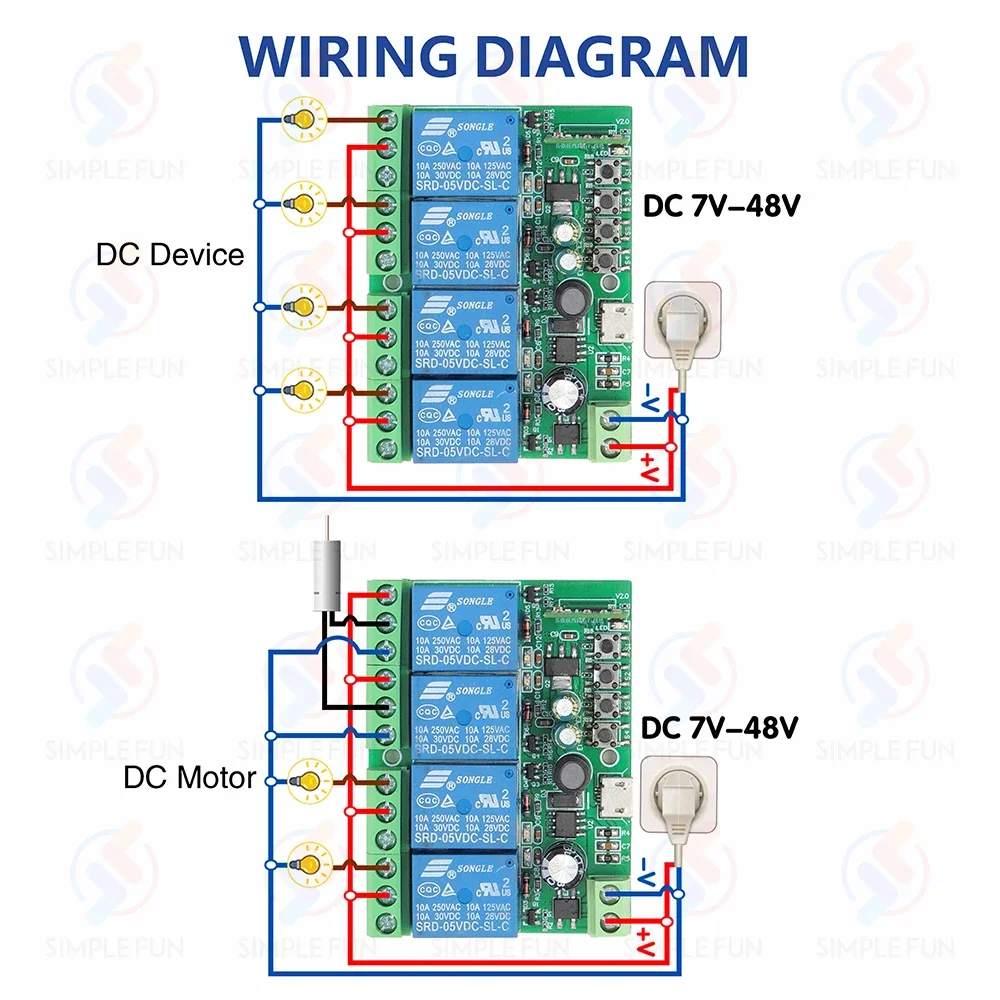

Wiring

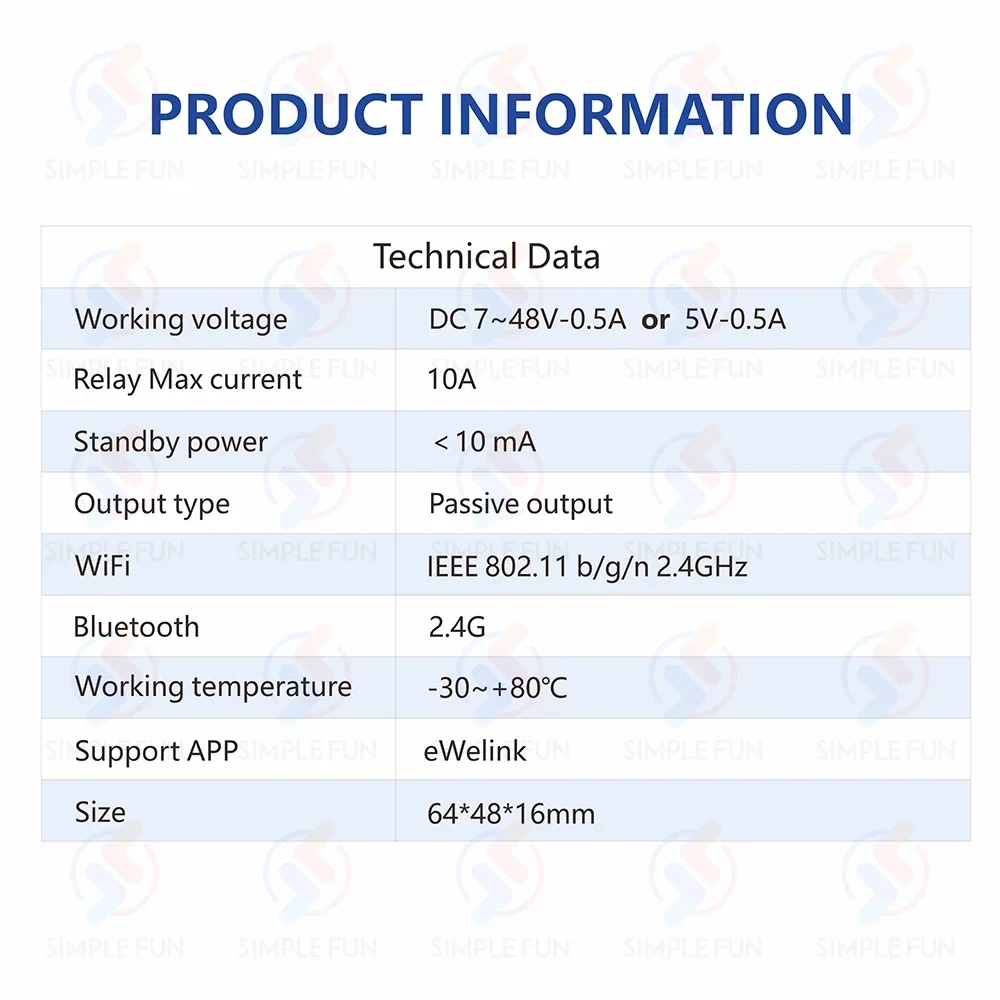

Technical parameter
Material: plastic
Voltage: DC 7-48V or USB 5V
Max current: 10A
Frequency standard: 802.11 b/g/n 2.4GHz
Remote controller Control distance: 20m (In open space)
Battery for remote : AAA battery*2( Not included )

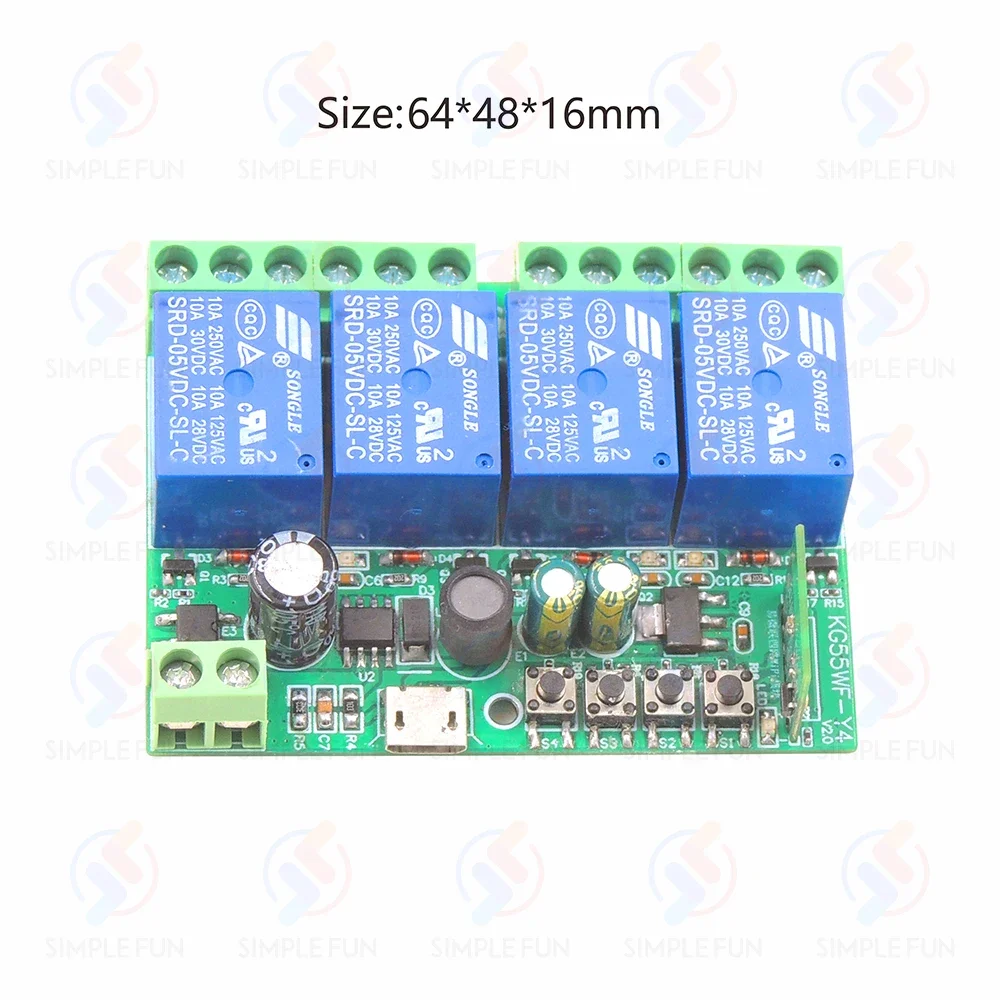

Receiver size: 64*48*16 mm
Remote Controller size: 115*33*14 mm



---





How to use

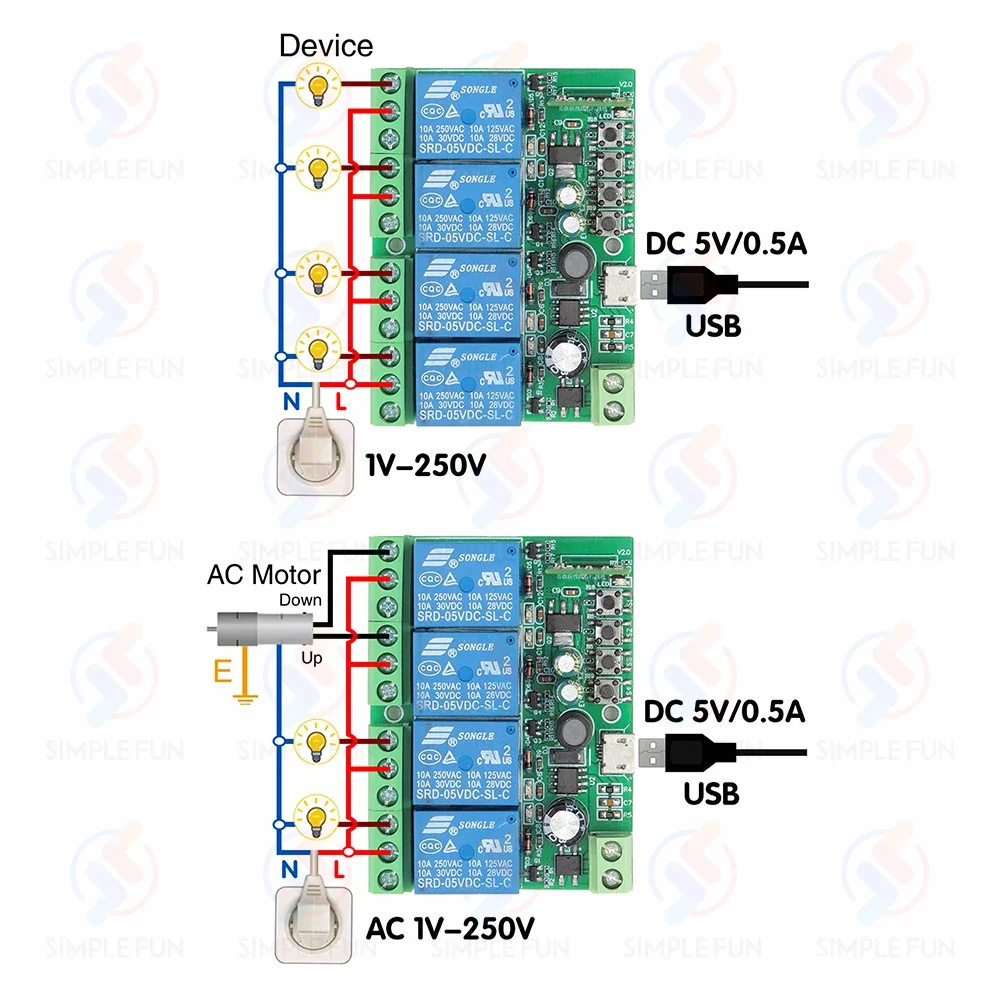

You need to connect with power and devices first.Please follow this picture:


▶Pairing with eWeLink APP

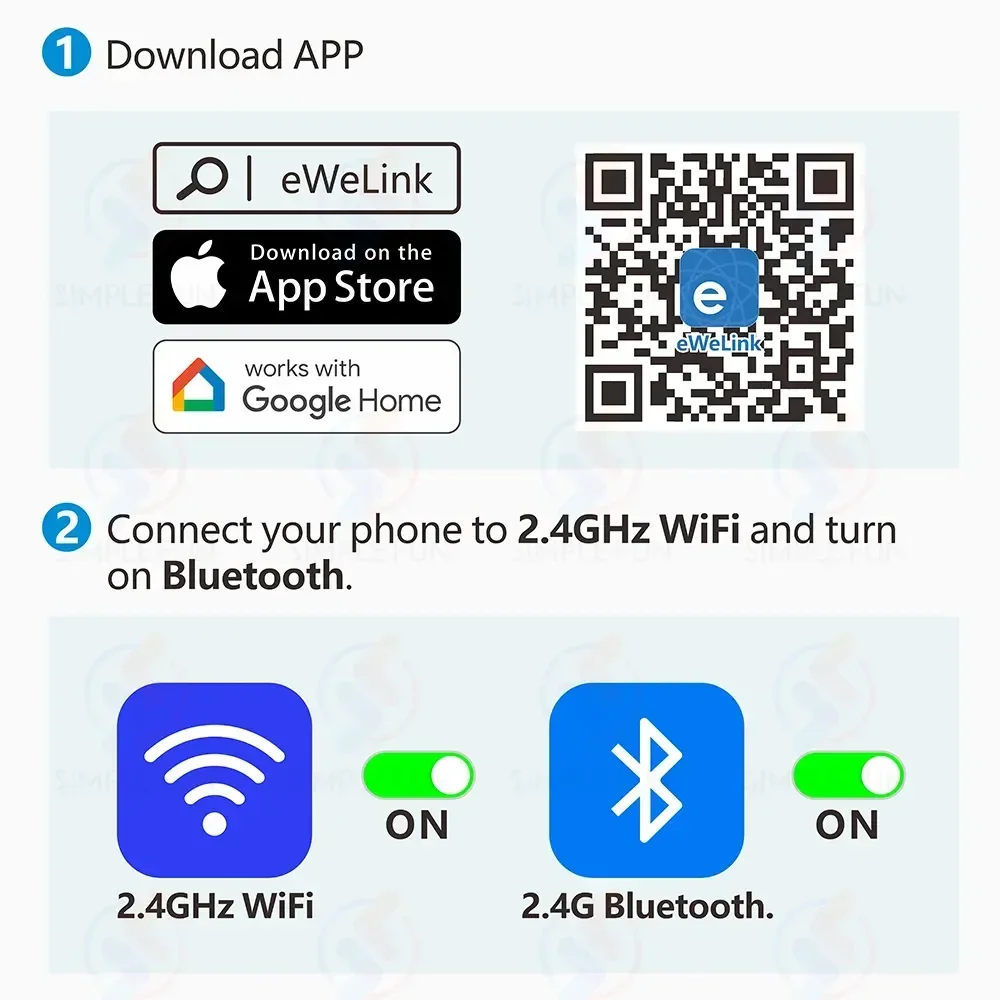

① Download APP
② Connect your phone to 2.4GHz WiFi and turn on Bluetooth.



③The ewelink module would automatic be in the 'Pairing Network state' (If not, please reset the device firstly. Long press pairing button for more than 5 sec until blue LED indicator blinks twice quickly and keeps on once (in cycle), which means enter pairing mode.)

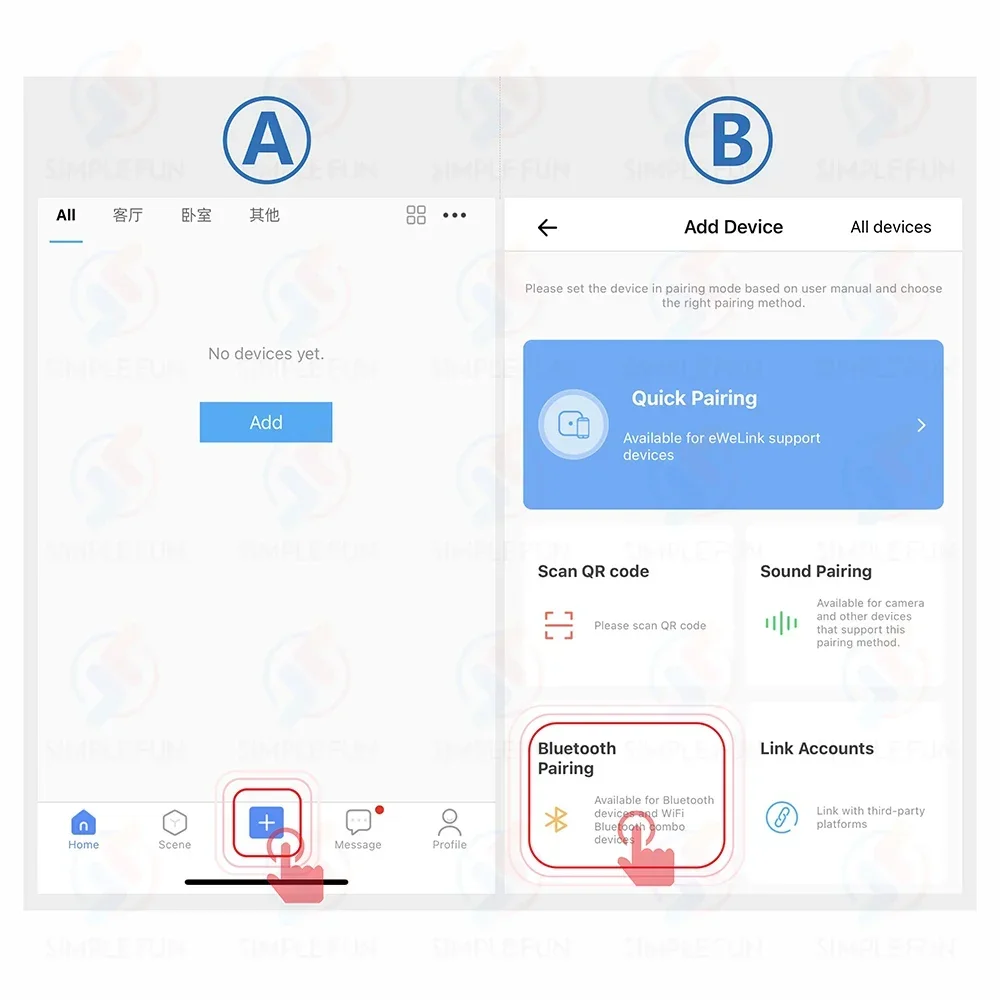

④Open eWelink APP, tap"+" at the bottom of the screen, select "Bluetooth Pairing", As shown in Figure"A""B" ,click "Next", it will automatically scan device,Then follow the prompts on the APP interface to continue setting.





▶Pairing with Remote controller

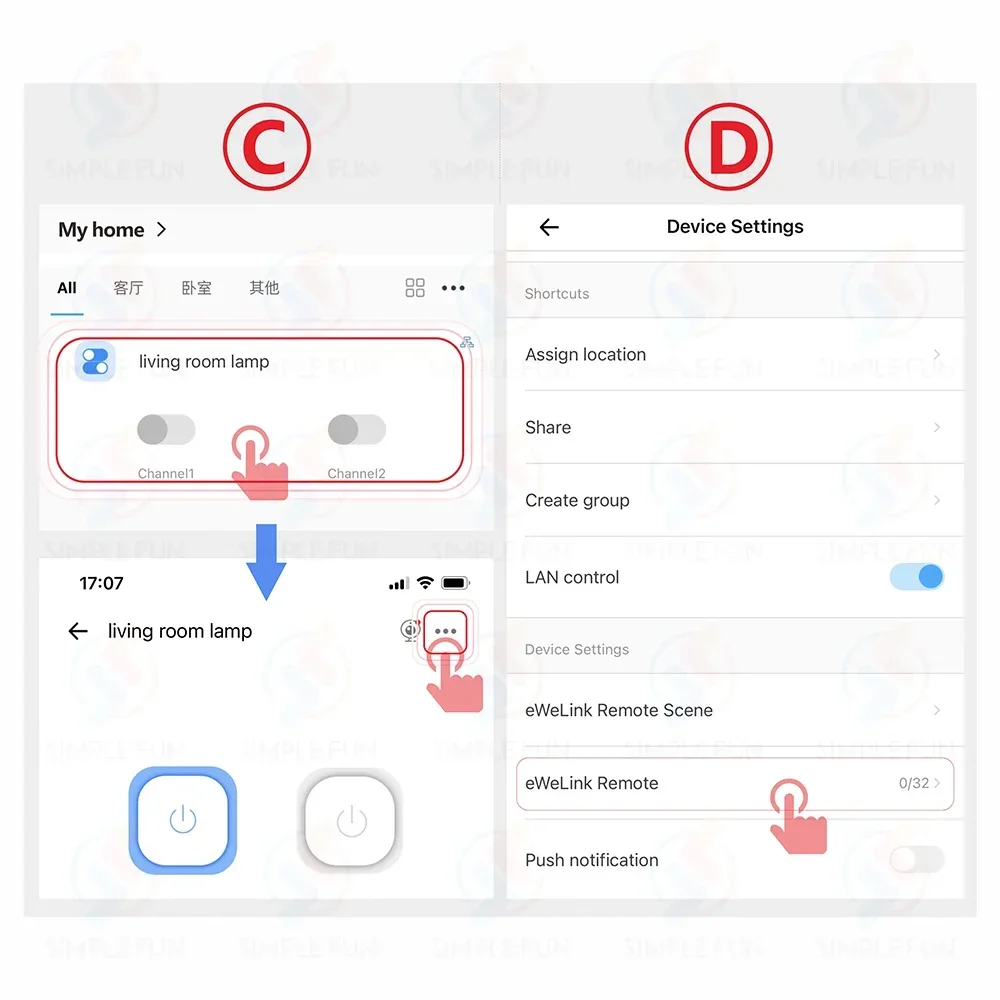

① Open the added device and click the settings icon in the upper right corner.(As shown in Figure C  )
②Select  "eWeLink Remote" Then follow the prompts on the APP interface to continue setting.(As shown in Figure D  )

---

Q&A
1.Can i use my own remote to control this lamp holder?
--No,sir, you cannot. You can only use this remote or eWeLink to contorl this holder.

2 .Does this smart switch have wifi function?
--Yes, it has wifi function. But it can work with ewelink not Tuya

3.Does it have dimmer function ?
--No it is on off only.

4.I am a buyer,do you have a wholesales?
--Yes.Please contact with us.We will give you the best price.Thank you

---

* If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping! *

*We have our own factory.Please let us know if you have some OEM projects.We are willing to get a cooperation with you.*
