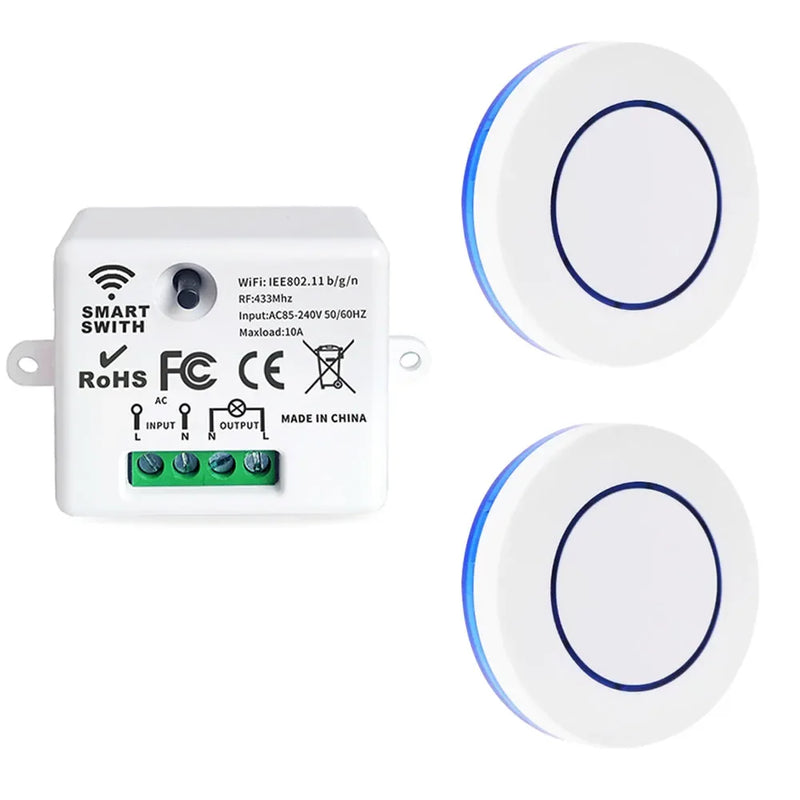

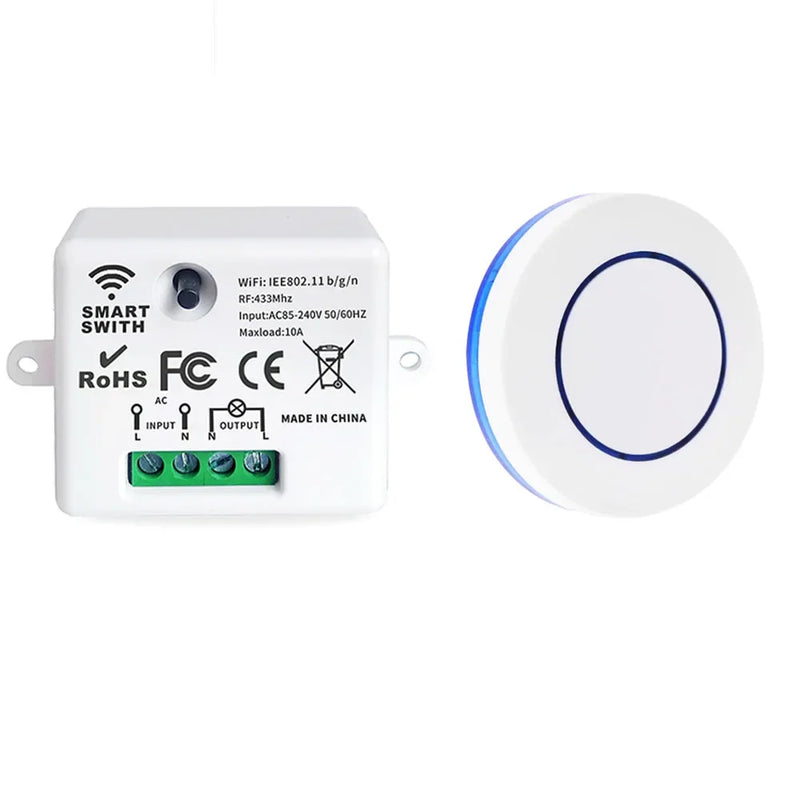

WiFi RF light Switch Tuya Smart Life AC 110V 220V Relay | SAMAG
SCORE BIG SALE
£30.00
↓ Save £12.00
£42.00
✓
✓
SPECIFICATIONS
Application 1: Led Light Lamp Bulb Switch, Home Security Alarm System
Application 2: Heater, Fan, Fish tank, Diy Home electrical equipment and so on
Application 3: water heaters
Application location: Home, Farm, Factory, Office, Supermarkets and so on
Brand Name: Diese
Certification: CCC,ce,ROHS,RoHS,CE,CCC
Choice: yes
Control Type: RF Remote Control + WIFI Control
Controller working frequency: 433.92MHZ +2.4GHz WIFI
Current: 10A
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Feature 1: timing / Countdown / 3 Kinds Of Restart State APP Control mode
Feature 2: Remote Control / Voice Control / APP Control
Features: Wireless switch , smart life Tuya switch ,Alexa switch
High-concerned chemical: None
Is Smart Device: Yes
Item Type: SWITCHES
Matching Mode: Intelligent Learning code 1527
Material: Plastic
Max Current: 10A
Model Number: 2201mw light switch Tuya Smart life APP Controller
Origin: Mainland China
Receiver Size: 47*42*23mm
Receiving Sensitivity: 97dbm
Support App: Tuya or Smart Life
Switch Battery: CR2032( include)
Switch Color: Black
Switch Size: 50*50*13mm
Switch Type: APP Control
Warranty: 1 Year
Working Voltage: AC 85V-240V
Working temperature: -30 ~ +80
semi_Choice: yes
wall Switch control distance: up to 50m (theoretical distance)

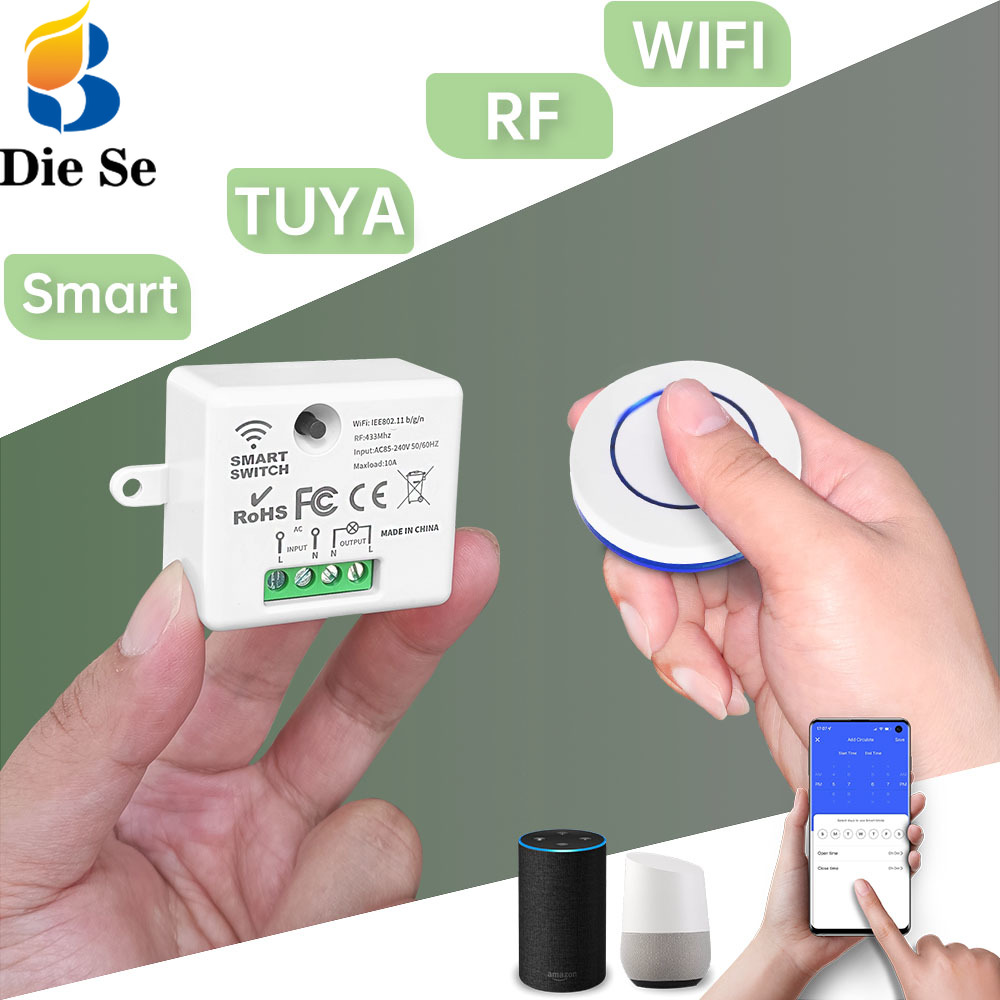

WiFi RF Light Switch 220V Timer Interruptor 433mhz Push Button Switch Tuya Smart Life Control Workwith Alexa for home appliance
Why choose this product?(wifi + rf function)

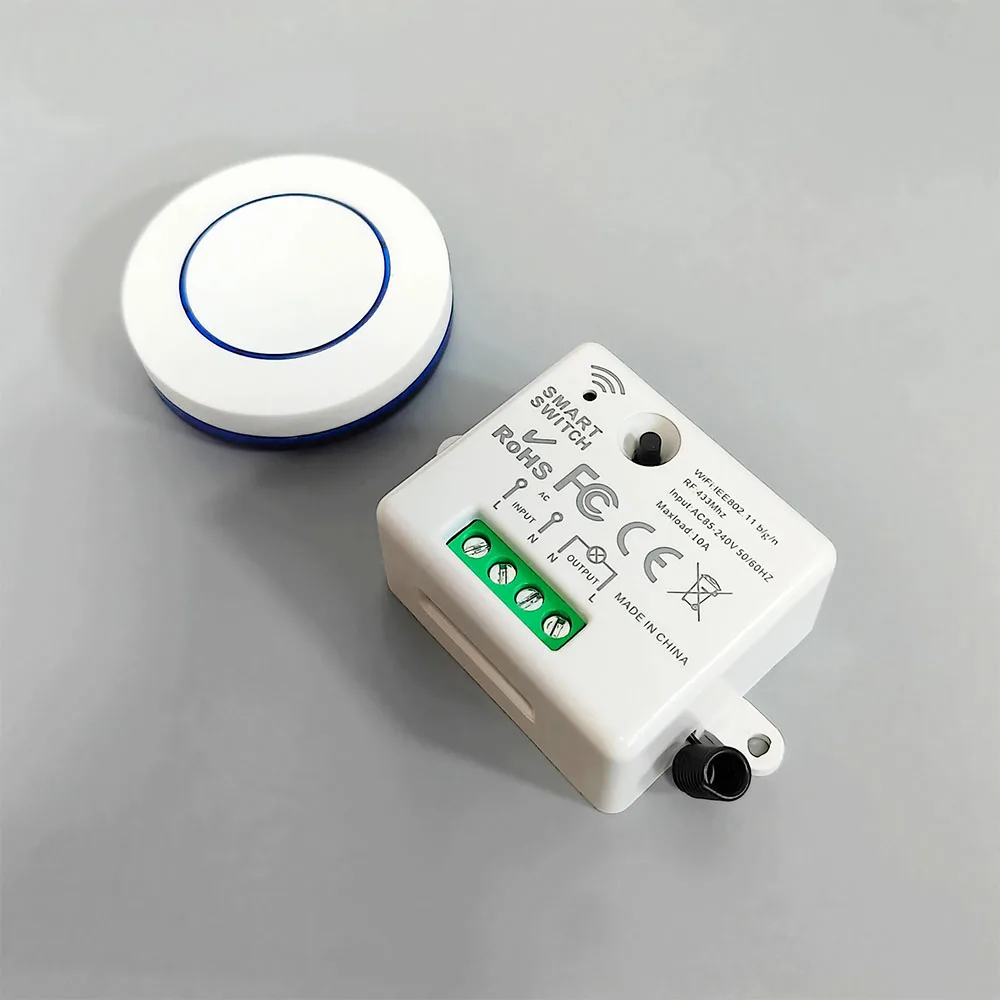

1.Although there are many same products on the market, we have made more changes in details,We place the rf signal receiving antenna outside the shell, so that the rf signal reception will be more stable
2.The wifi signal receiving module has been improved, the signal is more stable, there will be no situation where the app cannot controlled the device. and the connection is more convenient-- You only need to turn on the bluetooth of your mobile phone at the same time, tuya or smart life app will automatically search for the receiver, which is better than previous products smarter
3.We provide a one-year free replacement service (depending on the situation, a certain shipping fee will be charged or free shipping)(only relay receiver)
4.rf wireless switch panel with battery (CR2032)
2.The wifi signal receiving module has been improved, the signal is more stable, there will be no situation where the app cannot controlled the device. and the connection is more convenient-- You only need to turn on the bluetooth of your mobile phone at the same time, tuya or smart life app will automatically search for the receiver, which is better than previous products smarter
3.We provide a one-year free replacement service (depending on the situation, a certain shipping fee will be charged or free shipping)(only relay receiver)
4.rf wireless switch panel with battery (CR2032)
Product function introduction
1.Three control methods(app remote control / wireless remote control / voice control)
app remote control---Compatible with tuya and smart life app, you can use the app to control the opening and closing of the device anytime, anywhere
wireless remote control---Wireless rf remote control, the control distance can reach 50m in an open place
voice control---Compatible with alexa and Google home

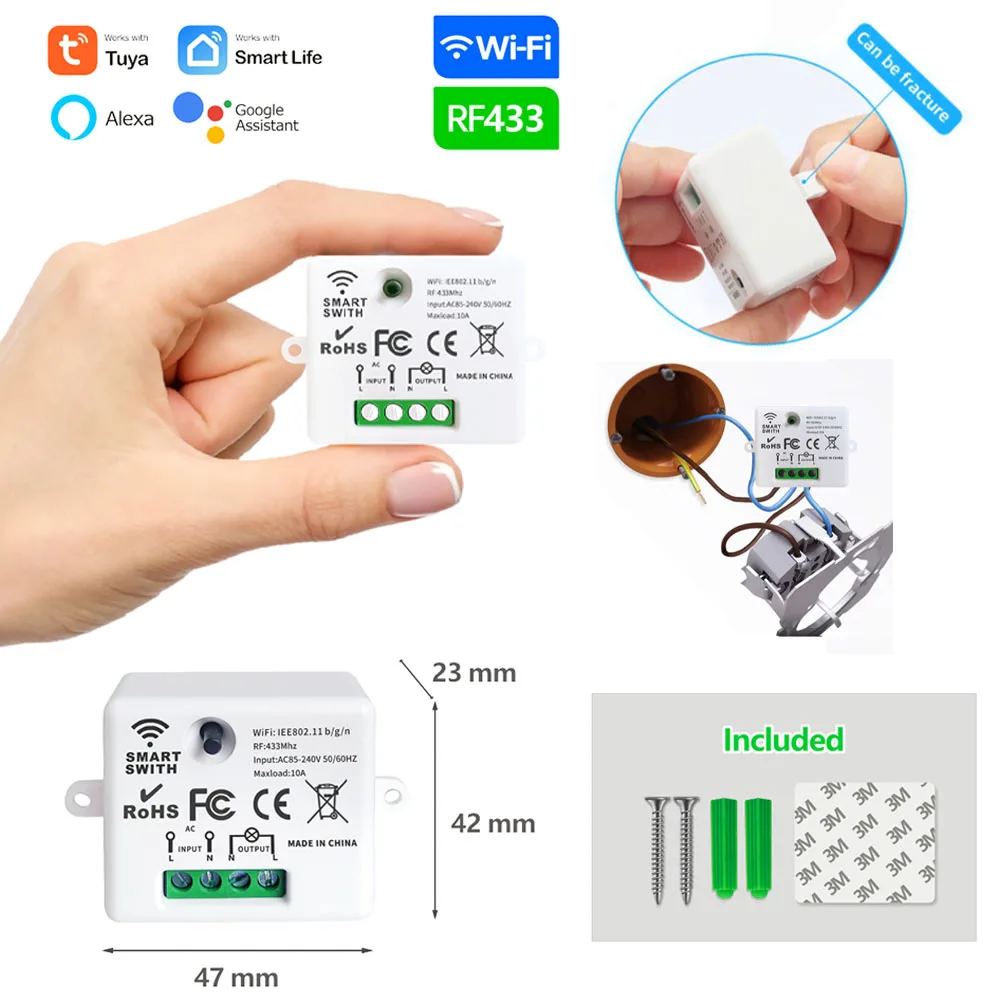

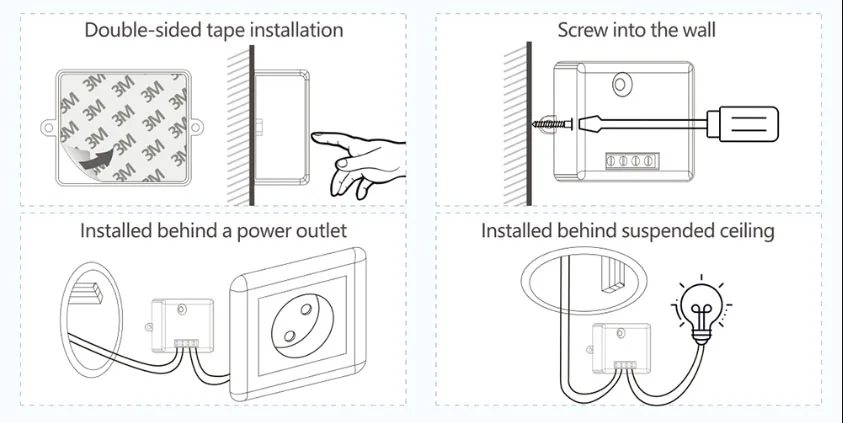

2.Mini wireless WiFi switch module with small size design, which making it is suitable for UK and EU wall switch boxes.The mini size of receiver is 47*42*23 mm. It installs between power supply and device, which can be easily hidden in most electrical boxes or junction boxes, or also use screws to fix on the board. You can easily to install it to control lights or plug. No wiring request.
3.You can add RF wireless switch by your requests. Each receiver can store about 10 RF wireless switch. And one RF wireless switch can control multiple receivers too.For example 1 RF wireless switch installed on the wall next to the bedroom door, and another one put on the bedside cabinet, both of them can control your bedroom light.
4.High-quality relay that can be used over 400,000 times.This receiver adopts 10 Amp relay, which can load high-power electrical appliances. The receiver is suitable for AC 85V~250V voltage, so AC 110V/ 220V/ 230V is OK.
5.The wireless switch can be clicked over 500,000 times. The CR2032 battery is requested. And it can work for about 5 years. The battery can be replaced after disassembly.
1.Three control methods(app remote control / wireless remote control / voice control)
app remote control---Compatible with tuya and smart life app, you can use the app to control the opening and closing of the device anytime, anywhere
wireless remote control---Wireless rf remote control, the control distance can reach 50m in an open place
voice control---Compatible with alexa and Google home
2.Mini wireless WiFi switch module with small size design, which making it is suitable for UK and EU wall switch boxes.The mini size of receiver is 47*42*23 mm. It installs between power supply and device, which can be easily hidden in most electrical boxes or junction boxes, or also use screws to fix on the board. You can easily to install it to control lights or plug. No wiring request.
3.You can add RF wireless switch by your requests. Each receiver can store about 10 RF wireless switch. And one RF wireless switch can control multiple receivers too.For example 1 RF wireless switch installed on the wall next to the bedroom door, and another one put on the bedside cabinet, both of them can control your bedroom light.
4.High-quality relay that can be used over 400,000 times.This receiver adopts 10 Amp relay, which can load high-power electrical appliances. The receiver is suitable for AC 85V~250V voltage, so AC 110V/ 220V/ 230V is OK.
5.The wireless switch can be clicked over 500,000 times. The CR2032 battery is requested. And it can work for about 5 years. The battery can be replaced after disassembly.
The convenience brought by the product
1. The traditional switch is limited by the position of the wire slot and cannot be moved at will,After adding our products, the wireless switch can be placed in any position at will, and placed in the most convenient position. At the same time, because of the wifi function, you can also control it with your mobile phone and voice control (alexa or Google home is required)
1. The traditional switch is limited by the position of the wire slot and cannot be moved at will,After adding our products, the wireless switch can be placed in any position at will, and placed in the most convenient position. At the same time, because of the wifi function, you can also control it with your mobile phone and voice control (alexa or Google home is required)
2.Voice Control
-- wireless WiFi switch is compatible with Amazon Alexa ( Amazon Echo/Echo Dot/Amazon Tap) and Google Home Assistant. It allows you to use your voice to control home devices and enjoy hands-free experience.
3. suitable size and easy to install
--Mini wireless WiFi switch module with small size design, which making it is suitable for UK and EU wall switch boxes.The mini size of receiver is 47*42*23 mm. It installs between power supply and device, which can be easily hidden in most electrical boxes or junction boxes, or also use screws to fix on the board. You can easily to install it to control lights or plug. No wiring request.
.
Technical Parameter
1.Relay Receiver
Working voltage:AC85~240V
Size:47*42*23mm
Max Load:10A
Control mode: RF remote control / App control / Voice control
RF frequency:433MHz
Working temperature:30~+80
Receiving Sensitivity:97dbm
Amount of storage remote controls:25 pieces
Support encoding:1527 Leaning code/ 2262 fixed code
RF Operating mode:ASK superheterodyne wireless reception
Wi-fi:IEEE 802.11 b/g/n
Compatibility:APP for IOS and Android.
Access intelligent speaker:Amazon Alexa / Google home

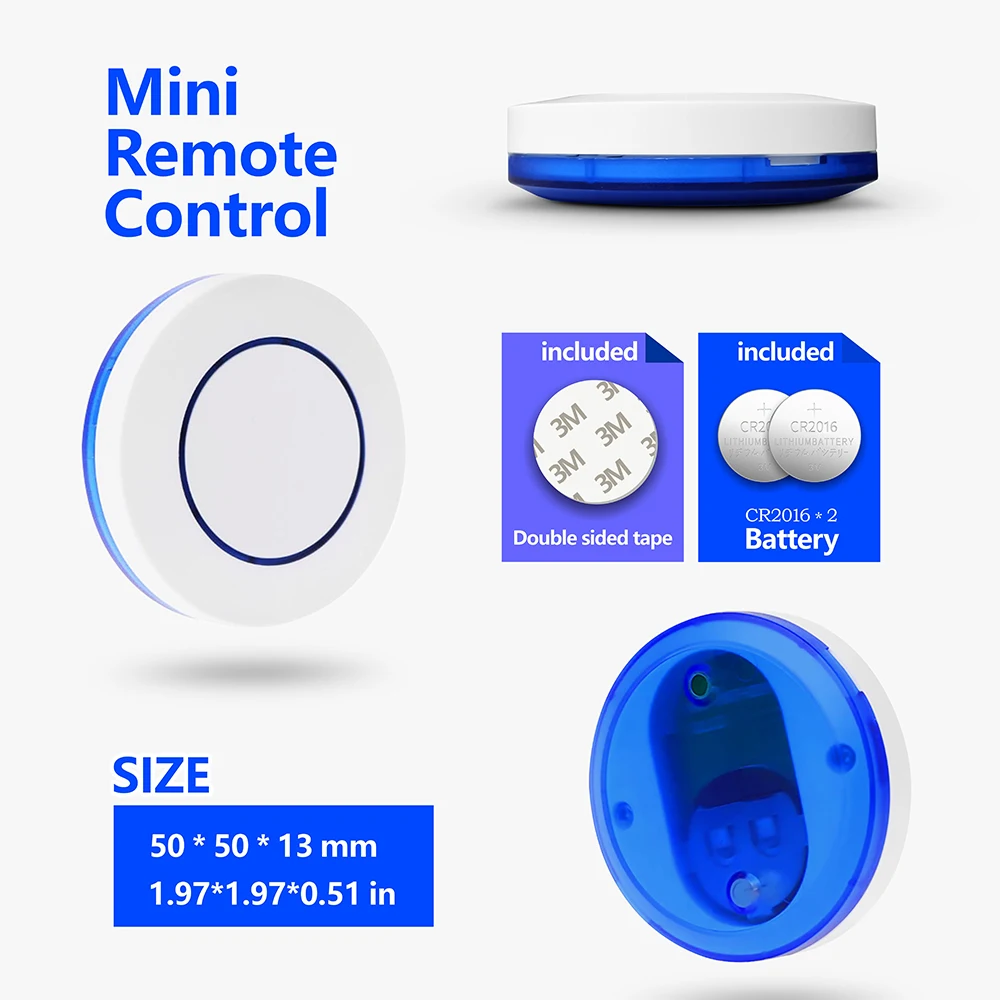

2.Transmitter Parameter
RF frequency : 433MHz
Support encoding : 1527 Leaning code
Transmitting range : Open space is more than 50 meters
Battery : (cr2032)Not Battery include
Panel fluorescence : Yes
Size:50*50*13mm
Color:white

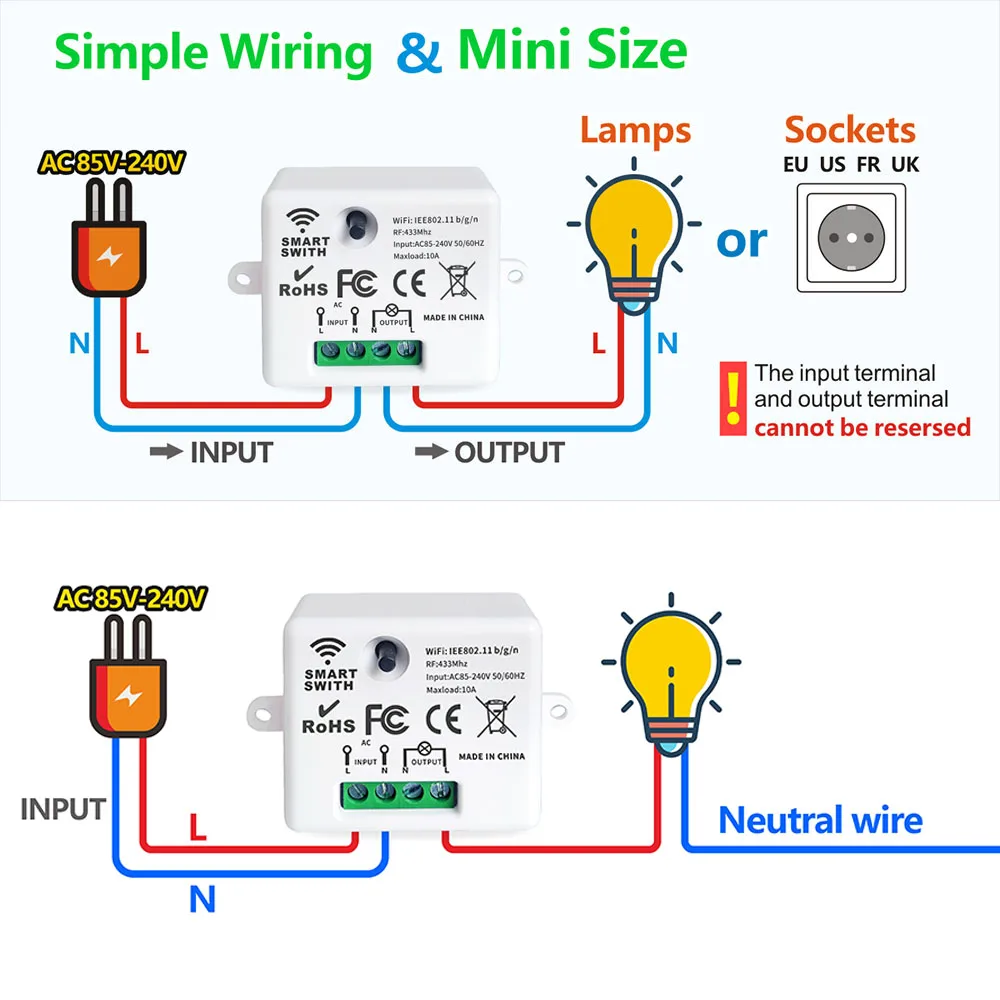

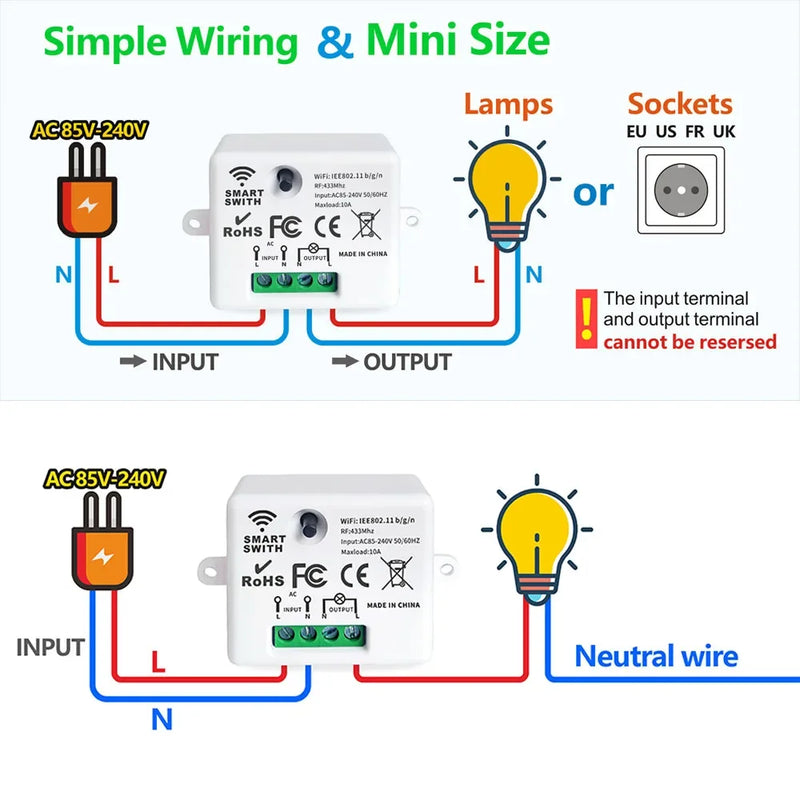

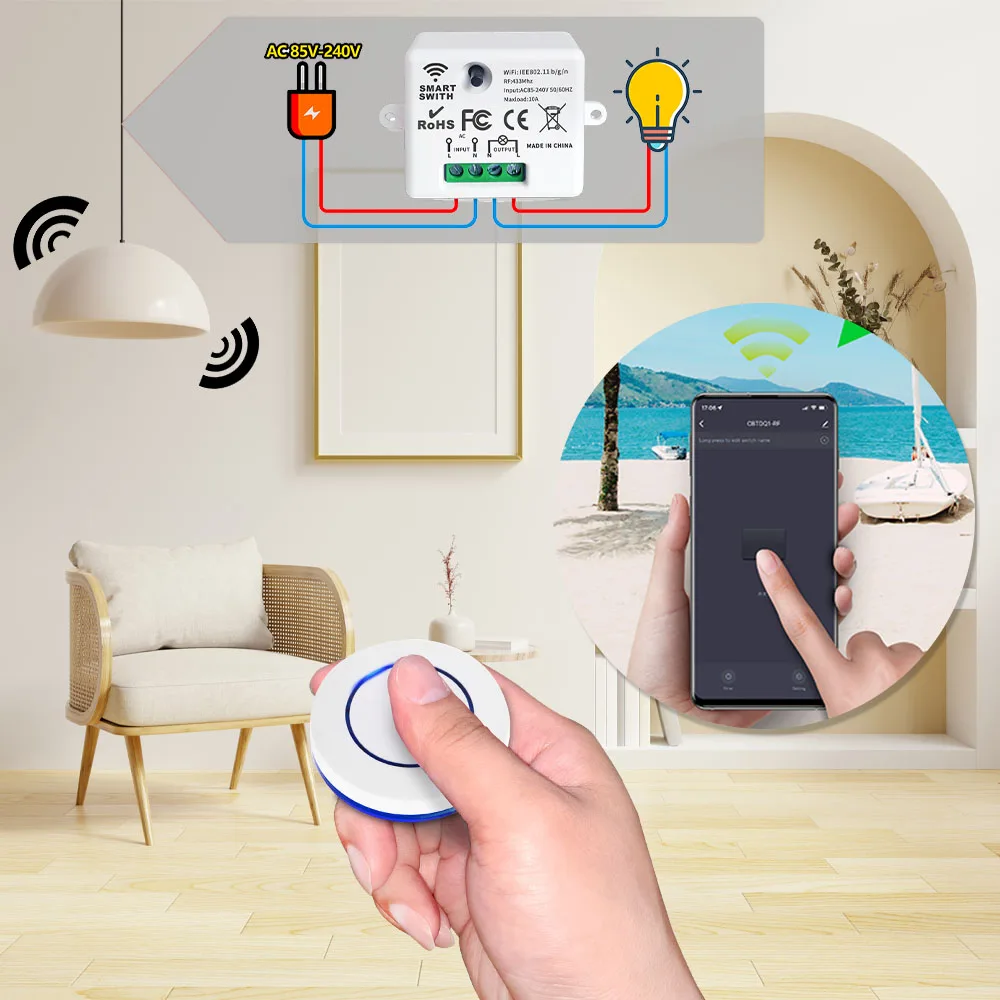

Circuit Diagram
How to Set up
1.433MHZ wireless switch signals
How to get the signals
Step 1: Press the learning button(on the Receiver) twice . Wait for 3 seconds;
Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.
How to clear the signals
Only one step :Press the learning button(on the Receiver) 8 times. Wait for 3 seconds;
2.WIFI signals

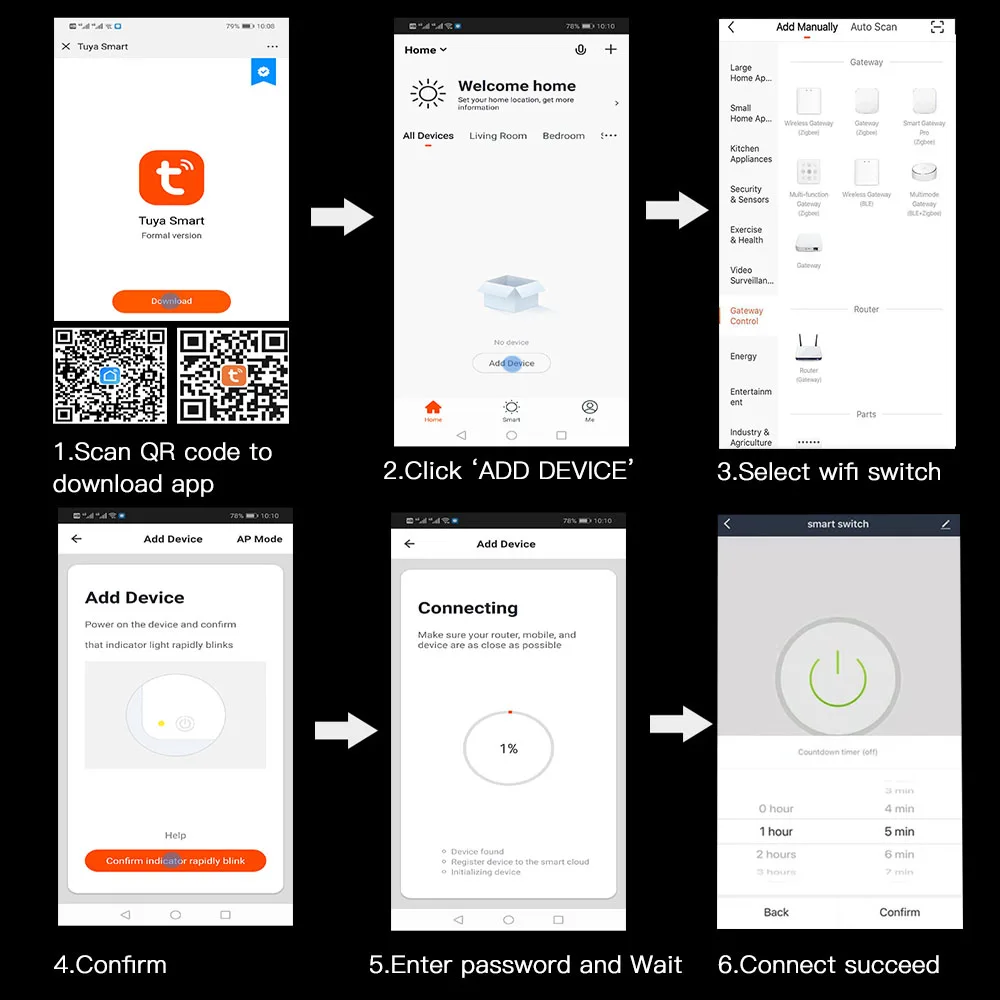

How to get the WIFI signal
1: Search "Smart Life or Tuya Smart" on APP store, Google Play or scan the QR code on user manual to download and install it.
2: Press the button on switch until the indicator light flash. You can also hear a voice too.
3: Open "Smart Life or Tuya Smart App", discovery and add device in the app, and then finish configuration according to the guide.
3.Alexa signals
How to get the Alexa signal
1. Modify device name so your Amazon Alexa can easily recognize the name. For Example: Living Room Lamp, Bedroom Light.
2. Use Alexa App or Computer to set up your Amazon Alexa.
3. Select 'Skills' and search for 'Smart Life' on Menu. Enable Skill and type in your login info to link the account
4. Ask Alexa to discover devices. Then you can control your devices by voice.
Package include
wifi RF receiver(with box) and 1pcs Product manual
Push Button Switch( include battery ,with box)
wifi RF receiver(with box) and 1pcs Product manual
Push Button Switch( include battery ,with box)
Q&A
1.Can one receiver be controlled by multi switches?
Yes.Of course.One receiver can be controlled by almost 10pcs switches.
2.When the power off and suddenly comes again,does the lamp/device light automaticly?
No.The device only works when you pressed the switch again.Our products are designed for saving energy.
3.Does the receiver need Neutral line?
Yes.Our receiver needs both Live line and Neutral line.
1.Can one receiver be controlled by multi switches?
Yes.Of course.One receiver can be controlled by almost 10pcs switches.
2.When the power off and suddenly comes again,does the lamp/device light automaticly?
No.The device only works when you pressed the switch again.Our products are designed for saving energy.
3.Does the receiver need Neutral line?
Yes.Our receiver needs both Live line and Neutral line.
