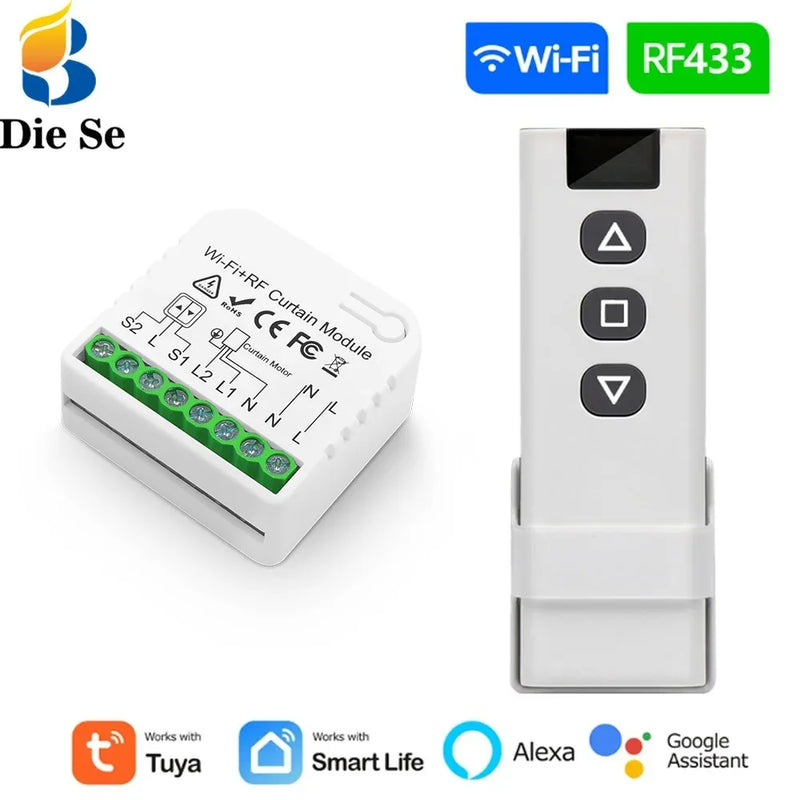

Technical Parameter

1.WIFI+RF Curtain Switch
Product type: Wifi + RF Curtain Switch
Input power: AC 100-240V 50/60HZ
Max Load : 10A
Standby power consumption:0.2W
WIFI Frequency: 2.4GHz-2.4835GHz

RF Frequency:433.92MHZ
Certification: CCC,CE,RoHS,LVD,EMC,RED
operation tepm: -10°~+40°

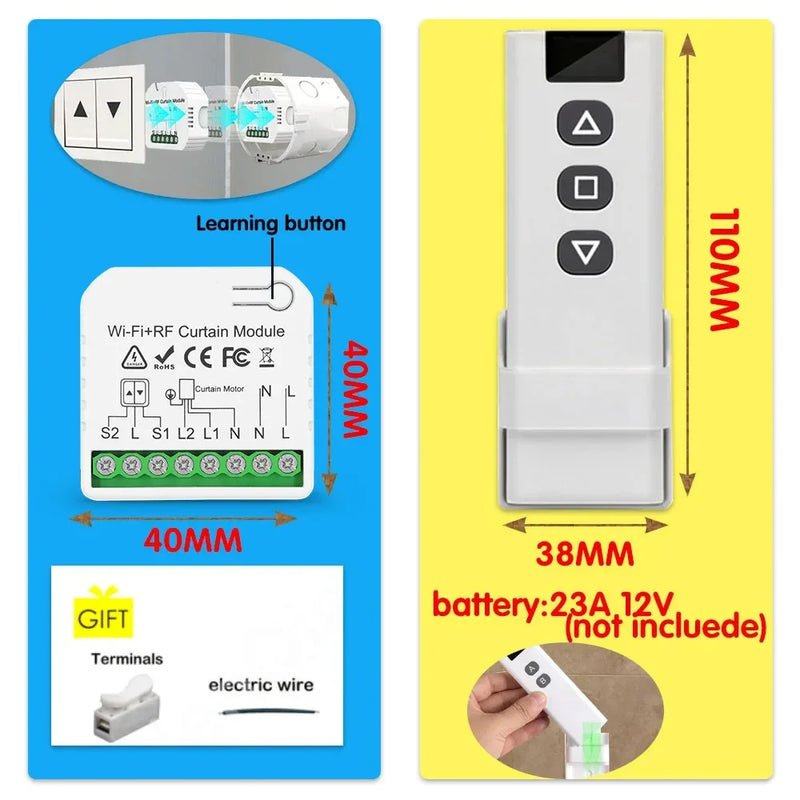

Size: 40mm*40mm*23mm
Weight: 60g
Shell: Yes
Warranty: 1 years

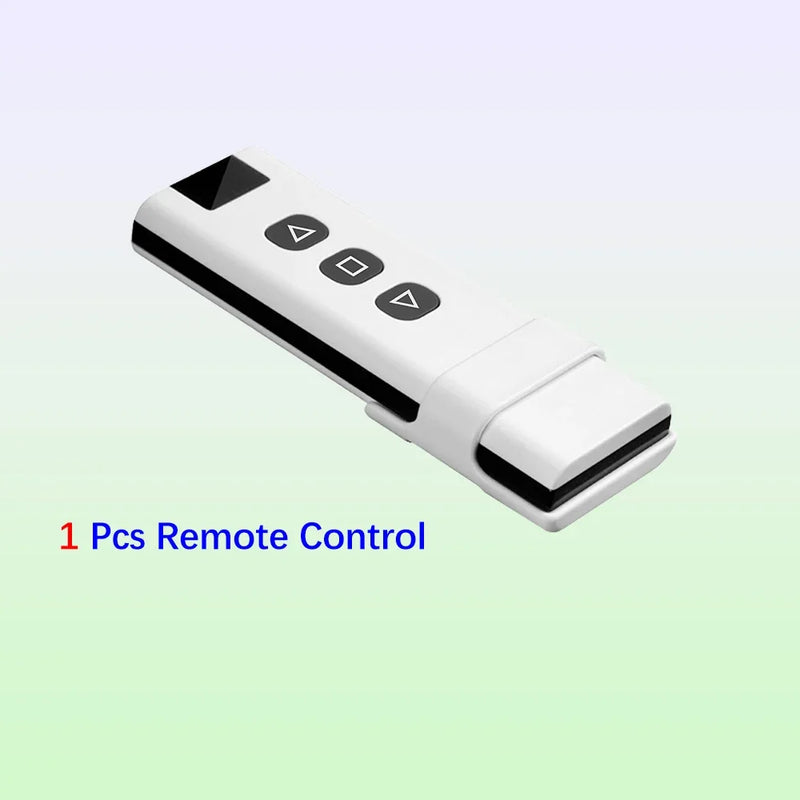

2.433mhz rf Remote Control
Product type:Remote control
Battery:23A 12V
Size:110mm*38mm
Remote control distance:50m(in the open area)

Main Feature
1.The new wifi + RF smart curtain module is very suitable for a family to use, you can control the curtain to open or close anytime, anywhere, just move your finger,And our products have passed CE and CCC certification,Ensure the safety of every customer.

2.The standby power consumption of our products is only 0.2W,the power consumption per year is less than 2 kWh

3.You can control our products in a variety of ways to control your curtains
A.Voice Control---By connecting with your alexa or Google Assistant, you can achieve the purpose of voice control, just say to it to open the curtain, the curtain will automatically open
B.433mhz remote control control---Control the product with a 433mhz remote control,The control distance is about 50 meters,The remote can be placed in a convenient location such as a wall with the base(Each remote comes with a base),If your phone happens to be out of hand, the remote can be very useful,A great addition to your smart home,
C.Mobile app control---You can control the opening or closing of the curtains at any time through your mobile phone, and even you can control it to open 50% or 70%, all of which can be achieved through the app,And there is a timer function, you can set the curtains to open at a certain time, for example, automatically open the curtains at 8:00 in the morning

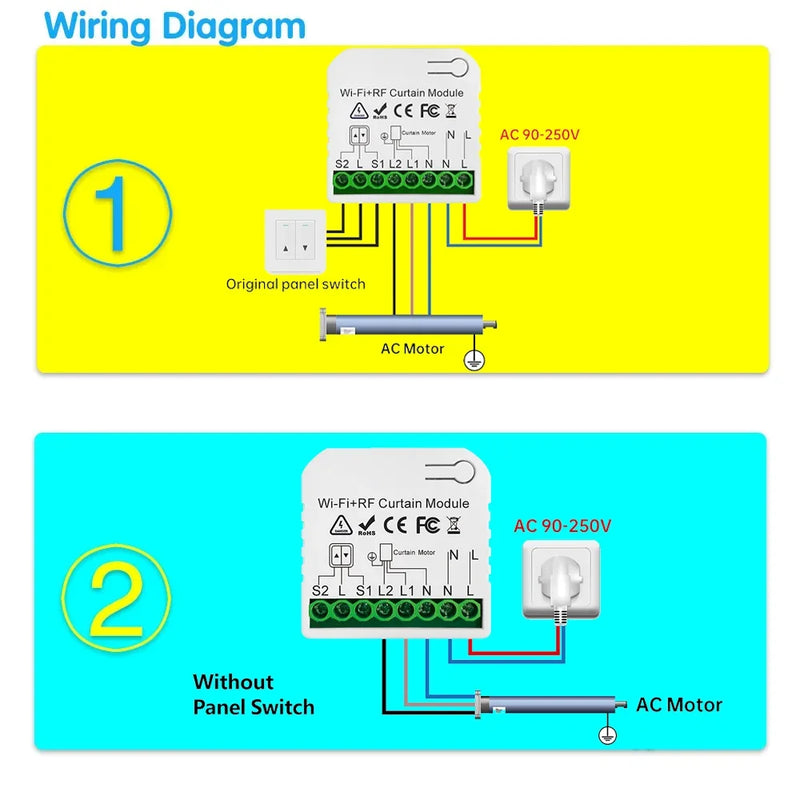

Wiring Diagram
1.There are two ways to use our products, one can be connected to the traditional switch, the other can also choose not to connect the traditional switch, it will not affect the use of the product
2.Each package wraps the receiving terminal (connector) and wire, which will make your wiring very easy



3.The working voltage of the product is AC100~240V,10A,just mean, AC110V,AC 220V,AC240V is ok.

How to get 433mhz RF signal
1.press the learning button once
2.press the remote control button once
How to Clear 433mhz RF signal

1.press the learning button 8 times

How to get WIFI signal
1: Search "Smart Life or Tuya Smart" on APP store, Google Play or scan the QR code on user manual to download and install it.
2: Press the button on switch until the indicator light flash. You can also hear a voice too.
3: Open "Smart Life or Tuya Smart App", discovery and add device in the app, and then finish configuration according to the guide.

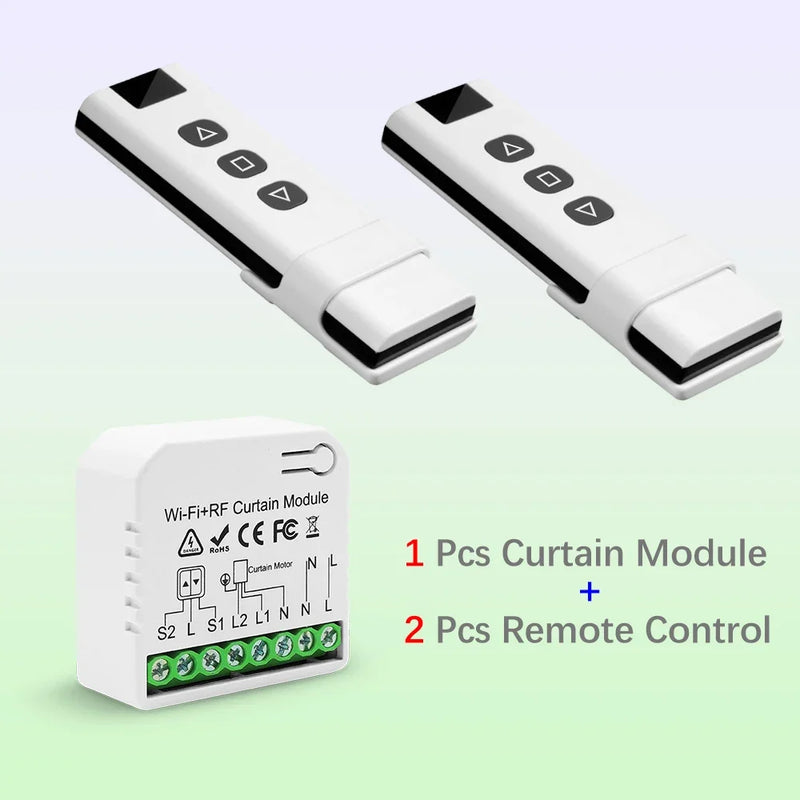

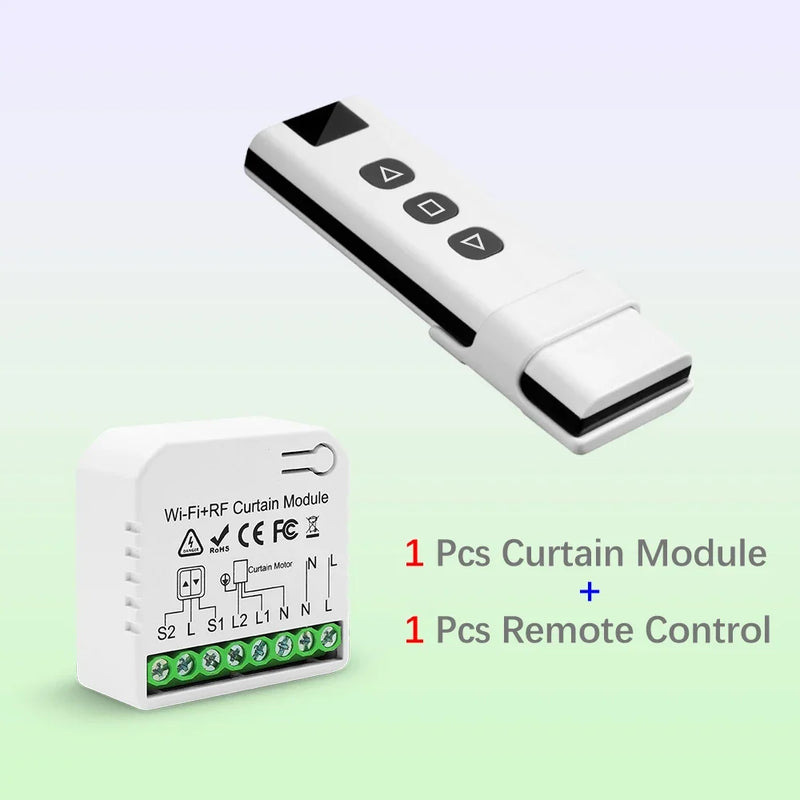

Package Include

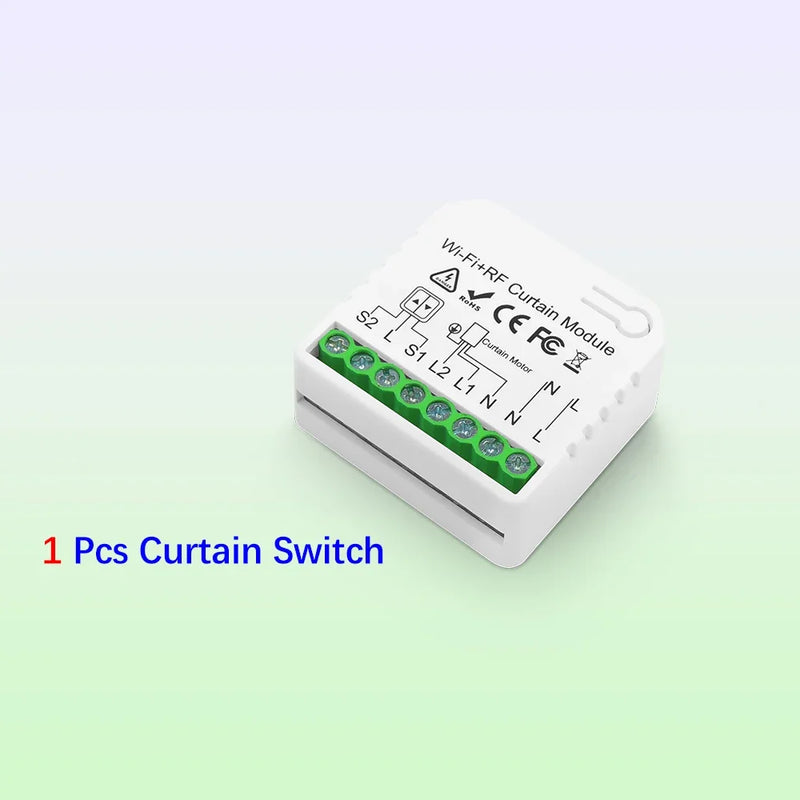

1.wifi + rf curtain switch
2.433mhz remote control
3.Terminals(Connector)and wire
The exact amount depends on your choice

Q & A
1.Q:Does this work with Google Home?
A:Yes,it does.And it's also compatible with Alexa.
2.Q:Can I control the module with my own remote control switch?
A:No,You can use "Smart Life" APP in your smart phone to control the wall switch wirelessly with Wi-Fi or 4G network
3.Q:Which products can I control with the device?
A:Curtains,shutter,blind....
4.Q:Does the device need a gateway?
A:Yes, it needs to be used with a gateway
Please let us know if you have any questions.Thanks.
