WiFi 6 Card AX210 Bluetooth 5.3 5374Mbps Adapter Desktop

Name: WiFi 6 Card AX210 Bluetooth 5.3 5374Mbps Adapter Desktop
Brand: Samag.Shop
Price: 35.0 GBP
Availability: InStock

Default Title: Default Title

Default Title ✓

SPECIFICATIONS

Antenna: With Antenna set

Application: Desktop

Bluetooth: Bluetooth 5.3

Bluetooth Protocol: Bluetooth 5.3

Brand Name: TelDaykemei

Certification: CE,FCC

Choice: yes

Compatible: M.2 Key E slot, not support CNVI

Frequency: 6 GHz

Frequency Band Class: Tri-Band

Heat dissipation: Support

High-concerned chemical: None

Interface Type: NGFF

Kind: Internal

Max Speed: 2400Mbps(the router must support 802.11ax)

Model Name: AX210

Model Number: AX210 M.2 Dekstop Kit

Origin: Mainland China

Support: Windows 10*64bit, Windows 11*64bit, Linux

Type: WireLess

Wi-Fi Supported Frequency: 2.4G & 5G

Wired Interfaces: None

Wired socket: NGFF

Wired transmission rate: None

Wireless Communication Standard: 802.11.ax

Wireless Protocol: 802.11n,802.11ax(802.11ax),802.11a/g,802.11ac

Wireless network support frequency: 2.4G/5G/6G (160MHz)

Wireless socket: None

Wireless transmission rate: 5000M

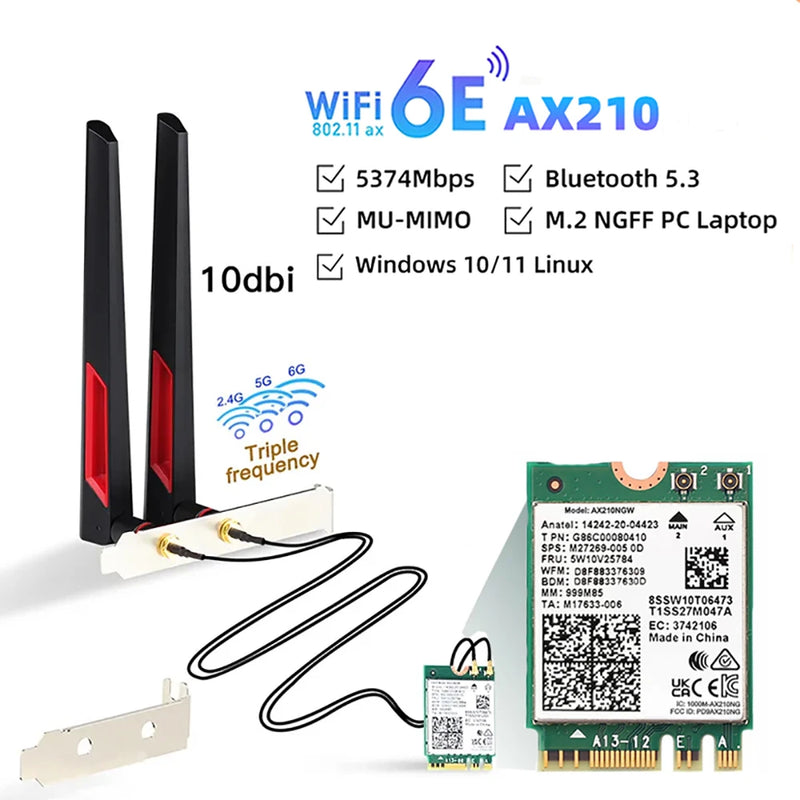

AX210 Desktop Kit

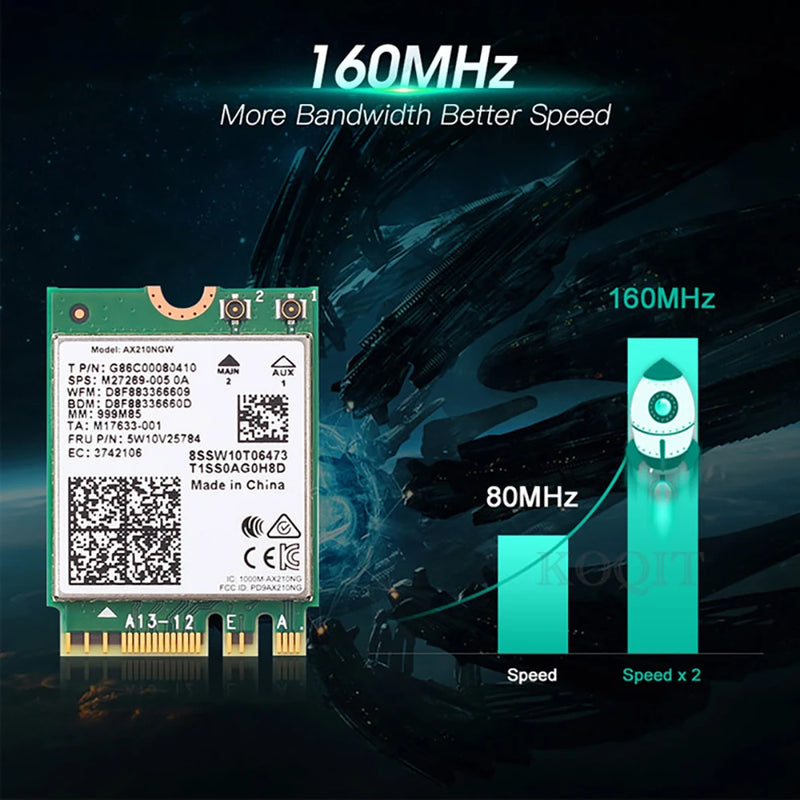

AX210 NGW Wireless Network Card Features

2.4Gbps - up to 2.4Gbps internet speed to avoid network lag

Bluetooth 5.3 - the latest Bluetooth 5.3 technology, compatible with all kinds of existing laptop Bluetooth 5.3 and below accessories

6GHz band - increased to 7 160MHz channels, 14 80MHz channels, 29 40MHz channels, 60 20MHz channels, reducing signal interference caused by high device density

WPA3 - Anti-virus, Anti-hijacking, Anti-hacking, Anti-scratching. Internet access is more secure.

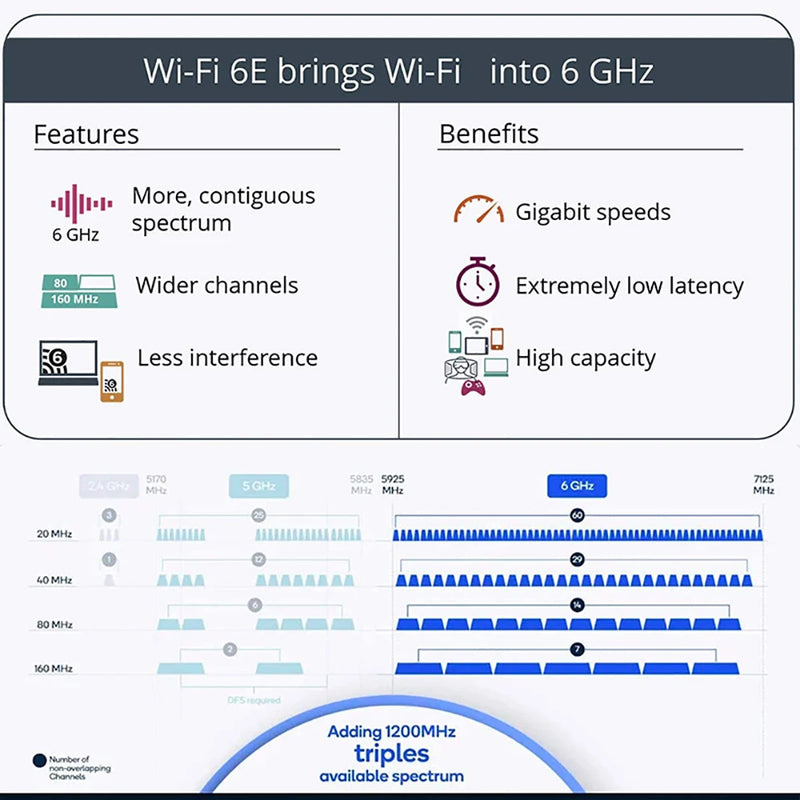

What is Wi-Fi 6E？

With the popularity of smart homes, the number of devices connected wirelessly by WiFi is also increasing dramatically, which will lead to overcongestion in the 2.4GHz and 5GHz bands, making it difficult for Wi-Fi to reach its full potential. AX210NGW adopts the latest Wi-Fi 6E technology with a new 6GHz channel, so that for smart homes, older devices and devices with low network requirements can connect to the 2.4GHz and 5GHz bands, while devices with high network requirements can connect to the new band 6GHz band to improve the network experience.

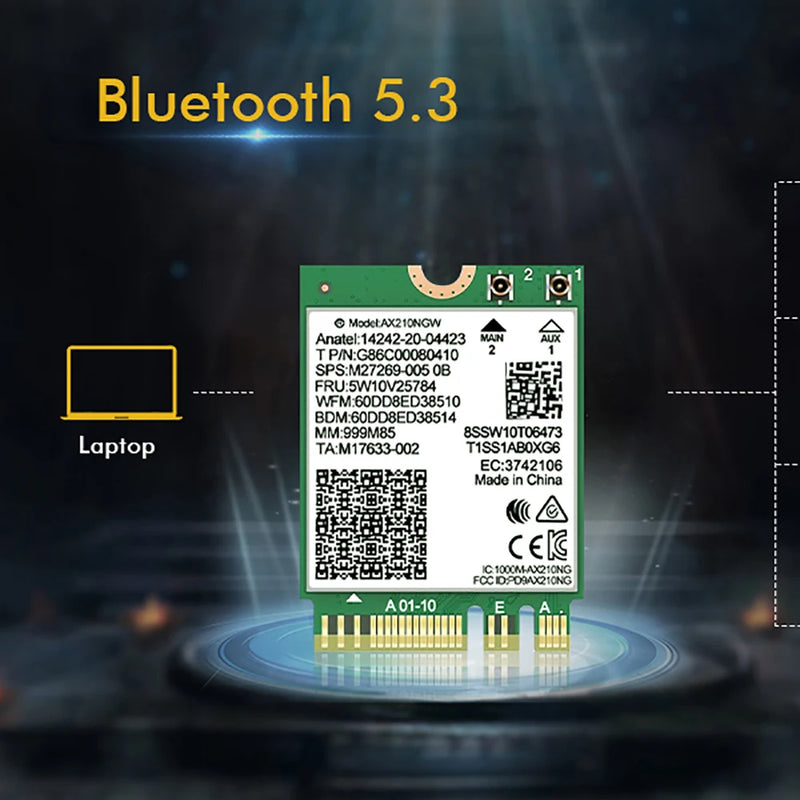

Bluetooth 5.3 Technology

What can you do with Bluetooth 5.3 Technology？

Expand the range of 4 x Blue-tooth 4.2 signal.

BT 5.3 version, backward compatible with BT5.2/BT 5.1/BT 5.0/4.2/4.0

This card can help old desktop to receive wi-fi signal and connect multiple Bluetooth devices.

AX210 NGW TEST

High Gain Antenna Covers Wide Coverage

10dbi high gain antenna(broader gain)
Antenna 360 degree direction adjustable, better signal strength
MHF4 to SMA 30cm
MHF4 is already installed on ax210
Gold Plated SMA, higher reliability and more stable signal

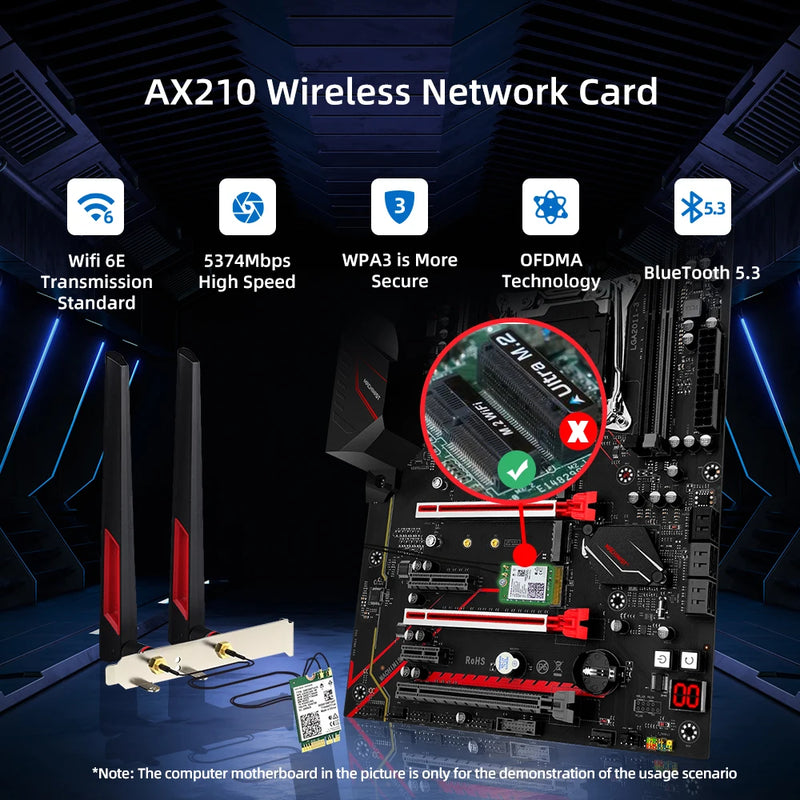

Desktop Kit Works on Motherboard with Standard NGFF M.2 Key A or E Slot

Compatible withany Laptop or Desktop with standardNGFFM.2 Key A or Key E slot. All the Laptops with AC9260, AC8265, AC7265 Wi-Fi module can be replaced with this AX210 module.
Not Compatible with NGFF CNVIO or CNVIO2 slot.Some laptops use AC9560 or AC9642 with NGFF CNVIO, can't be replaced.
Not Compatible with Mini PCIE slot.Some old laptops use AC7260 with Mini PCIe connector, can't be replaced.
Some Laptop‘s hardwares are locked by default(whitelist blocked), need toupdate the BIOS, it is better to do it under the help of PC manufacture.

Installation Notes

1. Only Windows 10/11, 64-bit is recommended. If the driver installation does not work, you need to update Windows 10 version to the latest version.

2. Works with newer AMD CPU. Do not use on motherboards containing AC9560 CNVi modules.

3. Download the driver from the website.(It is recommended to download the driver first and then install the network card.)

4. Requires a WiFi 6E router to enable the 6GHz band.

About this item

【The lastest WiFi 6E Technology】Based on AX210 chipset, WiFi 6E AX210 Brings WiFi into 6GHz, Update your wifi to Tri-Band. Max Speed up to 574Mbps @2.4GHz + 2400Mbps @5GHz +2400Mbps @6GHz. 2.4GHz for the long range, 5GHz for the high speed, 6GHz for the high speed, Interference free and Ultra-low Latency
【BT 5.3 for TWS Earbuds】BT 5.3 is coming with AX210. Compared with 5.2, 5.1, it has larger capacity, higher speed and extremely low latency
【Free Surfing Experience 】Revolutionary OFDMA,MU-MIMO support greater network flexibility, faster downloads, sharing and backup, ultra-low latency and better reliability. Hot blood WiFi 6E network card brings ultra-responsive real-time experience of VR, Gaming, and 8K HD video at the same time
【TWT Technology Extends Battery Life】Target Wake Time(TWT) technology reduces power consumption for Laptops by negotiating when and how often they will wake up to send or receive data, increasing sleep time and substantially prolonging battery life
【Compatibility And Driver】AX210 WiFi 6E Module has the latest WiFi technology and frequency band resources, which can be compatible with existing WiFi 6 routers and WiFi 6E routers to be released soon, such as ASUS, Netgear and tplink. The latest driver can be downloaded from the web by searching "AX210"(It is recommended to download the driver first and then install the network card.)
