SPECIFICATIONS

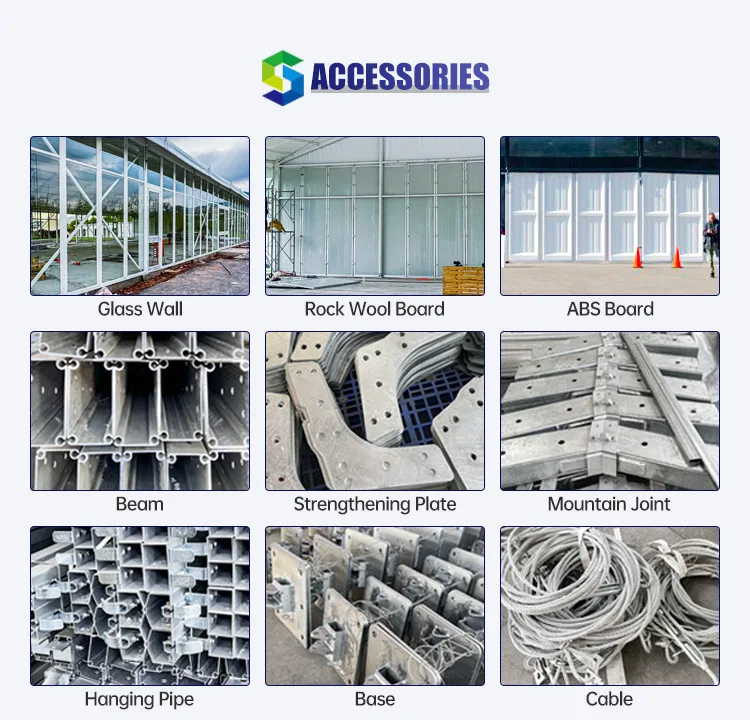

Accessories: Included

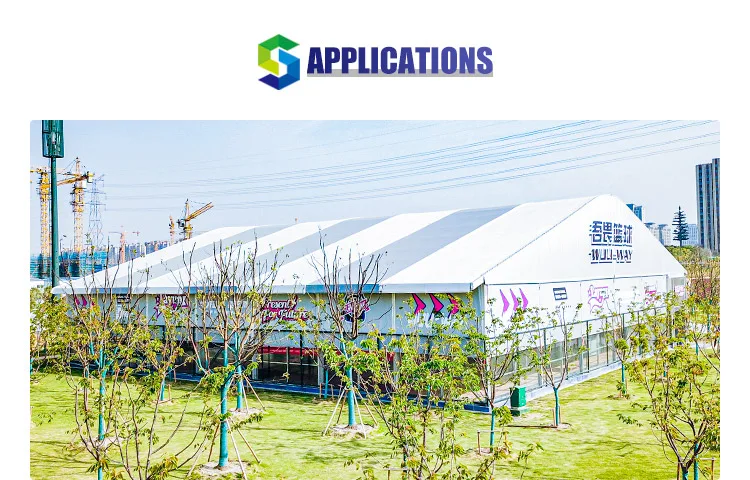

Application: Indoor, Outdoor

Brand Name: NONE,Shengyixin

Certificates: TUV CE

Color: Custom

Cover Area: 10~25M²

Fabric: PVC

Frame Material: Aluminum

High-concerned chemical: None

Life Span: 15-20years

Material: PVC

Model Number: 1

Origin: Mainland China

Place of Origin: Jiangsu, China, China

Roof cover: Aluminum Alloy GB6061-T6/6082-T6

Season: All Seasons, Winter, Summer, Spring, Autumn

Shape: A-frame

Side Wall: PVC Fabric Window

Size: Custom

Type: Camouflage/Field Game

Products Description

Material	Product Code	Unit Space	Span	Eave Height	Total Height	Main Pipe Spec.	The tallest Pipe
Steel	SGP030303	3	3	3	3.6	40*60	3
Steel	SGP030403	3	4	3	3.8	40*60	4
Steel	SGP030503	3	5	3	4	40*60	5
Steel	SGP030603	3	6	3	4	40*60	6
Steel	SGP030803	3	8	3	4.4	40*60/50*70	4.3
Steel	SGP031003	3	10	3	4.9	50*70	5.2
Aluminium Alloy	SLP051003	5	10	3	4.6	48*100/68*122	5.2
Aluminium Alloy	SLP051204	5	12	4	5.9	68*122	6.3
Aluminium Alloy	SLP051504	5	15	4	6.4	88*166/108*150	8
Aluminium Alloy	SLP051804	5	18	4	6.9	112*203	9.6
Aluminium Alloy	SLP052004	5	20	4	7.25	112*203	10.6
Aluminium Alloy	SLP052505	5	25	5	9	112*203	10.6
Aluminium Alloy	SLP053005	5	30	5	9.8	113*259	10.6
Aluminium Alloy	SLP053505	5	35	5	10.7	125*300	10.6
Aluminium Alloy	SLP054005	5	40	5	11.5	128*300	11
Aluminium Alloy	SLP055005	5	50	5	13.5	125*350	13.3

1.Peronal Design	2.Real Material	3.Durable
Fashion Product design, Strong visual impaction	Standrad Aluminum ally. Double coated PVC polyester fire and water resistance fabric	Precise joints and careful details
4.Custom	5.Waterproof and UV resistance	6.Simple Build
Wuxi manufacturer for different span and colors	Effective prevention of rainwater and sunshine	Assamble and disassemble simply,easy for transport and storage

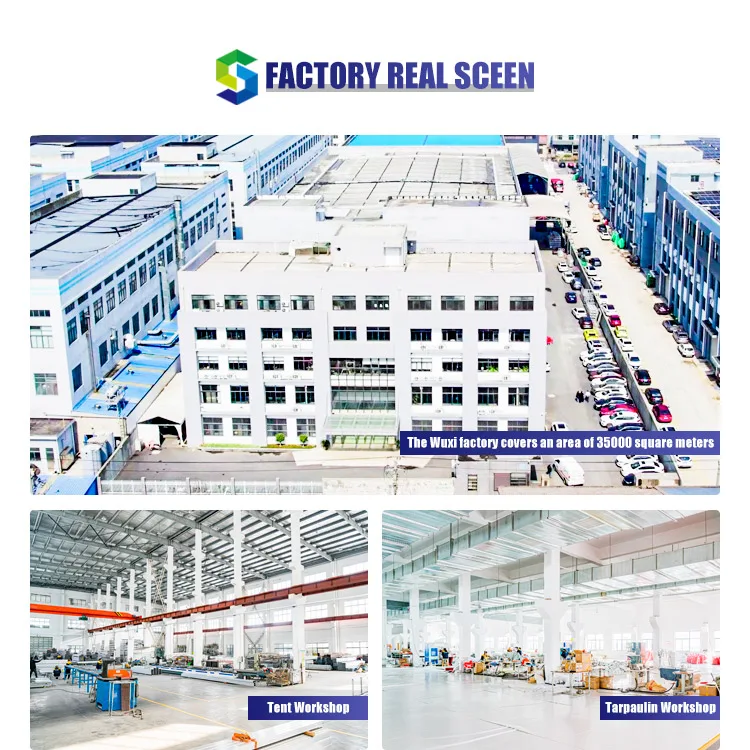

Company Profile

Wuxi Shengyixin Metal Products Co.,Ltd was established in 2004, with 19 years of experience of designing and producing tent, truss and stages.

We are certified by TUV. ISO. CE.

We are a comprehensive manufacturer, specializing in the design, development, produce and outdoor products, with more than 20

product practical patents, which are popular not only within China, but also the other countries and areas.

With professional producing line and experienced workers also the most strict quality control system, we serve the customers

worldwide with most competitive price, satisfied quality and fast shipping.

Requirement:

Let us know the following data, we can give you a specific quotation sheet;
1. Width__________M
2. Length________M
3. Space distance between columns:________M
4. Eave high__________M

FAQ:

Q1 What is the MOQ in Shengyixin?

Normally 200 sqm; or pls go to ask customer service;
Q2: Can you print our logos on the tent?
Yes. Customized logos can be printed on the tent fabric according to your requirements.
Q3. Do You Provide Any Guidance on the Job-site?
We will attach the build instructions in your product package. lf you need, we will send our technology staff and project manager
to provide installation guidance in your job-site.

Q4. How Long Will a Shengyixin Clear Span Structure Last?
In the reasonable using, the lifespan of the aluminum alloy can last over 10-15 years and the PVC cover is guaranteed up to 5
years.
