SPECIFICATIONS

Audio Test: Support

Battery: 11.1V Lithium-ion battery, 5200mAh

Brand Name: WANGLU

Cable Tracer (Optional): Support

Certification: CE,FCC,RoHS

Coaxial HD Test (Optional): Support

DC Power Output: DC24V 2A, DC12V 3A

Digital Multimeter (Optional): Support

Display: 8 inch IPS touch screen, 1920*1200 resolution

External Power Supply: DC 15V 1.6A

Gigabit SFP Port: Support

HDMI Input: Support 4K 30FPS

High-concerned chemical: None

IP & CVBS Test: Support

Lens: 3.6mm

Maximum IR Distance(m): 40m

Model Number: E88/E89/E90

Optical Power Meter (Optional): Support

Origin: Mainland China

PSE/PoE test: Support

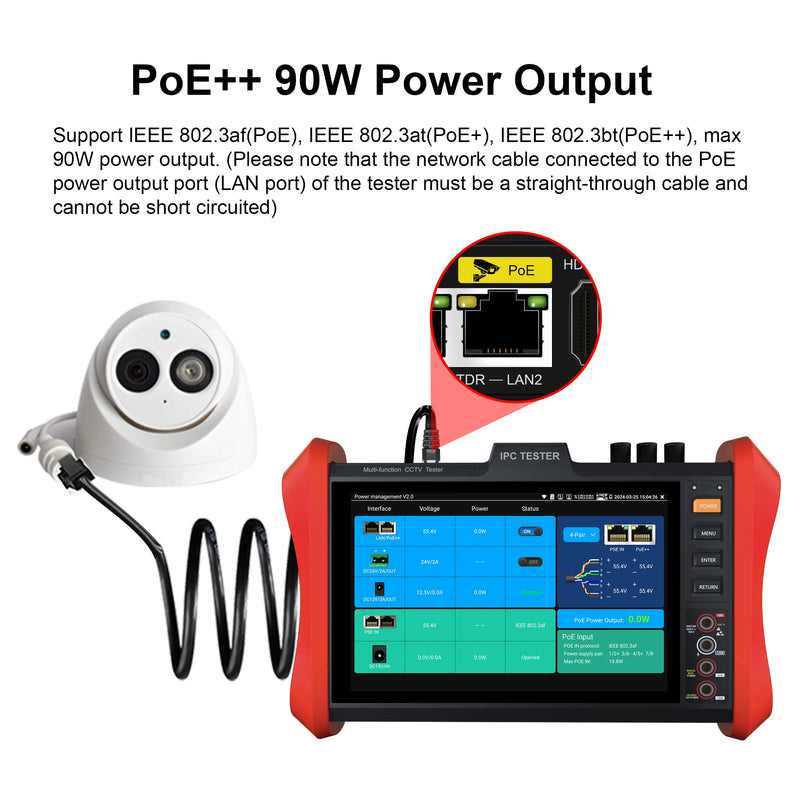

PoE Power Output: 55V output, max power 90W

RJ45 Cable TDR Test: Support

Sensor Size: 8 inch

USB Power Output: DC5V 2A power output, can connect USB camera, USB and Mouse, as power bank

UTP Cable Test: Support

VGA Input: Support 1920*1080P

Visual Fault Locator (Optional): Support

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

Zoom Image: 4x zoom, enlarge image, Screen snapshot, record, save, view and record and play back

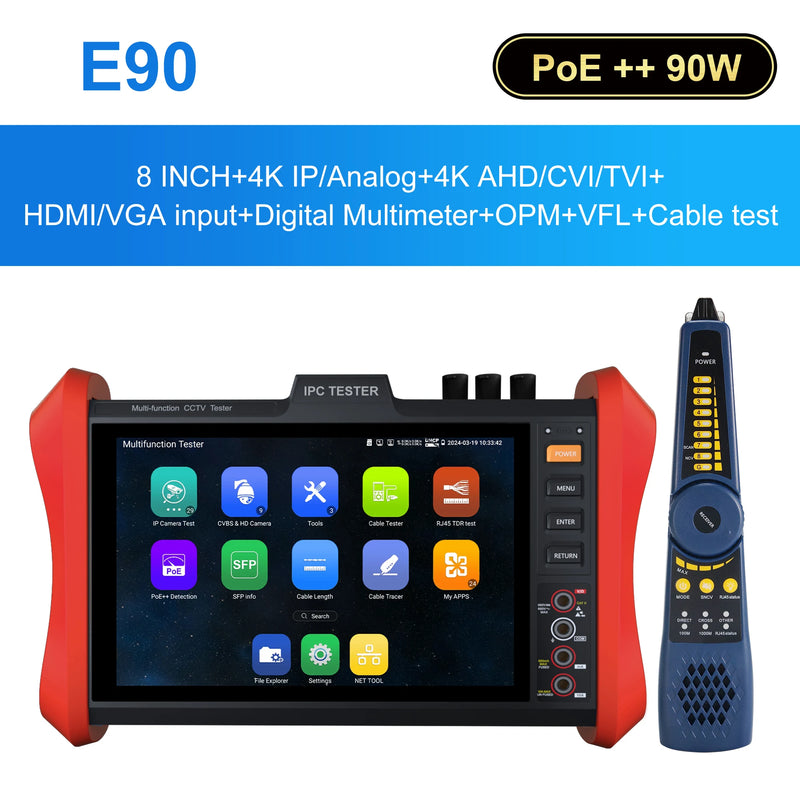

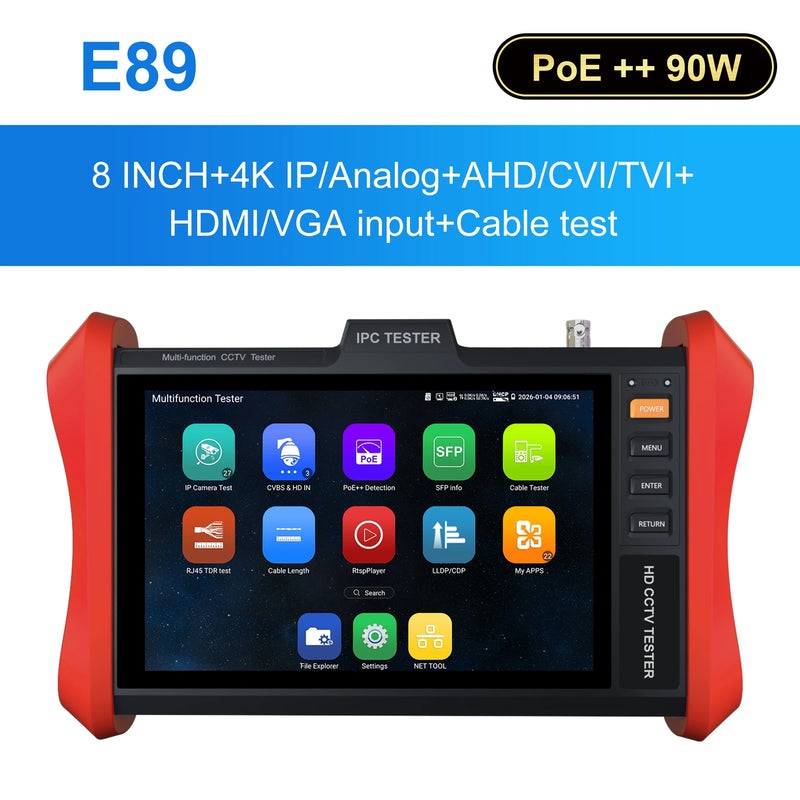

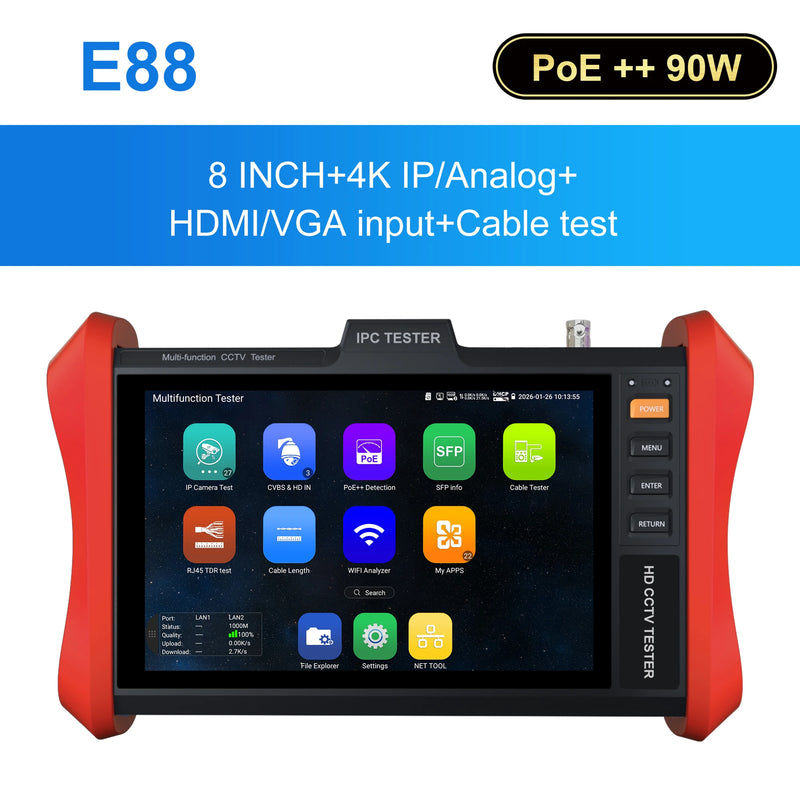

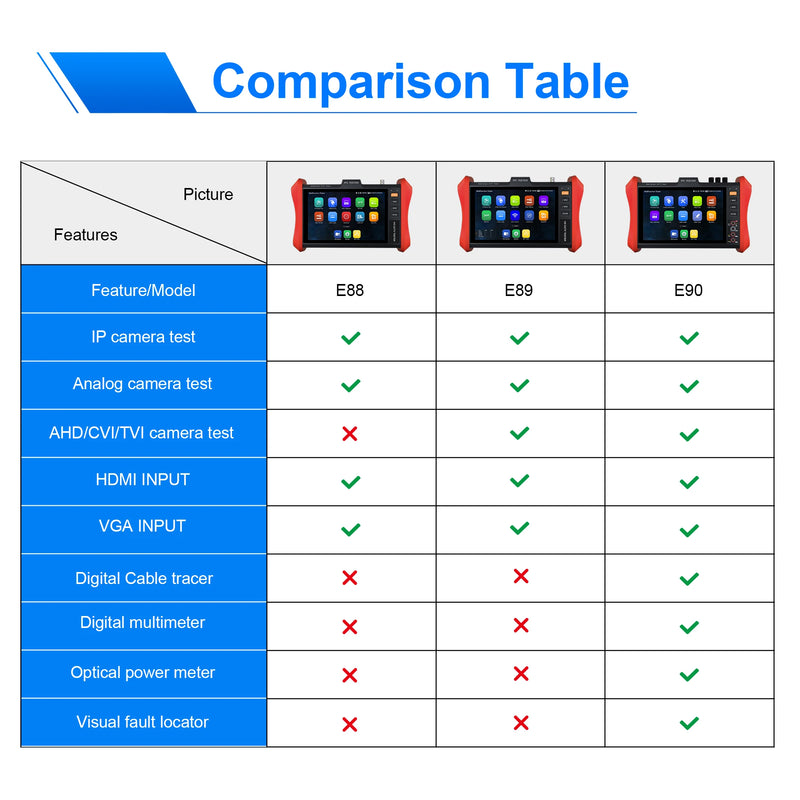

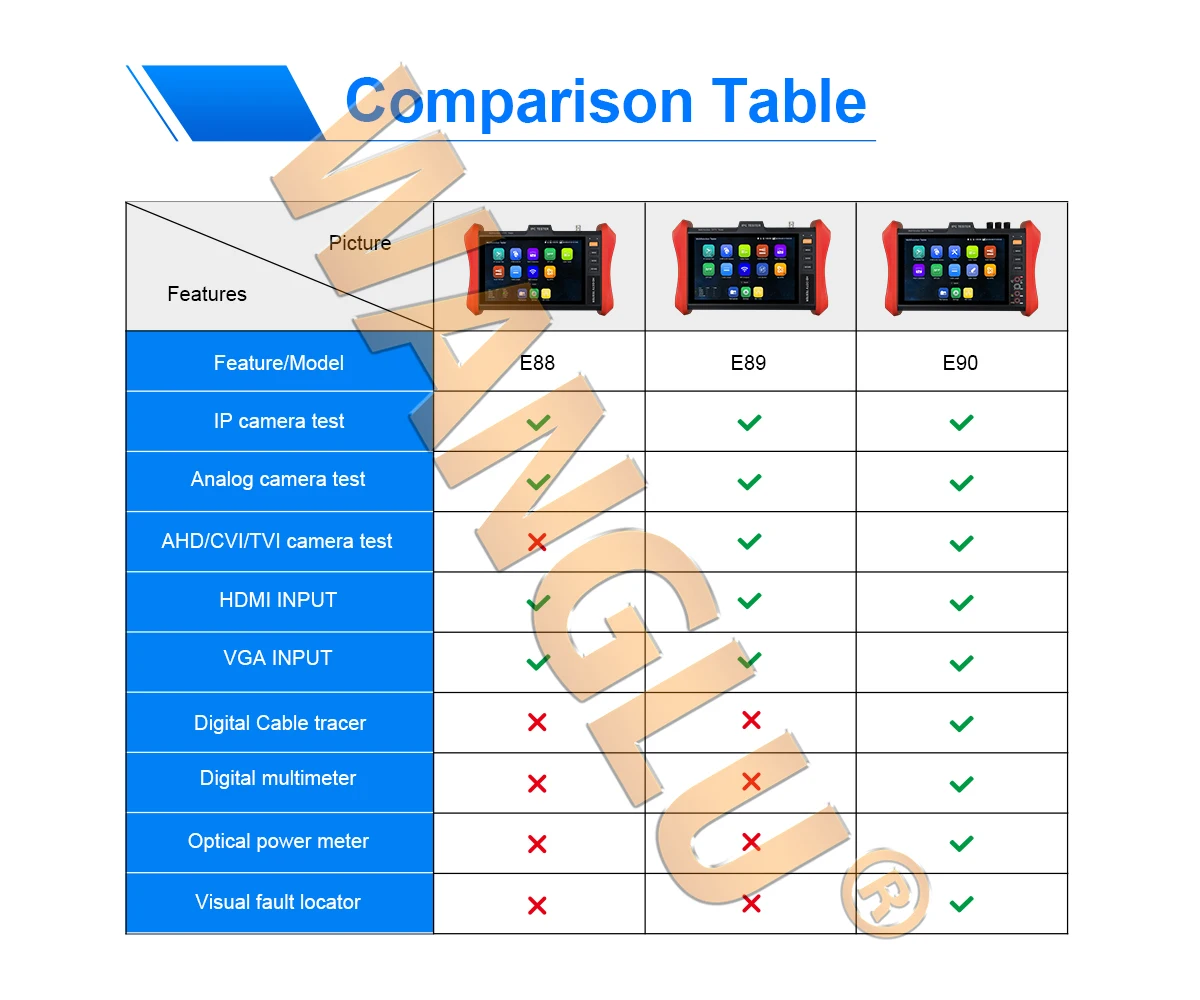

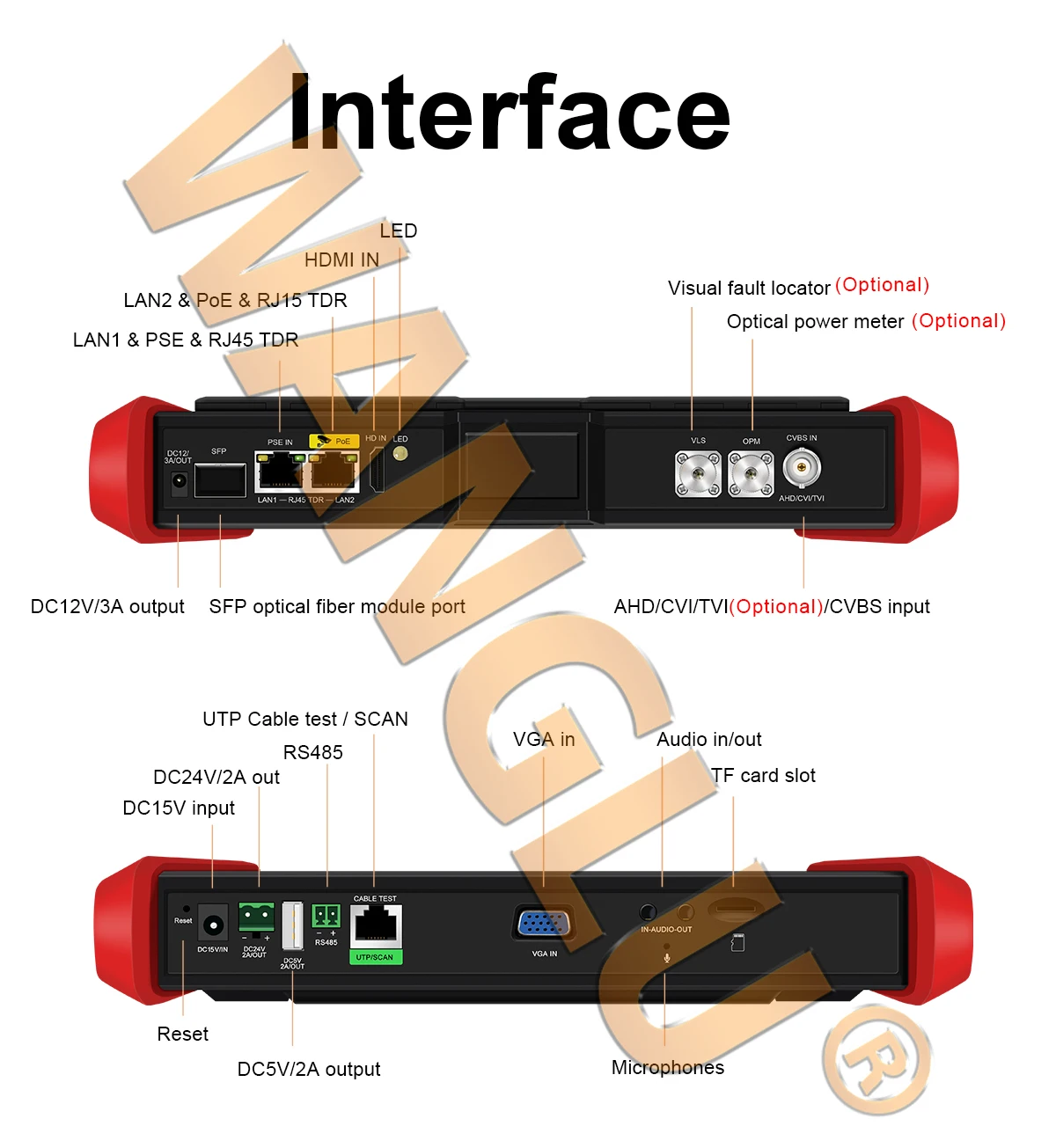

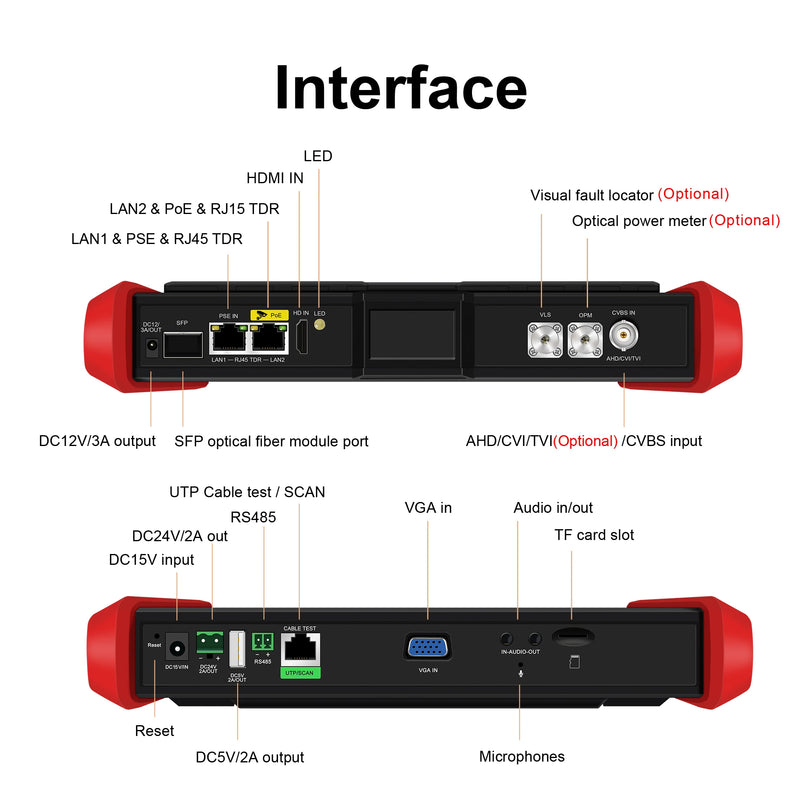

WANGLU 8 inch Monitor POE++ 90W SFP 4K H.265 IP 8MP AHD/TVI/CVI CCTV Camera Testing Tool HDMI VGA input Cable Tester E88/E89/E90

Model: E88/E89/E90

All-in-one 4K H.265 IP Camera Tester

● 8 inch IPS touch screen, 1920*1200 resolution

● 4K H.265 video display via mainstream

● 8MP CVI/TVI/AHD camera test

● Analog camera test

● 55V PoE++ power output, max power 90W

● DC12V 3A, DC24V 2Apower output

● 4K 30FPS HDMI INPUT

● VGA input support 1920*1080P

● Brand new dual gigabit Ethernet ports

● ONE Gigabit SFP optical fiber module port

Application

The 8 inch IPS touch screen IP camera tester is designed for maintenance and installation of new 4K H.265 IP, analog, HD coaxial cameras as well as other security equipment, support H.265/H.264 decoding camera, 4K video display via mainstream. The 1920x1200 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. CCTV installers often need to carry a variety of testing tools to complete their work.

If take the all in one camera tester, making working conditions safer and increasing productivity.

— CCTV system installation and maintenance

— Network cabling project installation and maintenance

— Dome camera, IP TVI CVI AHD 4K H.265 ip camera test

— Video transmission channel testing

— PTZ controller

Feature

Camera Test:

● 8 inch IPStouch screen, 1920*1200 resolution

● 4K H.265 video display via mainstream

● Analogcamera test and PTZ control

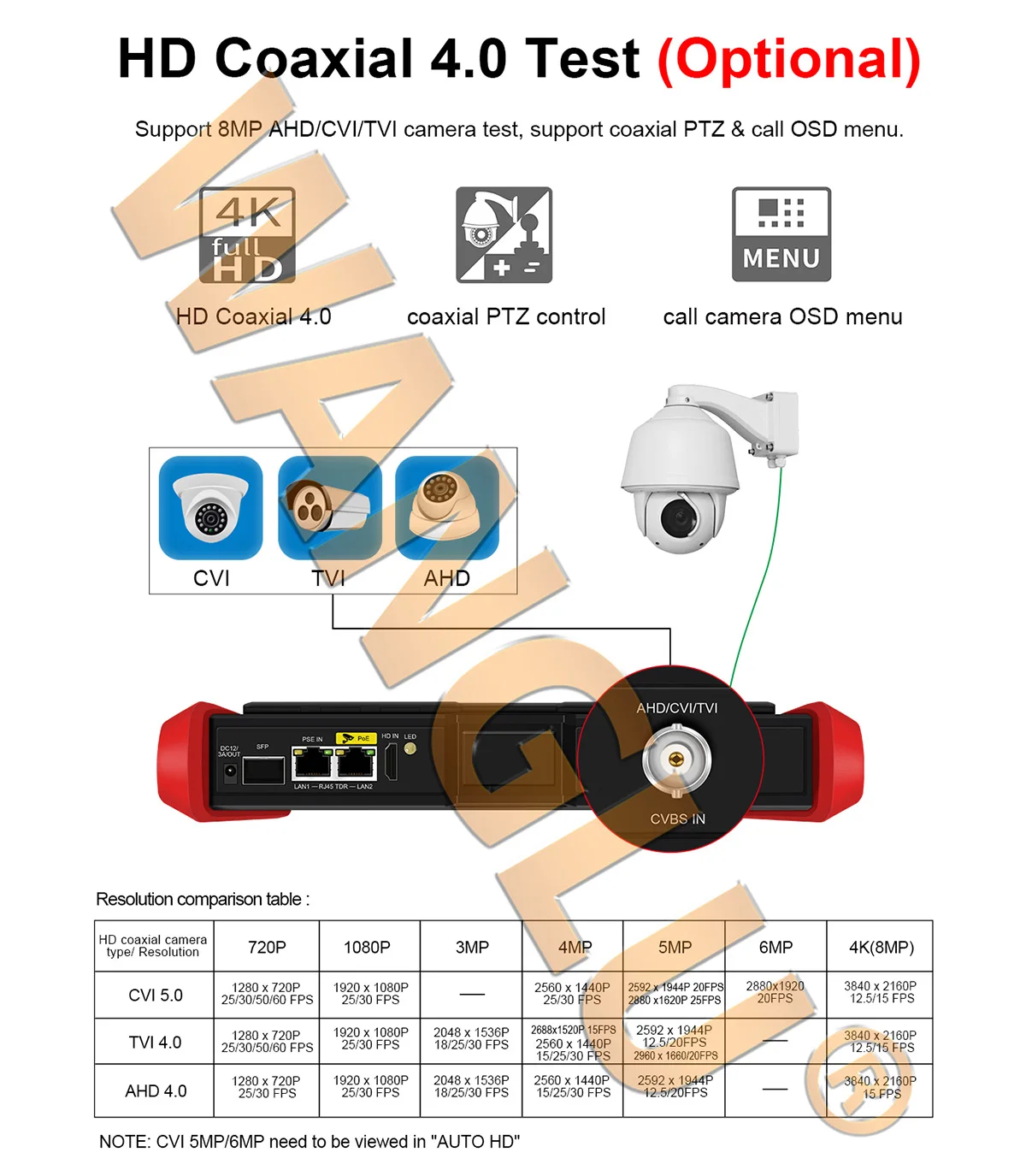

●8MP TVI test,3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu *(Optional)

● 8MP AHD test, 3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *(Optional)

●8MP CVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *(Optional)

● Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu *(Optional)

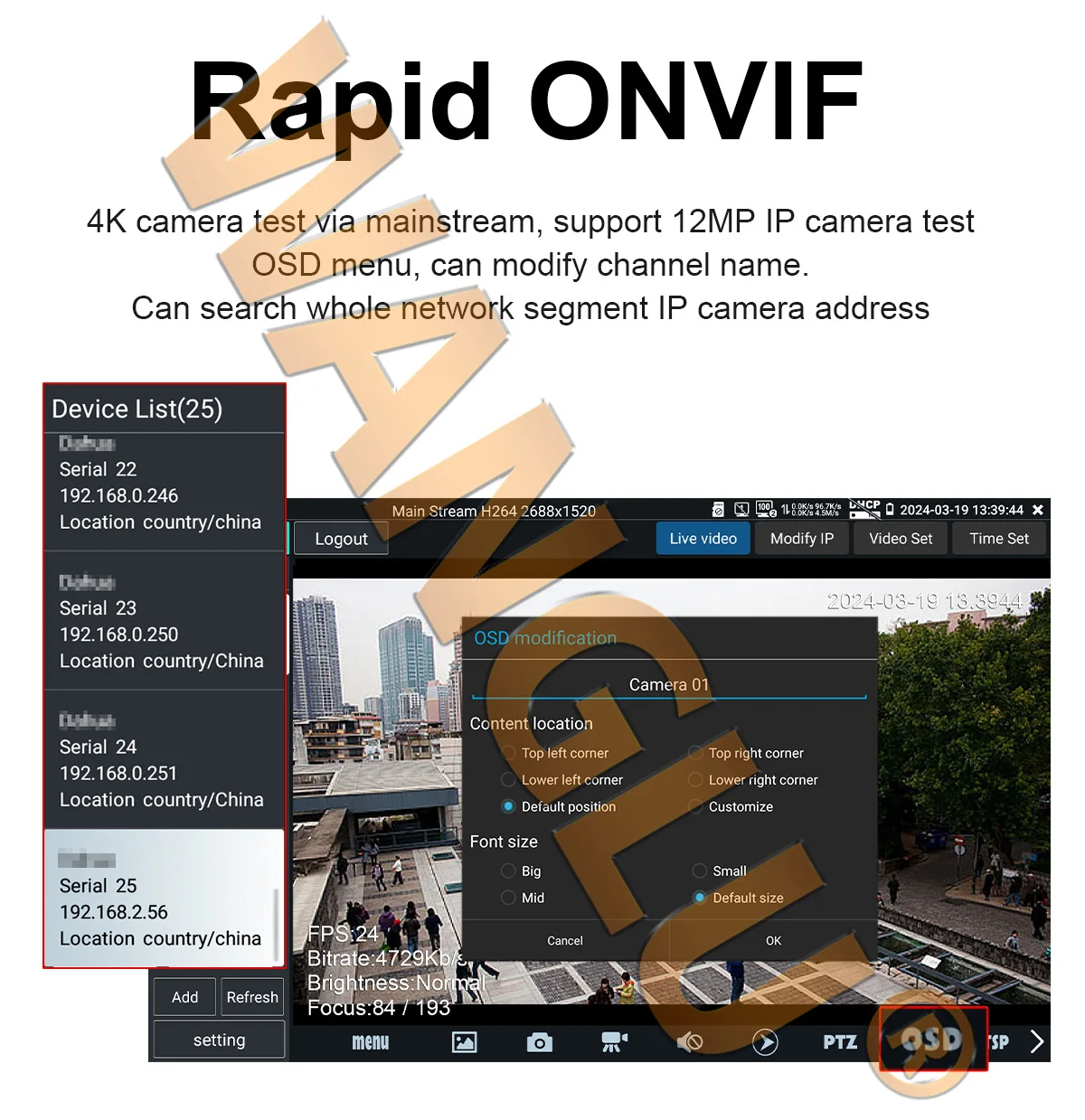

● Rapid ONVIF, Auto log in and display image, one-key create testing report, including camera IP address, resolution, encoding and other related information; support cross-network segment test; audio and video synchronization test; face recognition and other functions

● HIK camera test, enter ONVIF app, input username and password to test

● IPC TEST (Non-ONVIF test), HIK test tool,DH test tool

● DC12V/3A, DC24V 2A power output

● DC5V 2A power output, can connect USB camera, USB and mouse, as power bank

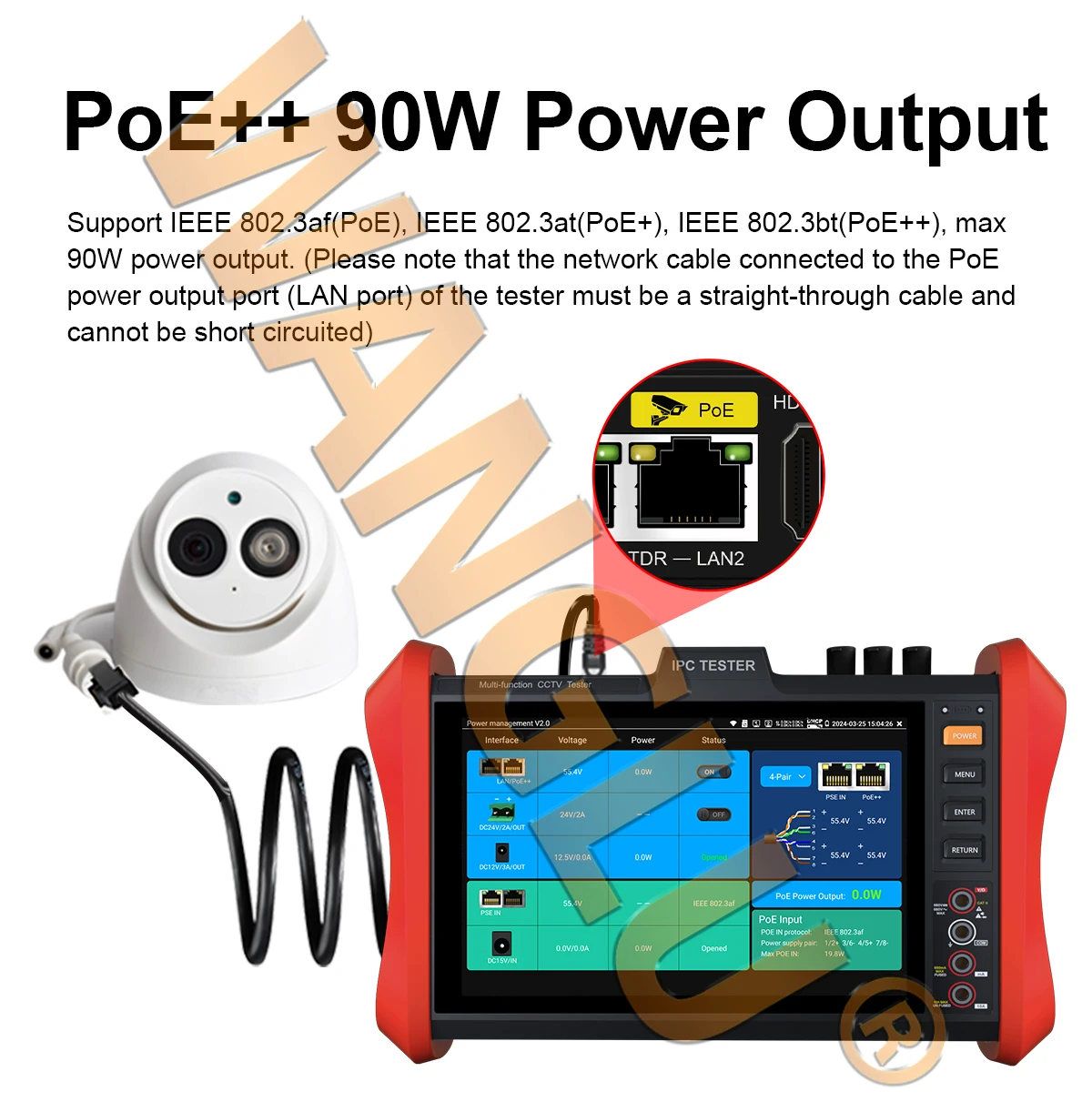

● 55V PoE++ power output power, max power 90W

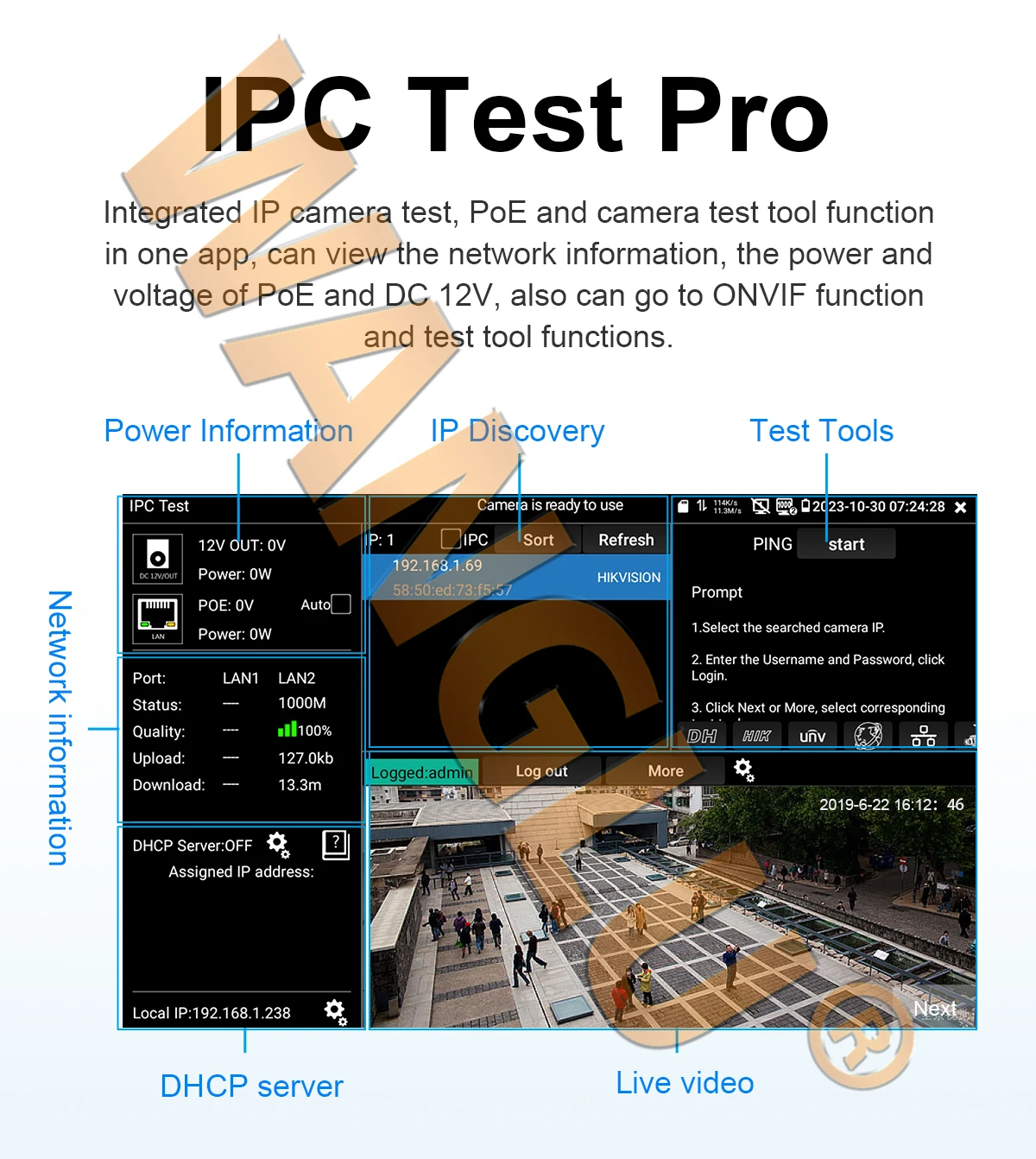

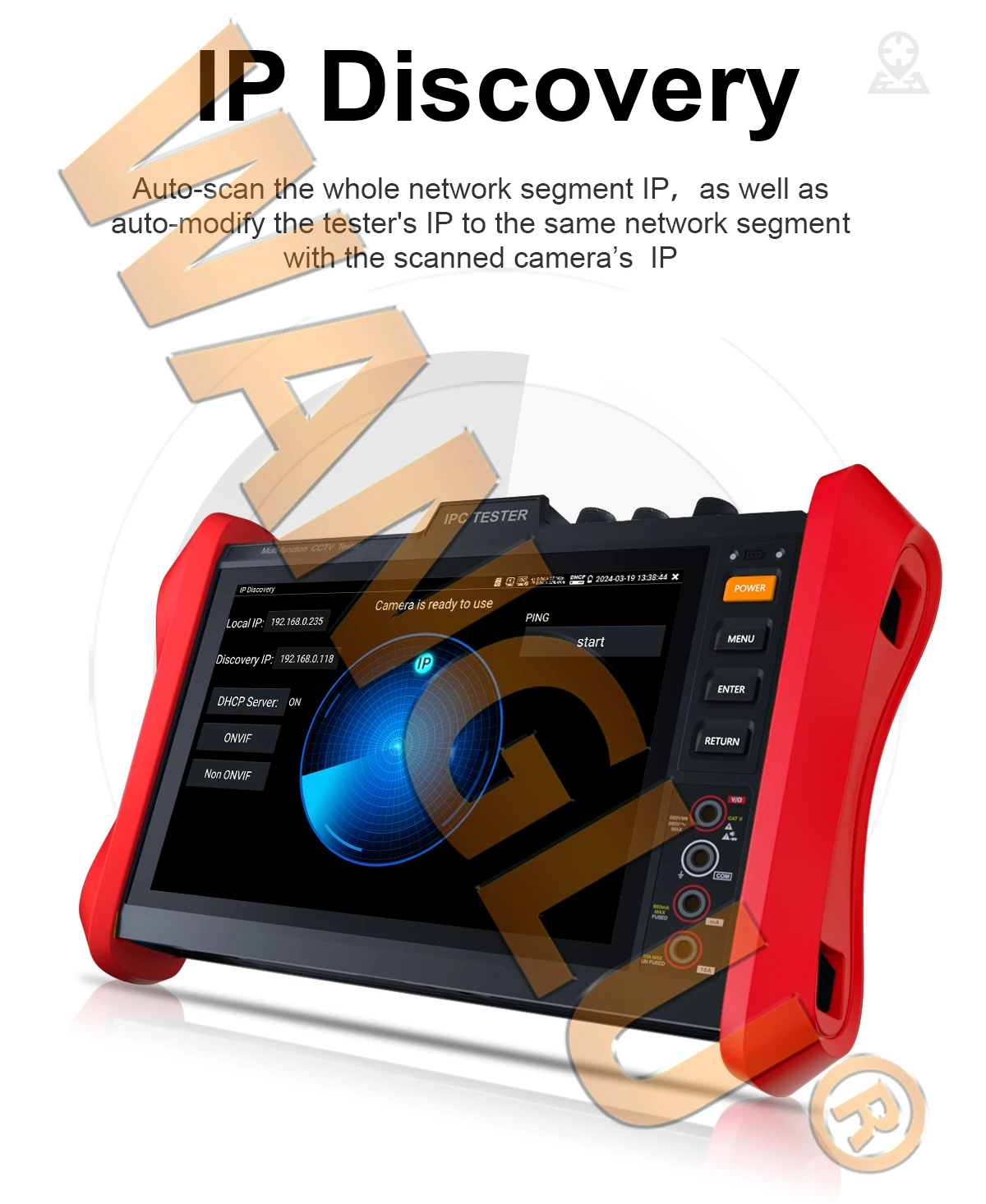

● Rapid video, just by one key to detect all network cameras and auto display

● Built in Wi-Fi Analysis, support 2.4G frequency band, can test Wi-Fi camera, create Wi-Fi hotspot

Cable Test:

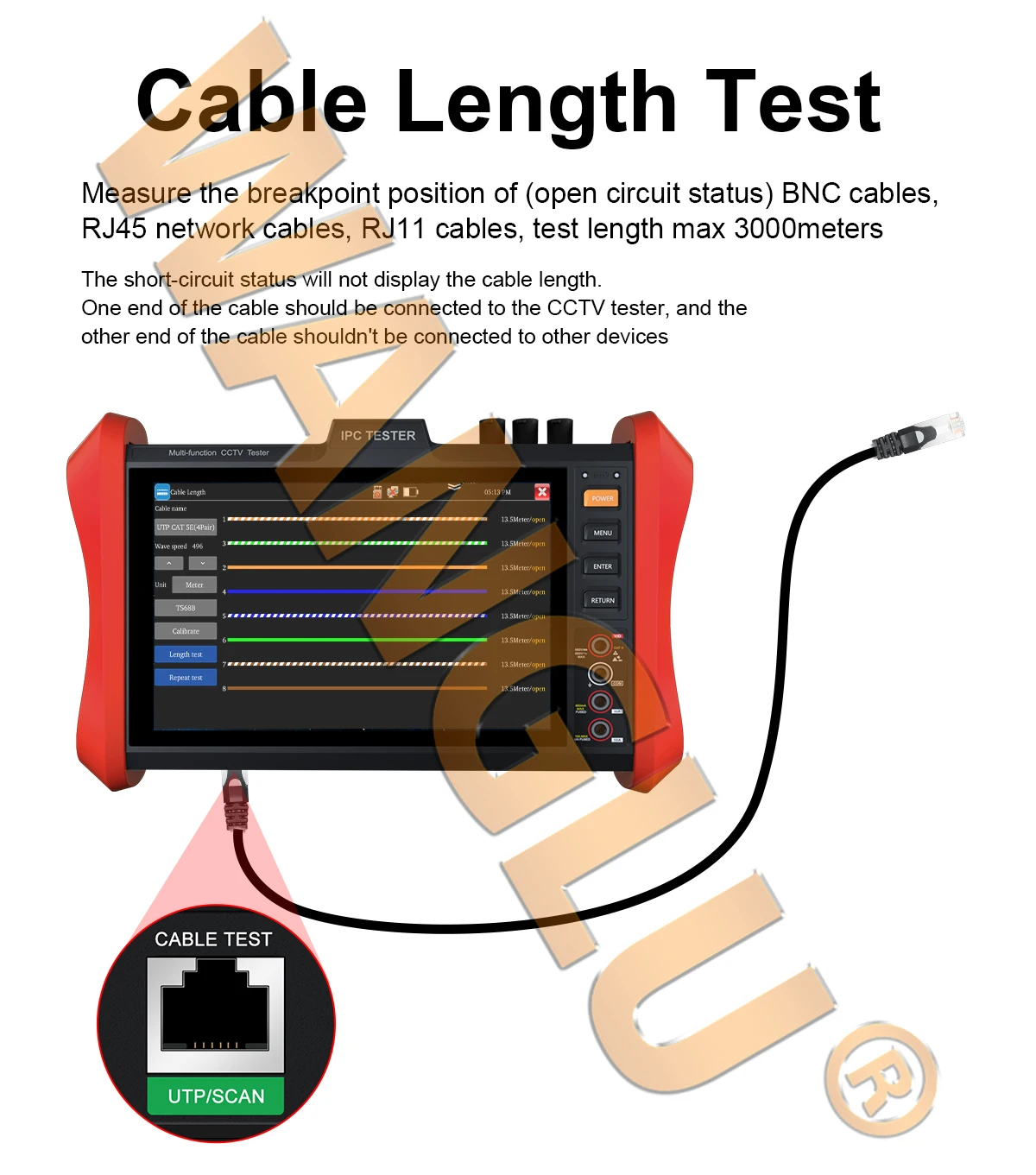

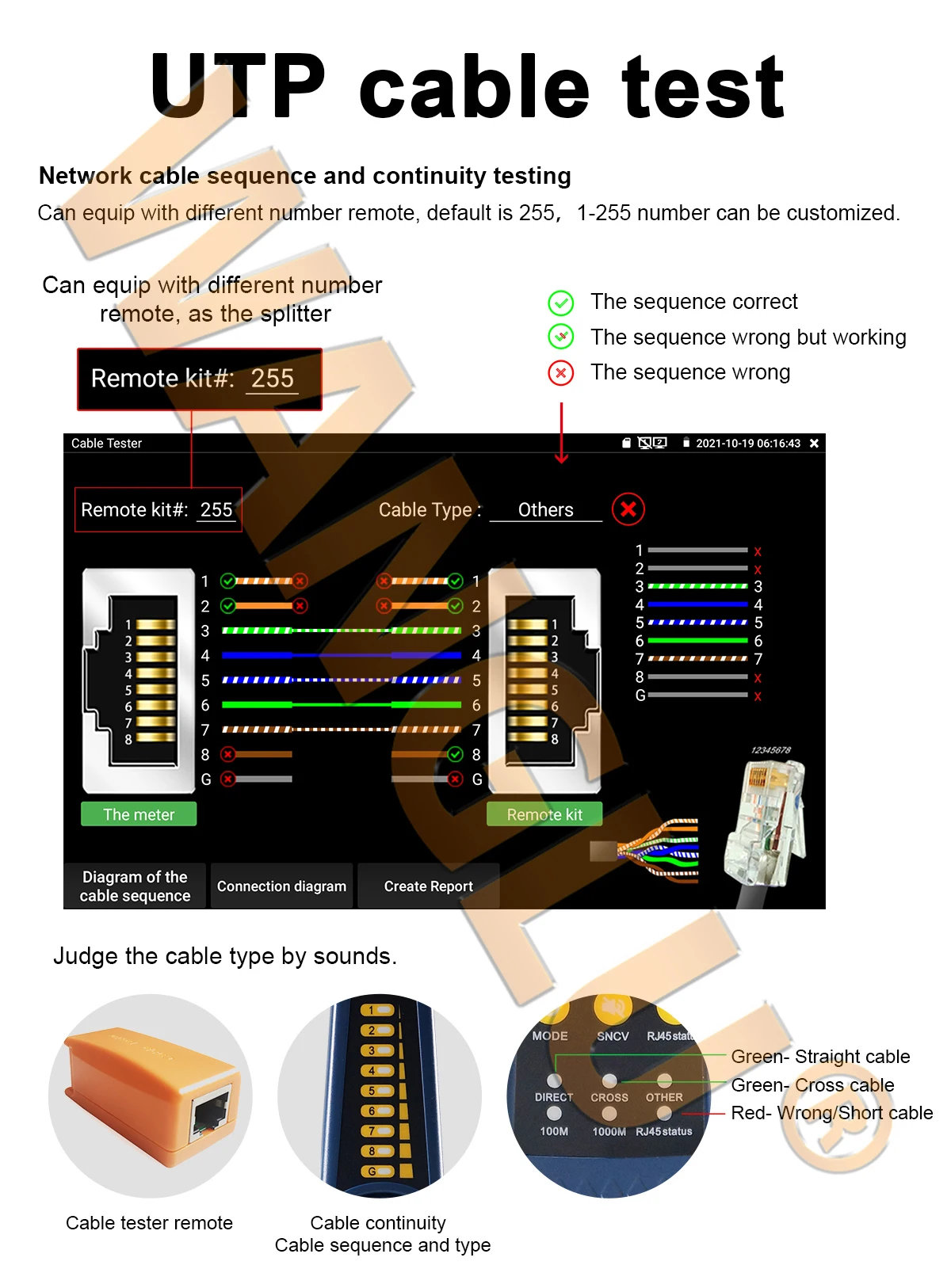

● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized, anddetect near-end, mid-end and far-end fault test of RJ45 cable plug.

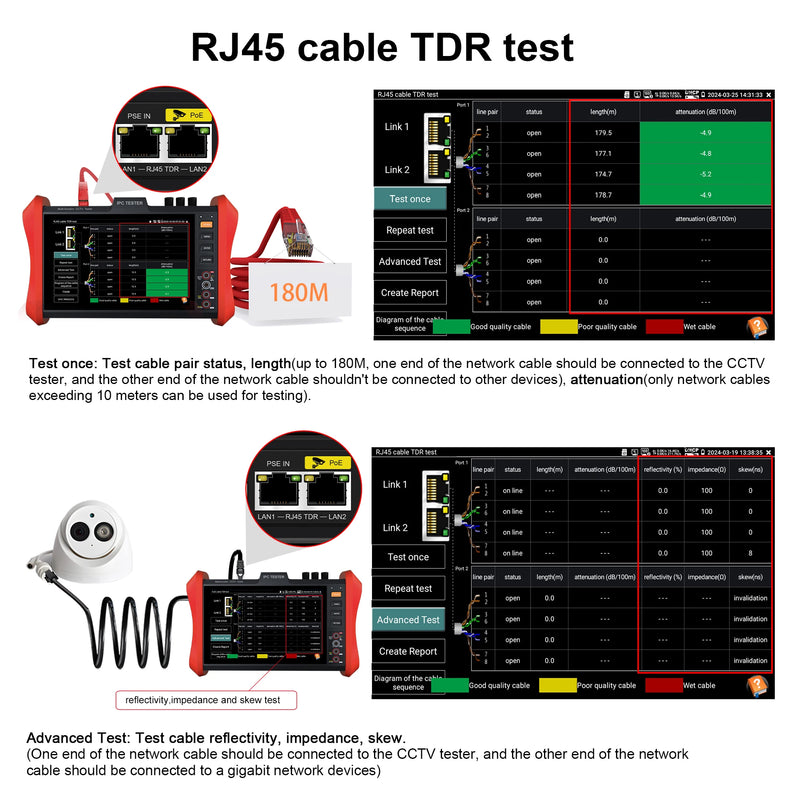

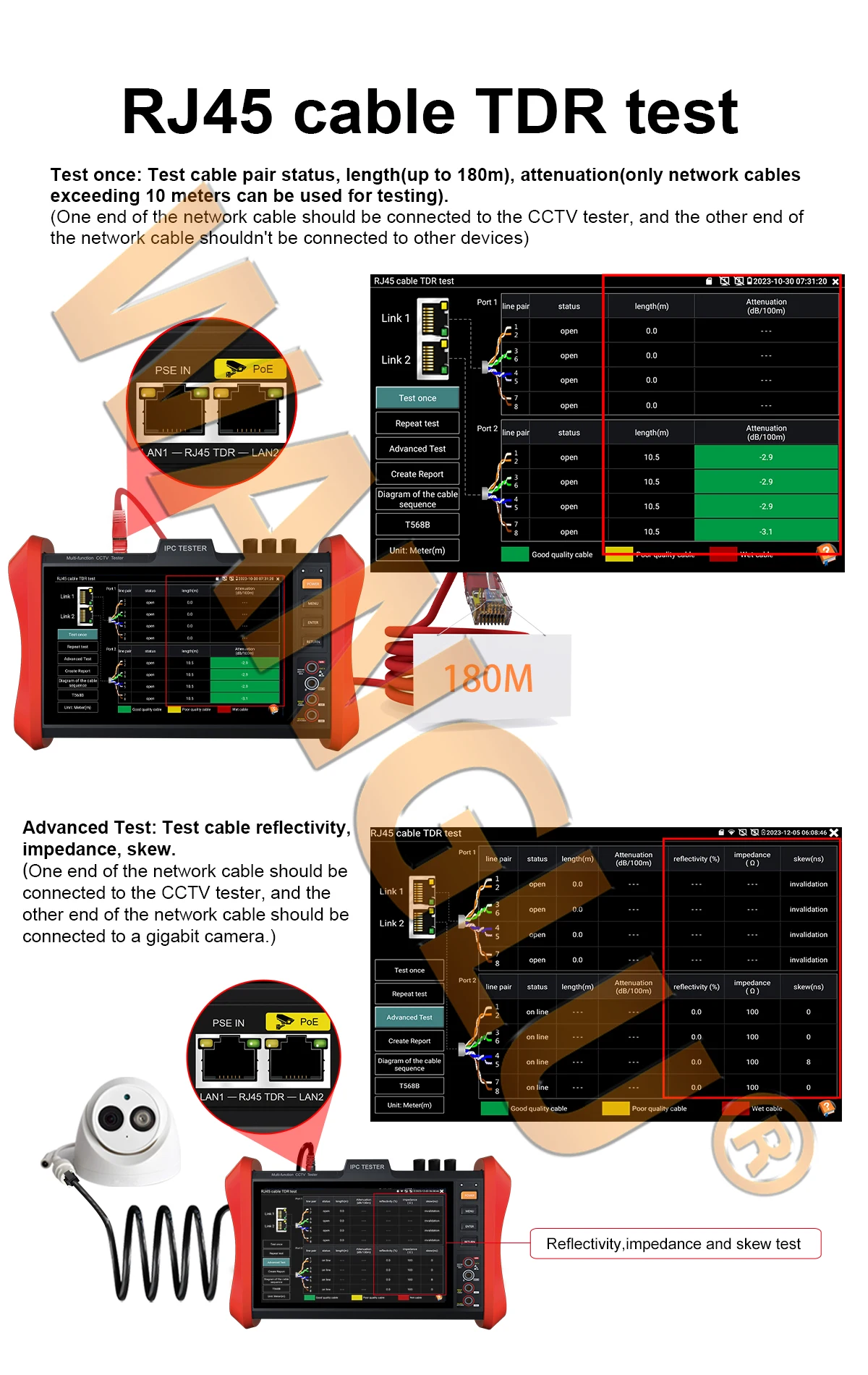

● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc.

● Upgraded Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables,more accurately. *(Optional)

Other Functions:

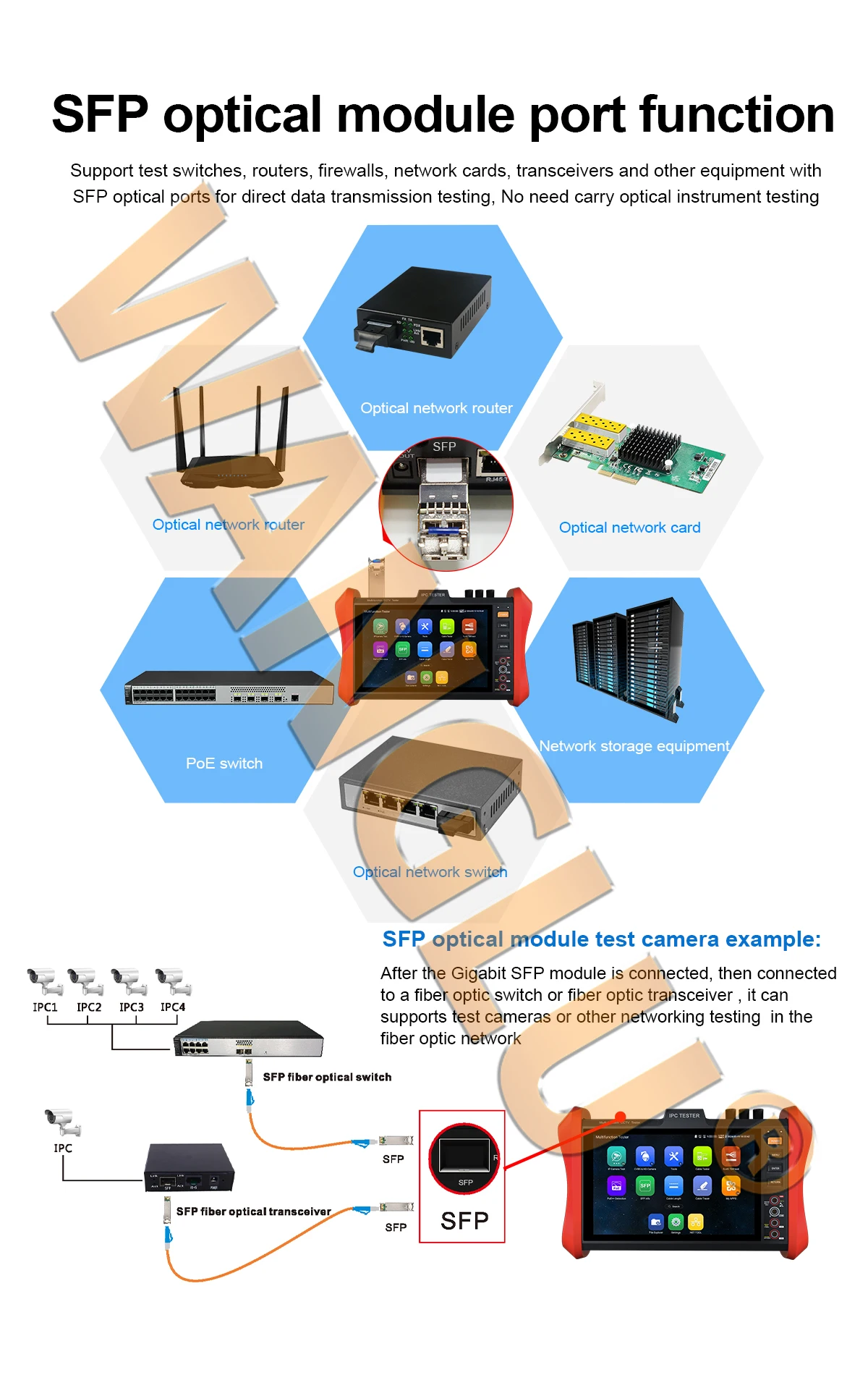

● ONE Gigabit SFP port, supportinsert SFP optical fiber module, for optical fiber network testing

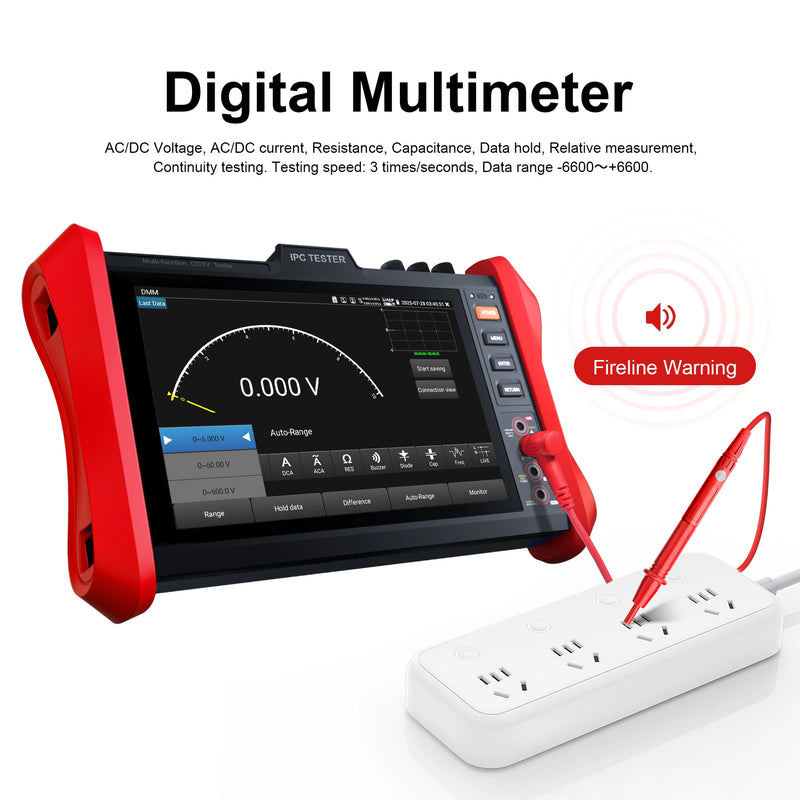

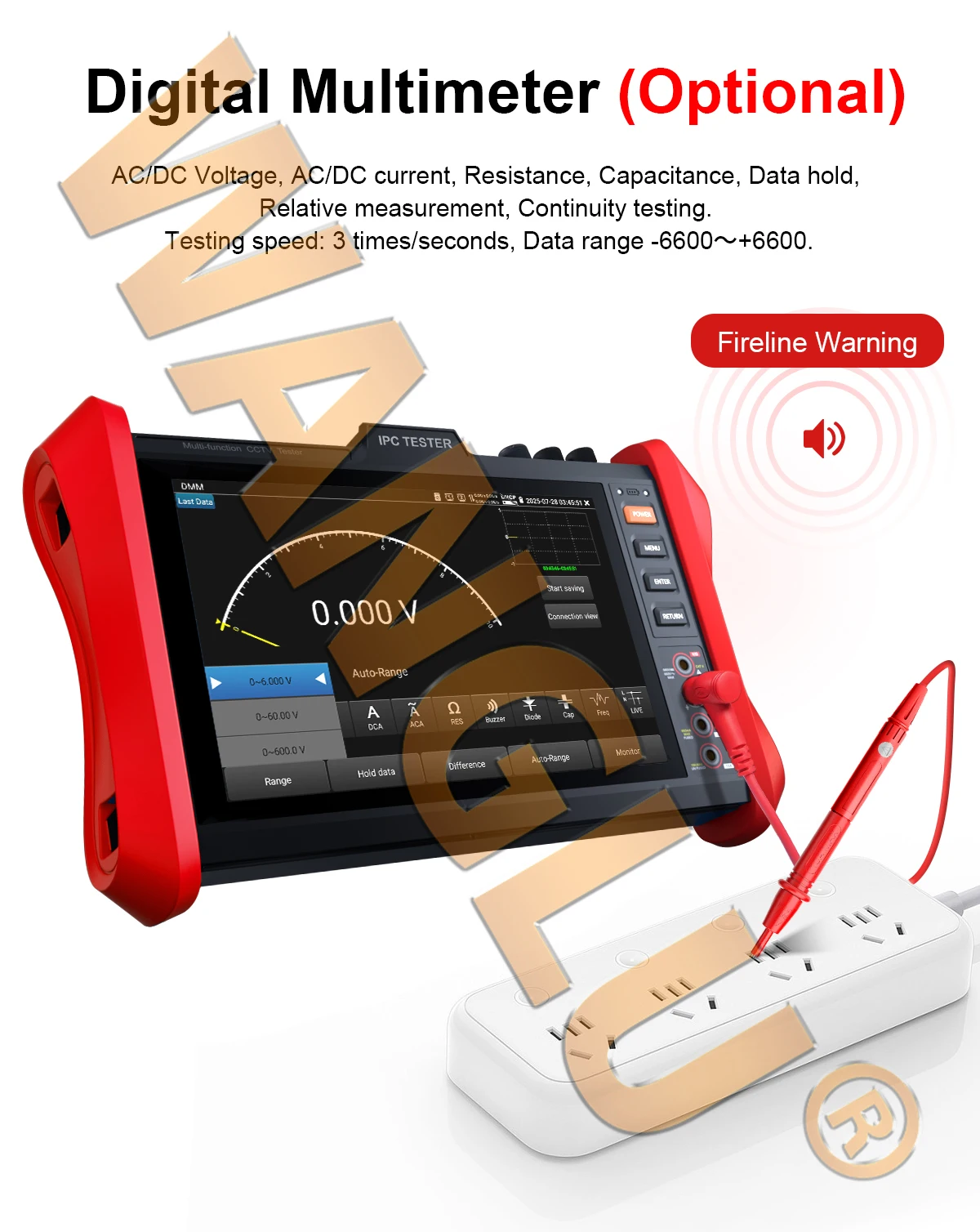

● Digital Multi-meter *(Optional): AC/DC Voltage, AC/DC current, Resistance, Capacitance, Data hold, Relative measurement, Continuity testing. Testing speed: 3 times/ seconds, Data range -6600～+6600.

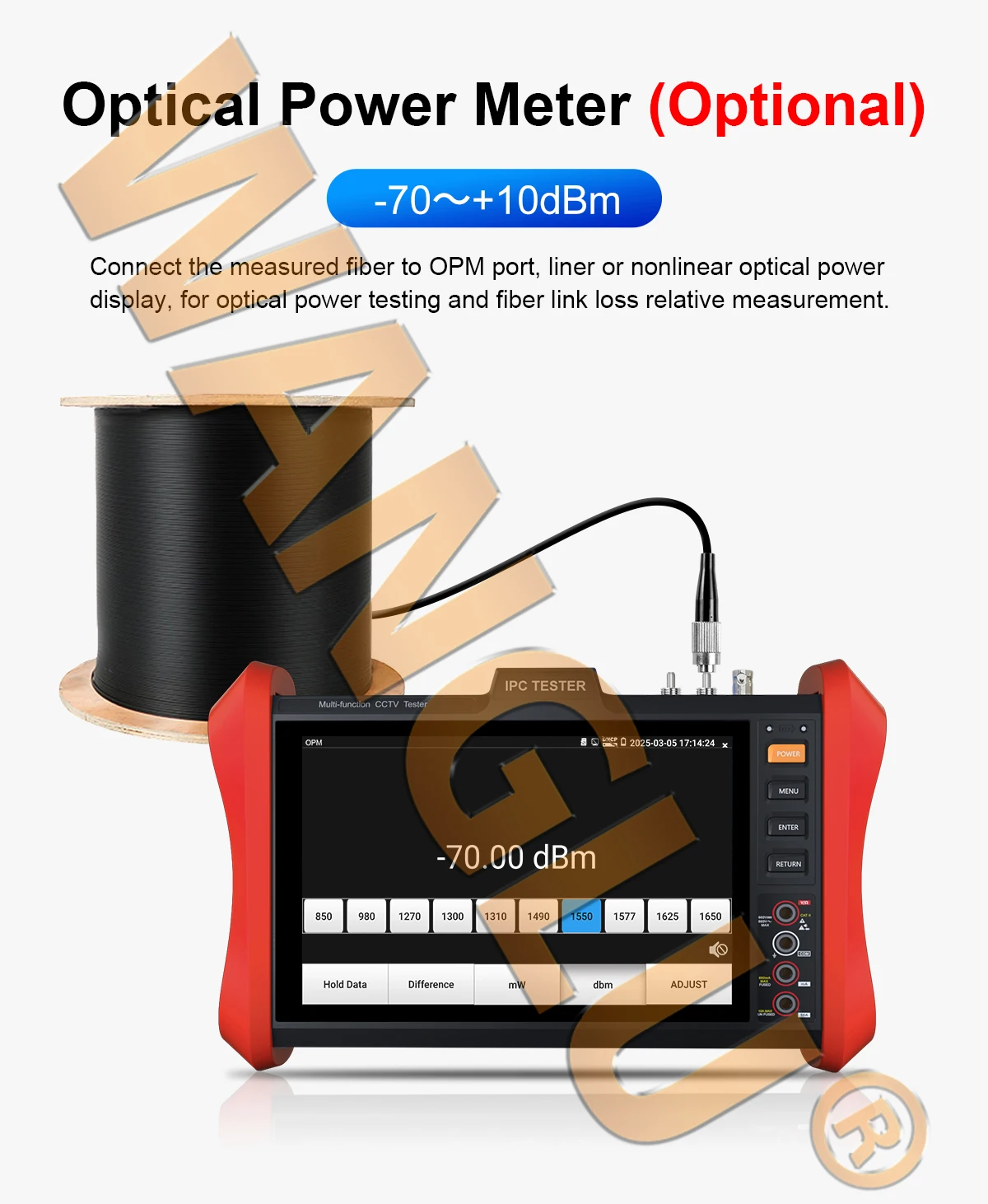

● Optical power meter *(Optional):

Calibrated Wavelength(nm): 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm

Power range(dBm): -70～+10dBm

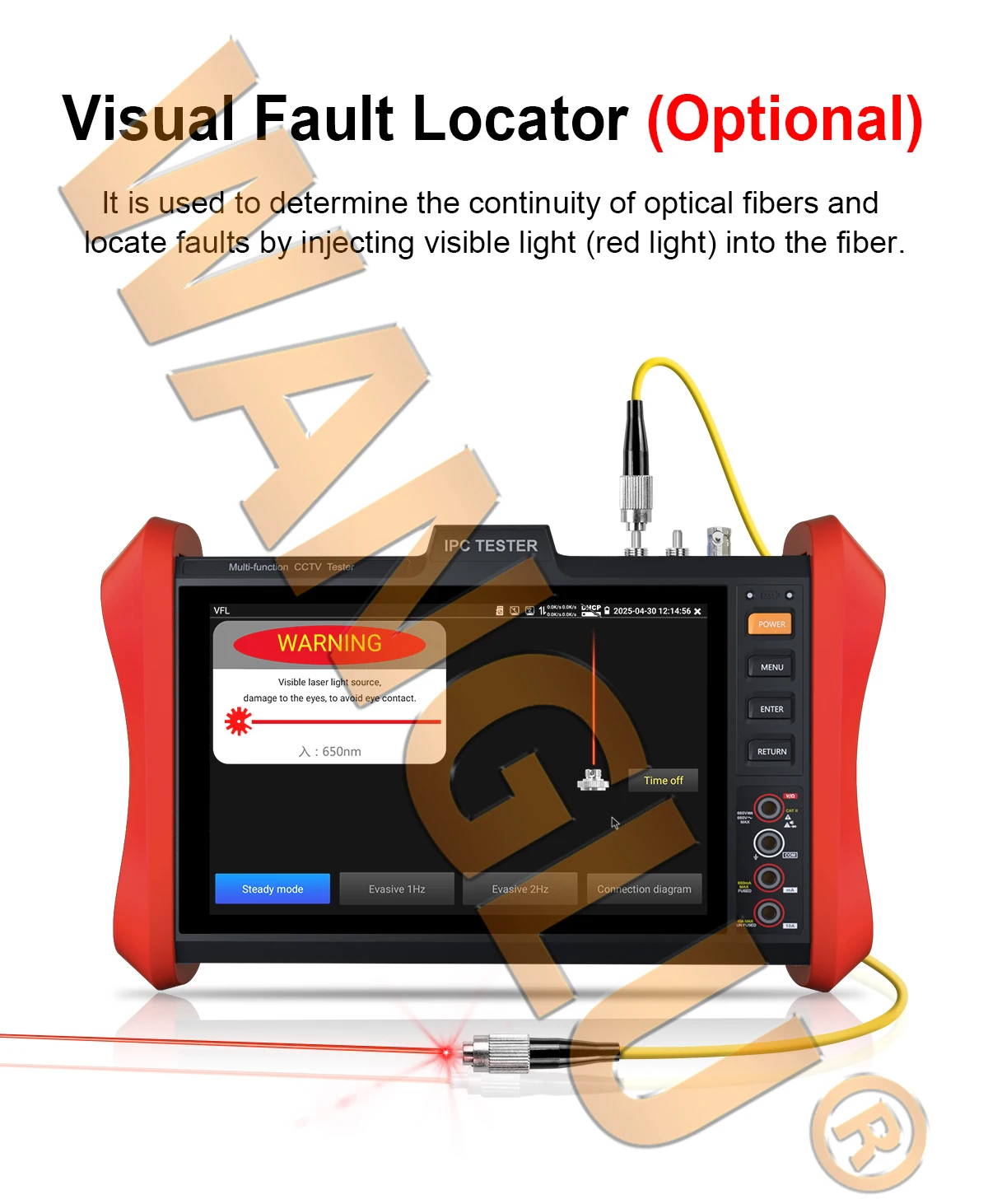

● Visual fault locator *(Optional): Test fiber's bending and breakage

● TesterPlay, support remote control and voice intercom

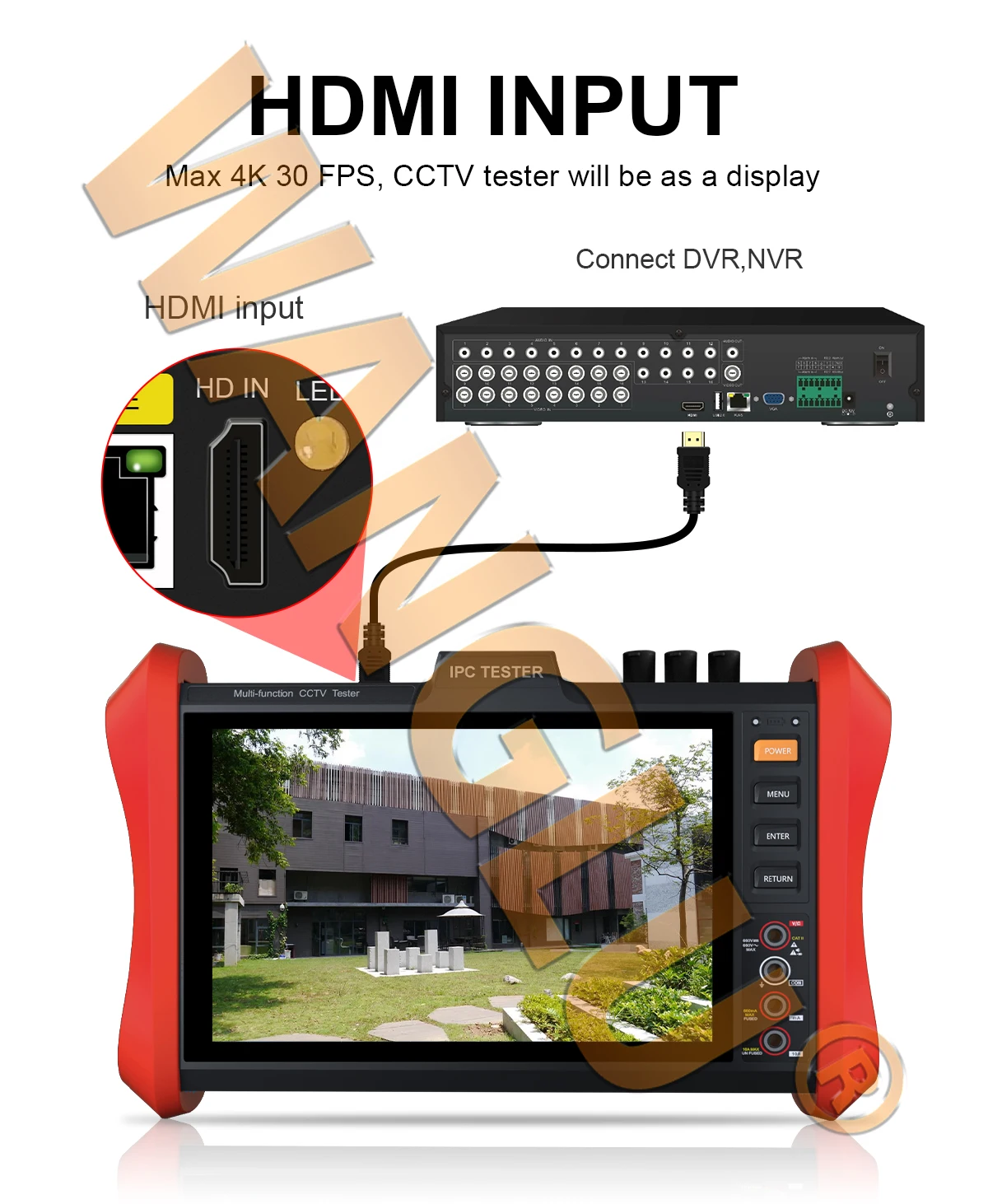

● HDMI Input support 4K 30FPS

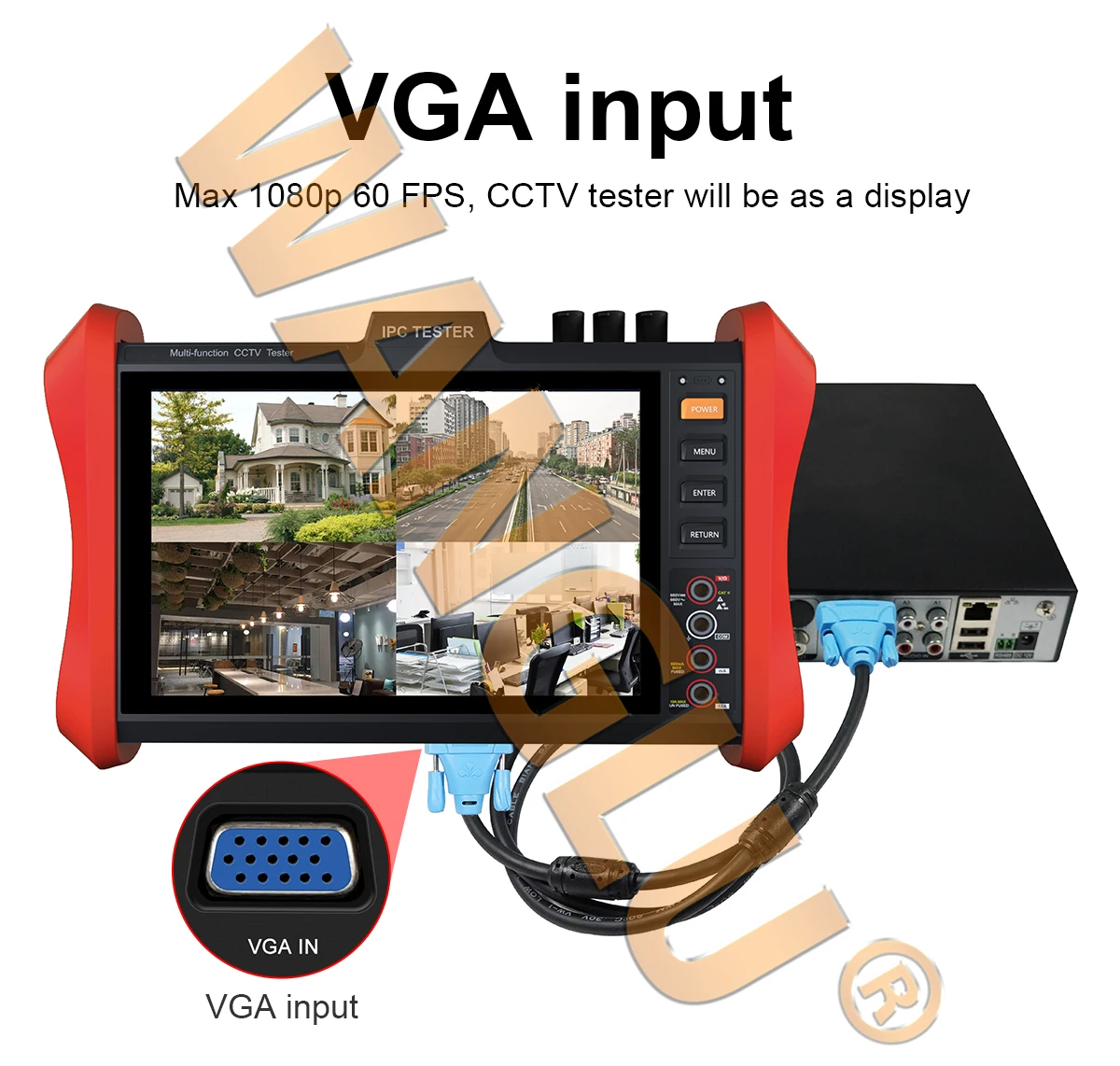

● VGA input support 1920*1080P

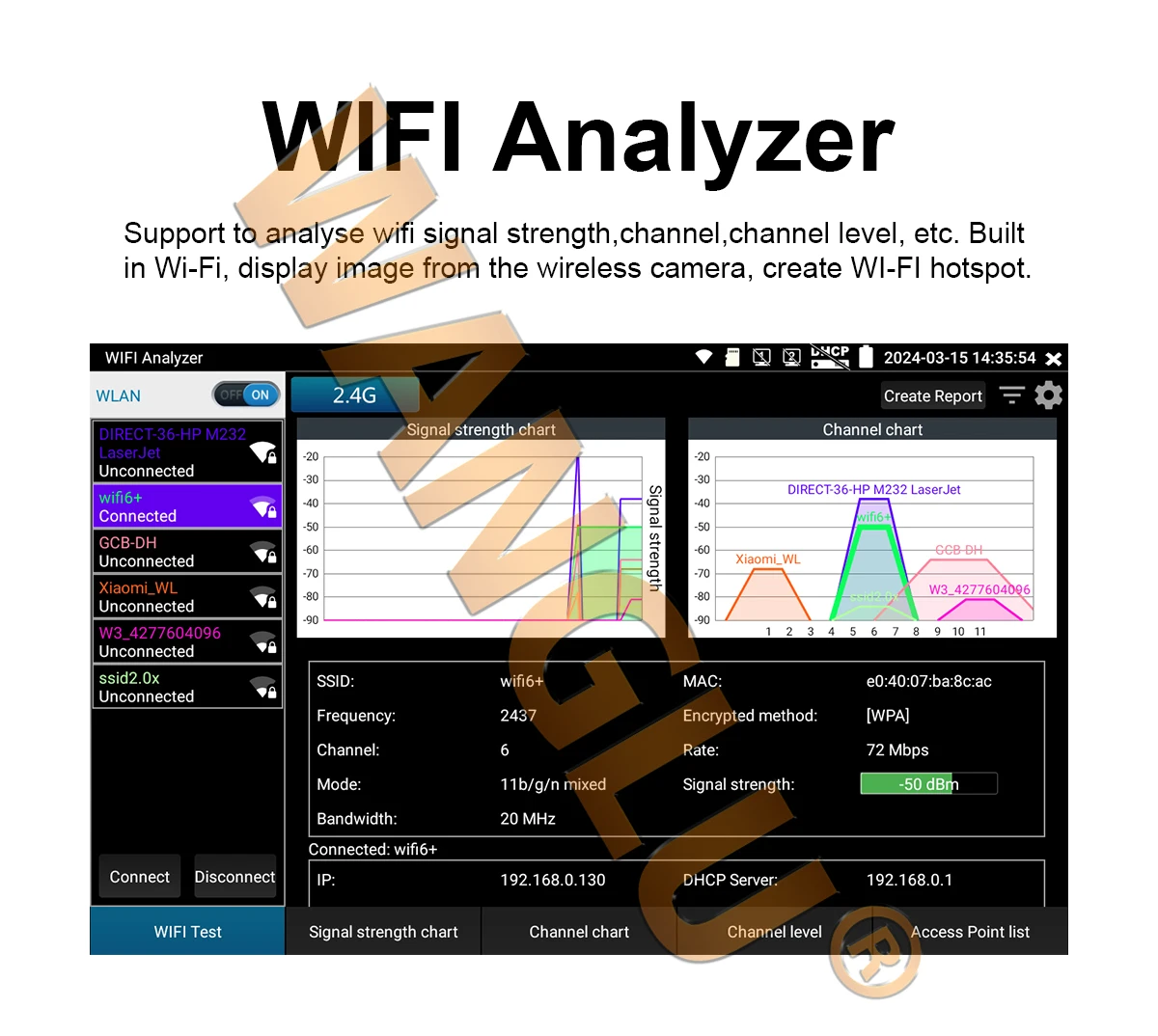

● Professional WIFI Analyzer, detect the surrounding wifi signal and signal strength

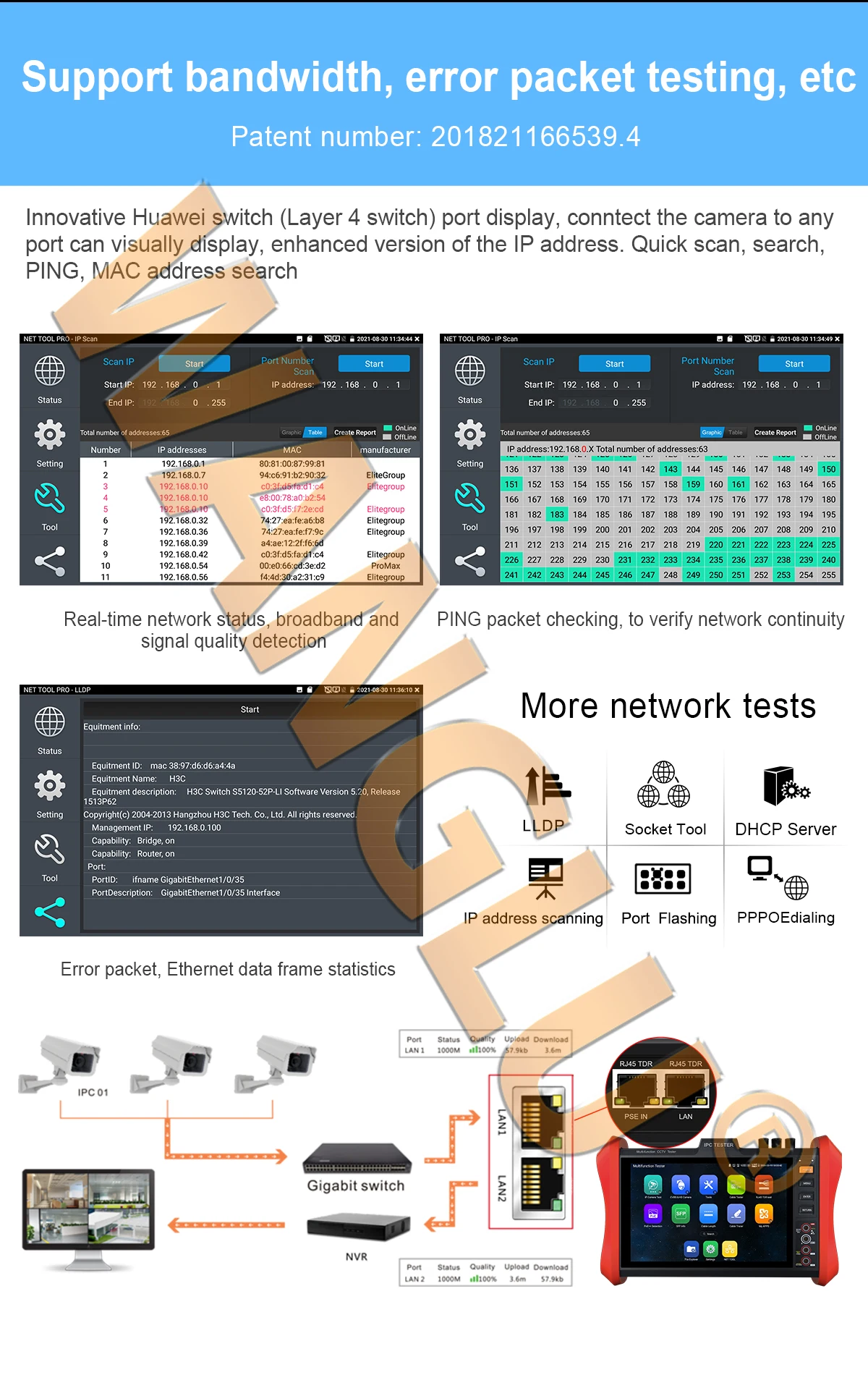

● Network tool: Ping, IP scan, Port Flash,DHCP server, Trace Route

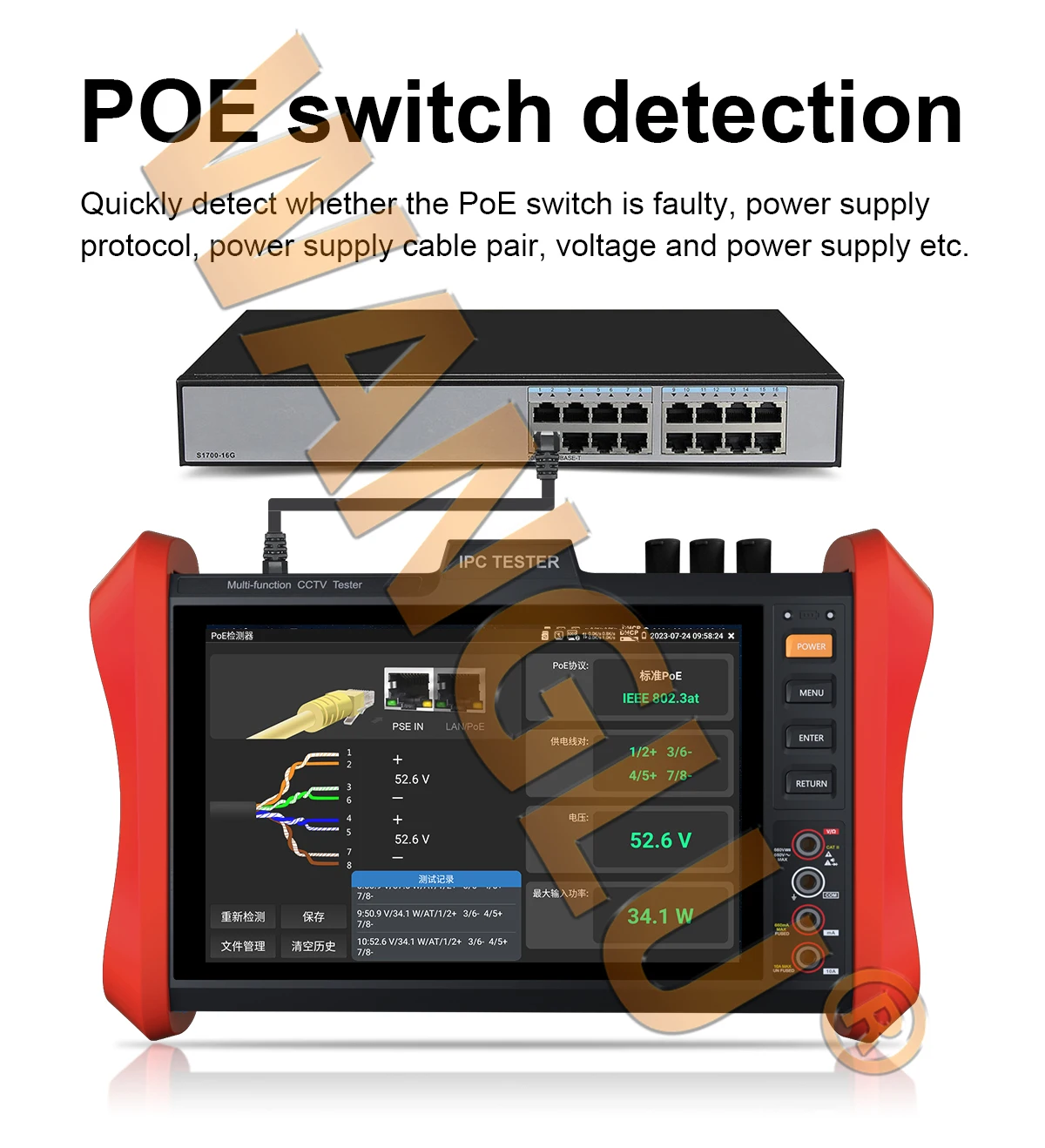

● POE & power information, DC15V& PoE power and voltage output /input measurement

● Tester Play: Tester, android version mobile phone and PC display at the same time

● Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc

● Traffic monitoring, display network port or WIFI connection real-time upload anddownload speeds and other network parameters

● Self-update software, you can install apps with android version

● Media player, 4K video files and MKV/MP4 media files play

● Quick office, quick office app (support excel,word, ppt format) doc. editable

● 8GB TF card included

● Display its genuine resolution of the IP camera images

● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

● 11.1V/5200mAh Lithium Ion Battery, after 3.5 hours charging, working time lasts 11 hours

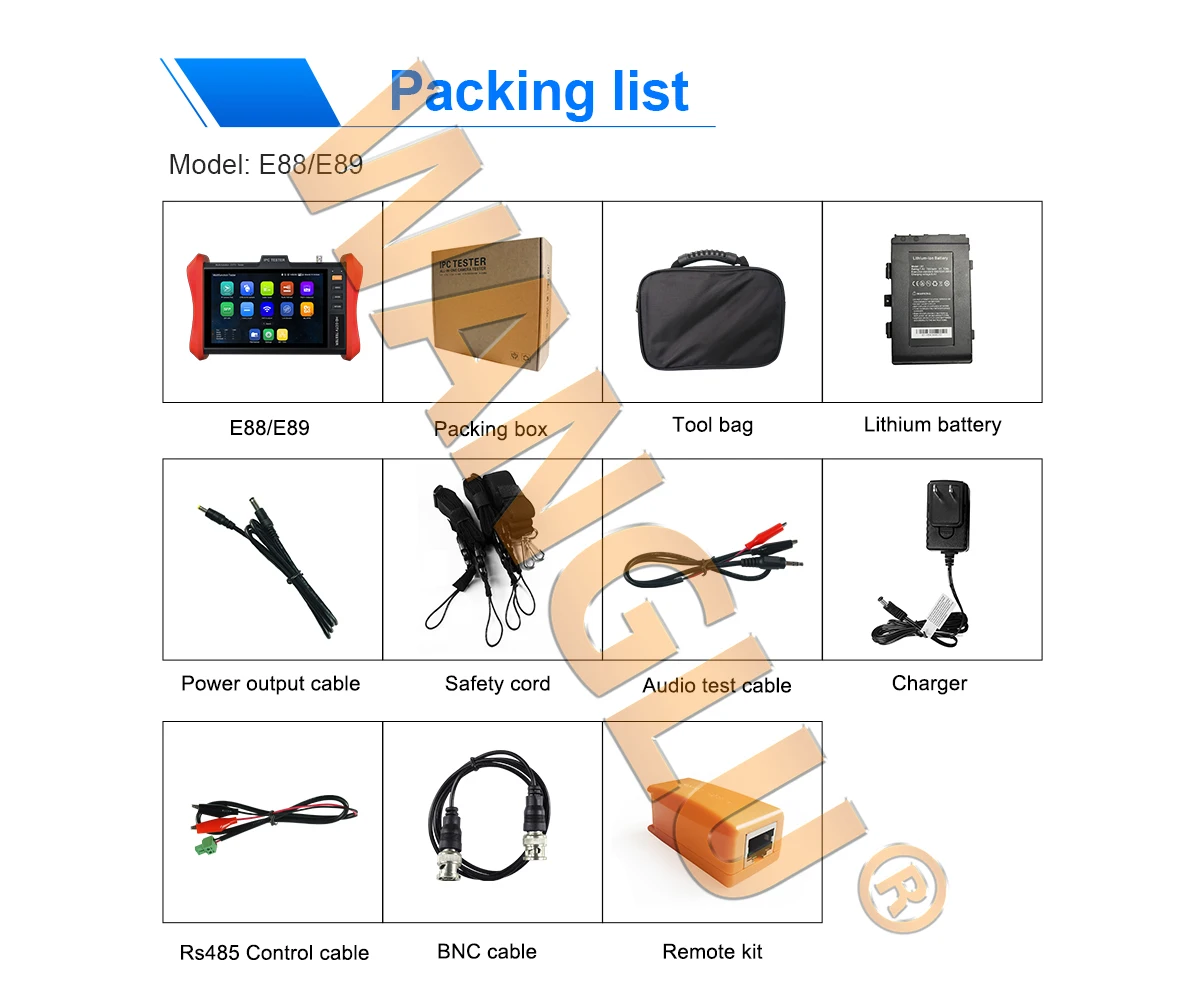

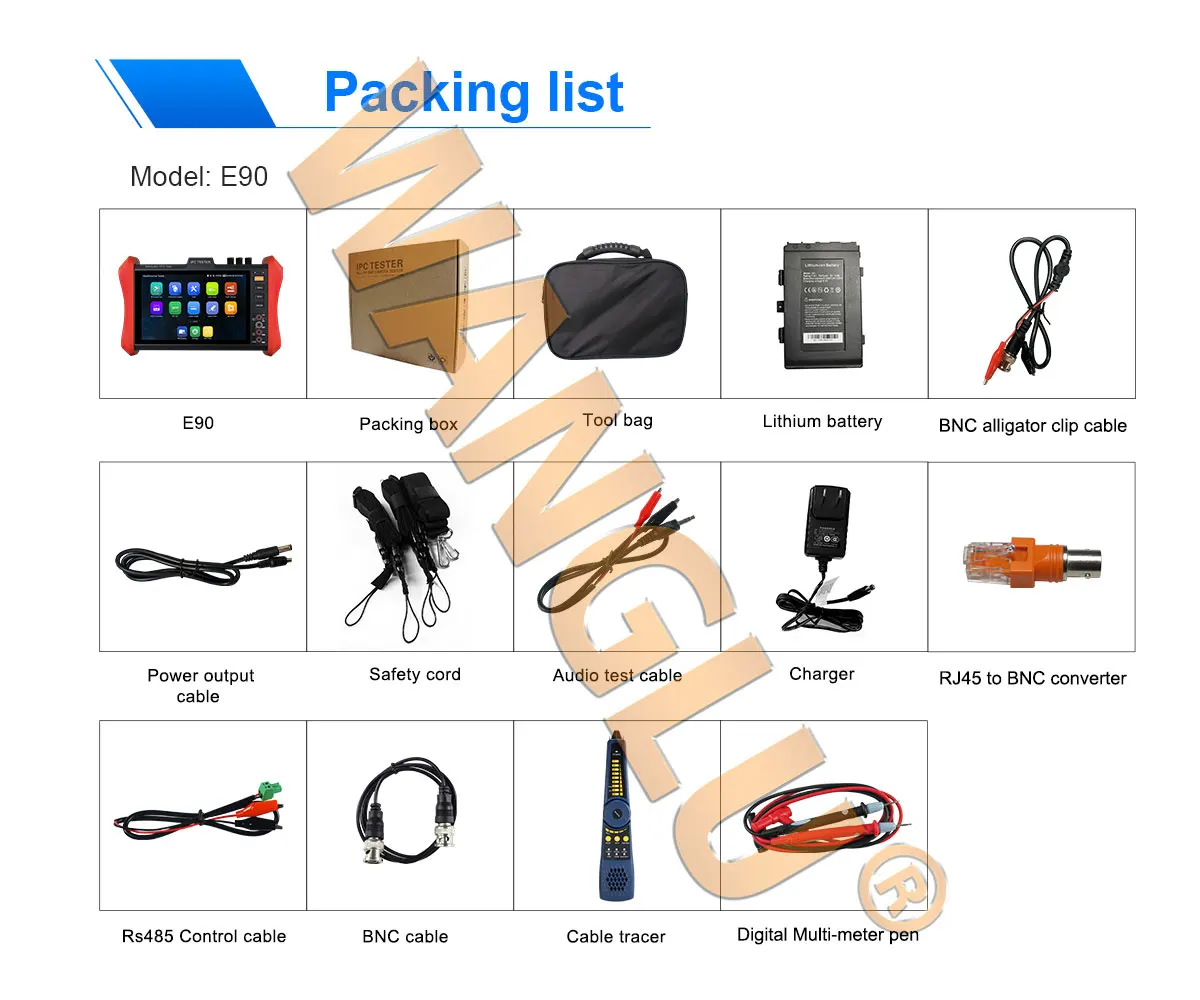

Package Includes

1) E88/E89/E90 Tester

2) Packing box/Tool bag

3) DC15V 1.6A Adaptor/8GB TF card

4) Lithium-ion battery

5) Power output cable/BNC cable/RS485 cable/Audio cable/Safety cord

6) Remote kit (Only for E88/E89)

7) BNC alligator clip cable/RJ45 to BNC converter (Only for E90)

8) Manual
