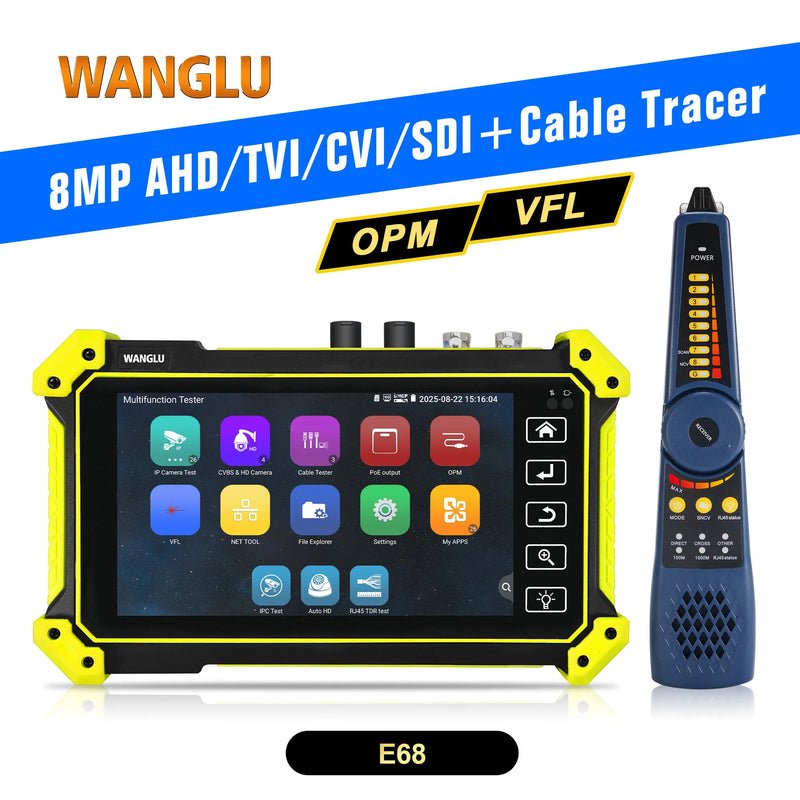

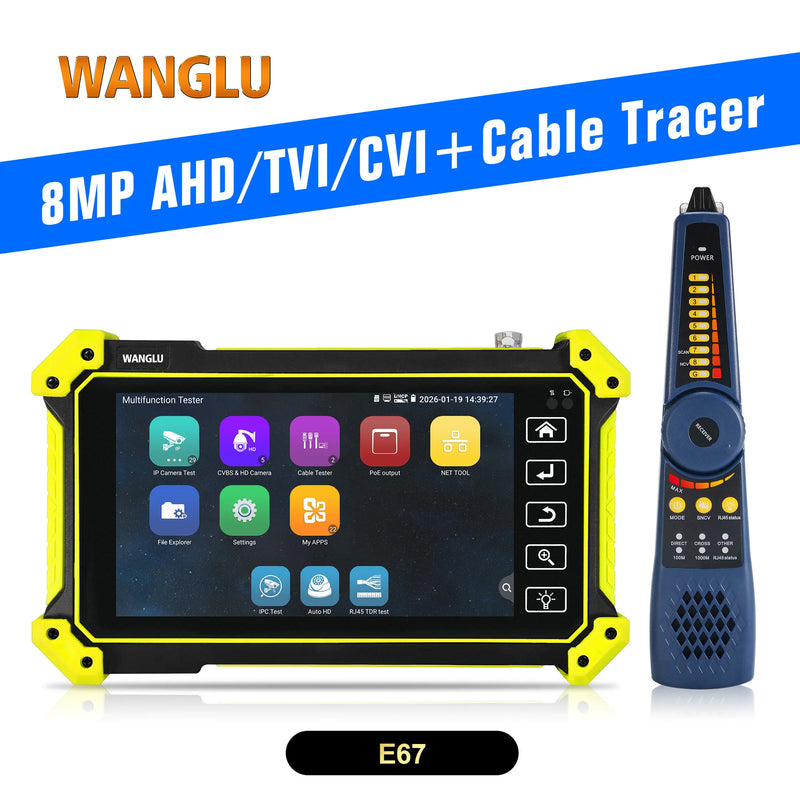

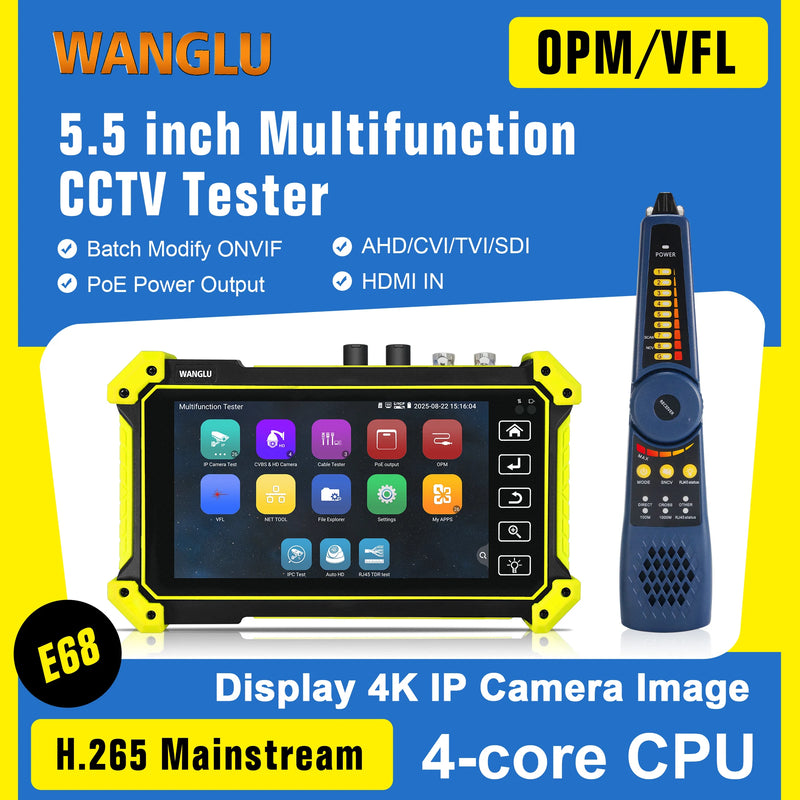

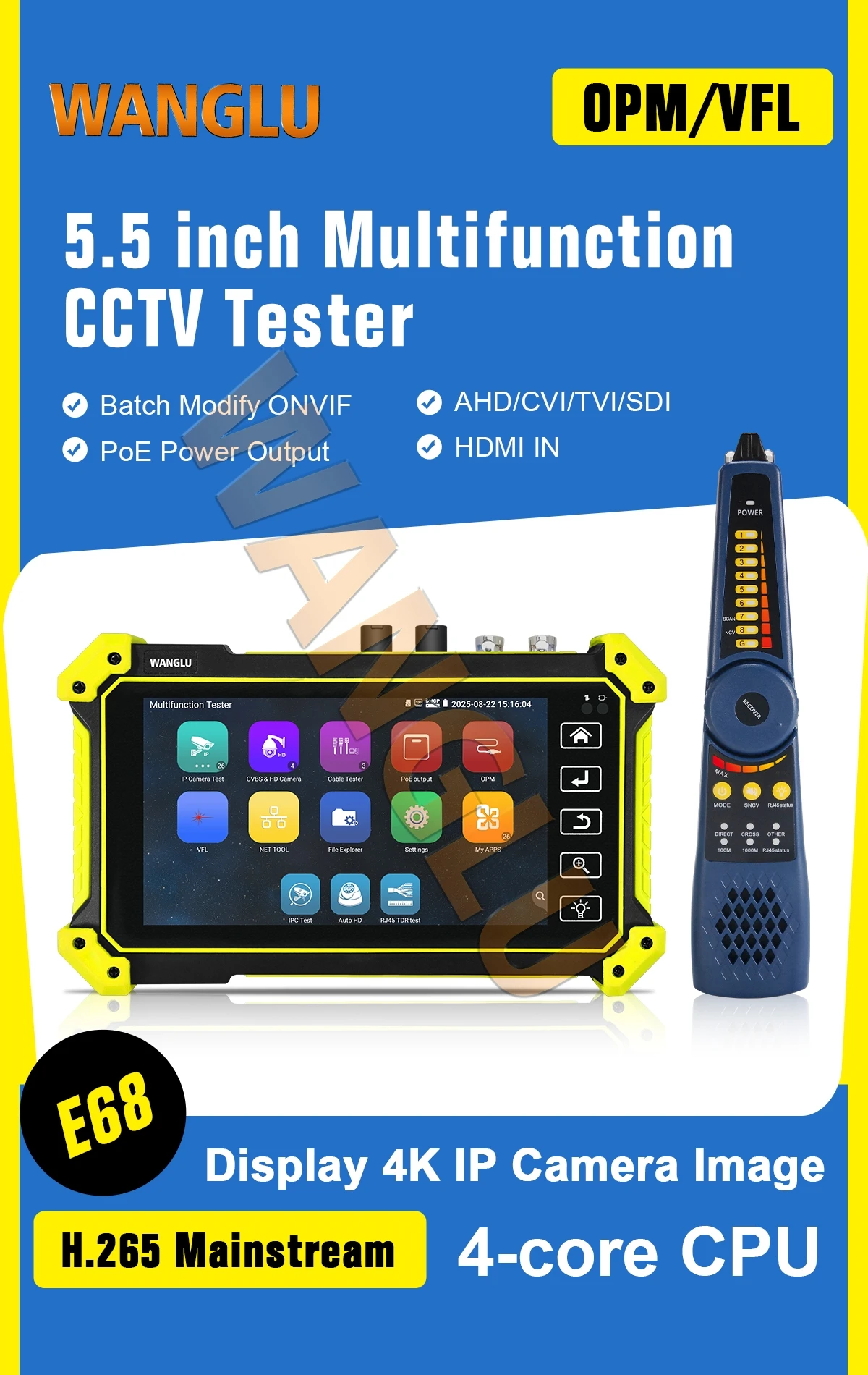

WANGLU 4K H.265 IP Camera Tester 8MP AHD TVI CVI SDI Analog IP Camera Monitor Tester Auto HD CCTV Camera Tester WiFi Analyzer

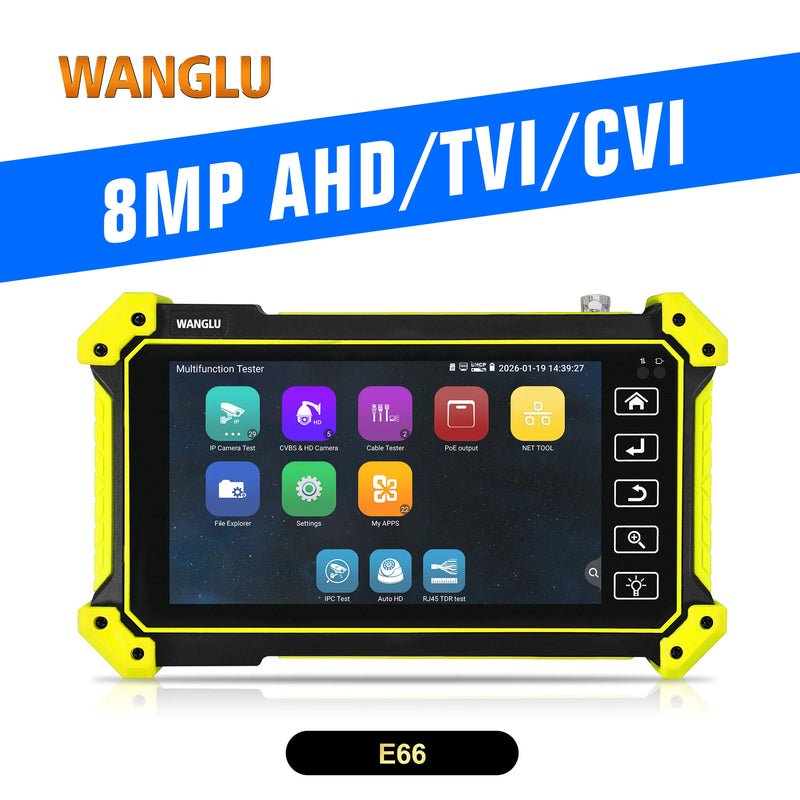

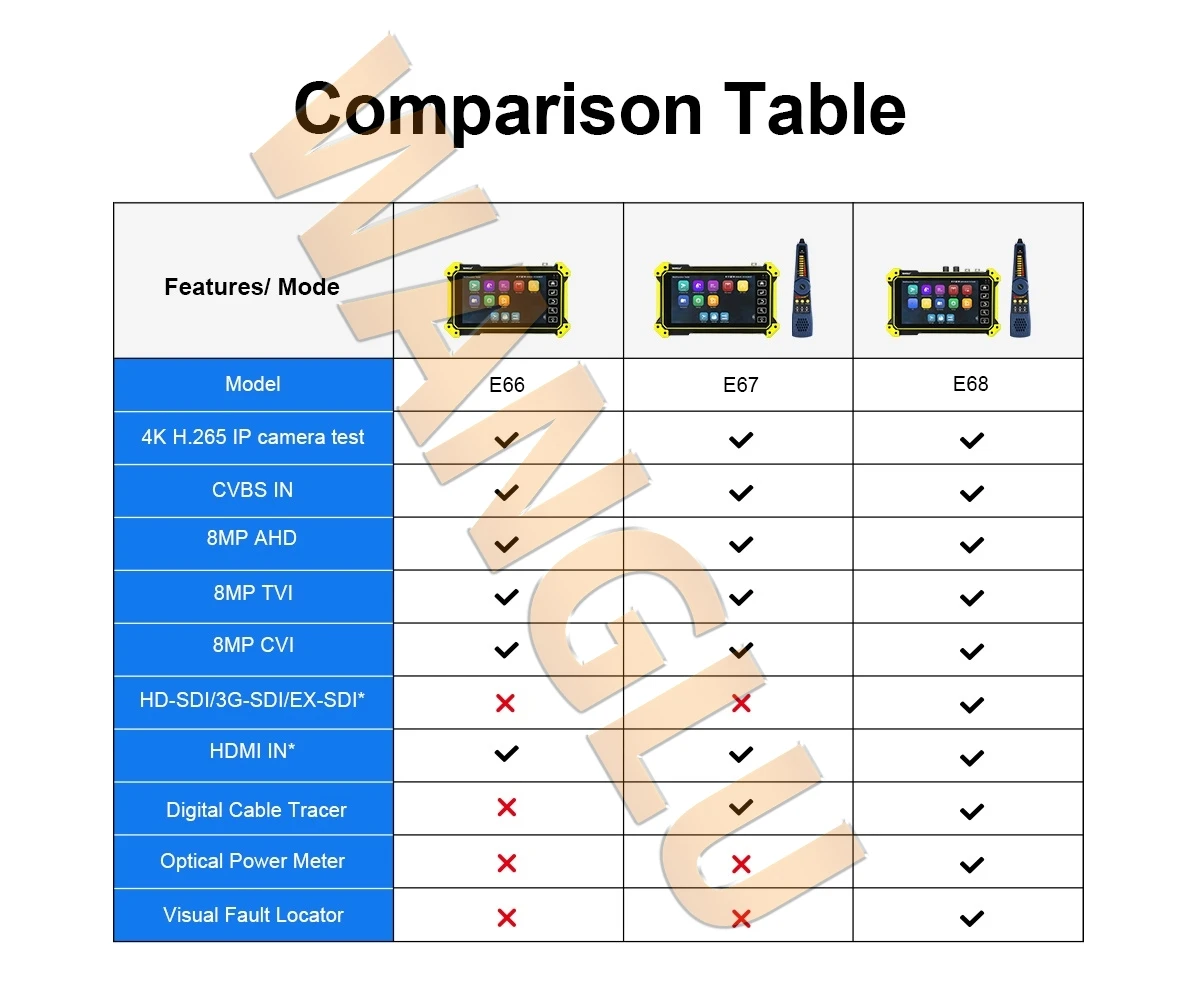

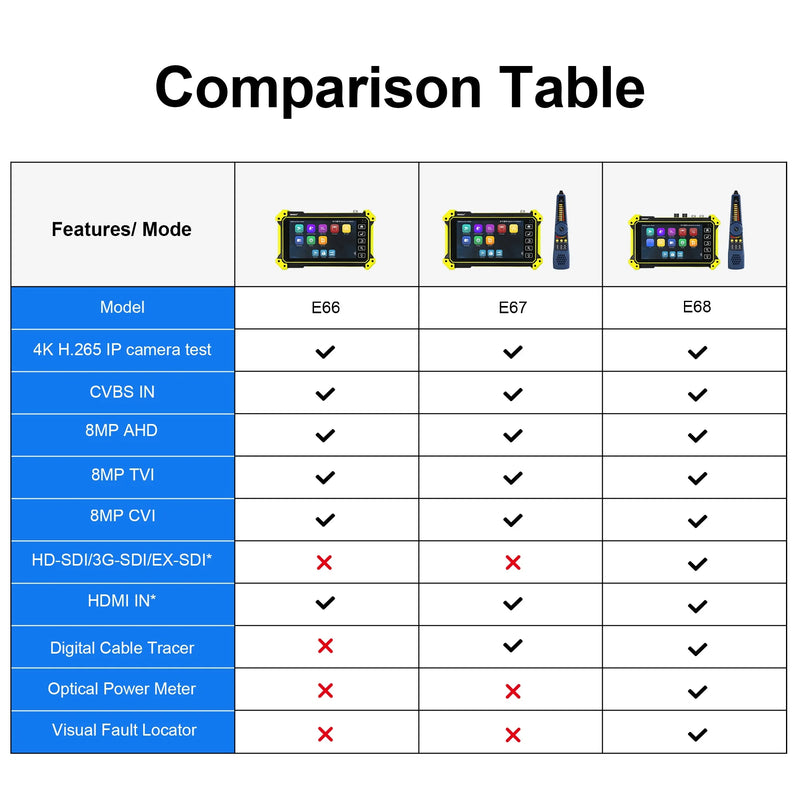

Model: E66/E67/E68

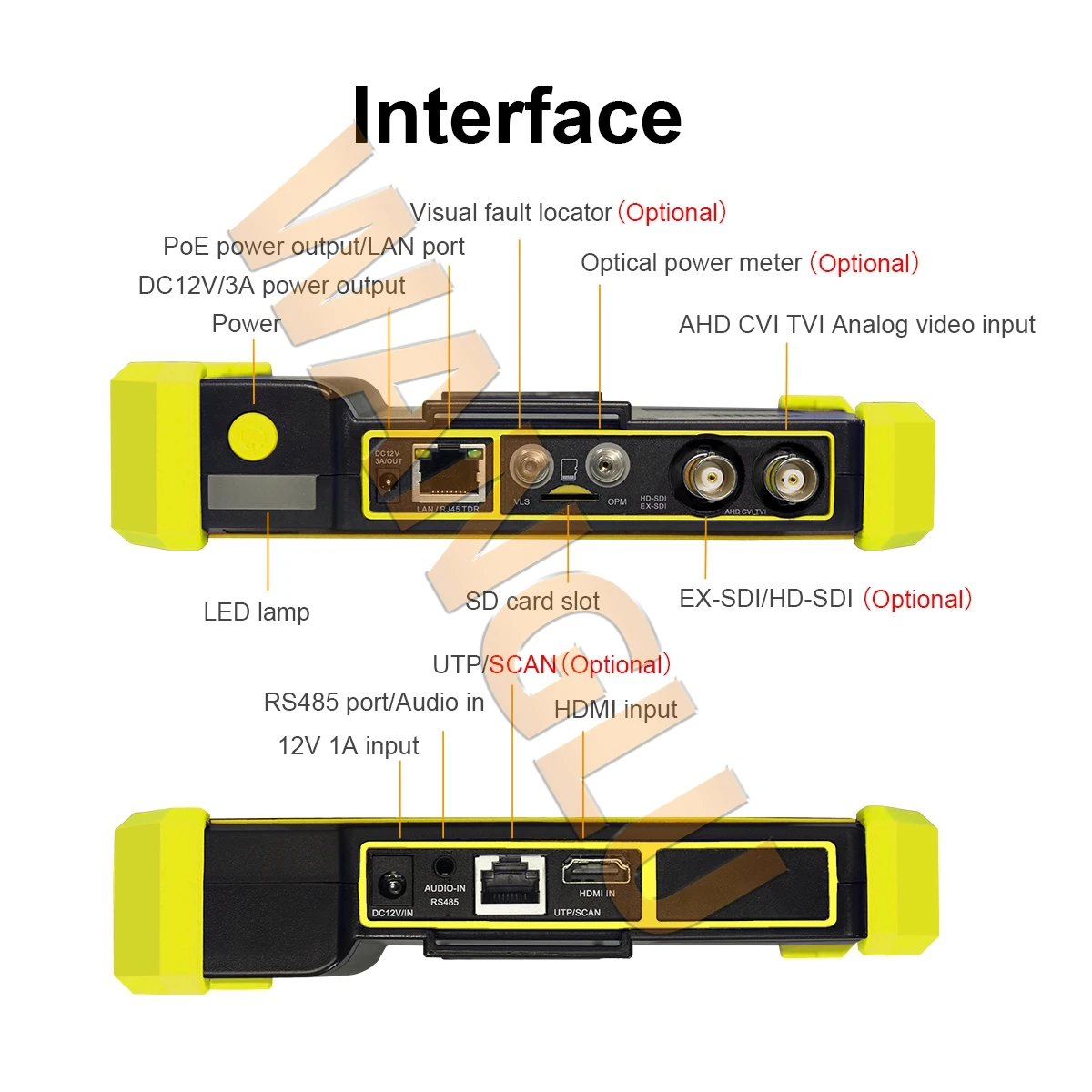

Feature

● 8MP CVI/TVI/AHD, Analog camera test

● 8MP EX-SDI, HD-SDI, 3G-SDI camera test* (Optional)

● H.265/H.264, 4K video display via mainstream

● HDMI Input, support 4K 30FPS

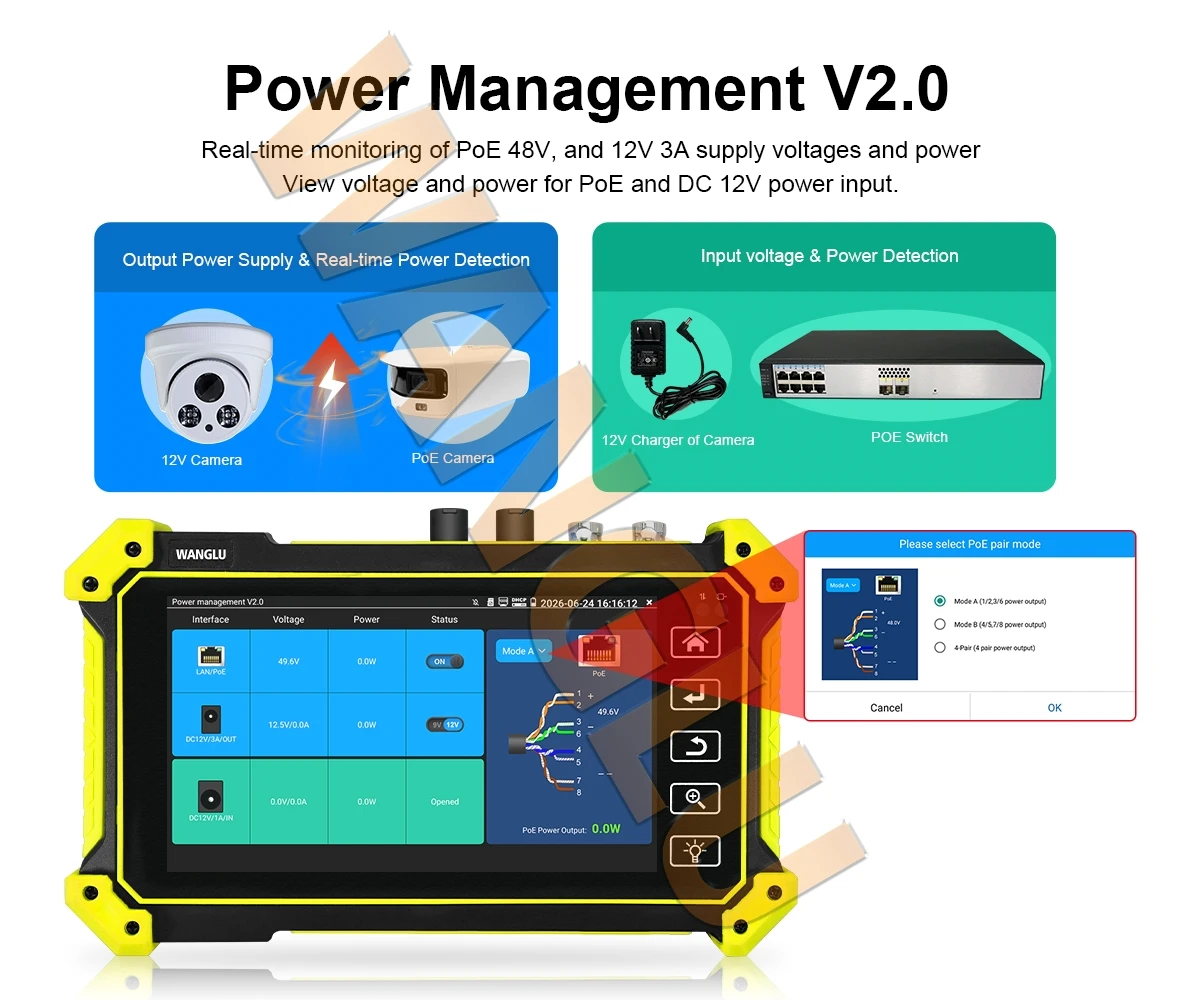

● DC12V 3A, 48V 30W PoE power output

● Auto HD, auto recognize HD coax camera type and resolution

● RJ45 TDR cable test, max 600M

● UTP cable test, detect near, mid and far end fault point of RJ45 cable plug

● Optical power meter and visual fault locator* (Optional)

Application

The 5.5 inch touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1920*1080 resolution IPS screen enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control, and cable test functions.

CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.

● CCTV system installation and maintenance

● Network cabling project installation and maintenance

● Dome camera, IP TVI CVI AHD 4K H.265 camera testing

● Video transmission channel testing

● PTZ controller

Camera Test

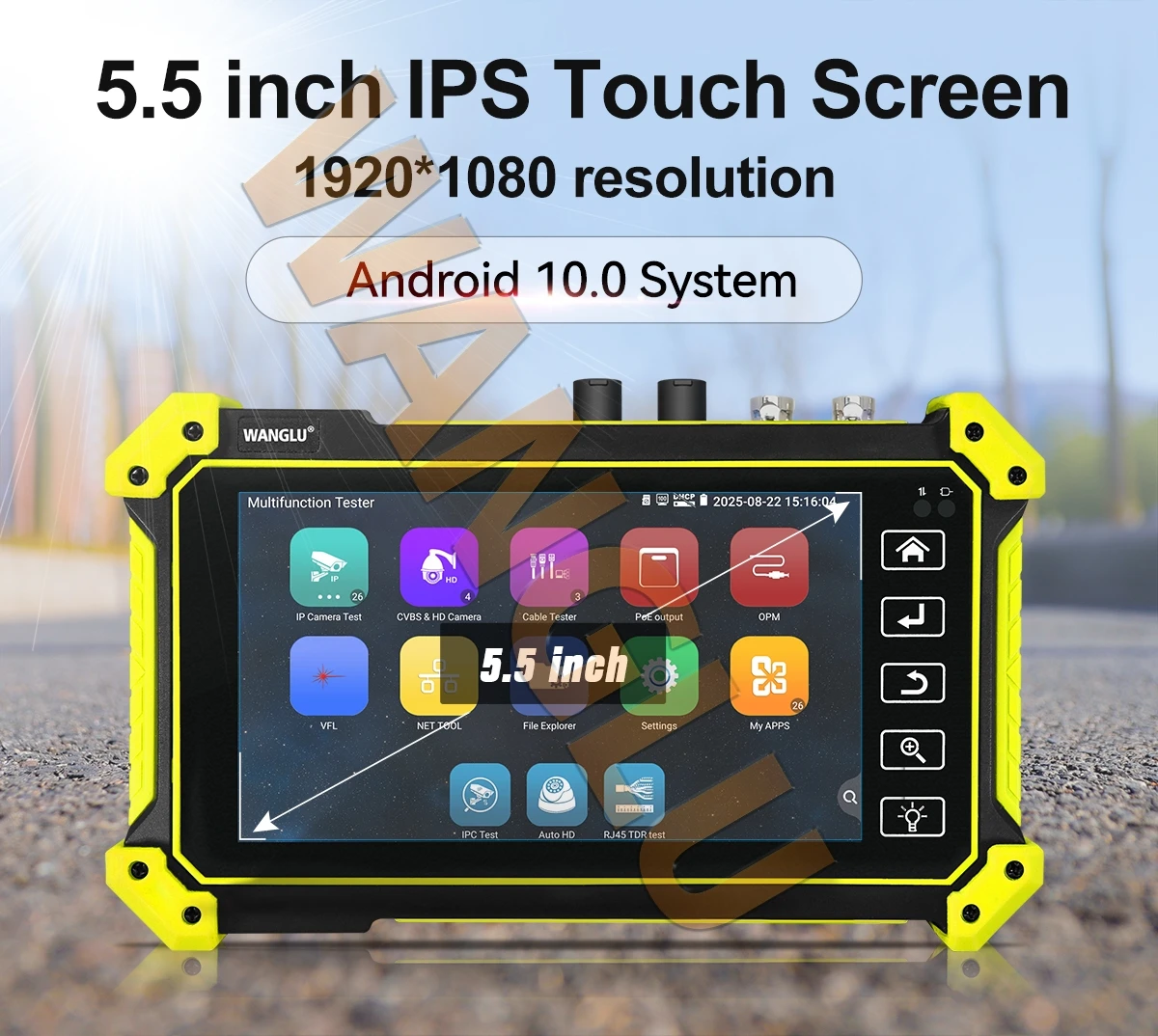

● 5.5 inch IPS touch screen,1920*1080 resolution

● H.265 & H.264 IP, 4K video display via mainstream

● Analog camera test, PTZ controller

● 8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu

● 8MP AHD test, 3840x2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

● 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

● HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu* (Optional)

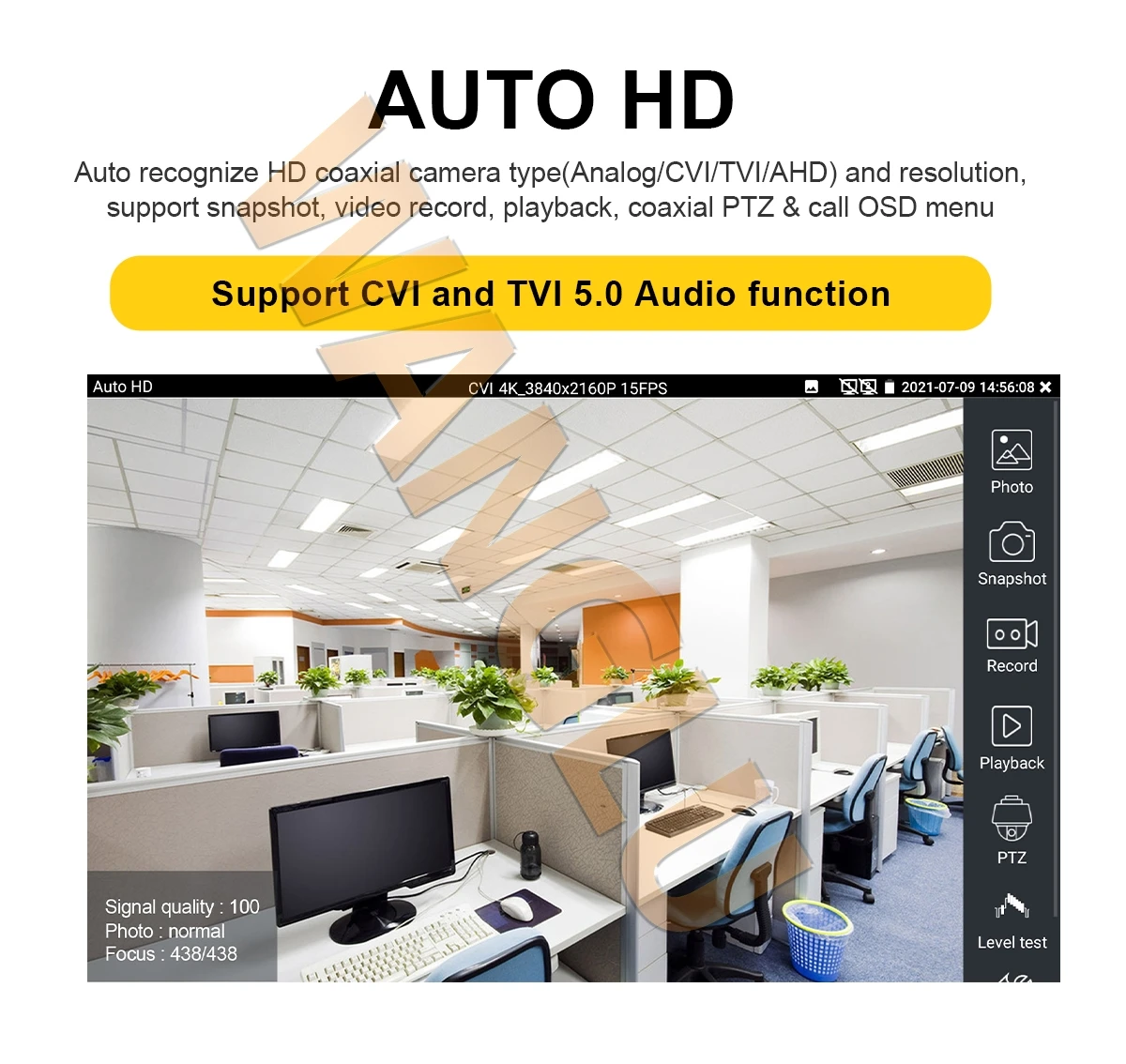

● Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu.

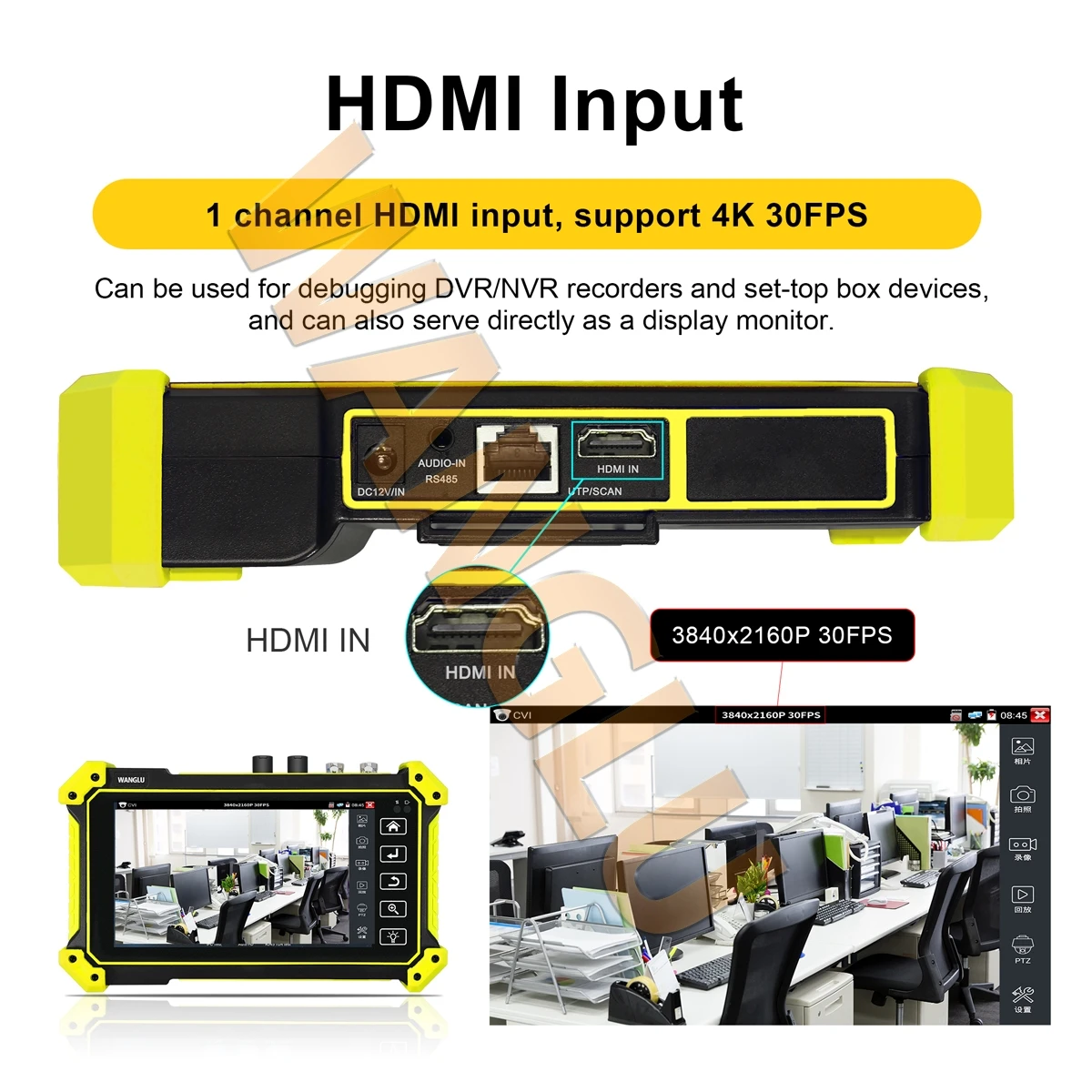

● HDMI Input, up to 4K 30FPS, support snapshot, video record & playback

● Rapid ONVIF, Auto log in and display image, create testing report

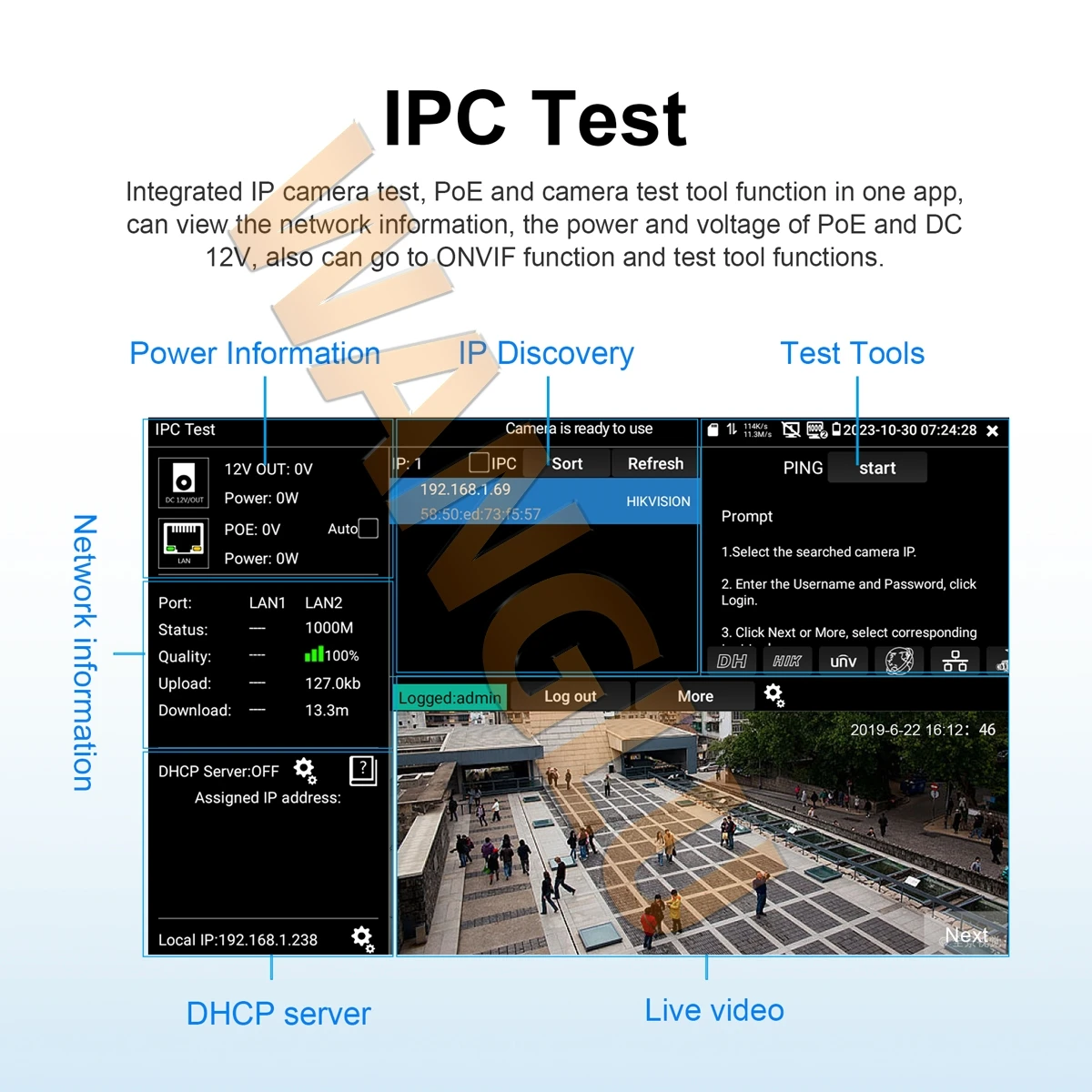

● IPC test pro, auto scan all network segments IP, auto open PoE power and display the power. Input username and password, can scan cameraimage, can batch activate HIK and DH cameras. Jump to ONVIF interface and test tools.

● HIK camera test, enter ONVIF app, input username and password to test

● HIK test tool, support batch activate HIK cameras and modify IP address, modify password etc. Self-defined modify channel name,can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc.

● DH test tool, support batch activate DH cameras and modify IP address, user name and password. Self-defined modify channel name.

● IP and analog display image at the same time

● IPC TEST (Non-ONVIF test), HIK test tool (HIK camera), DH test tool (DH camera)

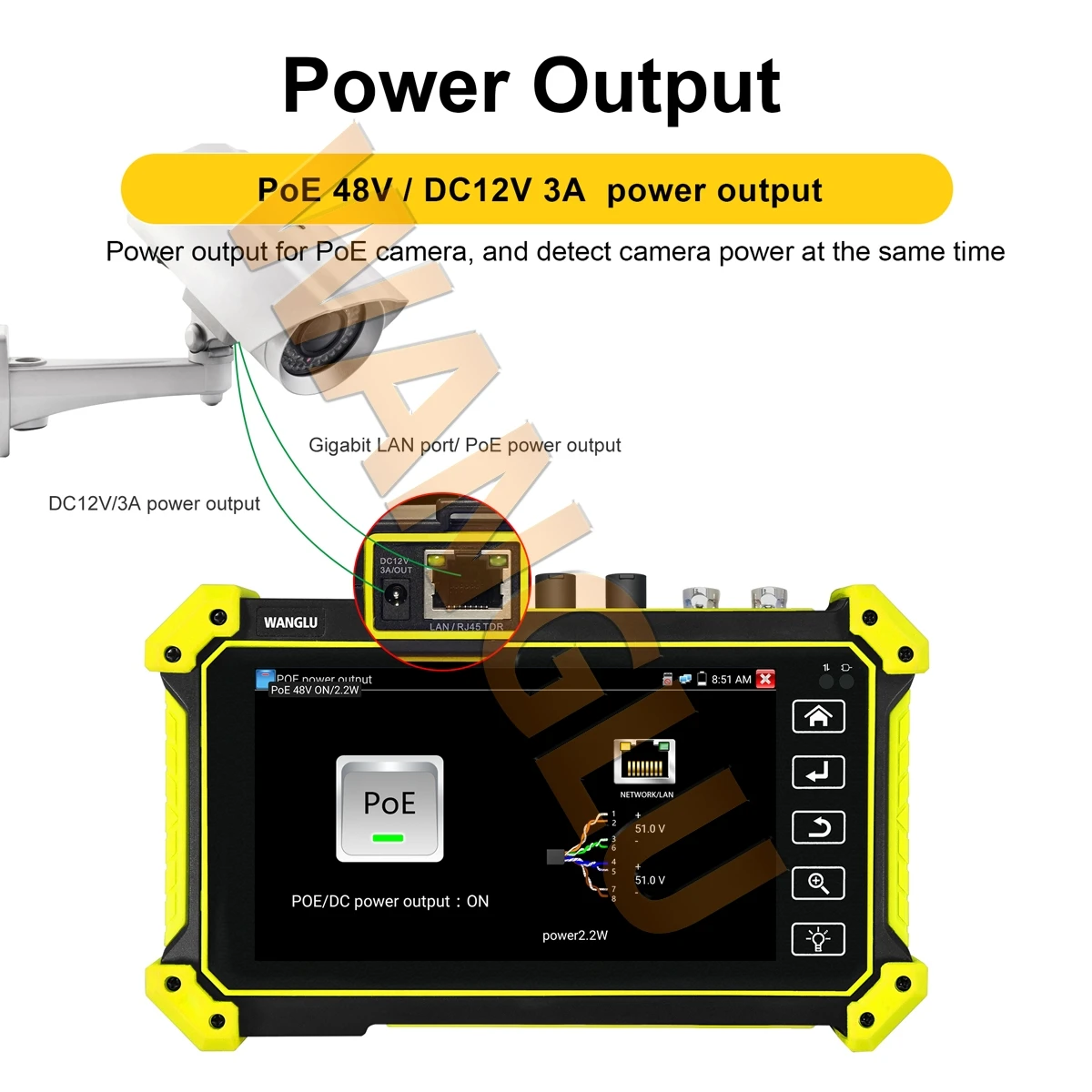

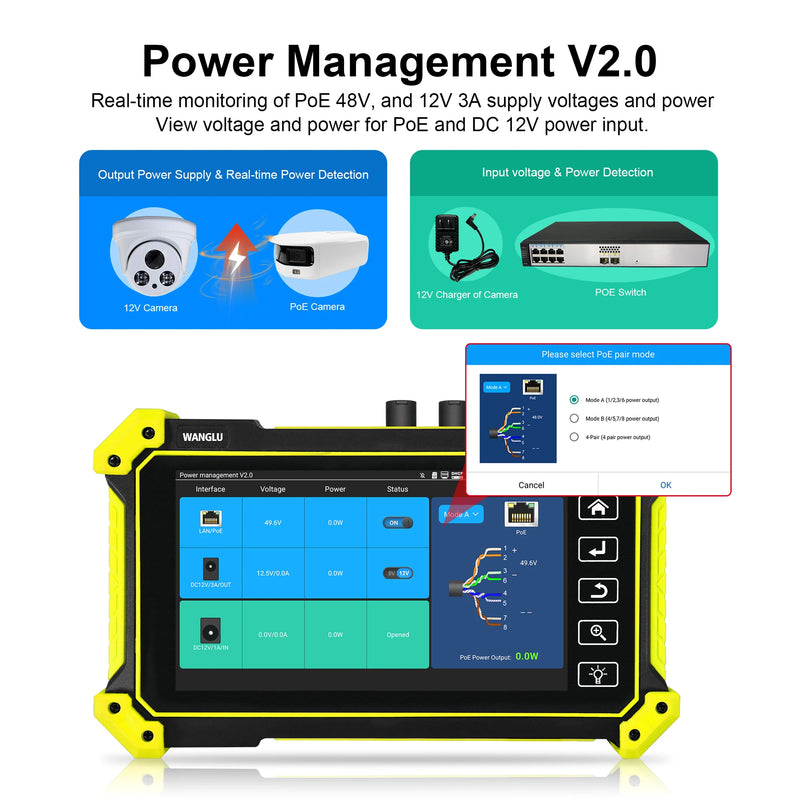

● DC12V/3A power output, camera can be powered from DC12 Voltage.

● Rapid video, just by one key to detect all network cameras and auto display

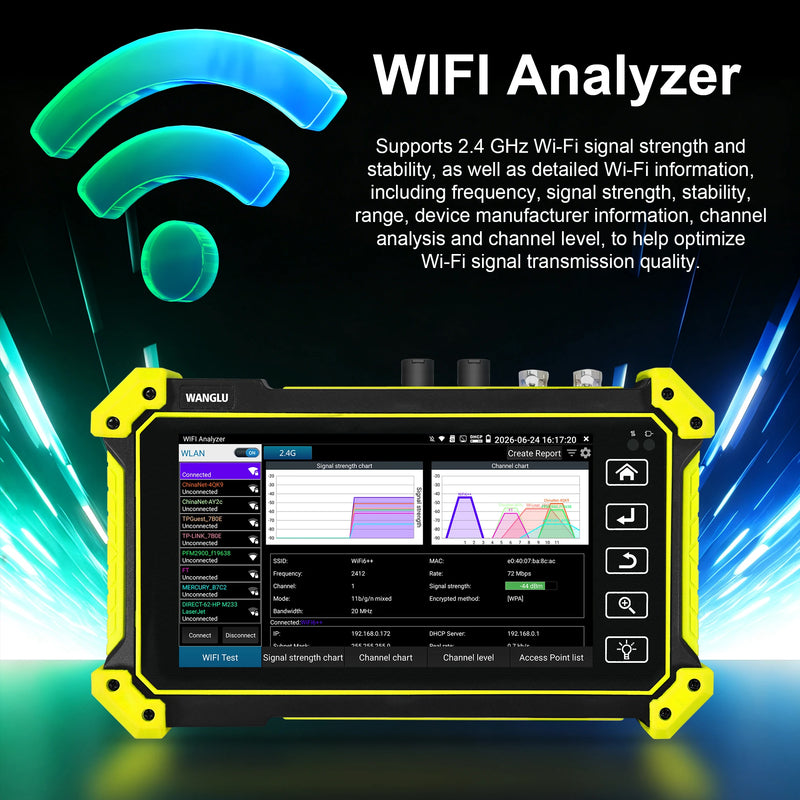

● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

Cable Test

● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the RJ45 cable plug.

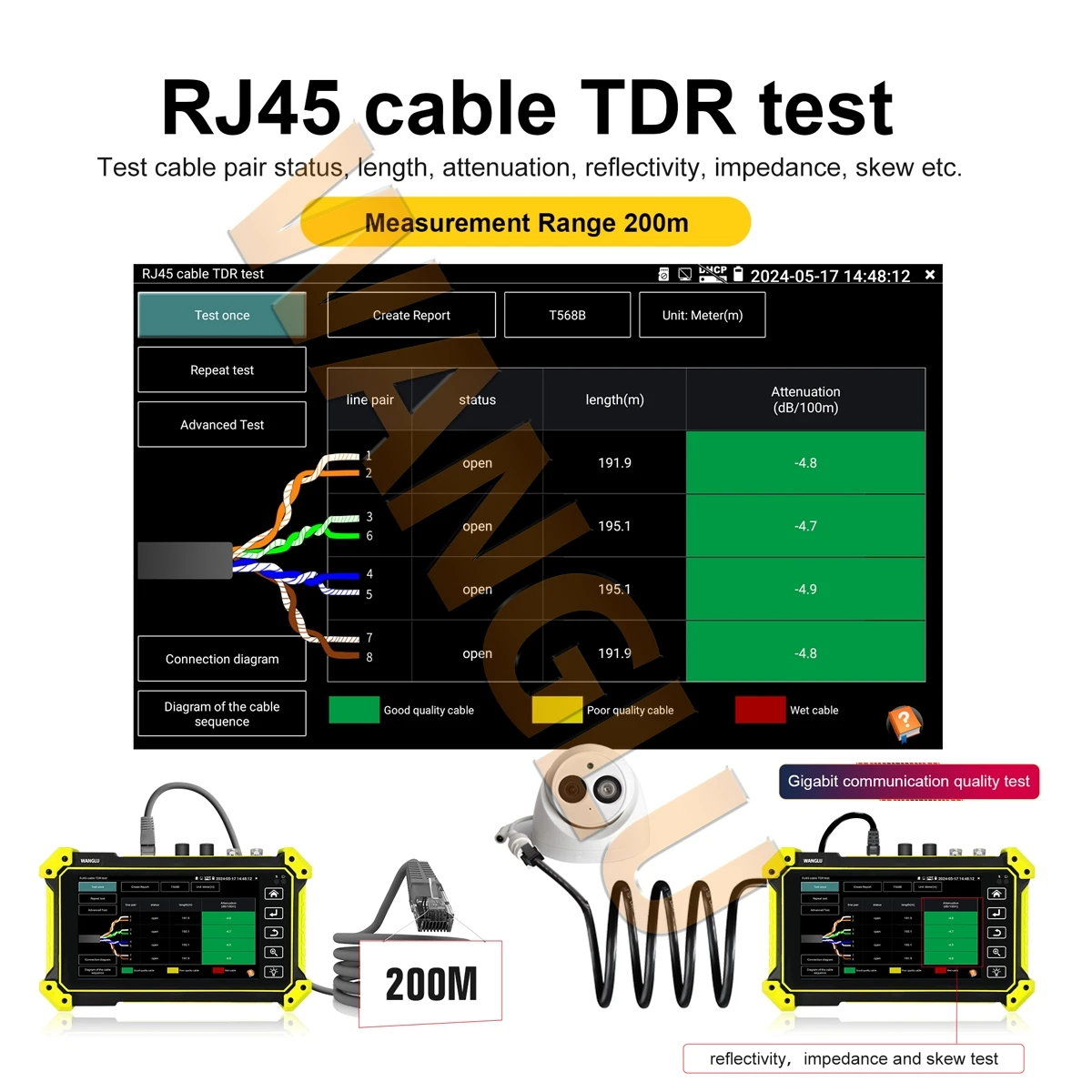

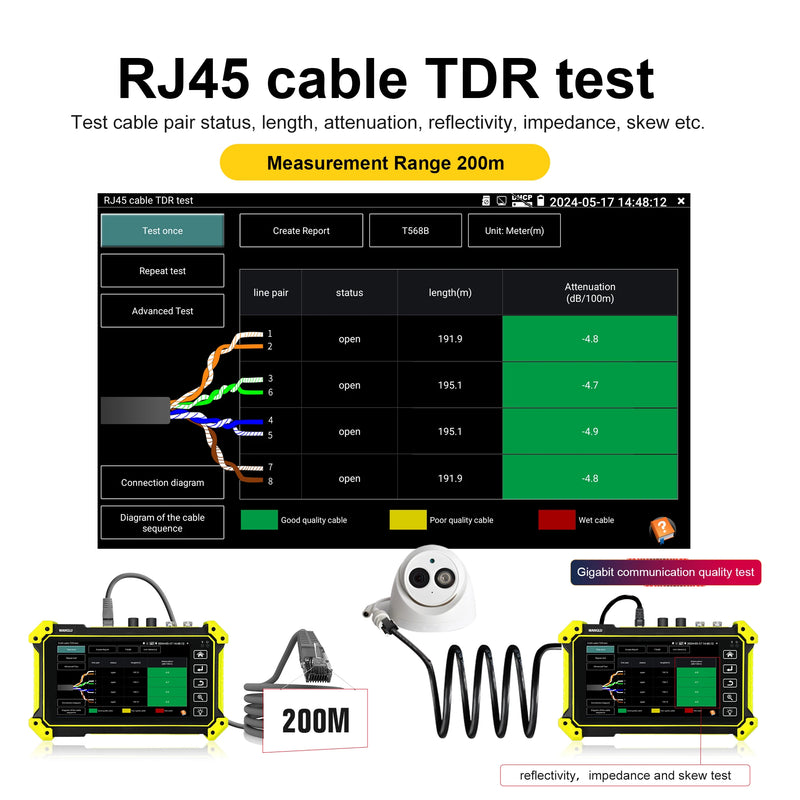

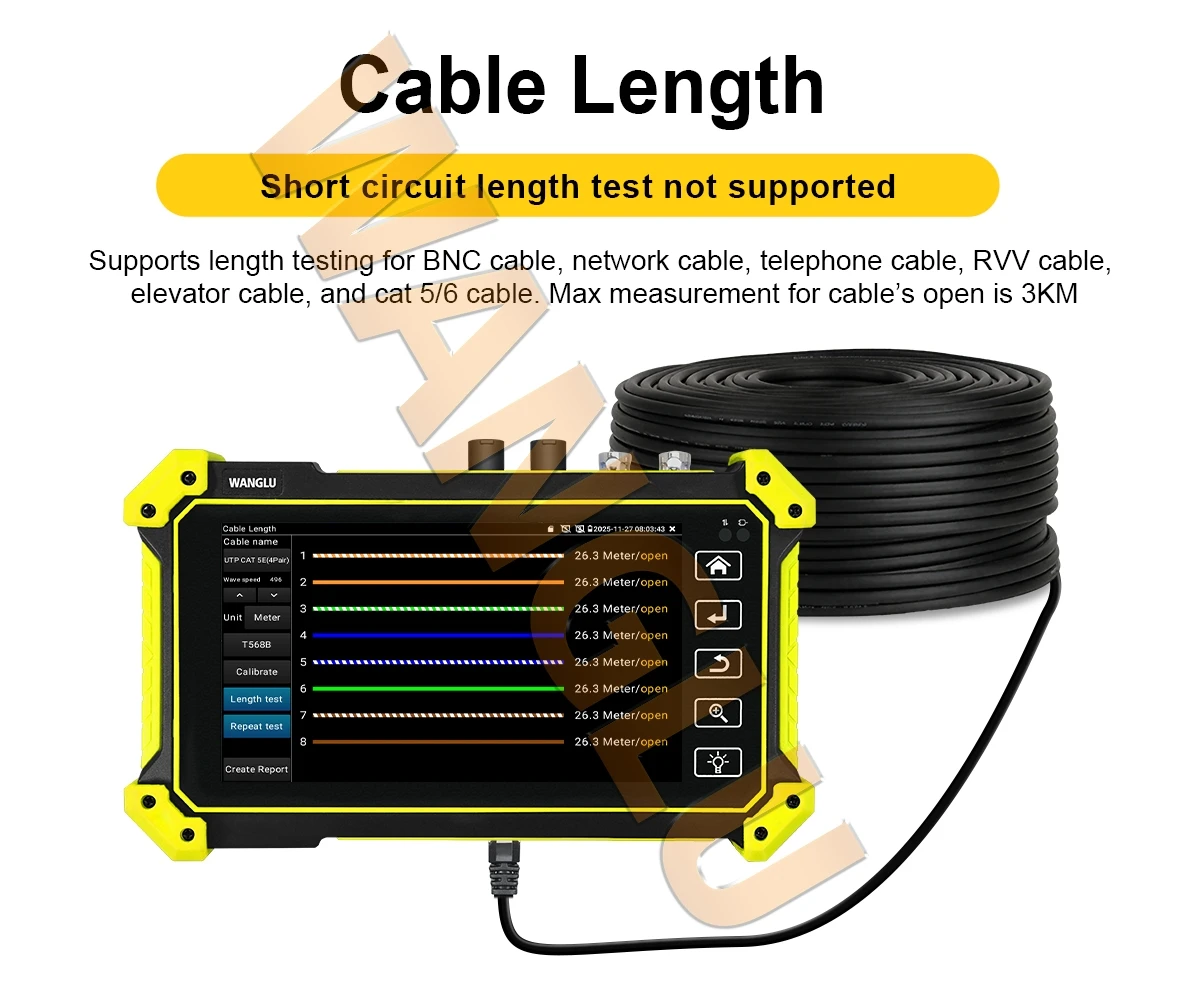

● RJ45 TDR cable test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc, can create test report.

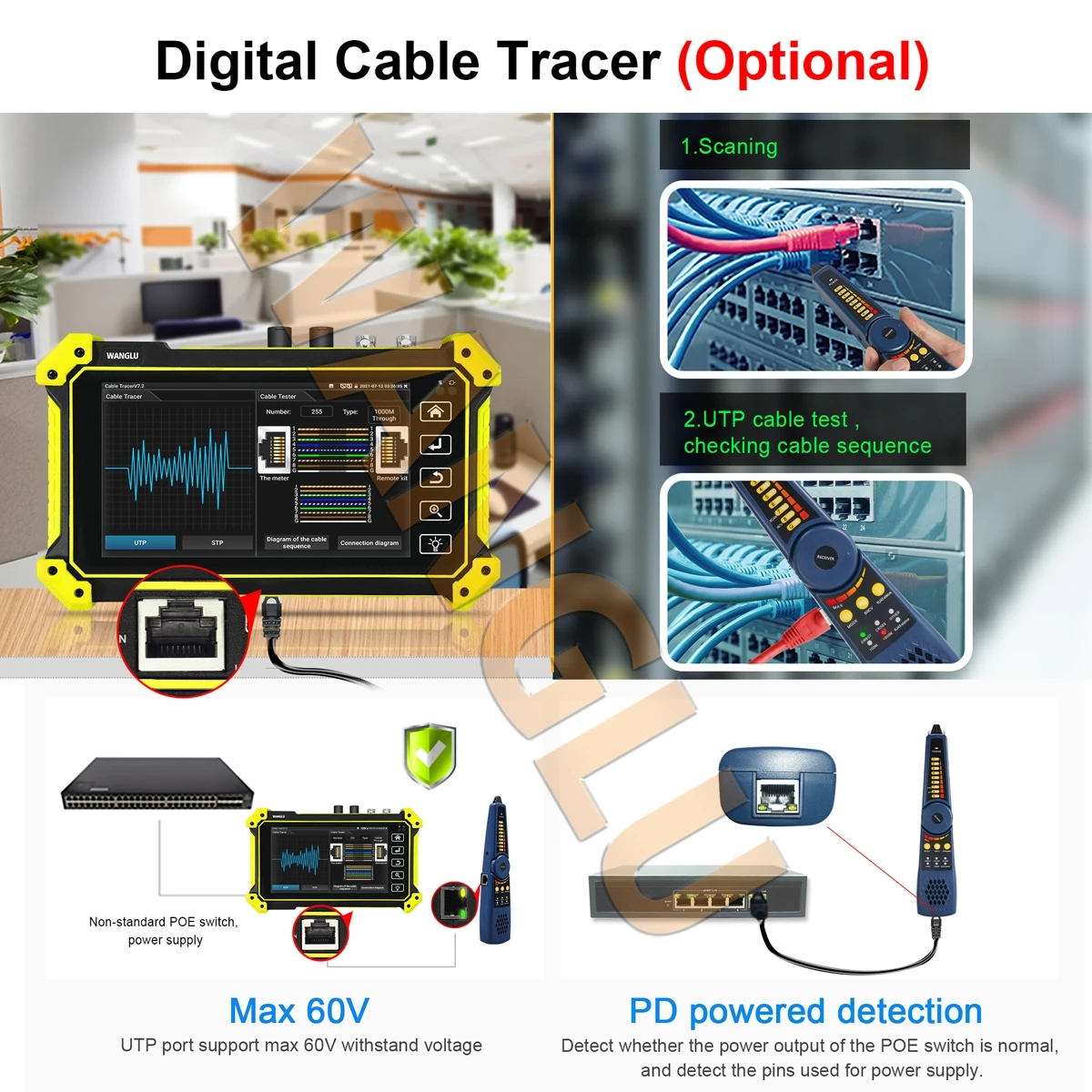

● Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time* (Optional)

Other Functions

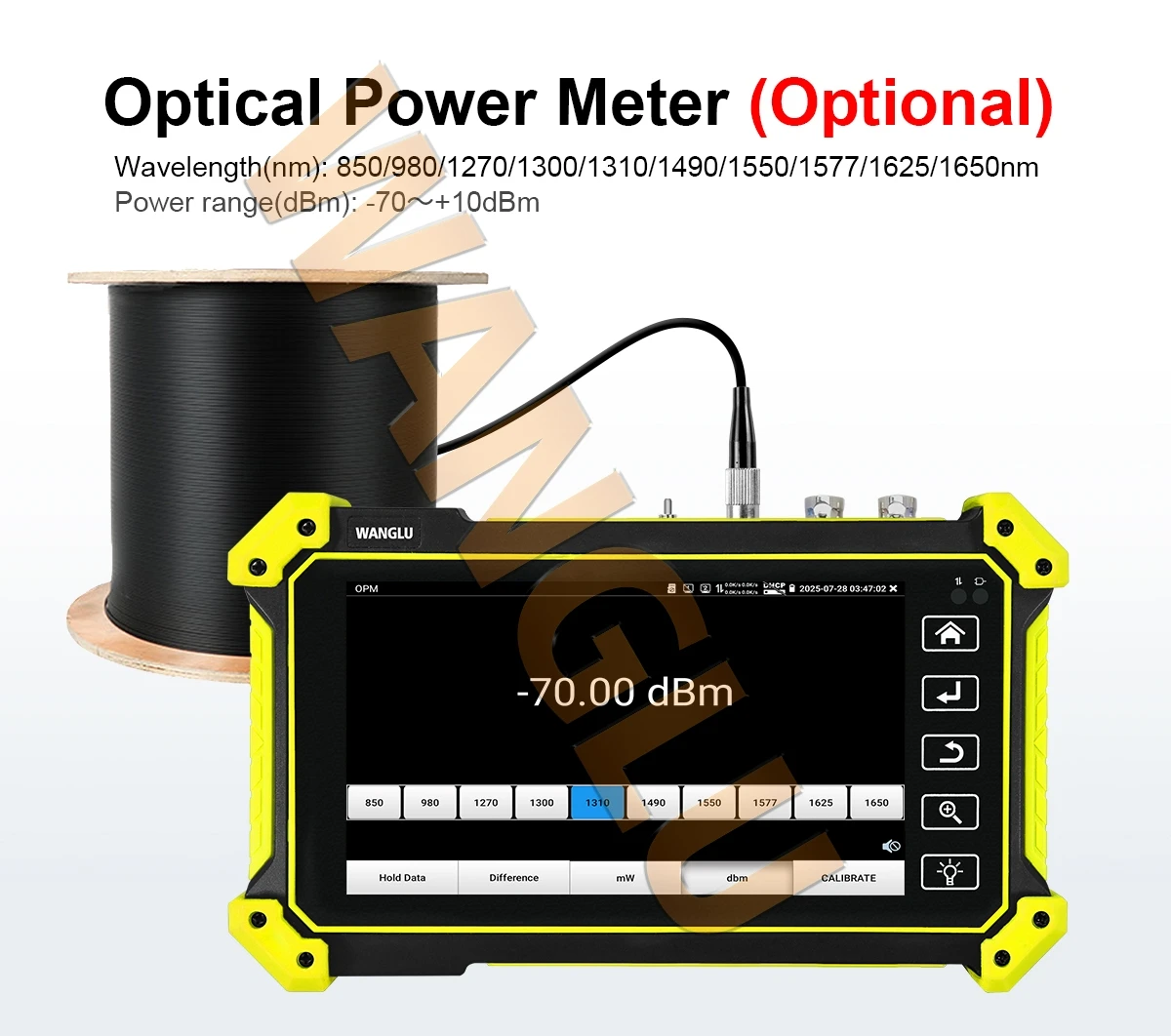

● Optical Power Meter, wavelength:1650nm,1625,1557nm,1550nm,1490nm,1310nm,1300nm,1270nm,890nm,

850nm, measurement range, -70 ~+10 dBm, for optical power testing and Fiber link loss relative measurement* (Optional)

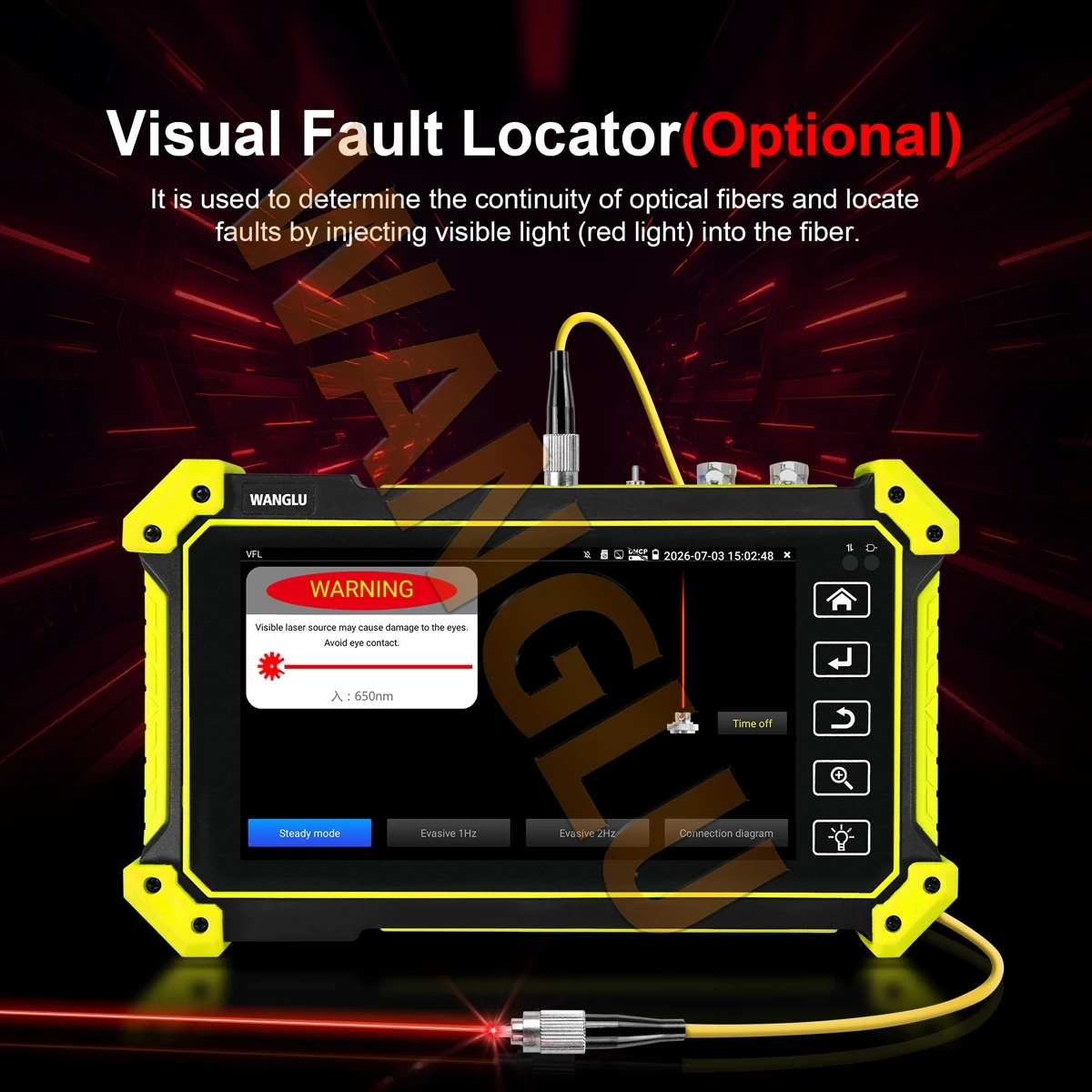

● Visual Fault Locator: 10mW visual fault locator with 650nm wavelength can emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, max test 10KM* (Optional)

● Network Tool: Ping, IP scan, Port Flash, DHCP server, Trace Route

● Tester Play: Tester, android version mobile phone and PC display at the same time

● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters

● Customers self-update software, you can install apps with android version

● Media player, 4K video files and MKV/MP4 media files play

● Display its genuine resolution of the IP camera images

● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

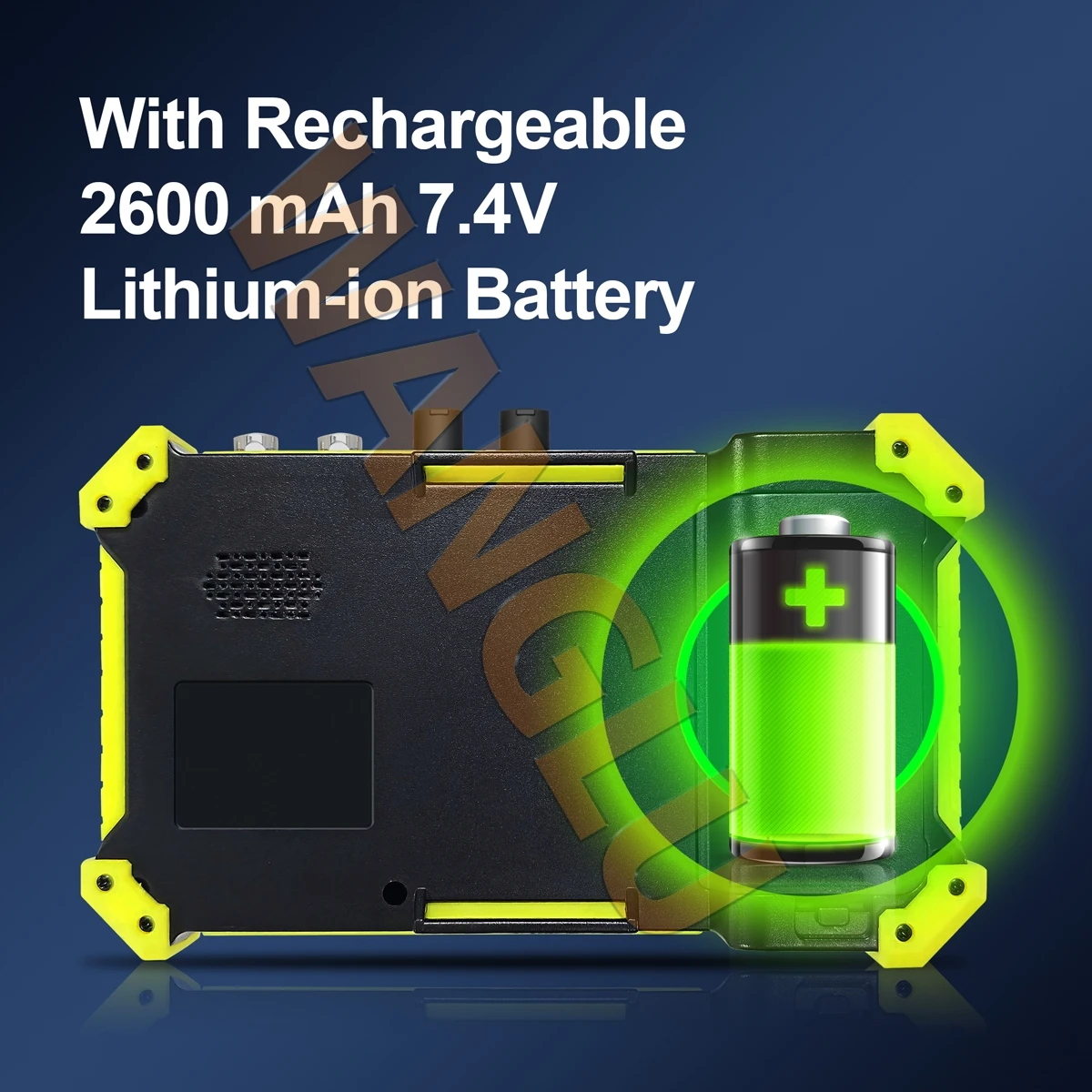

● 7.4V/2600mAh Lithium Ion Battery, after 3 hours charging, working time lasts 4.5 hours

Package Included

1) Tester

2) Cable tester remote (Only for E66)

3) Cable tracer (For E67/E68)

4) Adaptor DC12V 1A

5) Built-in Lithium-ion battery

6) Tool bag/DC Power cable/BNC cable/RS485 cable&Audio cable/Safety cord

7) Wrist belt

8) Manual
