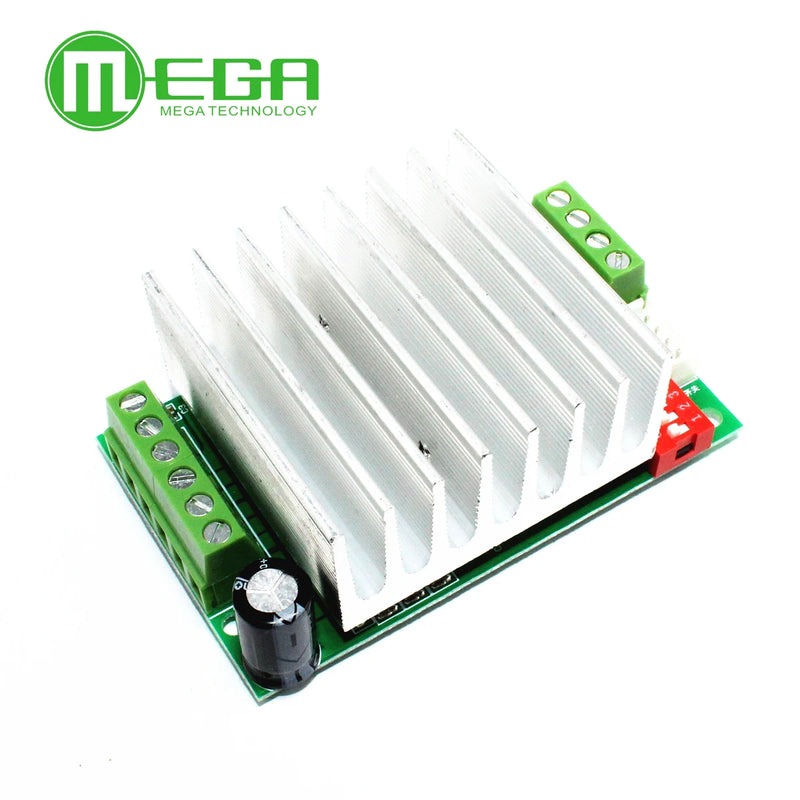

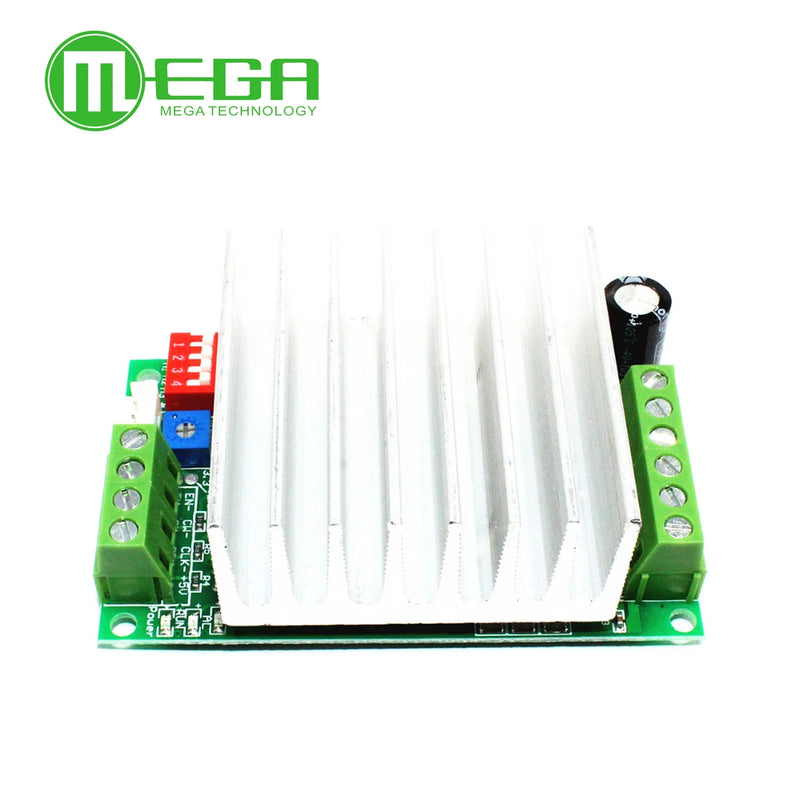

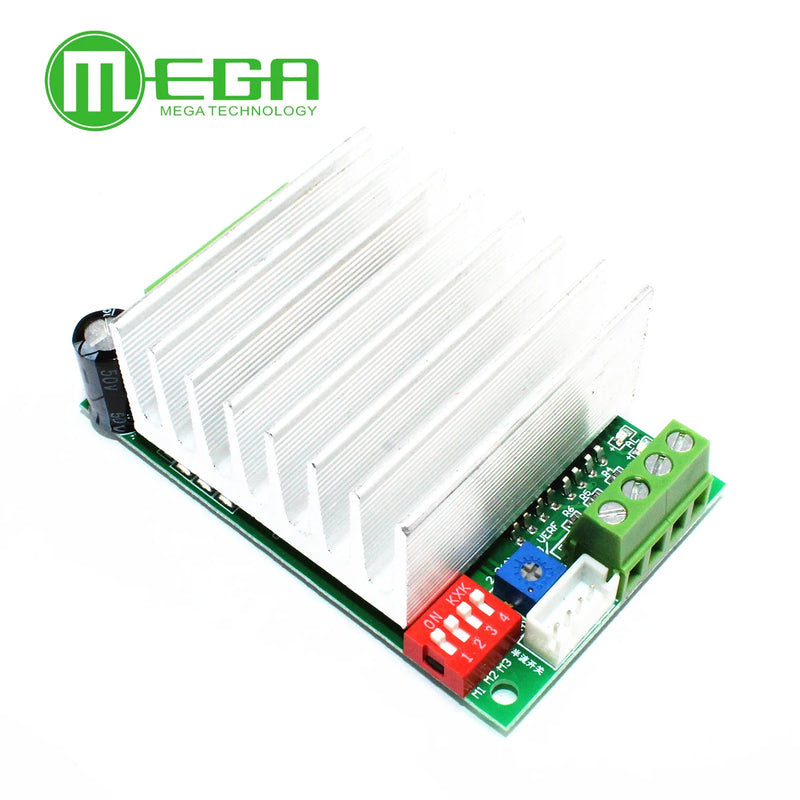

This is a high quality, high power, cost-effective drive!



High current 4.5A, high voltage 45V, output short-circuit protection, better performance!







1) Working voltage DC 10V-45V. Switching power supply DC32V is recommended.







2) 6N137 high-speed optical lotus root is used to ensure that the high speed does not lose step.



3) Toshiba's new high current and high voltage TB6600HG original chip is adopted, with low voltage shutdown, overheat shutdown and overcurrent protection circuit, and short circuit protection is increased compared with TB6560.



4) Rated maximum output: ±4.5A.



5) Suitable for 42,57,86 two-phase/four-phase/four-wire/six-wire stepper motors within 4.2A.



6) Automatic half-flow function.



7) Subdivision: whole step, half step, 1/4 step, 1/8 step, 1/16 step, big 16 subdivision.



8) Volume: Width 50* Length 82* height 35 (MM)







Product features:



1, the output current is stepless and adjustable to meet your various application needs.



2, automatic half-flow function. And with automatic half-current switch, easy to use.



3, the use of 6N137 high-speed optical lotus, to ensure that the high speed without losing step.



4. Subdivision setting instructions are printed on the back of the board.



5, the use of increased radiator, good heat dissipation.



6, with output short-circuit protection function, worry-free use.



7, the use of a total positive input mode, there are two input terminals, wiring is more convenient. .
