SPECIFICATIONS

Brand Name: NONE

Choice: yes

High-concerned chemical: None

Material: Plastic

Origin: Mainland China

Type: Watering Kits

Features:

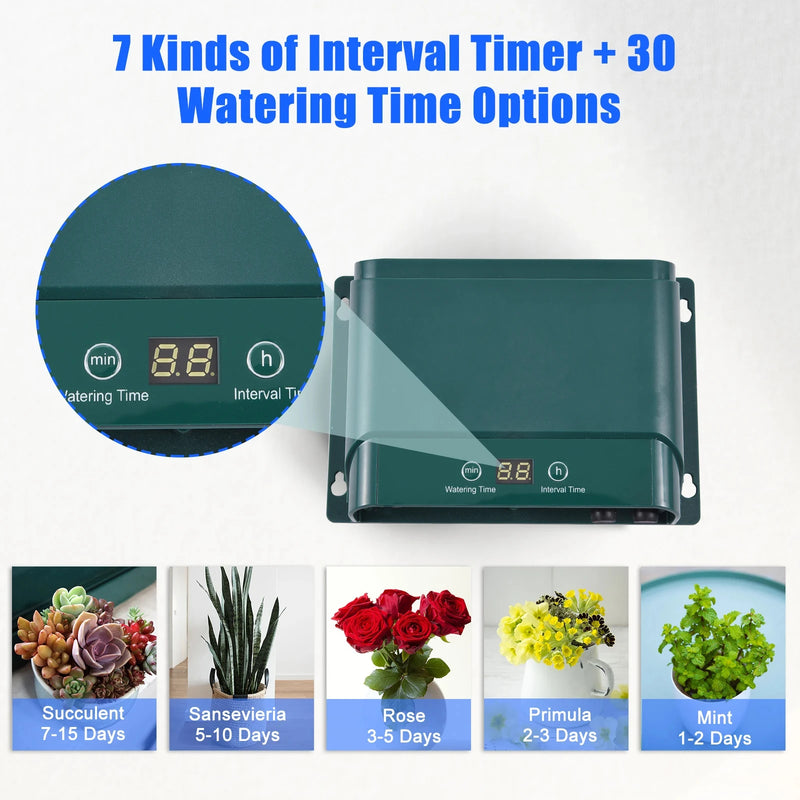

7 Timer Modes: Our solar-powered drip irrigation system features 7 timer modes with 3H / 6H / 12H / 1d / 2d / 3d / 7d, allowing you to customize watering schedules to suit your plants' needs.
30 Watering Modes: Drip irrigation kit with 30 different work modes in 01-30, you can adjust the flow rate and duration of watering to ensure optimal growth and health for your plants.

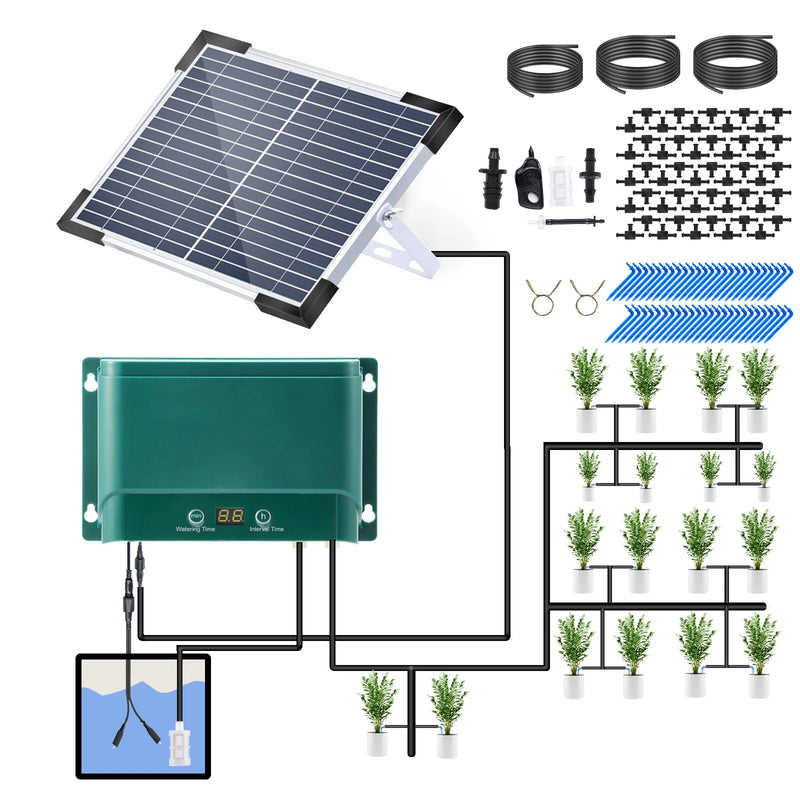

Solar Powered: Our automatic watering system is powered by solar energy, making it an eco-friendly and cost-effective solution for your irrigation needs. Each kit comes with all the necessary components to irrigate up to 50 plants, including a 5m main water pipe and 5*10m water distribution pipes.

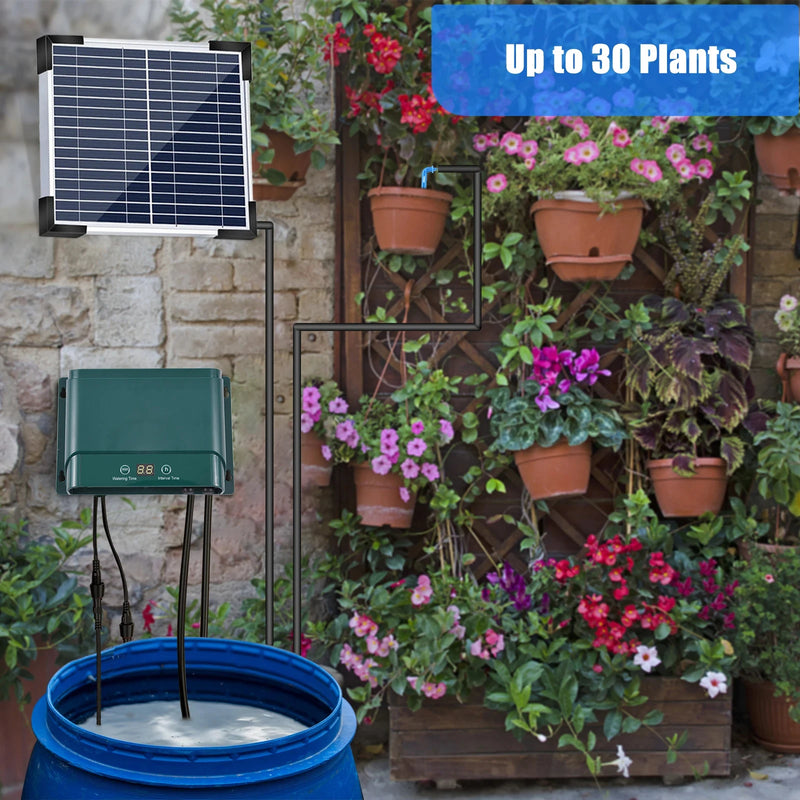

Wide Application: This solar drip irrigation system is suitable for a wide range of applications, including balconies, patios, small gardens without faucet and fixed power supply.
Multi Protection Mechanisms: Our solar irrigation system features multiple protection mechanisms, including water level detection, motor protection and battery discharge and charging protection, ensuring safe and reliable operation.

Specification:
Shell material: ABS
Solar panel material: Polycrystalline silicon
Solar panel production process: Glass lamination
Solar panel power: 18V 10W
Solar panel working current: 555mA
Solar panel size: 350 x 235 x 15mm / 13.77 x 9.25 x 0.59in
22 # red + black wrapped wire length: 5m / 16.4ft
Battery: 11.1V 2200mAh lithium battery lithium battery
Overcharge protection voltage: 12.75V
Overdischarge protection voltage: 8.1V
Working temperature (charging): -10 ℃ - 45 ℃
Storage temperature (discharge): -10 ℃ - 45 ℃
Internal resistance: Less than 120m Ω
Weight: 138g / 4.86oz
Service life: 500 cycles
Water pump: Brushed DC water pump
Water pump power: 5W
Working voltage: DC 12V
Flow rate: 500-1200Ml/Min
Load current: 0.5A
Working environment temperature: -10 - 45 ° C
Product size: 166 x 114 x 47mm / 6.53 x 4.48 x 1.85in
Product weight: 1.7kg / 3.74lb
Host button description: 1. ON/OFF key: main switch, 2. Watering Time key: working time setting, 3. Interval Time key: interval time setting
Shutdown current: Less than 500uA
Working current: 500mA
030 water pipe length: 10m / 32.8ft (black PVC, inner diameter 3mm, outer diameter 5mm)
085 water pipe length: 5m / 16.4ft (black PE, inner diameter 8mm, outer diameter 10mm)
Drop arrows: 50pcs (Blue, 7-shaped drop arrows 100 x 50mm / 3.94 x 1.97in)
Water level line length: 5m / 16.4ft
Product color: Dark Green
Waterproof grade(host): IP65
Solar charging time: about 4-5 hours
Control mode: Switch
Maximum water flow: 2L/min
Timing watering: 1-30min
Timing: 3H, 6H, 12H, 1d, 2d, 3d, 7d

Description:
Working time range: 30 gears
Watering Time ranges 01, 02, 03... 29, 30 cycles (working 01 for 1 minute, working 02 for 2 minutes, and so on. When the current working time reaches, the motor will stop, it enters the interval range.)
Interval time range: 7 gears
Cycle 3H, 6H, 12H, 1d, 2d, 3d, 7d (3H is 3 hours, 6H is 6 hours, 1d is 24 hours, 2d is 48 hours until timing, and so on. When the current interval time reaches, the motor will stop, it enters the working range.)
Water level detection:
Water shortage: The buzzer sounds twice in 1 minute to indicate a water shortage, and E1 flashes slowly (sounds twice in 1 minute until there is normal water, and then turns off the buzzer and alarm E1 code disappears). The buzzer does not alarm at night, only displays LED digital display, and E1 flashes slowly.
With water: The water level works together with the motor, if there is water, it works, and if there is no water, water pump stops working.
Motor protection (idle and locked):
Idle: The digital tube E2 slowly flashes, and the buzzer sounds twice in 1 minute. (The buzzer does not sound at night, only the digital display and E2 flashes slowly)
Battery discharge and charging protection:
Discharge: When the battery is below 10V, the digital tube will flash quickly and the water pump will be turned off. Restart the power condition and charge the battery to 10.6V or above during the day before starting the water pump.
Charging: When the battery is charged to 12.45V or above, disconnect the charging to protect the battery. During the day, when the battery is below 12V, continue charging to supplement work.
The buzzer only prompts during the day and does not work at night.

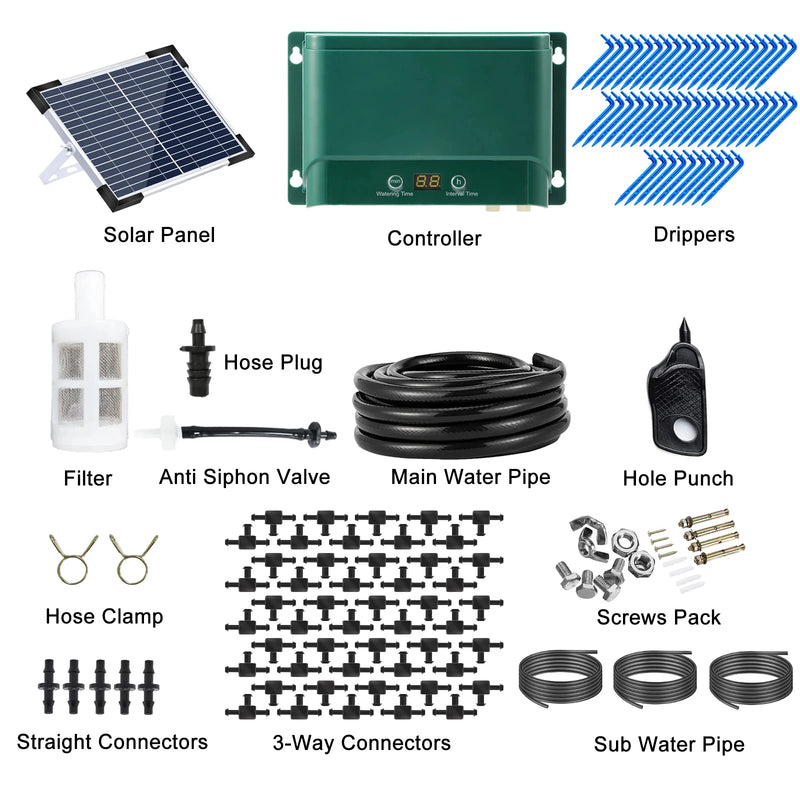

Packing List:
1 x Solar Panel
1 x Controller
1 x Bracket
1set x 5m / 16.4ft Main Water Pipe
5 x 10m / 32.8ft Sub Water Pipes
1 x Instruction
50 x Drippers
50 x Three-way Connectors
5 x Straight Connectors

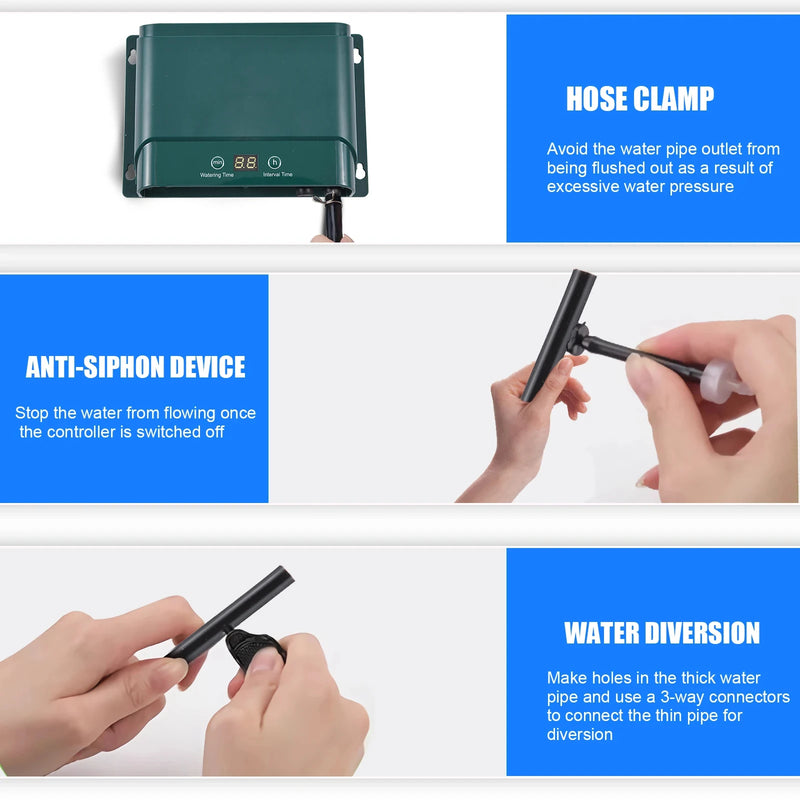

1 x Anti Siphon Valve
1 x Hole Punch
1 x Main Water Pipe Plug
2 x Main Water Pipe Clamps
1 x Filter
1bag x Screws
