SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: None

Origin: Mainland China

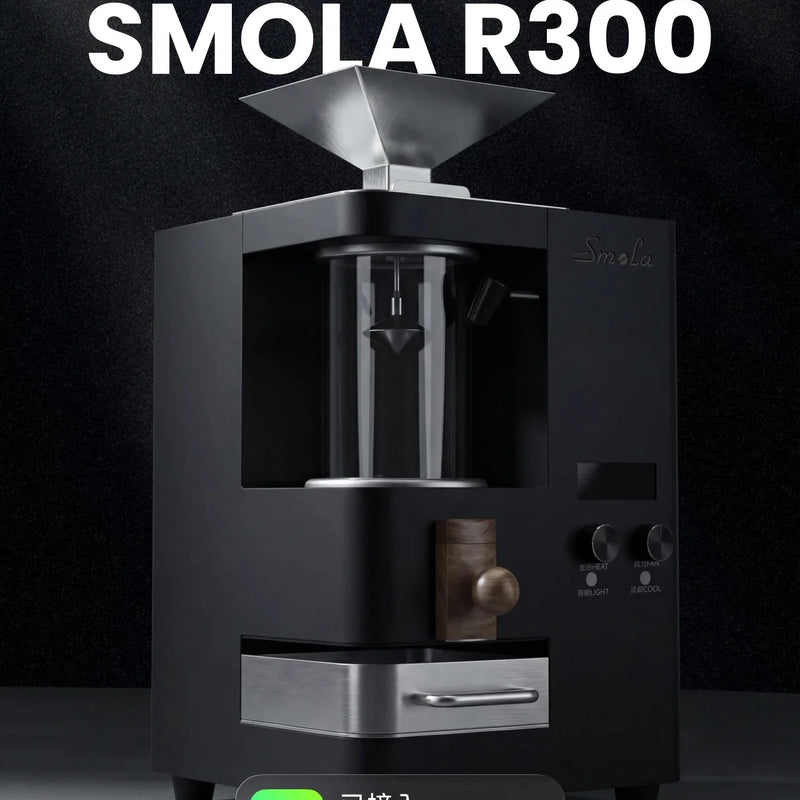

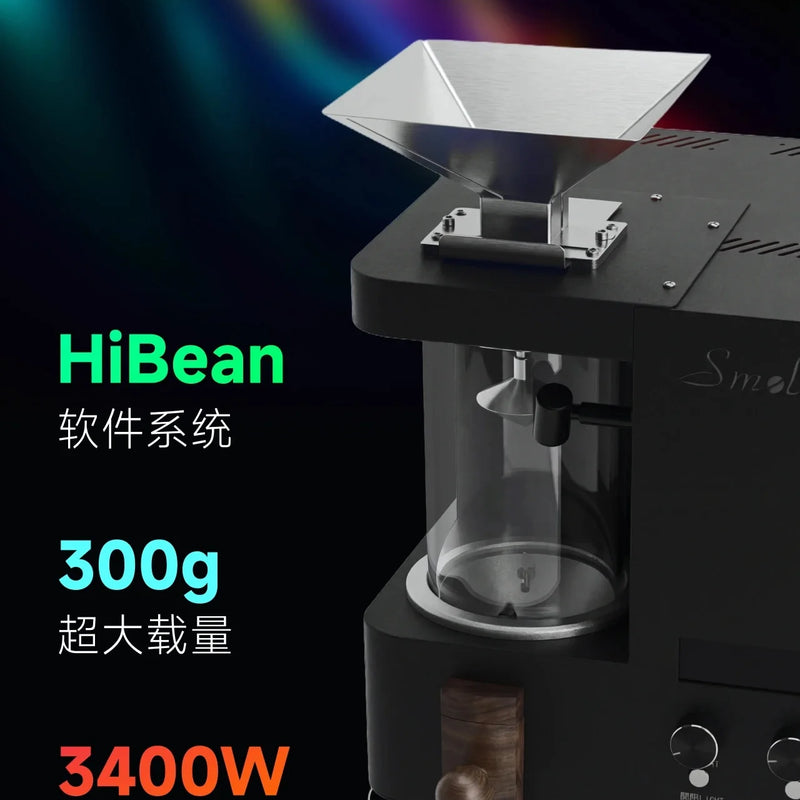

Smola R300 – Frequently Asked Questions (FAQ)

1. Specifications

Q: What is the maximum load capacity of the Smola R300?
A: It supports a maximum load of 300g.

Q: What is the recommended minimum batch size?
A: For optimal results, The minimum loading we recommend is above 100g

Q: What is the heating power? How does it differ between voltages?
A: 220V, 3300W

2. Features & Accessories

Q: What type of heating does the Smola R300 use?
A: Hot air only

Q: Does it support smart control?
A: Yes, it is compatible with HiBeanApp, Artisan, and other control software.

Q: Does it have built-in PID control?
A: No, PID control must be implemented via external software.

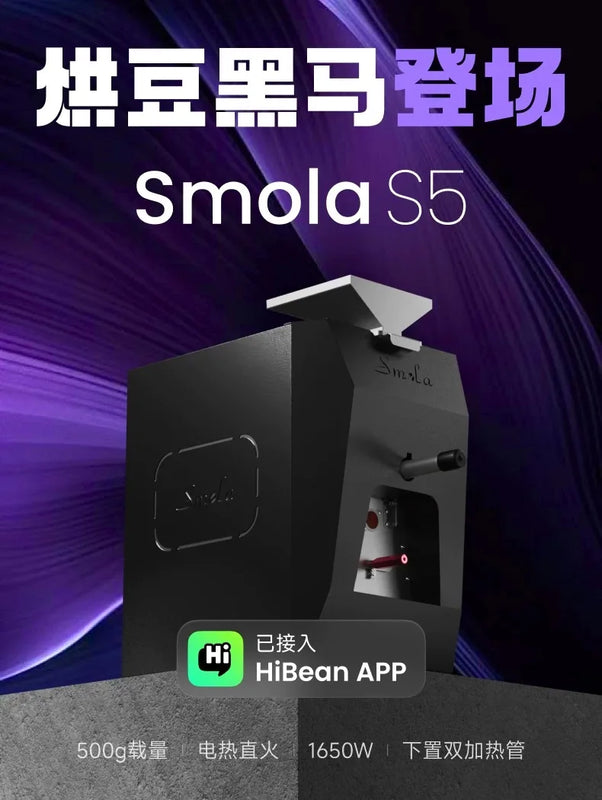

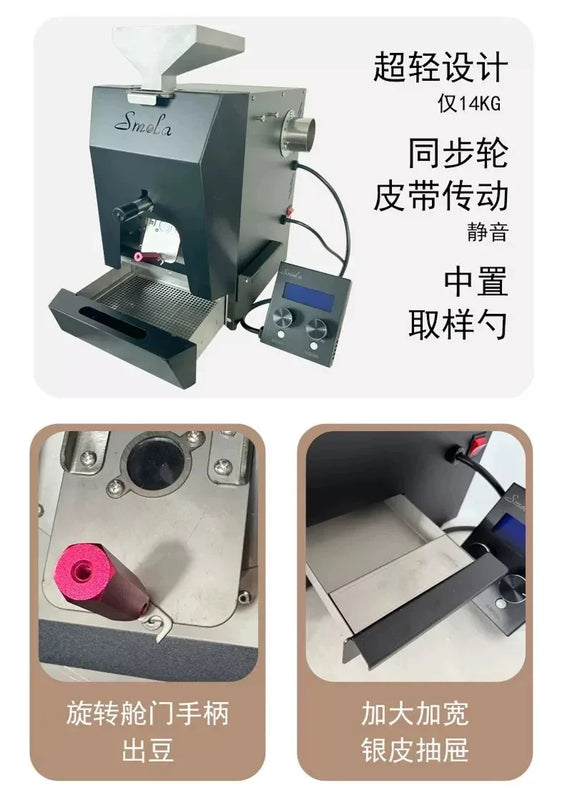

Smola S5 – Frequently Asked Questions (FAQ)

1. Specifications

Q: What is the maximum load capacity of the Smola S5?
A: It supports a maximum load of 500g.

Q: What is the recommended minimum batch size?
A: For optimal results, we recommend a minimum batch size of 150g.

Q: What is the heating power? How does it differ between voltages?
A:

• 110V version: 3 heating elements (600W each), total power 1850W.

• 220V version: 2 heating elements (800W each), total power 1650W.

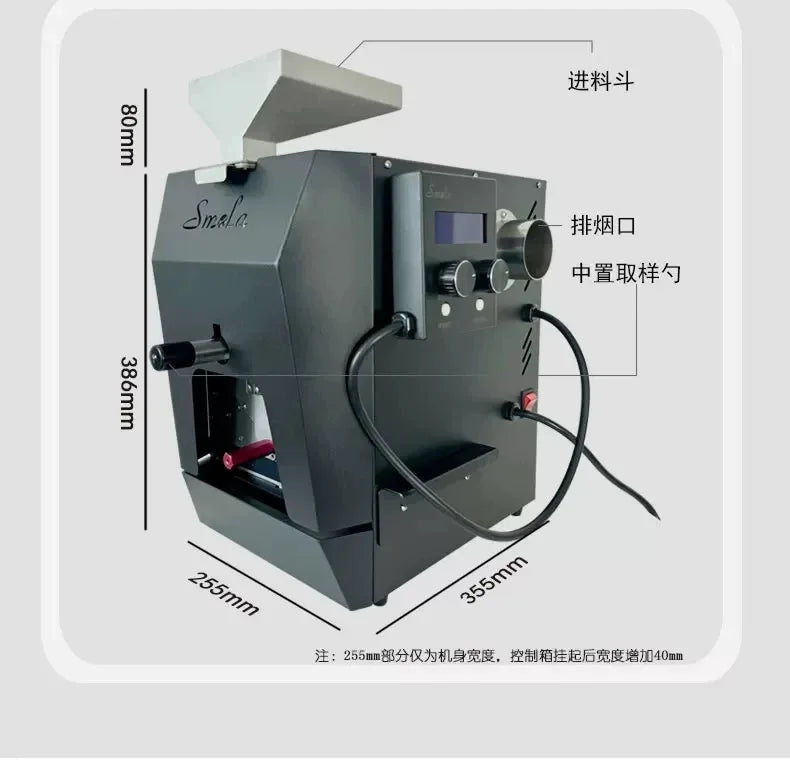

Q: What are the dimensions of the machine?
A: 290mm (W) × 410mm (D) × 465mm (H).

Q: What is the weight of the machine?
A: Net weight is approximately 14kg.

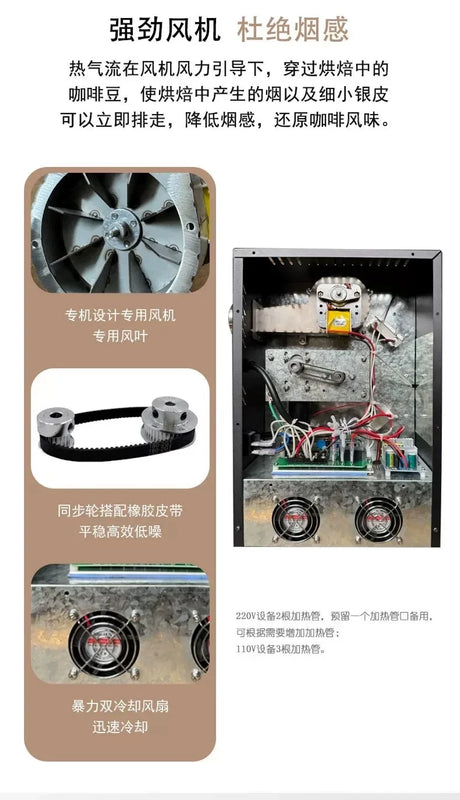

Q: What are the precautions for the exhaust system of this machine ⚠️?

The S5 model adopts the method of direct silver skin exhaust. If the exhaust system exceeds 60m in length, the silver skin may fail to be discharged due to wind pressure issues. In such cases, it is necessary to add a secondary booster or use a thicker pipe to provide sufficient space for dust and silver skin.

2. Features & Accessories

Q: What type of heating does the Smola S5 use?
A:

• Direct flame (primary) + Semi-hot air (secondary).

• The perforated drum allows for direct flame contact, with conductive heat playing a secondary role.

• When airflow increases, the heating shifts predominantly to semi-hot air mode.

• Radiant heat is minimal and not the main heating method.

Q: Can the cyclone separator be customized?
A: Yes, we offer customized cyclone separators upon request. Please contact customer support.

Q: Is the drum speed adjustable?
A: No, the drum operates at a fixed speed (non-adjustable).

Q: Does it support smart control?
A: Yes, it is compatible with HiBeanApp, Artisan, and other control software.

Q: Does it have built-in PID control?
A: No, PID control must be implemented via external software.

3. Warranty & Support

Q: What is the warranty policy?
A:

• 1-year warranty for non-consumable parts.

• Warranty service includes free shipping of replacement parts + step-by-step video guides for self-installation.

• Additional support: 1-on-1 remote assistance is available if needed.

For further inquiries, please contact our customer service team!
