Smart Temperature Remote Controller M3H Tuya WiFi
SCORE BIG SALE
£40.00
↓ Save £16.00
£56.00
✓
✓
✓
✓
SPECIFICATIONS
Brand Name: MINCO HEAT
Certification: CE
Choice: yes
Color: White/Black
High-concerned chemical: None
Length of sensor cable: NTC, 10K (only for electric 16A type)
Limit Temp. Range: 5-60°C
MINCO HEAT Model: M3H
Max current: 16A/3A
Model Number: M3H
Origin: Mainland China
Power Consumption: <1. 5W
Set Temp. Range: 5-35°C
Temperature Difference Start: 1C
Wattage: <2w
Wire Terminals: Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Working voltage: 100~240V AC 50/60Hz
Description:
The M3H thermostat has been developed to control electric underfloor, water heating or water/ gas boiler systems. These units are designed for use in commercial, industrial, civil and domestic properties.
Model Type:

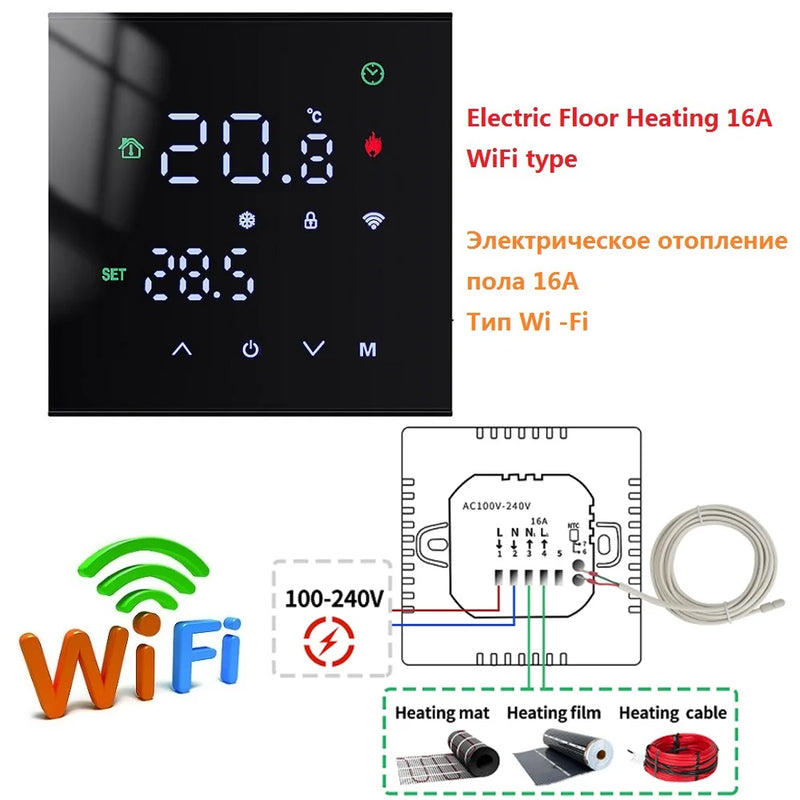

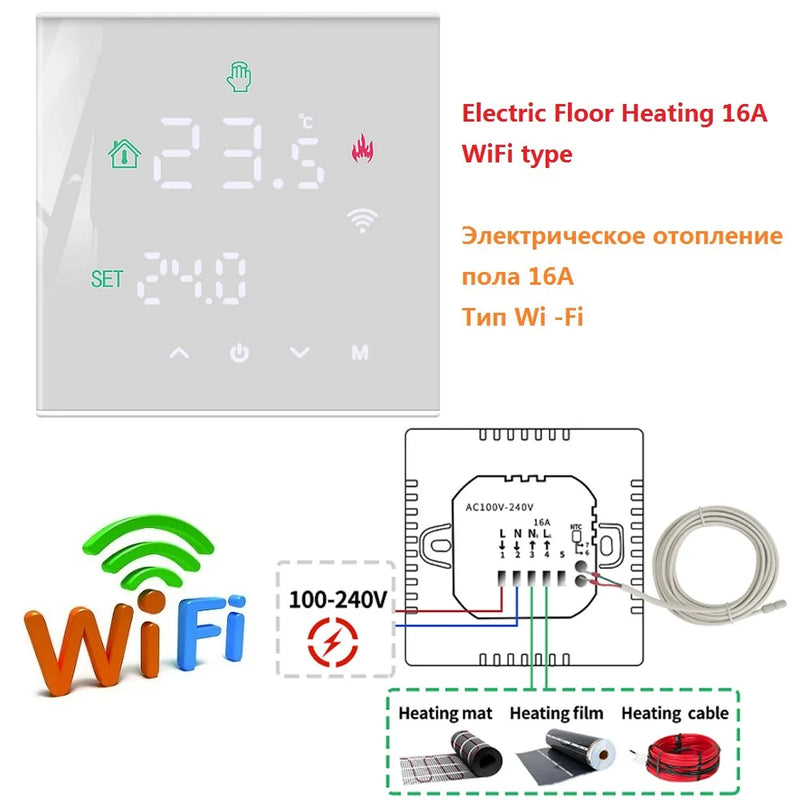

1. GB: Electric floor Heating, 16A (with both internal sensor and floor external sensor)

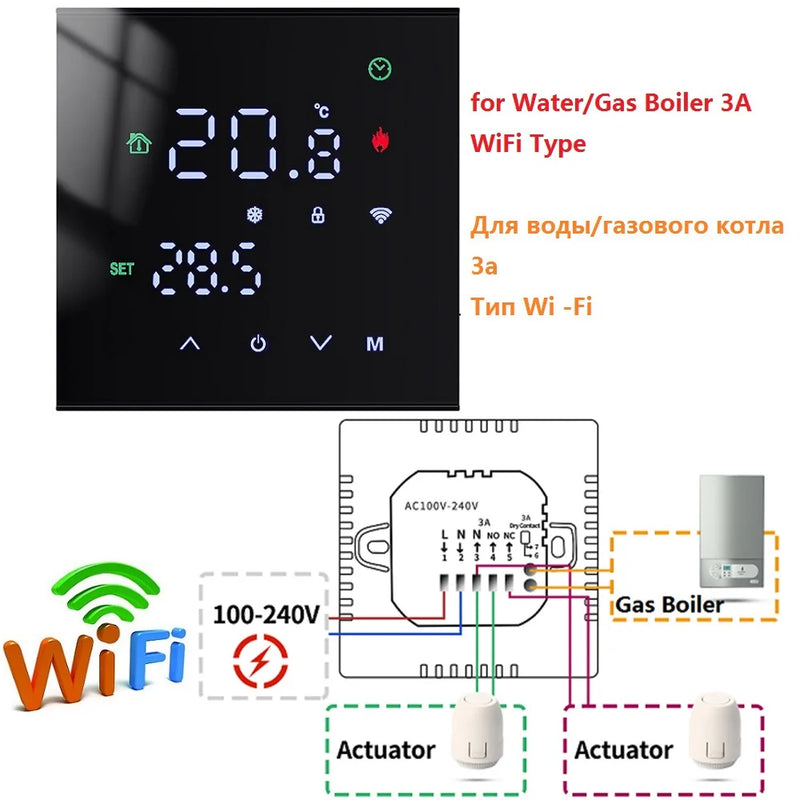

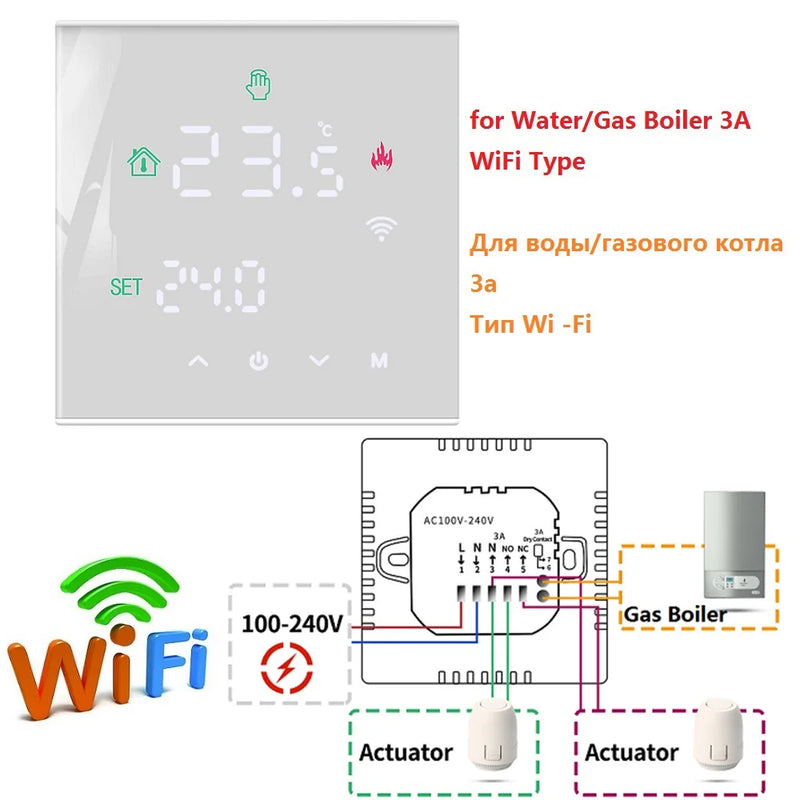

3. GE: for Gas Boiler or Water Heating, 3A (with internal sensor, no external sensor)
Specifications:
Power Supply:100 ~240 VAC, 50~60Hz
Current Load: 3A (water heating, gas boiler), 16A (electric heating)
Sensor: NTC, 10K
Accuracy: ±1°C
Set Temp. Range: 5-35°C
Limit Temp. Range: 5-60°C
Power Consumption: <1. 5W
Shell Material: PC +ABS ( Fireproof)
Installation Box: 86 * 86mm Square or European 60mm Round Box
Wire Terminals: Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class: IP20
APP:Tuya Smart life

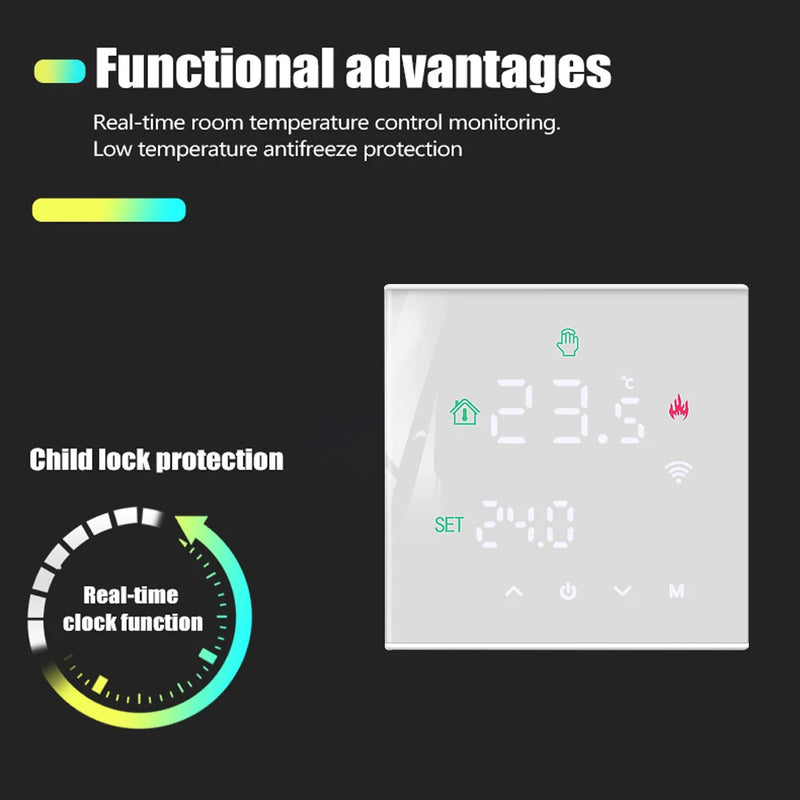

Thermostat Functions:
- 1. Memory Function
Power off protection, save all your settings safely.
- 2. Programmable Function
Programmable function only for WiFi type, only Programmable on mobile phones.
- 3. Insert and external two sensors. External sensor cable is included for 16A Electric Floor Type.
- 4. Suit for various kinds of electric heating system
The thermostat is suitable for heating cable, heating mat, heating film and other electric heating devices.

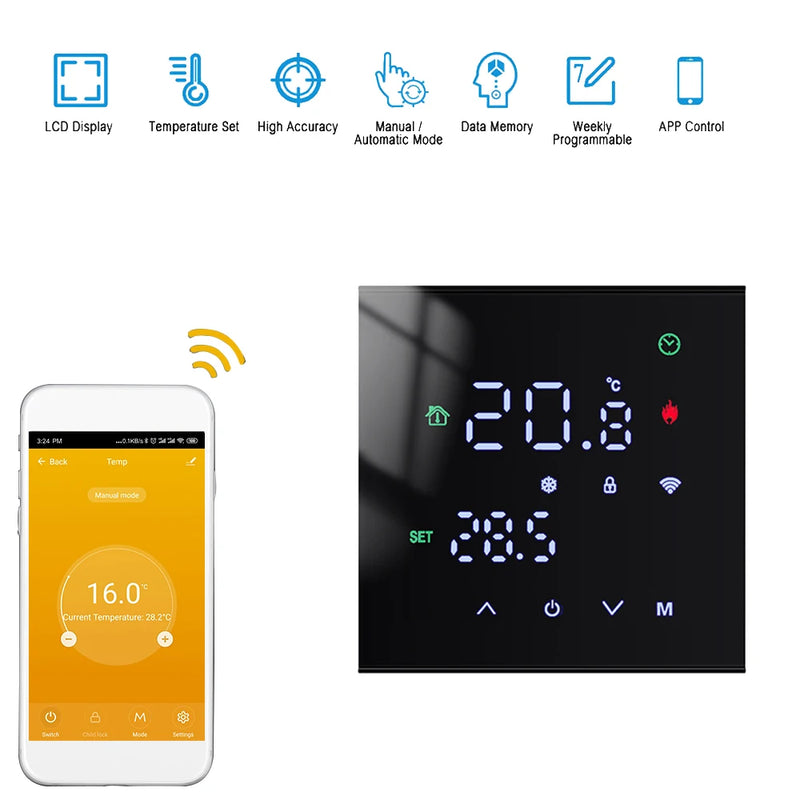

- 5. Wifi function
The wifi thermostat can be controlled by Mobile App wherever you are.

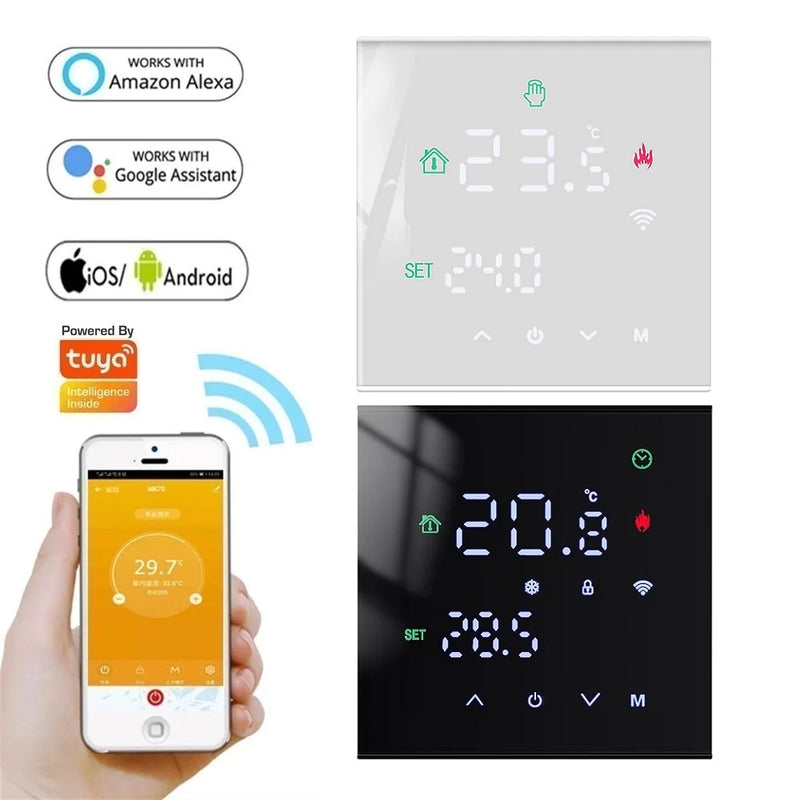

- 6. Support to be voice control by Alexa/Google Home
Package Includes:
1 X thermostat
1 X external sensor(only for Electric Floor Heating 16A Thermostats)
2 X screws
1 X English user manual

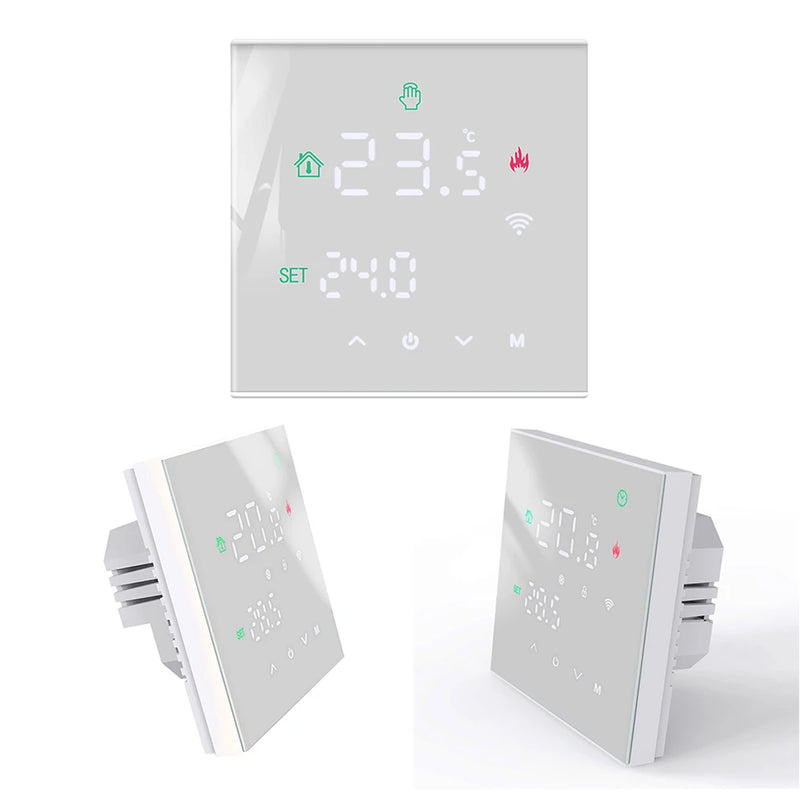

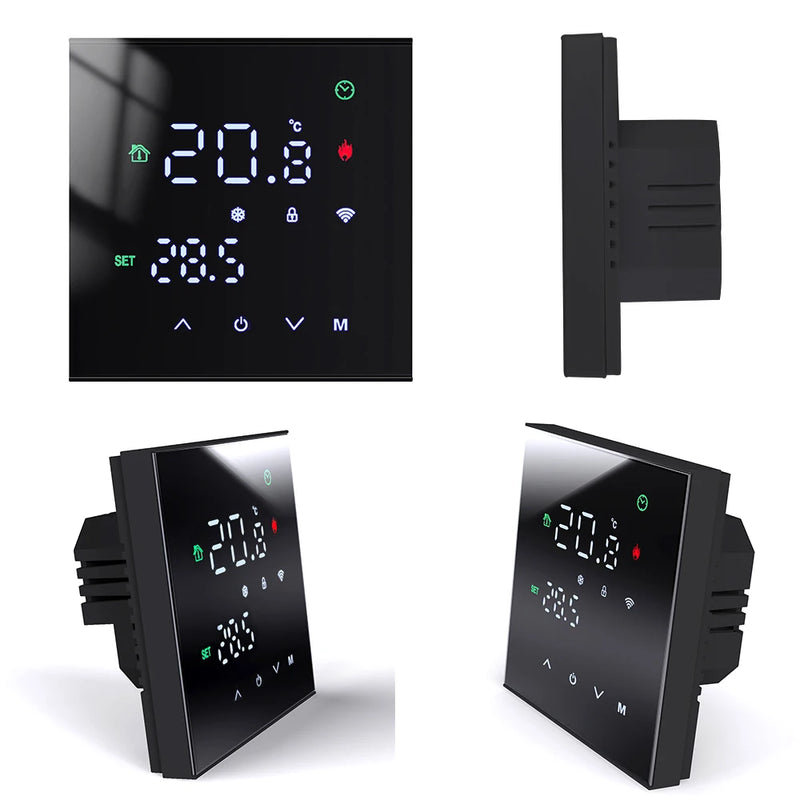

Product Photos:
Installation:
Shipping:
