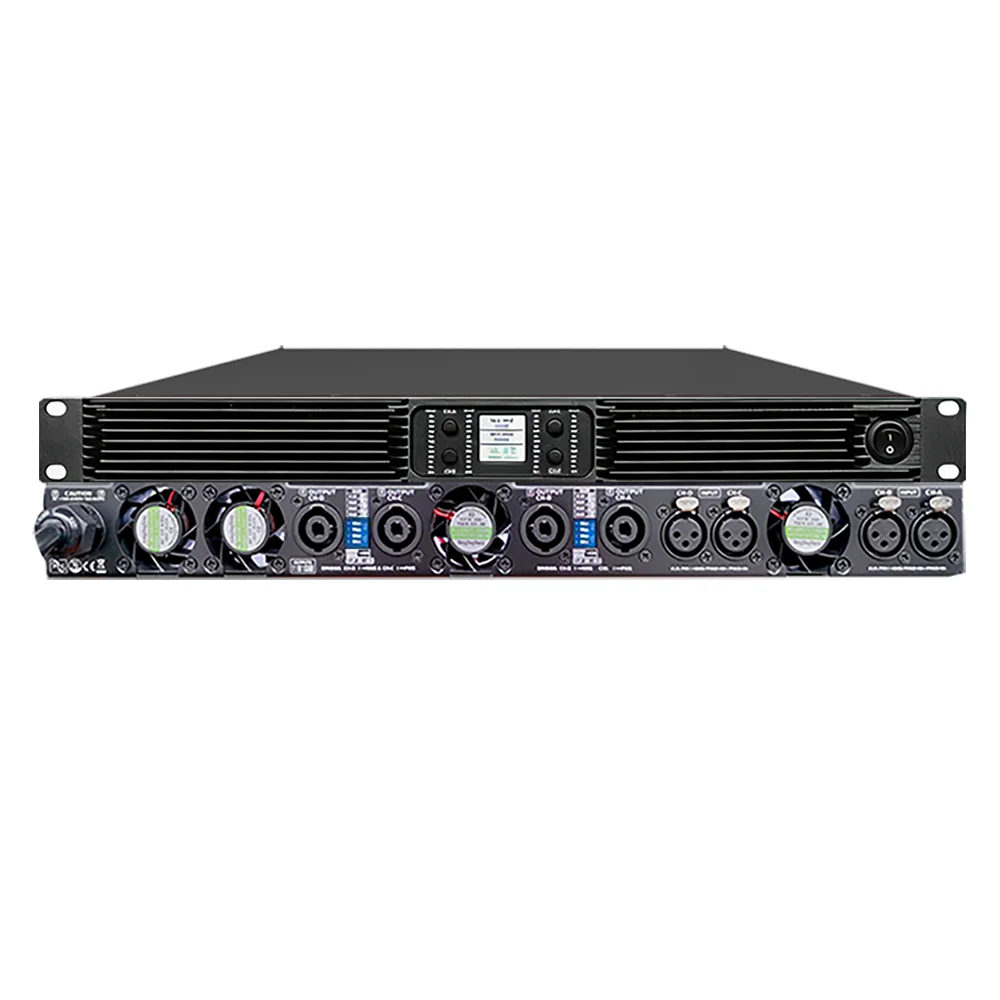

ShennDare 4x2800W Audio Professional Power Amplifier 4 Channels 1U Subwoofer Amplifier Class D Line Array Speaker Preamplifier PFC 90V-270V Stable 2Ω 9000W Max Pro sound system

K430 power test video

Product Description

K series digital power amplifier has very strong performance, the total output power reaches more than 10000W, and only needs the installation space of 1U rack. It is one of the most powerful and advanced power amplifier products on the market.

The efficiency is over 97%, and the calorific value is low, which means that it has stable and reliable performance and is more durable.

With extremely wide power adaptability, built-in 20000 W power regulator, it can adapt to the worst power supply environment, thoroughly solve the problem of voltage instability in remote areas.

We have carefully selected all kinds of top-level components. Each power amplifier has more than 4000 components. A large number of original imported raw materials are used, such as Fairchild, ON Semiconductor, Infineon, TDK, and STMicroelectronics. We have selected chips of HiFi Class to get unbelievable sound.

The protection circuit of each channel is independent, even if one channel can not work, it will not affect other channels, providing higher protection for each performance.

Each power amplifier has passed more than 100 full range tests of AP (AudioPrecison) System to ensure that each power amplifier achieves the most ideal parameters and performance, and maintains the high consistency of products.

It is a perfect choice for places that need relatively high continuous power and high requirements. It pays attention to the timbre, and is highly efficient. At the same time, it also achieves good stability, portability and adaptability. K series power amplifier is the first choice for the first-class system designer, sound engineer and system technician to provide the most reliable and highest level power and dynamic margin in the smallest possible size.

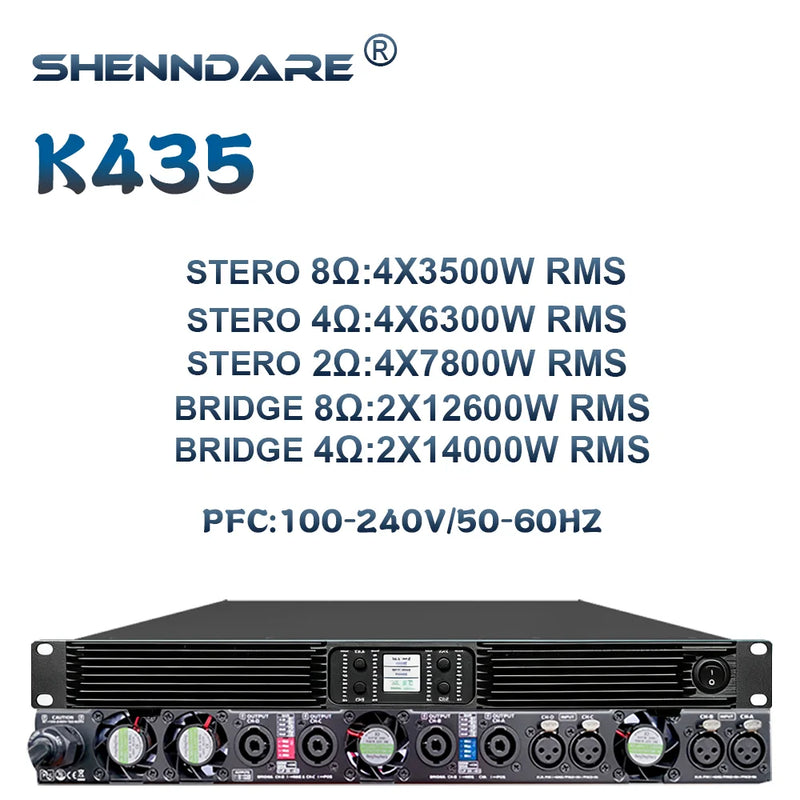

K435 Technical Parameters

8Ω Stereo Power: 4 x 3500W RMS
4Ω Stereo Power: 4 x 6300W RMS
2Ω Stereo Power: 4 x 7800W RMS
8Ω Bridged Power: 2 x 12600W RMS
4Ω Bridged Power: 2 x 14000W RMS
Height: 1U, Class D, 4-channel digital power amplifier
(Operating voltage: 90-260V 60Hz/50Hz)
1U digital 4-channel power amplifier with PFC
Maximum output voltage/current in stereo mode: 185V/85A peak
Maximum output voltage/current in bridge mode: 370V peak
THD (at 1kHz and 1dB below clipping): <0.05%
Frequency response (20Hz-20kHz): 20Hz-20kHz +0/-1dB

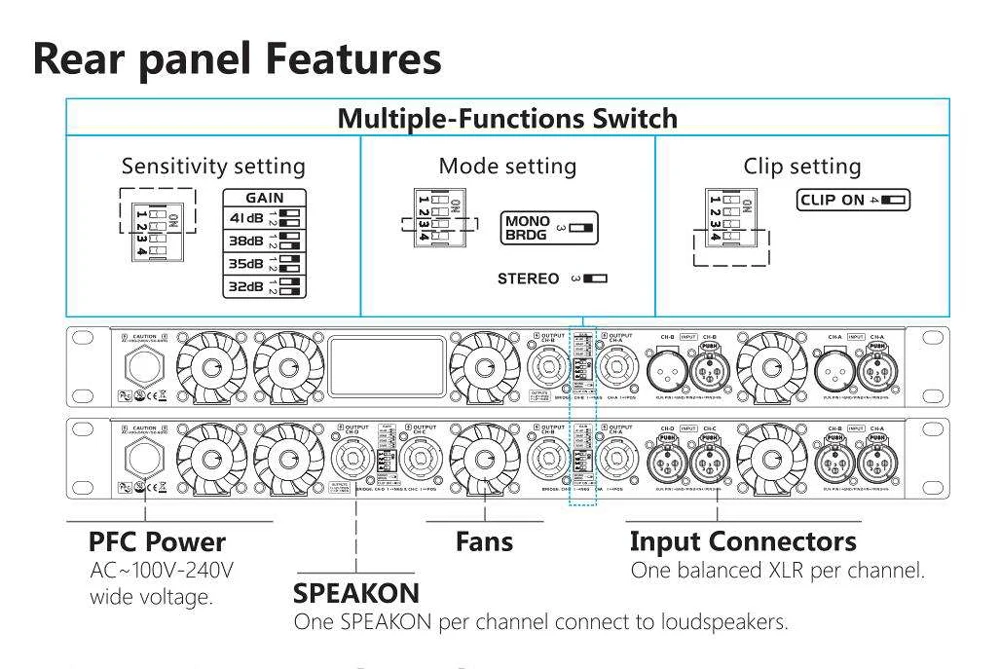

Gain (selectable) 8 ohms: 32dB/35dB/38dB/41dB
Operating Temperature: 0°C-45°C/32°F-113°F

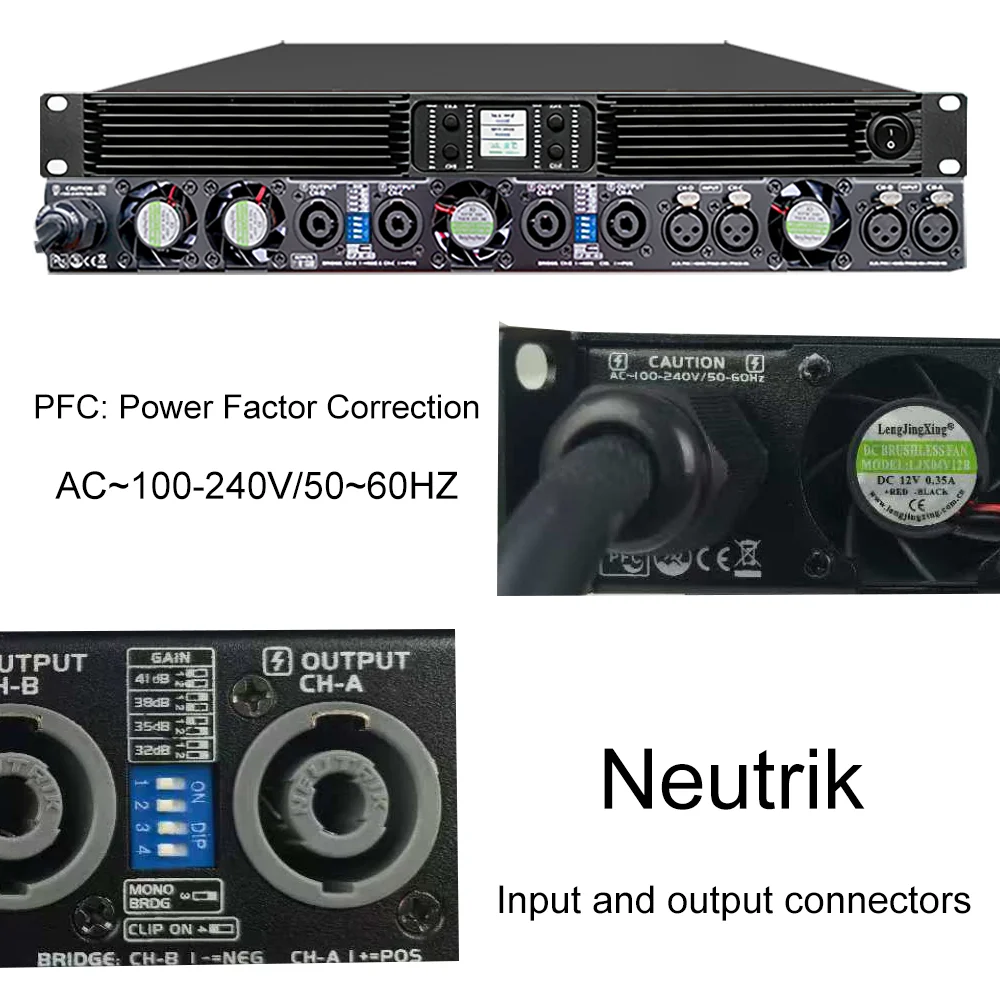

Output Jack: Neutrik Swiss Speakon Connector
Input Jack: Combo XLR Type 3-pin
THD + N Harmonic Distortion: <0.5% (typical <0.05%) from 1 W to full power
IMD (Intermodulation Distortion): <0.5% (typical <0.05%) from 1 W to full power
Signal-to-Noise Ratio: >110 dB
Sensitivity (rated power into 8 Ω): 0.775 V/1 V/32 dB
Damping Factor: >5000 @ 20-200 Hz
Slew Rate: >50 V/µs @ 8 ohms
Input Impedance, Balanced > 20 kΩ / Unbalanced > 10 kΩ
Resolution: ≥ 75 dB
Crosstalk: >66 dB @ 1 kHz
Signal-to-Noise Ratio (SNR) >110 dBA (20 Hz-20 kHz, weighted)

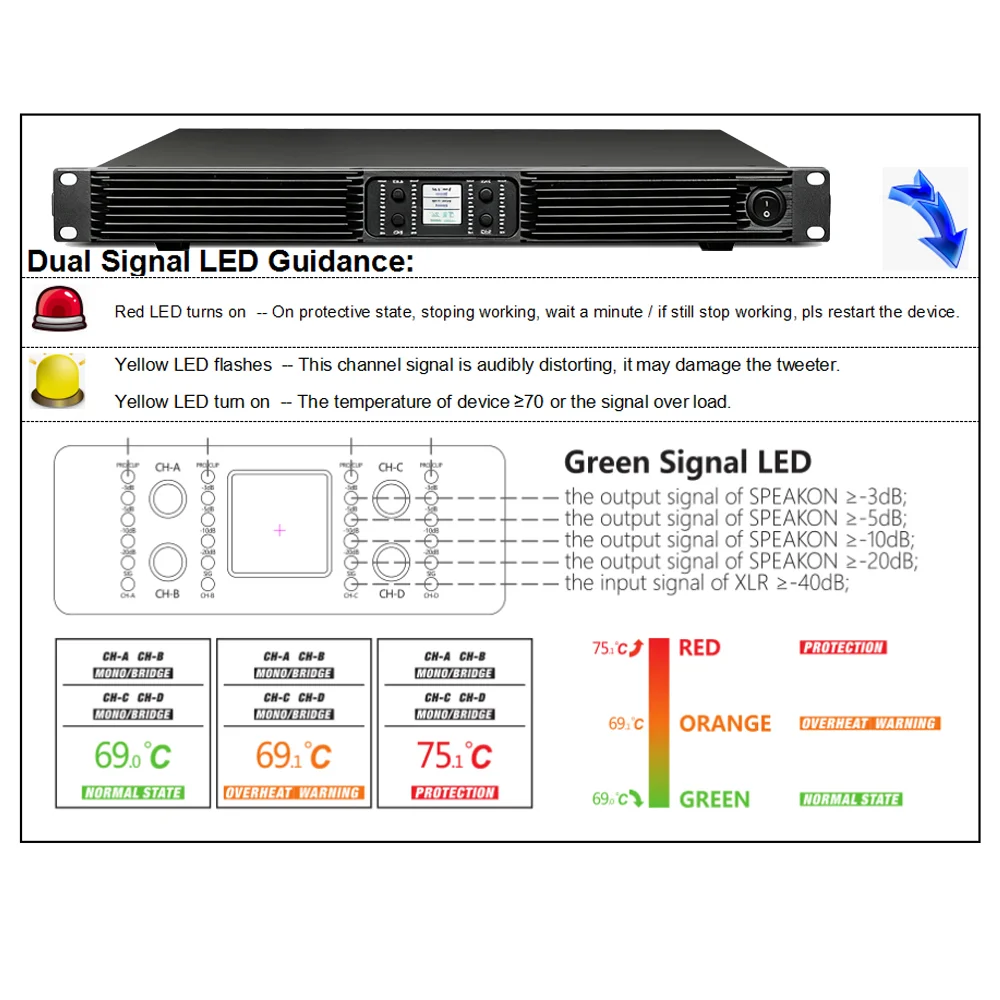

LED Indicator: Temperature Display: Green indicates normal operation, Yellow indicates overheating warning
Cooling: Temperature-controlled variable-speed air cooling system, front-to-back cooling
Protection: Soft start, VHF, AC/DC protection; limiter; over-frequency; short circuit; long-term amplifier; thermal; temperature warning; switch mute; signal line hot-swap and overload protection.
Power supply voltage: PFC universal power supply system with 90-260V voltage selectable.
Suitable for voltages in any country; 50Hz-60Hz.
Dimensions (W * D * H): 482*460*44mm. Net weight: 12.5kg. Weight: 16.5kg.

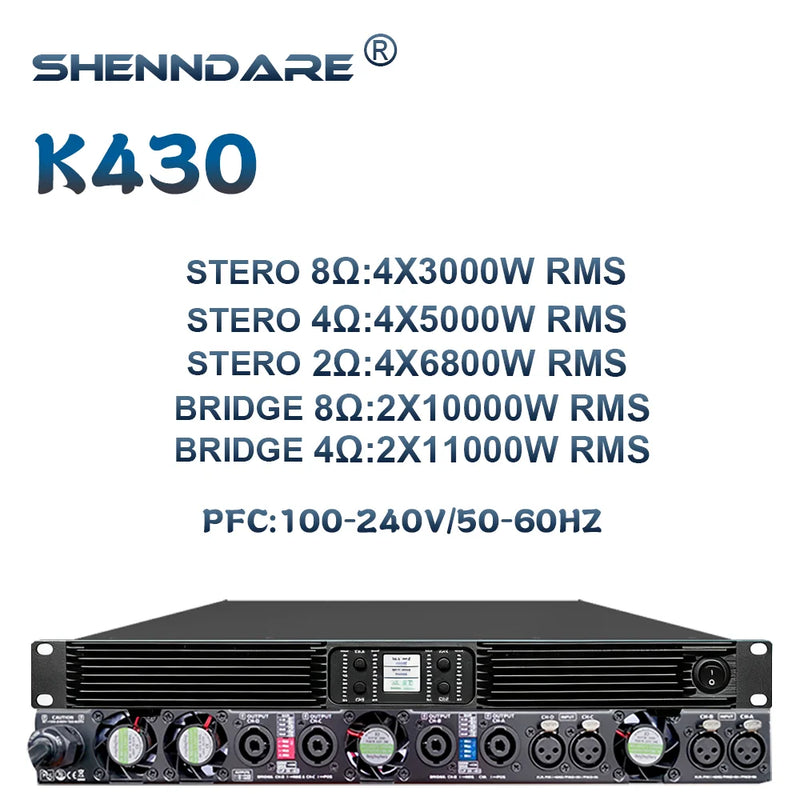

K430 Technical Parameters

8Ω Stereo Power: 4 x 3000W RMS
4Ω Stereo Power: 4 x 5000W RMS
2Ω Stereo Power: 4 x 6800W RMS
8Ω Bridged Power: 2 x 10000W RMS
4Ω Bridged Power: 2 x 11000W RMS
Height: 1U, Class D, 4-channel digital power amplifier
(Operating Voltage: 90-260V 60Hz/50Hz)
1U digital 4-channel power amplifier with PFC
Maximum output voltage/current in stereo mode: 185V/85A peak
Maximum output voltage/current in bridge mode: 370V peak
THD (1kHz and 1dB below clipping): <0.05%
Frequency Response (20Hz-20kHz): 20Hz-20kHz +0/-1dB
Gain (selectable) 8 ohms: 32dB/35dB/38dB/41dB
Operating Temperature: 0°C-45°C/32°F-113°F
Output Jack: Neutrik Swiss Speakon Connector
Input Jack: Combo XLR Type 3-pin
THD + N Harmonic Distortion: <0.5% (typical <0.05%) from 1 W to full power
IMD (Intermodulation Distortion): <0.5% (typical <0.05%) from 1 W to full power
Signal-to-Noise Ratio: >110 dB
Sensitivity (rated power into 8 Ω): 0.775 V/1 V/32 dB
Damping Factor: >5000 @ 20-200 Hz
Slew Rate: >50 V/µs @ 8 ohms
Input Impedance, Balanced > 20 kΩ / Unbalanced > 10 kΩ
Resolution: ≥ 75 dB
Crosstalk: >66 dB @ 1 kHz
Signal-to-Noise Ratio (SNR) >110 dBA (20 Hz-20 kHz, weighted)
LED Indicator: Temperature Display: Green indicates normal operation, Yellow indicates overheating warning
Cooling: Temperature-controlled variable-speed air cooling system, front-to-back cooling
Protection: Soft start, VHF, AC/DC protection; limiter; over-frequency; short circuit; long-term amplifier; thermal; temperature warning; switch mute; signal line hot-swap and overload protection.
Power supply voltage: PFC universal power supply system with 90-260V voltage selectable.
Suitable for voltages in any country; 50Hz-60Hz.
Dimensions (W * D * H): 482*460*44mm. Net weight: 12.5kg. Weight: 16.5kg.

K420 Technical Parameters

8Ω Stereo Power: 4 x 2000W RMS
4Ω Stereo Power: 4 x 3600W RMS
2Ω Stereo Power: 4 x 4500W RMS
8Ω Bridged Power: 2 x 7200W RMS
4Ω Bridged Power: 2 x 9000W RMS
Height: 1U, Class D, 4-channel digital power amplifier
(Operating voltage: 90-260V 60Hz/50Hz)
1U digital 4-channel power amplifier with PFC
Maximum output voltage/current in stereo mode: 185V/85A peak
Maximum output voltage/current in bridge mode: 370V peak
THD (1kHz and 1dB below clipping): <0.05%
Frequency response (20Hz-20kHz): 20Hz-20kHz +0/-1dB
Gain (selectable) 8 ohms: 32dB/35dB/38dB/41dB
Operating Temperature: 0°C-45°C/32°F-113°F
Output Jack: Neutrik Swiss Speakon Connector
Input Jack: Combo XLR Type 3-pin
THD + N Harmonic Distortion: <0.5% (typical <0.05%) from 1 W to full power
IMD (Intermodulation Distortion): <0.5% (typical <0.05%) from 1 W to full power
Signal-to-Noise Ratio: >110 dB
Sensitivity (rated power into 8 Ω): 0.775 V/1 V/32 dB
Damping Factor: >5000 @ 20-200 Hz
Slew Rate: >50 V/µs @ 8 ohms
Input Impedance, Balanced > 20 kΩ / Unbalanced > 10 kΩ
Resolution: ≥ 75 dB
Crosstalk: >66 dB @ 1 kHz
Signal-to-Noise Ratio (SNR) >110 dBA (20 Hz-20 kHz, weighted)
LED Indicator: Temperature Display: Green indicates normal operation, Yellow indicates overheating warning
Cooling: Temperature-controlled variable-speed air cooling system, front-to-back cooling
Protection: Soft start, VHF, AC/DC protection; limiter; over-frequency; short circuit; long-term amplifier; thermal; temperature warning; switch mute; signal line hot-swap and overload protection.
Power supply voltage: PFC universal power supply system with 90-260V voltage selectable.
Suitable for voltages in any country; 50Hz-60Hz.
Dimensions (W * D * H): 482*460*44mm. Net weight: 12.5kg. Weight: 16.5kg.

K415 Technical Parameters

8Ω Stereo Power: 4 x 1500W RMS
4Ω Stereo Power: 4 x 2700W RMS
2Ω Stereo Power: 4 x 3300W RMS
8Ω Bridged Power: 2 x 5400W RMS
4Ω Bridged Power: 2 x 6600W RMS
Height: 1U, Class D, 4-channel digital power amplifier
(Operating voltage: 90-260V 60Hz/50Hz)
1U digital 4-channel power amplifier with PFC
Maximum output voltage/current in stereo mode: 185V/85A peak
Maximum output voltage/current in bridge mode: 370V peak
THD (at 1kHz and 1dB below clipping): <0.05%
Frequency response (20Hz-20kHz): 20Hz-20kHz +0/-1dB
Gain (selectable) 8 ohms: 32dB/35dB/38dB/41dB
Operating Temperature: 0°C-45°C/32°F-113°F
Output Jack: Neutrik Swiss Speakon Connector
Input Jack: Combo XLR Type 3-pin
THD + N Harmonic Distortion: <0.5% (typical <0.05%) from 1 W to full power
IMD (Intermodulation Distortion): <0.5% (typical <0.05%) from 1 W to full power
Signal-to-Noise Ratio: >110 dB
Sensitivity (rated power into 8 Ω): 0.775 V/1 V/32 dB
Damping Factor: >5000 @ 20-200 Hz
Slew Rate: >50 V/µs @ 8 ohms
Input Impedance, Balanced > 20 kΩ / Unbalanced > 10 kΩ
Resolution: ≥ 75 dB
Crosstalk: >66 dB @ 1 kHz
Signal-to-Noise Ratio (SNR) >110 dBA (20 Hz-20 kHz, weighted)
LED Indicator: Temperature Display: Green indicates normal operation, Yellow indicates overheating warning
Cooling: Temperature-controlled variable-speed air cooling system, front-to-back cooling
Protection: Soft start, VHF, AC/DC protection; limiter; over-frequency; short circuit; long-term amplifier; thermal; temperature warning; switch mute; signal line hot-swap and overload protection.
Power supply voltage: PFC universal power supply system with 90-260V voltage selectable.
Suitable for voltages in any country; 50Hz-60Hz.
Dimensions (W * D * H): 482*460*44mm. Net weight: 12.5kg. Weight: 16.5kg.

Product Features

▶ 1U ultra-thin design, novel appearance, light weight, high-definition LCD screen, real-time temperature display.
▶ High stability, high fidelity sound quality, sufficient power, strong and powerful low frequency, mellow and sweet intermediate frequency, clear and delicate high frequency.
▶ High efficiency, energy saving and environmental protection, saving operating costs.
▶ With active PFC and soft switching technology, the maximum power correction factor is 0.99, which has strong adaptability.
▶ 90v-270v wide voltage operation, can adapt to the harsh grid environment, for the power amplifier to provide continuous surging power.
▶ Stable and reliable 2 Ω drive capability, perfect for line array speaker system.
▶ D-PWM audio modulation technology, recycling speaker useless power, ultra-high energy efficiency.
▶ Standby sleep mode, power saving and durable.
▶ With CE, Rosh certification, national quality inspection report, energy conservation and environmental protection certification.
▶ Using international high-end manufacturers' devices, the quality is first-class, the circuit is advanced and reliable, and all kinds of protection circuits are complete.
▶ Through strict reliability, environmental adaptability, user experience test, extremely strict production process.

More details

Power Supply Unit
▶ The advanced switching mode power supply technology, which is applicable in the world, makes the equipment have high performance and small size.
▶ The power factor correction technology achieves extremely low power consumption and wide power operation range. The maximum power factor is 0.99, and the power supply working range is 90v-270v. Suit to different power supply from all most of countries.
▶ Full bridge switching power supply topology, strong current conversion ability, more stable and reliable
▶ Soft start of power supply, strong anti surge ability, realize safe startup in real sense
▶ Power short circuit protection, and EMC (Electromagnetic Compatibility)
▶ Dual thermal protection of power supply, overload intelligent modulation of power, to make the power supply in the most secure state.

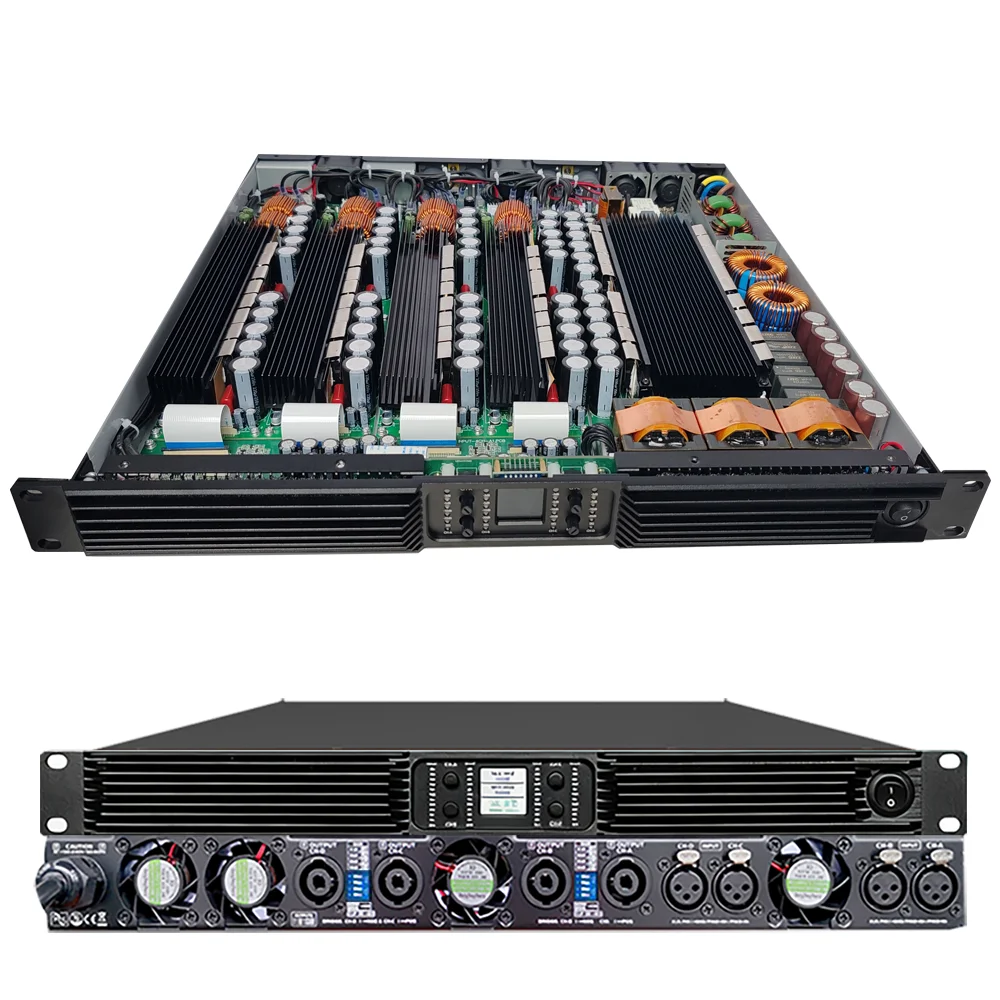

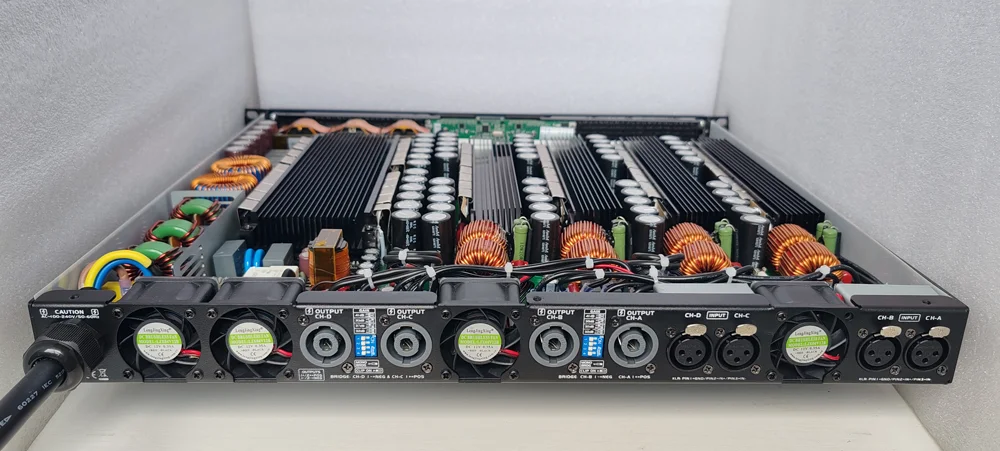

Audio Amplifier Components

▶ Fixed frequency switch mode, to achieve high-quality sound accuracy.
▶ 3 groups of closed-loop gain loop control, to get extremely fast transient response, smooth frequency response.
▶ Each channel circuit is independent and does not affect each other.
▶ The core module is protected from corrosion, moisture and dust
▶ Hi-Fi grade chip, producing unique sound quality

Comprehensive Protection Design:

▶ AC protection: when the AC power supply voltage exceeds the operating range, turn off the power supply.
▶ Clipping limiter: to prevent the waveform of severe clipping from reaching the loudspeaker while still maintaining the full peak power.
▶ DC protection: prevent infrasonic signal from reaching the loudspeaker at the output end
▶ Over high frequency protection: prevent the strong but not music high frequency signal from reaching the loudspeaker.
▶ Short circuit protection: automatic protection reset function to prevent power amplifier from short circuit or other stress failure
▶ Long term limiter: prevents stable long-term RMS (non audio) signals from reaching the speaker, reducing the maximum output
▶ Thermal protection: the maximum working temperature of output stage and power supply is 75 ℃
▶ Temperature controlled continuous variable speed fan, front to back tunnel cooling system
▶ Temperature warning: when the temperature reaches 70 ℃, the LCD screen will give an early warning, the Yellow temperature light will be on, and the output power will be compressed according to the temperature variable until the overheating warning is removed, so that the power amplifier will not have no sound after overheating protection
▶ Switch on / off mute: to prevent impact sound when power amplifier is on / off
▶ Overload protection: prevent current overload damage of components
▶ Signal line hot plug protection: prevent the power amplifier from damage by high surge of hot swapping input XLR when the power amplifier is on.
