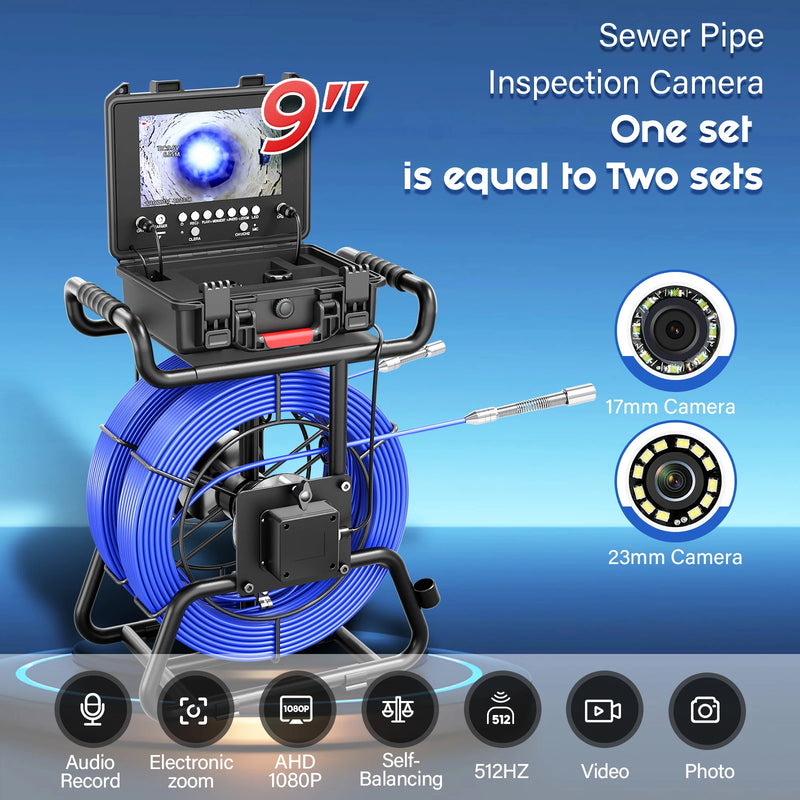

Sewer Pipe Inspection Camera 9“ IPS +Dual-Lens Borescope 1080P Sewer Camera+512HZ Locator Receiver +Meter Counter+5/7MM Fiberglass Cable+512HZ Self-leveling

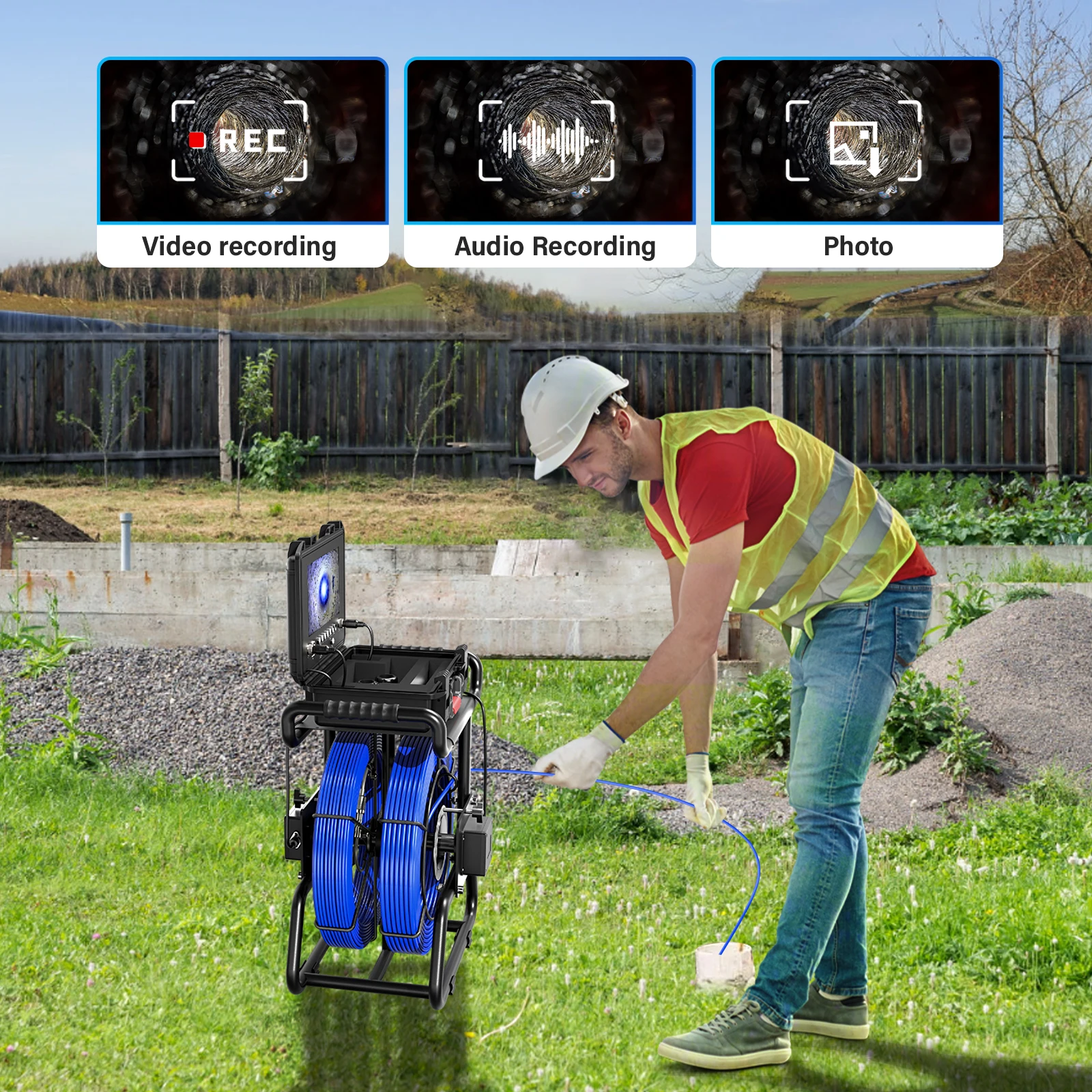

Video + Audio + 5X Image Enlarge:

Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,16GB TF card included,it is available to view live video and save video recording and photos and audio record. You can record the inspections and playback via the pipe system.（DVR Edition Video Format :AVI Photo format :JPG)+ZOOM to zoom in or zoom out 0-5 times

MONITOR&CABLE：

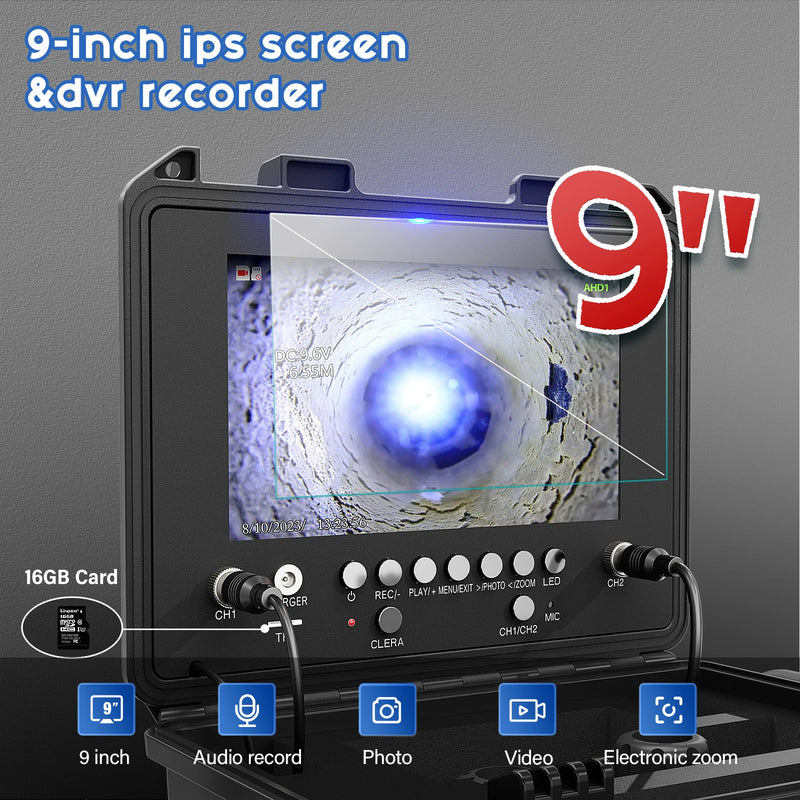

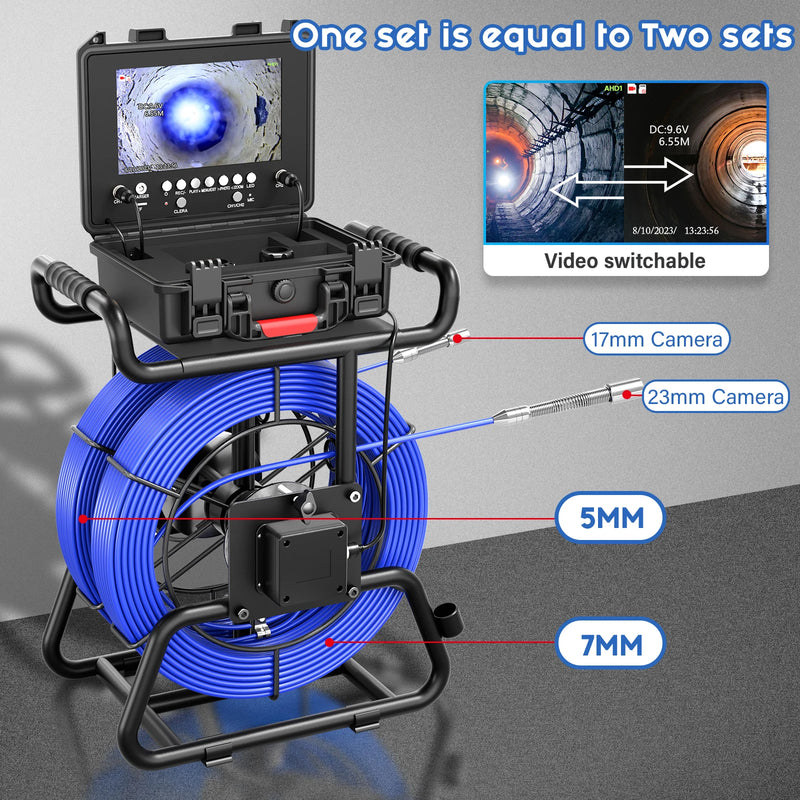

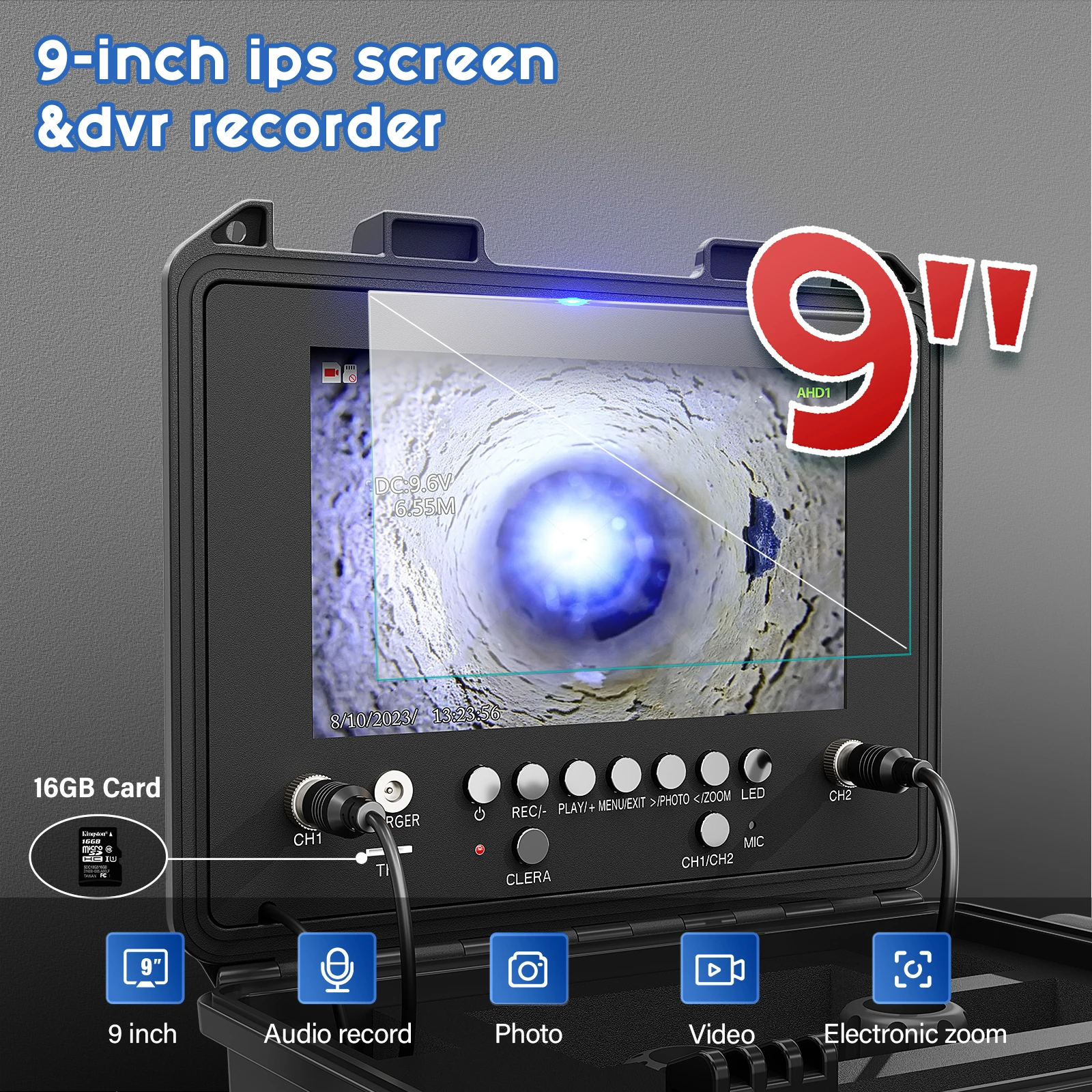

Professional Drain Pipe/Sewer Pipeline Inspection Camera is designed with a 9 inches color IPS LCD monitor . Multi-purpose design Sewer Camera - The front layer of the sewer camera is a 7mm diameter cable, 50m length of hard cable with a 23mm camera probe and built-in 512Hz transmitter with self-leveling function, which is suitable for pipe diameters greater than 60mm. The rear layer is the hardest cable with a diameter of 5mm diameter cable and a length of 50m, equipped with a 17mm camera probe, suitable for pipes with a diameter greater than 40mm.

512HZ TRANSMITTER:

This endoscope camera has a built-in 512 hertz transmitter that helps to easily detect any blockage or area of interest. This greatly helps save time from having to dig and locate the problem. The sonde transmits a 512Hz signal that can be picked up with any compatible locator, allowing you to pinpoint the transmitter’s position underground.

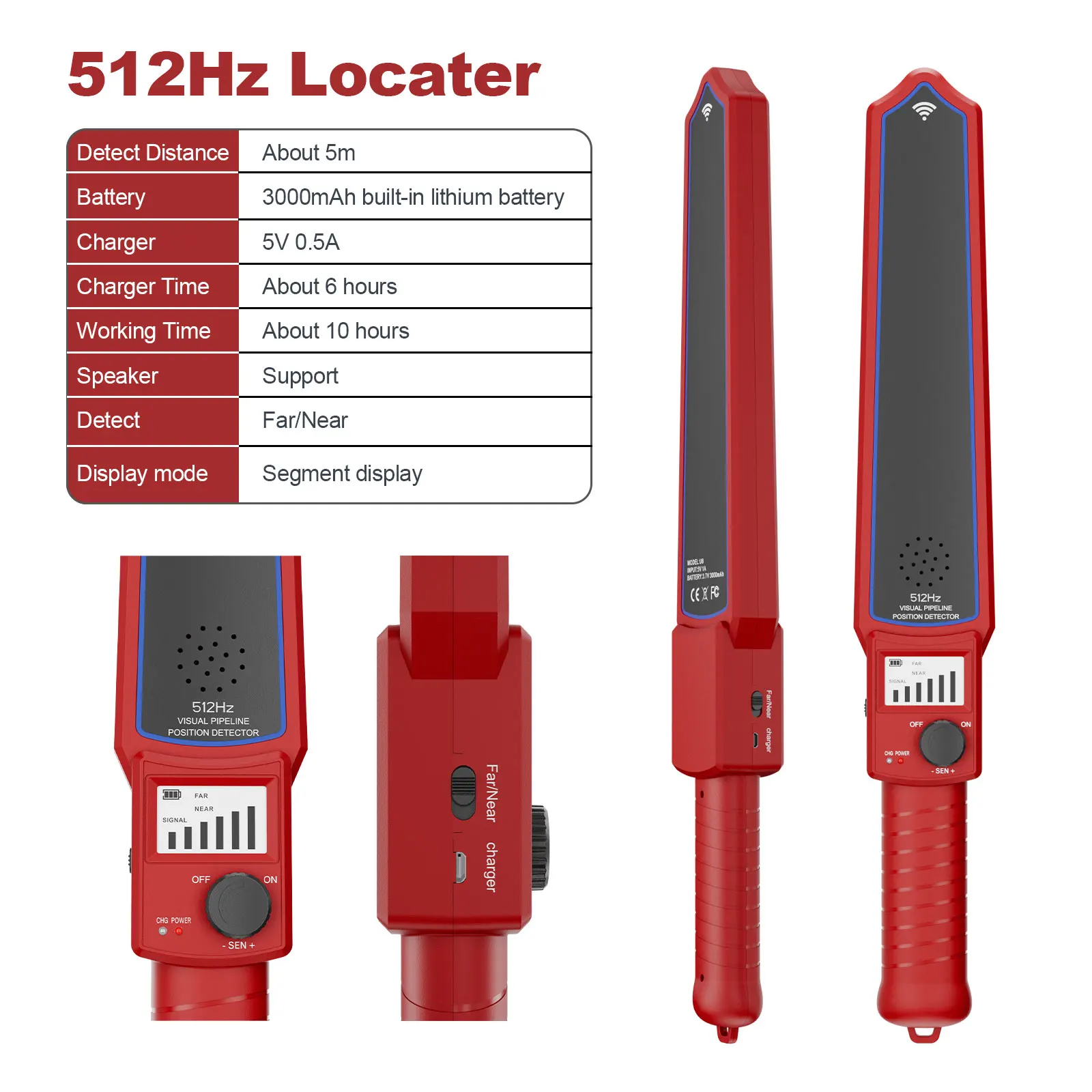

512Hz Locator (Only for with Locator type)

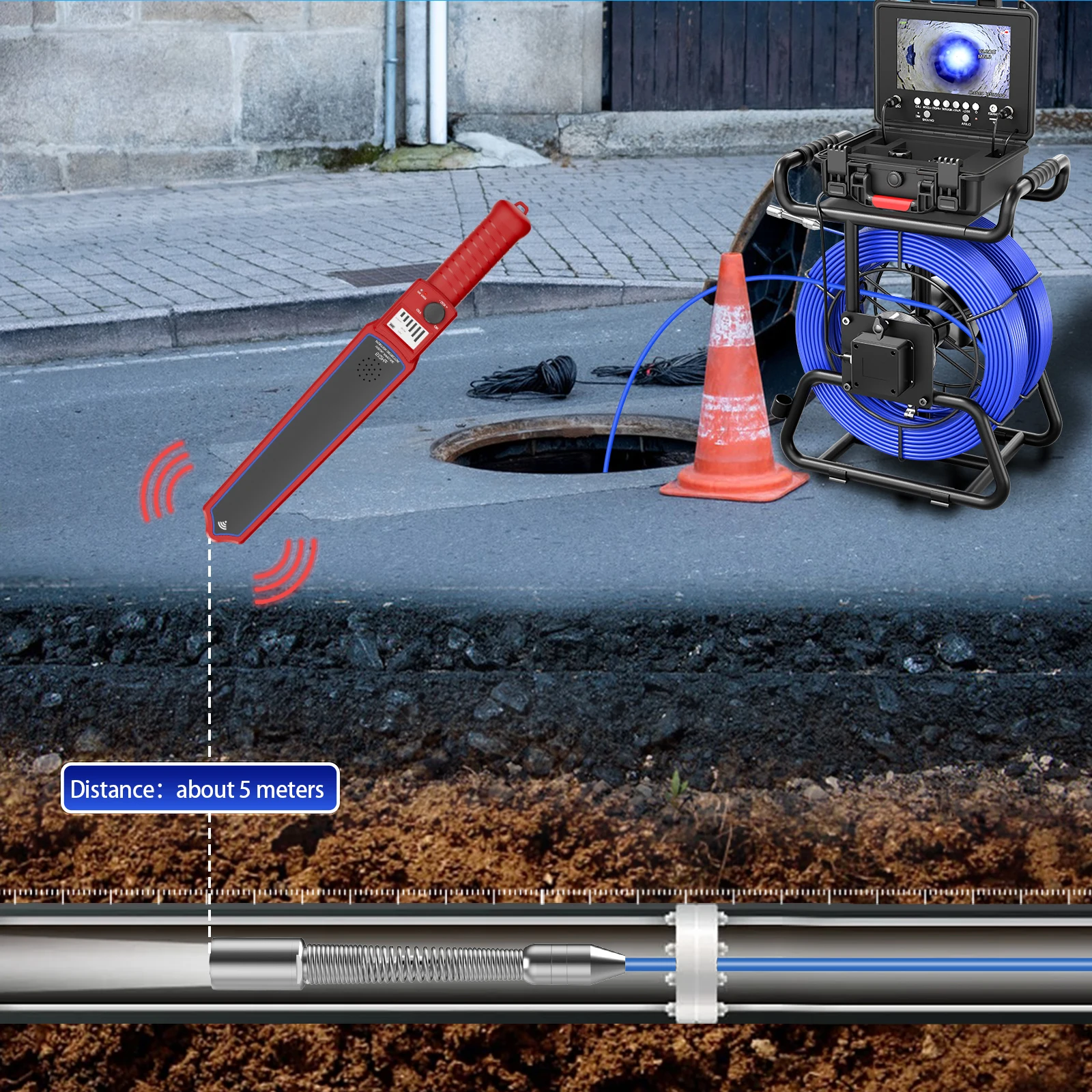

Receiver: The receiver has a built-in induction coil to receive the magnetic signal from the pipeline, and the coil generates an induced current to calculate the direction and position of the transmitter. There are two receiving modes: Far (note: about 5M) and Near (note: about 1 meter). Then adjust the sensitivity knob, peak mode (maximum) or null mode (minimum) to locate the transmitter.

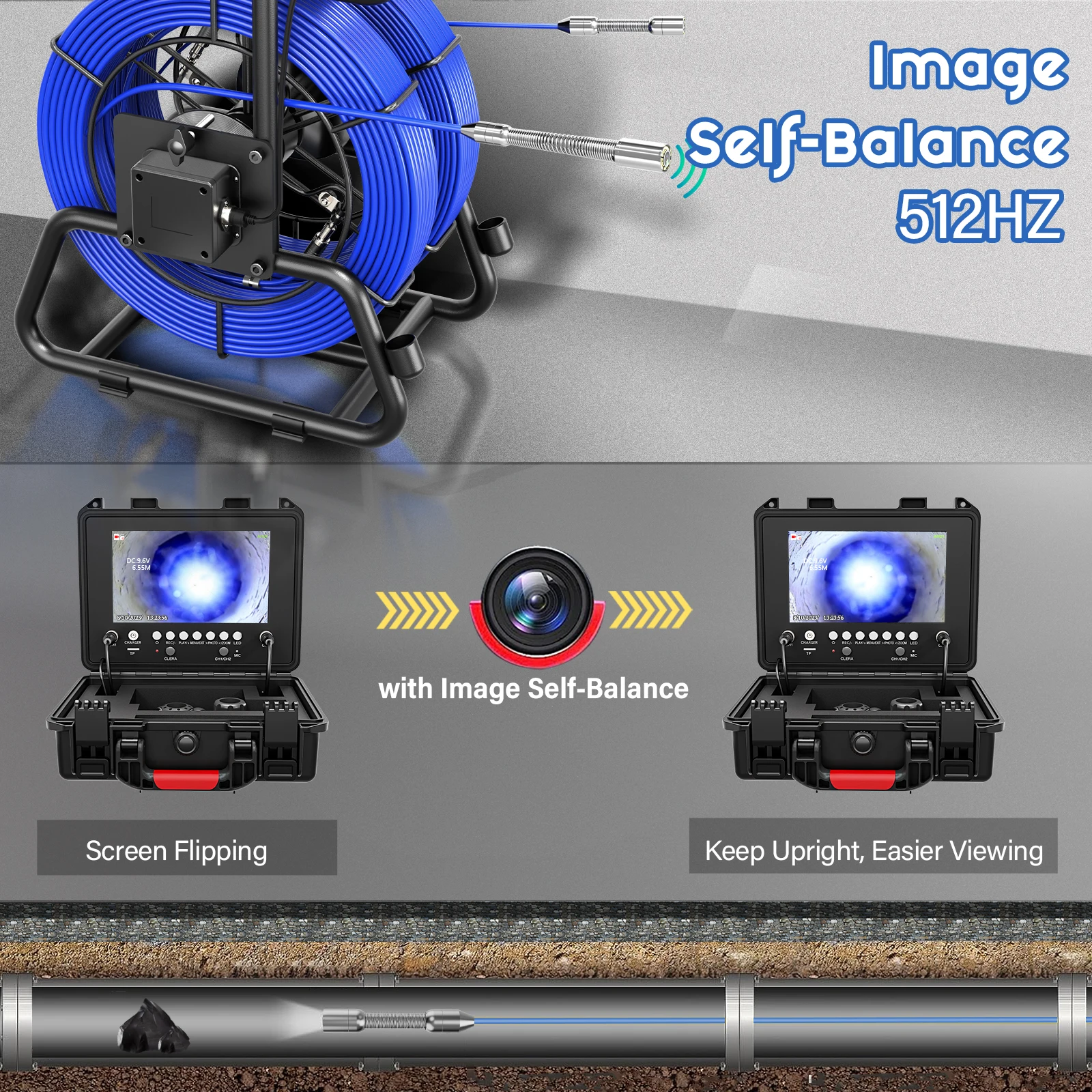

512HZ TRANSMITTER And Self-Leveling Camera:

This endoscope camera has a built-in 512 hertz transmitter that helps to easily detect any blockage or area of interest. This greatly helps save time from having to dig and locate the problem. The sonde transmits a 512Hz signal that can be picked up with any compatible locator, allowing you to pinpoint the transmitter’s position underground.

METER COUNTER:

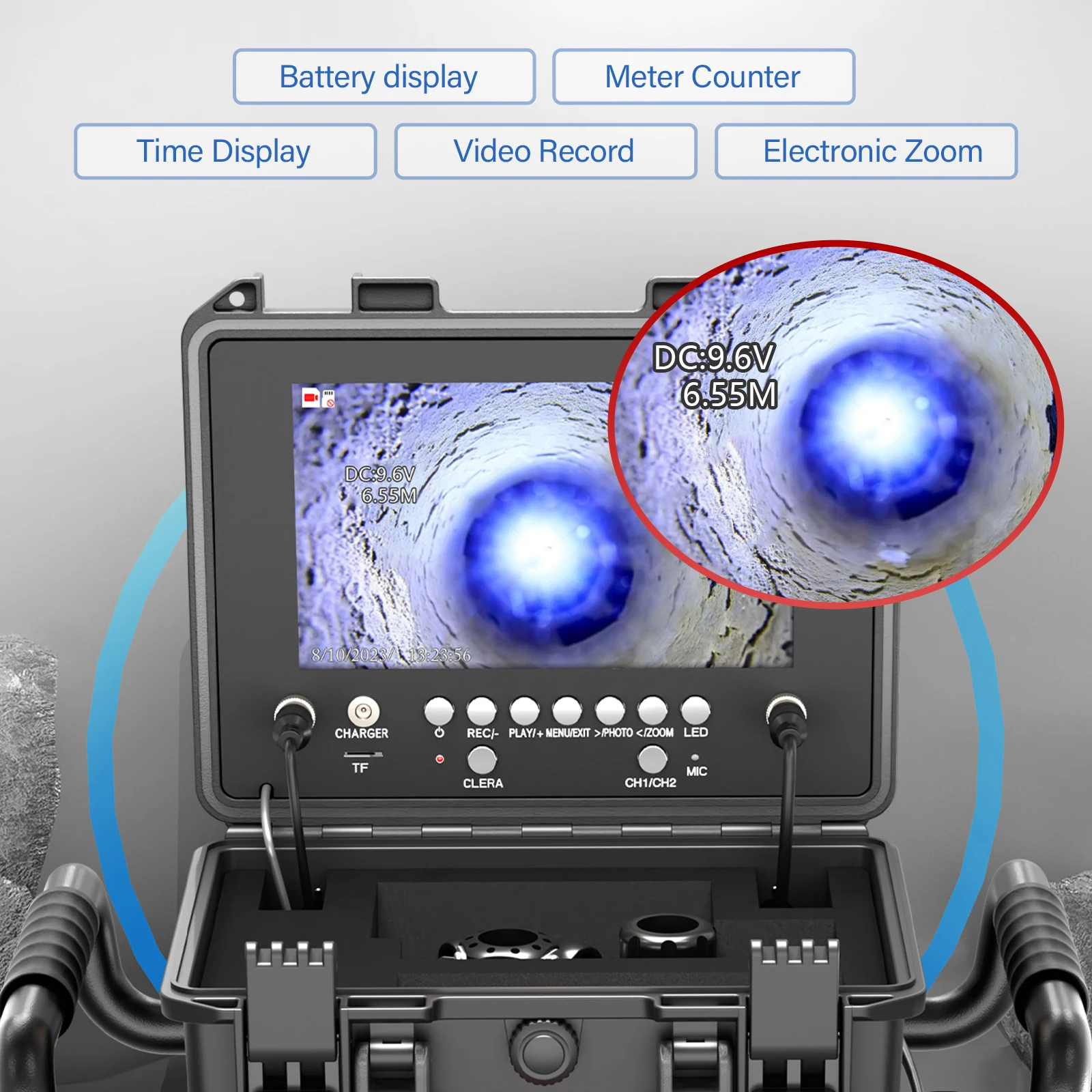

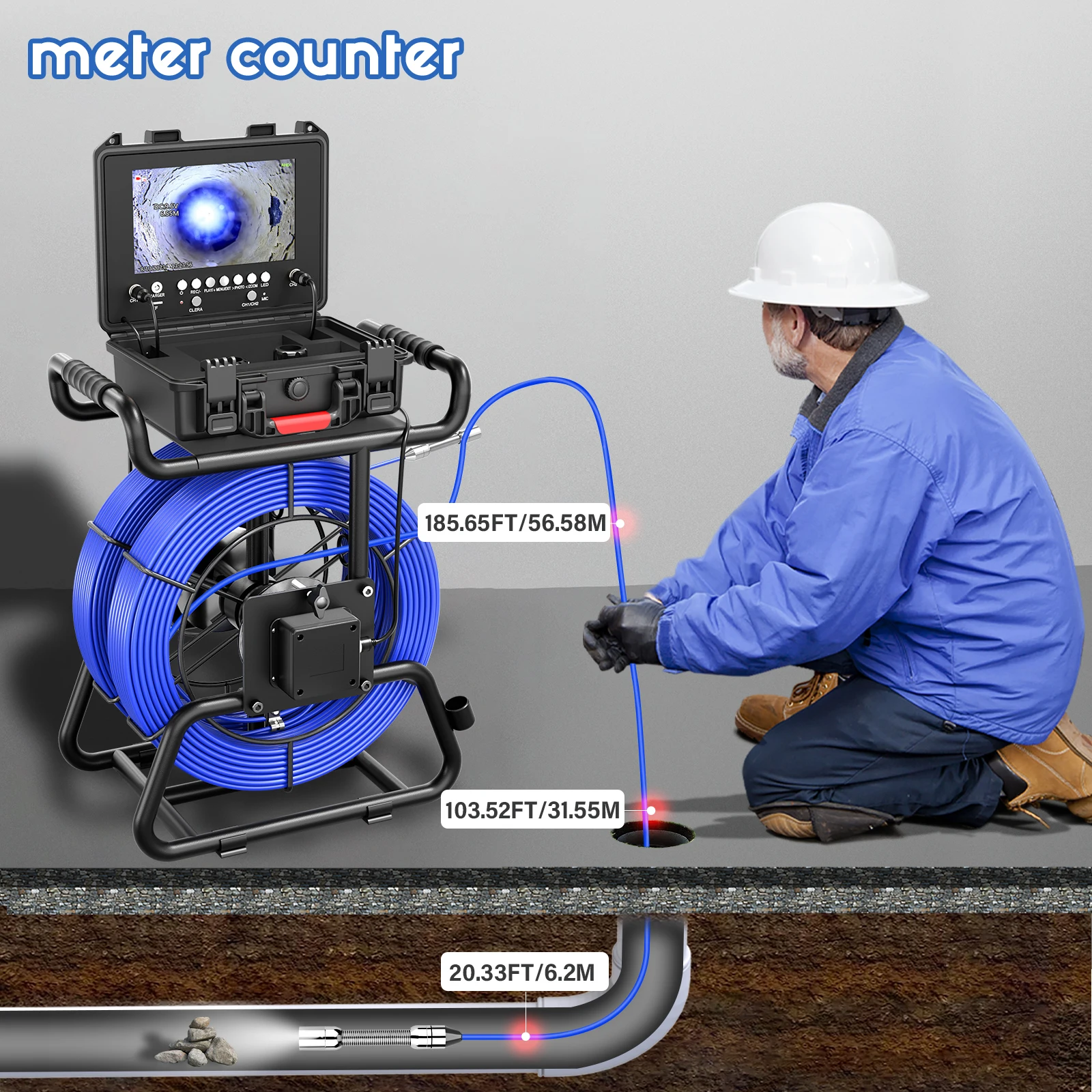

The distance counter displays on screen the cable length fed into drains or sewers. With this function, particularly alongside a locator, provides swift access to the distance from the issue, streamlining problem identification and resolution.

Item: parameter

1. Monitor:9 inch IPS color record monitor
2. Display Resolution:1024*600
3. TF Card: Memory Support maximum 128G TF card(16G TF card included)
4. 17mm Camera :AHD 1080P
5. 23mm Camera :Auto Self Leveling AHD 1080P,Built in 512hz transmitter
6. Receiver Frequency: 512HZ
7. Image Zoom : Press > key to zoom the image from 0 to 5 times.
8. Charger: AC100-240V DC12.6V
9. Battery: Luminal-cell arrester 4.5AH
10. Continuous use time for battery: approximate 8h
11. Investigation depth: 30M( selectable line length)
12. Material: fiber tube with /high intensity

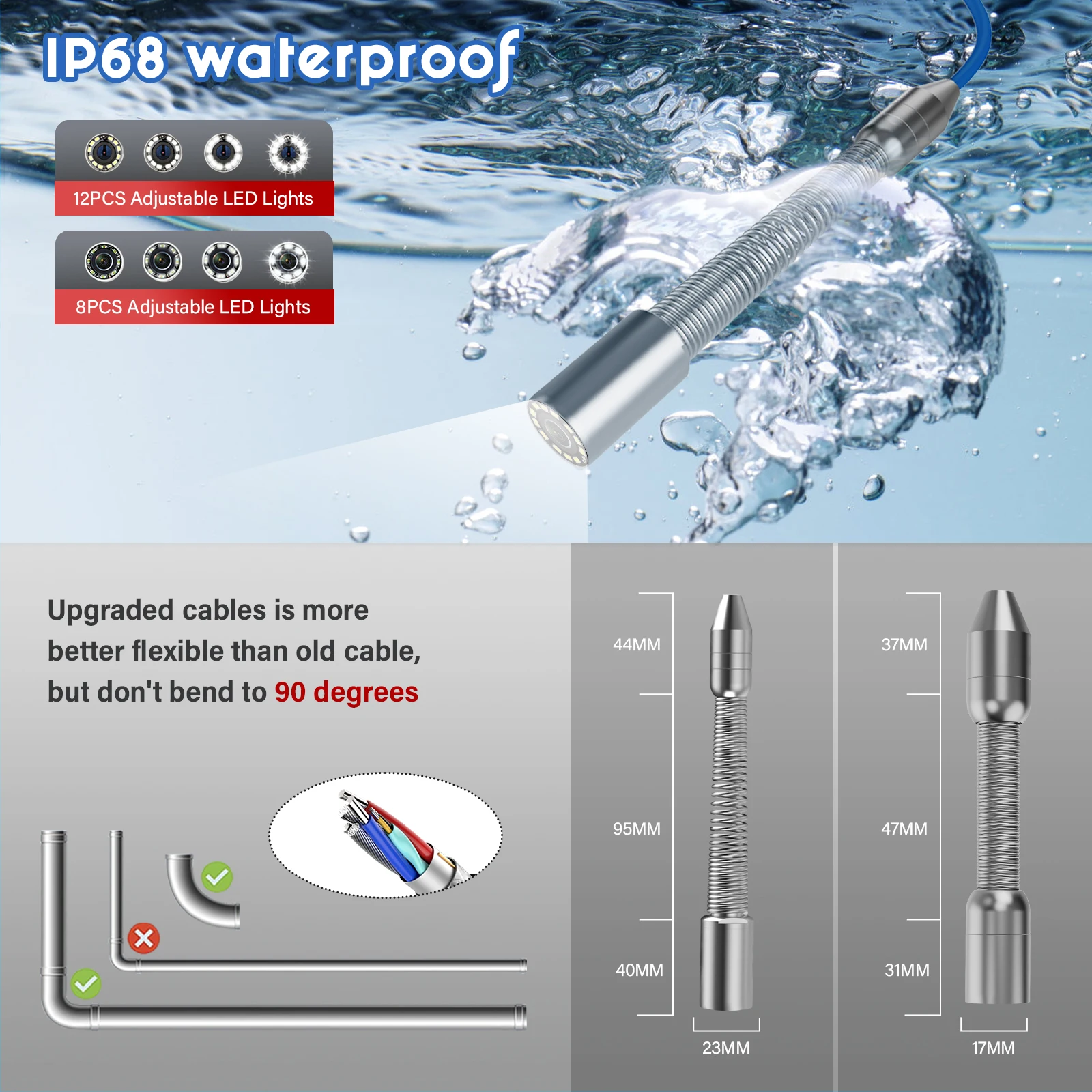

13. 23mm camera light source: 12 PCS LED with high White LEDs (adjustable)
14. 17mm camera light source: 8 PCS LED with high White LEDs (adjustable)
15. Camera viewing angle: 145°
16. Lens Mirror Material : Sapphire
17. 23mm camera size/material: 23MM* 40MM /stainless steel
18. 23mm camera protective cover parts size/material:38MM* 28MM /plastic-steel
19. 23mm camera protective cover parts size/material:99MM* 38MM /plastic-steel with wheel
20. 17mm camera size/material: 17MM* 32MM /stainless steel
21. 17mm camera protective cover parts size/material:25MM* 31MM /plastic-steel and 50MM* 31MM /plastic-steel
22. Camera picture: color

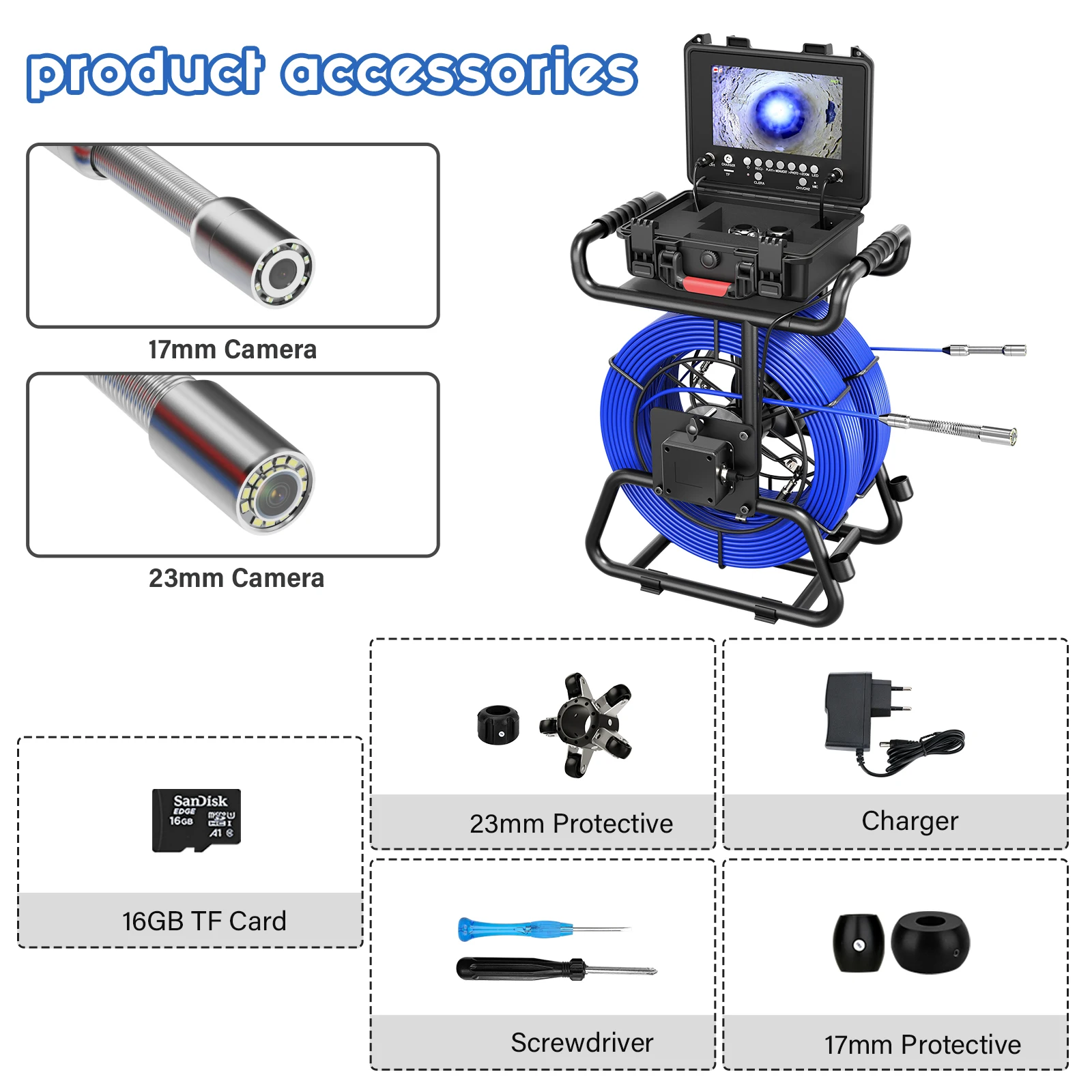

Package List: (No Locator)

1 * 9 inch IPS Monitor（DVR)
1 * 23mm Camera (AHD 1080P Auto Self Leveling+Built in 512hz transmitter )
1 * 17mm Camera
1 * 16GB TF Card
1 * 5mm diameter 30M Fiberglass Cable
1 * 7mm diameter 30M Fiberglass Cable
4 * Camera Proof Cover
1 * 4500mah Battery Box
1 * Charger
2 * Connection Cable
1 * Screw Driver
1 * User Manual (English)

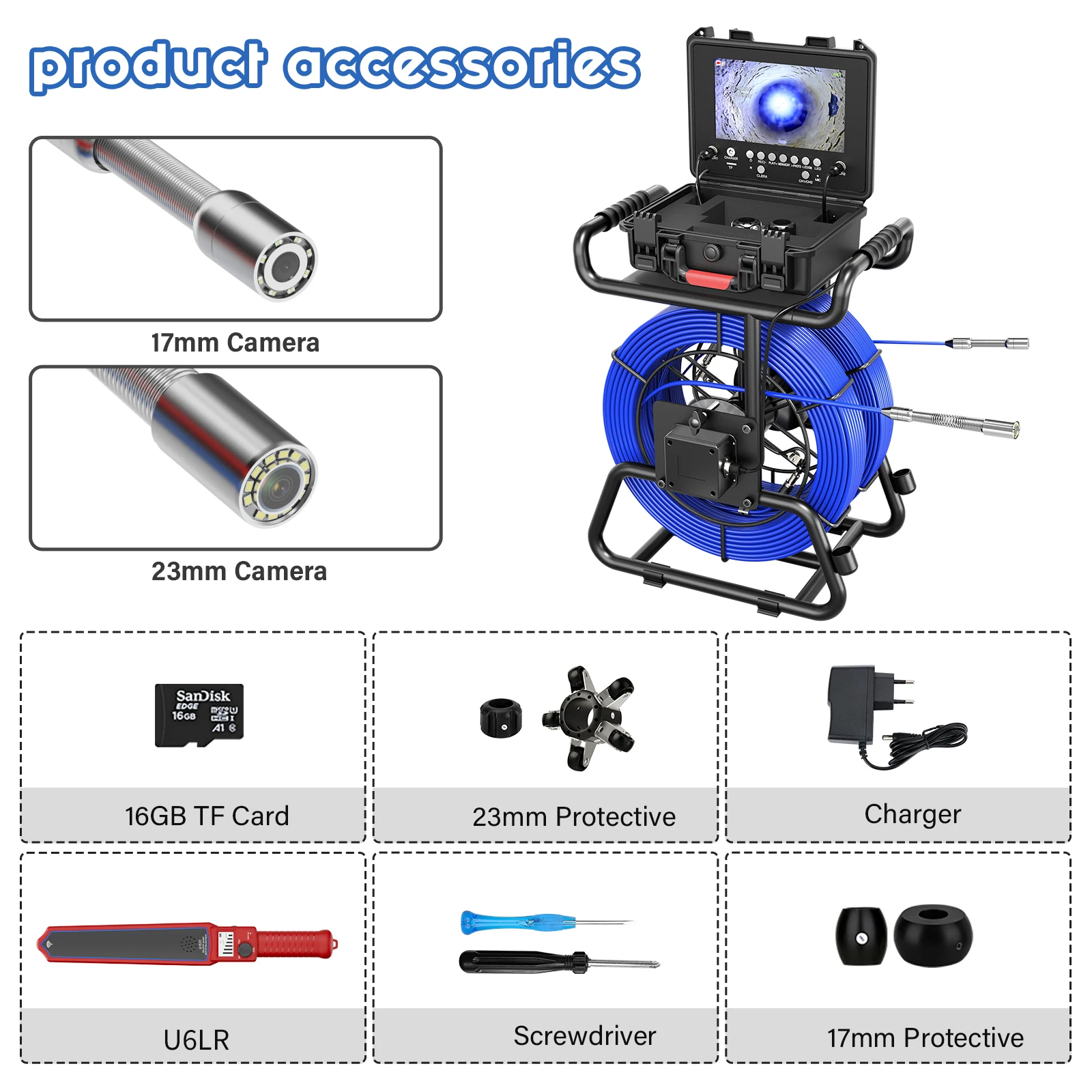

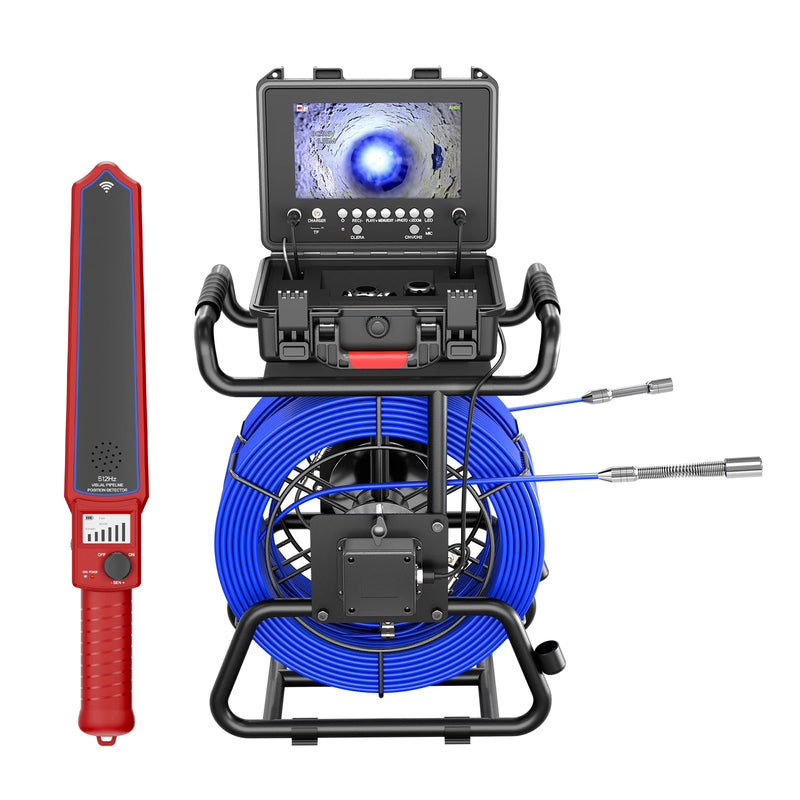

Package List: (With Locator)

1 * 9 inch IPS Monitor（DVR)
1 * 512Hz PIPE Locator
1 * 23mm Camera (AHD 1080P Auto Self Leveling+Built in 512hz transmitter )
1 * 17mm Camera
1 * 16GB TF Card
1 * 5mm diameter 30M Fiberglass Cable
1 * 7mm diameter 30M Fiberglass Cable
4 * Camera Proof Cover
1 * 4500mah Battery Box
1 * Charger
2 * Connection Cable
1 * Screw Driver
1 * User Manual (English)
