SPECIFICATIONS

203036045 Model: 910DJRABTX

Brand Name: GAMWATER

Camera: Auto Self Leveling AHD 1080P

Certification: CE,FCC

High-concerned chemical: None

Lens (mm): 5.5mm

Model Number: F910DJRABTX8R-20M

Origin: Mainland China

Plug: EU/AU/UK/US

Plug Type: EU Plug

Screen Type: 10inch

Screen size: 10.1 inch

Smart home platform: NONE

Wire Type: Soft Wire

Sewer Pipe Inspection Camera 10 Inch IPS 1080P Screen Sewer Camera with 512hz Locator +Meter Counter+5MM Fiberglass Cable

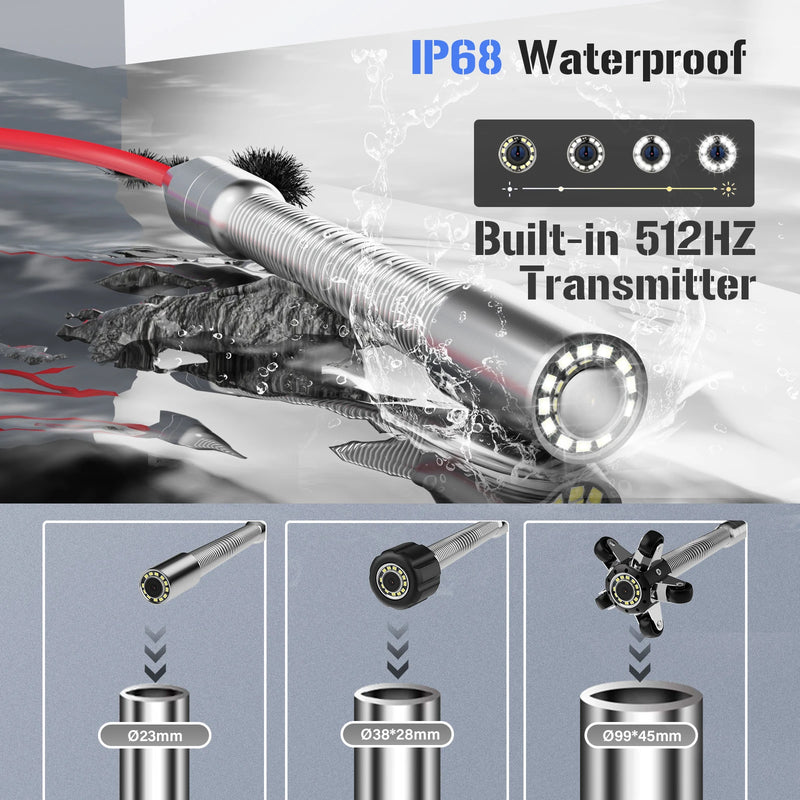

512HZ  TRANSMITTER:

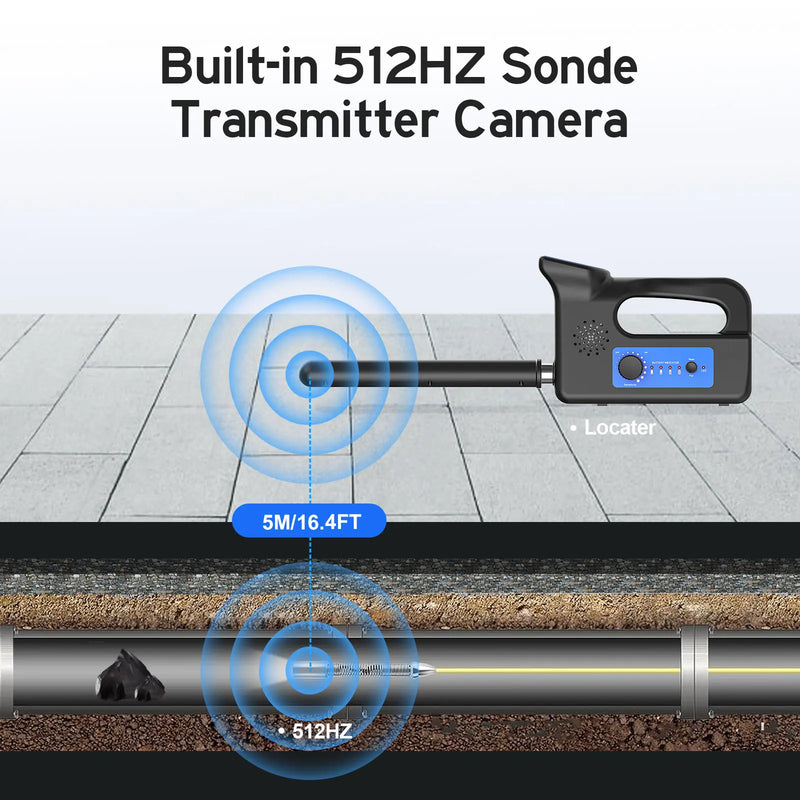

This endoscope camera has a built-in 512 hertz transmitter that helps to easily detect any blockage or area of interest. This greatly helps save time from having to dig and locate the problem.   The sonde transmits a 512Hz signal that can be picked up with any compatible locator, allowing you to pinpoint the transmitter’sposition underground.  （Locator Receiver is Optional ）

512HZ Receiver Technical Parameters：

Receiver Frequency: 512HZ

Distance: about 5m

Battery: 3.7V 3000MAH built-in lithium battery

Charger: 5V1A

Battery Indicator：4 gear,it is flashing when battery is low

Battery working time：about 10 hours

Signal strength：6 gear

Speaker：Support

Detect Mode : Far/ Near

Video + Audio + 5X Image Enlarge:

Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,16GB TF card included,it is avialiable to view live video and save video recording and photos and audio record.  You can record the inspections and playback via the pipe system.  （DVR Edition Video Format :AVI  Photo format :JPG)+ZOOM to zoom in or zoom out 0-5 times.

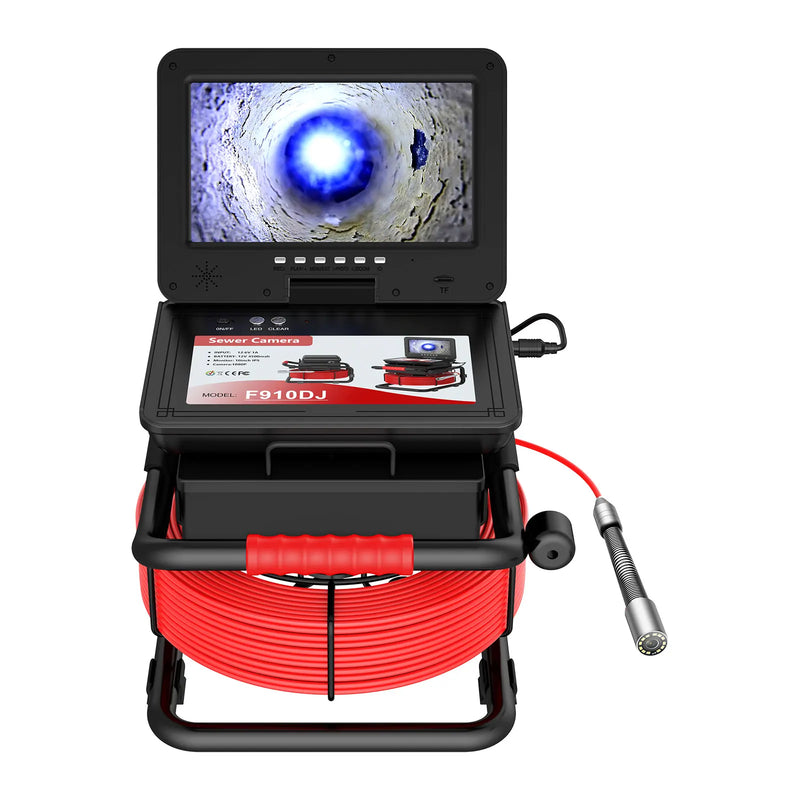

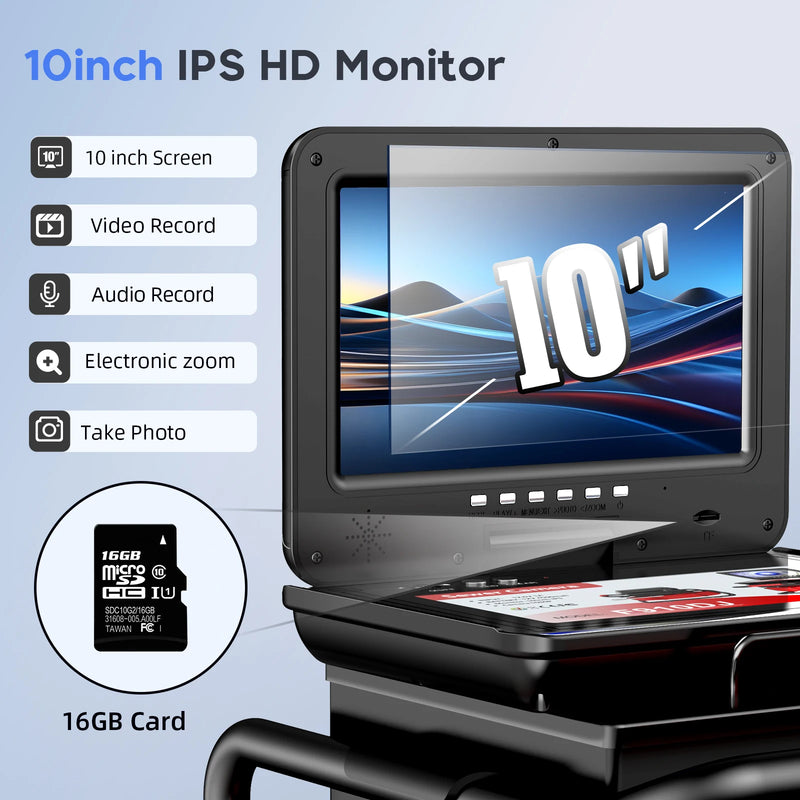

MONITOR&CABLE：

Professional Drain Pipe/Sewer Pipeline Inspection Camera is designed with a 10 inches color IPS LCD monitor .  The material of wire is fiberglass rod(diameter: 5MM),anti-corrosion/cold/tensile.

DVR Recording Function：

Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,16GB TF card included,it is avialiable to view live video and save video recording and photos and audio record.  You can record the inspections and playback via the pipe system.  （DVR Edition Video Format :AVI , Photo format :JPG)

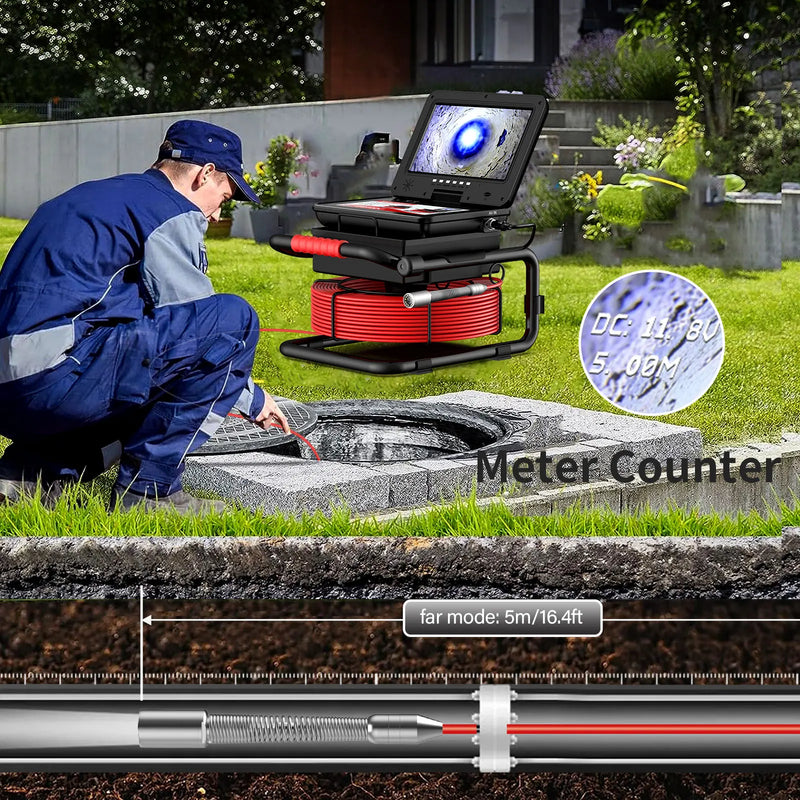

METER COUNTER:

Simultaneous display/cleared Metric and Feet.

Applications:

Blocked / slow draining plumbing.

Wall / wire inspection.

Home owners inspection.

Item: parameter

1.  Monitor:10 inch IPS color record monitor ,The monitor can be viewed at any angle of 180 degrees, also can be viewed at an angle of 180 degrees from left to right

2.  TF Card: Memory Support maximum 128G TF card(16G TF card included)

3.512hz:Built in 512hz transmitter

4.Receiver Frequency: 512HZ

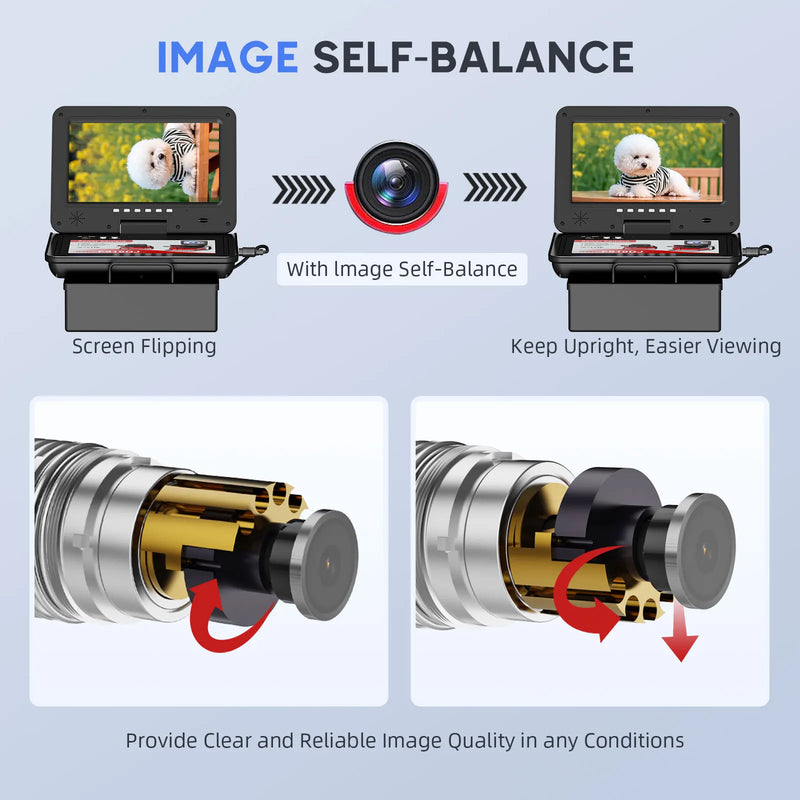

5. Camera :Auto Self Leveling AHD 1080P

6. Image Zoom : Press > key to zoom the image from 0 to 5 times.

7. Charger: AC100-240V   DC12.6V

8. Battery: Luminal-cell arrester 4.5AH

9. continuous use time for battery: approximate 8h

10. investigation depth: 20M( selectable line length)

11. material: fiber tube with /high intensity

12. camera light source: 12 PCS LED with high White LEDs(adjustable)

13. camera viewing angle: 145°

14. Lens Mirror Material : Sapphire

15. camera size/material: 23MM* 40MM /stainless steel

16. camera protective cover parts size/material:38MM* 28MM /plastic-steel

17. camera protective cover parts size/material:99MM* 38MM /plastic-steel with wheel

18. camera picture: color

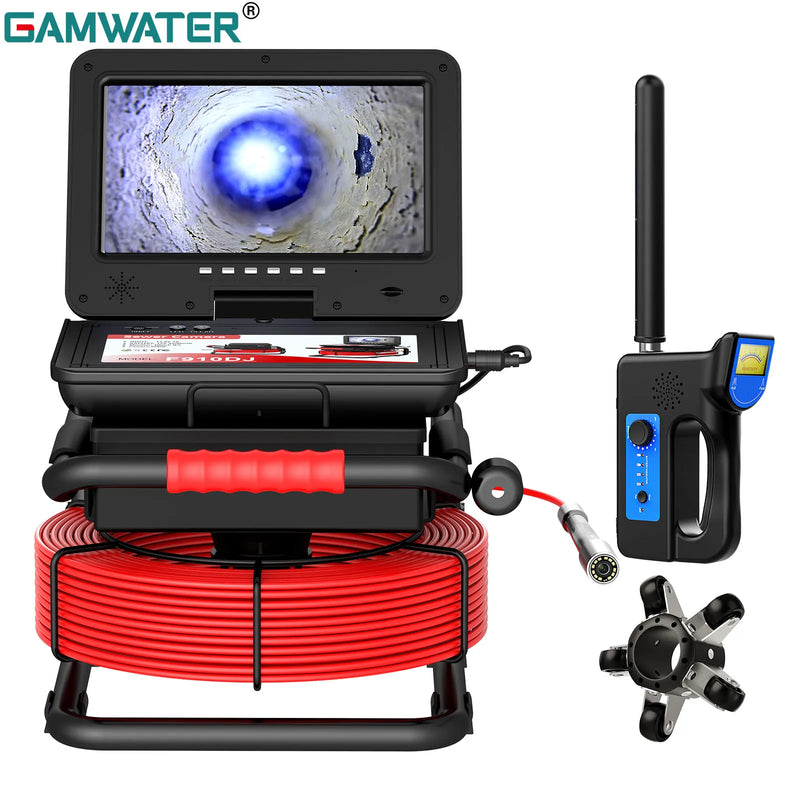

Package List:

1 * 10inch IPS Monitor（DVR)

1 * Camera (AHD 1080P Auto Self Leveling )

1 * 512Hz PIPE Locator

1 * 16GB TF Card

1 * 20M Fiberglass Cable

2 * Camera Proof Cover

1 * 4500mah Battery Box

1 * Charger

1 * Connection Cable

1 * Screw Driver

1 * User Manual (English)
