Samkoon 7" HMI Touch Panel IoT Function Wifi 4G Optional Modbus RTU TCP Protocol
SCORE BIG SALE
£106.00
↓ Save £96.00
£202.00
✓
✓
✓
✓
✓
SPECIFICATIONS
Brand Name: samkoon
Certification: CE, RoHS, FCC, ISO9001
Dimensions: 7"
Lead time: 3-5 working days
Model Number: SK-070QS-G
Origin: Mainland China
Packing: Carton box
Product type: 7" IoT HMI
Resolution: 1024*600
Serial interface: RS232, RS485, USB, Ethernet
Weight: 0.7
is_customized: Yes

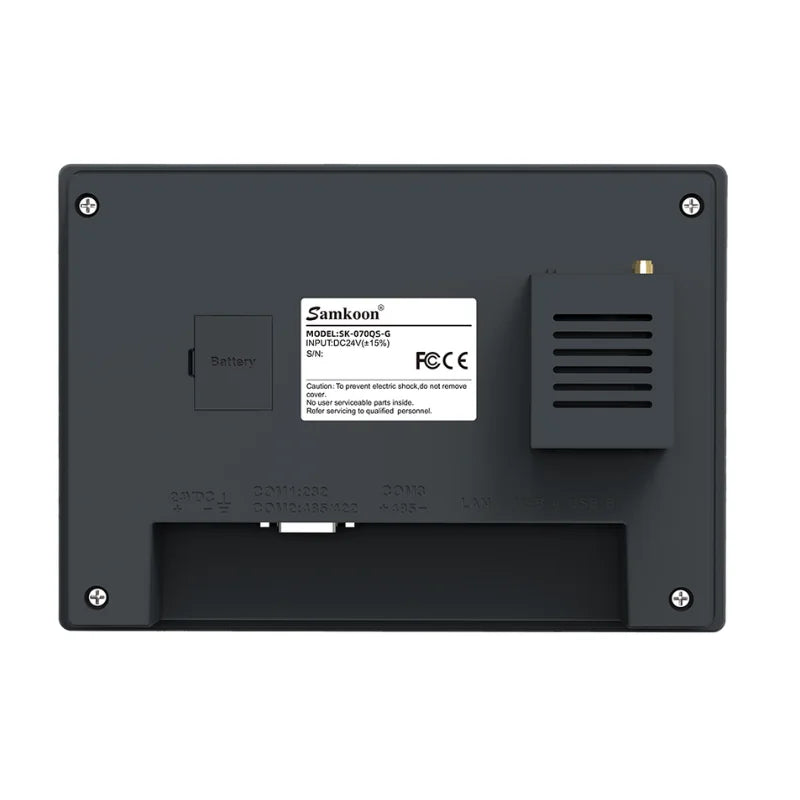

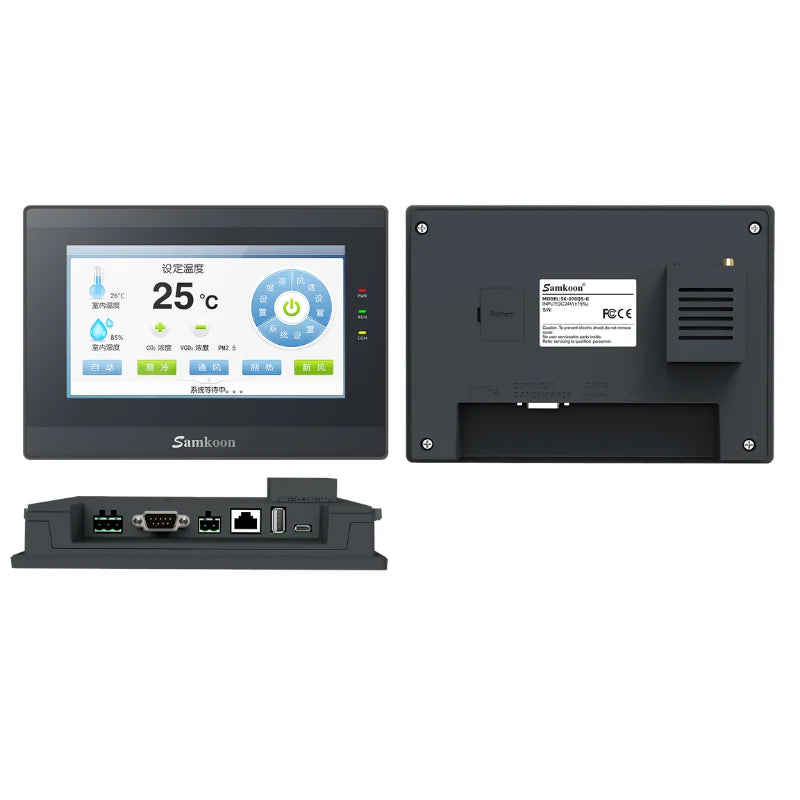

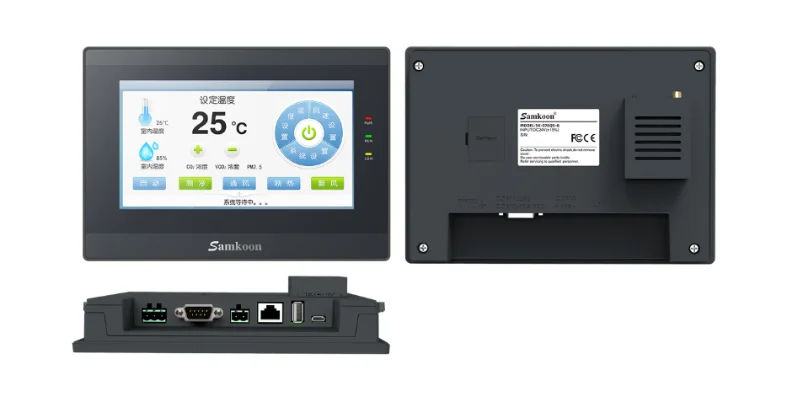

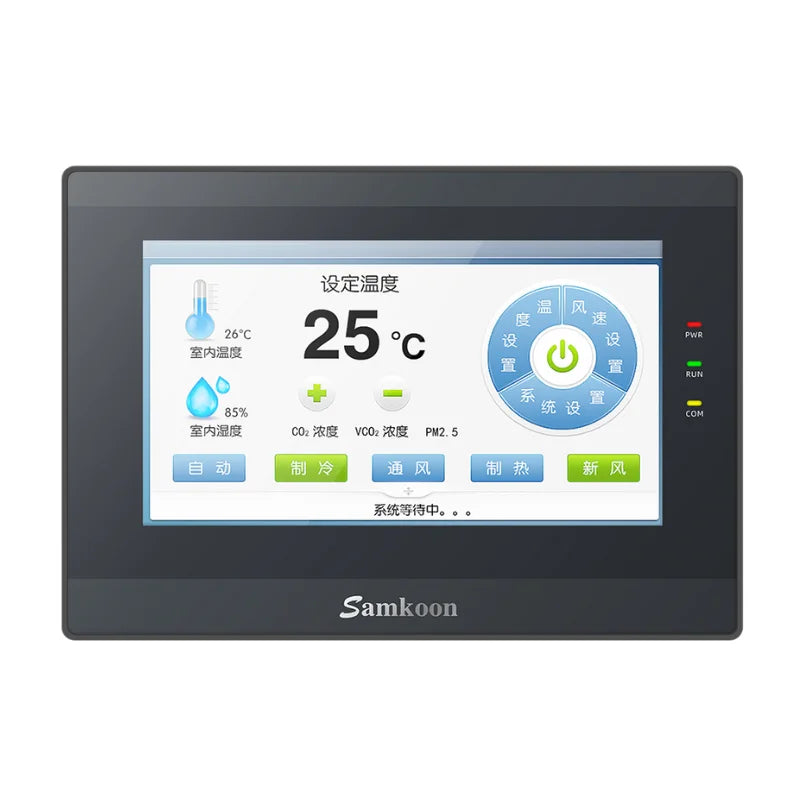

Samkoon 7-Inch IoT HMI Touch Panel Support Remote Module
Linux System | VNC Remote Access | 4G & WiFi Optional | Industrial Automation Display | CE FCC RoHS ISO9001
Important Notes Before Ordering: We offer different product specifications, detailed below:
SK-070QS-G-ON: 7-inch HMI only, without remote module

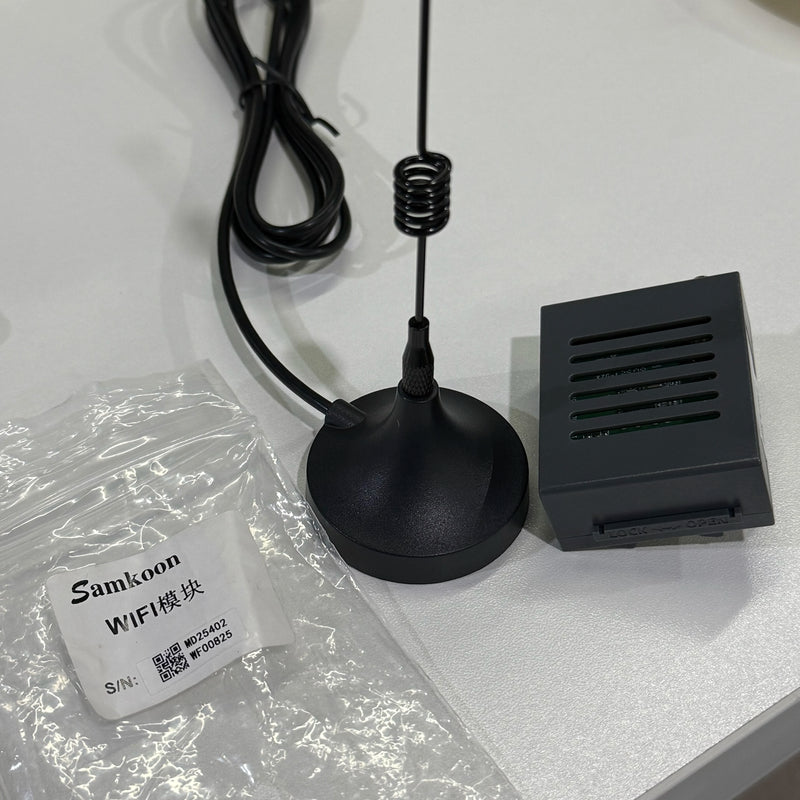

SK-070QS-G-ON-Wifi: 7-inch HMI with Wi-Fi module
SK-070QS-G-ON-4G: 7-inch HMI with 4G module
Wifi module: Wifi module only
4G module: 4G module only
Please carefully select the correct specification before placing your order.

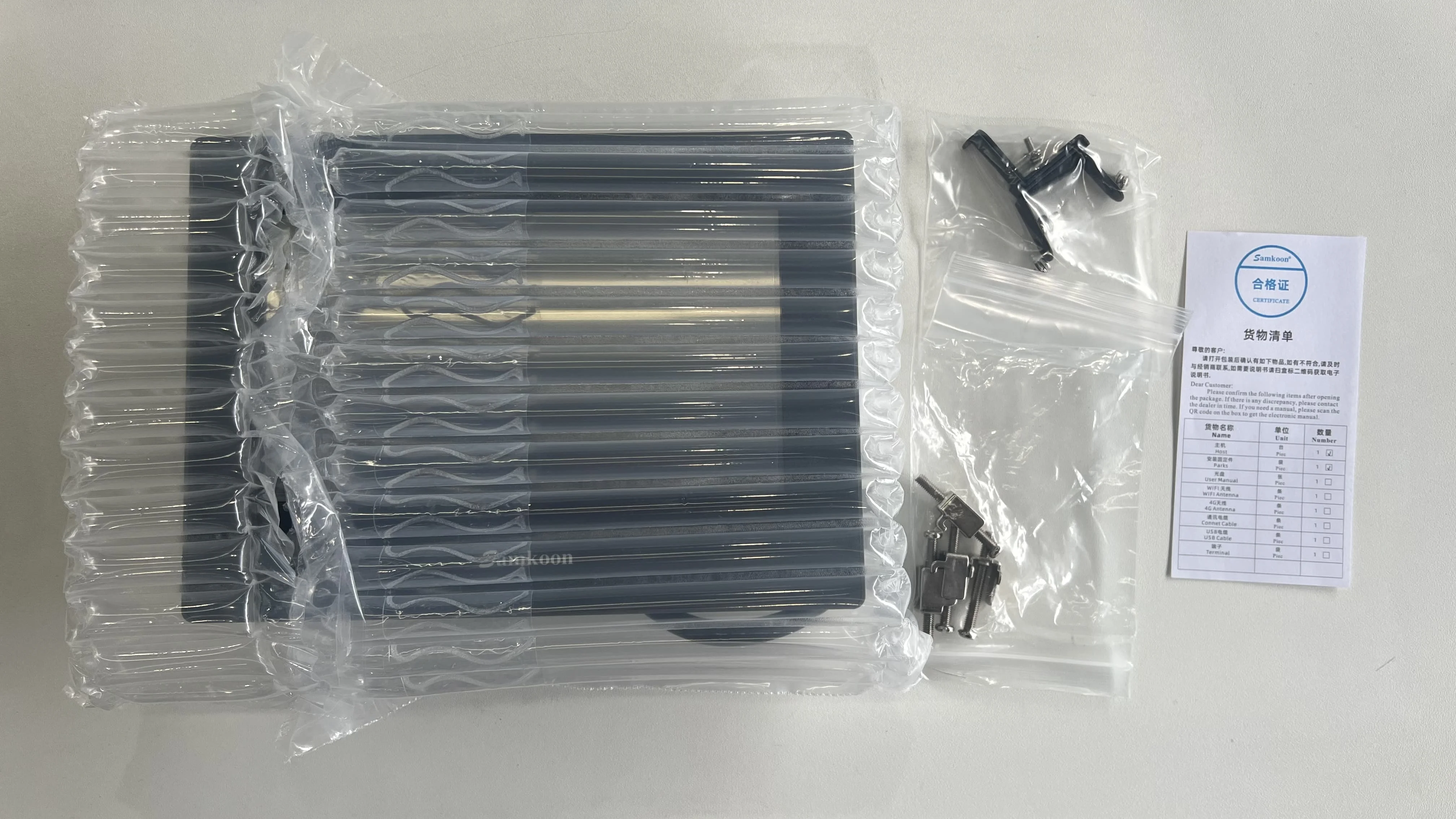

Packaging & Shipping
1 × HMI panel (7”)+1 × mounting fastener set
Please note:
Product packaging may vary slightly depending on the specific model or batch. We ensure that all items are securely packed to prevent damage during transportation. Actual packaging received may differ from the reference images, but will always meet our quality and protection standards.
Lead time: 3–5 business days
Shipping method: Standard AliExpress logistics / DHL / UPS / FedEx
Custom Logo / Firmware: OEM available (MOQ 500pcs. For details, please contact our service team)
Specifications
SK-070QS-G-ON HMI Specifications
Parameter |
Specification |
Model |
SK-070QS-G |
Size (mm) |
203 × 145 × 35 |
Hole size (mm) |
192 × 138 |
Display size |
7" (16:9) |
Weight |
700g |
Working temperature |
-20℃ ~ 55℃ (no freezing) |
Working humidity |
5–95% RH (non-condensing) |
Shock resistance |
10 ~ 25Hz (XYZ direction 2G/30 min) |
Shell material |
Engineering plastic ABS+PC |
Power consumption |
4W |
Power supply voltage |
DC12~24V ±15% |
Static level |
±6kV |
Resolution |
1024×600 |
Contrast |
400:1 |
Brightness |
450 cd/㎡ |
Touch panel |
4-wire high precision resistive touch panel |
Display colors |
16.77 million |
Backlight |
LED |
Storage |
128MB DDR3 |
CPU |
Cortex A7 1GHz, Dual Core |
RAM |
128MB FLASH |
Network interface |
Ethernet |
WiFi |
Optional |
4G |
Optional |
USB download port |
Yes |
U disk port |
Yes |

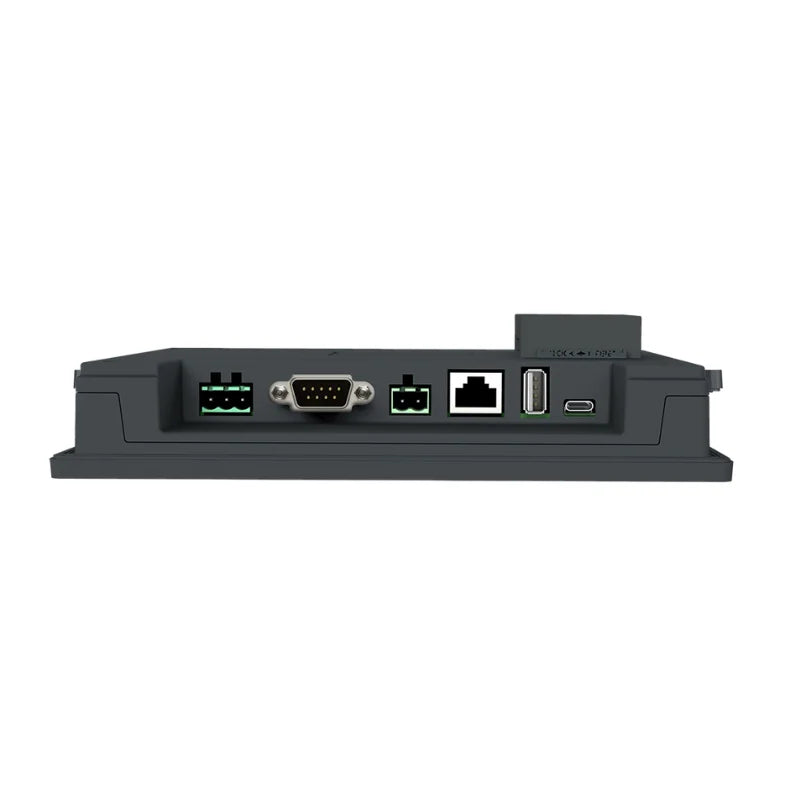

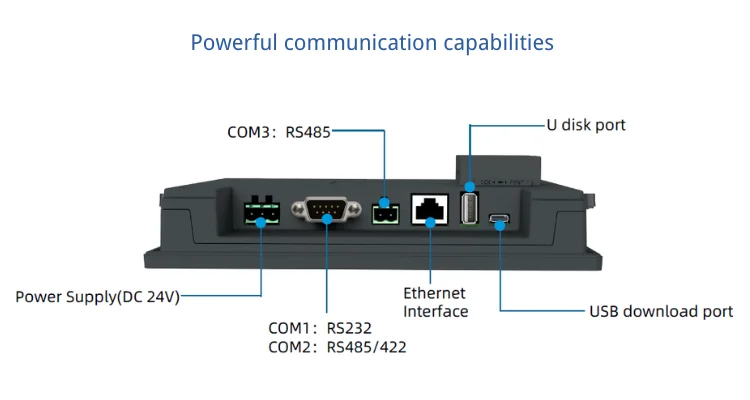

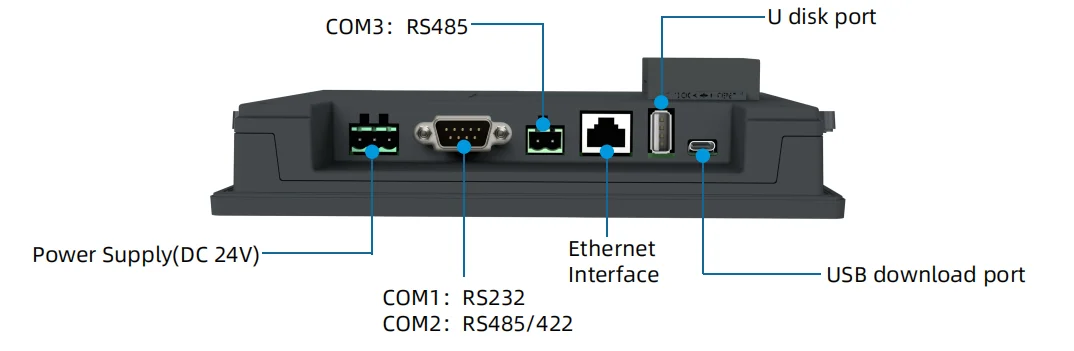

Serial interface |
COM1: RS232, COM2: RS485/422 |
CAN interface |
No |
Wiring port |
COM3: RS485 |
FCC certification |
FCC, Class A |
Voltage withstand test |
1000V AC, 1 minute |
CE certification |
EN55032 & EN55035 standards |
Protection class |
IP65 (front panel) |
Configuration software |
SKTOOL |

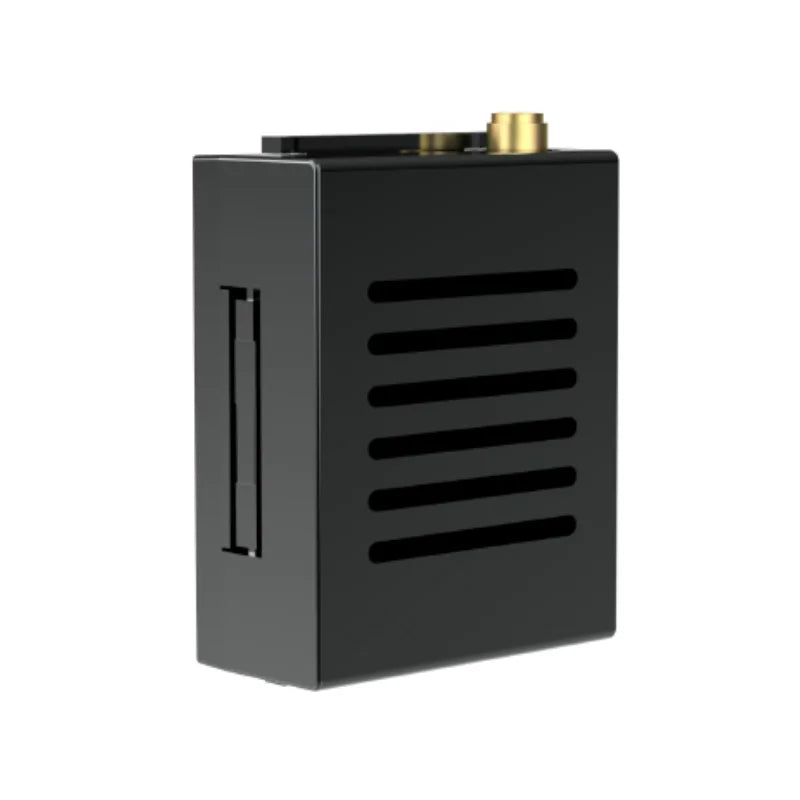

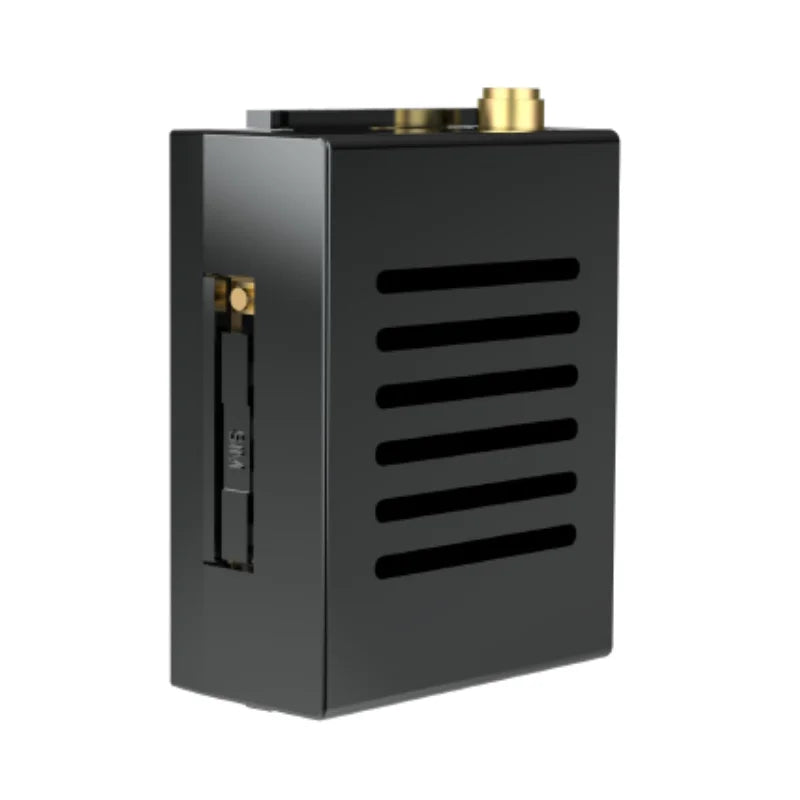

WiFi & 4G Module
Model |
4G Module |
WiFi Module |
Size (mm) |
40.5 x 55.95 x 27.5 |
40.5 x 55.95 x 27.5 |
Weight (g) |
29 |
26 |
Working Environment Temperature |
-20℃~55℃ (no freezing) |
-20℃~55℃ (no freezing) |
Working Environment Humidity |
5~95% (non-condensing) |
5~95% (non-condensing) |
Shock Resistance |
10~25HZ (XYZ direction 2G/30 minutes) |
10~25HZ (XYZ direction 2G/30 minutes) |
Shell Material |
Engineering plastic ABS+PC |
Engineering plastic ABS+PC |
Networking Mode |
4G |
WiFi |
Web Video Segment |
LTE-TDD: B34/B38/B39/B40/B41 |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Reconnecting After Network Disconnection |
YES |
YES |
Resume After Disconnection |
YES |
YES |
API Interface |
YES |
YES |
VNC Function |
YES |
YES |
Data Monitoring |
Support up to 280 data points |
Support up to 280 data points |
Historical Data |
Support up to 20,000 pieces of data |
Support up to 20,000 pieces of data |
Alarm Push |
Support APP push and WeChat official account push |
Support APP push and WeChat official account push |
Key Features

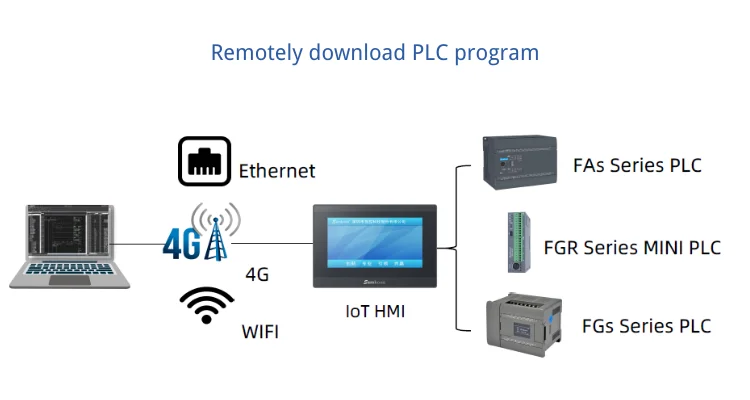

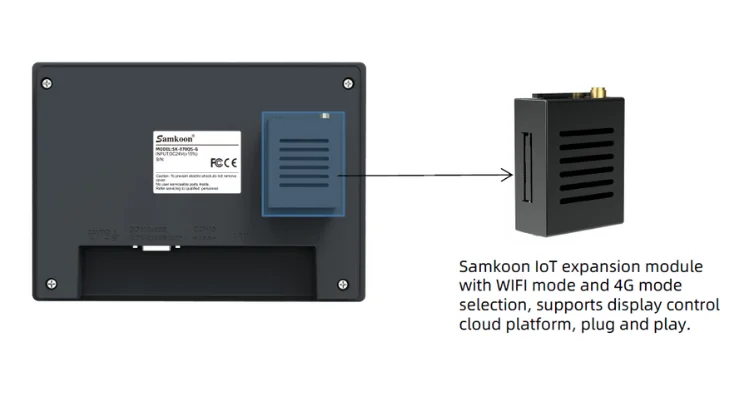

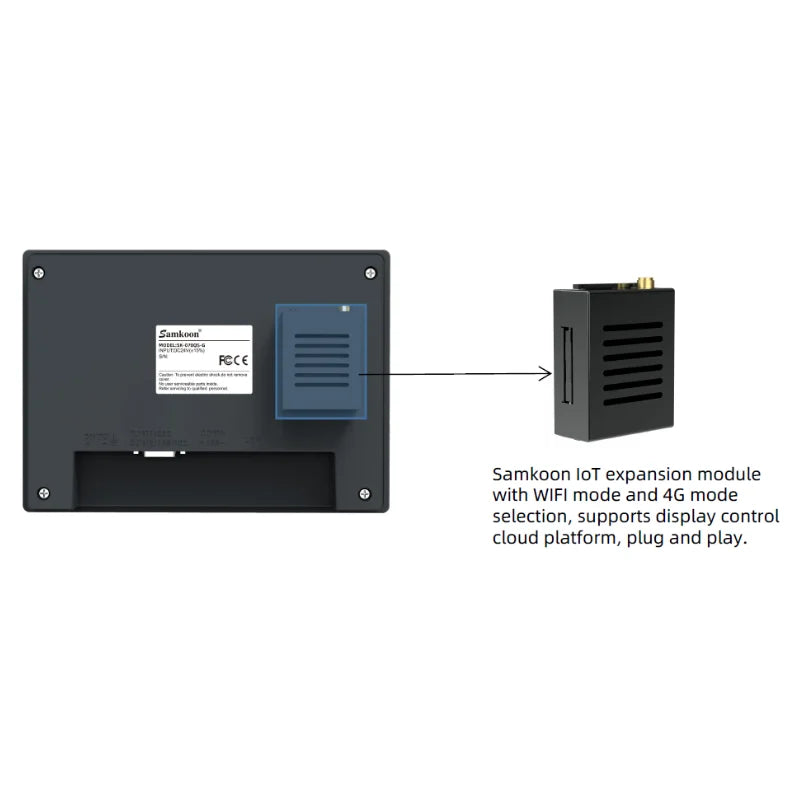

Fast IoT Integration
Plug-and-play IoT expansion module enables quick Internet access via 4G or Wi-Fi.
VNC Remote Access
Monitor and control the screen remotely from a PC or mobile device.
Linux-Based System
Stable and secure Linux OS with support for macro instructions written in C.
Multi-Protocol Support
Compatible with 300+ PLC communication protocols (RS232/422/485, Ethernet, USB).

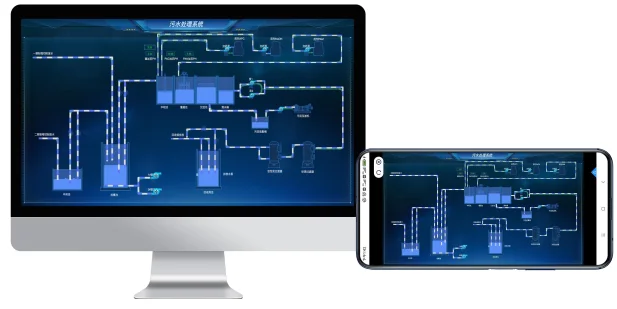

Cloud Visualization
Seamless connection to Samkoon Cloud 3.0 for data analysis and display.
Secure & Reliable
Password protection, configuration encryption, and industrial-grade anti-interference.
Application Scenarios
About Us
Founded in March 2007, Samkoon stands as a premier brand in industrial automation, serving over 5,000 customers across 40+ countries. Our team of 300+ global professionals, including 200+ R&D specialists, has completed 45,000+ projects and secured 20+ intellectual property rights. We deliver advanced, reliable solutions—HMI, PLC, HMI+PLC all-in-one, servo drives, VFDs, and IoT platforms—engineered for precision and efficiency in smart manufacturing.
Certifications
Samkoon products are fully compliant with CE, FCC, and RoHS regulations, and are manufactured under ISO 9001-certified quality management systems.
Our Partners
Payment Methods
We accept a variety of secure payment methods on AliExpress, including Visa, MasterCard, Maestro, American Express, WebMoney, QIWI, Boleto, AliPay, and PayPal (where available), as well as international bank transfers (T/T). All transactions are protected under AliExpress Buyer Protection for your peace of mind.
Warranty & After-Sales Service
18-Month Manufacturer Warranty
Covers hardware defects and system malfunctions under normal use.
Lifetime Technical Support
Remote assistance available for configuration, firmware, and integration.
Returns & Exchanges
For damaged shipments, please contact us within 3 days with photo evidence.
Contact Us Anytime
Feel free to reach out for support, documentation, or firmware files. We will respond within 24 hours.
