SPECIFICATIONS

Applicable Bicycle: Road Bicycles

Braking System: Disc Brake

Brand Name: RUJIXU

Choice: yes

High-concerned chemical: None

Model Number: RJX

Origin: Mainland China

Size: 700c

Spoke Hole: 20 - 24H

Wheel Material: Alloy

is_customized: Yes

Brand: RUJIXU

Style :700C road bike V/C ring brake, disc brake

Brake system: V/C ring brake, disc brake

Outer tire: 40mm 50mm compatible with 700*23C-25C-28C-32C，30mm compatible with 700*23C-25C-28C

Support clincher

Ring size: 30mm outer width 19.5mm inner width: 13.5mm

40mm outer width 21.5mm inner width 15.8mm

50mm outer width 21.5mm inner width 15.5mm

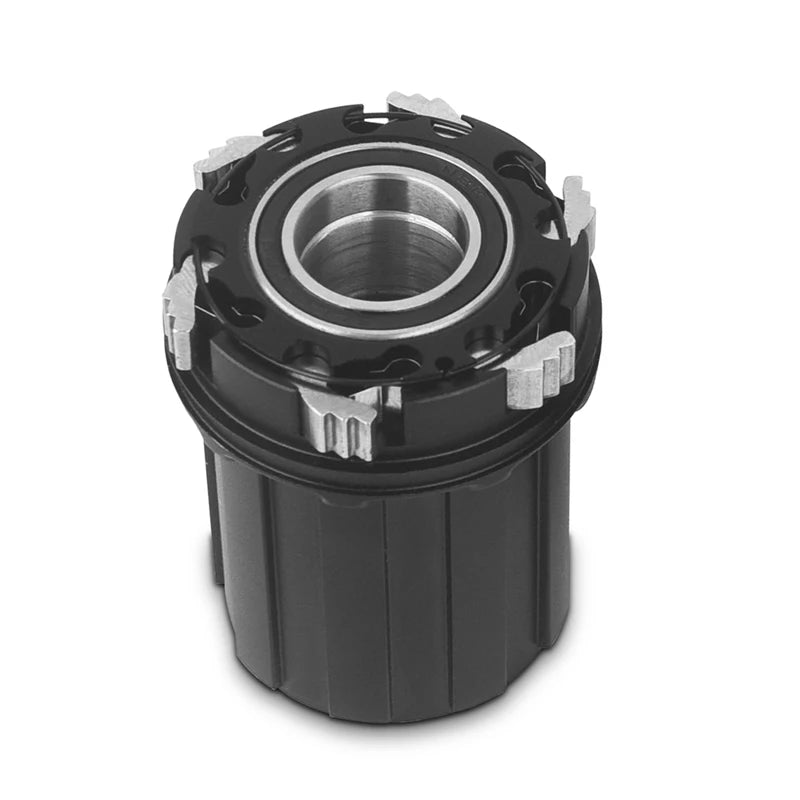

Taki: Support 7 to 12 speed cassette flywheel, also compatible with XDR

Weight: Approx. 30mm 1650g 40mm 2000g 50mm 2300 g

Specification :V/C ring brake 16 holes in the front wheel, 21 holes in the rear wheel. The disc brake has 24 holes in the front and rear wheels.

Style:

1.V brake ：700 CV /C ring brake (front wheel 9x100mm, rear wheel 9x130mm)

disc brake：

2.700C Disc brake hexad quick release version (front wheel 9x100mm, rear wheel 9x135mm)

3.700C Disc brake center lock quick release version (front wheel 9x100mm, rear wheel 9x135mm)

4:700C disc brake six-bucket axle version (front wheel 100x12mm, rear wheel 142x12mm)

5:00C Disc brake center lock barrel shaft version (front wheel 100x12mm, rear wheel 142x12mm)

6：fixed gear wheel（Front axle size: 9x100, rear axle size: 9, 5x120）
