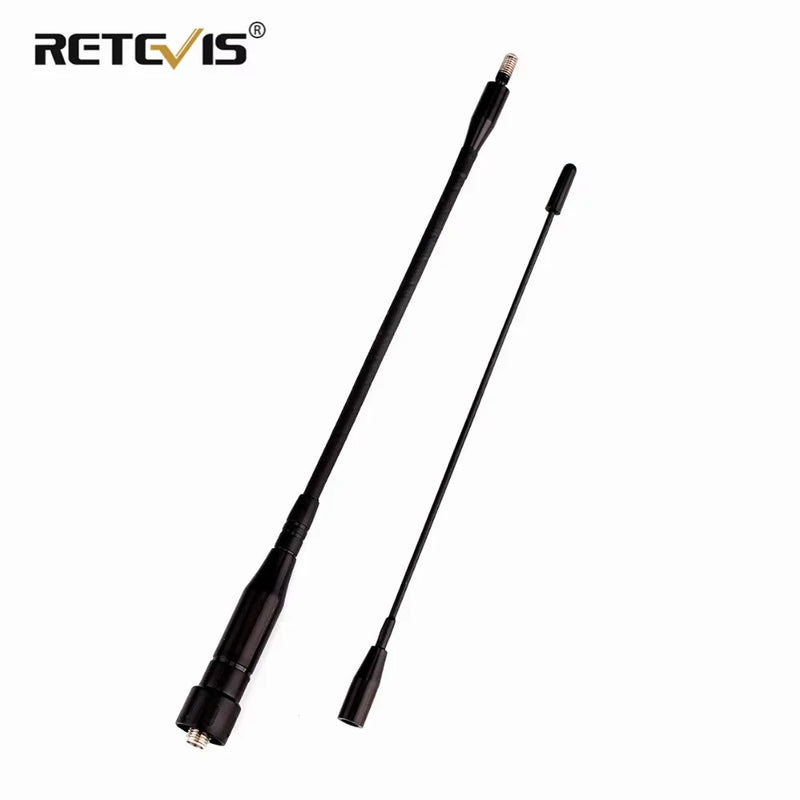

Retevis RHD-771 H777 Walkie-Talkie Accessories Antennas SMA-F SMA-M HA02 VHF UHF Dual Band Antenna for Baofeng Retevis HD2
SCORE BIG SALE
£16.00
↓ Save £4.00
£20.00
✓
✓
✓
✓
China Mainland
✓
SPECIFICATIONS
Antenna length: 36.5cm
Brand Name: RETEVIS
Center Frequency: N/A
Certification: CE
Connector Type: SMA-F SMA-M
Frequency Range: VHF UHF
High-concerned chemical: None
Impedance: N/A
Max. Power: N/A
Model Number: RHD-771
Origin: Mainland China
VSWR: Less than 1.5
Voltage Standing Wave Ratio (VSWR): N/A

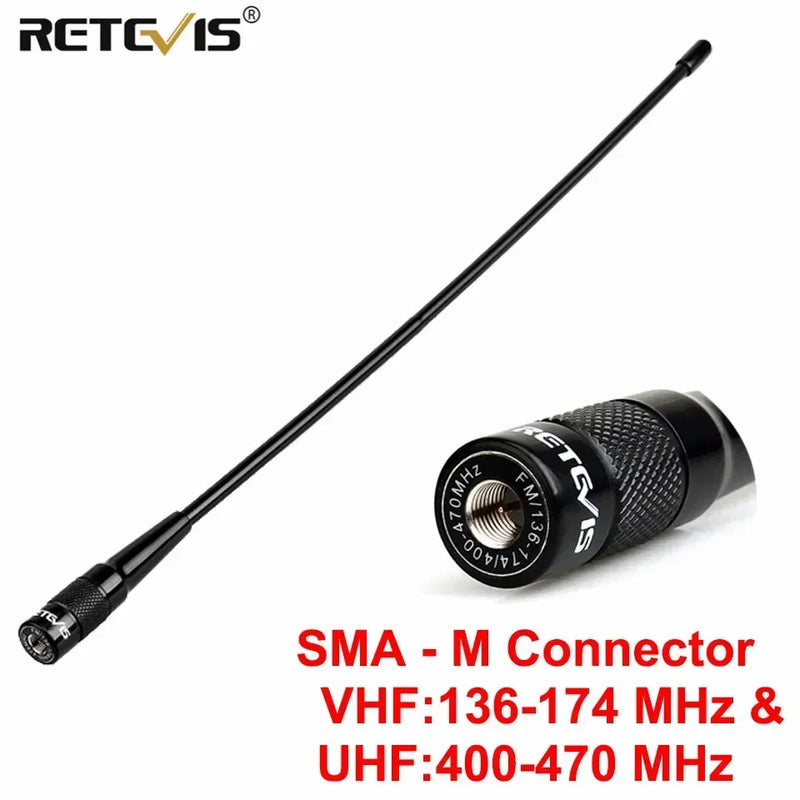

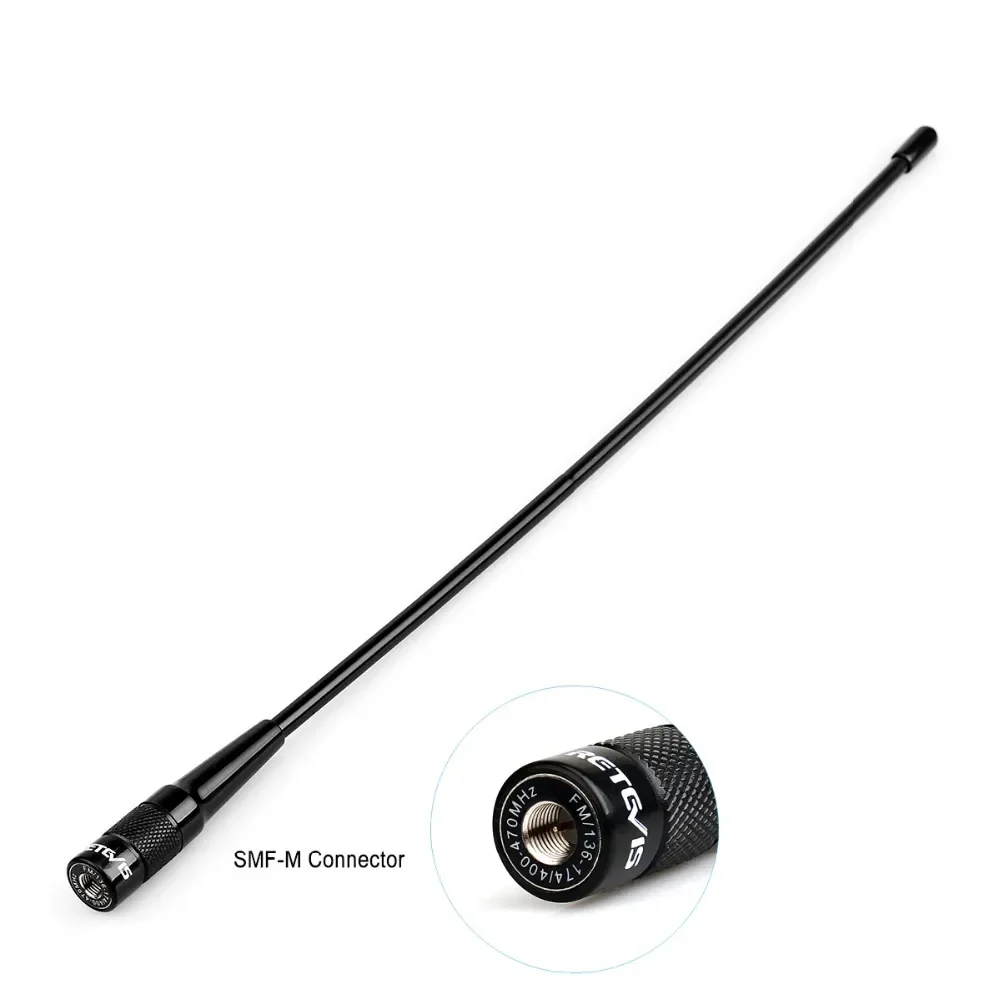

Retevis RHD-771 SMA-M Male 36.5cm 144/430Mhz VHF UHF For Retevis RT1 RT3S RT3 RT8 RT81 For TYT MD-380/UV8000D
Attention,please:
Why Retevis showed the VSWR less than 1.5 on the advert, but I measure higher than 1.5?
1.The accuracy of the measuring instrument. The Retevis factory uses professional measuring equipment(very expensive than handheld devices), which is more accurate than ordinary handheld devices.
2.Each antenna has a center frequency point. At this frequency point, the VSWR value is the lowest and the use effect is the best. So try to measure around 144MHz/430MHz.
Retevis factory VSWR measurement chart
Description:

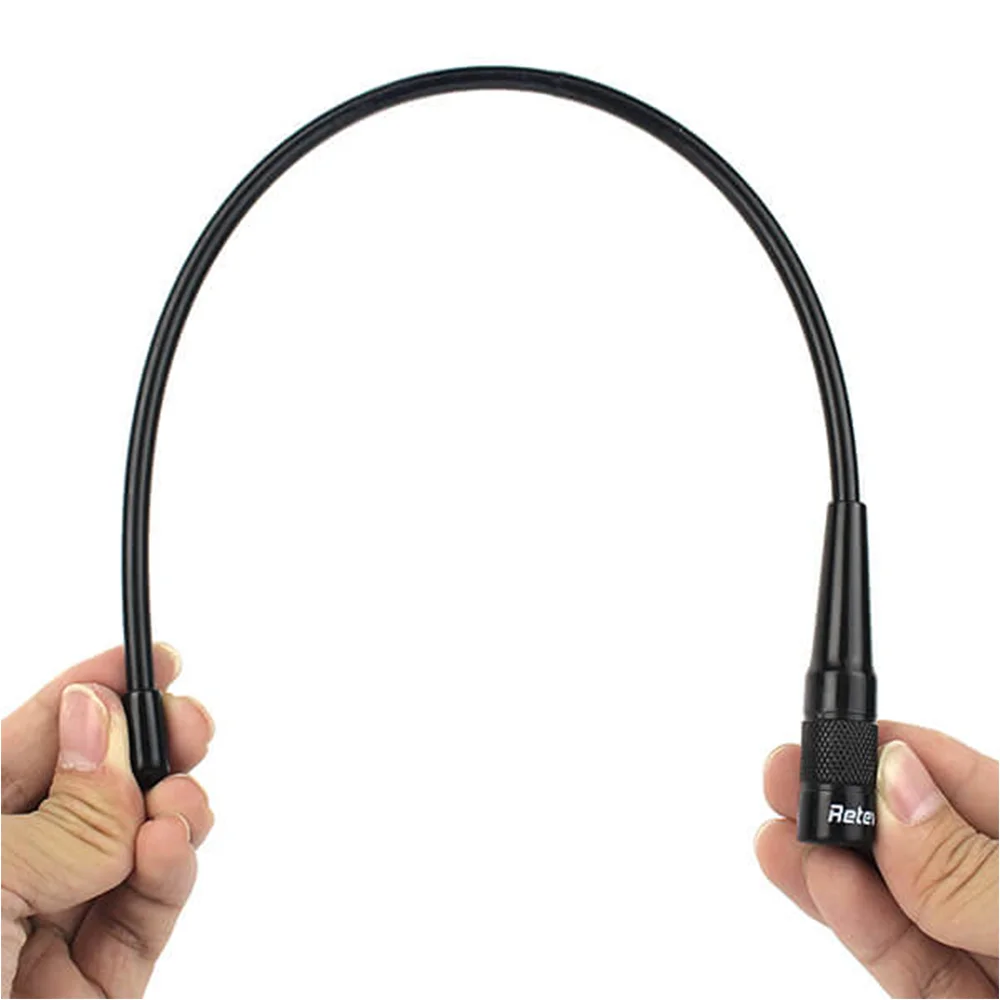

The Original Retevis RHD-771 Elite Antenna will allow you to get longer range on your handheld radio, like RETEVIS RT1/RT3S/RT3,For TYT MD-380/UV-8000D and more radio. This antenna features a 2.15dBi with up to 20 Watts of power. It is 36.5cm in length and weighs 36g.
Specification:
-
Model
RHD-771(SMA-M)
Band
Dual band VHF/UHF
Antenna type
SMA-M Soft Antenna
Frequency
144/430Mhz(136-174+400-470)MHz
Gain
2.15dBi
Max power
20 Watts
VSWR
Less than 1.5 Downwards
Impedance
50ohm
Connector Type
SMA-M(Male)
Omni Polarization
Vertical
Radiation
Omni
Material
ABS and Heat shrinkable sleeve
Length
36.5cm
Weight
36g/1.27oz
Color
Black
Widely used on handheld Radios with SMA–M interface
Applications model:
for YAESU
VX-1R,VX-2R,VX-3R,VX-5R,VX-6R,VX-7R
For RETEVIS
RT1,RT3,RT3S,RT8,RT81
For TONGFA
TF-UV985,385
For BAOFENG
BF- UV3R UV100 U3 etc
For TYT/Tytera
TH-UV8R,UVF9,UVF9D,UVF8D,F8,F5,F3 F7,TH-F1,TC-3000A,UVF10,UV6R,UVF9,UVF11,UVF8,TC-3000B,TC-3000S,TC8000,UV8000D, MD-280,MD-380,MD-446,
Other Brand radios suitable for SMA-M antenna

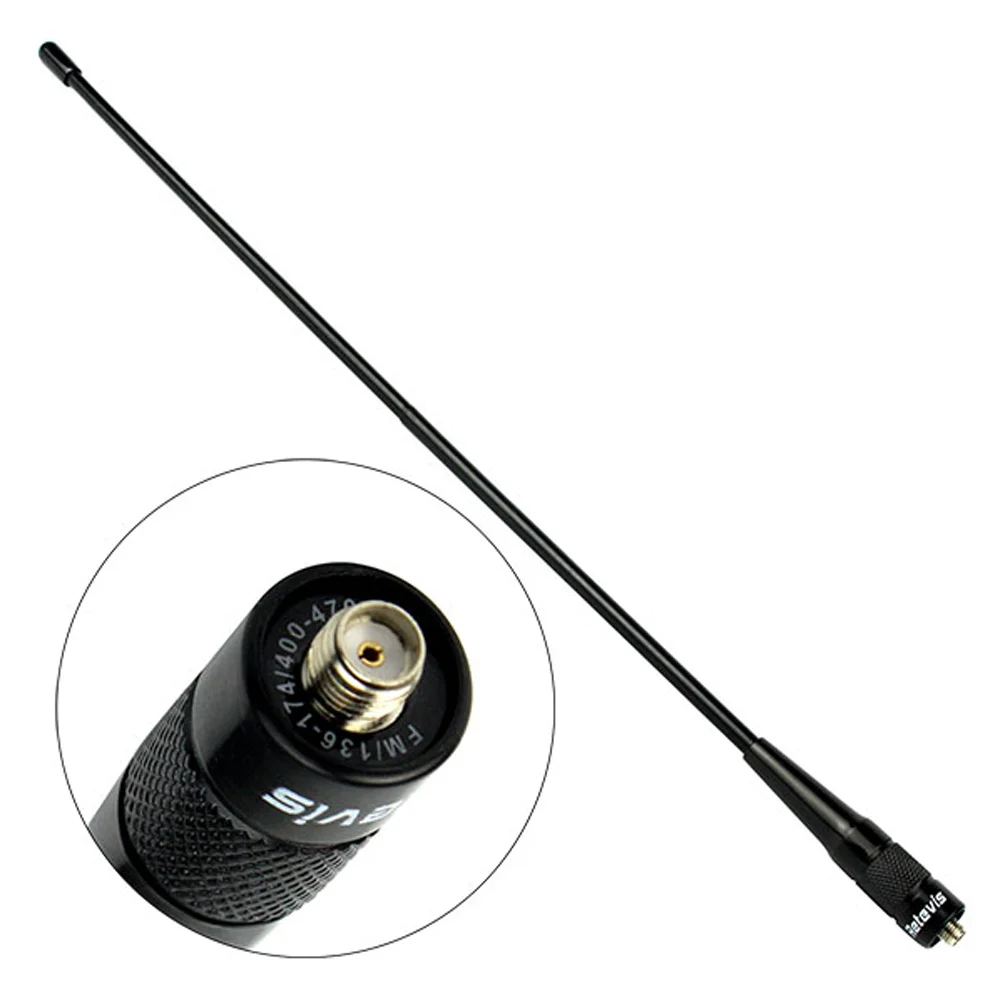

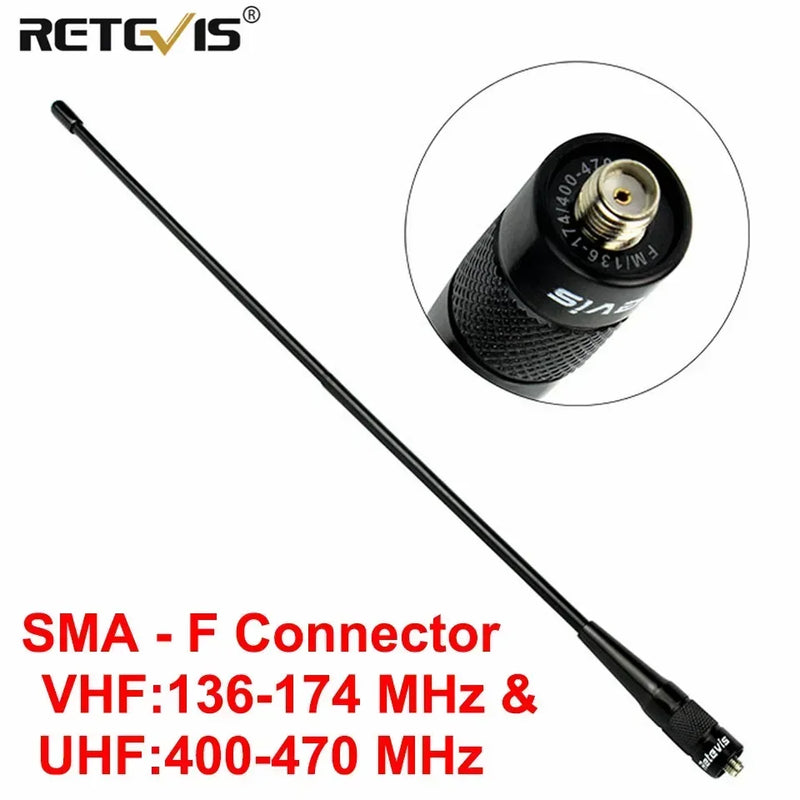

RETEVIS RHD-771 SMA-F Walkie Talkie VHF UHF Dual Band 144/430Mhz SMA-F Soft 39cm For Kenwood Retevis RT5R RT29 Baofeng UV5R 888S UV-82
|
Common Problem:
一.Why Retevis showed the VSWR less than 1.5 on the advert, but I measure higher than 1.5?
1.The accuracy of the measuring instrument. The Retevis factory uses professional measuring equipment(very expensive than handheld devices), which is more accurate than ordinary handheld devices. 2.Each antenna has a center frequency point. At this frequency point, the VSWR value is the lowest and the use effect is the best. So try to measure around 144MHz/430MHz.
二.About packaging.
We use a long envelope style bubble film packaging, which is safe, drop-proof, and will not bend.
|
Description:
The Original Retevis RHD-771 Elite Antenna will allow you to get longer range on your handheld radio, like Retevis H-777,RT5, For BaoFeng 888s,UV-5R radio. This antenna features a 2.15dBi with up to 20 Watts of power. It is 39cm in length and weighs 34g
Specification:
100% brand new and high quality | |
Model |
RHD-771(SMA-F) |
Band |
Dual band VHF/UHF(UHF works better) |
Antenna type |
SMA-F Soft Antenna |
Frequency |
144/430Mhz(136-174+400-470)MHz |
Gain |
2.15dB |
Max power |
20 Watts |
VSWR |
Less than 1.5 Downwards |
Impedance |
50ohm |
Connector Type |
SMA-F(Female) |
Omni Polarization |
Vertical |
Radiation |
Omni |
Material |
ABS and Heat shrinkable sleeve |
Length |
39cm/15.4 In(approx) |
Weight |
34g/1.19oz |
Color |
Black |
Widely used on handheld Radios with SMA male interface | |
Applications model:
for Kenwood |
TK-360,TK-370,TK-370G,TK-372,TK-372G,TK-3100,TK-3140,TK-3160,TK-3170,TK-3180,TK-3200,TK-3202,TK-3207 |
RETEVIS |
H-777,RT-B6,888s Plus,RT5,RT6,RT7,RT21,RT23,RT25 |
for BAOFENG/Pofung |
BF-666s,BF-777s,BF-888s,UV5R,UV5RA,UV-5RB,5RC,5RD,UV-6,UV-8,5RE plus,BF-F8+,UV-B6,UV-B5,BF-K5,BF-A5,BF-A58,UV-A52,UV-82,UV-9R, UV9R Plus |
for HYT |
TC-268,TC-268S,TC-368,TC-368S,TC-370S,TC-500-TC-500S |
for LINTON |
LT-3288,LT-6288,LT-3188,LT-2188,LT-3260,LT-3268,LT-6188 |
. |
|
for PUXING |
PX-777,PX-777Plus,PX-666,PX-888,PX-888K |
for QUANSHENG |
TG-K4AT,TG-K100,TG-K200,TG-K58Mini,TG-6A,TG-5A,TG-620,TG-5A Plus,TG-K4AT(UV),TG-360. |
For most handheld radio. | |

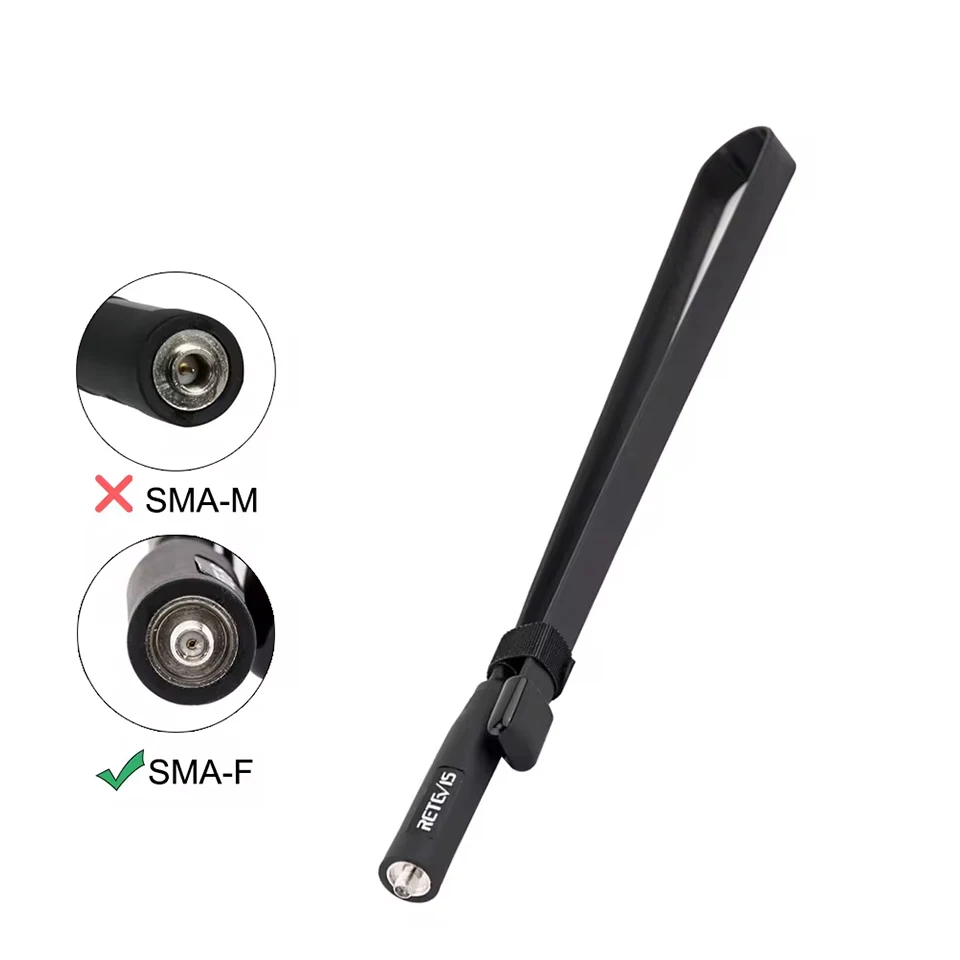

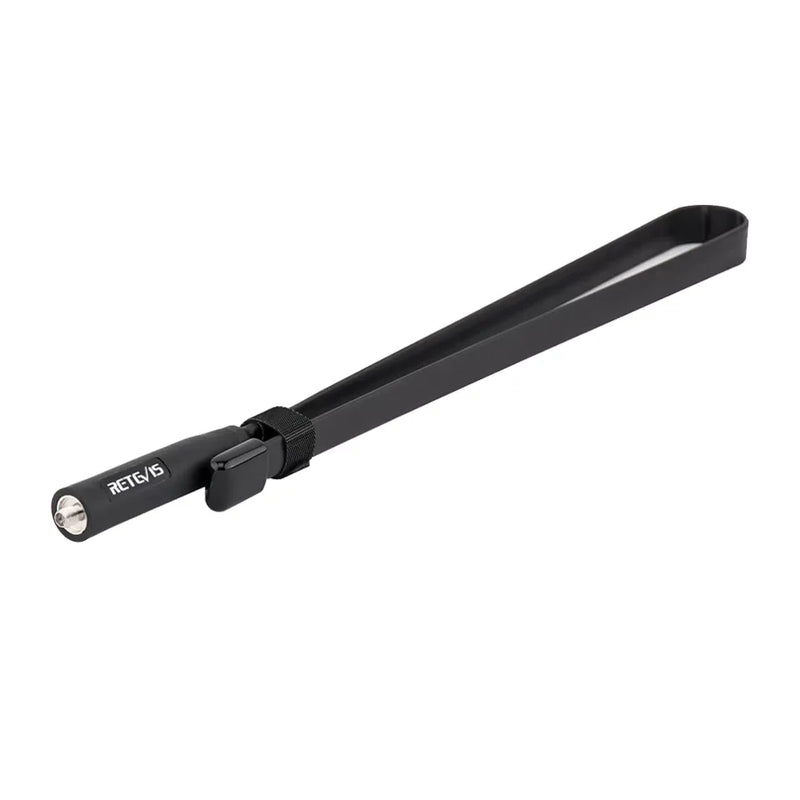

Retevis HA02 Foldable Tactical SMA-F/M For Baofeng UV 5R BF888S For Quansheng UV K5 UV K6 UV K58
Description:
The antenna is an omnidirectional hand-held antenna with high gain, wide bandwidth, low standing wave ratio, waterproof, anti-corrosion, high-strength quality package, strong wind resistance, etc. It is an ideal communication antenna, antenna design style, disassembly and assembly. Convenient and easy to use.
Specification：
Brand |
Retevis |
Model |
HA02 |
Color |
Black |
Frequency |
VHF&UHF VHF:136-174MHz UHF:400-470MHz |
Gain |
5dBi |
S.W.R |
<1.5 |
Polarization direction |
Vertical |
Radiation direction |
Omni |
Connector |
SMA-F |
Max Power |
20w |
Impedance |
50Ω |
Length |
73.5cm/28.94in |
Weight |
102g |
SMA-F Applications model:
for Kenwood |
TK-360,TK-370,TK-370G,TK-372,TK-372G,TK-3100,TK-3140,TK-3160,TK-3170,TK-3180,TK-3200,TK-3202,TK-3207 |
RETEVIS |
H-777,RT-B6,888s Plus,RT5,RT6,RT7,RT21,RT23,RT25 |
for BAOFENG/Pofung |
BF-666s,BF-777s,BF-888s,UV5R,UV5RA,UV-5RB,5RC,5RD,UV-6,UV-8,5RE plus,BF-F8+,UV-B6,UV-B5,BF-K5,BF-A5,BF-A58,UV-A52,UV-82,UV-9R, UV9R Plus |
for HYT |
TC-268,TC-268S,TC-368,TC-368S,TC-370S,TC-500-TC-500S |
for LINTON |
LT-3288,LT-6288,LT-3188,LT-2188,LT-3260,LT-3268,LT-6188 |
. |
|
for PUXING |
PX-777,PX-777Plus,PX-666,PX-888,PX-888K |
for QUANSHENG |
TG-K4AT,TG-K100,TG-K200,TG-K58Mini,TG-6A,TG-5A,TG-620,TG-5A Plus,TG-K4AT(UV),TG-360. |
For most handheld radio. | |

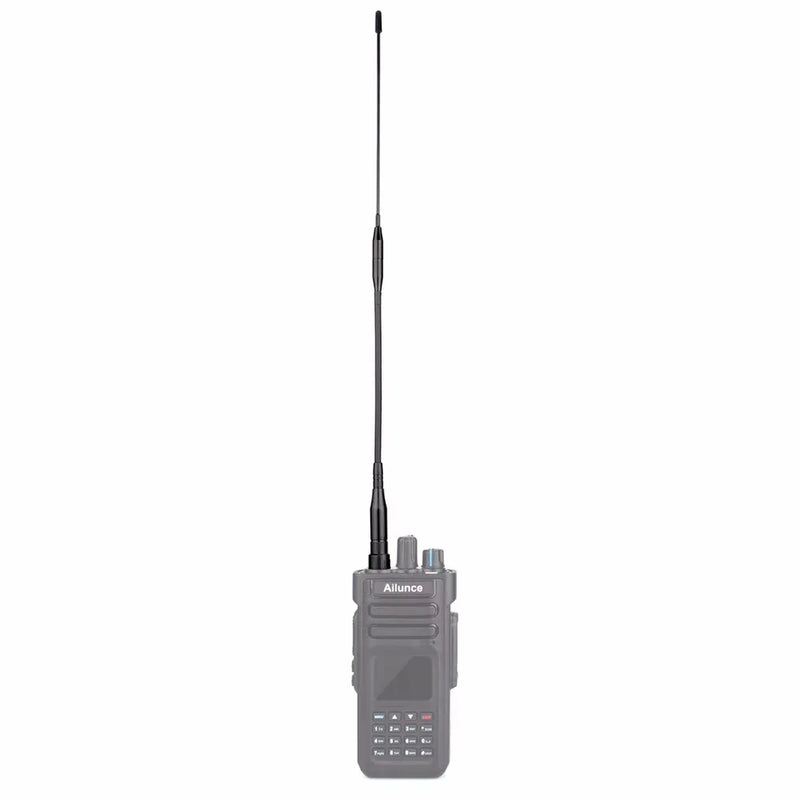

Dual Band SMA-F High Gain VHF/UHF 360mm For Ailunce HD1/Retevis RT29 DMR Ham Radio Amador Walkie Talkie J9131D
Description:
100% brand new and high quality | |
Band |
Dual band VHF/UHF |
Antenna type |
SMA-F Soft Antenna |
Frequency |
136-174/400-4800MHz |
Gain |
2.15 dBi (136-174MHz) |
Max power |
20 Watts |
VSWR |
< 2.15 (155MHz) |
Impedance |
50ohm |
Connector Type |
SMA-F(Female) |
Omni Polarization |
Vertical |
Radiation |
Omni |
Material |
ABS Radome Material |
Length |
360mm |
Color |
Black |
Compatible Mode |
: Ailunce HD1 |
You can choose:
1PC RHD-771 SMA-M
or
1PC RHD-771 SMA-M
or
1PC HA02 SMA-F
or
1PC J9131D SMA-F
