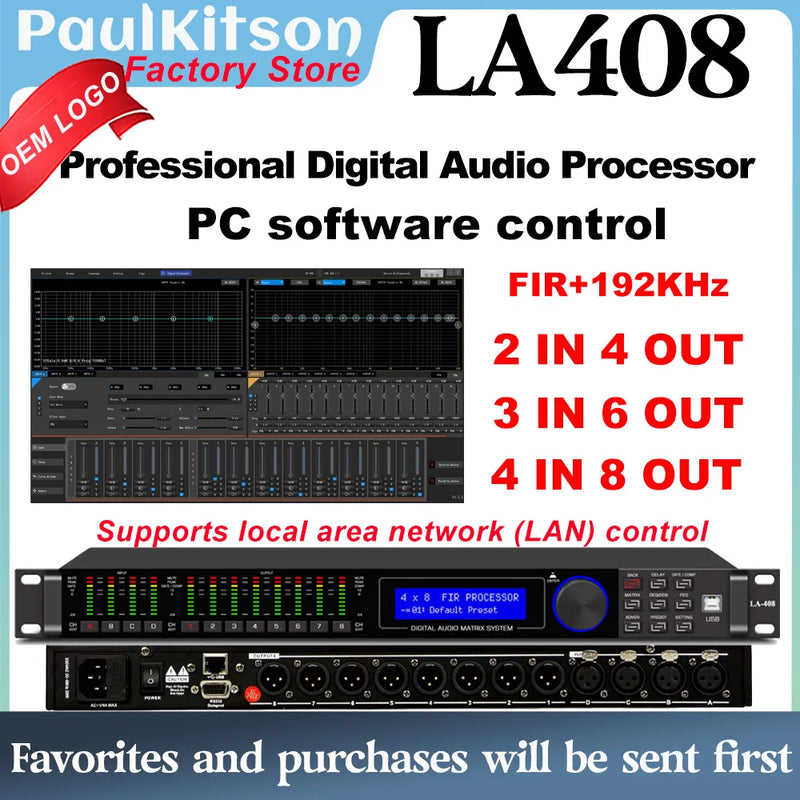

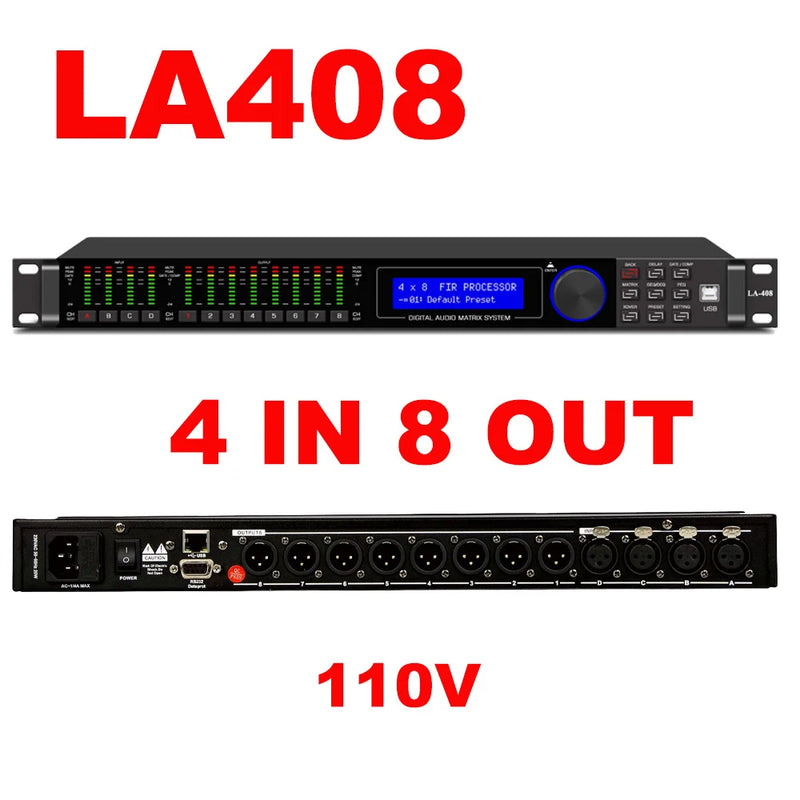

Paulkitson LA408 Professional DSP Audio Processor 8 Channel 768kHz 32-bit 110dB SNR FIR PEQ GEQ for Studio Live Sound Recording

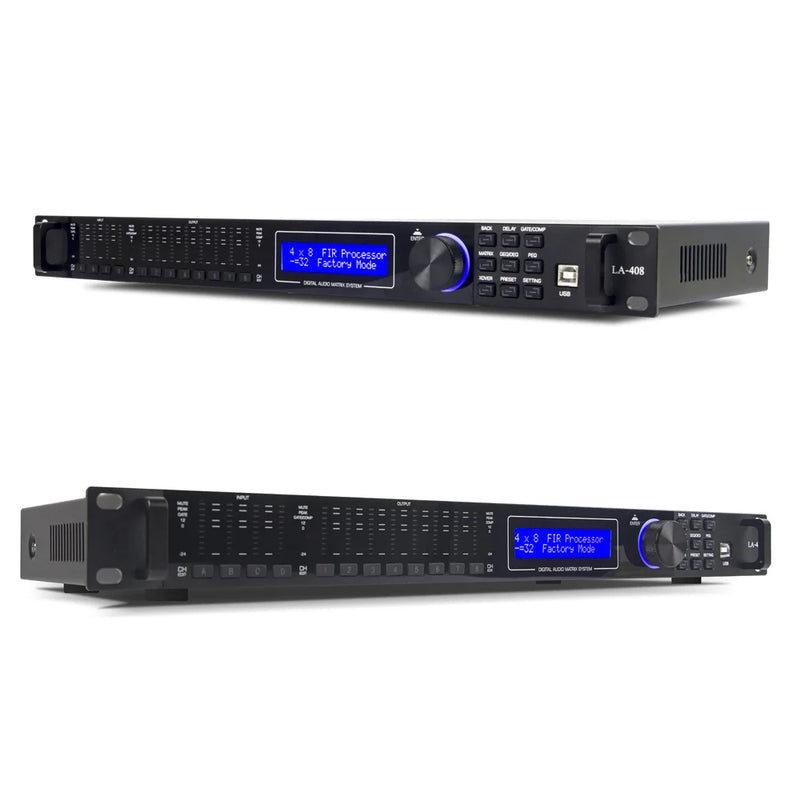

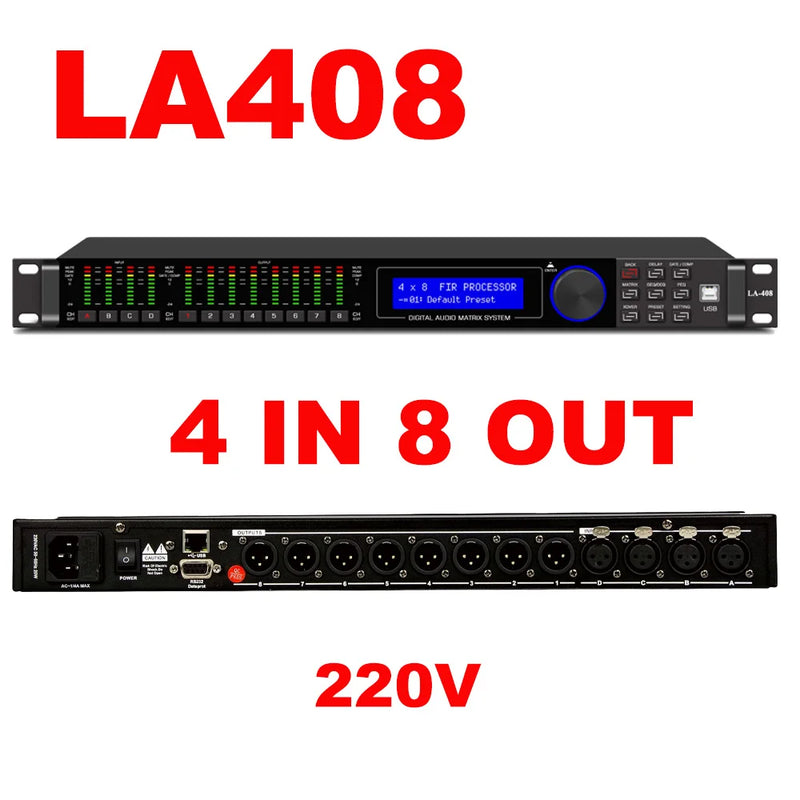

LA-408 Digital Audio Processor

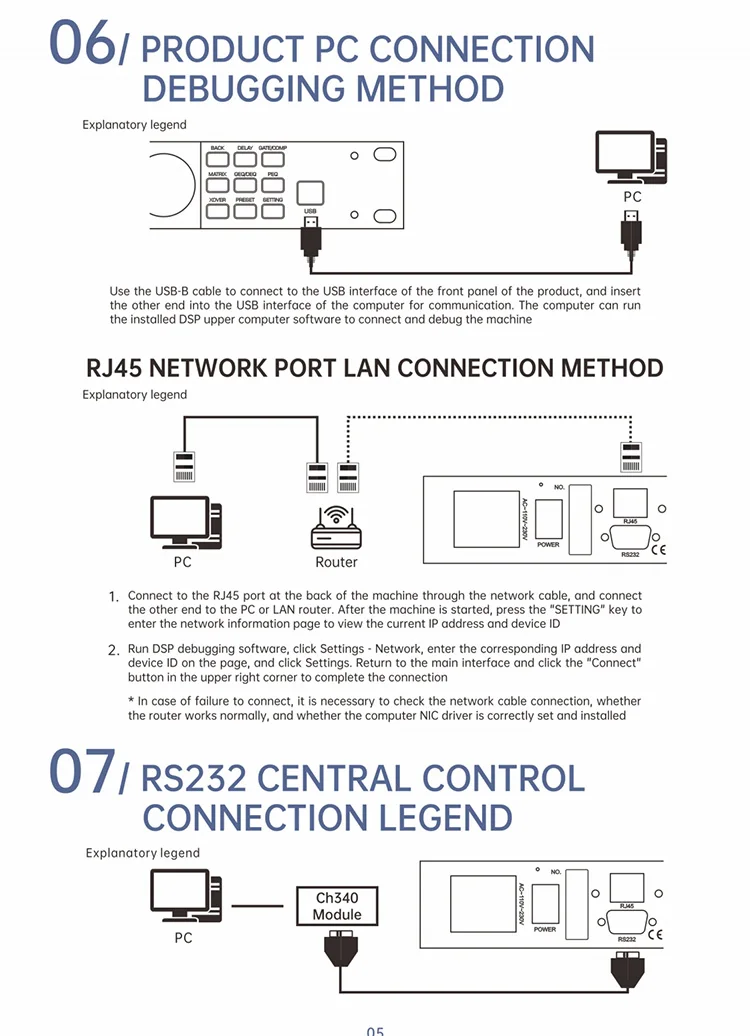

The LA series digital audio processor is a high-performance digital DSP processor that supports multi-channel analog signal routing. Users can connect to the device via USB or internal network IP for PC control. The simple and user-friendly PC software interface provides users with an intuitive and easy-to-understand operating experience.

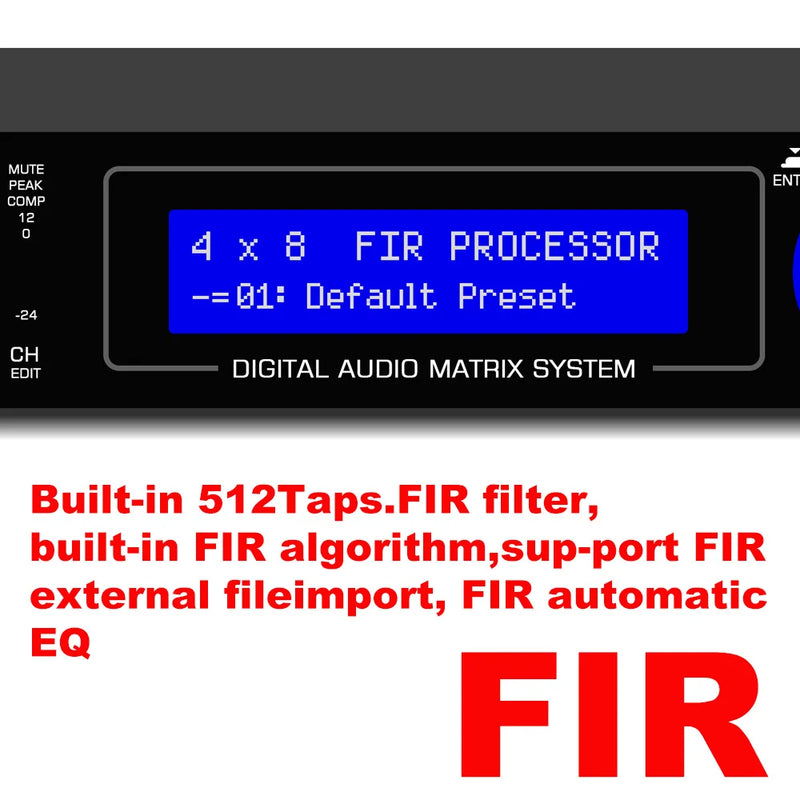

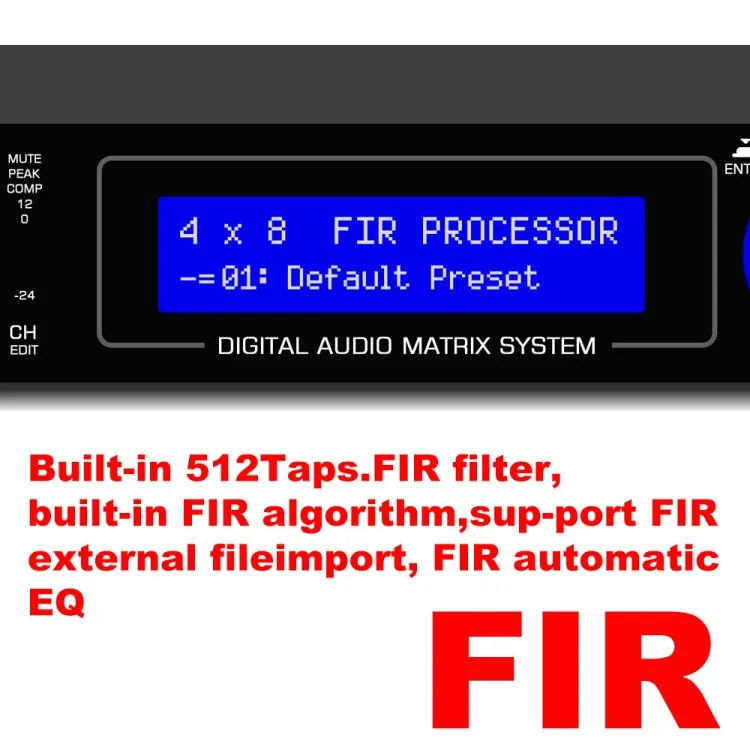

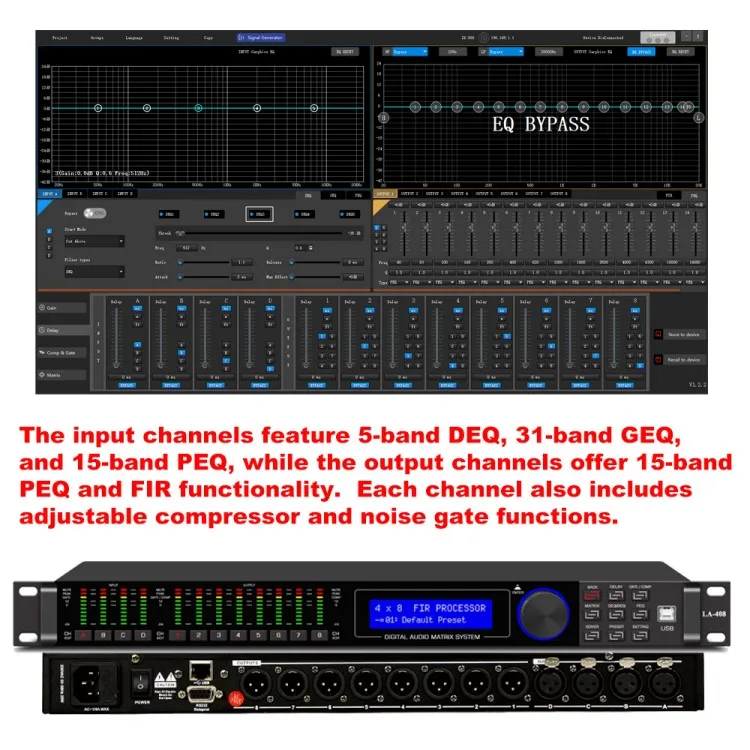

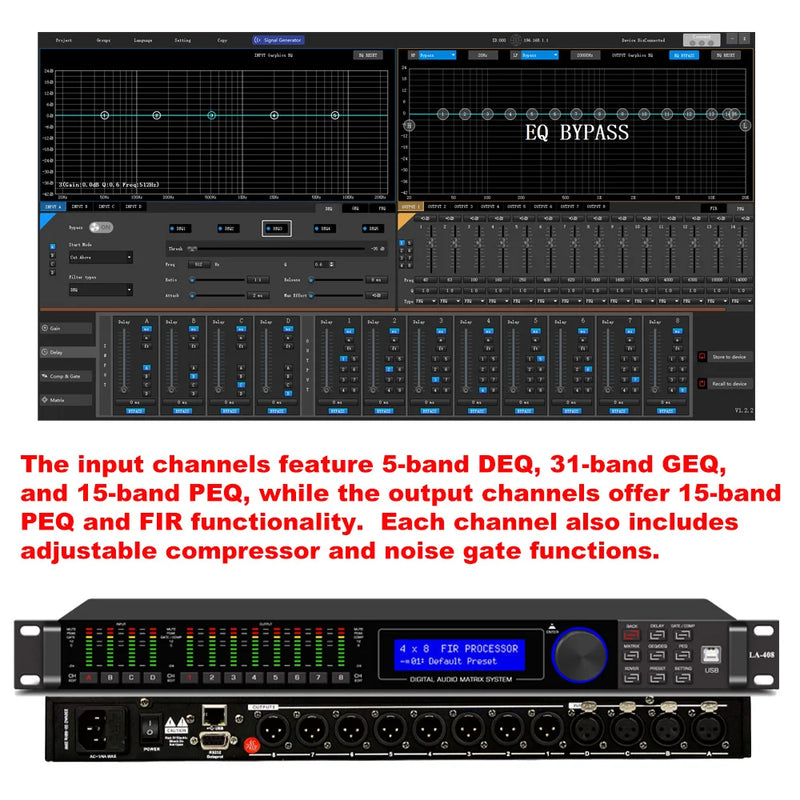

Input channels feature 5-band DEQ, 31-band GEQ, and 15-band PEQ, while output channels offer 15-band PEQ and FIR functionality. Each channel has adjustable compressor and noise gate settings. Thirty built-in factory presets are available for one-click setup in most audio systems, and users can also customize, save, and recall their own settings. The PC software includes a signal generator for convenient on-site speaker debugging and calibration.

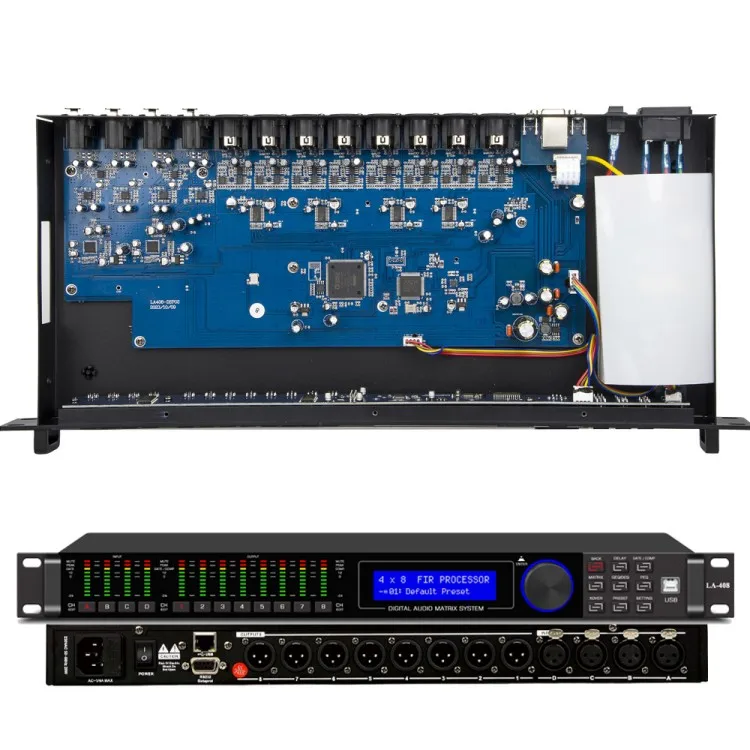

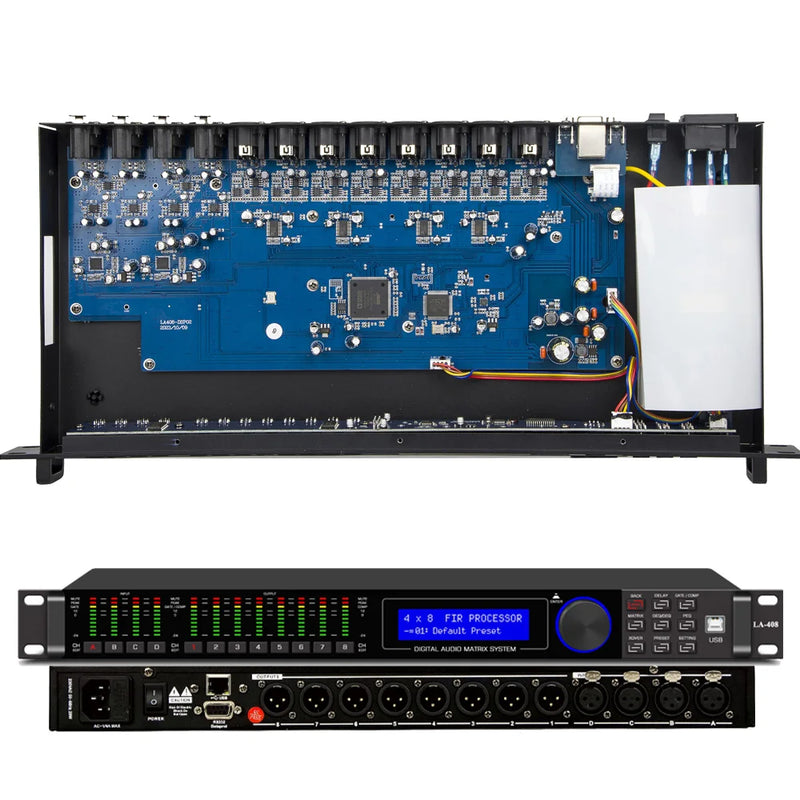

The CPU uses the ADSP-21571 digital audio processing chip from Analog Devices (ADI), a dual-core SHARC+ DSP processor based on the Arm Cortex-A5 high-performance floating-point core architecture, supporting 64-bit floating-point optimized FIR and IIR algorithms. The A/D section uses the AK5552 analog-to-digital converter chip, supporting a 32-bit 768kHz sampling rate. The differential filtering circuit input design effectively ensures high resolution and noise filtering of the input signal, while also providing a professional-grade 118dB signal-to-noise ratio, effectively suppressing the background noise of the digital audio processing circuit. The DAC decoding section uses the AD1955 chip, providing 24-bit, 192kHz master-grade audio format output with a 120dB high signal-to-noise ratio, meeting the requirements of various mainstream audio sources

Technical Parameters：

Frequency Response (20Hz-20kHz@+4dBu): +0/-0.3dB
Total Harmonic Distortion (20Hz-20kHz@+4dBu): <0.003%
Signal-to-Noise Ratio: 110dB A-weighted
Noise Floor: <-90dBu
Dynamic Range (20Hz-20kHz, 0dB): >116 dB
Maximum Gain (Input to Output): 48dB
Maximum Delay (Input to Output): 750ms
Channel Separation (Between Channels @1kHz): >80dB
Common Mode Rejection Ratio: 60Hz >100dB@+20dBu
Input Impedance (Balanced/Unbalanced): Bal: 20K / Unbal: 10K
Output Impedance (Balanced/Unbalanced): Bal: 100ohm / Unbal: 50ohm
Maximum Input Level: +20dBu
Maximum Output Level: +20dBu
Input Gain Range (Adjustable): -80dB ~ +12dB
Output Gain Range (Adjustable): -80dB ~ +12dB
A/D Chip: AK5552
A/D Sampling Rate: 768kHz
A/D Converter Bit Depth: 32-bit
D/A Chip: AD1955
D/A Sampling Rate: 192kHz
D/A Converter Bit Depth: 24-bit
DSP Chip: ADSP-21571
DSP Clock Speed: 500MHz
DSP Bit Depth: 32/40/64-bit Floating Point Dual-core SHARC+ ARMCortex-A5TM core
Power Consumption: 220V 22 Watts
