SPECIFICATIONS

Applicable People: Unisex

Bike Suspension Types: Bidirectional

Braking System: V Brake/Disc Brake,Disc Brake

Brand Name: NONE

Fork Material: Steel,Aluminum Alloy

Fork Suspension: No

Frame Material: Carbon Steel,Steel, Aluminum alloy 6061 T6

Frame Type: Hard Frame (Non-rear Damper)

Front Brakes: BB7

Gears: 27 Speed

Gross Weight: 40kg

High-concerned chemical: None

Length (m): 1.4

Load Capacity: 160kg,150 kg

Net Weight: 17.5 KG,28kgs

Origin: Mainland China

Pedal Type: Ordinary Pedal

Rear Brake: BB7

Rim Material: aluminum,Aluminum Alloy

Stature: 150-200cm

Tires: Schwalbe 20-1.5''

Type: Pedicab

Wheel Size: 26",20", 20"

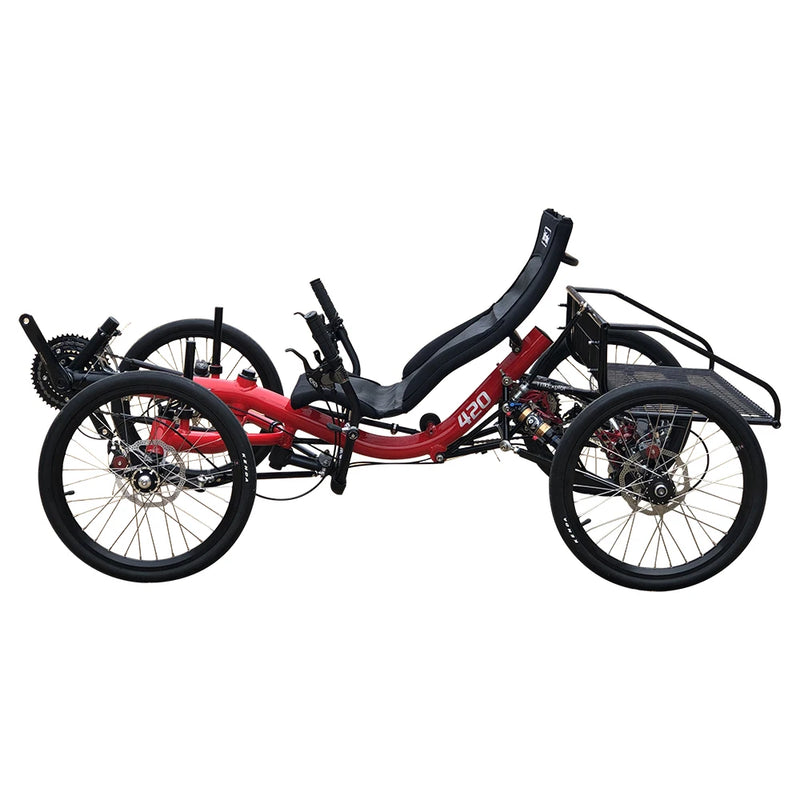

Why model 420
420 is built primarily to be easy to ride for some people who want more stability. It offers a better view, good ground clearance and additional cargo capacity, which makes it the perfect utility vehicle for touring.



Medium seat height

The medium seat height help you get on and off the trike easily and provides a clear view in traffic.





Superior transmission system

The two stage transmission system minimizes the component size and provides efficient working. Meanwhile, it reduce the tension to maximize chain life.





Air suspension

The rear air suspension can be optimized by simply adjusting, which delivers a comfortable and controlled ride.



Power divider

The divider can ensure one wheel to keep turning when slip occurs on the other wheel.



Super large rear rack

The open designed stainless steel rear rack gives an ideal storage solution for large and heavy loads.


Frame	Aluminum alloy 6061 T6 main frame + steel rear fork
Seat	TrikExplor Ergo-mesh seat
Tires	Schwalbe 20-1.5
Hub	Front Quanta drum shaft hub, Customs hub
Brakes system	Avid BB7 mountain mechanical disc brake, parking brake
Brake levers	Avid FR-5
Chain	CN-HG73
Speed	27 gears
Shifter	Alivio SL-M4000 9-speed
Suspension	DNM AOY-36RC Air Shock
Turing circle	4.0 m
Net weight	20kgs
Max. load	MAX 150kgs
Rider height	165-200 cm

Electrical Option
Motor	Bafang 48v 500w mid drive motor
Battery	48v 20Ah lithium battery
Display	LCD
Pedal Assist	9 leves
Max Speed	25km/h
Estimated Driving Distance	50km with pedal assist; 30km with full throttle                               Our electric trike comes with pedal assist (pedelec) mode. The throttle moel is optional as per your need.
Charging time	4-6 hours
