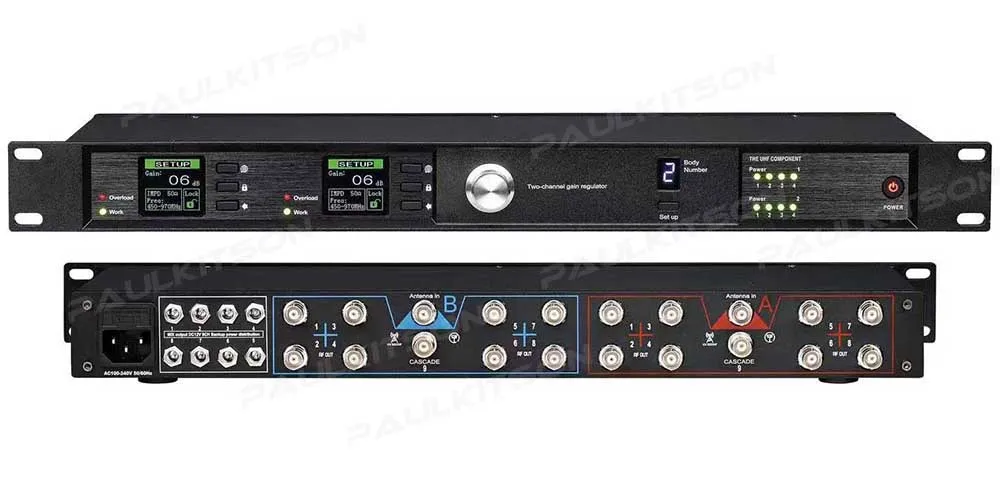

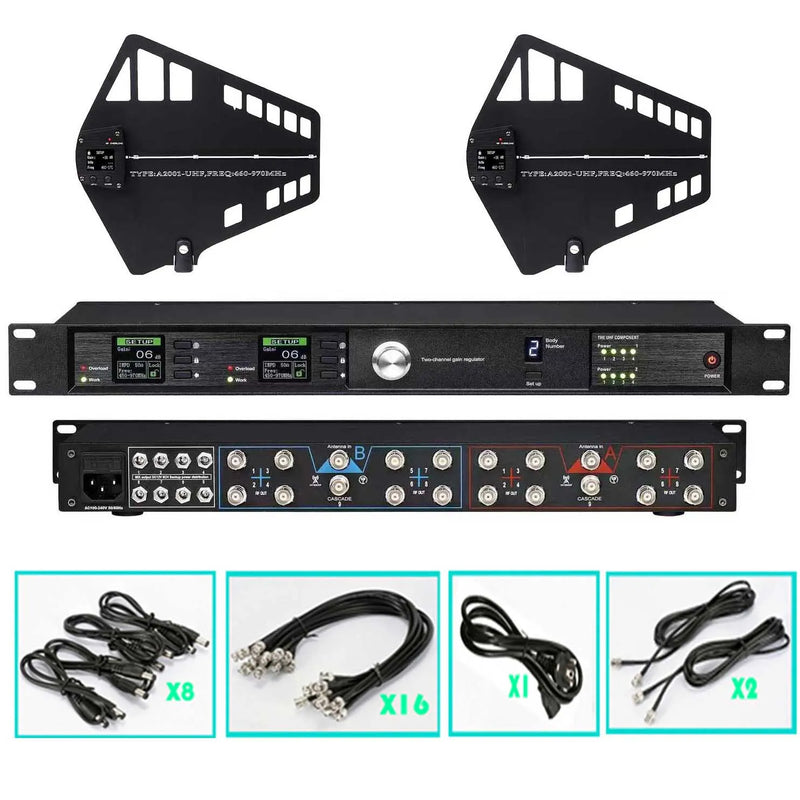

Paulkitson UA90-A2001 Wireless Microphone Antenna Combiner 18 Channel Antenna Distribution System RF Signal Booster 450-970MHz

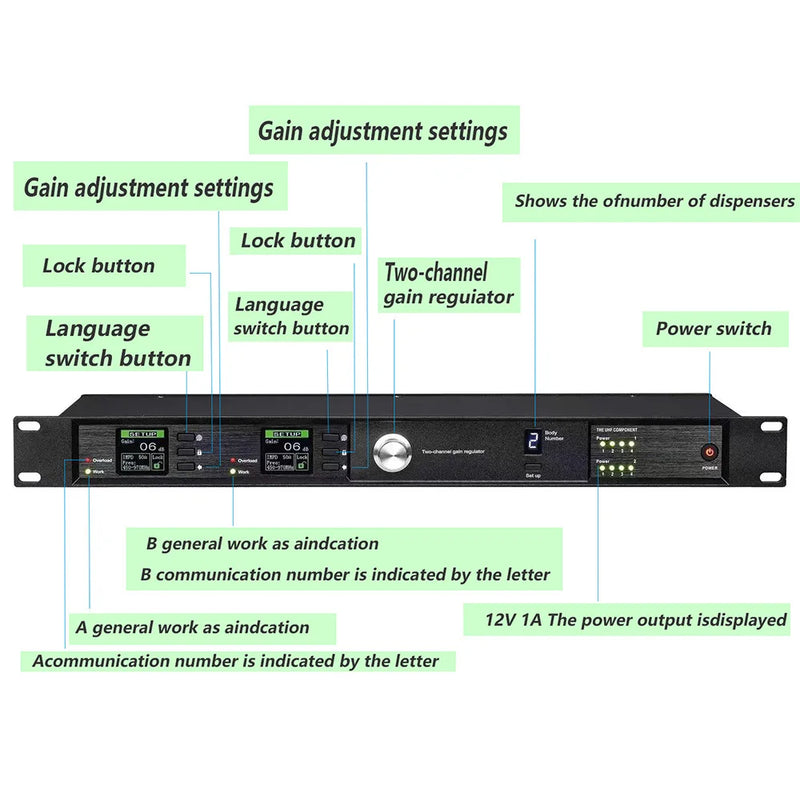

*Switch between Chinese and English display interface

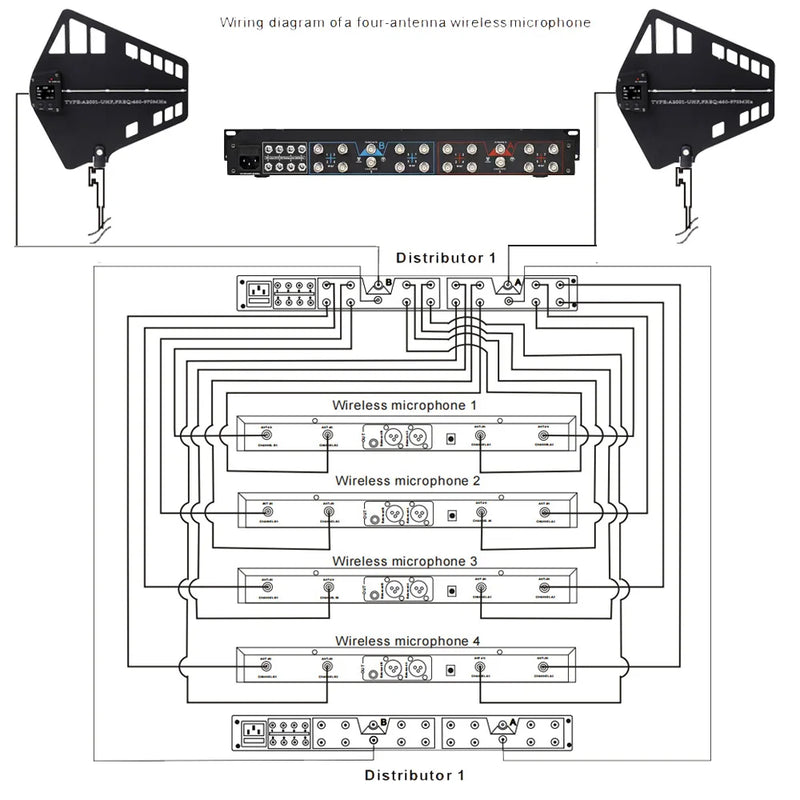

*Connection output can link 8 wireless receivers to form a large system
*RF level overload LED timely monitors the quality of RF signal
*Color high-definition TFT display
*Machine code recording function
*Panel lock function prevents wrong operation during performance

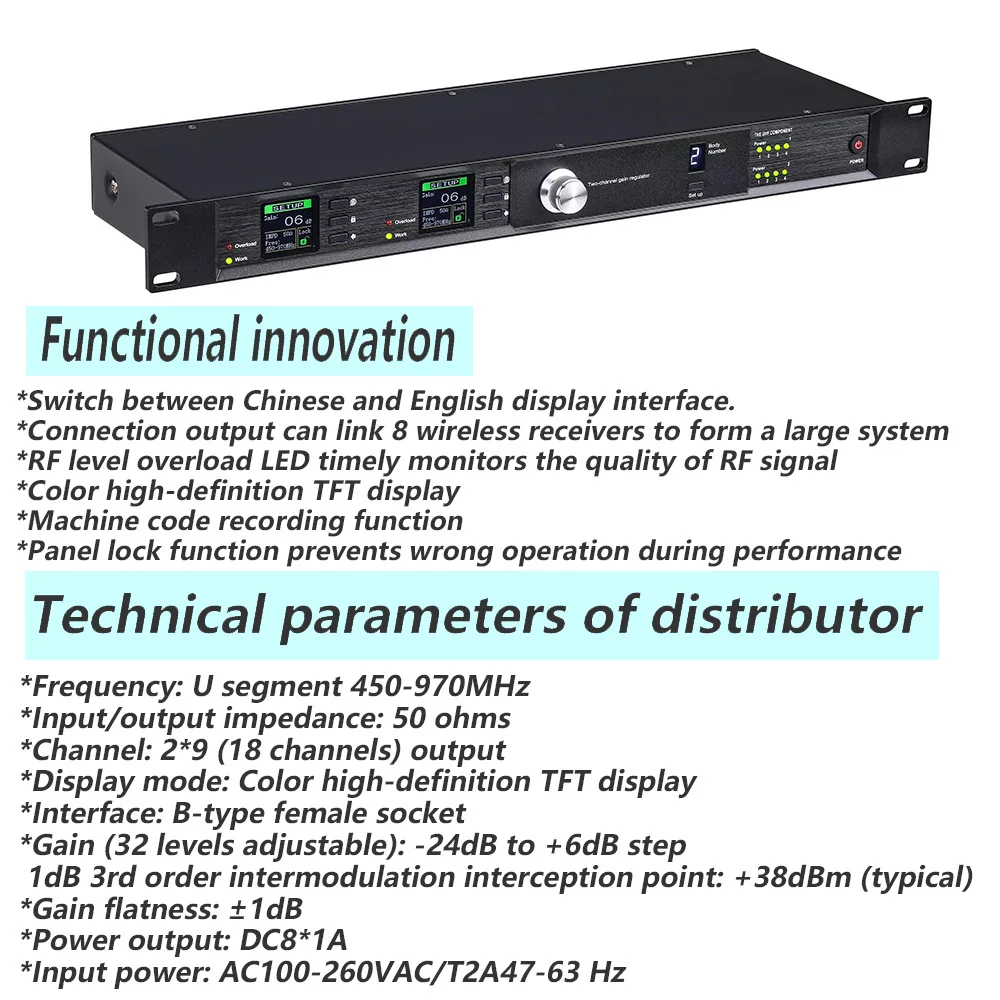

Technical Parameters

Frequency: U segment 450-970MHZ
Input/output impedance: 50 ohms

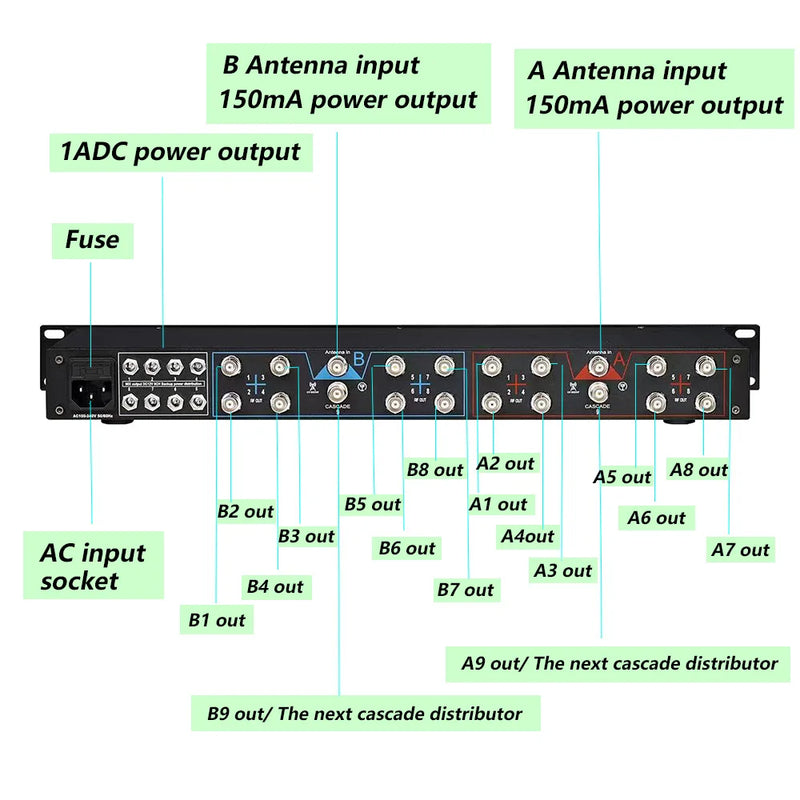

Channel: 2*9 (18 channels) output
Display mode: color high-definition TFT display
Interface: B-type female connector
Gain (32 levels adjustable): -24dB to +6dB step 1dB
3rd order intermodulation intercept point: +38dBm (typical)
Gain flatness: ±1dB
Power output: DC8*1A
Input power: AC100-260VAC/T2A47-63 Hz

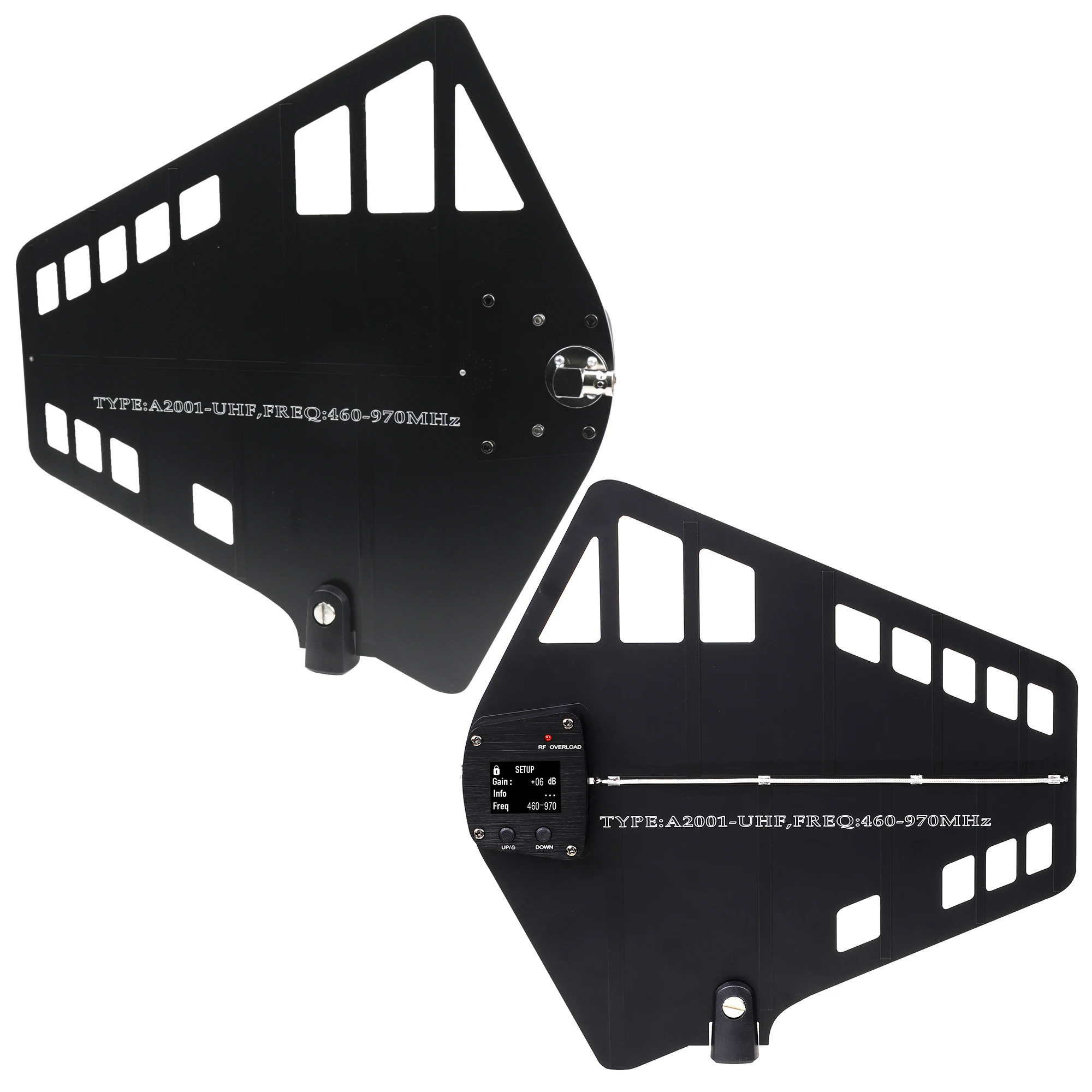

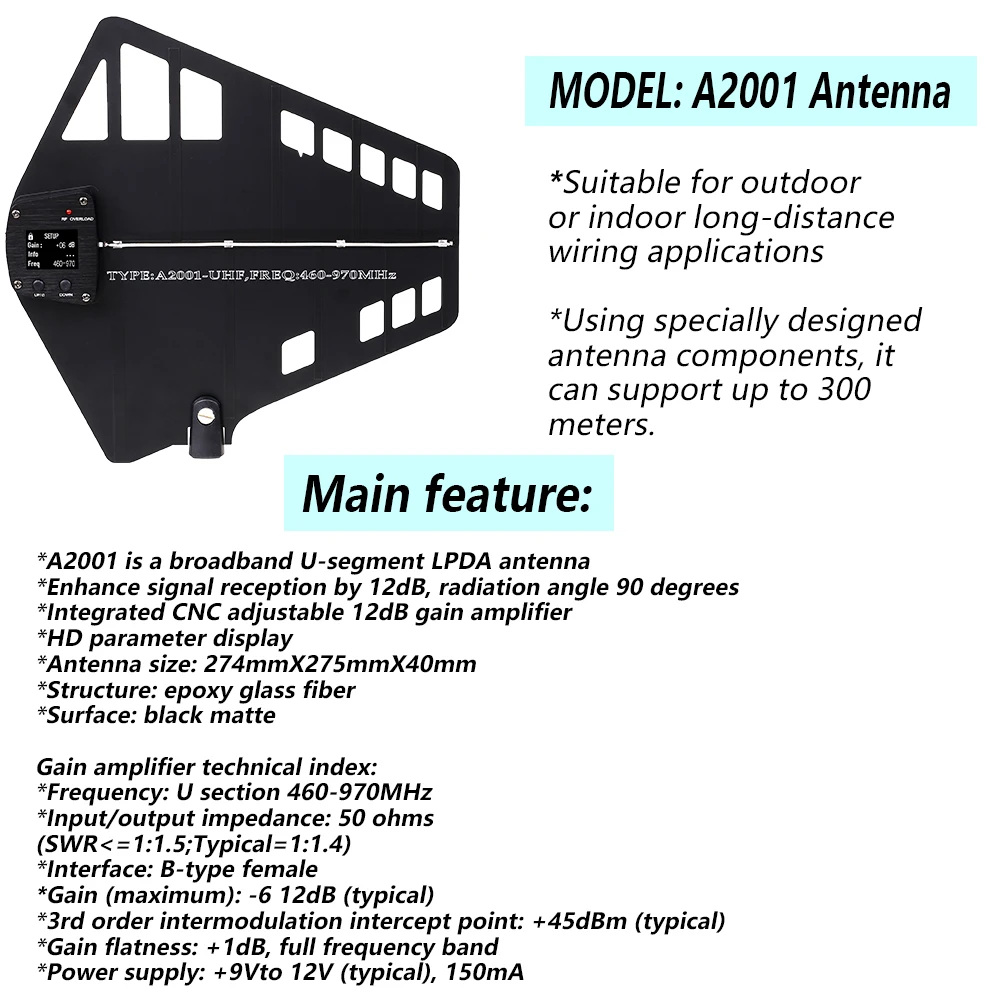

Technical Parameters

Frequency: U segment 450-970MHZ
Display mode: color high-definition TFT display
Control switch: touch button
Interface: B-type female
Output impedance: 50 ohms (SWR<=1:1.5)
Gain (maximum): 18dB
Radiation angle: 0-180
Integrated digital control adjustable: -12~18dB (32 levels)
3rd order intermodulation intercept point: +48dBm (typical)
Gain flatness: ±1dB
Power supply: +9V to 12V (typical), 150mA
