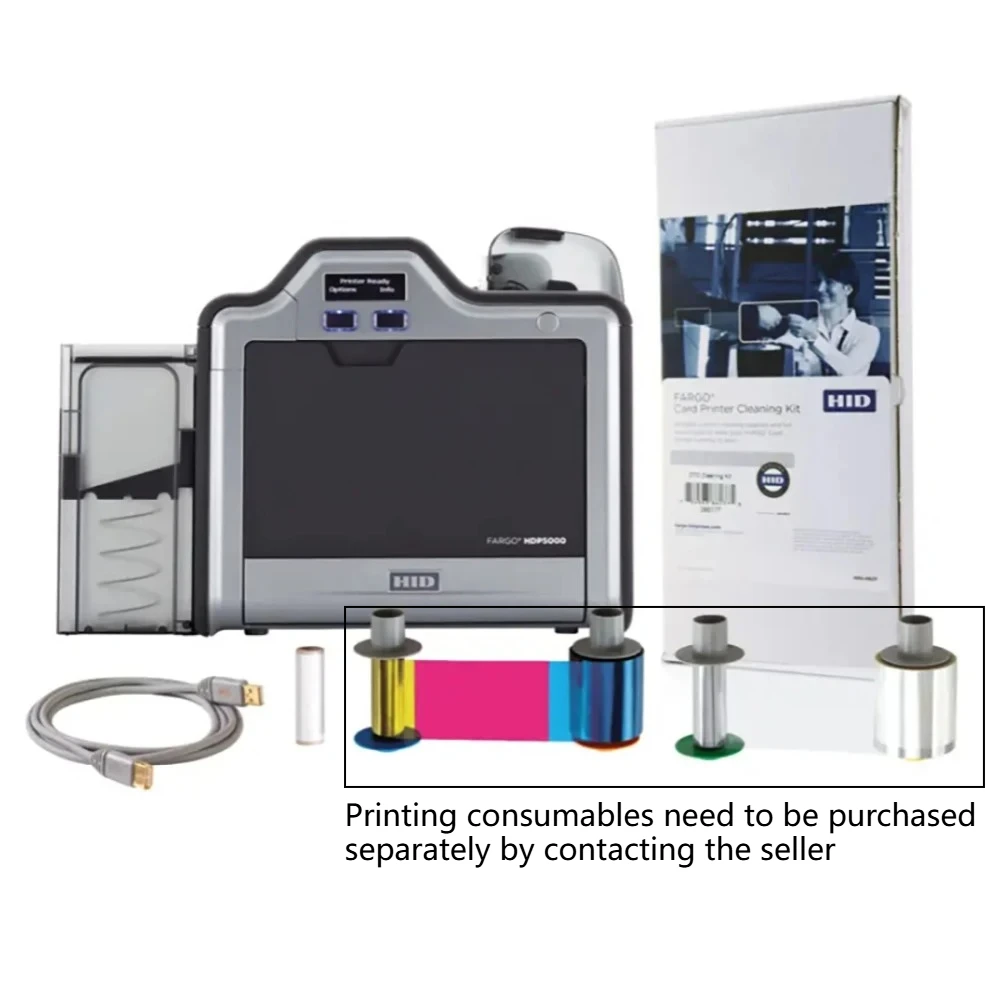

Packing list: Only printers are available. (Please contact the seller to purchase printing consumables. If you do not purchase printing consumables, the printer will not work.)

Note: The model of the printer needs to match the model of the printing consumables in order to function properly,

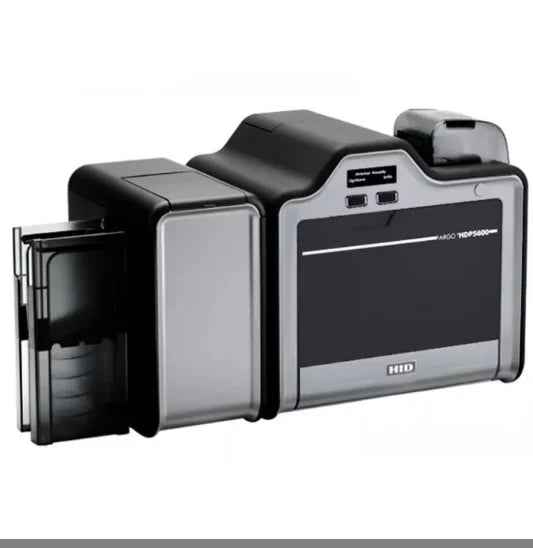

Printing method: HDP Dye-Sublimation/ resin thermal transfer
Resolution: 300dpi (11.8 dots/ mm)
Colors: Up to 16.7 million/ 256 shades per pixel
Printer Ribbon Option
*Full-color , YMC 750 Prints
*Full-color, with resin black YMCK 500 prints

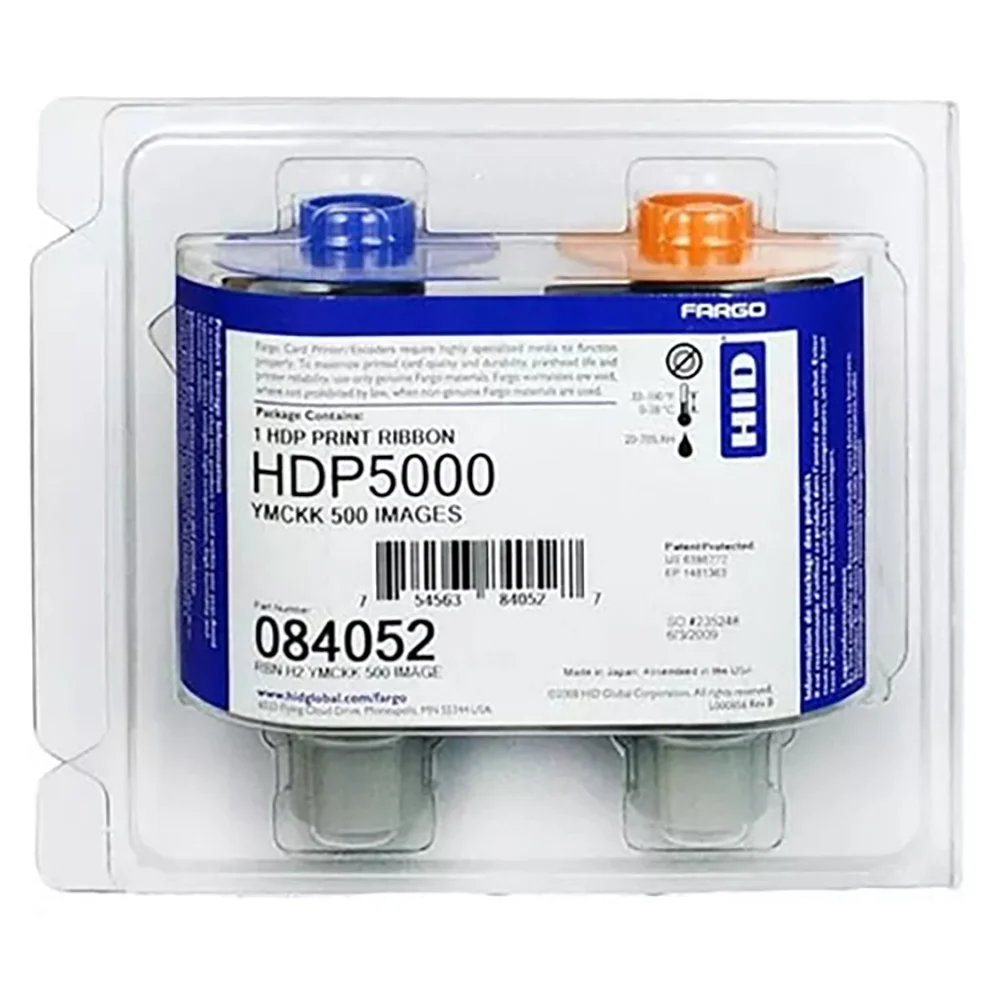

*Full-color, with two resin black panels, YMCKK 500 prints
*Full-color, with resin black and heat seal panel for difficult-to-print surfaces, YMCKH 500 prints
*Full-color, with resin black and inhibit panel for signature or other non-printing areas, YMCKI 500 prints
*Full-colors with fluorescing and resin black , YMCFK 500 prints
*Resin black K 3000 prints

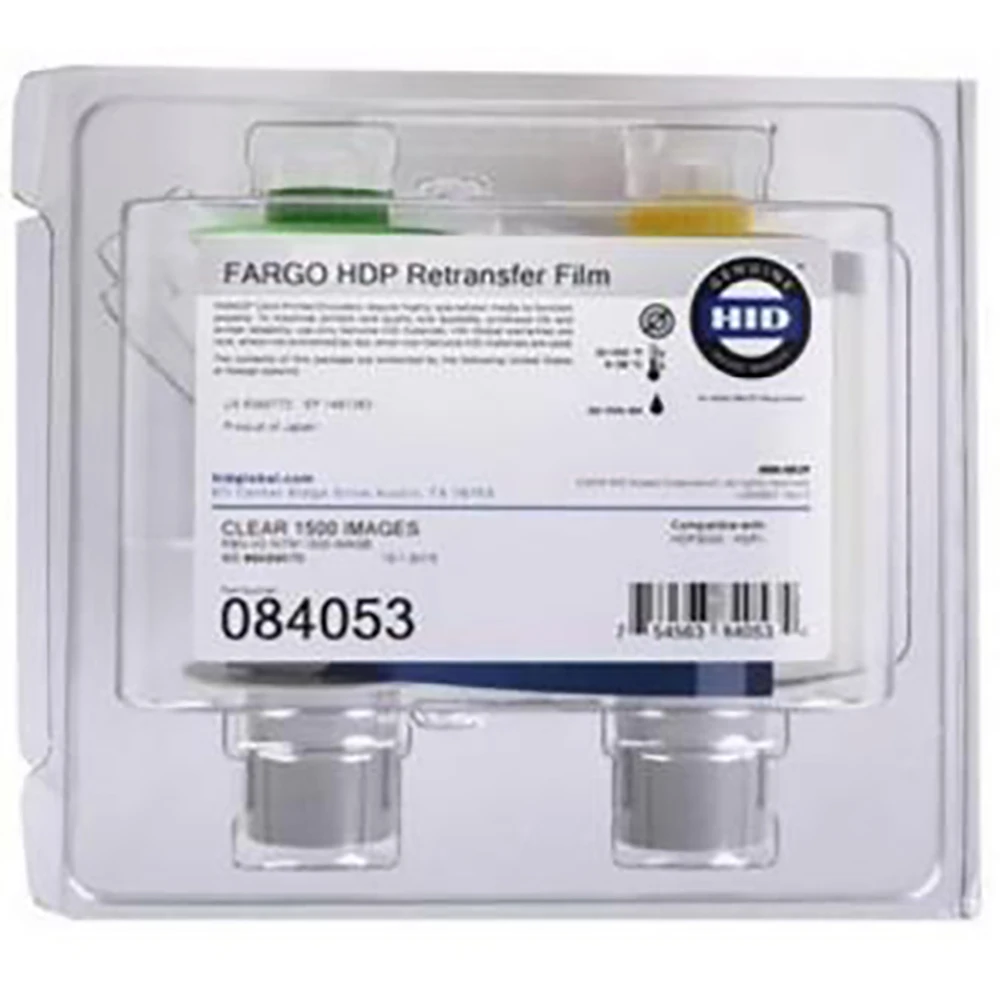

HDP Film Options
Clear (1,500 prints), standard Holographic ( 500 prints)
Custom Holographic, special order ( 500 prints)
Overlaminate Options
*Thermal Transfer Overlaminate , 25mil thick, 500 prints
*PolyGuard Overlaminate, 1.0 mil and 6 mil thick, 250 prints ( PolyGuard available in a CR-80 patch size)
*All overlaminates available in clear, standard holographic design or custom holographic design.
Print Speed
Batch Mode:
Up to 24 seconds per card/ 150 cards per hour ( YMC with transfer)
Up to 29seconds per card/ 124 cards per hour ( ymck with transfer)
Up to 40 seconds per card/ 90 cards per hour ( YMCKK with transfer)
Up to 35 seconds per card/ 102 cards per hour ( YMCK with transfer and dual-sided , simultaneous lamination)
Up to 48 seconds per card/ 75 cards per hour ( YMCKK with transfer and dual-sided, simultaneous lamination)
Accepted Standard Cards Sizes
CR-80 (3.370 L* 2.125 W) / 85.6mm*54mm
Print Area
Over- the-edge on CR-80 cards
Accepted Card Thickness
Print only: 0.30" (30 mil) to 0.50" (50 mil) / 762mm to 127mm
Print / Lamination: 0.30" (30 mil) to 0.5" (50 mil) / 762mm to 127mm
Accepted Card Types
ABS, Laminated PVC, PET, PETG, proximity, smart and mag stripe cards, optical memory cards
Note: ABS and PVC cards are not recommended for use in the HDP5000 Lamination Module .
Input Card Cartridge Capacity: 100 cards (0.30") / 762mm
Output Hopper Card Capacity: 200 cards (0.30") /762mm

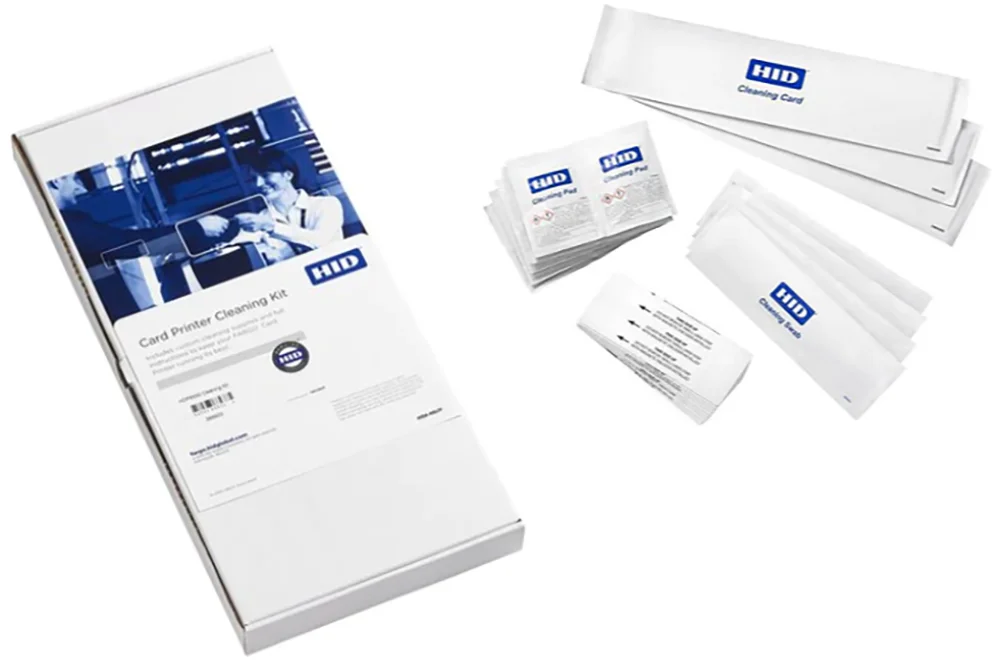

Card Cleaning
Replaceable cleaning roller ( included with each prin ribbon)
Display
User-friendly, SmartScreen LCD Control Panel
Software Drivers
Windows 8/ 7/ Vista ( 32 bits & 62 bit ) / Server 2008& 2003 / XP, Mac OS / v10.6/ v10.5 / Linux
Single Wire USB 2.0
Encoding Options
ISO Magnetic Stripe Encoding, Dual High-and low coercivity, Tracks 1.2 and 3
Contactless Smart Card Encoder ( HID ICLASS and MIFARE)
ISO 7816 Contact Smart Card Encoder
Prox Card Reader ( HID read-only)

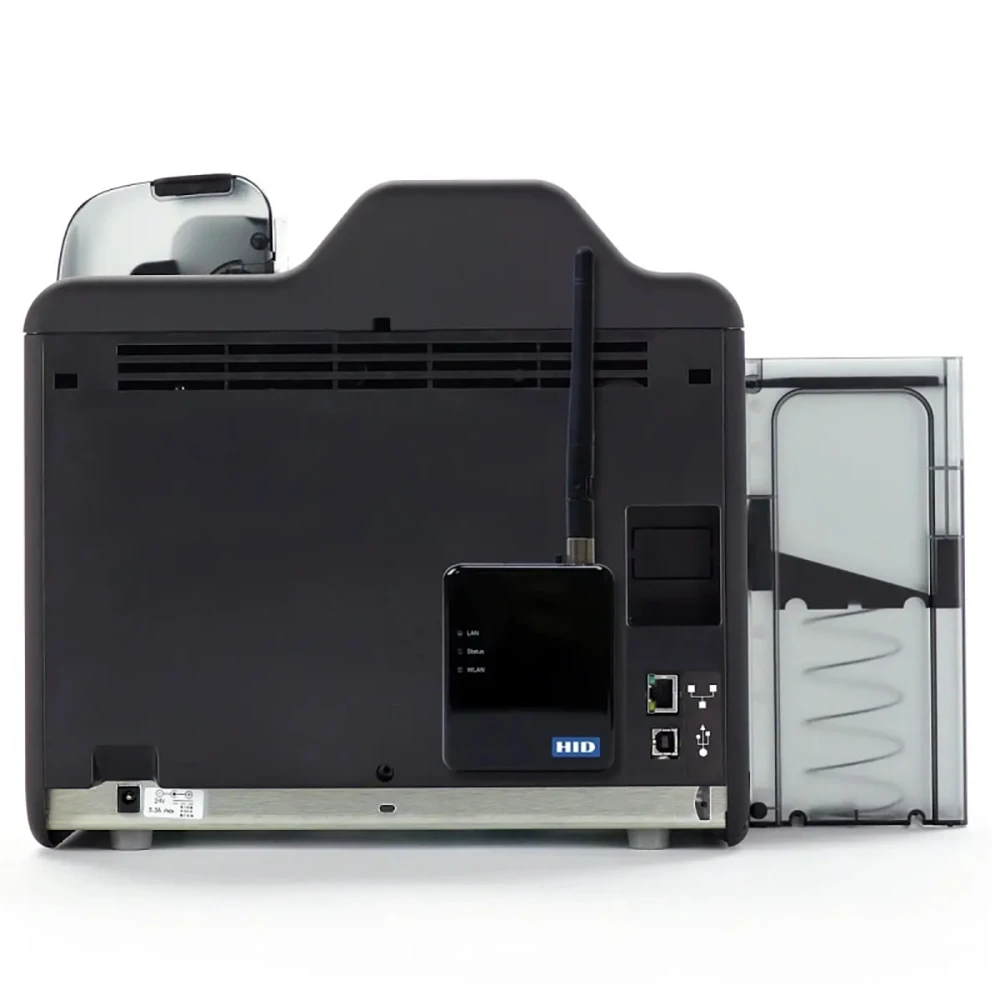

Interface
USB 2.0 ( high speed) and Ethernet with Internal print server
Operating Temperature
65 to 90 F/ 8celcius to 32 celcius
Humidity
20-80 % Non-condensing

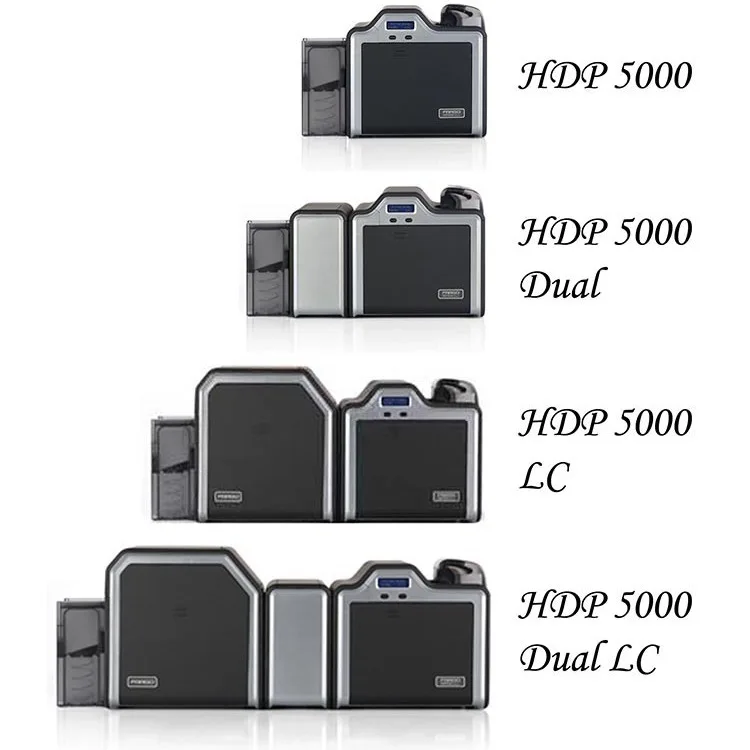

Dimension
HDP5000 11.5 " H * 12.25" W* 9.25" D ( 292mm H * 313mm W * 235mm D)
HDP5000 + Dual-sided Module : 11.5" H * 17.5 " W * 9.25 " D ( 292mm H * 445 mm W * 235mm D)
HDP5000 +Single -Sided Lam Module : 12.75" H * 25" W * 9.25" D ( 324mm H * 635mm W * 235mm D)
HDP5000 + Dual-sided Module + Dual-sided Lam Module: 12.75 " H * 30" W * 9.25 " D ( 324mm H * 762mm H * 235mm D)
Lam Module : 12.75" H * 12.25" W * 9.25 " D ( 324mm H * 313mm W * 235mm D)
Weight
HDP 5000: 16 lbs / 7.3KG
HDP5000 + Dual-sided Module: 22 lbs/ 10KG HDP5000 + Single -sided Lam Module : 28 lbs/ 12.7 KG
HDP5000 + Dual-sided Module+ Dual sided Lam Module : 36 lbs/ 16.4KG
Certifications
UL, CE, IC, FCC , Class -A, CCC, BSMI, KC, MIC
Supply Voltage
100-240 VAC, 3.3A
Supply Frequency
50 Hz/ 60 Hz
