Nobsound M5.1 Digital Bluetooth Receiver 5.1 Channel
SCORE BIG SALE
£202.00
↓ Save £60.00
£262.00
China Mainland
✓
SPECIFICATIONS
Brand Name: nobsound
Certification: CE
Channels: 6 (5.1)
High-concerned chemical: None
Maximum Power Per Channel: 50 W
Model Number: M5.1
Origin: Mainland China
Package: Yes
Type: 5.1 Channel Amplifier
Warm tips:
1. Default comes with ONE 24V/6A power adapter, if you want higher output please prepare another one by yourself.
2. Long press play/pause button can switch between 2.1 and 5.1 channel output mode. When switching to 5.1 channel output mode, any input modes can achieve 5. 1 channel output.
3. If you want real 5.1 channel output, please use 5.1 channel RCA input. If input 2.0 channel but output 5.1 channel, the stereo signal is processed and simulated to 5.1 channel.
4. Please note that digital inputs (USB/COAXIAL/OPTICAL) only support PCM stereo signals. Otherwise, there will be no audio output.
3. If you want real 5.1 channel output, please use 5.1 channel RCA input. If input 2.0 channel but output 5.1 channel, the stereo signal is processed and simulated to 5.1 channel.
4. Please note that digital inputs (USB/COAXIAL/OPTICAL) only support PCM stereo signals. Otherwise, there will be no audio output.
Features

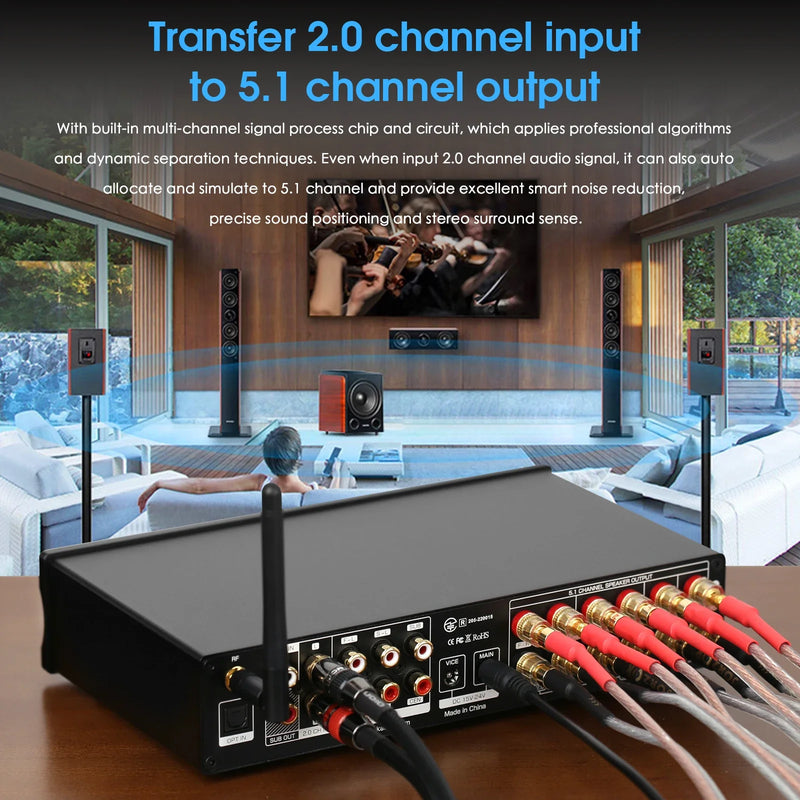

Transfer 2.0 channel input to 5.1 channel output: with built-in multi-channel signal process chip and circuit, which applies professional algorithms and dynamic separation techniques. Even when input 2.0 channel audio signal, it can also auto allocate and simulate to 5.1 channel and provide excellent smart noise reduction, precise sound positioning and stereo surround sense.

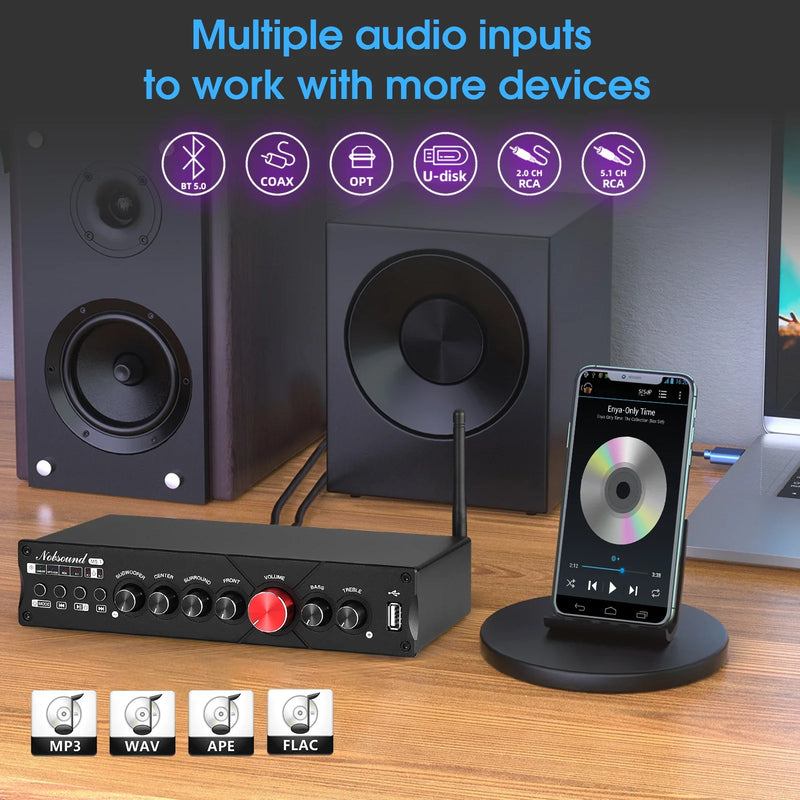

Multiple audio inputs to work with more devices: with Bluetooth 5.0 / coaxial / optical / U-disk four digital inputs and 2.0CH / 5.1CH RCA inputs, strong compatibility and works perfectly with most home audio devices. U-disk input supports lossless formats such as WAV, APE, FLAC besides MP3, high-quality music can be reproduced and enjoyed.

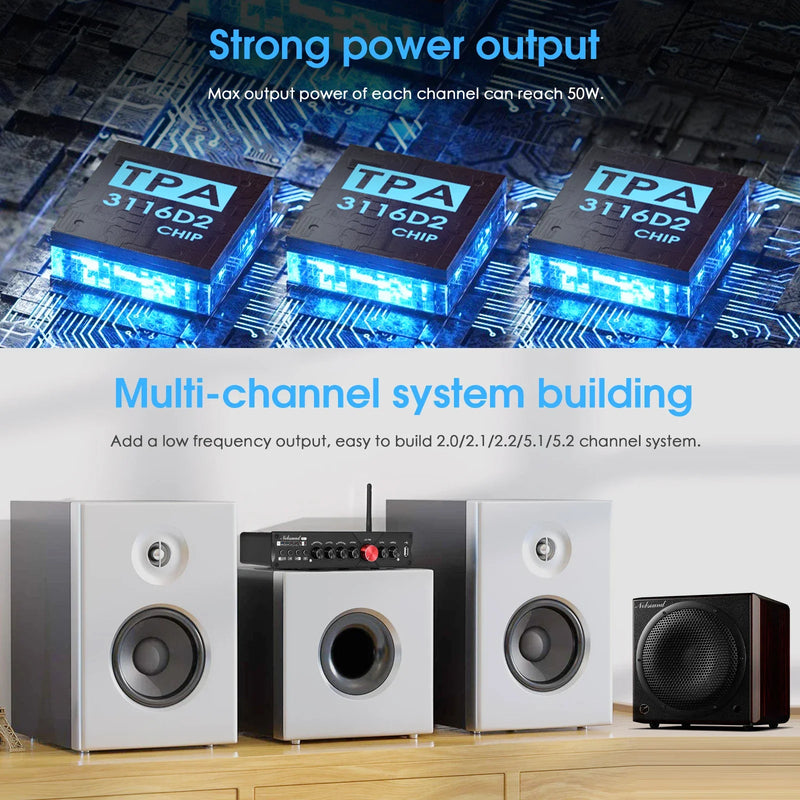

Strong power output and multi-channel system building: adopting 3PCS classic TPA3116 chip, responsible for front (50W*2)/ surrounded (50W*2) / center(50W) / subwoofer(50W) outputs; specially add a low frequency output to connect another active subwoofer to easily build 2.0/2.1/2.2/5.1/5.2 channel system and enjoy shocking auditory effects as if you are in a movie theater.

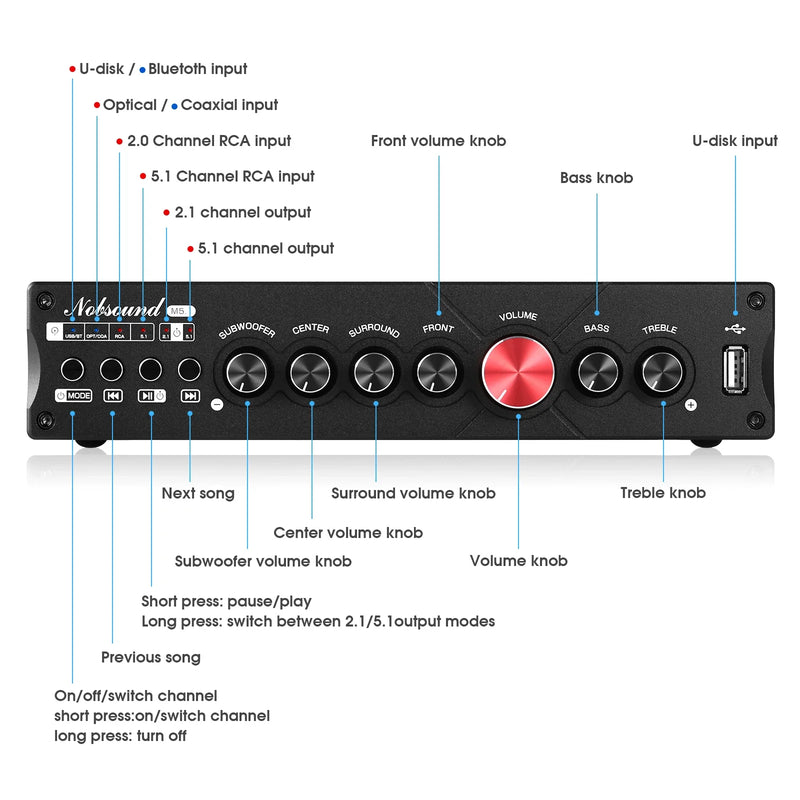

Independent control knobs and dual power inputs: besides main volume control and treble & bass knobs, also with separate front/ surround/ center/ bass volume control; and specially design two power supply inputs (main/vice) to provide stronger power input to easily drive most home speakers and subwoofers with high power.
User-friendly design and advanced functions: with detailed function buttons and separate indicators, convenient to use and see the working status in real time; one button to switch 2.1 and 5.1 channel outputs, no need to plug in and out speaker cables repeatedly. Made of aluminium alloy and in compact size, very suitable for those who want to build a mini HIFI 5.1 channel system.
Parameters
Brand: Nobsound
Model: M5.1

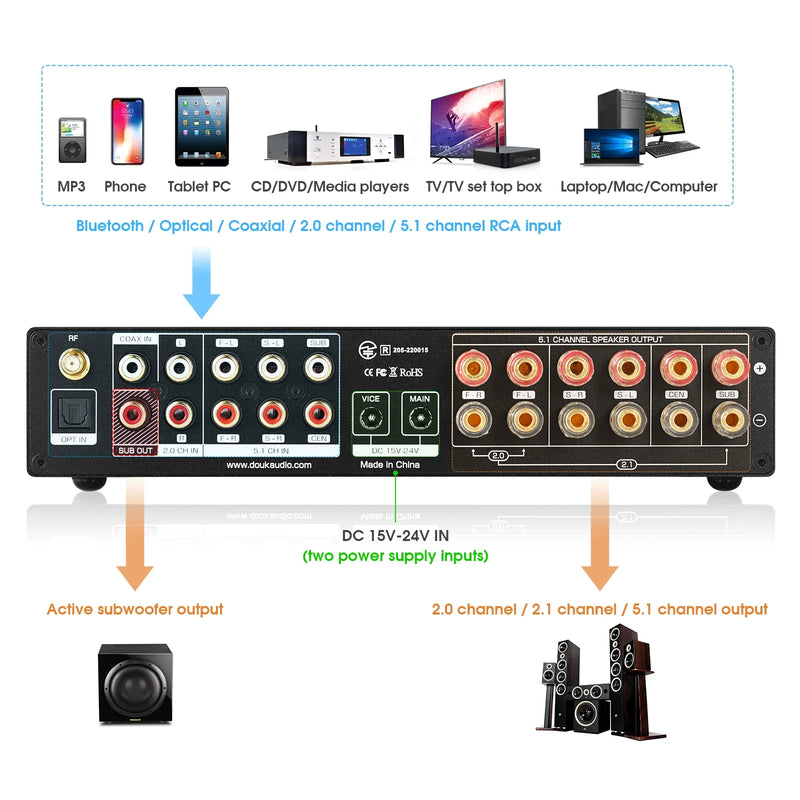

Audio input: Bluetooth 5.0 / Coaxial / Optical / U-disk / 2.0 Channel RCA/ 5.1 Channel RCA
Audio output: banana speaker jacks / low frequency out (connect to active subwoofer)
Maximum output power:
Front channel: 50W+50W
Surrounded channel: 50W+50W
Center channel: 50W
Bass channel: 50WSupported formats of U-disk: MP3/WAV/APE/FLAC
Sampling rate supported:
U-disk: 16Bit / 44.1-48KHz
Bluetooth: 16Bit 1 44.1-48KHz
Coaxial: 16-24Bit / 44.1- 192KHz
Optical: 16-24Bit / 44. 1-192KHz
Frequency response: 20Hz-20KHz (+1 .5dB)
Bass frequency response: 40Hz-160Hz
Input sensitivity: 0.775V
SNR: ≥100dB
THD: 0.05% @1kHz
Treble/bass range: ±6dB
Working voltage: DC 15-24V
Dimensions(W*D*H): 230*130*49mm / 9.06*5.12*1.93in
Package dimensions(W*D"H): 410*205*83mm / 16.14*8.07*3.27in
Net weight: 1.19kg / 2.62lb
Package weight: 1.8kg/ 3.971b
Packing List
1*M5.1 Amplifier
1*24V/6A Power Adapter
1*Optical Cable
1*Bluetooth Antenna
1*User Manual
