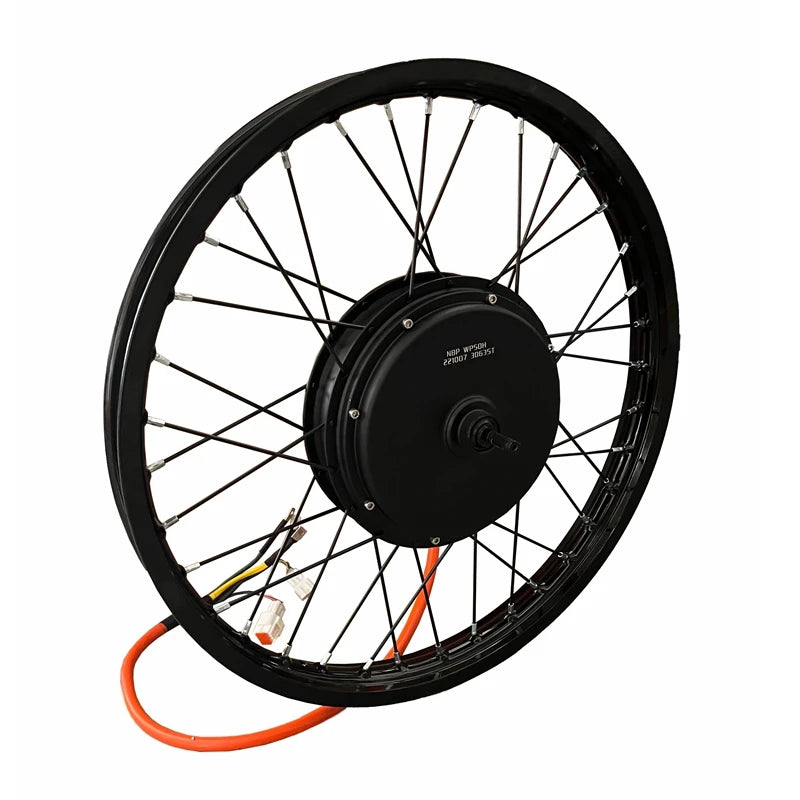

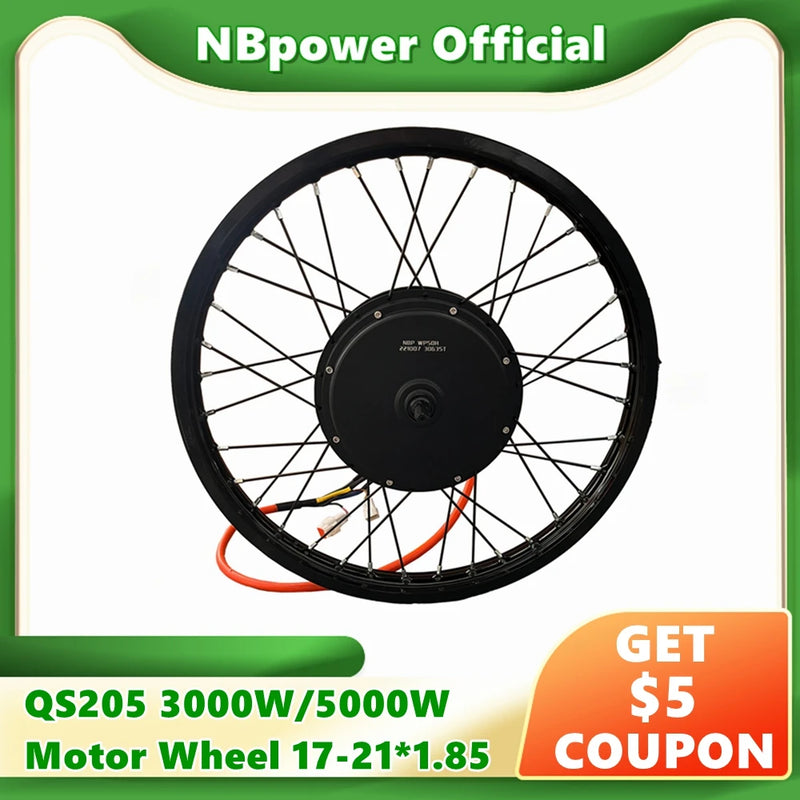

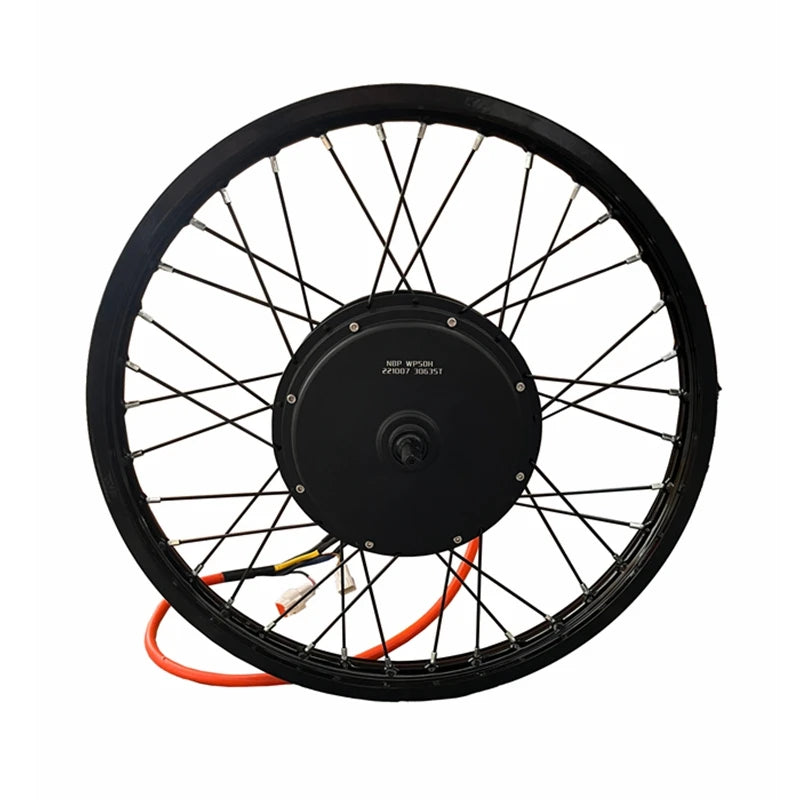

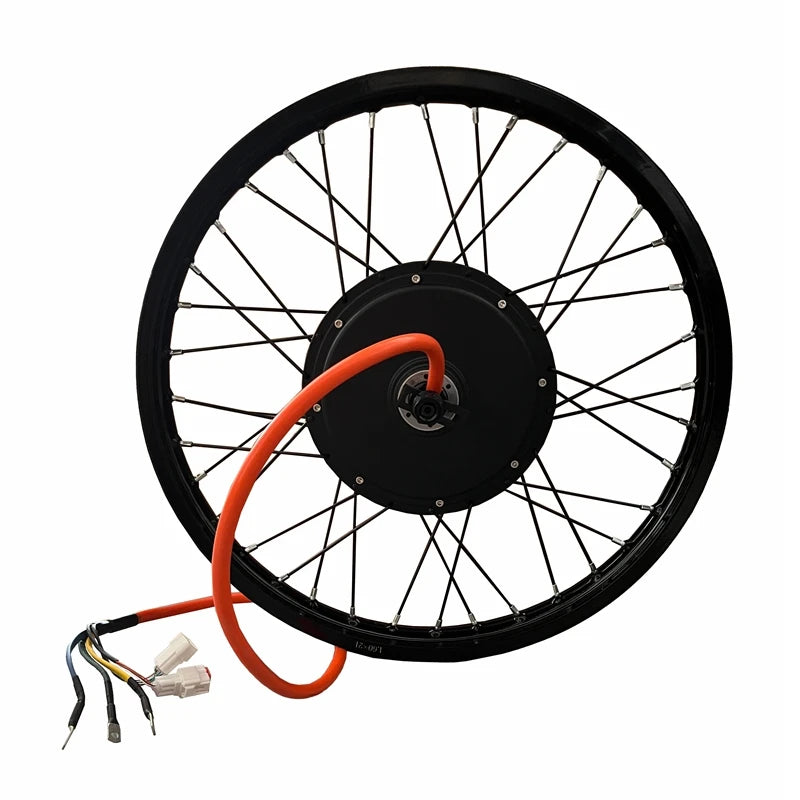

NBpower/QS205 50H V3 48-96V 3000w 5000w Electric Bike Hub Motor Wheel 150mm Dropout Ebike Motorcycle Rear Motor Wheel Peak 10kw
SCORE BIG SALE
£283.00
↓ Save £101.00
£384.00
United States
✓
China Mainland
✓
SPECIFICATIONS
Brand Name: NIBEDU
Design: Brushless
High-concerned chemical: None
Motor: Brushless Non-gear Hub Motor
Mounting Position: Rear Drive
Origin: Mainland China
Voltage: 72 V
Wattage: > 1000w
50H QS205 V3 48-96V 72V Rated 3000w 5000w Electric Bike Hub Motor Wheel 150mm Dropout Ebike Motorcycle Rear Motor Wheel Peak 10kw
Difference between 3.5T and 5T : 3.5T is high speed version, 5T is high torque version, 5T max speed is much lower than 3.5T. If you often ride on mountain road or your ebike will load heavy weight, then 5T is better for you.
1. Generally SPEC
Motor Type: BLDC In-Wheel Hub Motor
Motor Design: Double Axle with Rim(integrated)
Matched Tire: 17inch-29inch
PCD: 6*44mm
Stator: Aluminum Core
Rated Power: 5000W
Peak Power: 10000W in few seconds
Rated Voltage: 72V
Speed: 850rpm
Drop-outs: 150mm
Max Torque: approx 181N.m
Max Efficiency: approx 91%
Suggest Peak Phase Current: N/A
Thermic Probe: KTY83/122(as default)
Working Temperature: 70-120℃, peak 150℃
Brake Type: Disc Brake
Hall Sensor: Dual hall set with waterproof connector
Phase Wire:2*5mm²Cross
Hall Sensor Phasing Angle: 120 degree
Waterproof Grade: IP65
Color: Black
Pole Pairs: 16
1.Motor Type: BLDC Hub Motor with Permanent Magnet
2.Motor design: Double axle out
3.Spoke hole: 3.4mm x 36pcs
4.Matching Rim:16inch-29inch
5.Magnet Height: 50MM
6.No. of Pole Pairs: 16paris
7.Rated Power:3000W
8.Peak Power: 6000W
9.Rated Voltage: 72V
10.Max No-load RPM: 950RPM
11.Max Torque: 150N.M
12.Max Efficiency: 88%
13.Max current:80A (Peak 100A in short time)
14.Brake type: Disc brake
15.Rear Fork width for installation: 150mm
16.Winding Core material: Aluminium
17.Cross Section of Phase wire: 10 mm2
18.Hall sensor phasing angle: 120 degree
19.Temperature Sensor: Optional
20.Max. Working Temperature: 70 degree, Peak 120 degree
21.Waterproof Grade: IP54
Package content
1x 5000w motor wheel , rim width 1.85
Motorcycle Rim Details
1) 17inch 18inch 19inch 21inch aluminum alloy rim for choose.
2) It is aluminum alloy material, good quality.
3) It is good for various tires 2.5 2.75 or 3.0

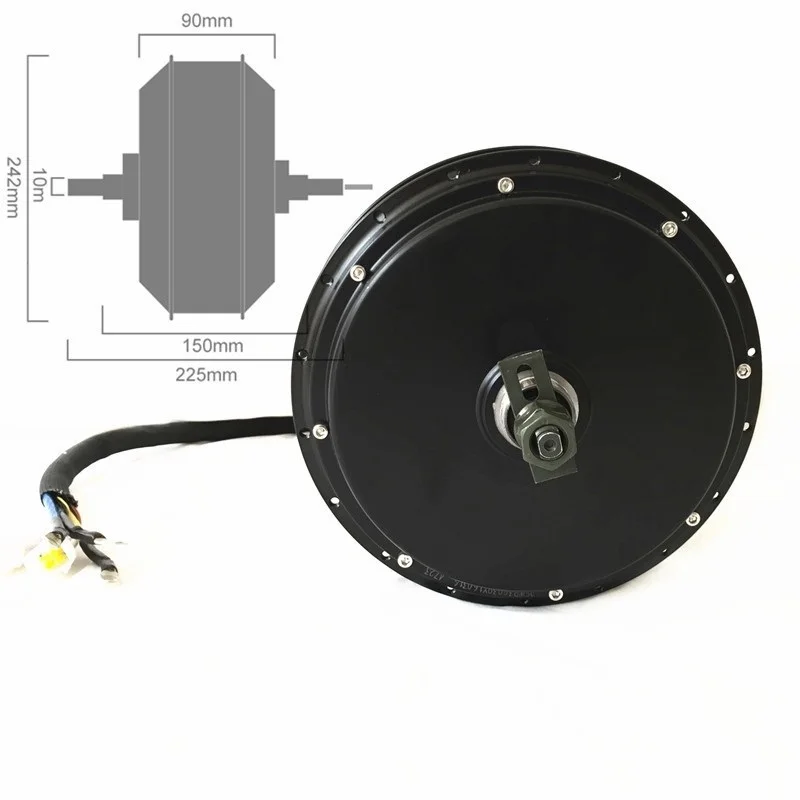

Drawing for 5000w electric bike hub motor wheel :
