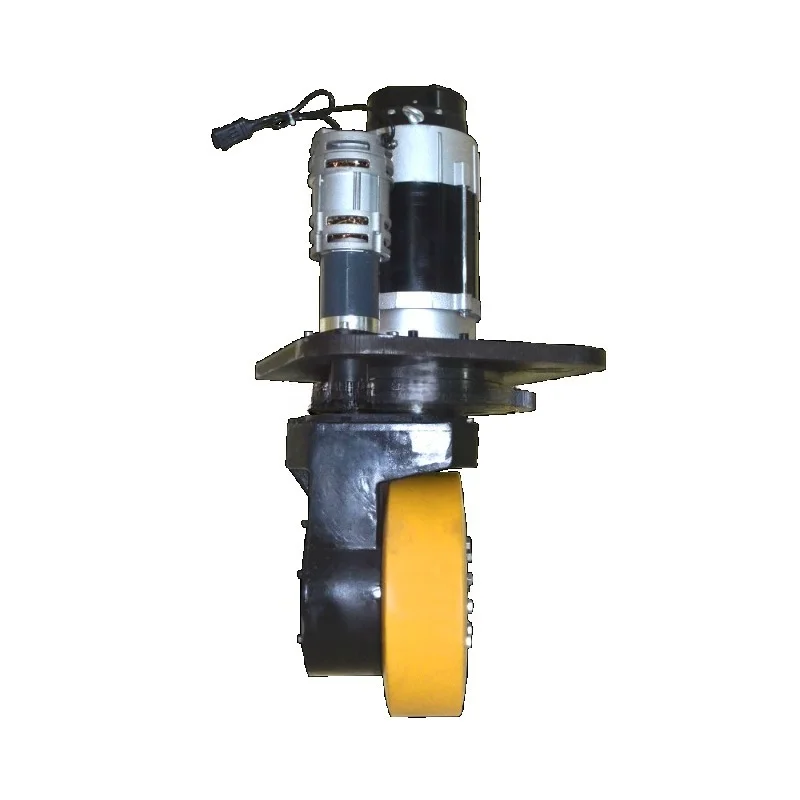

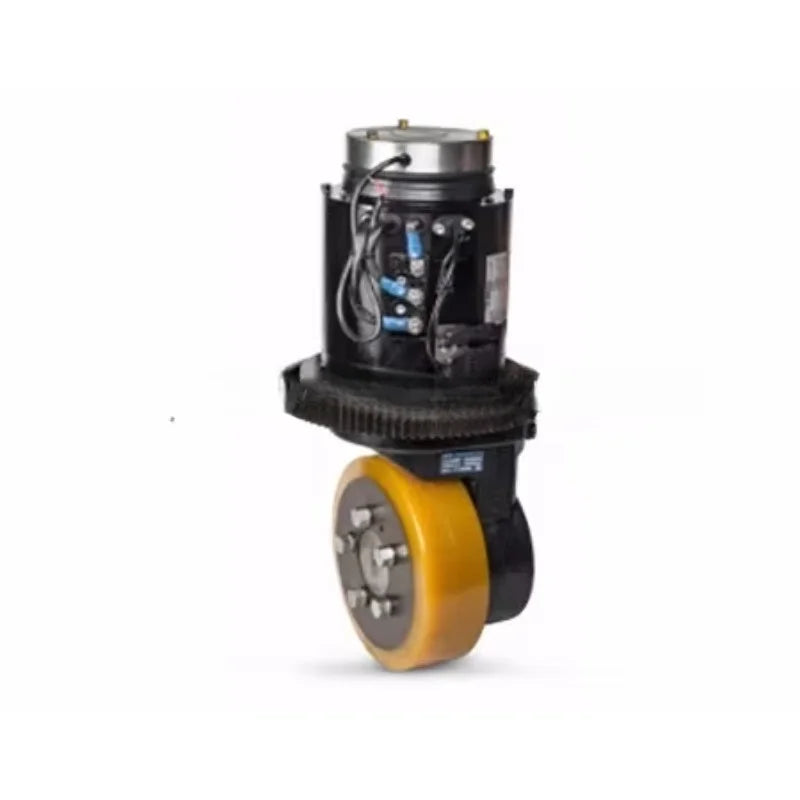

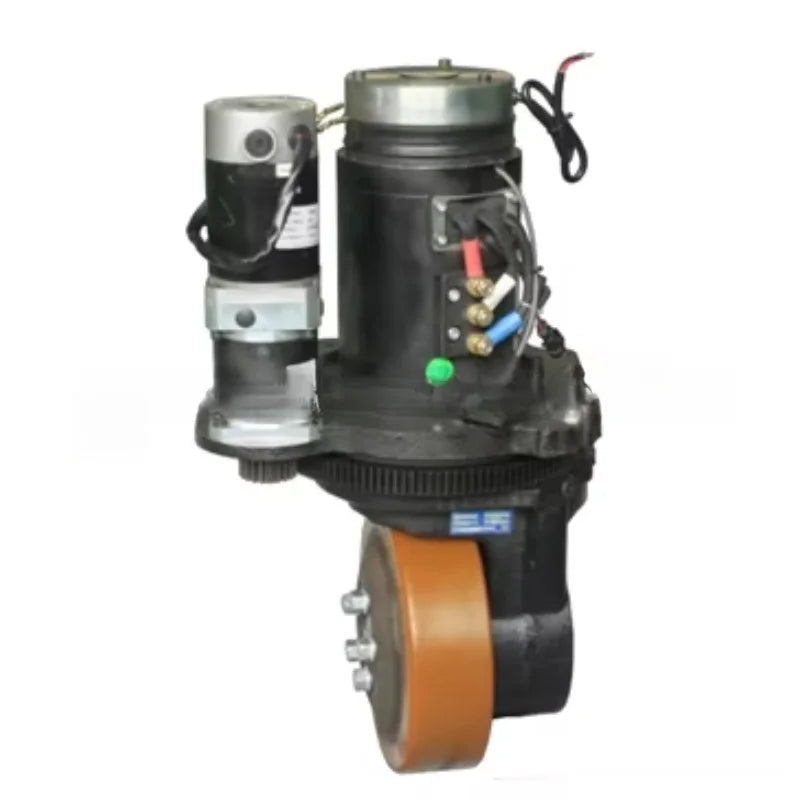

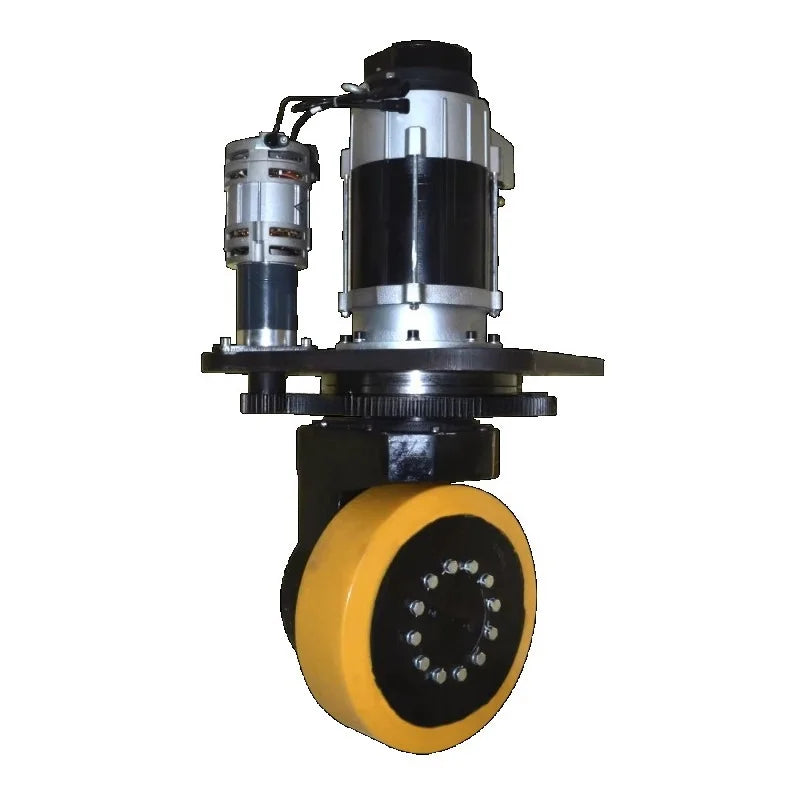

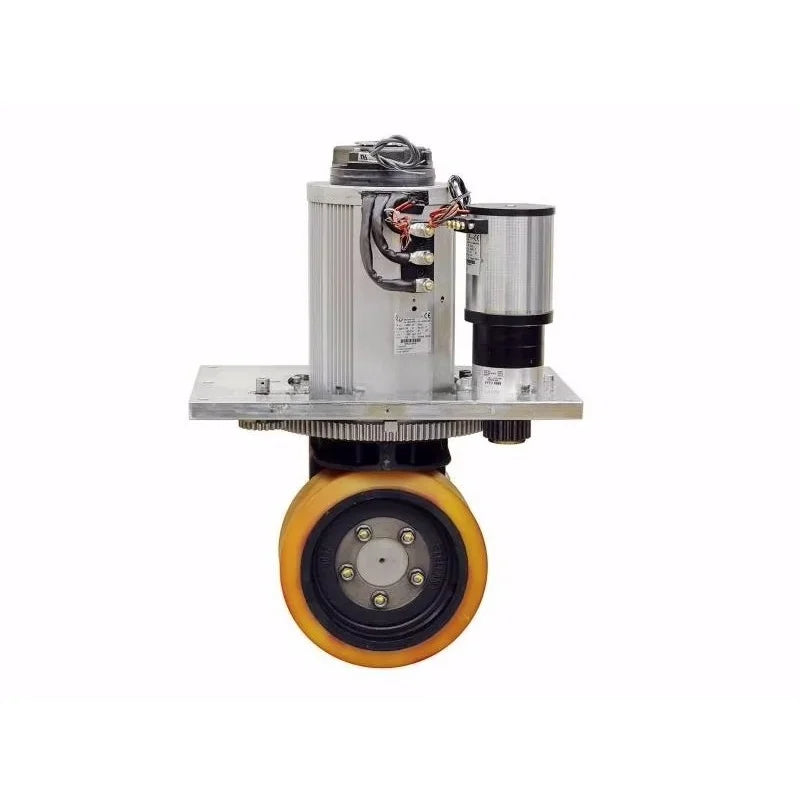

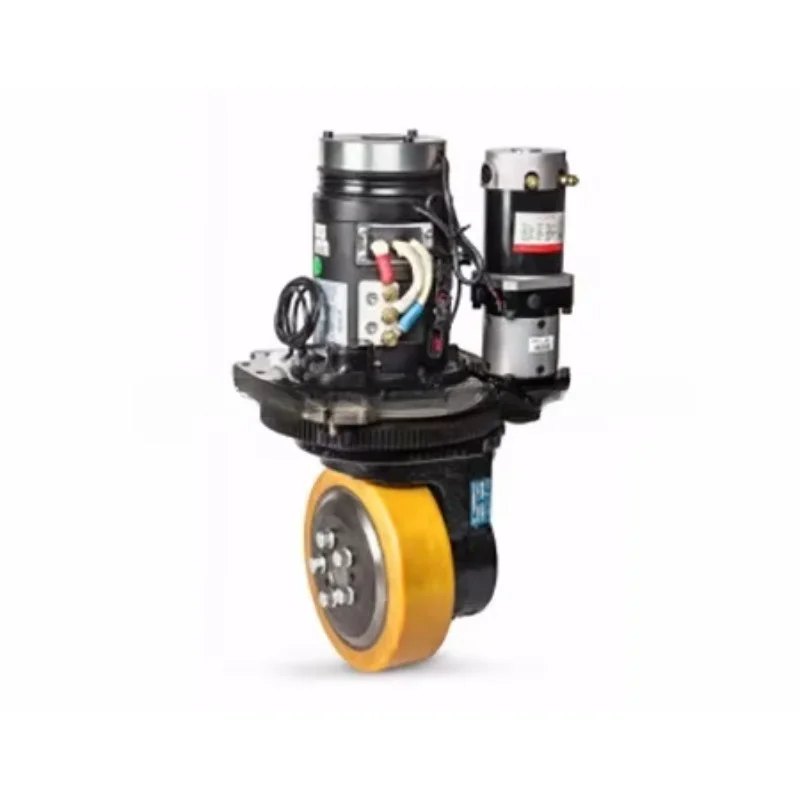

Multi-function automatic walking AGV drive wheel unit with steering 24V 1300W DC motor
SCORE BIG SALE
£4,758.00
↓ Save £100.00
£4,858.00
✓
SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: None
Material: Rubber
Motor torque: 3.88Nm
Origin: Mainland China
Rated current: 76.2A
Steering motor type: Brushed DC
Type: Other
gear ratio: 30i
voltage: 24V
Product Description
| Multifunctional Automated Walking AGV Drive Wheel Unit with Steering 24V 1300W DC Motor |
| Model Name | PLT-230P1300A-24VS |
| Traction motor type | ACIM |
| Rated Power(W) | 1300 |
| Battery voltage(V) | 24 |
| Traction motor rated speed(RPM) | 3200 |
| Frequency | 110.7 |
| Traction rated current(A) | 76.2 |
| Traction motor torque(Nm) | 3.88 |
| Traction gear ratio | 30 |
| Traction gear torque(Nm) | 73 |
| wheel diameter(mm) | 230 |
| Wheel width(mm) | 81 |
| Mounting height(mm) | 582 |
| Max.turning radius(mm) | |
| max.load(kg) | 800 |
| max.speed(m/s) | 1.28 |
| Steering | |
| Steering motor type | Brushed DC Motor |
| Steering Power(W) | 200 |
| Steering rated current(A) | 11.5 |
| Steering gear ratio | 32 |
| Steering motor torque(Nm) | 0.74 |
| Steering gear torque(Nm) | 21.3 |
| Steering motor rated speed(RPM) | 2600 |
-Differential drive wheel with loads 150kg
-Vertical drive wheels with payloads from 800kg up to 3000kg
-Horizontal drive wheels with payloads from 150kg up to 1800kg
-AC motor, DC brushed motor, DC brushless, PMSA(permanent magnet synchronous AC motor,
mixed motor
-The drive wheel is designed for internal use on battery-operated vehicles ( fork lift trucks, self –propelled vehicles, AGV’S guided or guide wire)
-It can rotate 360 degrees, but generally are mounted mechanical stops or electromechanical switch to reduce the degrees of rotation.
-The drive gear is lubricated with grease, using grinded gear to minimize noise.
-Produced with low noise gear box, minimal envelope radius, and compact design.
