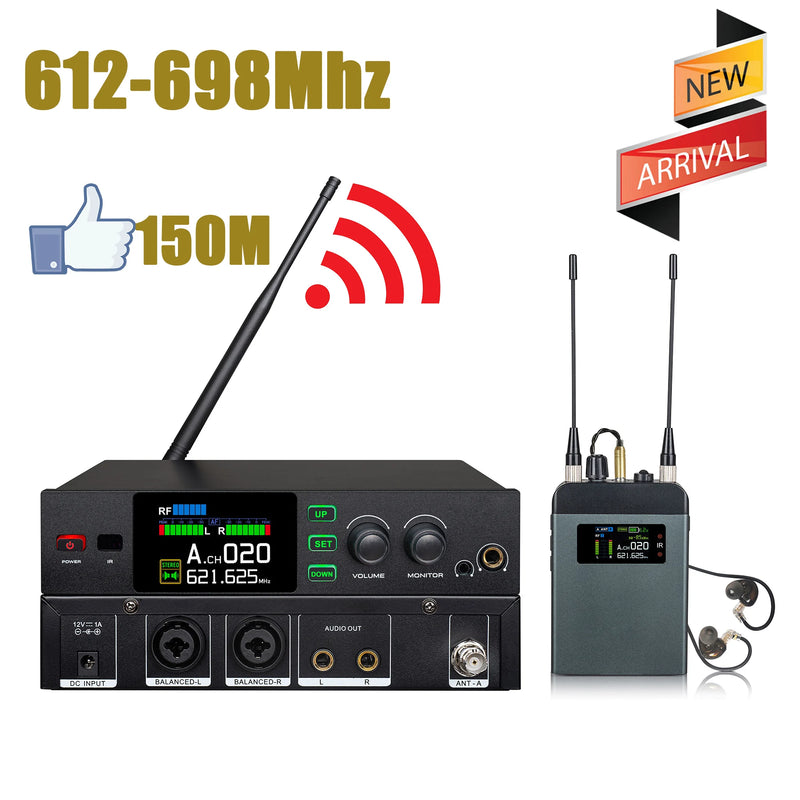

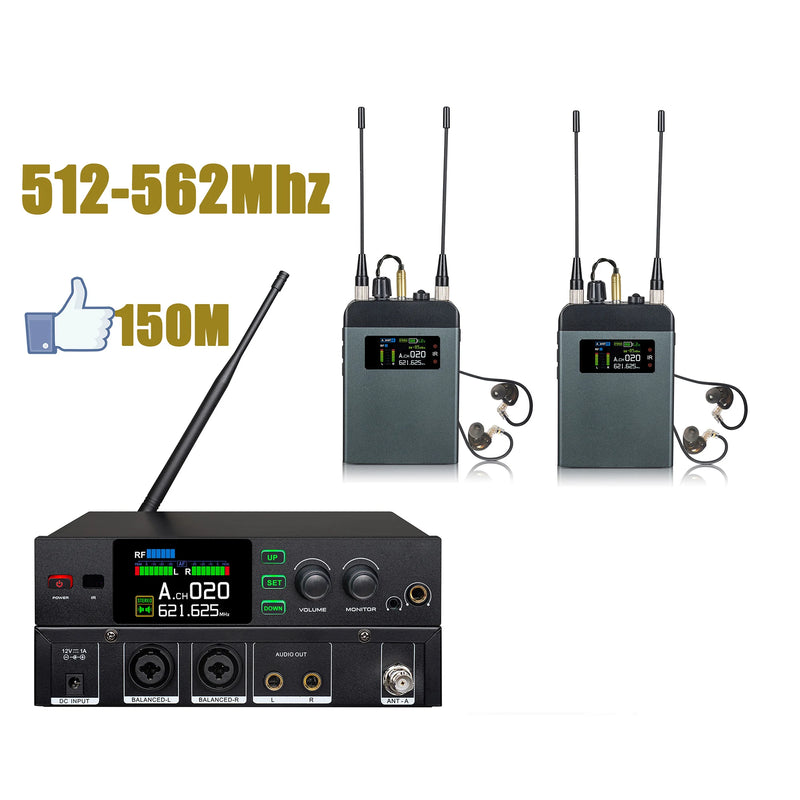

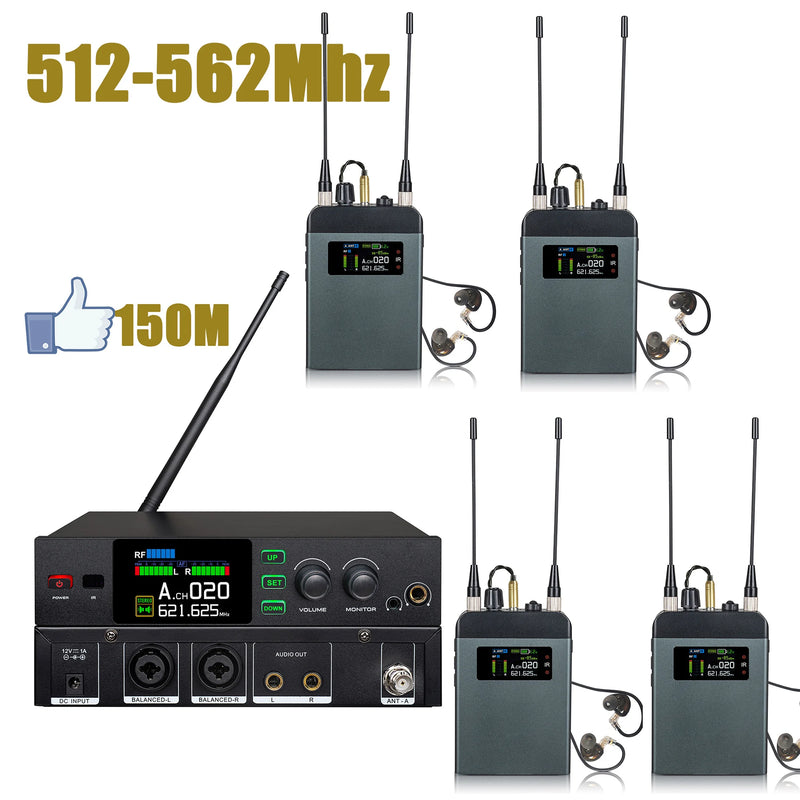

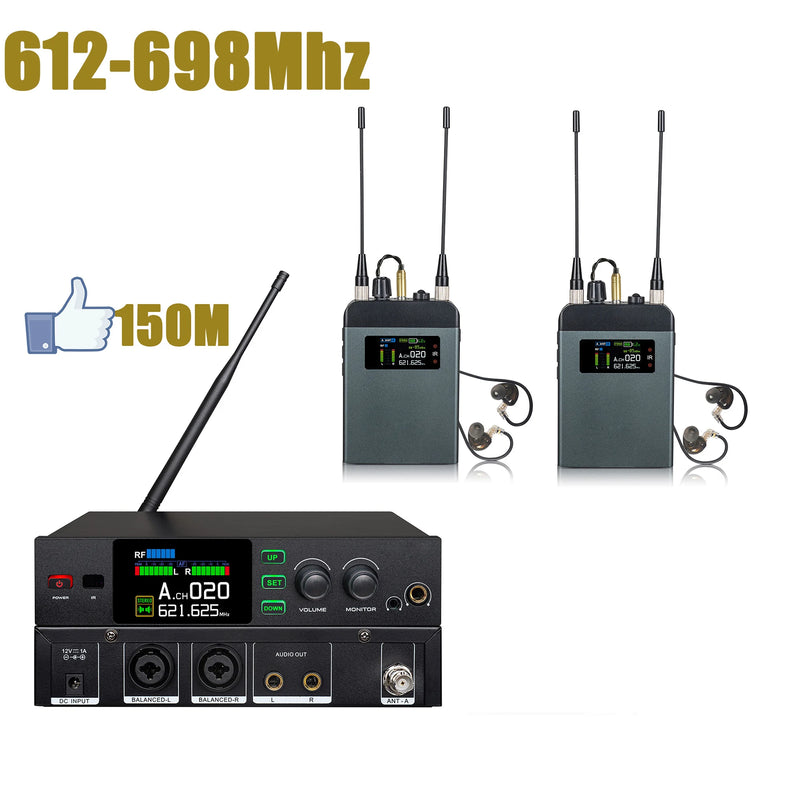

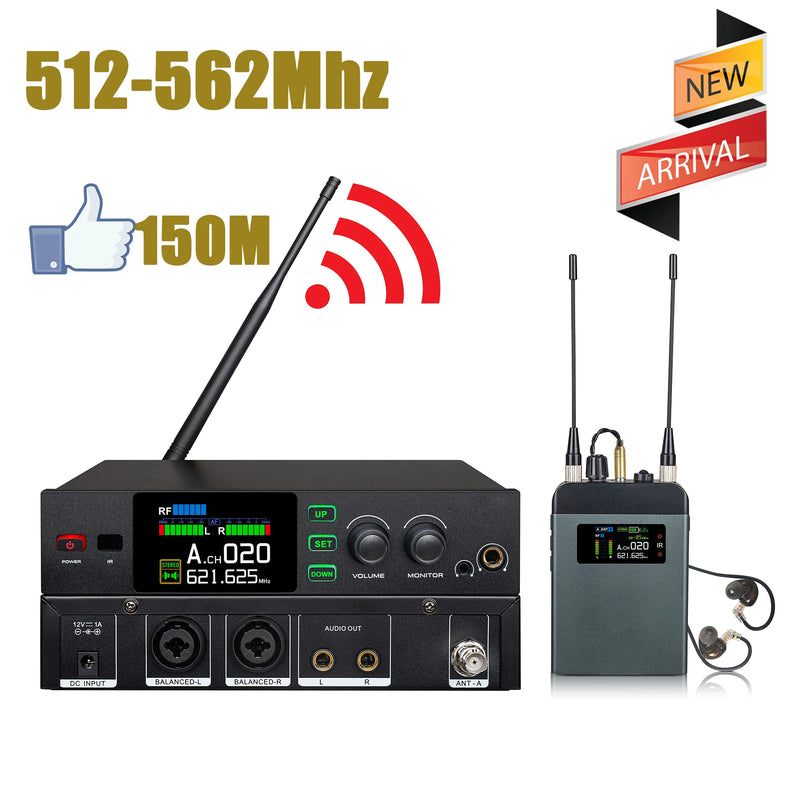

Leicozic PM10 True Diversity Stereo Wireless In Ear Monitoring System 150M 2x150mW Hifi Sound System In-Ear IEM Pro Stage Audio
SCORE BIG SALE
£111.00
↓ Save £97.00
£208.00
SPECIFICATIONS
Band Width: 32MHz
Battery: AA Battery 1.5V X 2
Brand Name: Leicozic
Built-in Battery: No
Certification: CE
Frequency: 612-698Mhz / 537.561.75Mhz
High-concerned chemical: None
Inbox adaptor: Yes
Model Number: PM10
Origin: Mainland China
Oscillation Mode: PLL Synthesized
Power Source: Ac,Ac
Receiver Output Power: 2 X 150mW
Receiving method: True diversity receiving
Type: In-Ear Monitoring
Voltage range: High voltage (50-1000V DC, 75-1000V AC)
Leicozic PM10 True Diversity Stereo Wireless In Ear Monitoring System 150M 2x150mW Hifi Sound System In-Ear IEM Pro Stage Audio

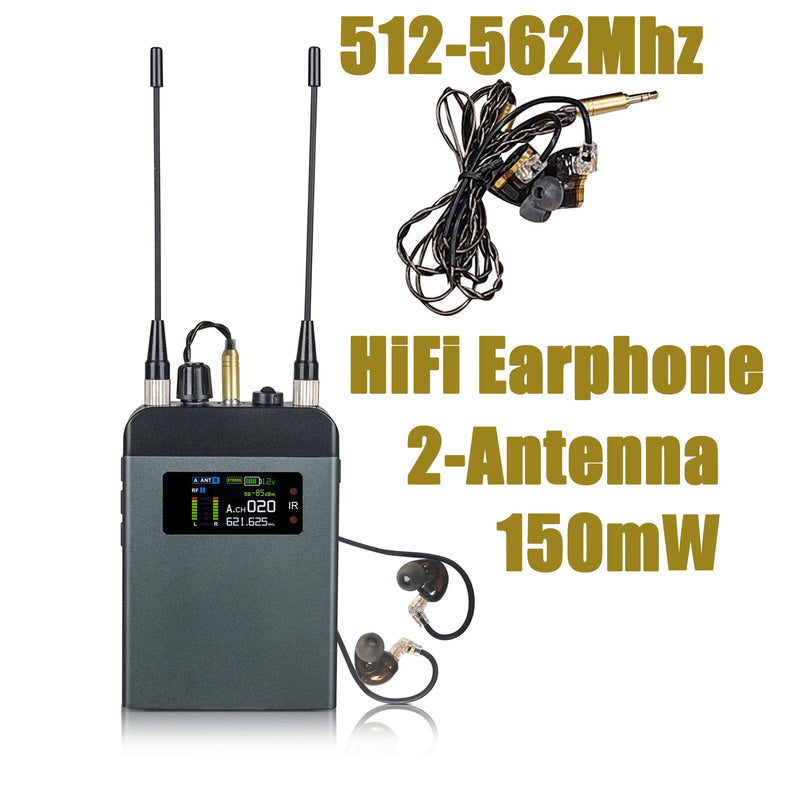

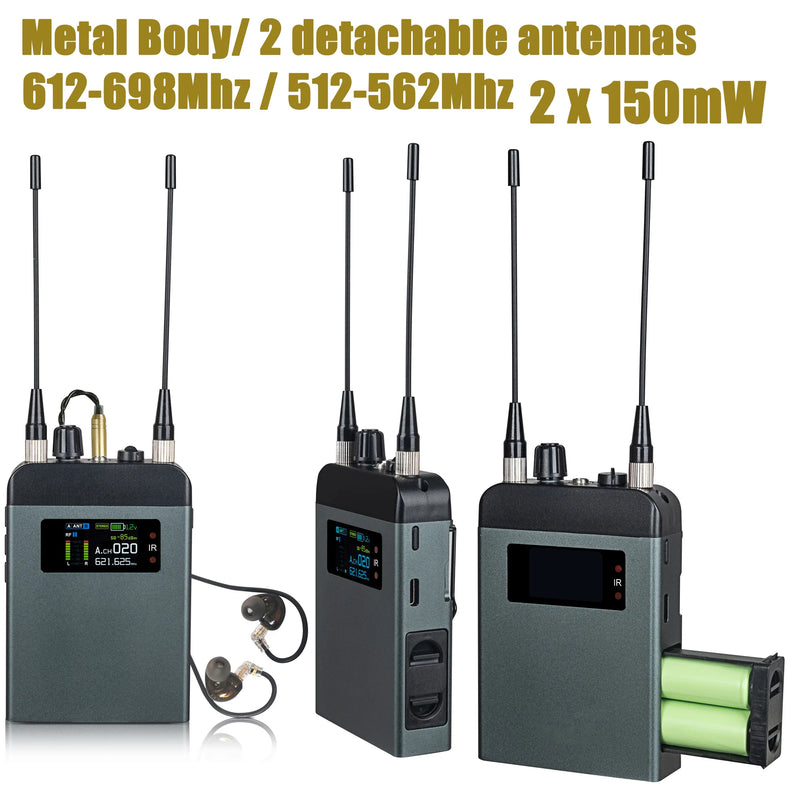

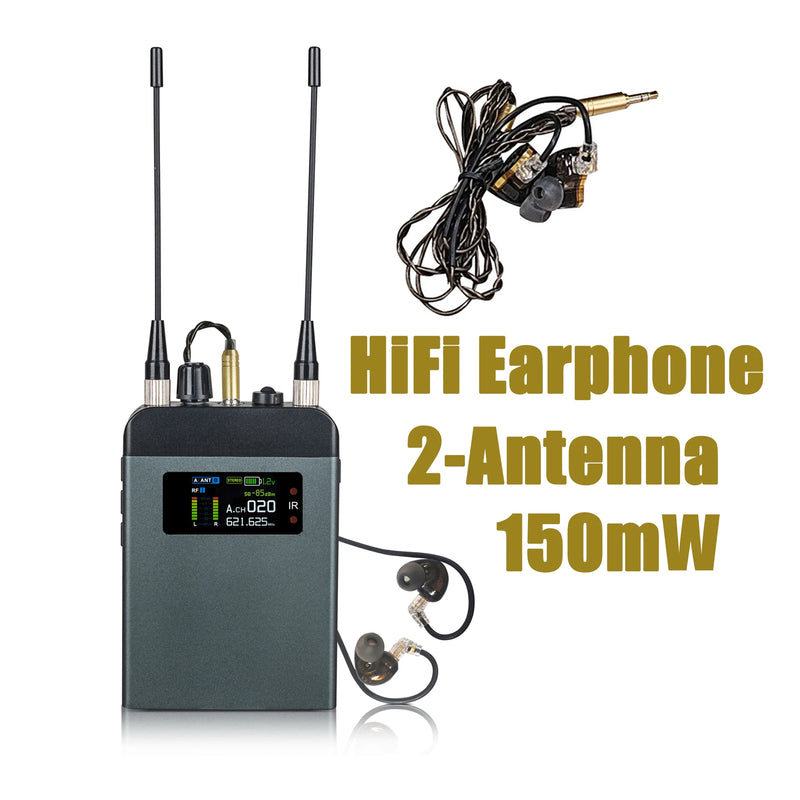

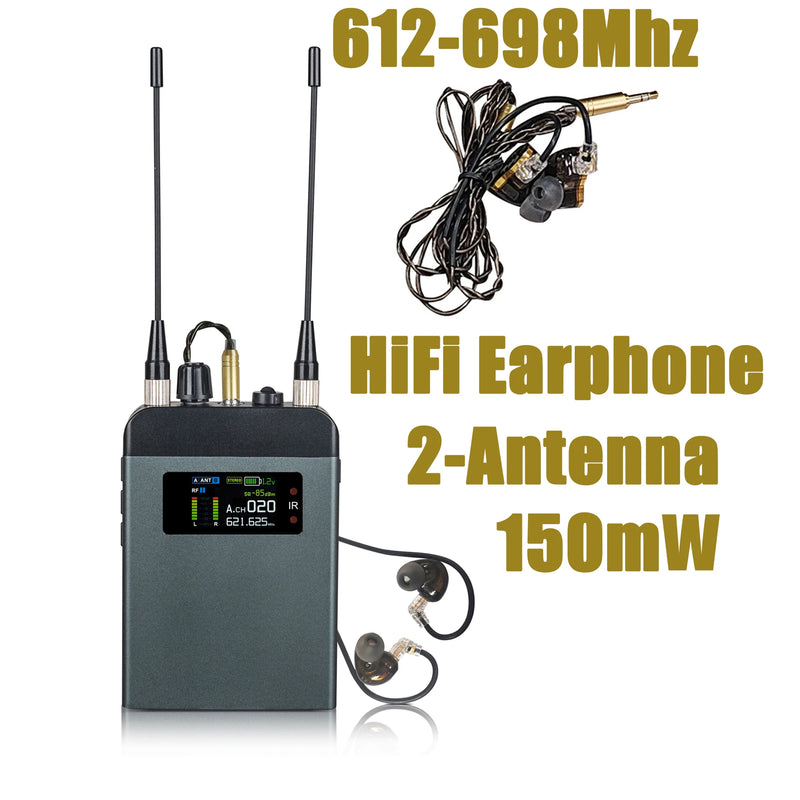

PM10R Receiver
Receiving method: True diversity receiving
Number of channel groups: single channel
Channel Group: Single channel
Comprehensive T H. D: ＜ 0.9% @ 1KHz
Battery:AA Battery 1.5V × 2
High frequency boost:+8dB, at 10KHz
Frequency Stability: ± 0.005%
Working Distance: About 150 meters
Output Power: 2 x 150mW@1KHz (T.H.D: 3%)
Sensitivity: Deviation=25KHz/6dBuV,S/N>60dB
Band Width: 19-24MHz
Carrier Frequency: 612-698Mhz / 537-561Mhz
Modulation Mode: FM MPX
Stereo Isolation: ≥ 55dB (1KHz)
Current Consumption: 180mA
Max Deviation: ± 48KHz
S/N Ratio: ＞ 100dB
Frequency Response: 25Hz-15KHz ± 3dB
Battery Life: About 8 hours
Limited: 6dB each step, it can close
Oscillation Mode: PLL Synthesized
Output socket: 3.5mm

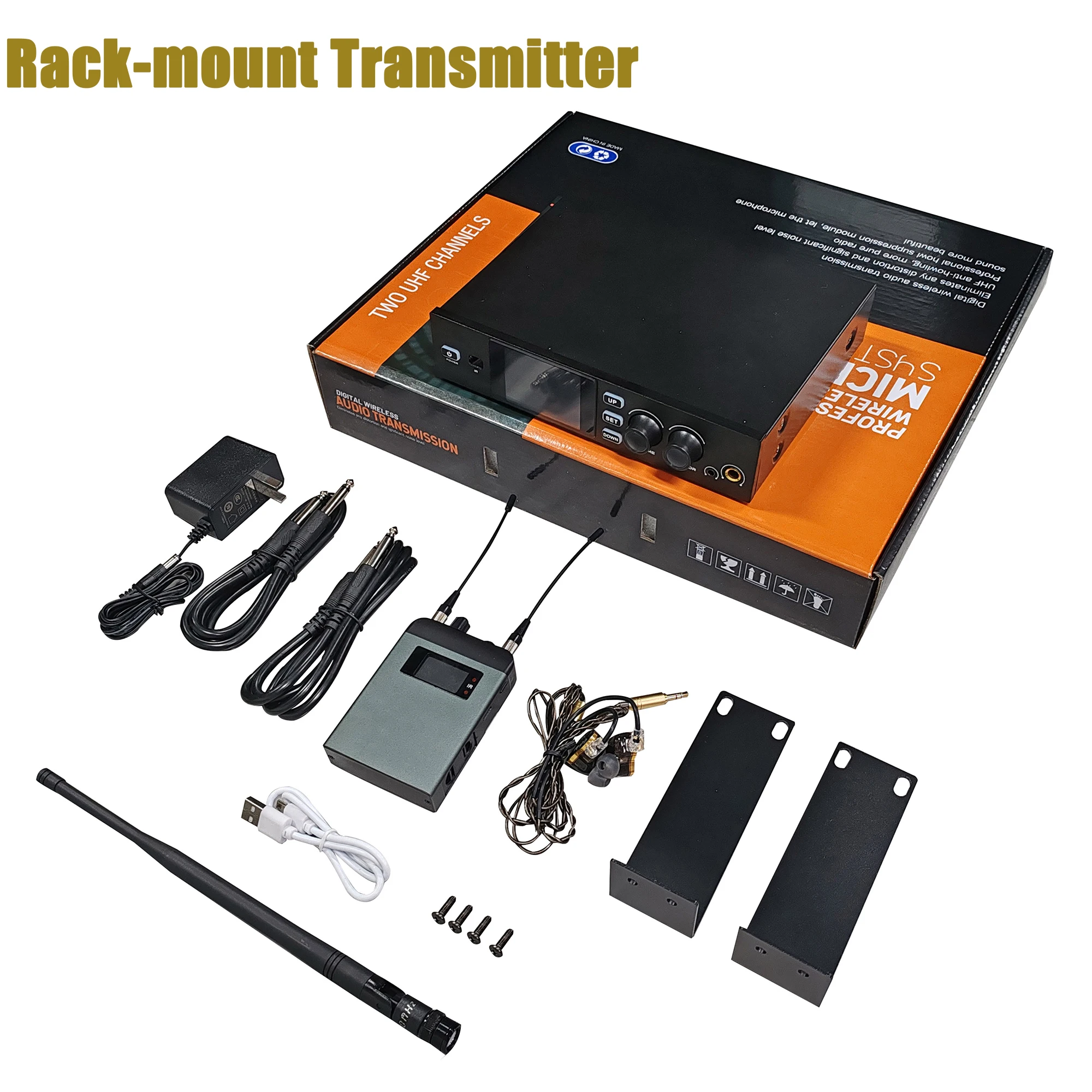

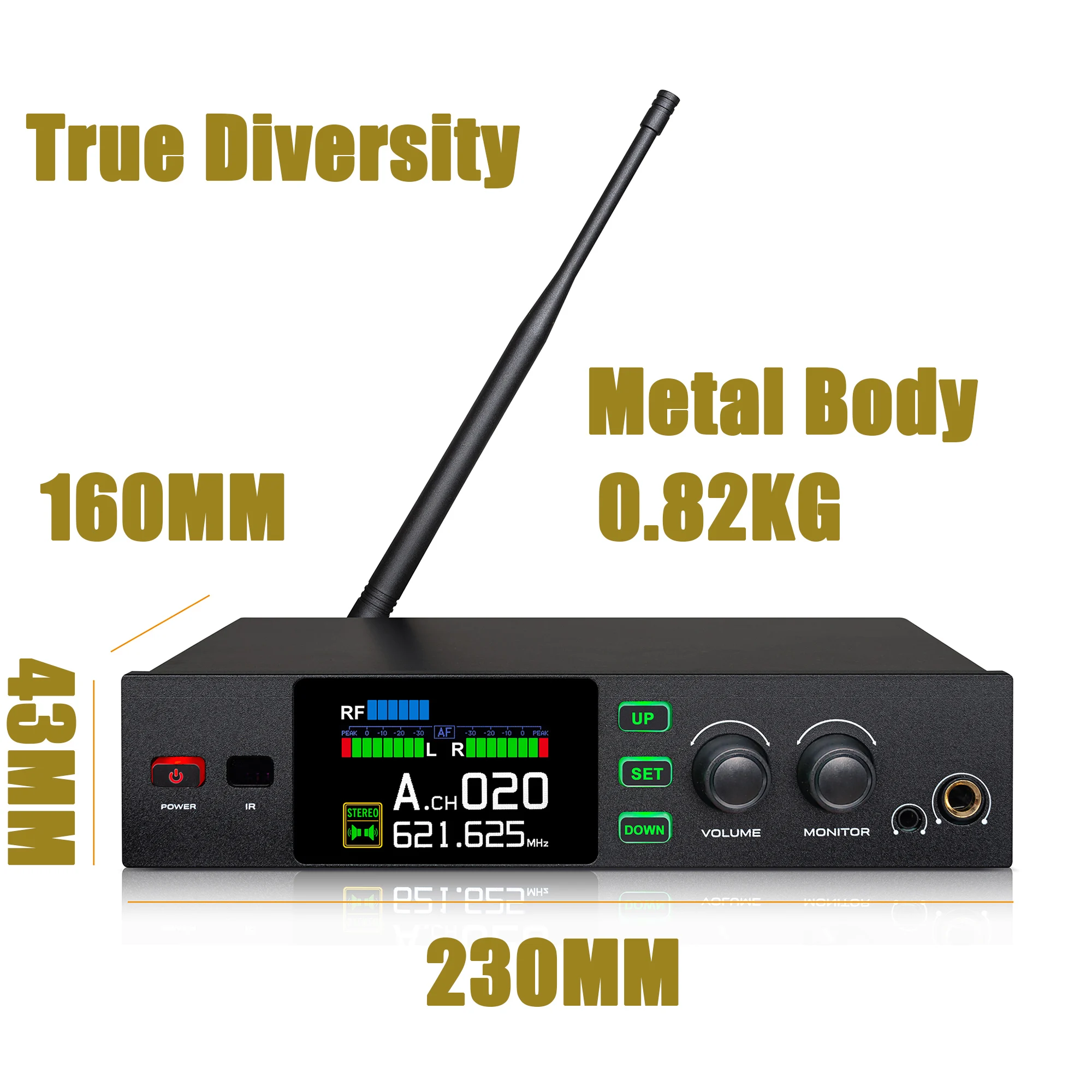

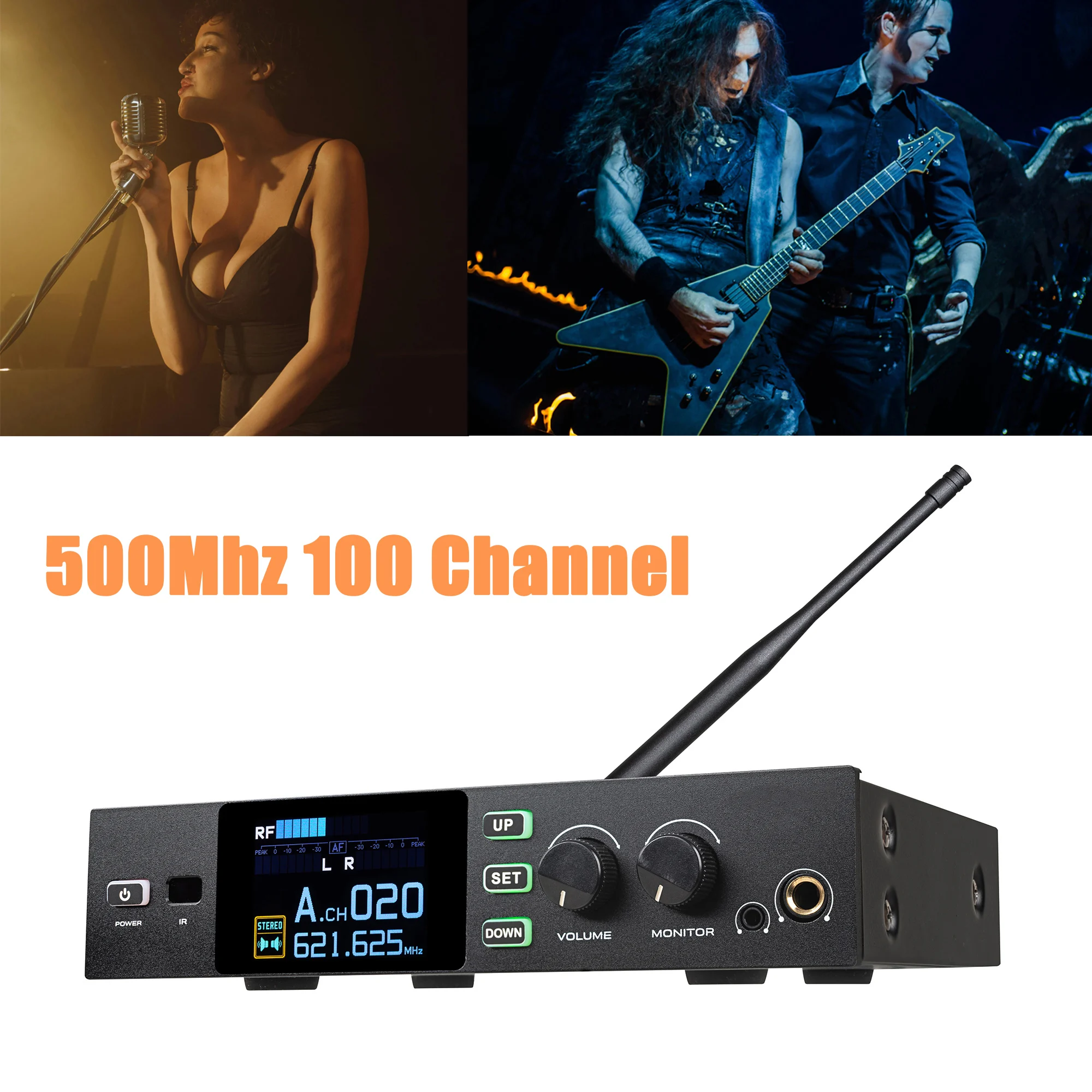

PM10T transmitter
Chassis Specification: 1/2 1U
Carrier Frequency: 612-698Mhz / 537-561.75Mhz
The 600Mhz Frequency Is One Of the Belowing,It is Random Frequency
BAND1 612-631.6Mhz BAND2 634.025-653.625Mhz BAND3 656.05-675.65Mhz BAND4 678.35-697.95Mhz
Max Deviation: ± 50KHz
Number of channel groups: single channel
Channel Group: Single channel
Modulation Mode: FM MPX (Stereo)
S/N Ratio:>100dB
T. H.D:<0.9% @ 1KHz
Band Width: 19-24MHz
Frequency Response: 25Hz-15KHz ± 3dB
Output Power: 10mW-100 mW adjustable
Current Consumption: 190mA (typical)
Power Supply: DC 12V
Frequency Stability: ± 0.005% (0-50° C)
Oscillation Mode: PLL Synthesized
Harmonic Emission: Above 60dB lower than main wave
Audio output: φ 6.3mm Balanced Socketx2
MPX Control: Frequency: 19KHz, Deviation: ±5KHz
