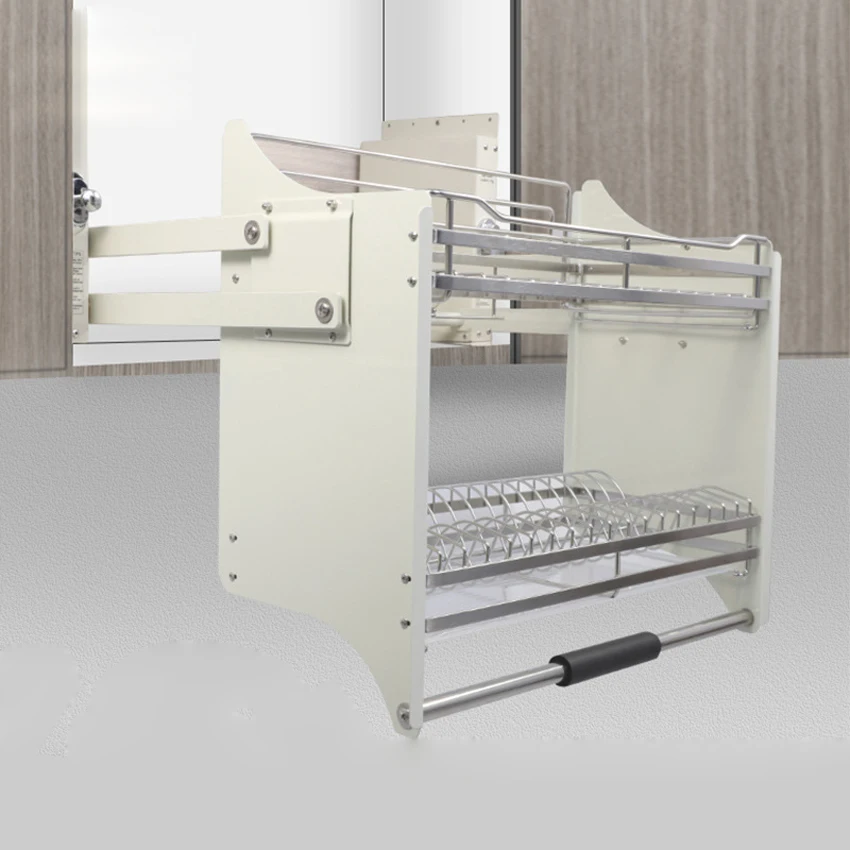

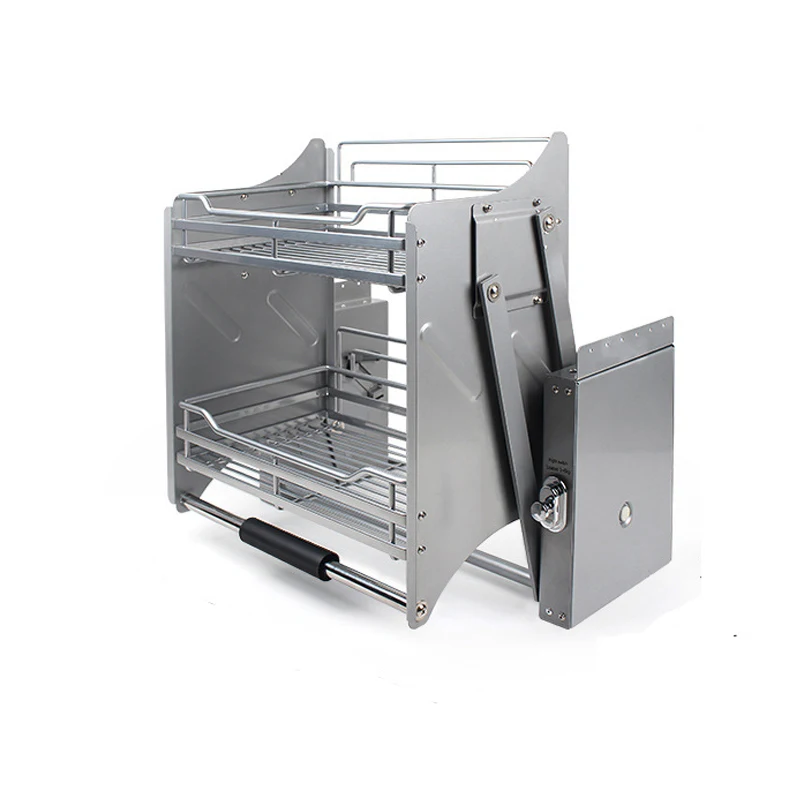

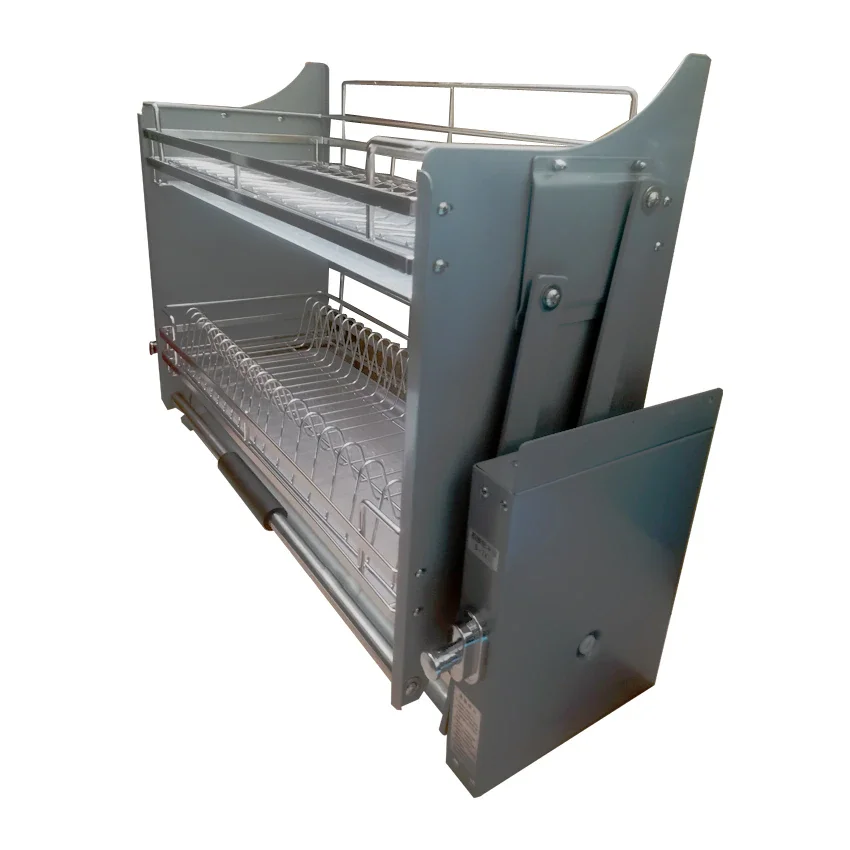

Advantage:

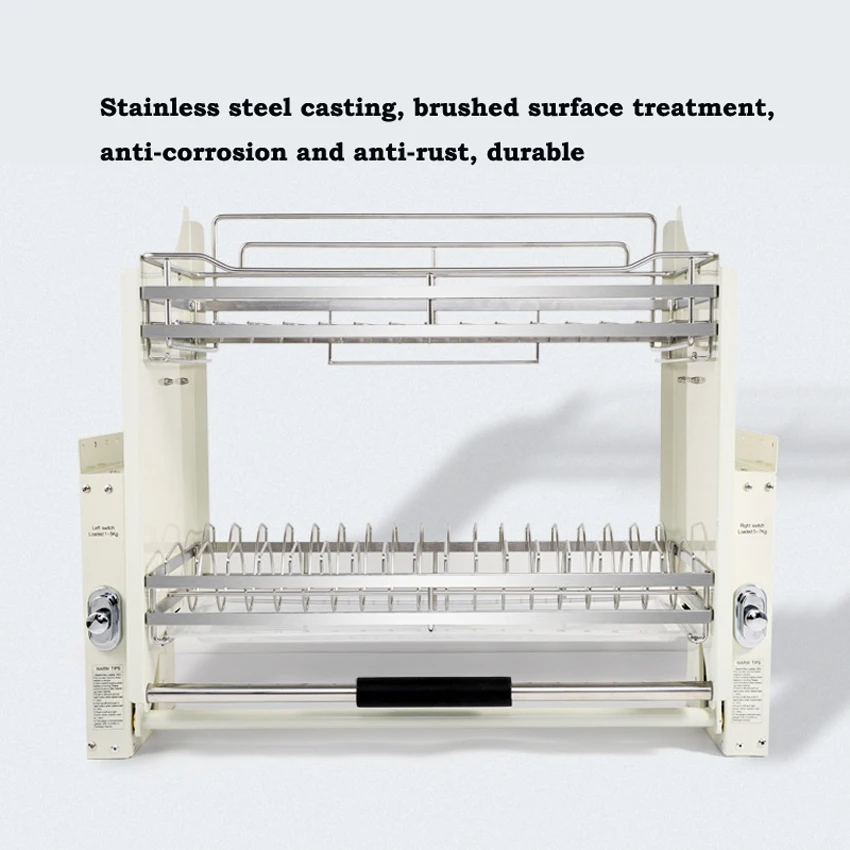

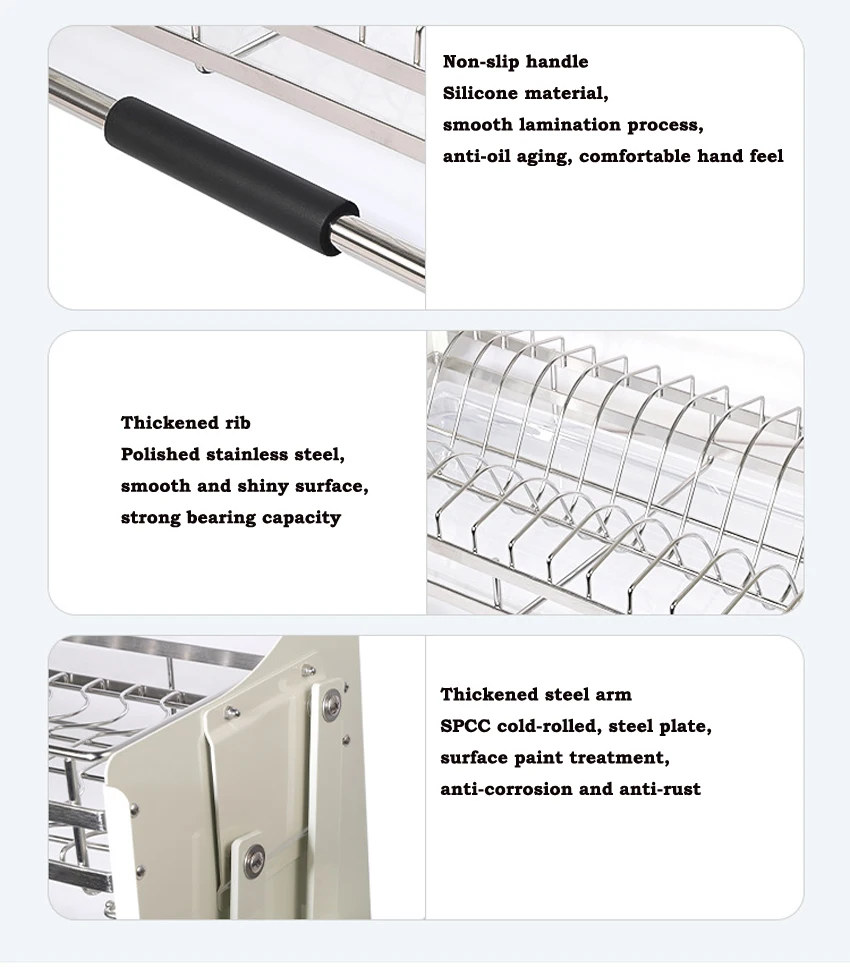

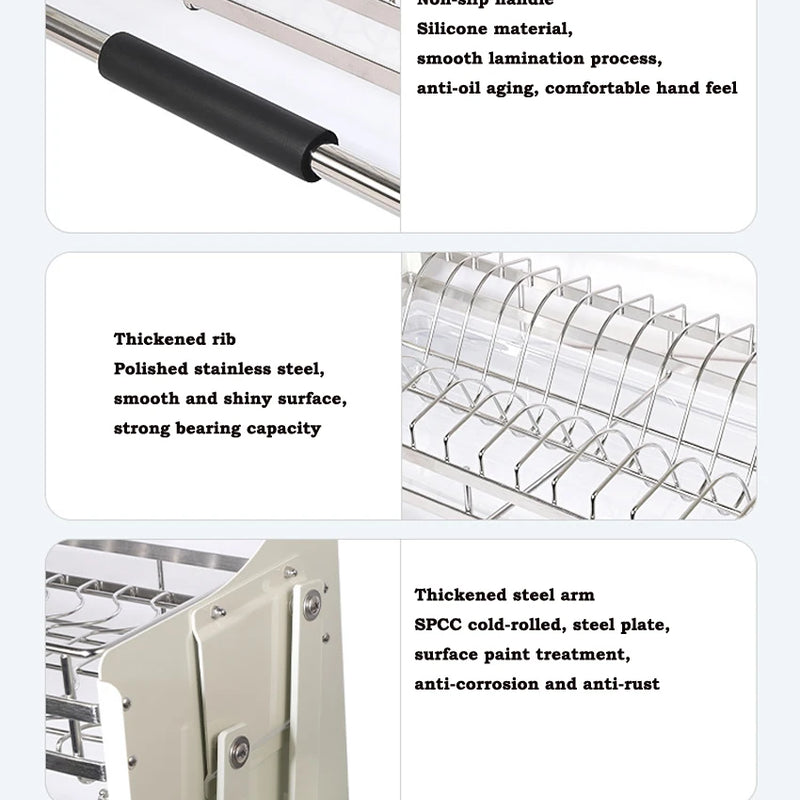

1. Thickened 304 stainless steel + cold rolled steel
Brushed surface treatment, anti-corrosion and anti-rust, durable
2. Buffer spring air pressure rod design
3. Four-speed labor-saving adjustment design
4. The bearing capacity can reach 60kg
Installation method: side-to-side door or flip-up door

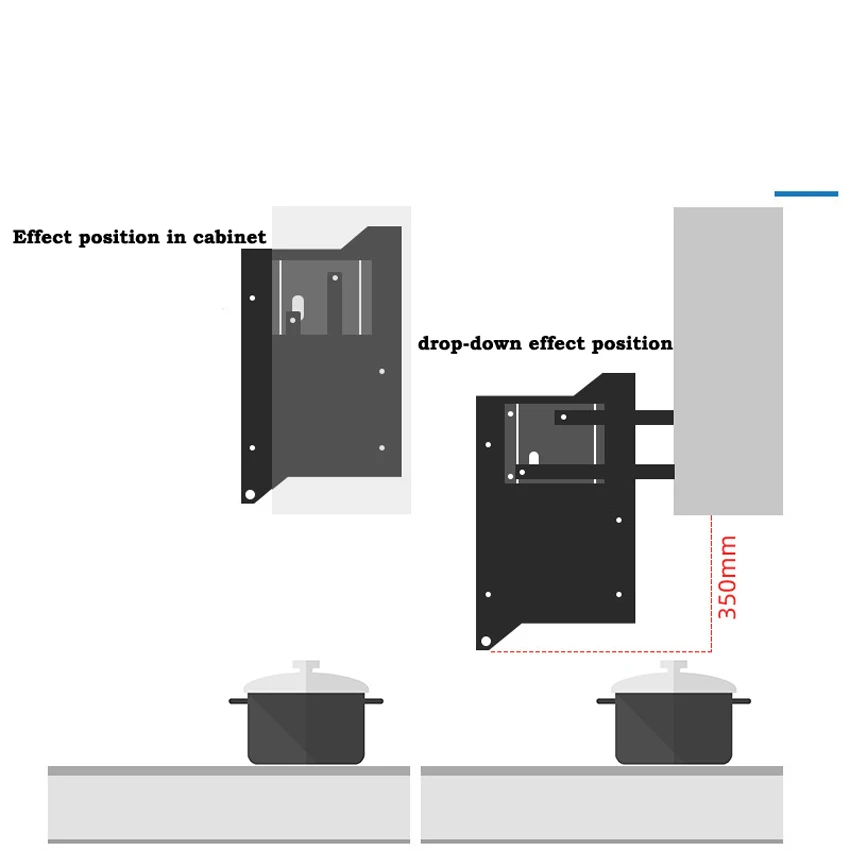

Note: The bottom of the cabinet is away from the following obstacles: the minimum clear height is 350mm

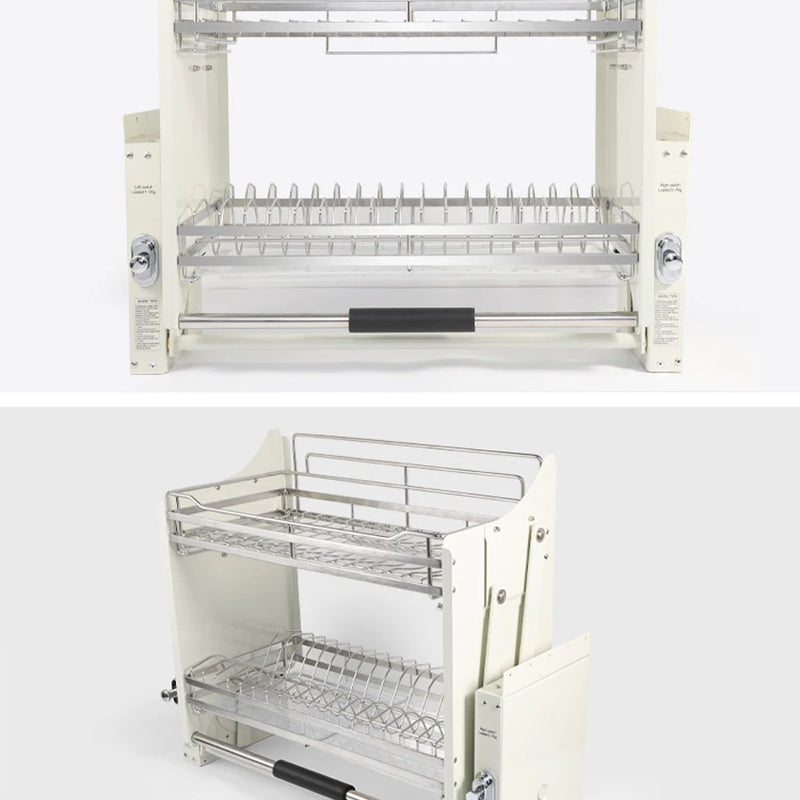

Pull basket size:
564*280*560 (600 Type)
664*280*560 (700 Type)
764*280*560（800 Type）
864*280*560 (900 Type)

Installation requirements:
16mm≤Side plate thickness≤18mm
Cabinet internal depth : ≥280mm
Cabinet internal height: ≥560mm
Cabinet internal width:
564~568 (600 Type)
664~668 (700 Type)
764~768 (800 Type)
864~868 (900 Type)

Our pull basket requires accurate internal sizes of the cabinet, otherwise it cannot be installed. If you are not sure which type you should purchase, you can tell me the following sizes of your cabinet,we will recommend suitable type for you.
Cabinet internal height:
Cabinet internal depth:
Cabinet internal width:

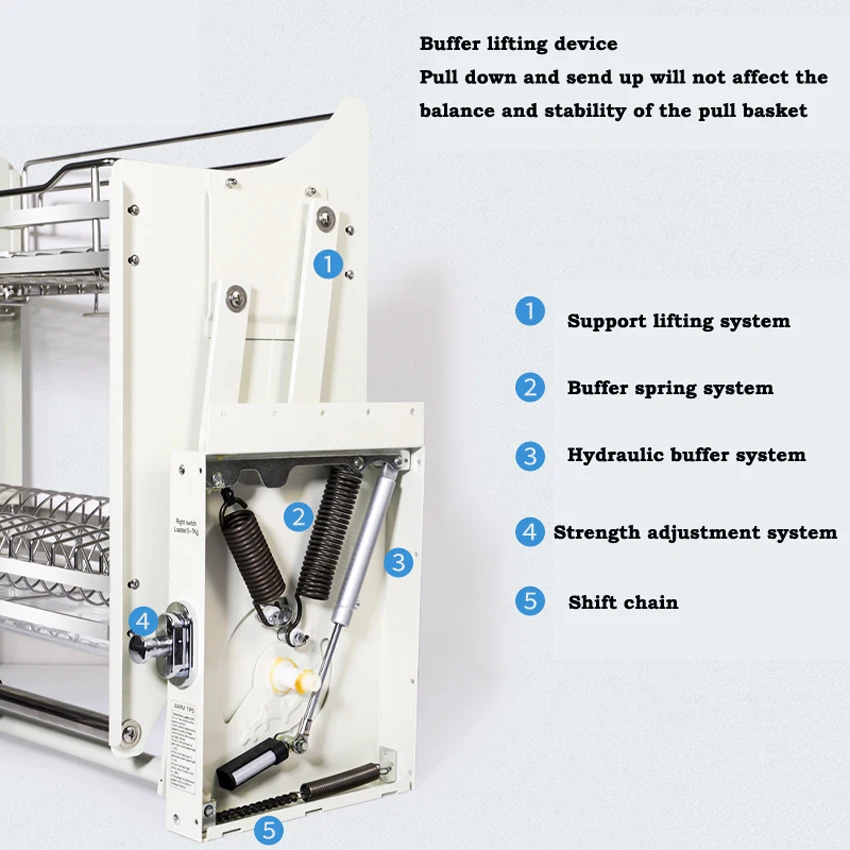

Use of booster
Correct use of the afterburning device will enable you to easily push and pull items of different weights when the storage rack is loaded, The descending angle of the storage rack is 90°, the first 70° will descend at a faster speed to save time, and the last 40° will descend steadily to the end at a slow speed to prevent impact, the whole process is fast and stable. In order to play the function of the product more effectively, please select the gear and the matching load weight according to the following parameters.

600/700 cabinets are as follows:
Neutral: Pull out the left and right buttons, load 0~1KG
1st gear: Press the left button and press the right button to pull out, bearing 1~4KG
Second gear: Pull out the left button and press the right button, bearing 3~6KG
The third gear: press the left and right buttons, the load is 5~10KG
800/900 cabinets are as follows:
Neutral: Pull out the left and right buttons, load 0~1KG
1st gear: Press the left button and press the right button to pull out, bearing 1~5KG
Second gear: Pull out the left button and press the right button, bearing 5~7KG
The third gear: press the left and right buttons, the load is 6~12KG

During use, increase the afterburner button by one step. For example, if the load weight is 0-1kg, one gear can be selected. And so on.

Precautions:
1. If you need to shift gears, be sure to do it when the storage rack is in the initial position (that is, it is not pulled in the cabinet.
out status;
2. When there is no load on the storage rack or there is very little load, it is not possible to increase the gear, otherwise the storage rack will rebound upward and cause an impact when it returns, which may damage the lift basket and the items it contains.
3. When the storage rack is loaded with heavy objects, it must be pressed into the corresponding gear, otherwise the storage rack will cause an impact when it is lowered, which may damage the lifting basket and the loaded objects, and even cause the operator to be injured.
4. Do not exceed the specified weight of the items in the storage rack, otherwise the lifting basket will be damaged.
