Karaoke WiFi Bluetooth 7 Inch Screen Wall Amplifier

Name: Karaoke WiFi Bluetooth 7 Inch Screen Wall Amplifier
Brand: Samag.Shop
SKU: 14:350850#Gold
Price: 949.0 GBP
Availability: InStock

Color: Gold

✓

SPECIFICATIONS

Audio Response: 30-18KHz

Audio signal to noise ratio: 98db

Bluetooth: Version 5.0

Brand Name: JYSaudio Just Your Sound

CPU Core: Quad-core

CPU Frequency: 1.6GHZ

CPU Model: Cortex-A53 CPU 1.6GHz

Carrier Frequency: 500-980MHz(U section)

Certification: CE

Channels: 8 (7.1)

Frequency response: 20Hz-20KHz

High-concerned chemical: None

Input: 8Ohm

Life: 3-5 hours

Main screen size: 7 inch

Material: IPS(full view)

Maximum Power Per Channel: 25 W

Microphone head: dynamic microphone

Model Number: JYS-7820k+16CR410

Modulation Method: pi/4DQPSK

Name: WIFI Bluetooth In Wall Receiver

Operation System: Android 11 System

Origin: Mainland China

Output Power: 8*30W(Ya maha digital ampl

Output impedance: 4-8 ohm

Package: Yes

Power: 10W

RAM memory: 2GB

ROM: 16GB

Resolution: 1024*600

Speaker Unit: 4.5''x1

Total harmonic distortion: 0.03%(1W.1KHZ)

Touch Screen: Multi-touch capacitive screen

USB: 2.0 port,can read 32G

WIFI: Support 802.11b/g/n Wireless Protocols 150Mbps 2.4GHz

Wired port: not support

Working Power: 10dBm

Working Voltage: DC3V 1.5V AAA*2 battery

Karaoke WiFi Bluetooth 7 inch Screen Wall Amplifier Android Amp Smart Home Theater Sound System Mini Ceiling Speaker Residential
✔Operation System: Android 11 System
✔CPU Model: Quad-core Cortex-A53CPU 1.6GHz
✔CPU Frequency: 1.6GHZ
✔CPU Core:Quad-core
✔Main screen size: 7 inch
✔Resolution: 1024*600
✔Material: IPS(full view)
✔Touch Screen:Multi-touch capacitive screen
✔RAM memory: 2GB
✔ROM: 16GB
✔USB: 2.0 port,can read 32G
✔Wired port: Support 10M/100M adaptive Ethernet
✔WIFI: Support 802.11b/g/n wireless protocol 150Mbps 2.4GHz
✔Output Power: 8*30W(Ya maha digital amplifier)
✔Output impedance: 4-8 ohm
✔Total harmonic distortion: 0.03%(1W.1KHZ)
✔Frequency response: 20Hz-20KHz
✔Audio signal to noise ratio: 98db

7inch Android Background Music Host Featurea:
1. Support APK installation, STB/IPTV/set-top box, network movies, TV shows.
2. Support pairing of external Bluetooth devices such as mobile phones to realize audio playback; control external Bluetooth device music in two-way.
3. Personalized screensaver settings.
4. Bluetooth playback, this wall amplifier panel can control the Bluetooth playback device to switch music.
5. Support cloud to cloud control smart home.
6. Support RS 485 to control smart home, and external equipment to control this wall amplifier panel through RS485 port.

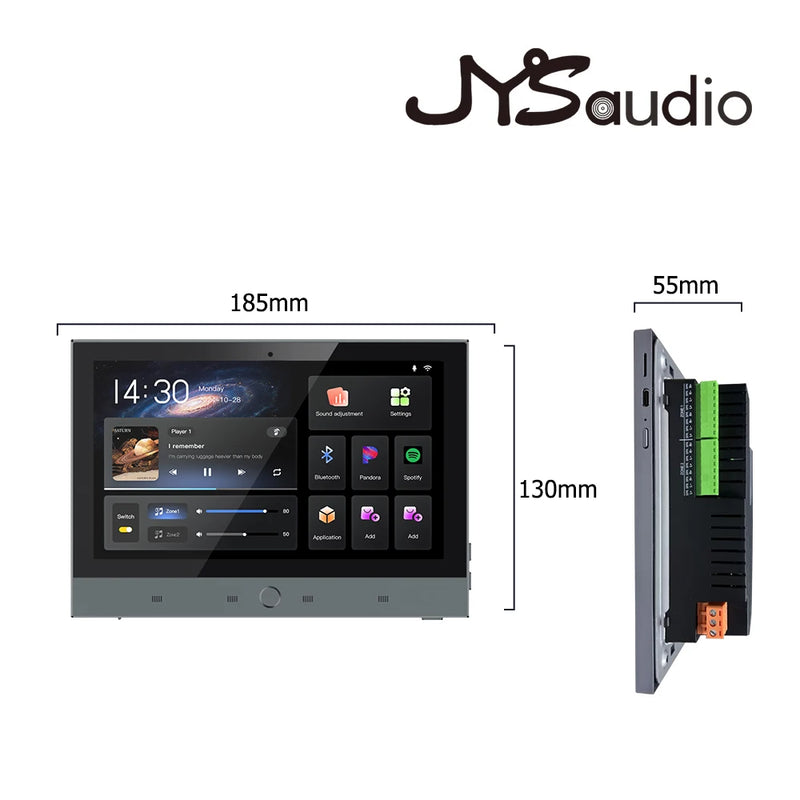

Wall Amplifier specifications:

✔Zone:Two Zones of speaker volume independent adjustment and two zone different music playback

✔Speaker Four-channel speaker volume control

✔Sound EffectBuilt-in DSP 10 kinds of sound effect adjustment
✔compatible with branded speakers such as J-BL, Hi-Vi ect.

✔Bluetooth: Version 5.0

✔Audio format: MP3, WAV, WMA, FLAC, APE, ACC, AC3, OGG etc.

✔Video format: MPEG-1/2/3/4

✔Power Input: AC110-250V

✔Audio Input: AUX input, one set

✔Audio Output: one set

✔Active Subwoofer Output: one set

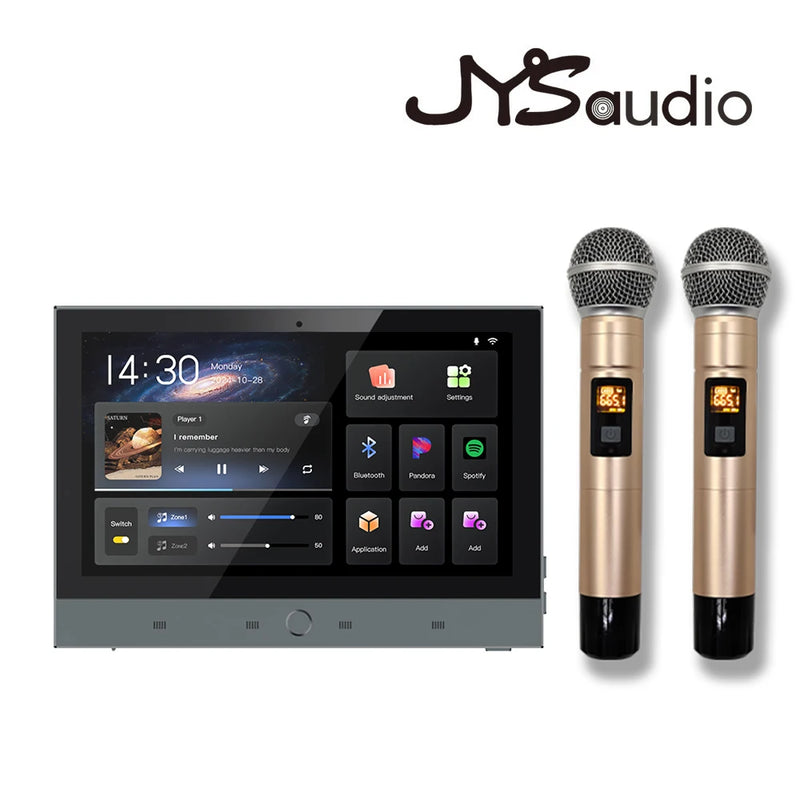

Dynaimic microphone specifications:
✔ Microphone head: dynamic microphone
✔ Working Voltage:DC3V 1.5V AAA*2 battery
✔ Working Power: 10dBm
✔ Life: 3-5 hours
✔ Modulation Method: pi/4DQPSK
✔ Audio Response: 30-18KHz
✔ Carrier Frequency:500-980MHz(U section)
✔ Audio Signal to Noise Ratio:<100dB

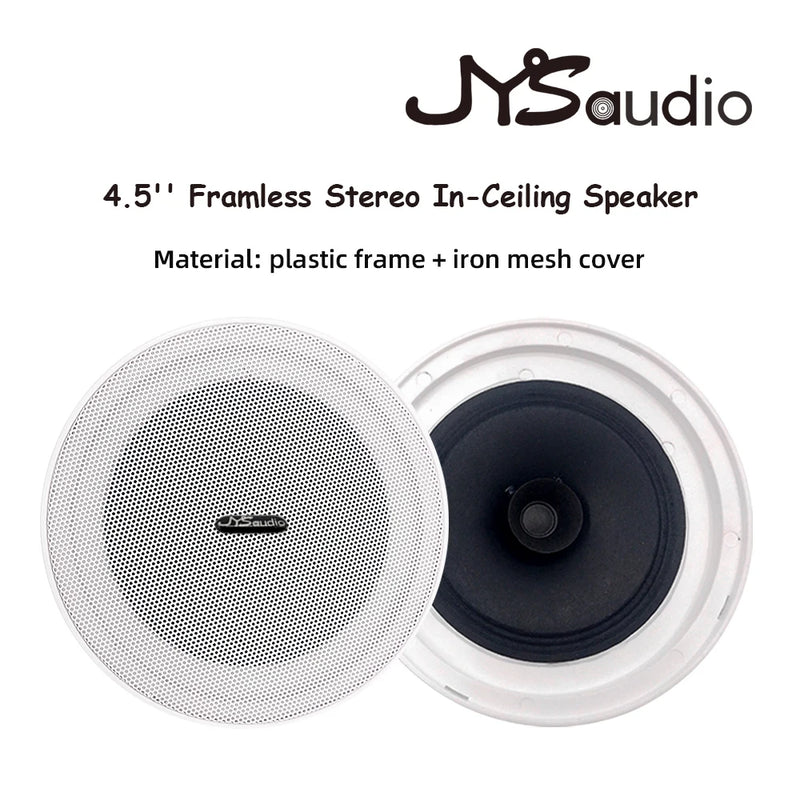

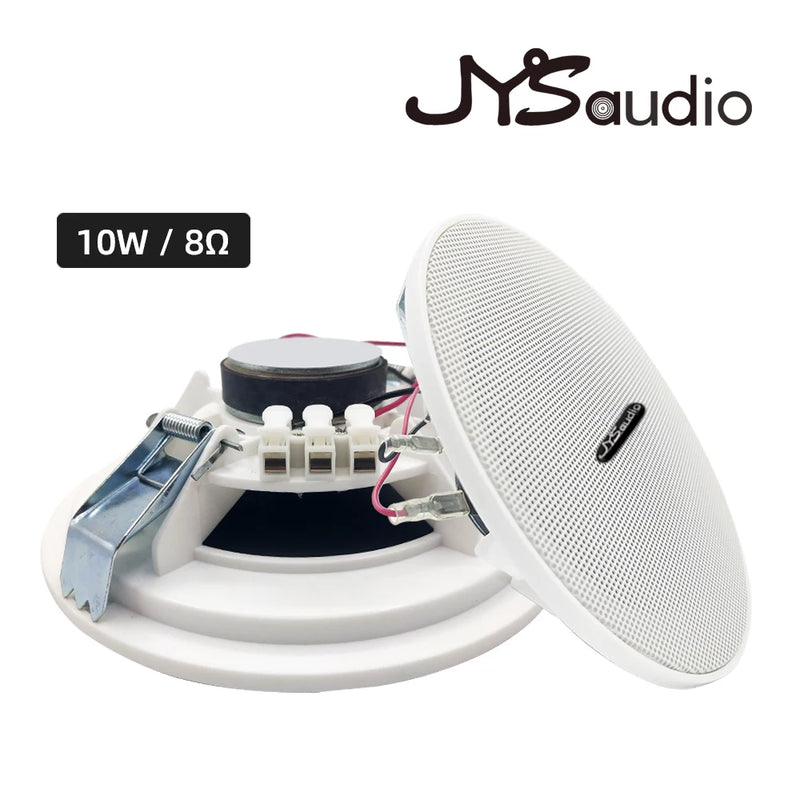

Framless Stereo In-Ceiling Speaker Mini Size Specifications:
✔ Power 10W
✔ Input: 8Ω
✔ Speaker Unit: 4.5''x1
✔ Sensitivity (1W/1M): 89dB ± 3dB
✔ Frequency Response: 100Hz-16KHz

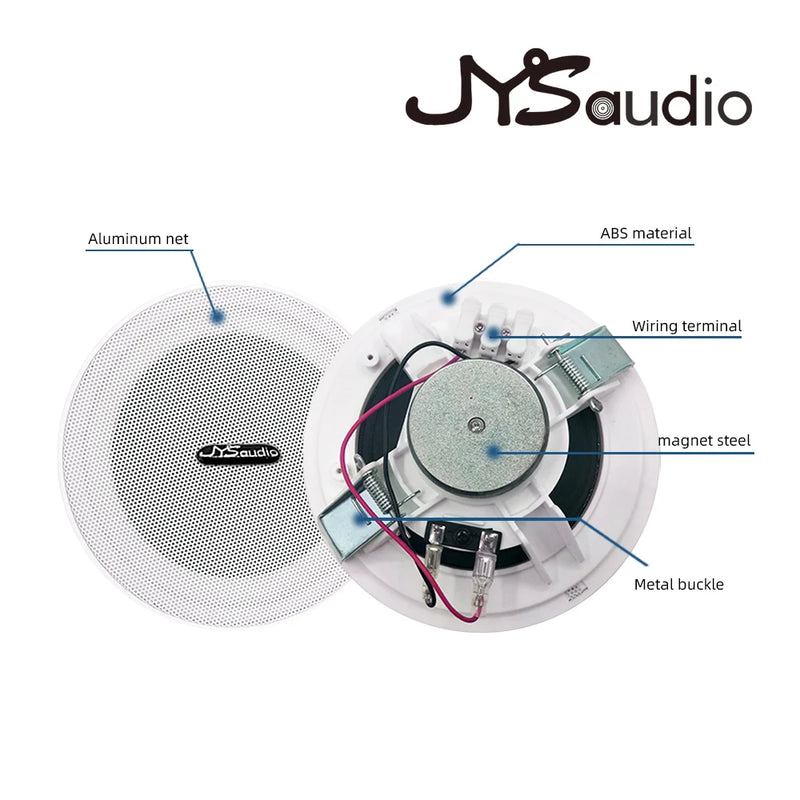

✔ Material: plastic frame + iron mesh cover
✔Installation Cutout Size: Φ148mm
✔ Dimension: Φ160x56mm
✔ Net Weight: 0.42KG

Please noted that this model not have HD-MI terminal.
If you want to make your TV sound on the speaker, you need to connect to the TV's audio out to our wall amplifier at the AUX connection terminal. If your TV not have the auido out terminal, you need to connect to extra transformer.
