SPECIFICATIONS

Brake System: Front disc+Rear dsic

Brand Name: NONE,Jialing

Curb Weight: 300-400kg

Cylinder Number: 1

Differential Lock: Equipped

Dimension: 2235 *1180 *1390 mm

Displacement: 600cc

Driving Type: Switchable 2WD/4WD

Engine Type: 4-Stroke

Fuel: Gas / Diesel

Fuel Tank Capacity: 10-20 L

Grade Ability: ≥25°

High-concerned chemical: None

Maximum Speed: 75-100Km/h

Maximum Torque(Nm): 40-60Nm

Minimum Grand Clearance: 250-300mm

Origin: Mainland China

Payload Capacity: 200-300kg

Place of Origin: Chongqing, China

Power: > 1000W

Tire Size: front25*8-8PR-AT,rear 25*10-8PR-AT

Transmission System: Shaft Drive

Transmission Type: Automatic

Voltage: 12 V

Wheelbase: 1400-1800mm

Basic parameters
Length × Width × height	2235mm×1180mm× 1390mm
Vehicle wheelbase	1480±20 mm
Ground clearance	270 mm
Curb weight of the entire vehicle	400 kg
Maximum load capacity	230kg
Vehicle fuel tank capacity	18L
Maximum speed	80km/h
Range	300km
Engine type	Single-cylinder, four-stroke, SOHC, water-cooled, CVT; four-valve engine
Displacement/Specifications	580cc
Cylinder diameter× stroke	91mm × 89.2mm
Maximum horsepower/Corresponding speed	45 HP/6500rpm
Maximum torque/Corresponding speed	51 N·m/ 6000rpm
Ignition control mode	CDI
Drive mode	2WD/4WD drive electronic control conversion;
Braking method	Four-wheel disc brakes + rear wheel manual parking brake
Suspension type	Double wishbone independent suspension;

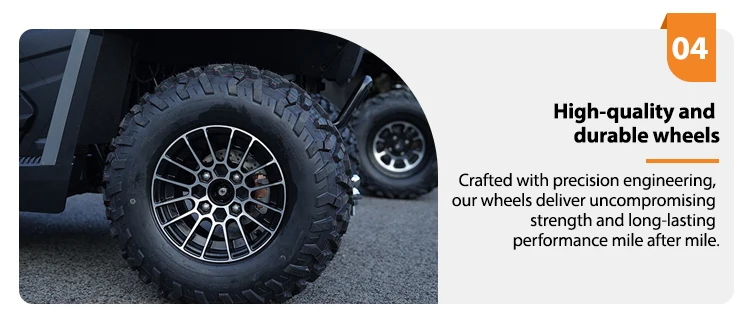

Rim size	Front 12×6，Rear 12×7.5
Tyre size	Front 25×8-8PR-AT Rear 25×10-8PR-AT

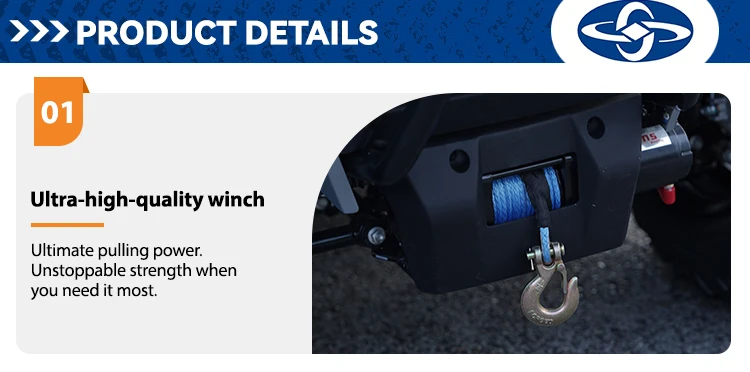

Avaliable configurations (Wireframe depicted in basic configuration)	Electric winch,, Aluminum alloy rims,electronic power steering
Avaiable Colors	Red, black, blue
Packaging Dimensions/Weight	2300×1300×860（mm）/470（kg）

Q: Are you a factory? A: Yes, we are professional manufacturers. As the original factory, we have a price advantage. Q: Can the price be discounted? A: The price varies depending on the order quantity and requirements. Please contact us for the latest quotation. Q: Is there a minimum order quantity (MOQ)? A: Yes, the standard product MOQ is 1 piece Q: What payment methods are supported? A: Supports Alibaba's guaranteed transactions, T/T, etc., which are safe and convenient. Q: How long will the delivery time be? A: Usually within 30 working days after receiving the deposit. Q: What is the shipping fee? A: It needs to be calculated based on the volume of goods, destination and mode of transportation. Please provide your address for a quotation. Q: What should I do if there are quality issues? A: We offer quality assurance. If there are any issues, please contact us promptly for resolution.
