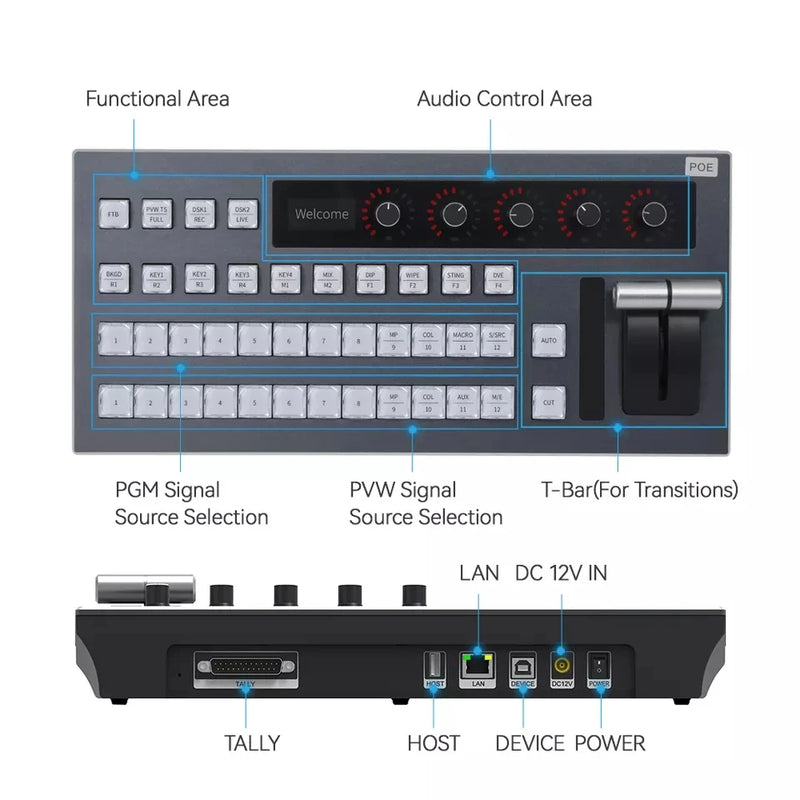

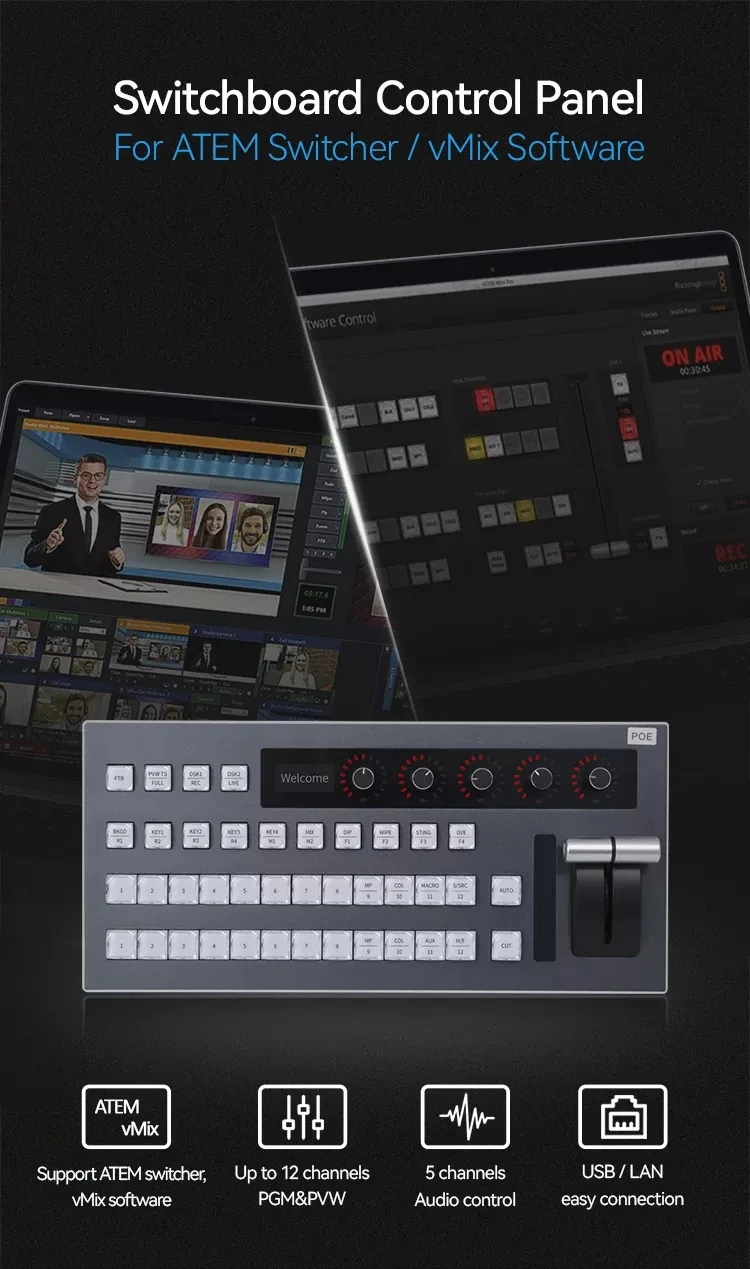

Easy-to-use ,fully embedded system with simplified structure, integrating director switching, audio adjustment and special effects & transitions all in one.

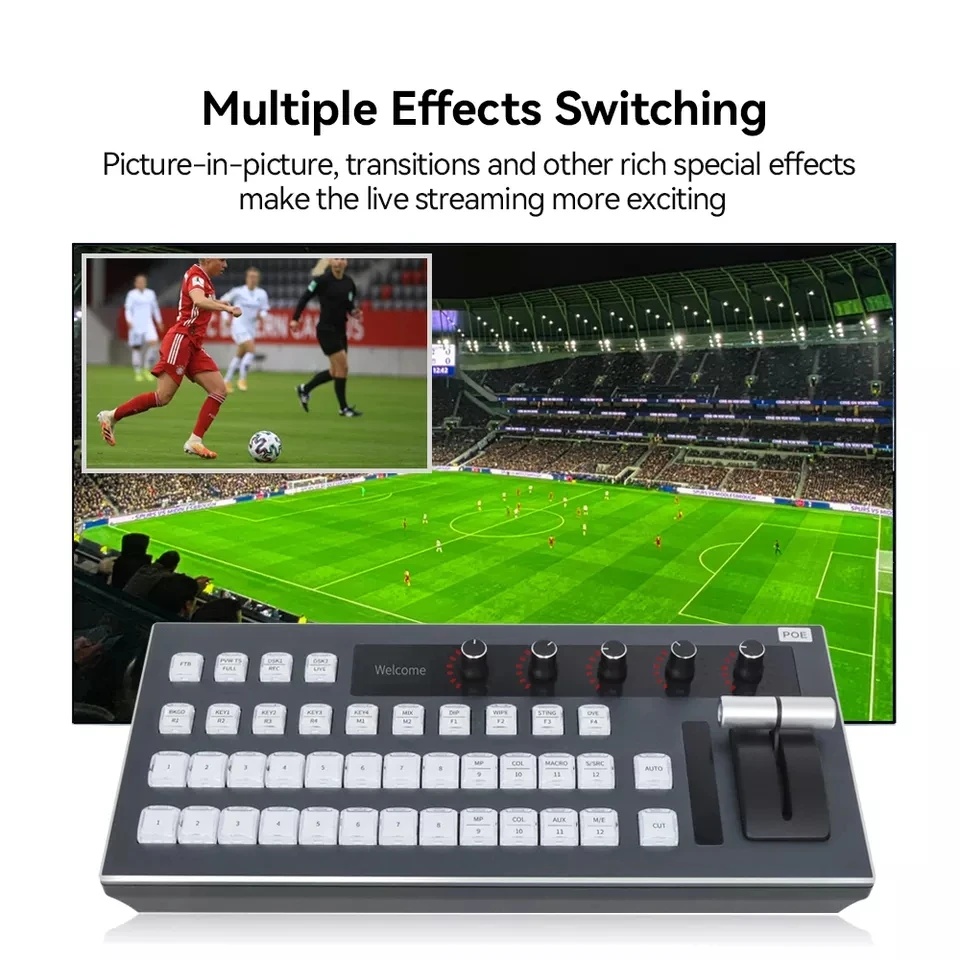

Brand-new upgrade function, custom combination to play more effects:
The brand-new upgrade ATEM function supports quick operation of ATEM popular functions such as S/SRC, MACRO, AUX, M/E, etc., and supports custom function settings to output.

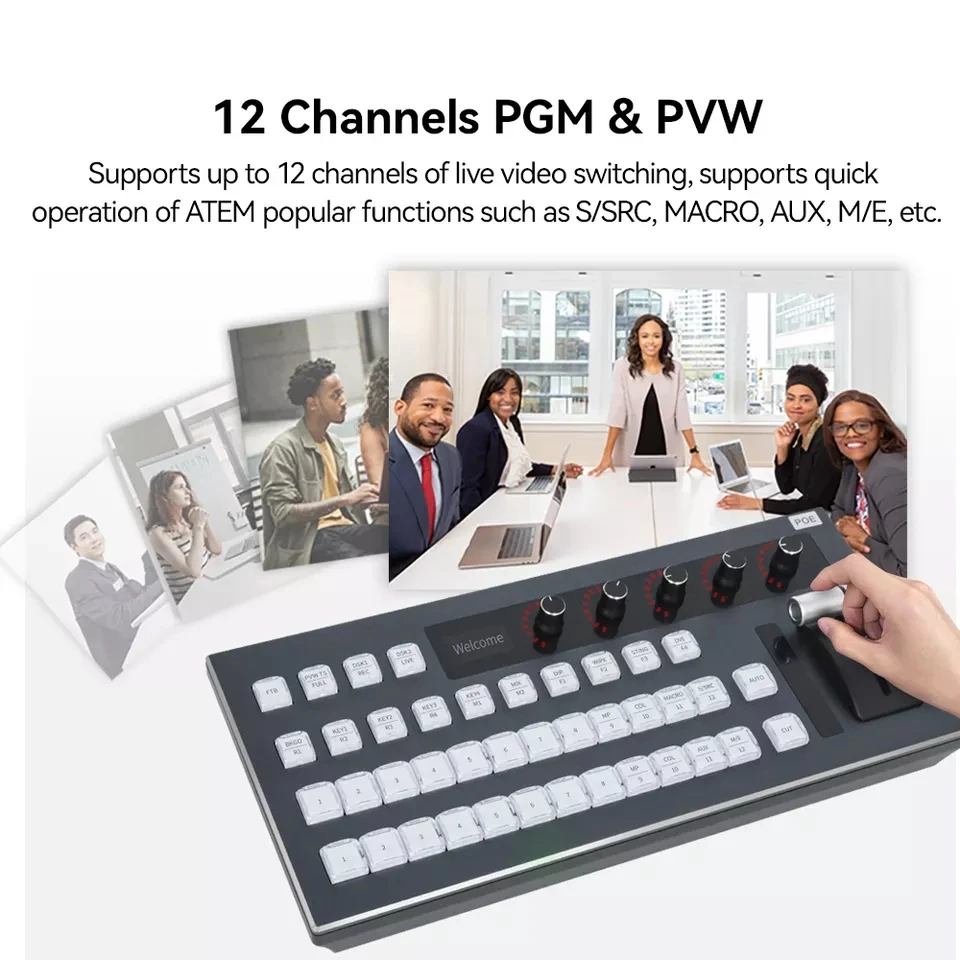

Supports up to 12 channels of live video switching:
ATEM support conventional 8-channel PGM+8-channel PVW live switching, other live software supports up to 12-channel live switching.

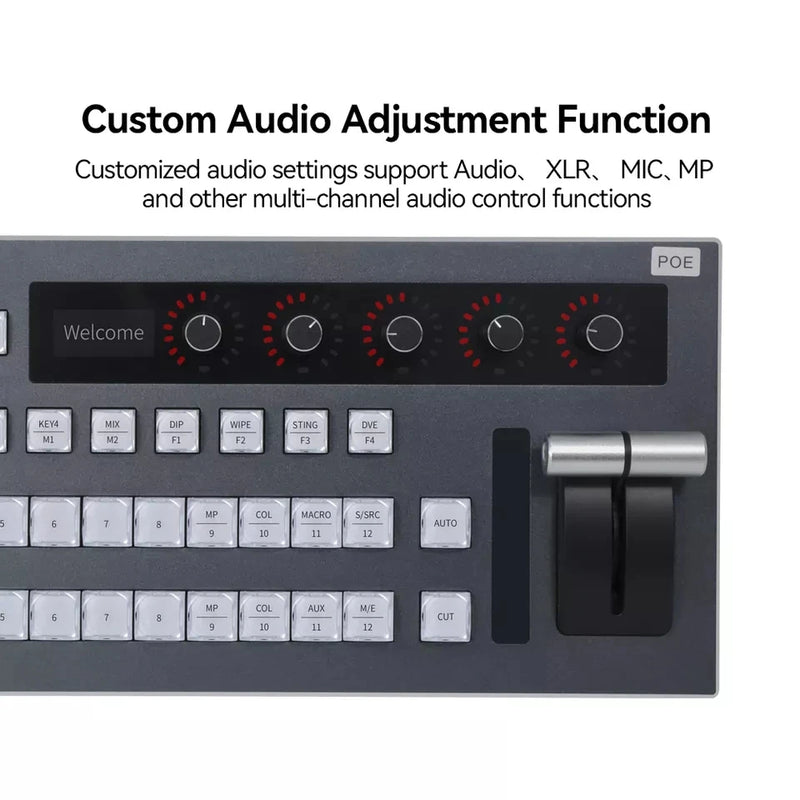

Built-in custom audio adjustment function:
Customized audio settings support Audio、 XLR、 MIC、MP and other multi-channel audio control functions.
Compatible with plenty of live broadcast software:
In addition to supporting ATEM series devices, it also supports MIDI protocol,compatible with Vmix and other various live broadcast software.Complete the control of functions such as directing, transitions, tuning, one-key black screen, etc.,multi-purpose machine is more worry-free.
Support 24-channel tally output function:
Built-in DP25 tally interface, supports up to 24 tally signal output functions.

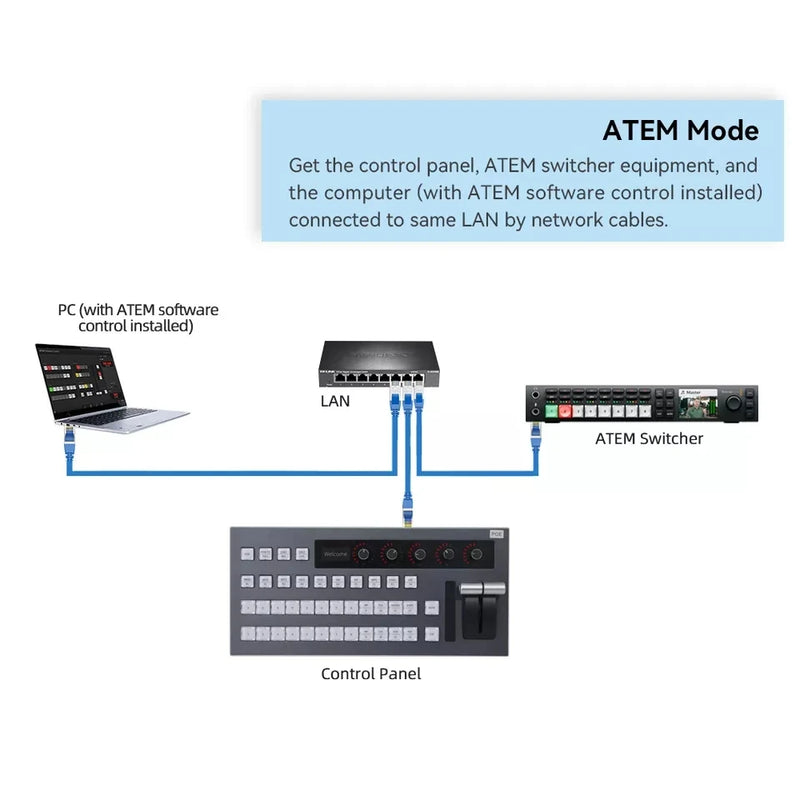

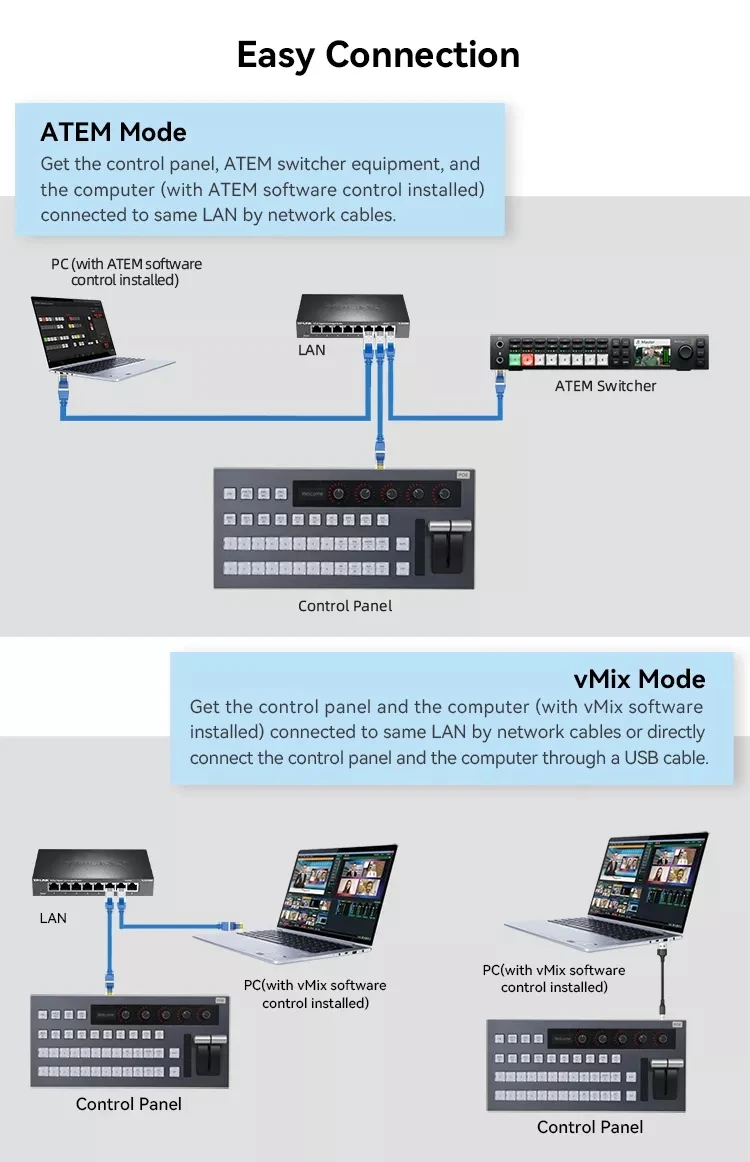

USB 2.0, LAN dual interface connections, simple and convenient:
Supports LAN and USB 2.0 drive-free connections ( Note: ATEM only supportsLAN connection ), and can transmit video signals to computers and live videoproduction software without a capture card, simple and convenient.
All aluminum alloy body:
Anodized aluminum alloy panel process treatment, outstanding quality.
Specifications
Main Parameters
Audio Control
1ch master+4ch input
Transition Control
Auto transitions, hard cuts, T-Bar
OLED Display
Set device parameters
Indicator Light
Indicate switcher status
Tally
12ch PGM+12ch PVW
ATEM Functions:
Connection Method
100M LAN,support POE 802.3af
Video Control
8ch inputs + 1ch COL + 1ch MP
Transition Effects
MIX / DIP / WIPE / STING / DVE
Upstream Keyboard
BKGD / KEY1 / KEY2 / KEY3 / KEY4
Downstream Keyboard
DSK1 / DSK2
FTB
Support
PREV TRANS
Support
MACRO
Support
S/SRC
Support
M/E
Support
AUX
Support
Vmix Functions:
Connection Method
100M LAN,support POE 802.3af
Video Control
12ch inputs
Transition Effects
4 kinds
Picture-in-picture Function
R1 / R2 / R3 / R4
Playback Setting
M1 / M2
REC
Support
LIVE
Support
T-BAR
Support
Power Supply
Input Voltage
DC 12V
InputCurrent
0.3A
Rated Power
4W
POE
POE 802.3af for optional
Powered by USB
Support ( rely on the USB power supply capability of the computer )
Others
Use Environment
Indoor
Operating Temperature
-10℃~40℃
Storage Temperature
-20℃-60℃

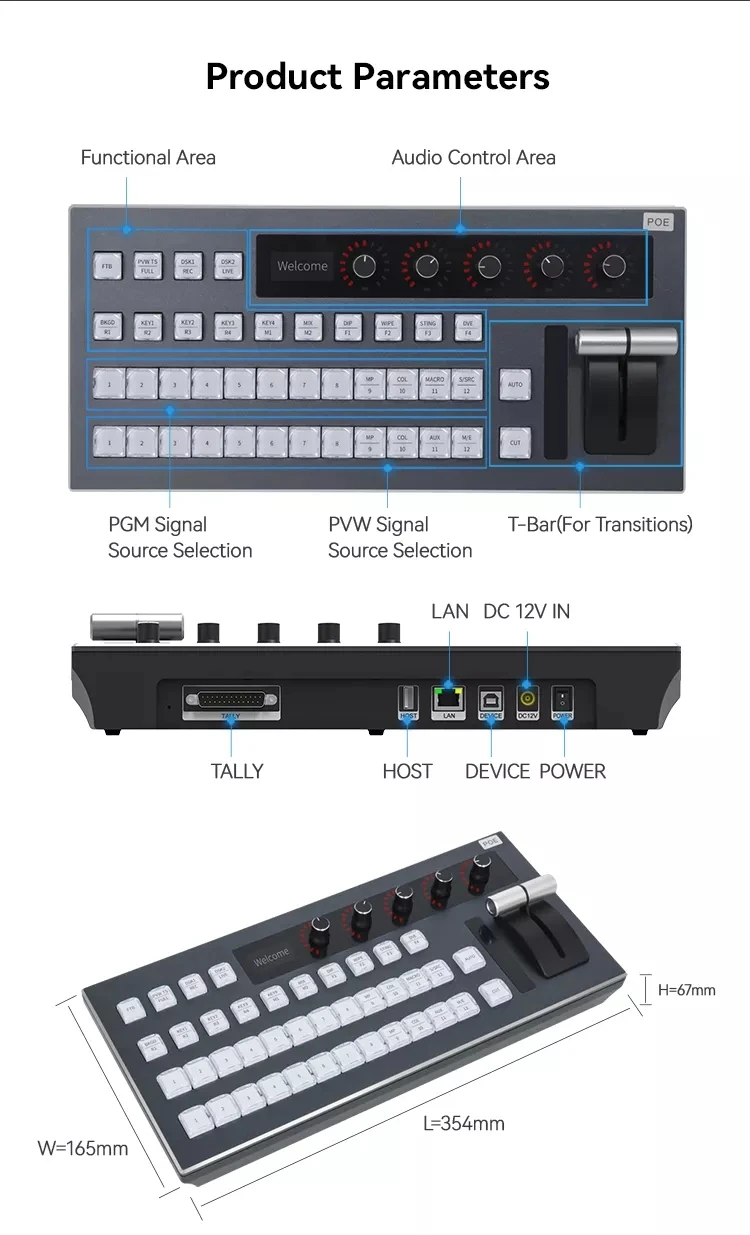

Dimensions
(L)354*(W)165*(H)67mm
Weight
1.5Kg

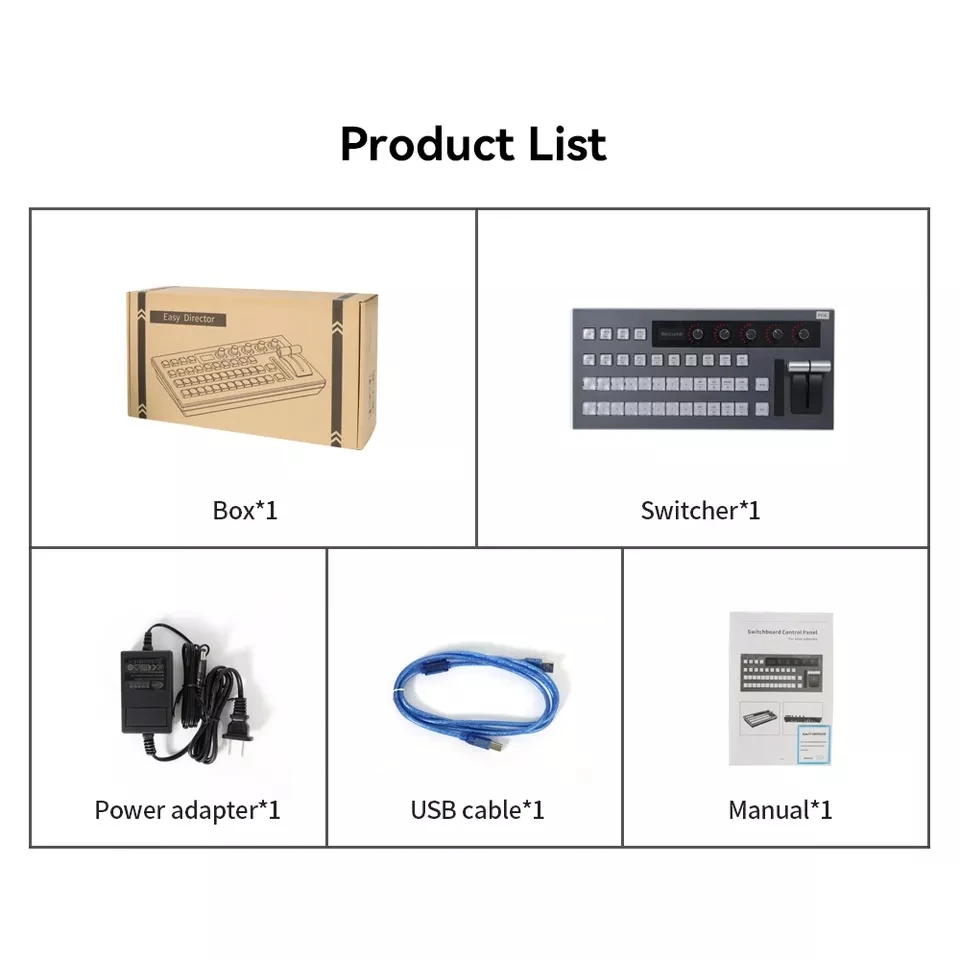

Accessories
Power adapter*1, USB cable*1, User manual*1
