Product Name：
Digital mixer

Voltage：
100-240V/50-60HZ

Power：
50W

Product model：

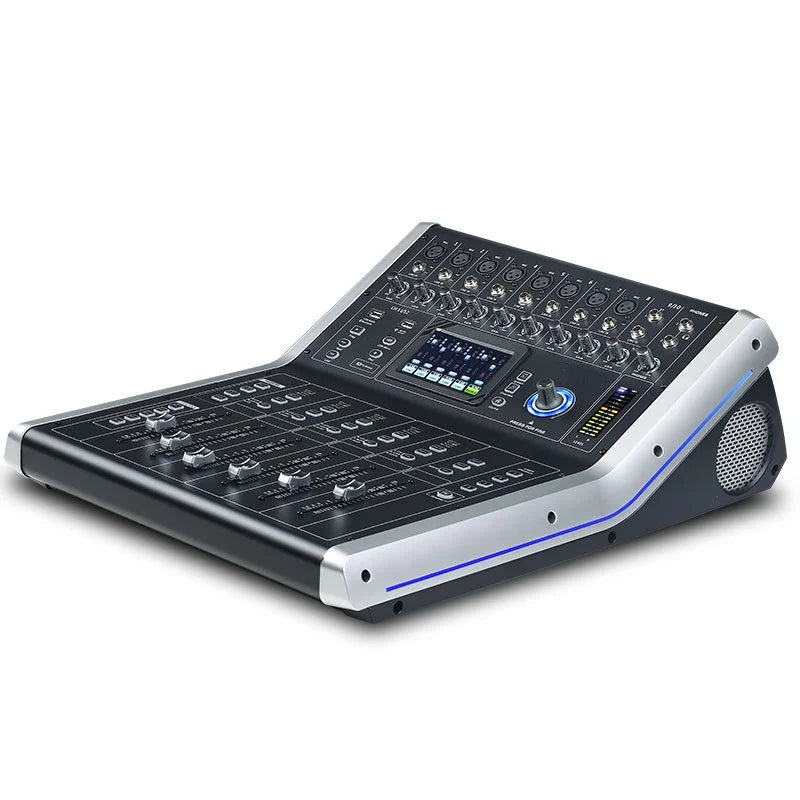

Model: (MG22) 22-channel digital mixer

Packing Weight：
39KG

Package Size：
73*73*37CM

Product Code：
YP0812B

Product Introduction：

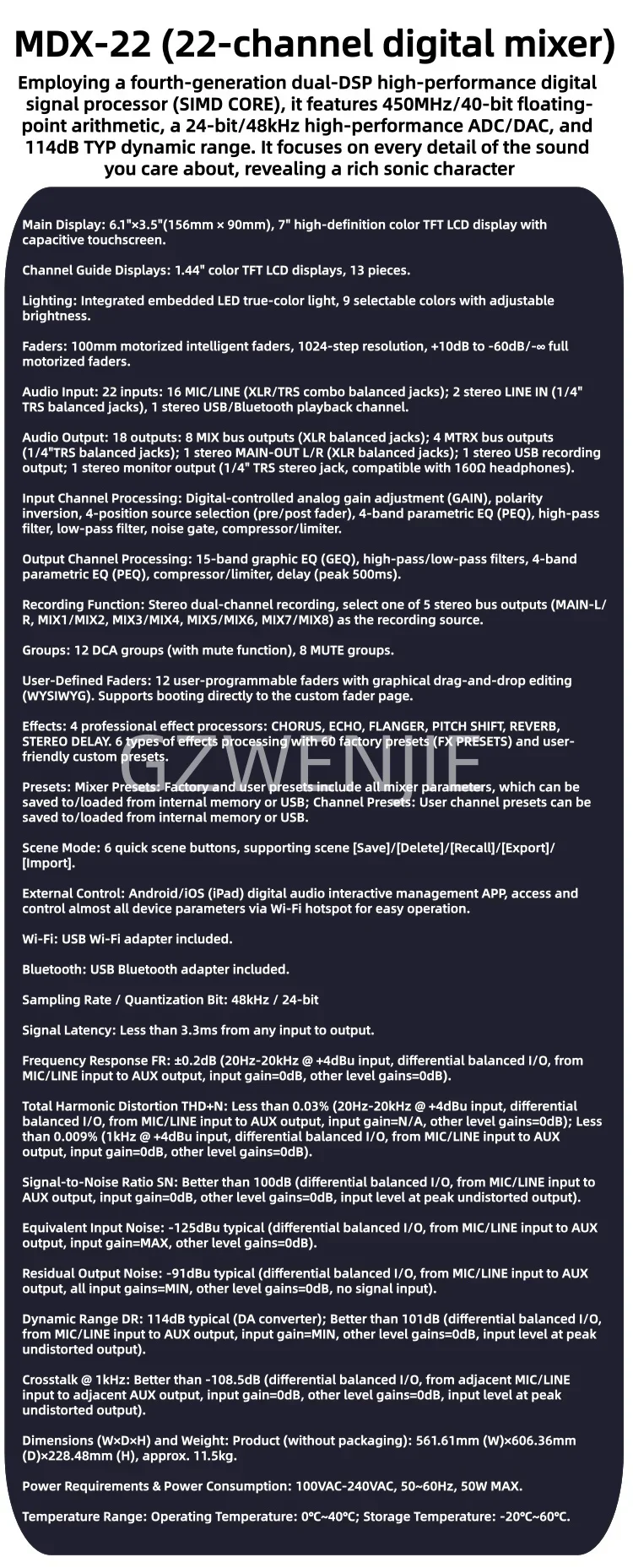

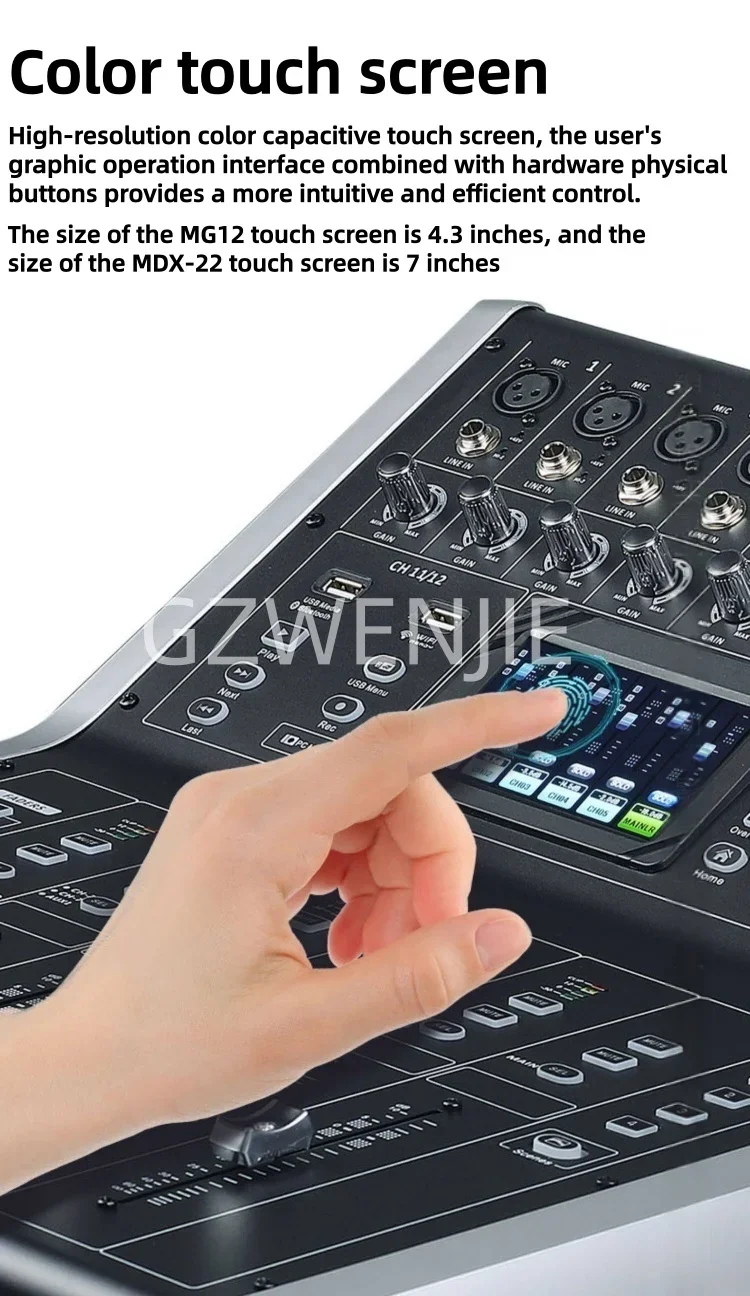

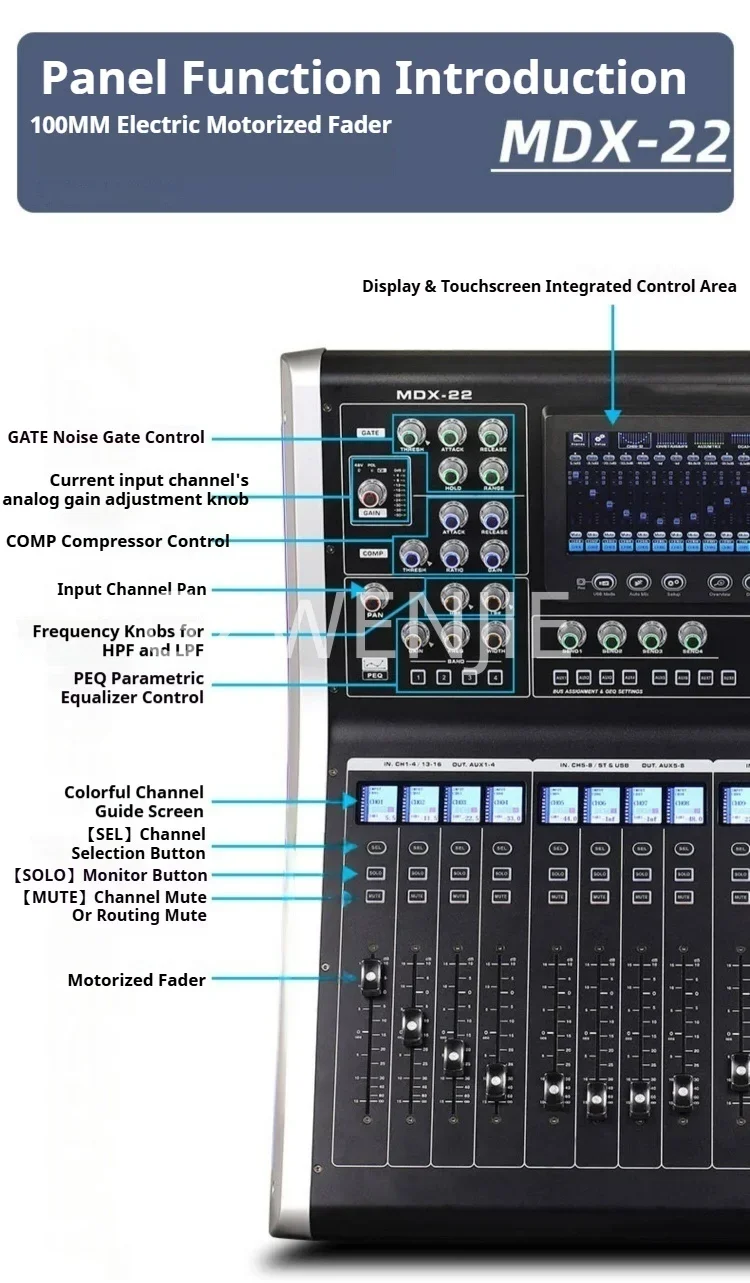

Main Display: 6.1"×3.5"(156mm × 90mm), 7" high-definition color TFT LCD display with capacitive touchscreen.

Channel Guide Displays: 1.44" color TFT LCD displays, 13 pieces.

Lighting: Integrated embedded LED true-color light, 9 selectable colors with adjustable brightness.

Faders: 100mm motorized intelligent faders, 1024-step resolution, +10dB to -60dB/-∞ full motorized faders.

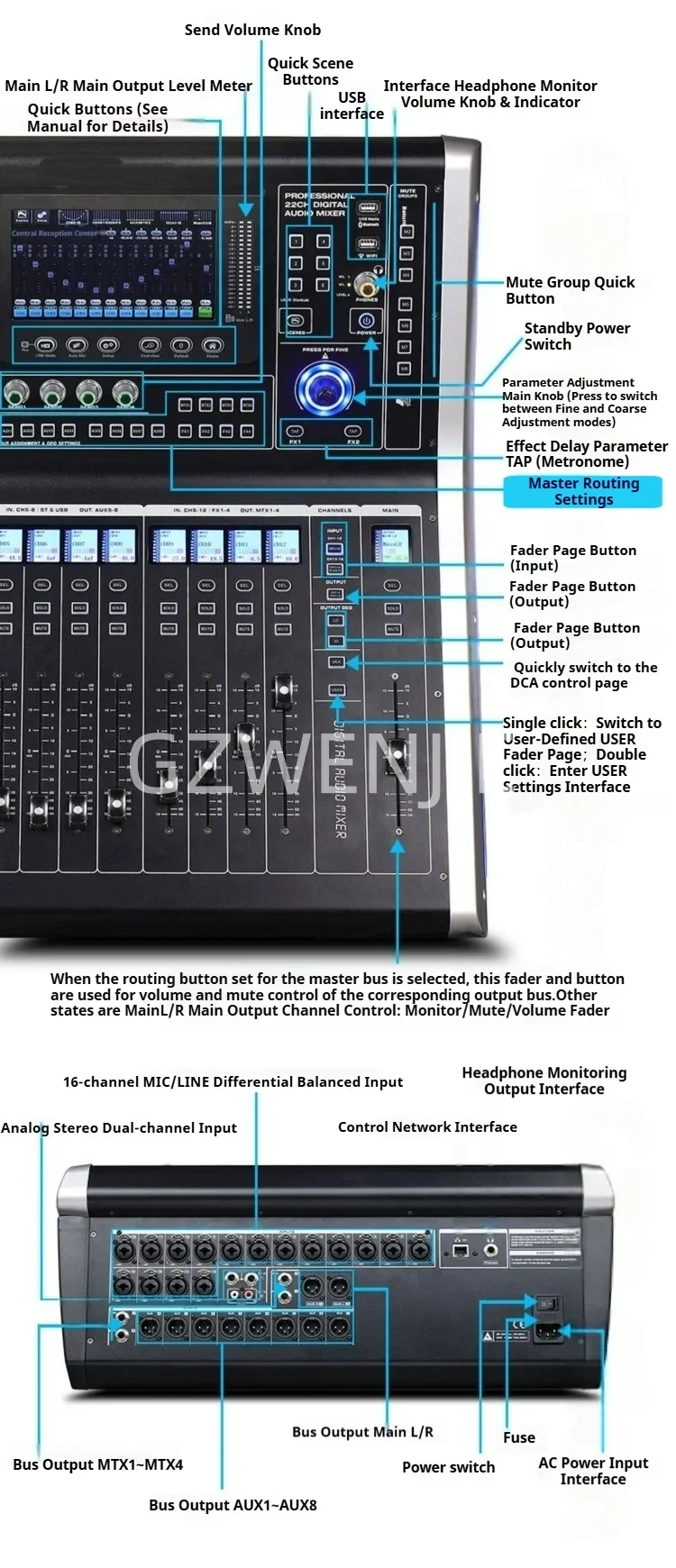

Audio Input: 22 inputs: 16 MIC/LINE (XLR/TRS combo balanced jacks); 2 stereo LINE IN (1/4" TRS balanced jacks), 1 stereo USB/Bluetooth playback channel.

Audio Output: 18 outputs: 8 MIX bus outputs (XLR balanced jacks); 4 MTRX bus outputs (1/4"TRS balanced jacks); 1 stereo MAIN-OUT L/R (XLR balanced jacks); 1 stereo USB recording output; 1 stereo monitor output (1/4" TRS stereo jack, compatible with 160Ω headphones).

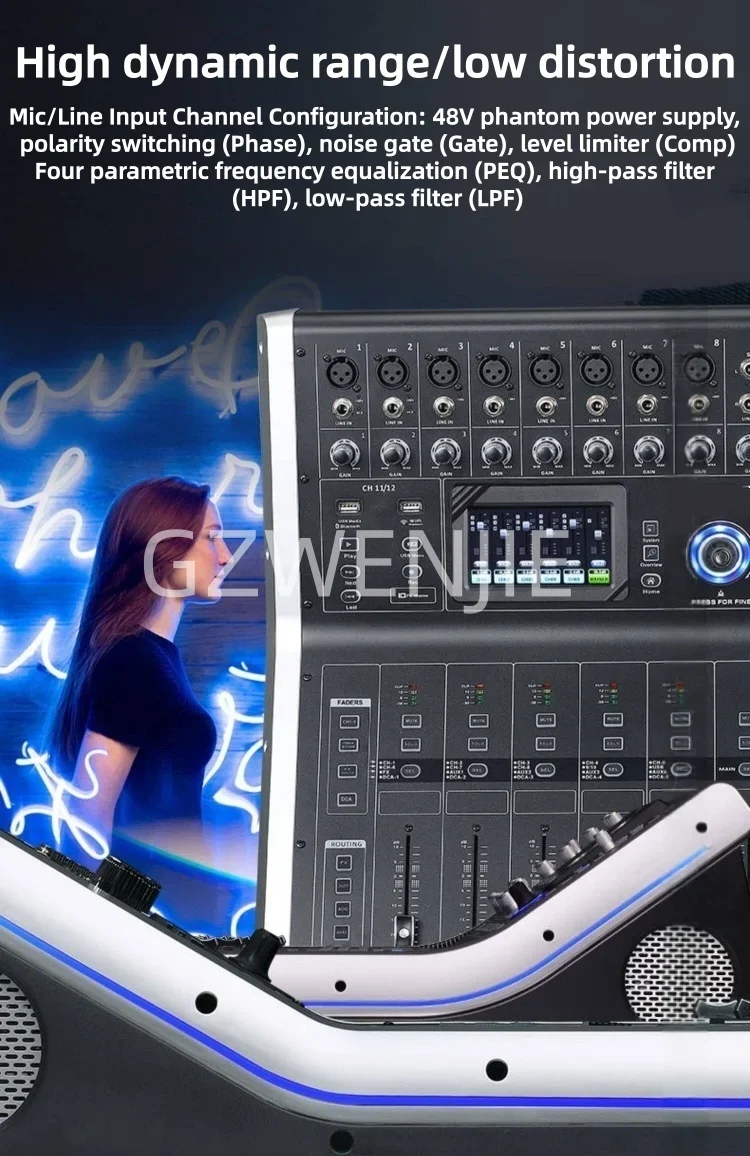

Input Channel Processing: Digital-controlled analog gain adjustment (GAIN), polarity inversion, 4-position source selection (pre/post fader), 4-band parametric EQ (PEQ), high-pass filter, low-pass filter, noise gate, compressor/limiter.

Output Channel Processing: 15-band graphic EQ (GEQ), high-pass/low-pass filters, 4-band parametric EQ (PEQ), compressor/limiter, delay (peak 500ms).

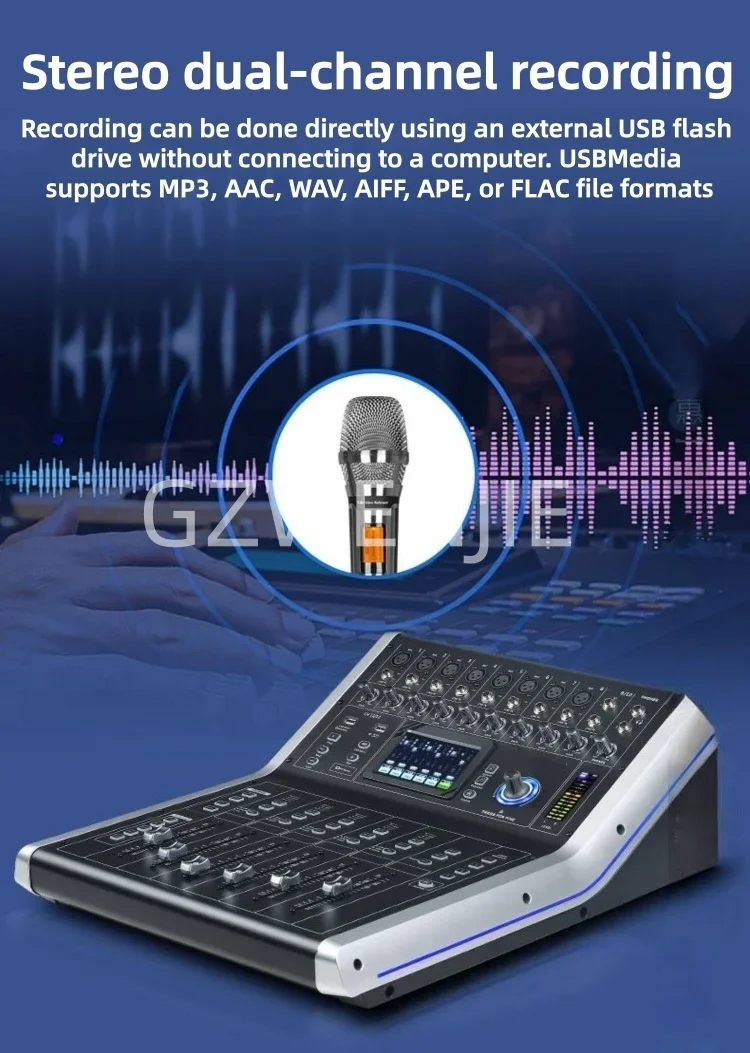

Recording Function: Stereo dual-channel recording, select one of 5 stereo bus outputs (MAIN-L/R, MIX1/MIX2, MIX3/MIX4, MIX5/MIX6, MIX7/MIX8) as the recording source.

Groups: 12 DCA groups (with mute function), 8 MUTE groups.

User-Defined Faders: 12 user-programmable faders with graphical drag-and-drop editing (WYSIWYG). Supports booting directly to the custom fader page.

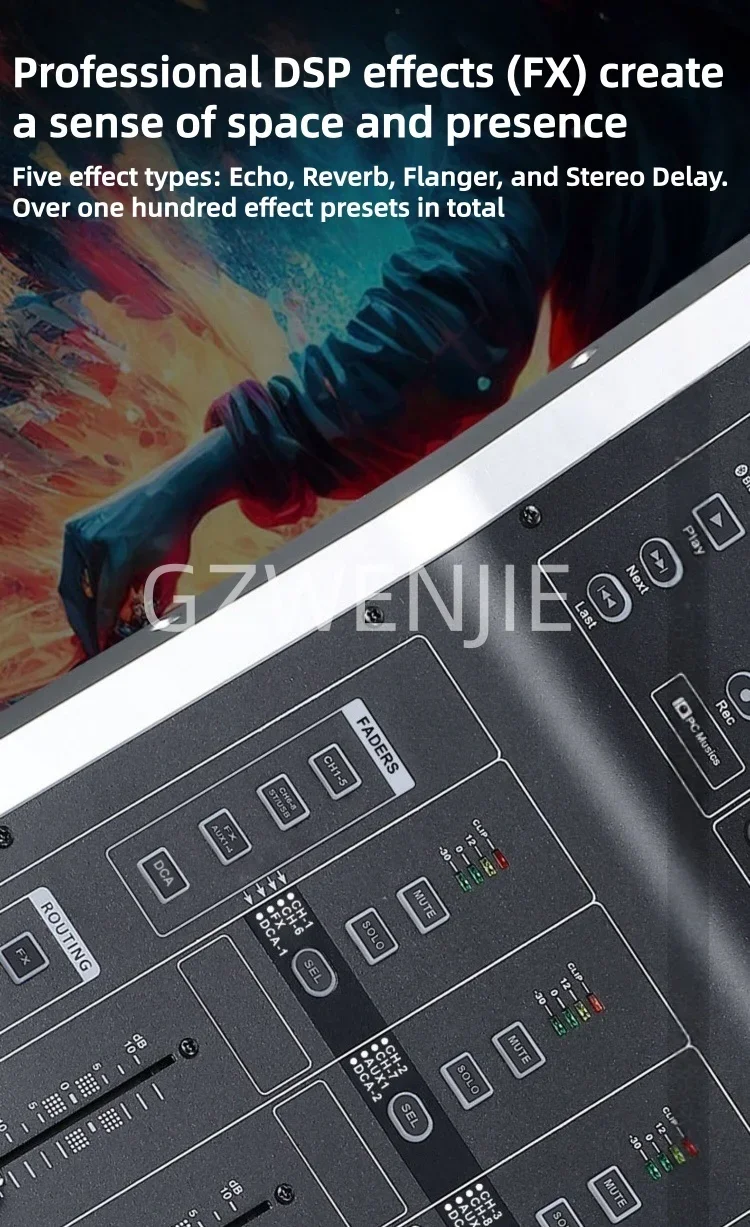

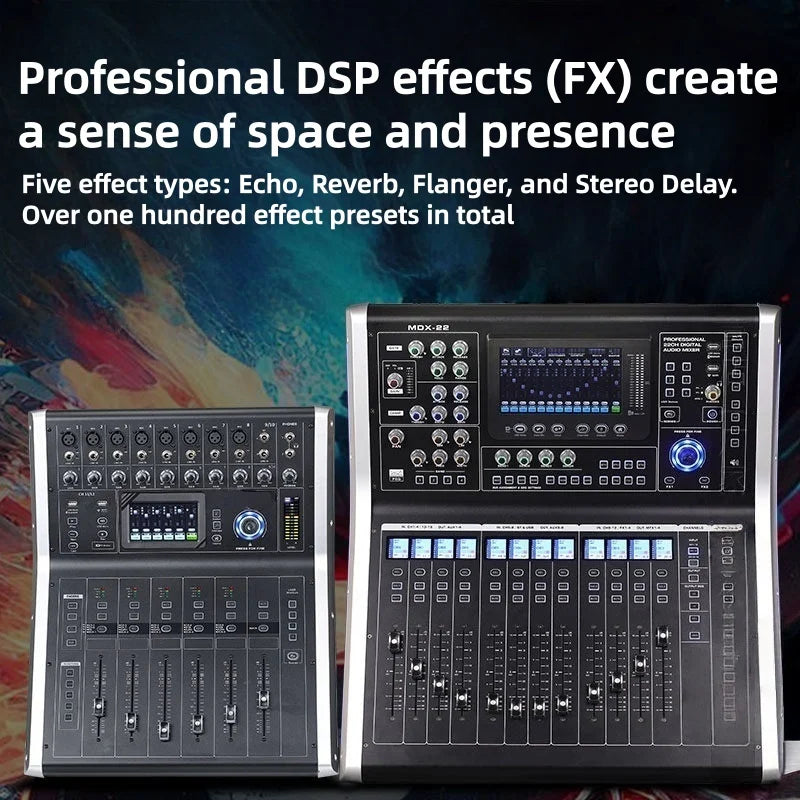

Effects: 4 professional effect processors: CHORUS, ECHO, FLANGER, PITCH SHIFT, REVERB, STEREO DELAY. 6 types of effects processing with 60 factory presets (FX PRESETS) and user-friendly custom presets.

Presets: Mixer Presets: Factory and user presets include all mixer parameters, which can be saved to/loaded from internal memory or USB; Channel Presets: User channel presets can be saved to/loaded from internal memory or USB.

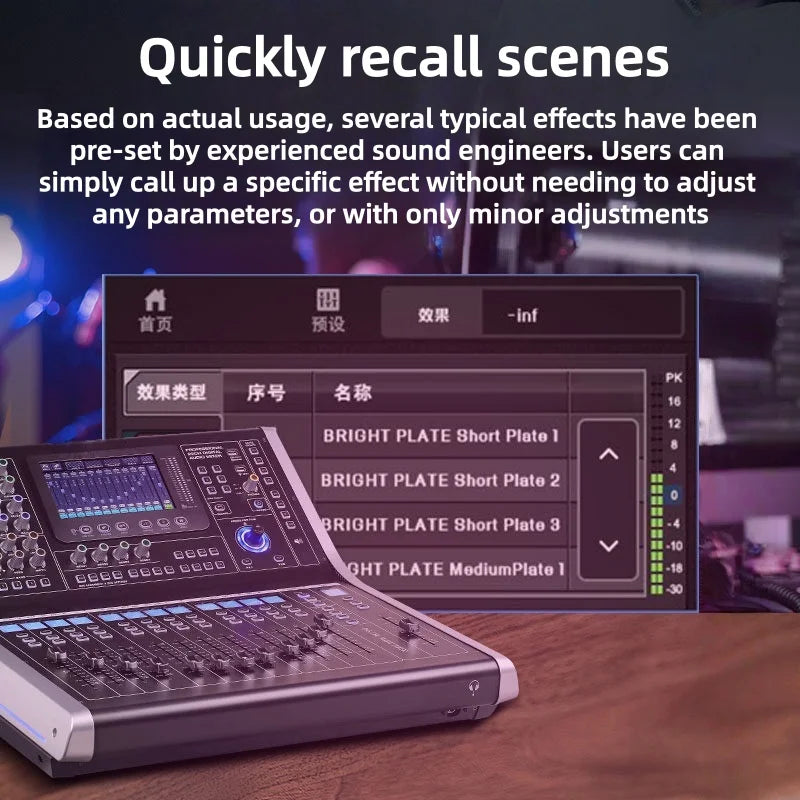

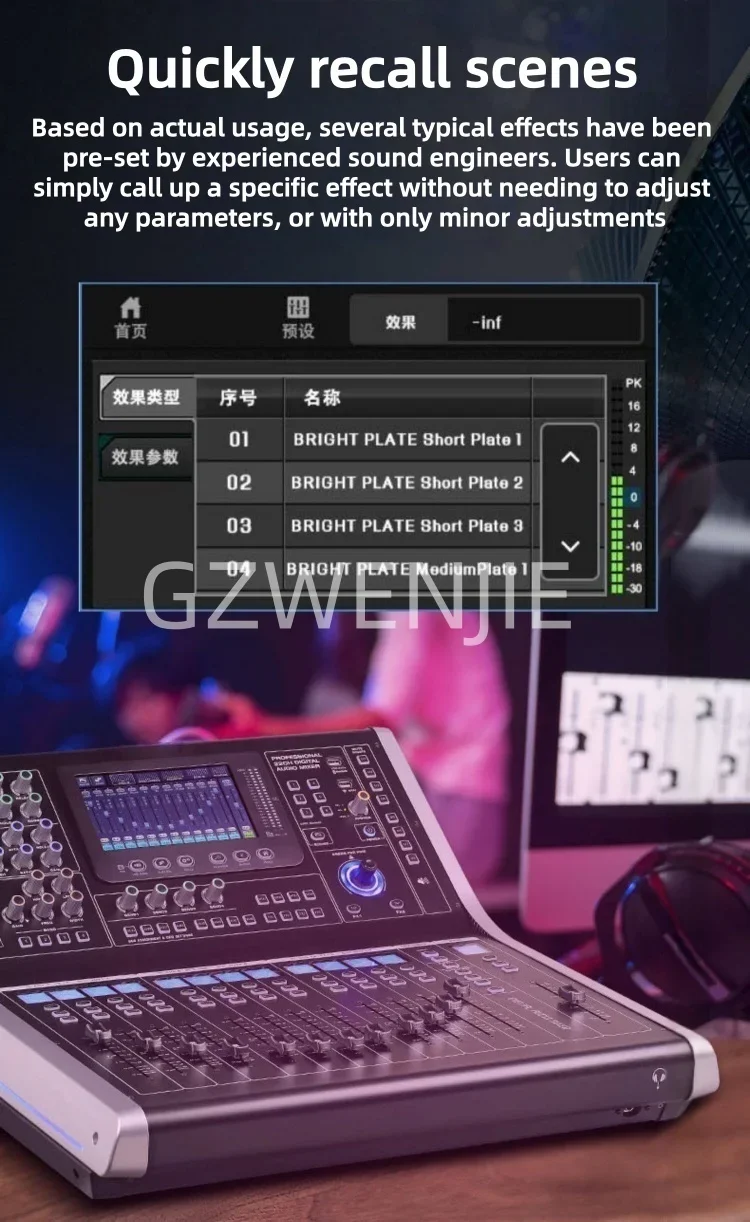

Scene Mode: 6 quick scene buttons, supporting scene [Save]/[Delete]/[Recall]/[Export]/[Import].

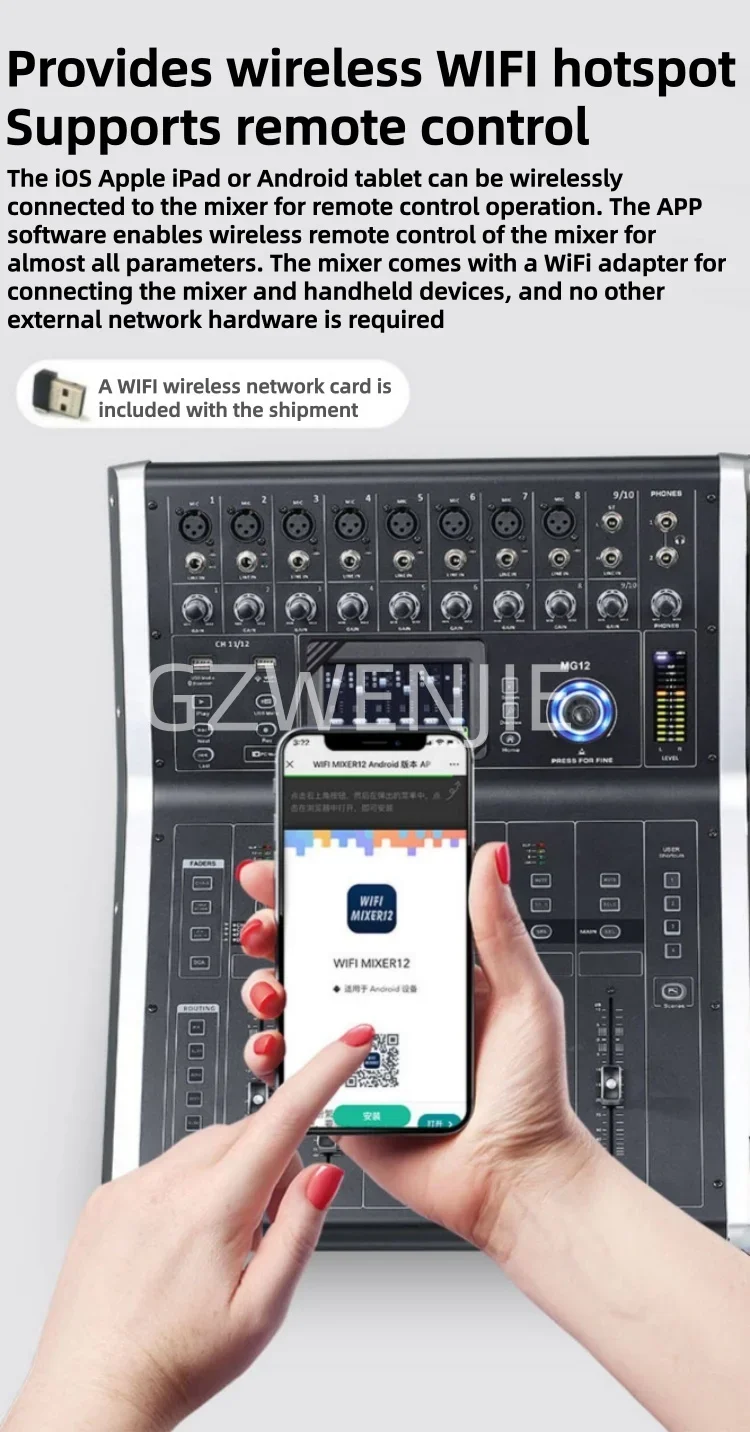

External Control: Android/iOS (iPad) digital audio interactive management APP, access and control almost all device parameters via Wi-Fi hotspot for easy operation.

Wi-Fi: USB Wi-Fi adapter included.

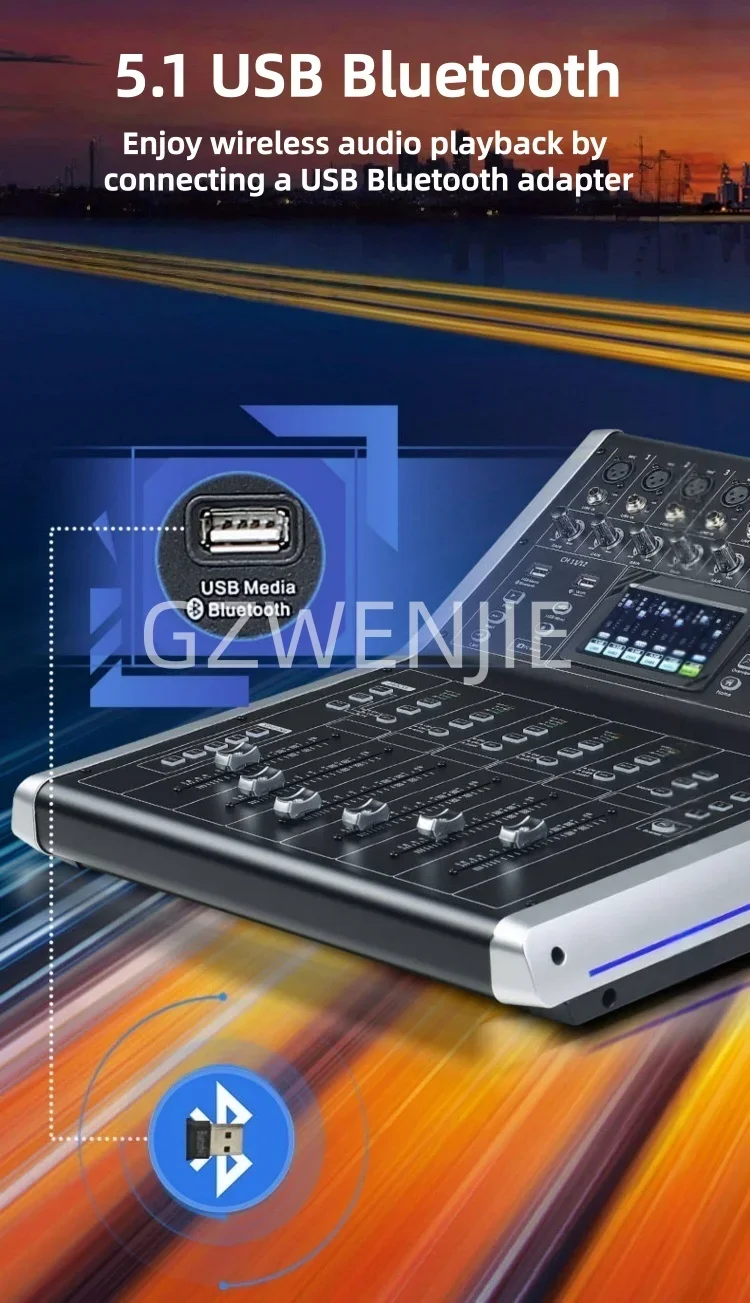

Bluetooth: USB Bluetooth adapter included.

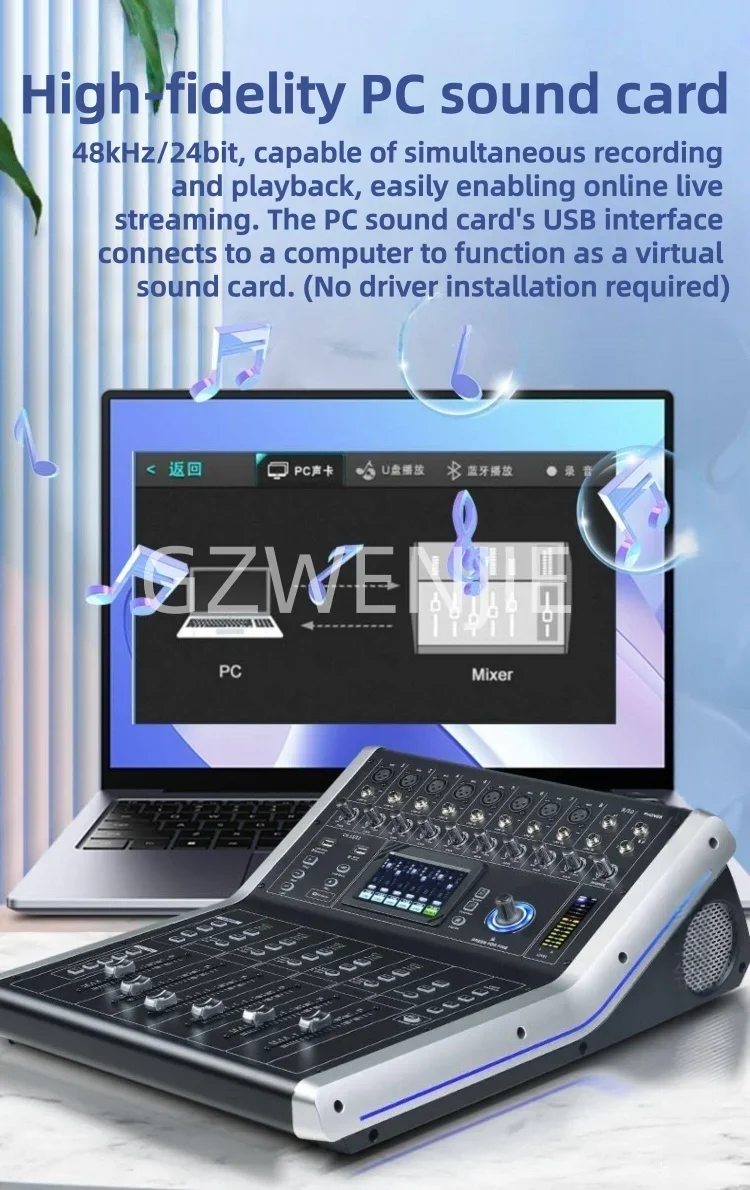

Sampling Rate / Quantization Bit: 48kHz / 24-bit

Signal Latency: Less than 3.3ms from any input to output.

Frequency Response FR: ±0.2dB (20Hz-20kHz @ +4dBu input, differential balanced I/O, from MIC/LINE input to AUX output, input gain=0dB, other level gains=0dB).

Total Harmonic Distortion THD+N: Less than 0.03% (20Hz-20kHz @ +4dBu input, differential balanced I/O, from MIC/LINE input to AUX output, input gain=N/A, other level gains=0dB); Less than 0.009% (1kHz @ +4dBu input, differential balanced I/O, from MIC/LINE input to AUX output, input gain=0dB, other level gains=0dB).

Signal-to-Noise Ratio SN: Better than 100dB (differential balanced I/O, from MIC/LINE input to AUX output, input gain=0dB, other level gains=0dB, input level at peak undistorted output).

Equivalent Input Noise: -125dBu typical (differential balanced I/O, from MIC/LINE input to AUX output, input gain=MAX, other level gains=0dB).

Residual Output Noise: -91dBu typical (differential balanced I/O, from MIC/LINE input to AUX output, all input gains=MIN, other level gains=0dB, no signal input).

Dynamic Range DR: 114dB typical (DA converter); Better than 101dB (differential balanced I/O, from MIC/LINE input to AUX output, input gain=MIN, other level gains=0dB, input level at peak undistorted output).

Crosstalk @ 1kHz: Better than -108.5dB (differential balanced I/O, from adjacent MIC/LINE input to adjacent AUX output, input gain=0dB, other level gains=0dB, input level at peak undistorted output).

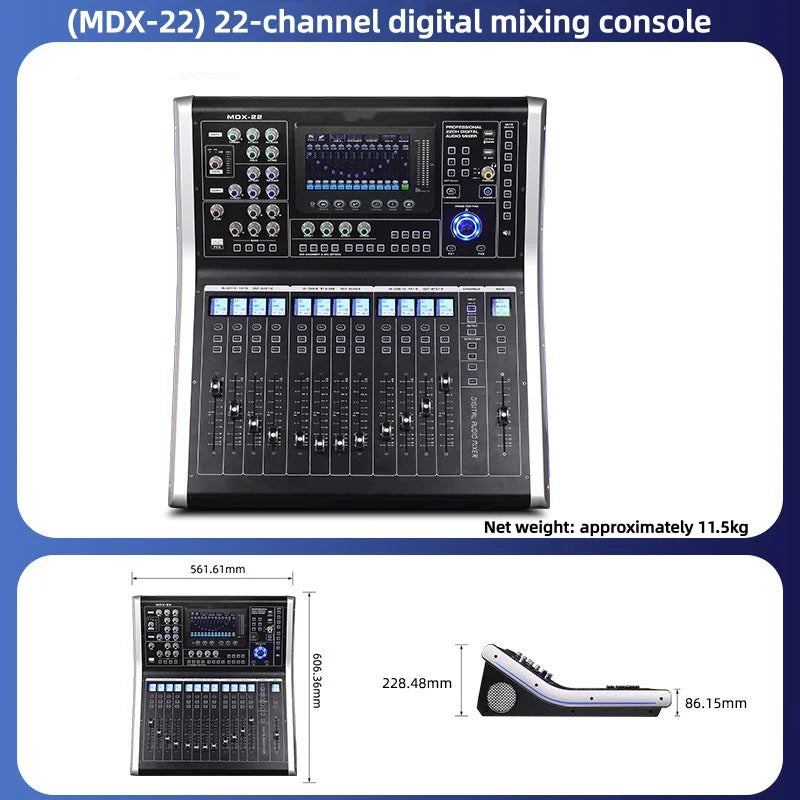

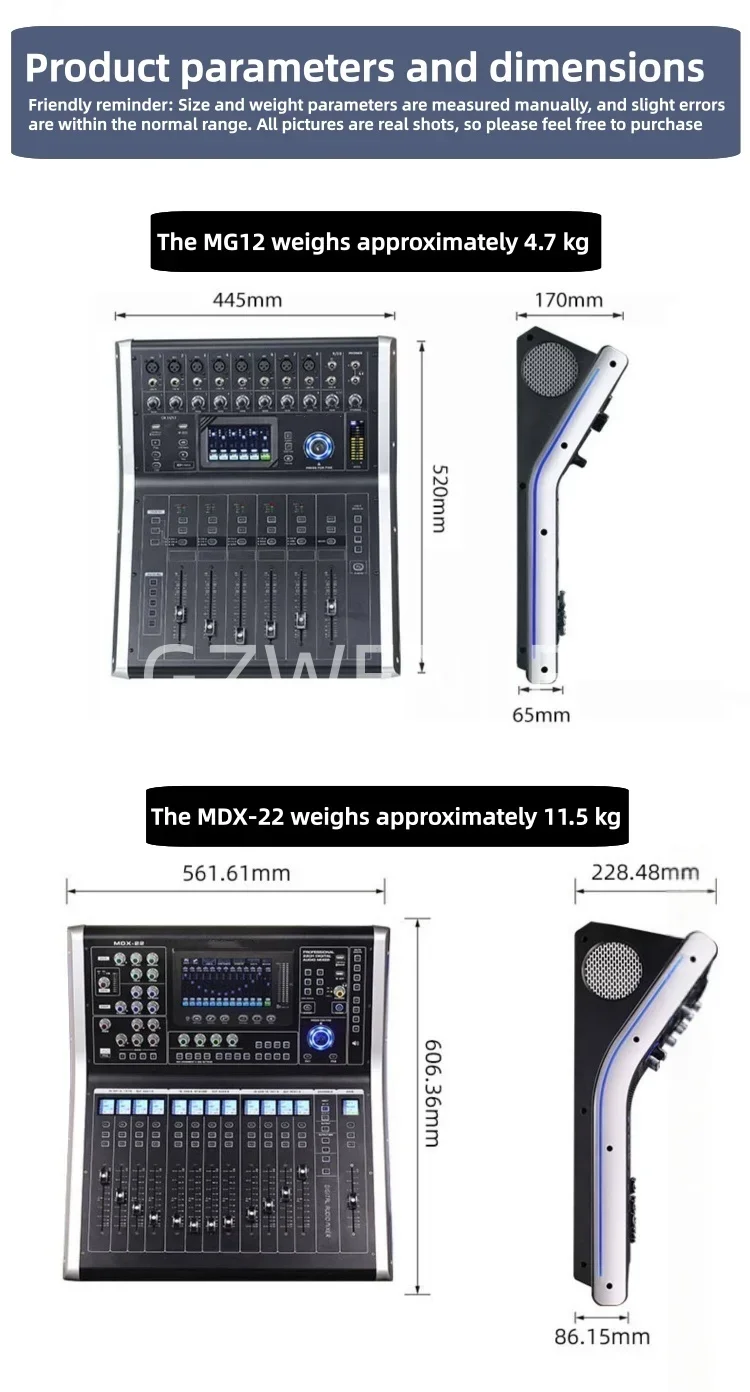

Dimensions (W×D×H) and Weight: Product (without packaging): 561.61mm (W)×606.36mm (D)×228.48mm (H), approx. 11.5kg.

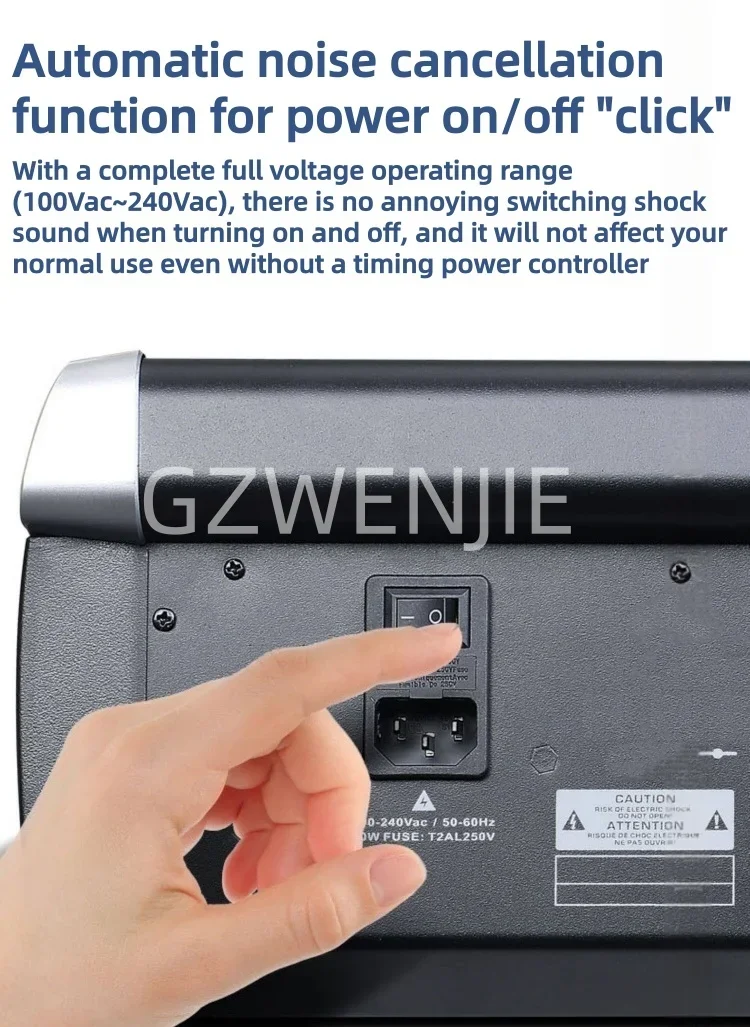

Power Requirements & Power Consumption: 100VAC-240VAC, 50~60Hz, 50W MAX.

Temperature Range: Operating Temperature: 0℃~40℃; Storage Temperature: -20℃~60℃.
