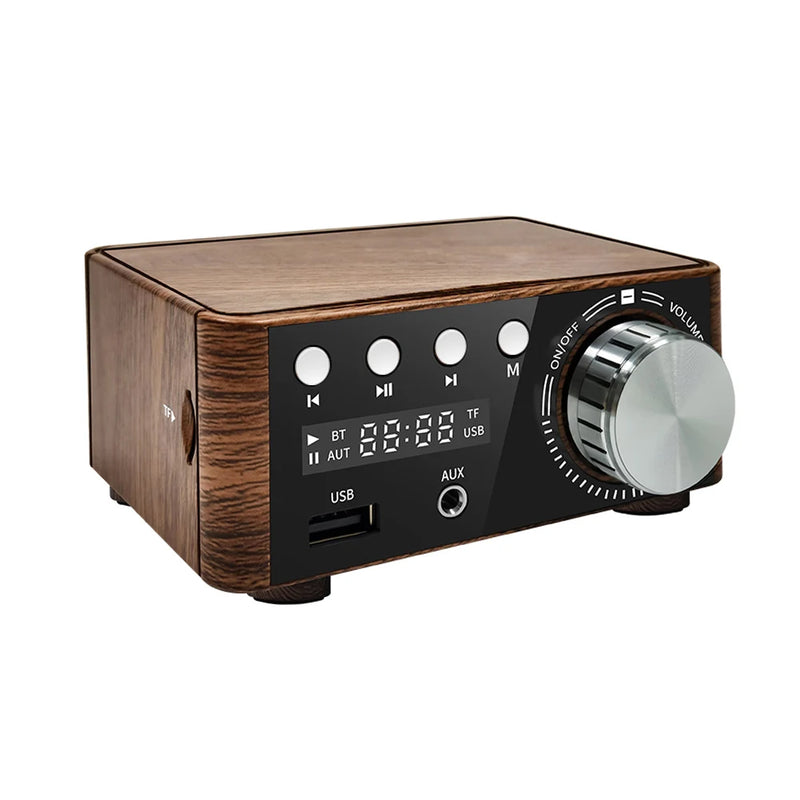

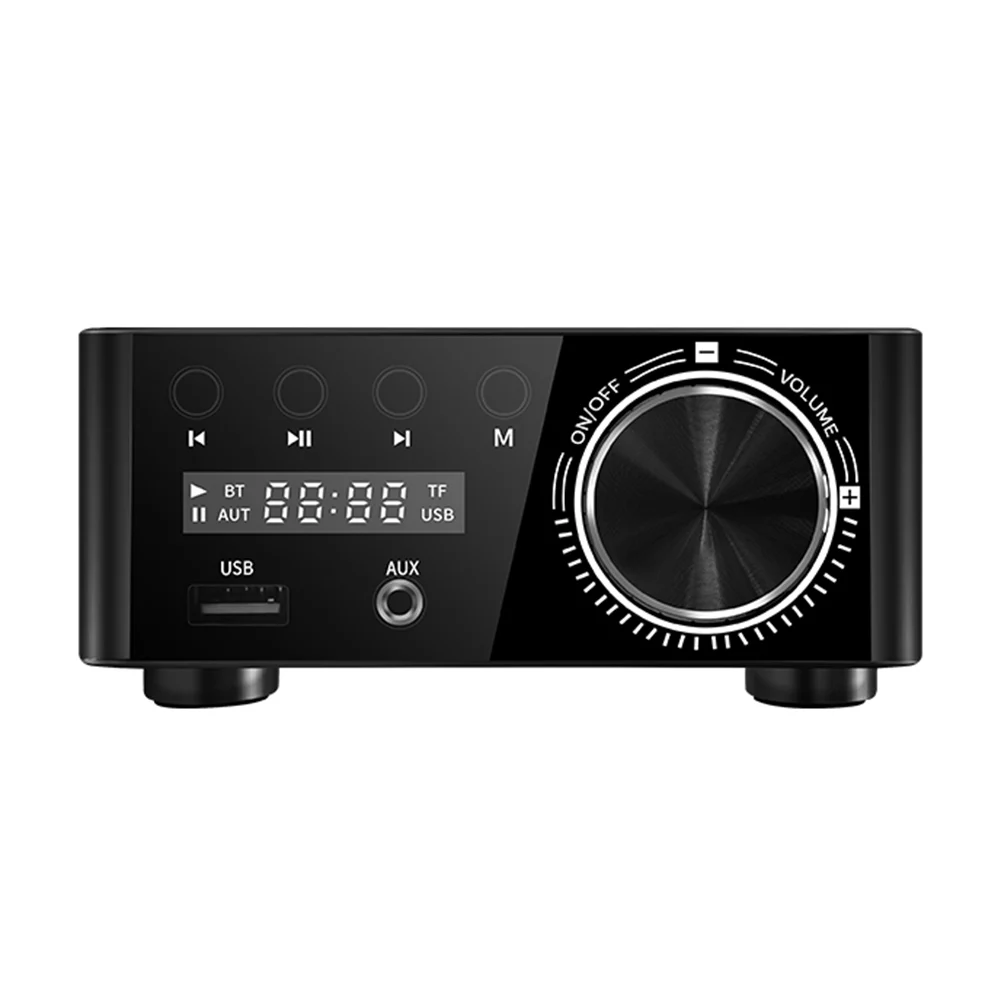

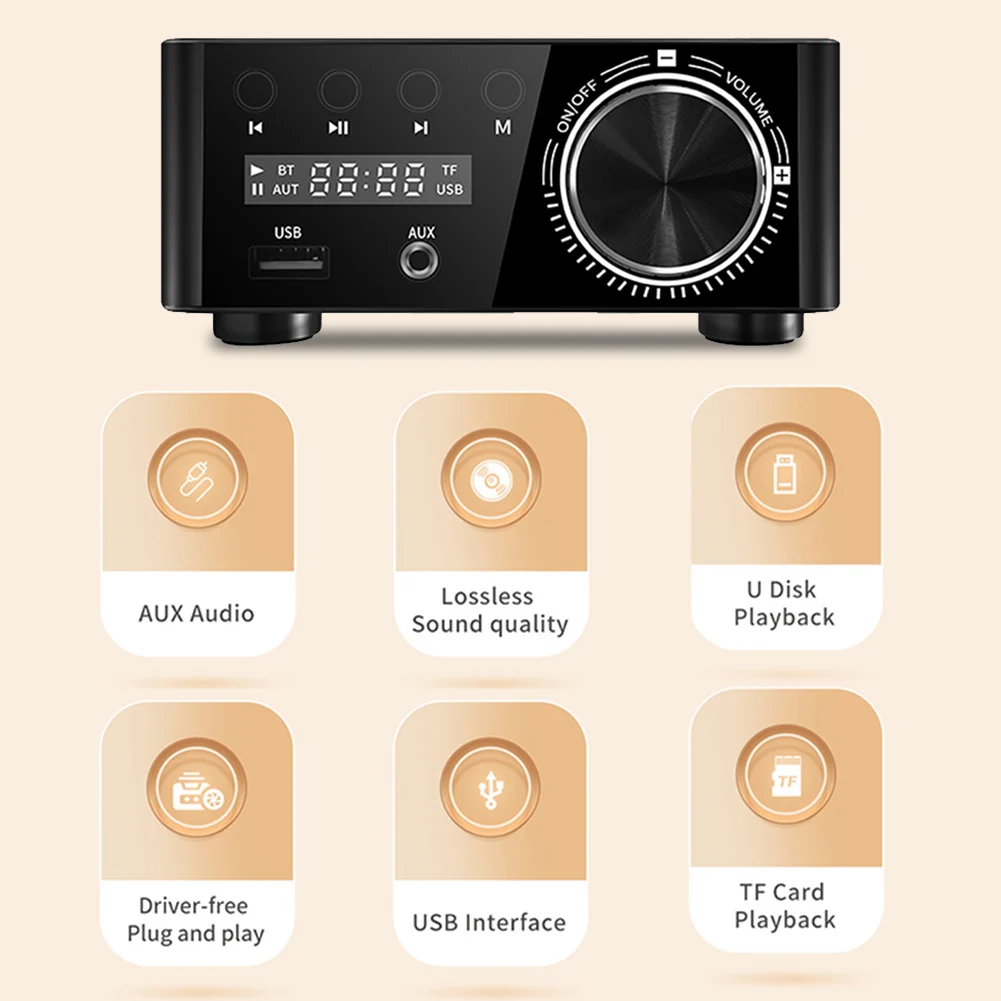

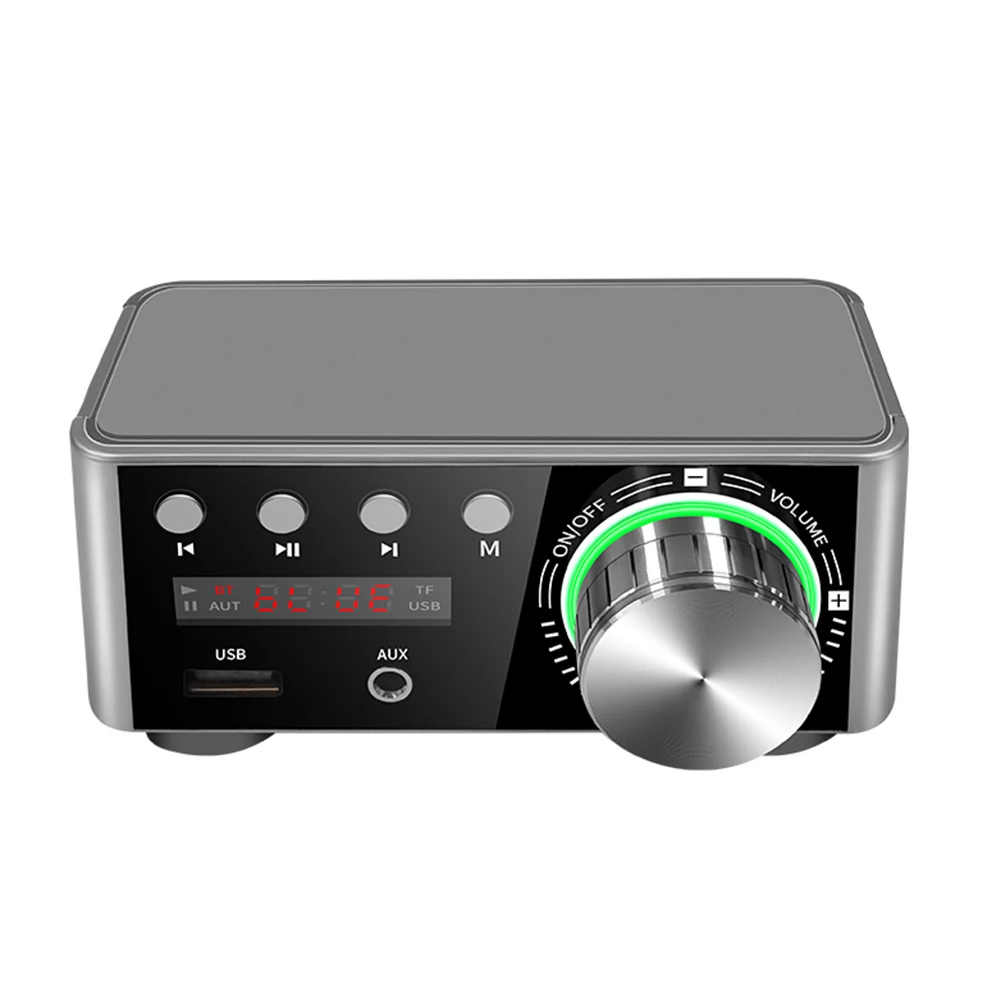

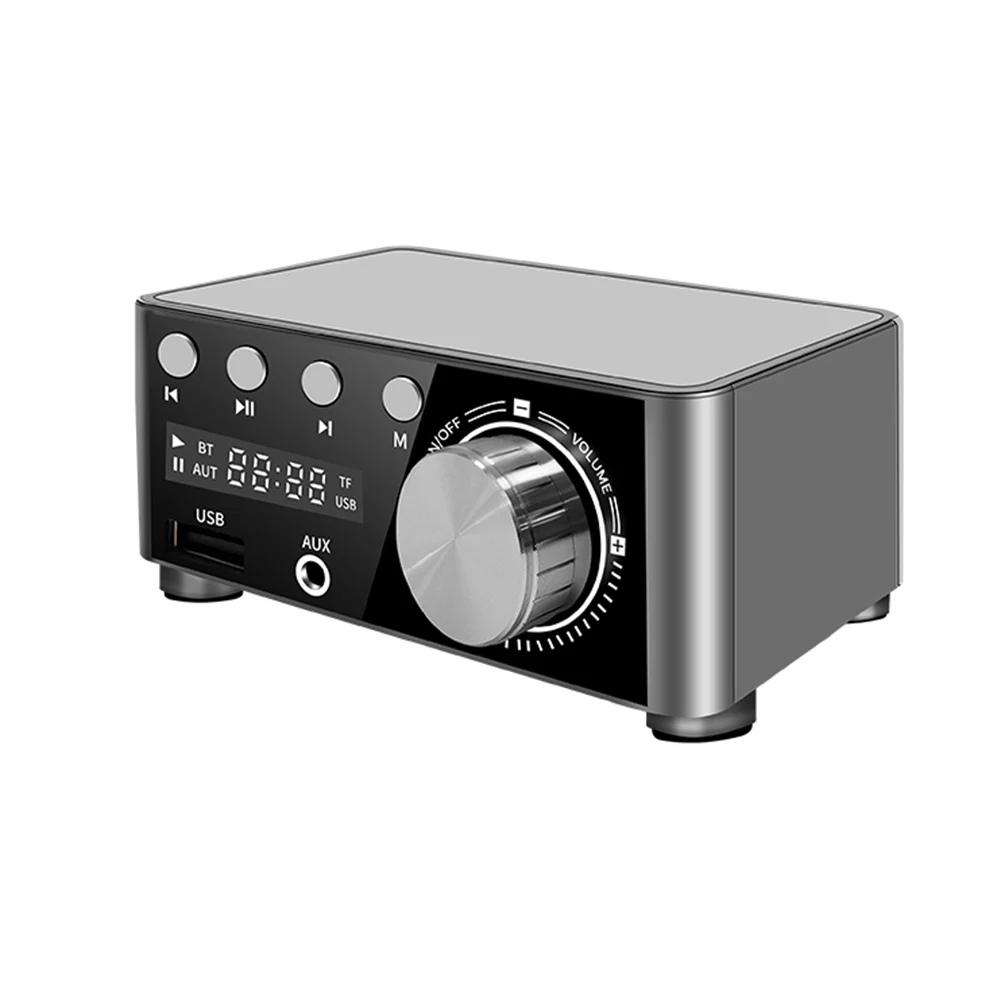

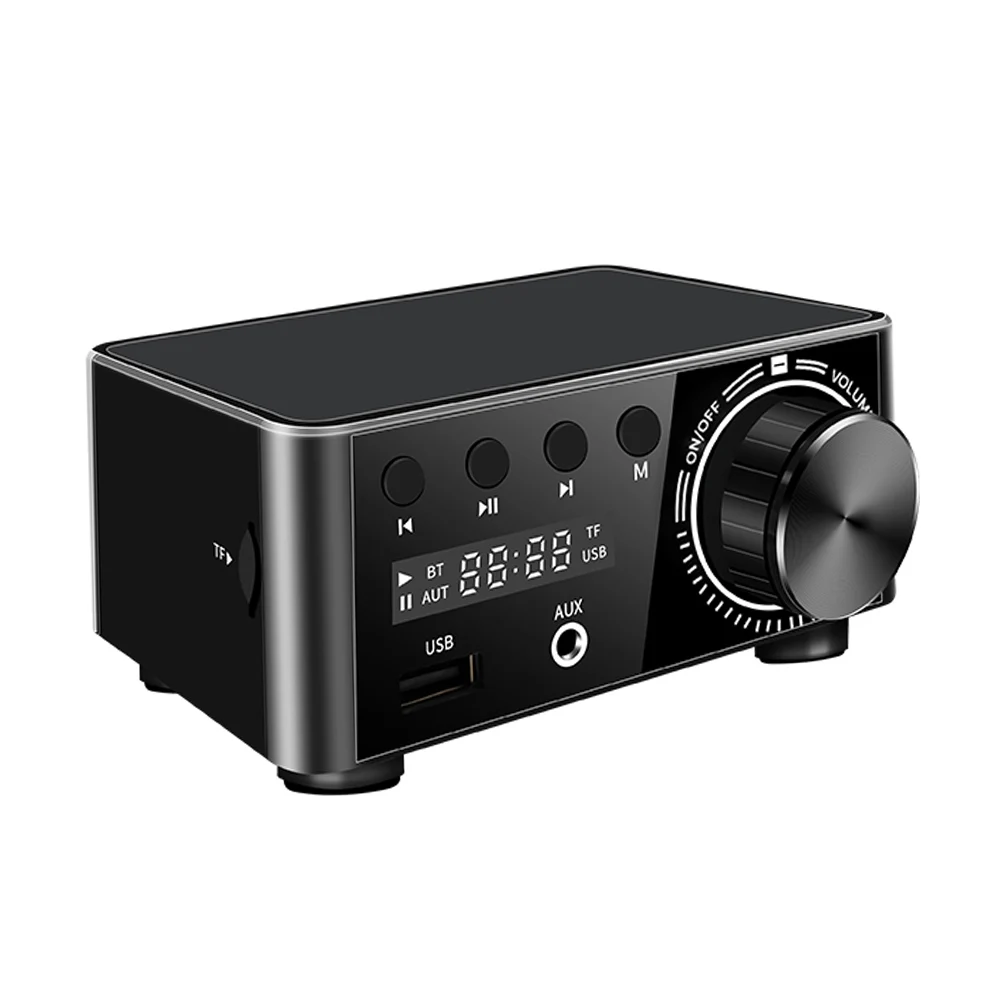

50Wx2 Mini Amplifier With Digital Display CS8673E HiFi Mini Amplifier Bluetooth-compatible 5.0 Plug and Play AUX TF Home Theater

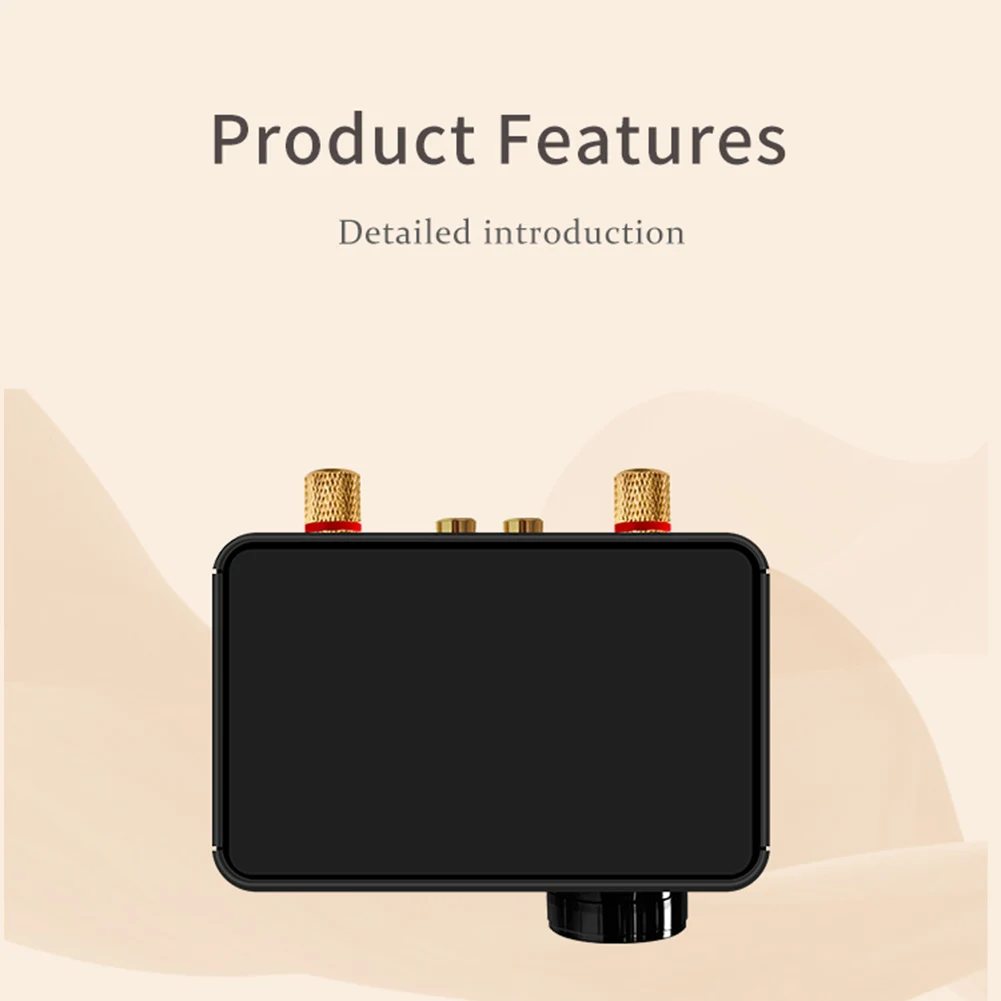

Feature:

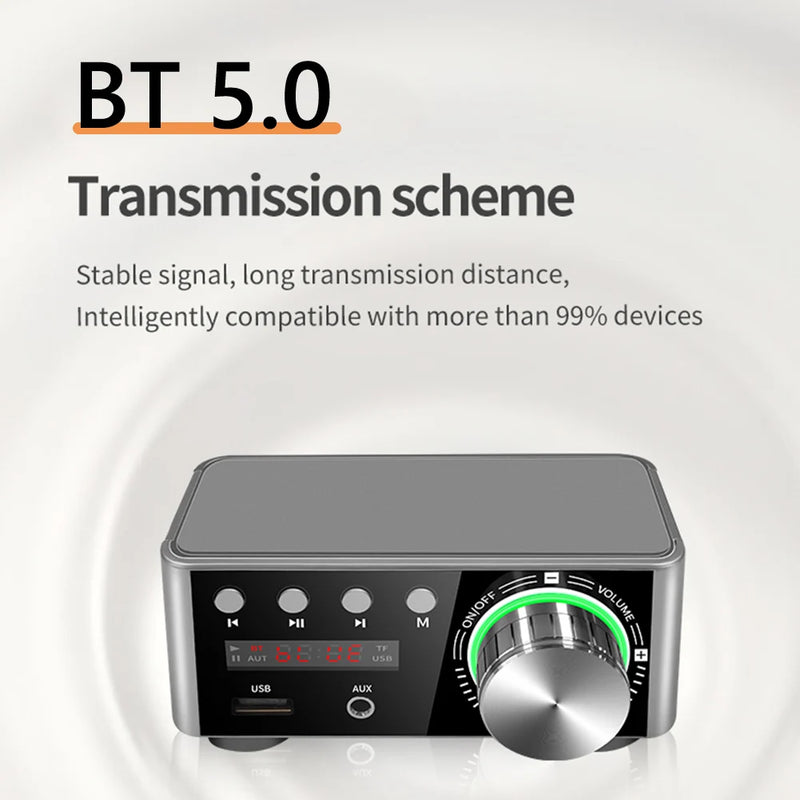

1. Bluetooth-compatible 5. 0 Transmission Solution: Stable signal, long transmission distance, at least 12 meters (obstacle free), intelligent compatibility with over 99% of devices (switch the amplifier to Bluetooth-compatible mode, turn on Bluetooth-compatible, search for APP and connect, Bluetooth-compatible link successful)

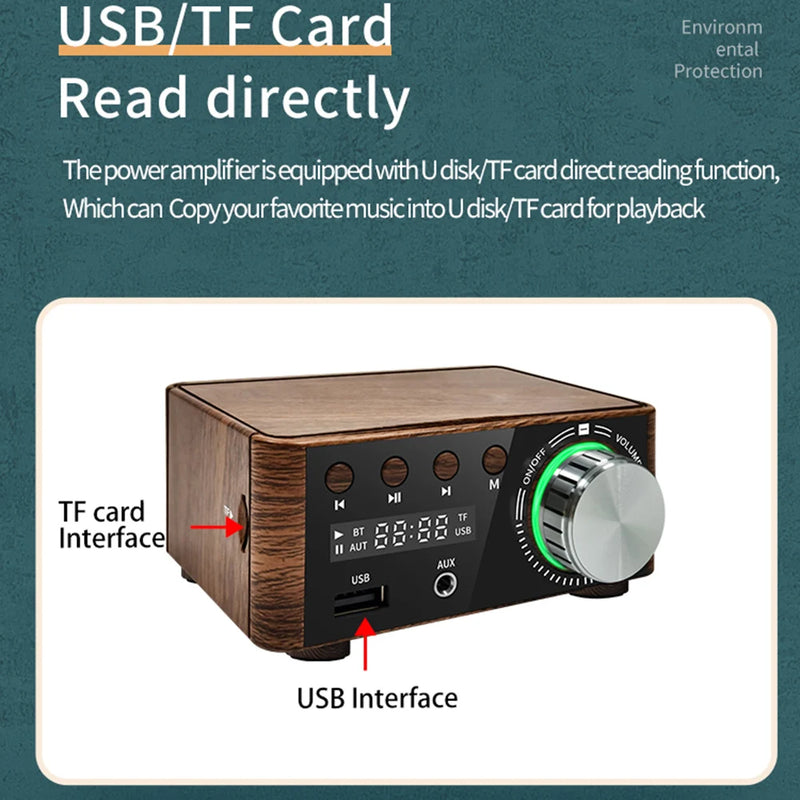

2. USB/TF Card Direct Reading: The amplifier is equipped with a USB flash drive/TF card direct reading function, which can copy your favorite music into a USB flash drive/TF card for playback. It supports USB flash drive and TF card playback, and supports multiple formats of decoding (MP3/MAVAPE/FLAC)

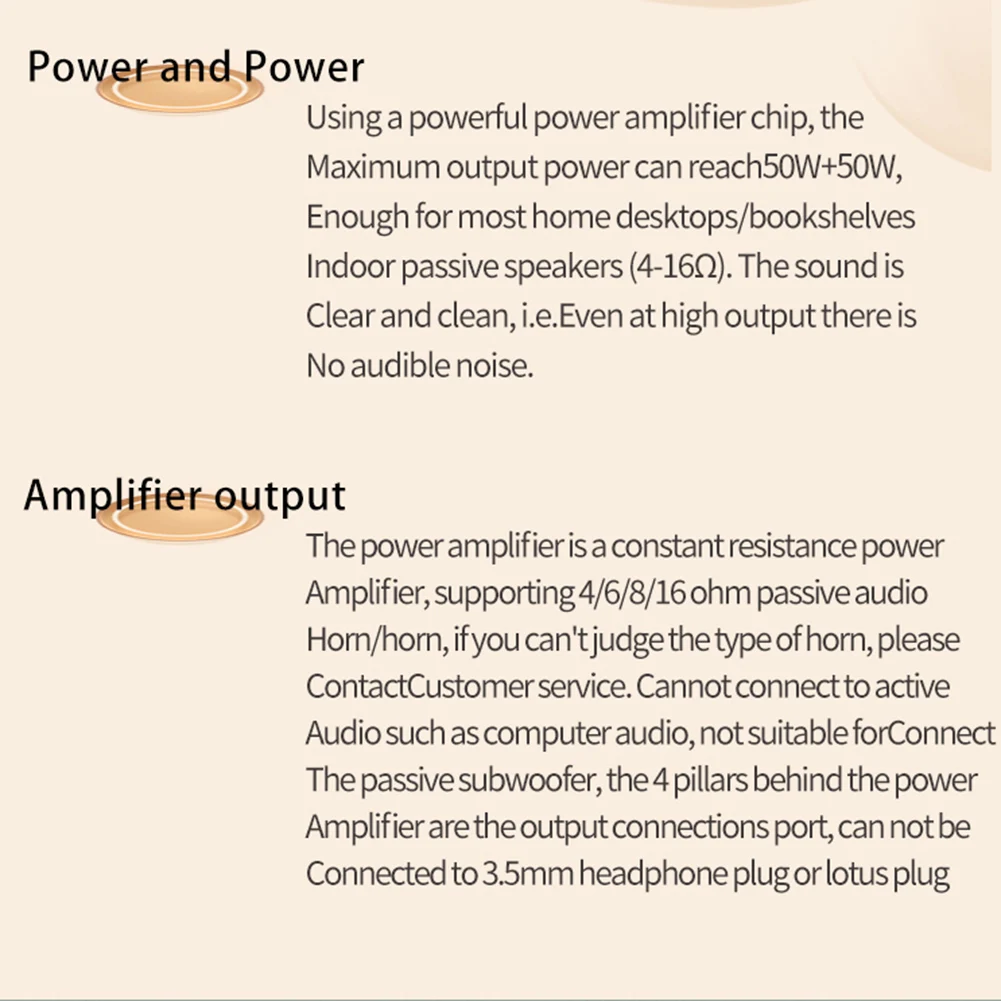

3. Power Supply: Adopting a powerful power amplifier chip CS8673E, the maximum output power can reach 50W+50W, which is sufficient to meet the needs of most household desktops/bookshelves and indoor passive speakers (4-16 Ω). The sound is clear and clean, and there is no audible noise even at high output.

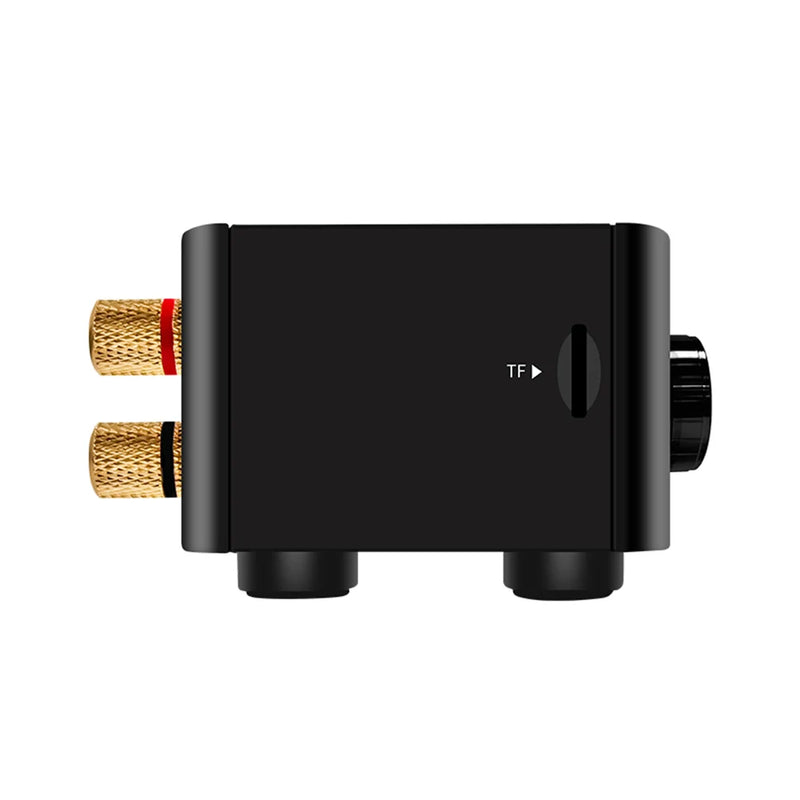

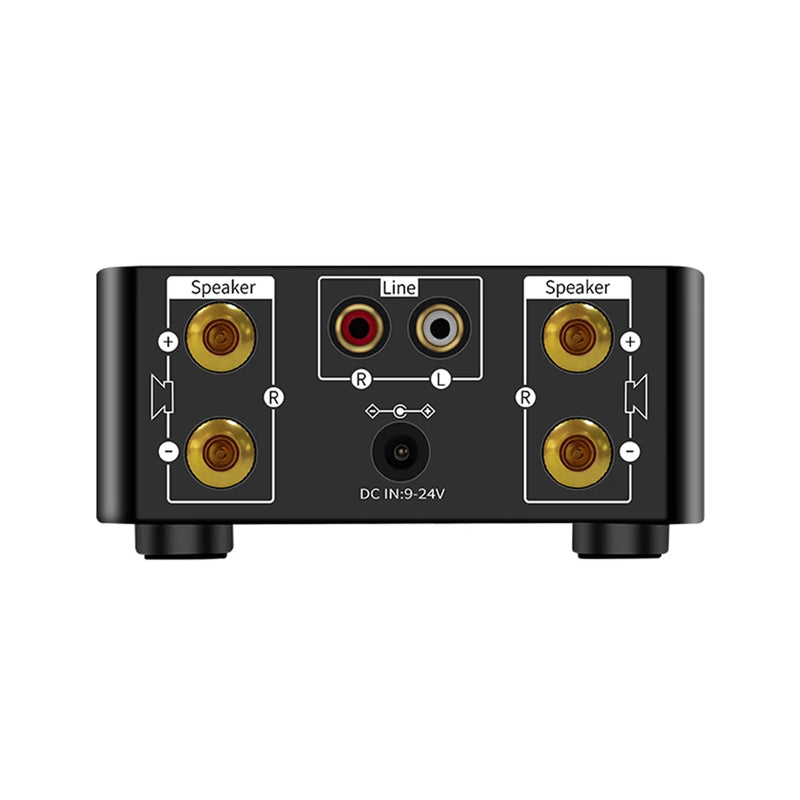

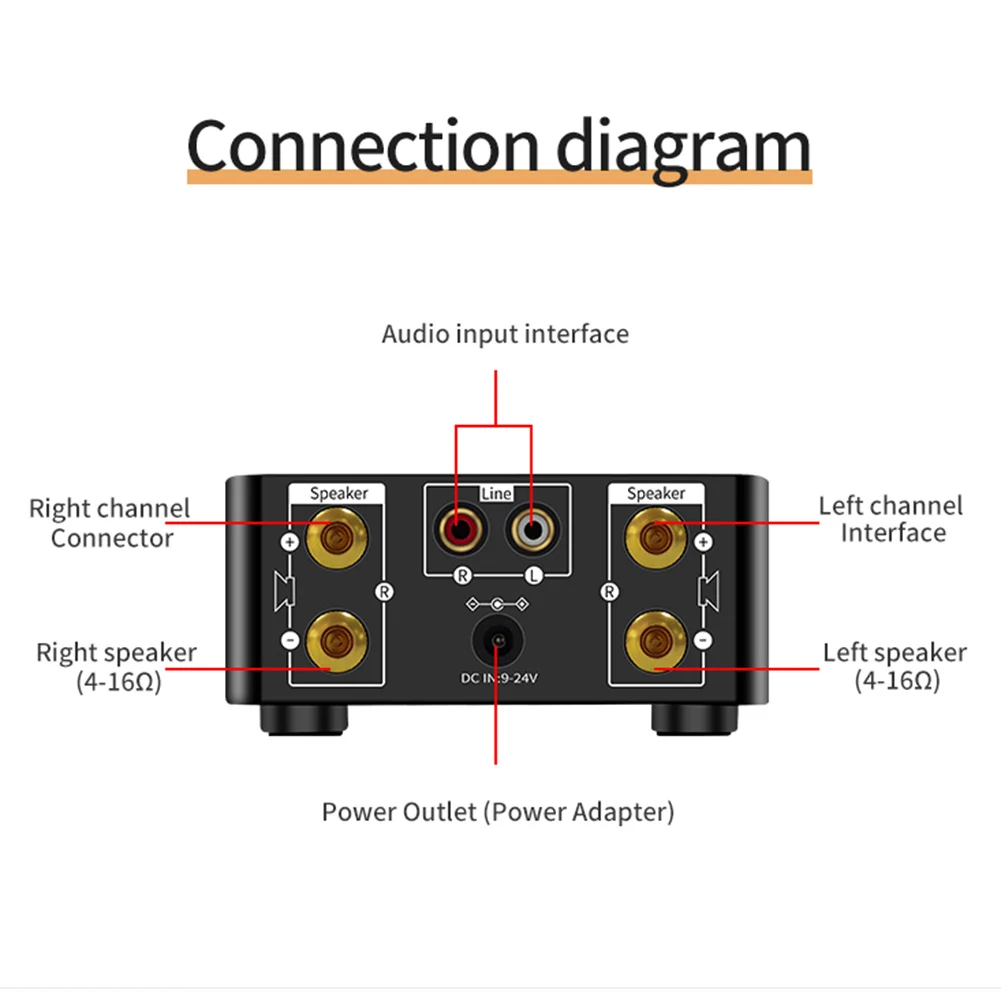

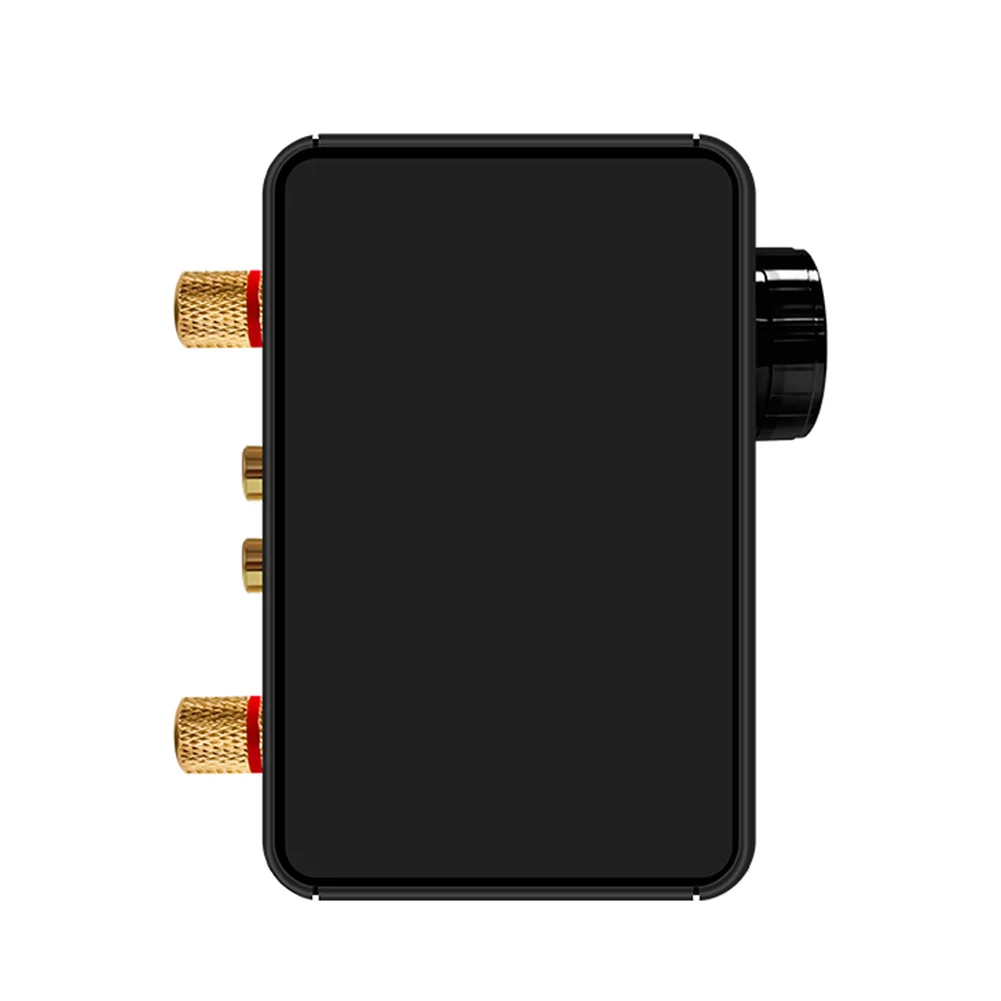

4. Amplifier Output: The amplifier is a fixed resistance amplifier that supports passive sound/speakers of 4/6/8/16 ohms. If you are unable to determine the speaker type, please contact customer service. It is not suitable to connect to active sound systems such as computer sound systems or passive subwoofers. The four pillars behind the amplifier are output interfaces and cannot be connected to headphone or lotus plugs such as 3.5mm

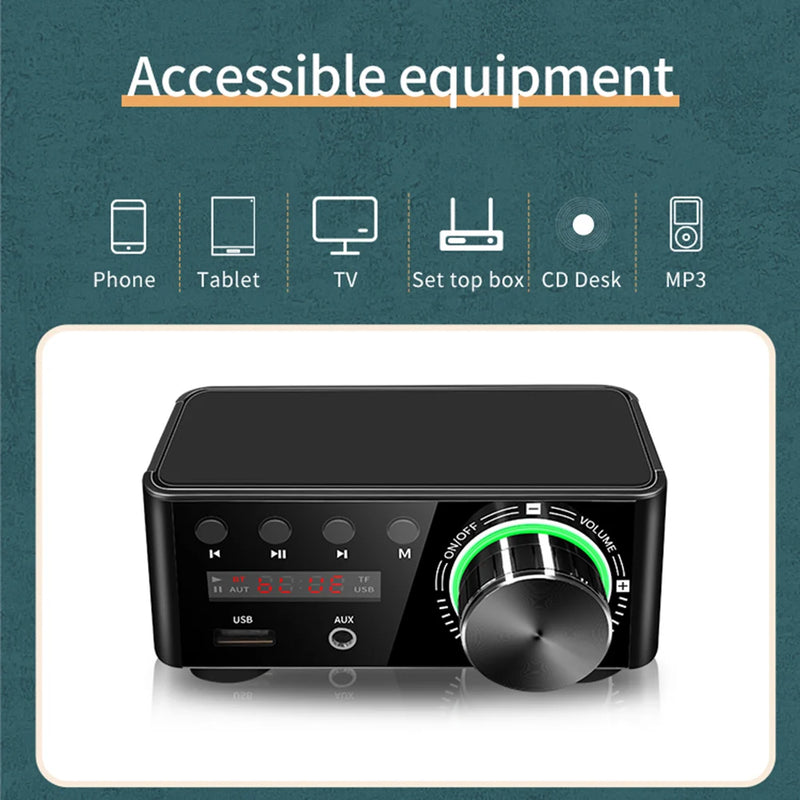

5. Accessible Devices: Mobile phones, tablets, televisions, set-top boxes, CD players, music players, power amplifiers can be connected to TVs and projectors with AV audio (Lotus socket) or 3.5mm headphone output holes. Mainstream Bluetooth-compatible devices on the market can be connected to achieve wireless transmission.


Specification:
Certification: CE
Origin: Mainland China

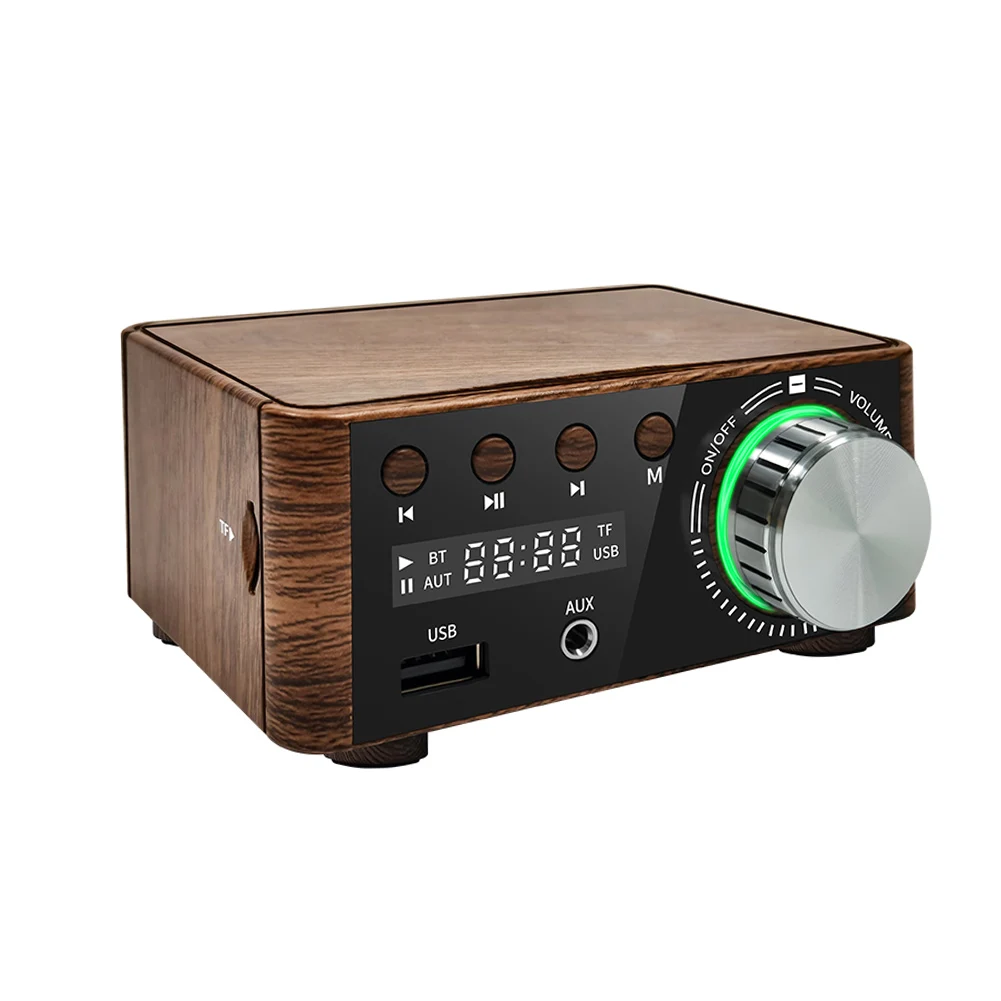

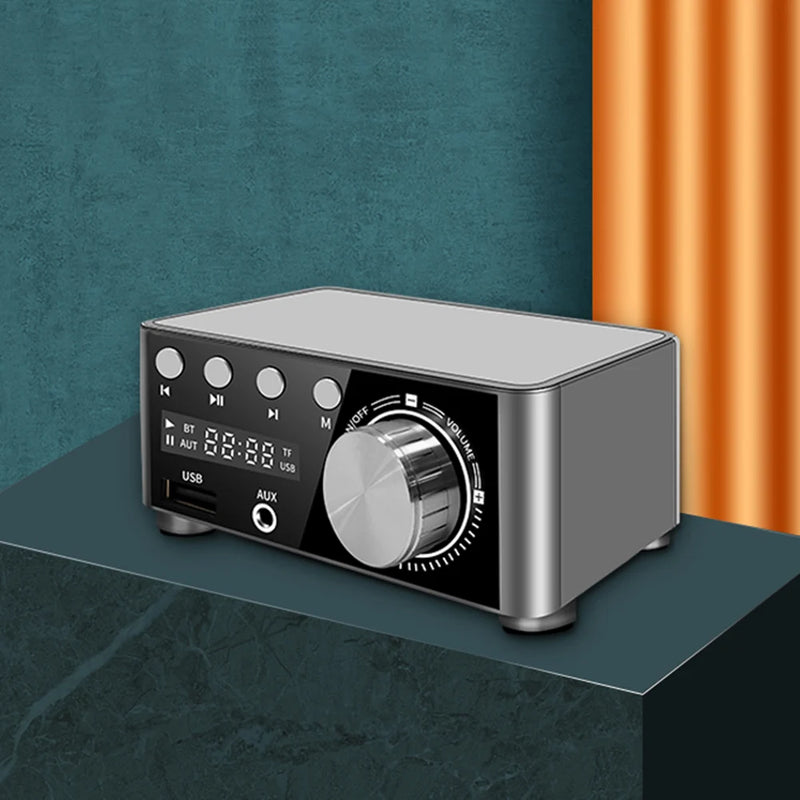

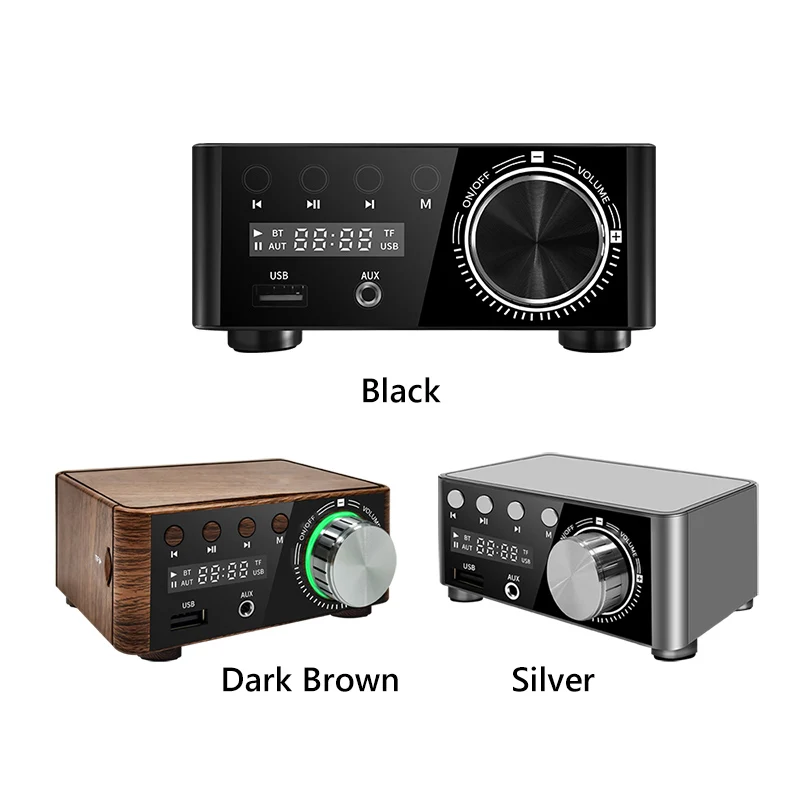

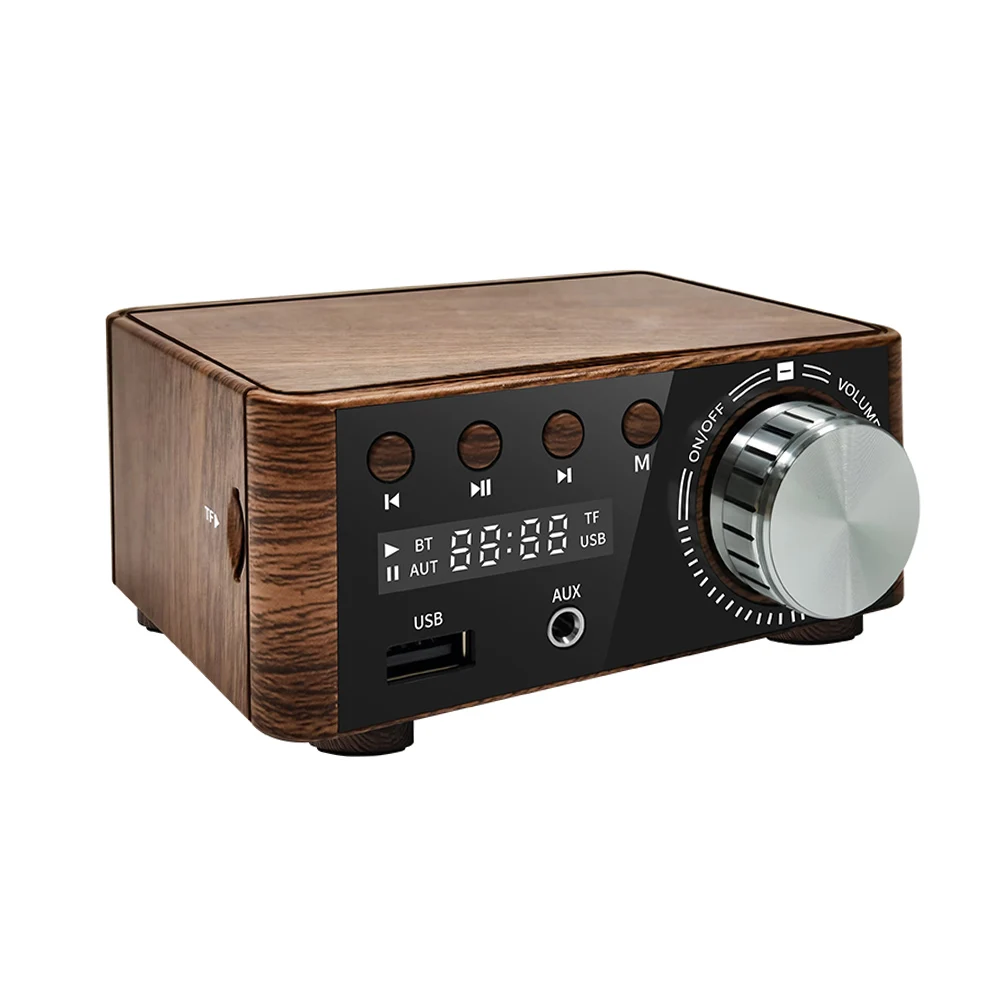

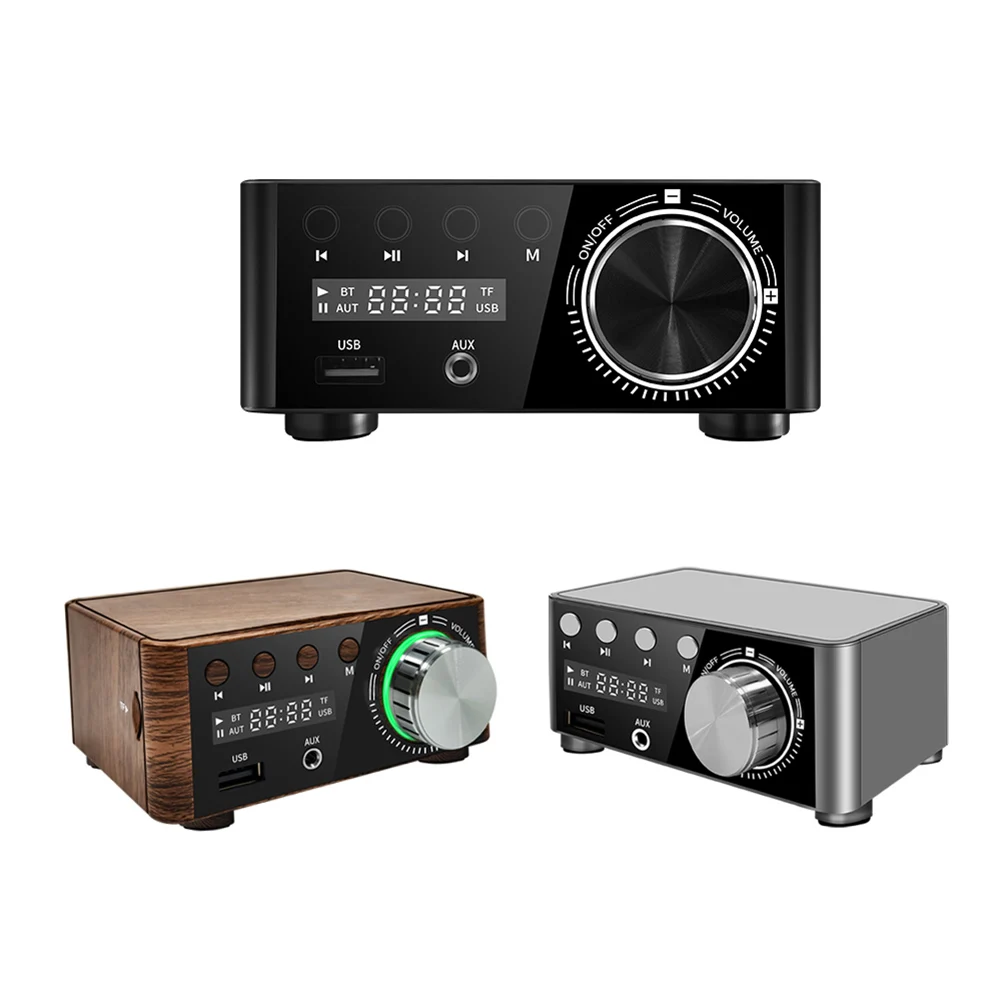

Product colors: Black, Silver, Dark Brown (optional)
Function type: 2.0 stereo
Power amplifier chip: CS8673E chip
Output power: 50W * 2 (24V/4 Ω load)
Bluetooth-compatible protocol: 5.0
Bluetooth-compatible distance: minimum 12 meters (accessible)

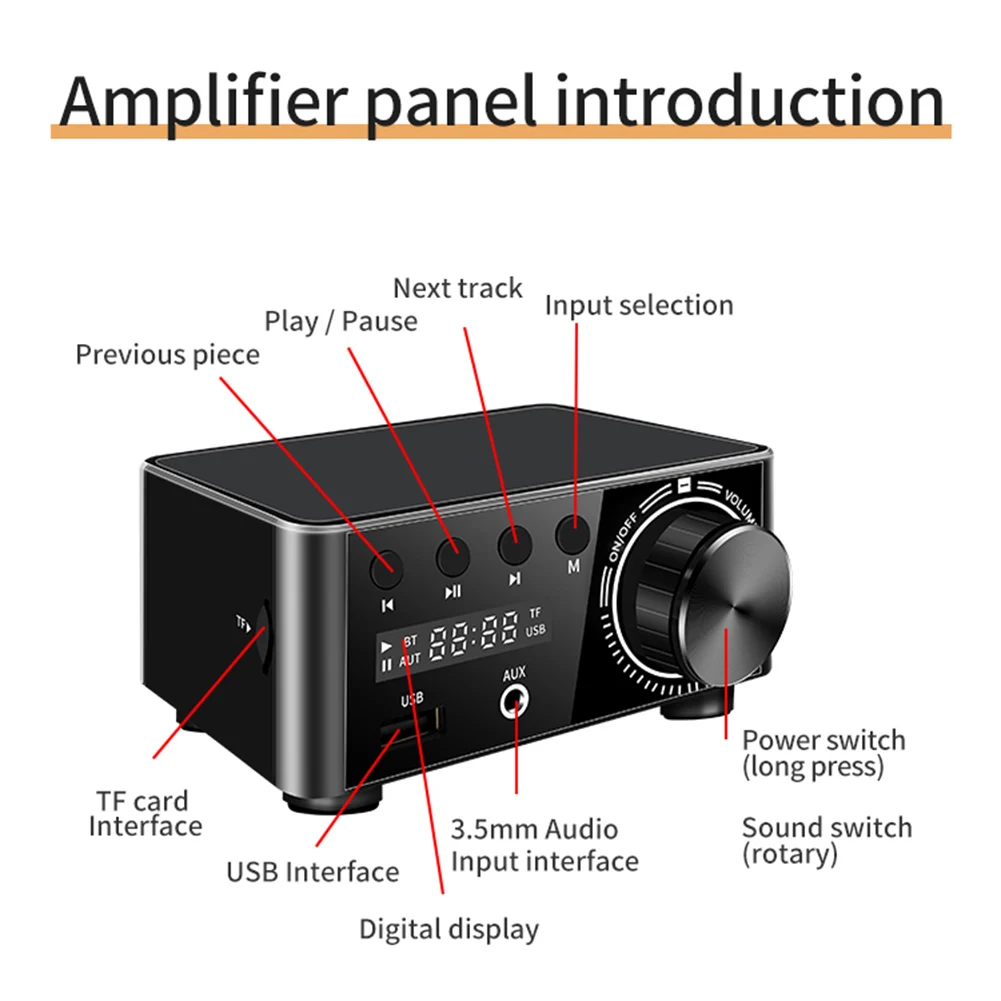

Audio input: 3.5mm stereo input, RCA stereo sound input, TF card, USB flash drive, USB audio input (can be connected to computer/phone/OTG/tablet OTG)
Speaker impedance: 4 Ω -16 Ω
Support USB drive and TF card playback: support multiple formats of decoding (MP3/MAVAPE/FLAC), MP3: sampling rate/8-448Kbps, bit width/16bits channel/mono stereo; WAV: sampling rate/8-48K, format/MAV ima/Microsoft AD PCM/WAV PCM, bit width/16bits; FLAC: sampling rate/8-48K, bit width/16bits; APE: FAST/NORMAL encoding, bit width/16bits
Working voltage: DC9V-24V

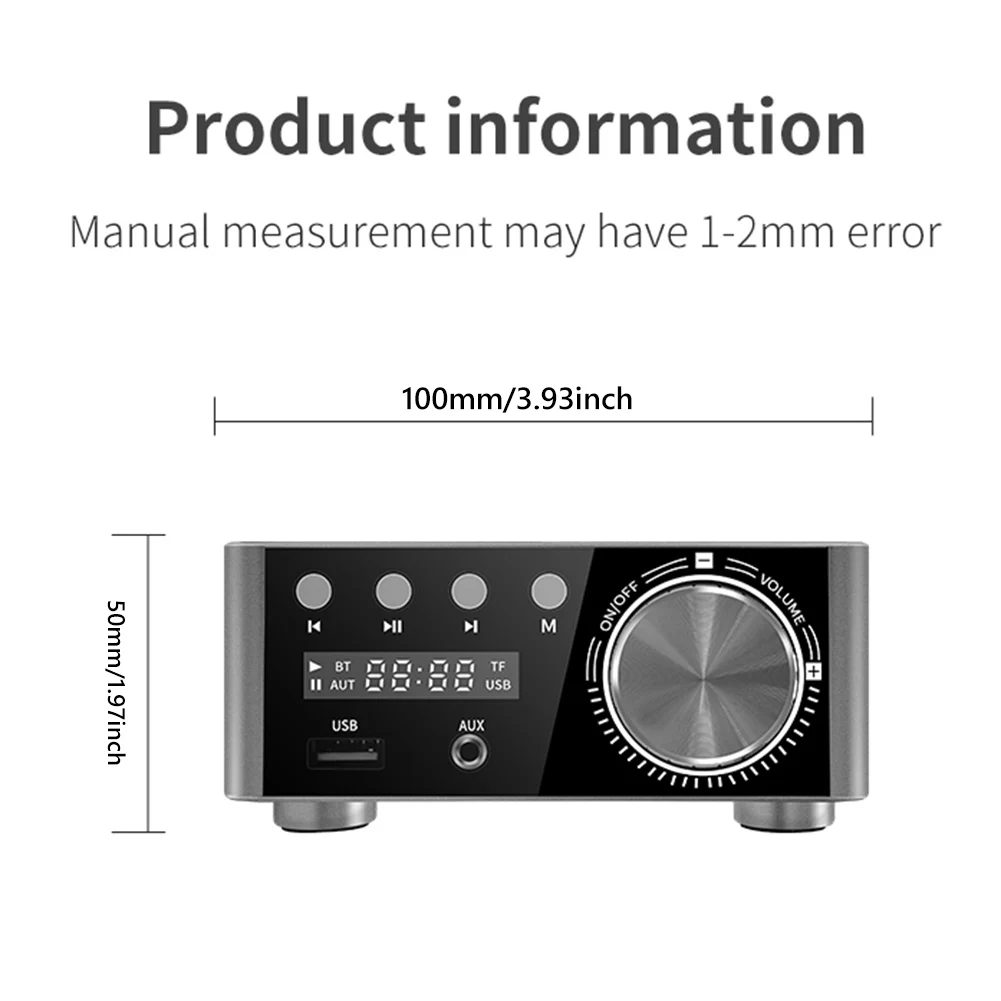

Product size: About 100x50mm/3.93x1.96inch
Net weight of product: 160g

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
