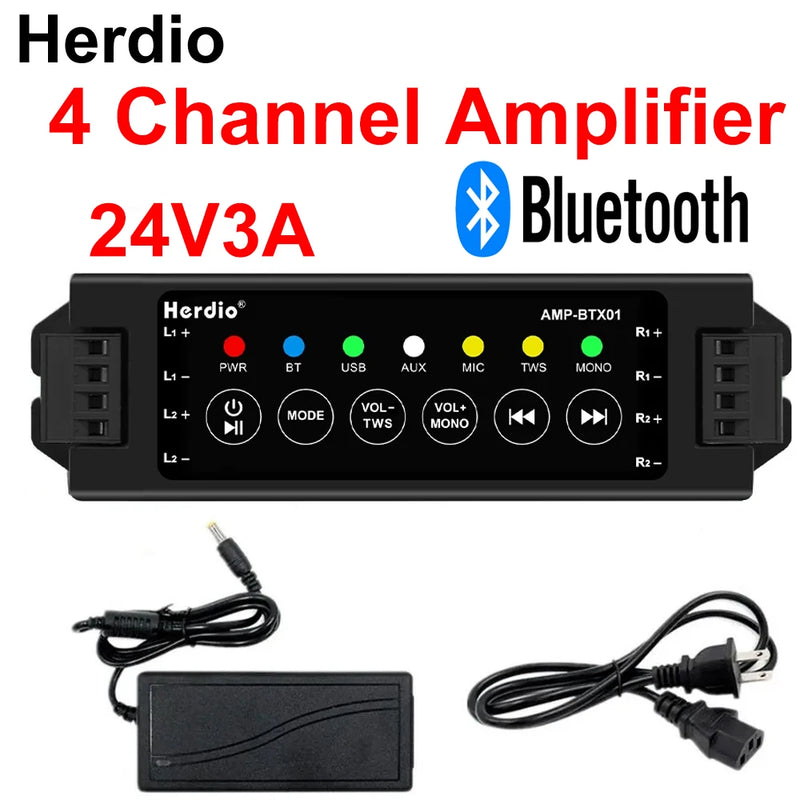

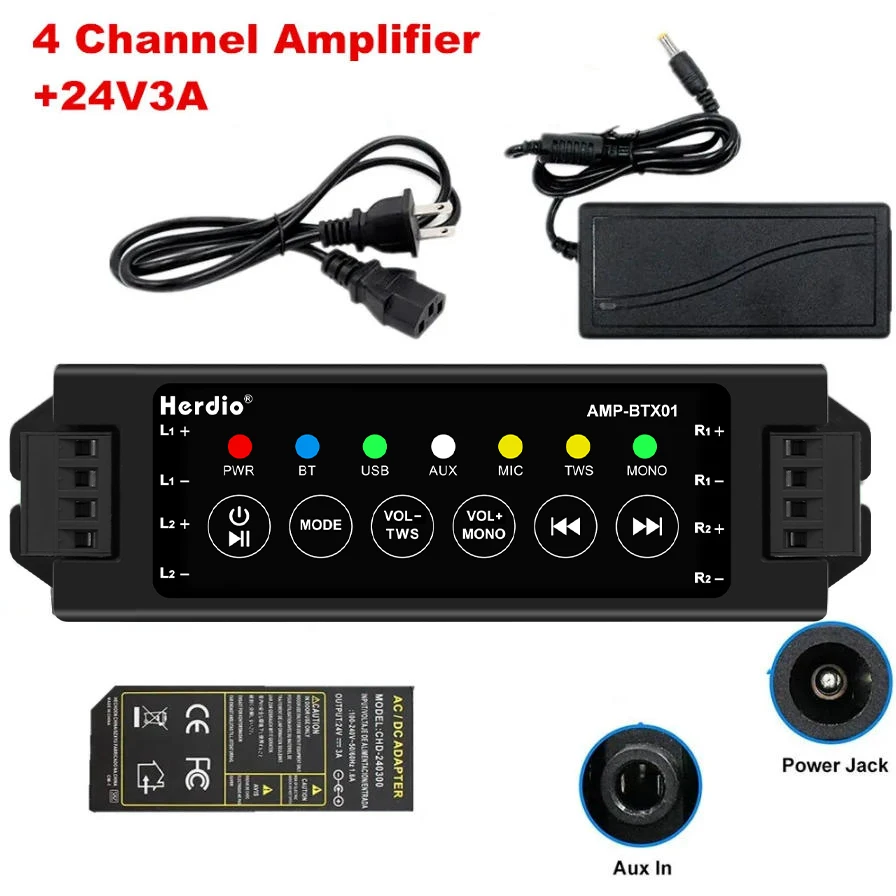

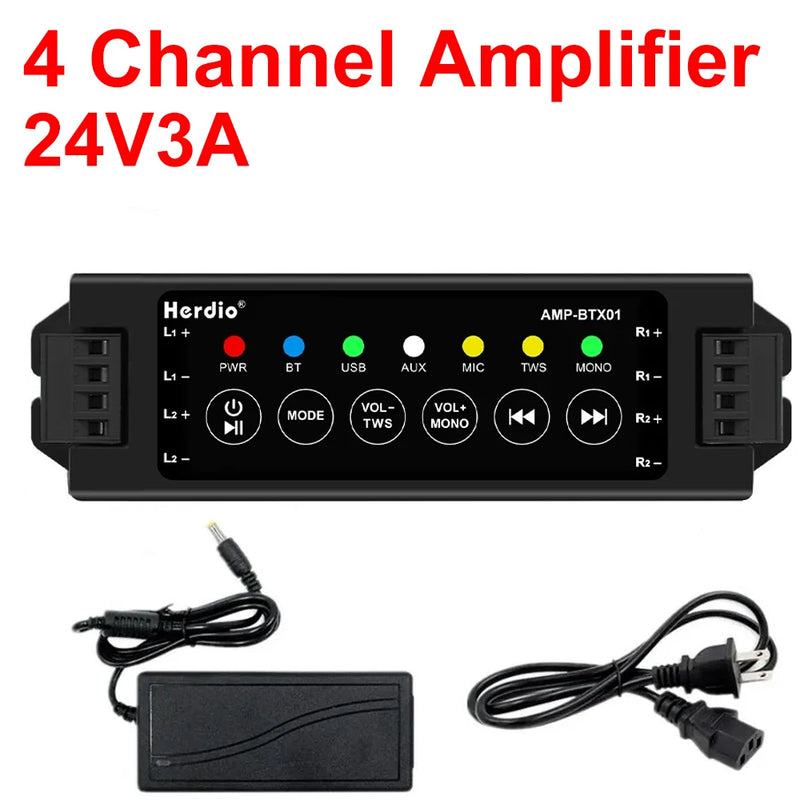

24V3A EU/US/UK/AU Power Adapter With Bluetooth Amplifier Box For Home Ceiling Speakers

PRODUCT FEATURES

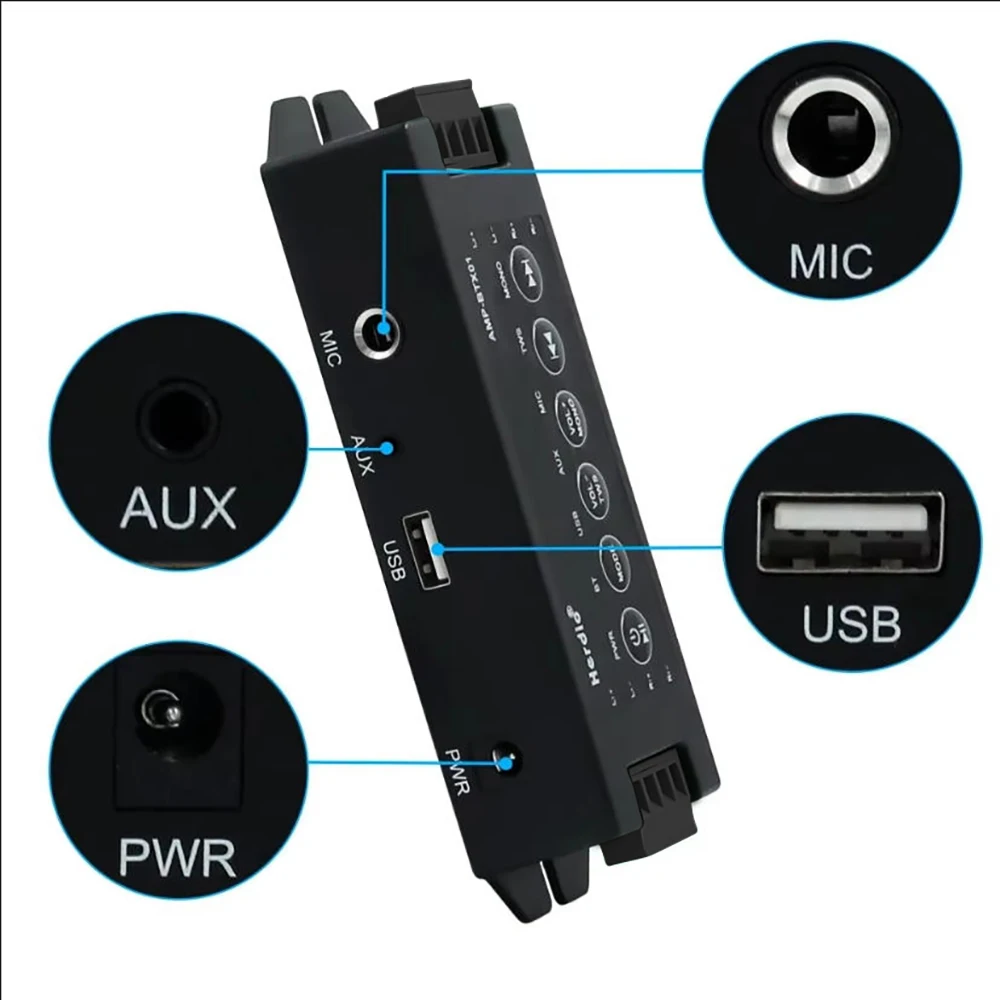

BT Wireless Music function allows you connect & Stream AUX input port plug & play Smartphones and other music devices Speaker Terminal Block, onnect up to (4) Speakers, Powered via Power Adapter Perfect for Home/Office,4-Way Bluetooth AMP Box Amplifier for Ceiling Speaker+24V 3A PowerAdapter

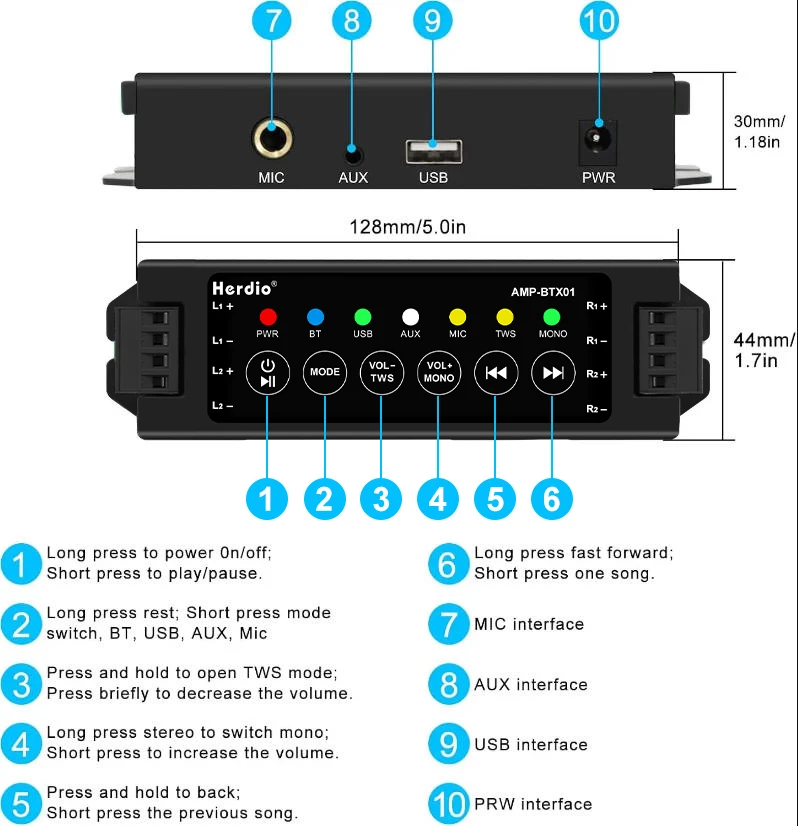

CONNECTIONS:

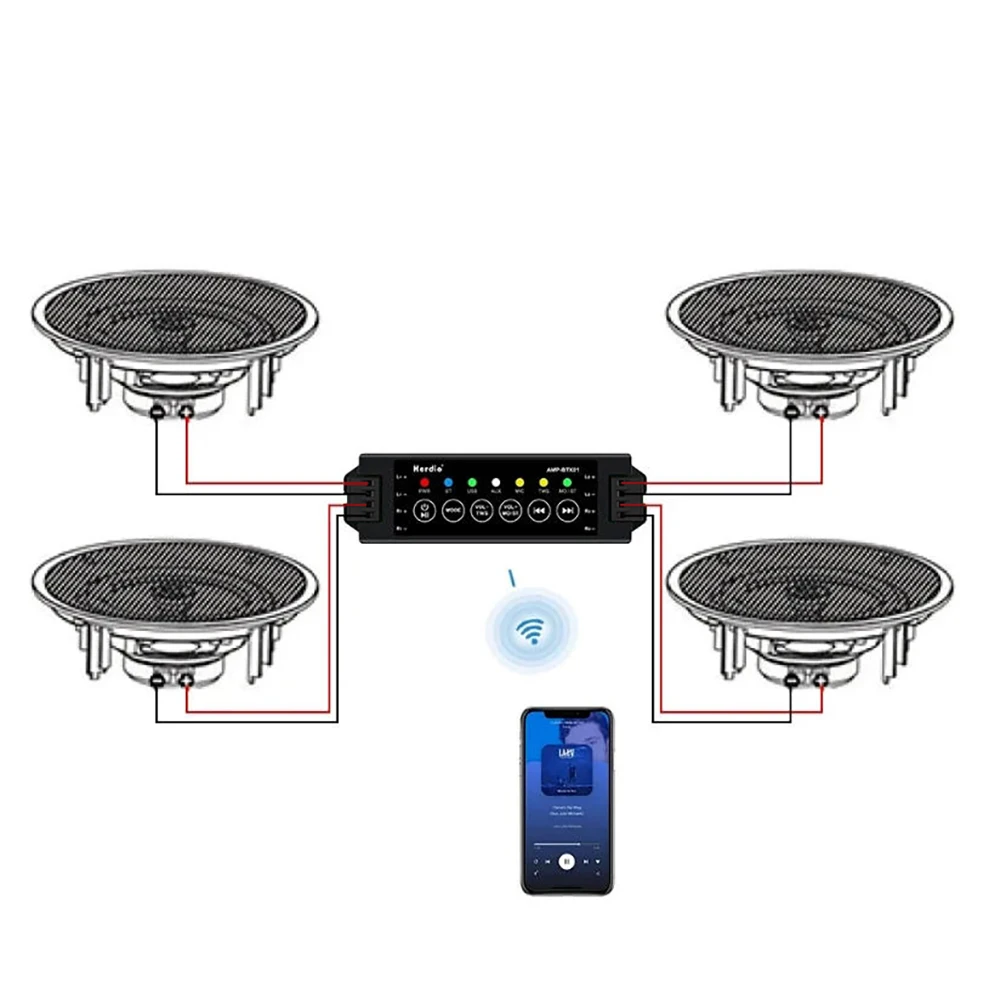

1. Connect the push-in terminal on the rear of the speaker to the speaker output terminal of the receiver.

2.Use the corresponding side of the cable to connect the (- ) terminals of the receiver and the speaker, and use the other side of the cable to connect the ( +) terminals of both components.

3. Loosen each screw on the green terminal of the receiver, insert one end of the bare wire into the green terminal, and then tighten the screw; gently pull the cable on the terminal to test the connection.

4. Insert the bare wire and fix it on the Speaker terminal, and test the connection by gently pulling the cable on the terminal.

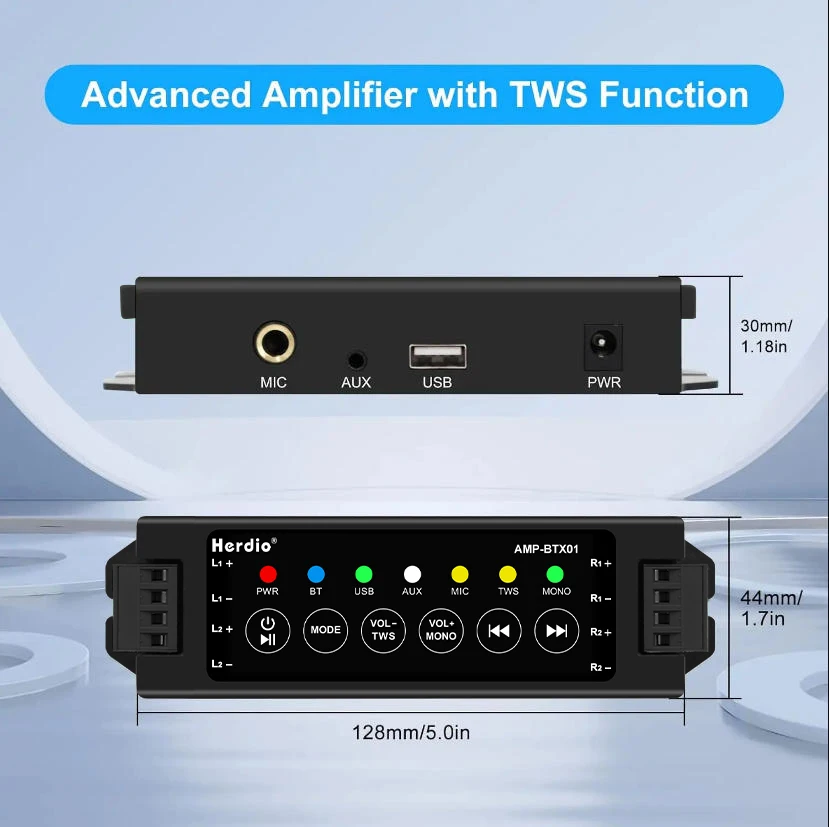

Bluetooth Version:5.0

Mic Input Type:Dynamic

Power, Amp Type:Stereo Class-D

Minimum Load Resistance:4 Ohm

T.H.D.:0.03% (8 Ohm, 1 kHz)

POWER SUPPLY:DC12V-24V 3A-5A

Power Output 200 Walt Peak, 40 Watt RMS x 4Ch.@ 4 Ohm

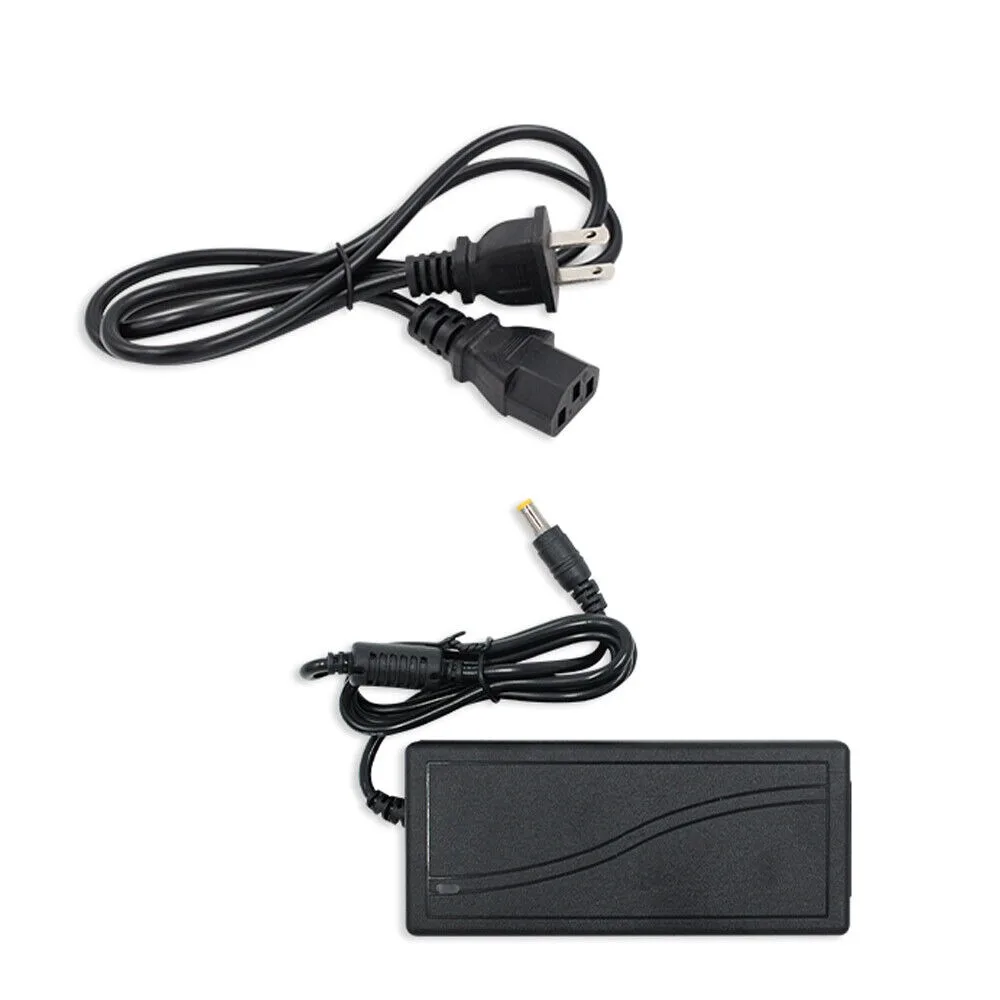

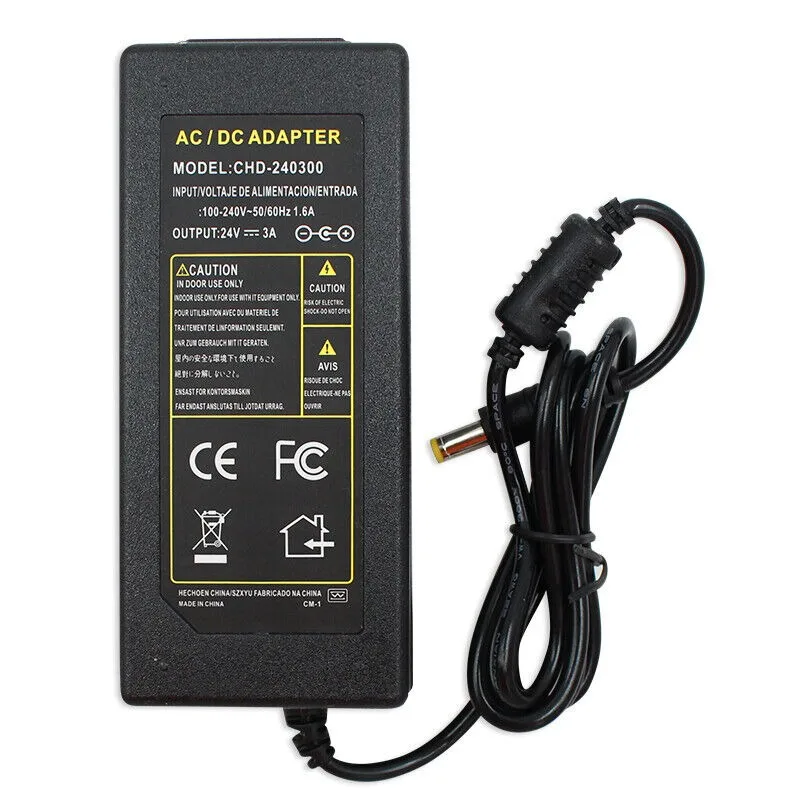

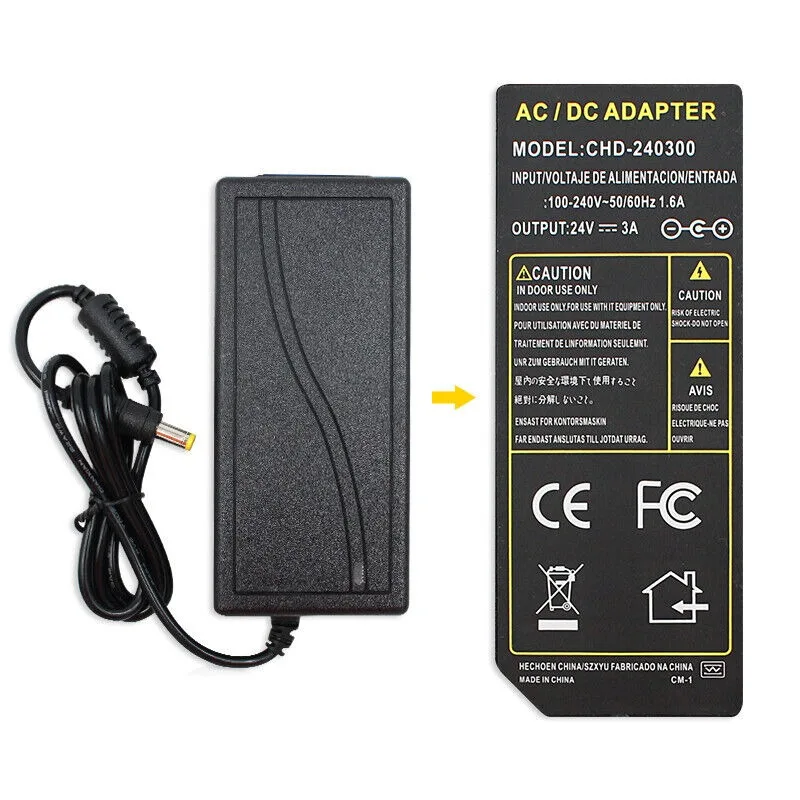

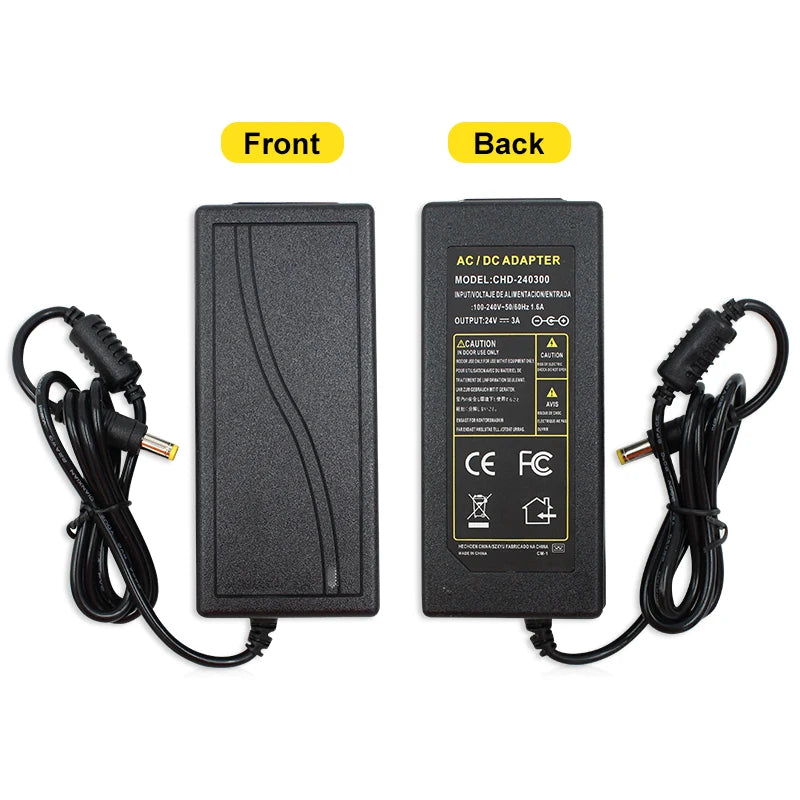

24V3A Power Adapter Product Descriptions:

Construction: 100% Brand New! Generic Replacement Product!(Non-OEM but 100% Compatible).

Brand: Herdio

Tested Units. In Great Working Condition. All Products are CE Certified.

OVP OCP SCP Protection.

Input voltage: AC 100-240Volt 50-60Hz(world wide).

Output: DC 24V 3A

Connector size: 5.5mmx2.5mm Center Positive

Cable Length: 5ft.

Quantity: 1 Unit (Included Free Power Cord Fit Your Country)

Warranty: One full year service warranty!

Compatible Models:

DC 24V 3A 5.5mmx2.5mm Center Positive

If you have a different model to the one listed please email us to check compatibility.
