SPECIFICATIONS

203036045 Model: F5100DJKAB8R-7C

Battery: 4500mah

Brand Name: GAMWATER

Camera: AHD 1080P

Certification: CE,FCC

High-concerned chemical: None

Lens (mm): 5.5mm

Model Number: 5100DJKTX-5C

Origin: Mainland China

Plug: AU/EU/UK/US

Plug Type: EU Plug

Screen: 9 inch IPS DVR

Screen Type: 9inch

Smart home platform: NONE

Wire Type: Soft Wire

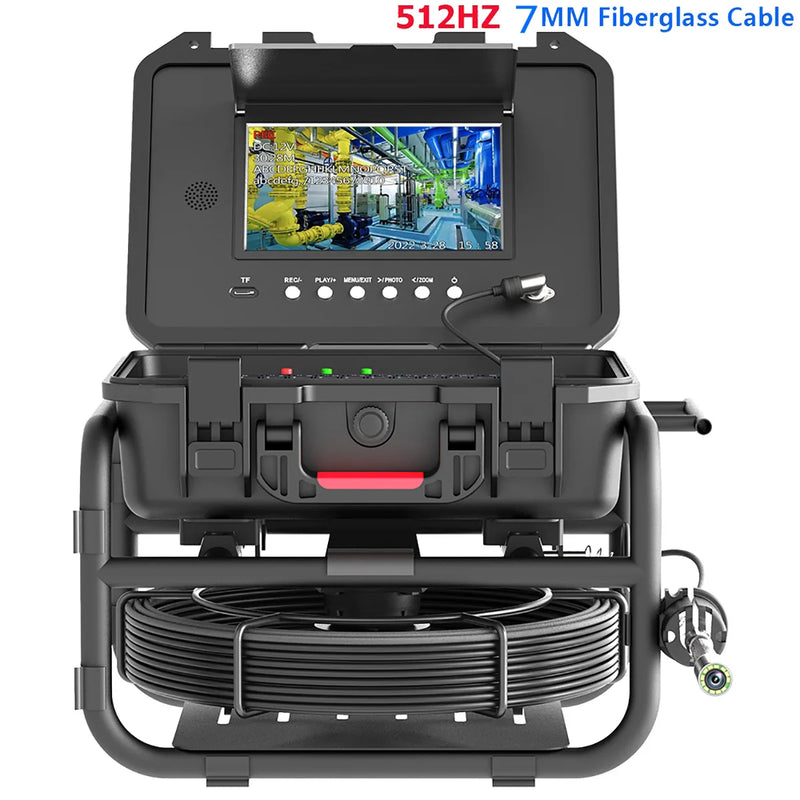

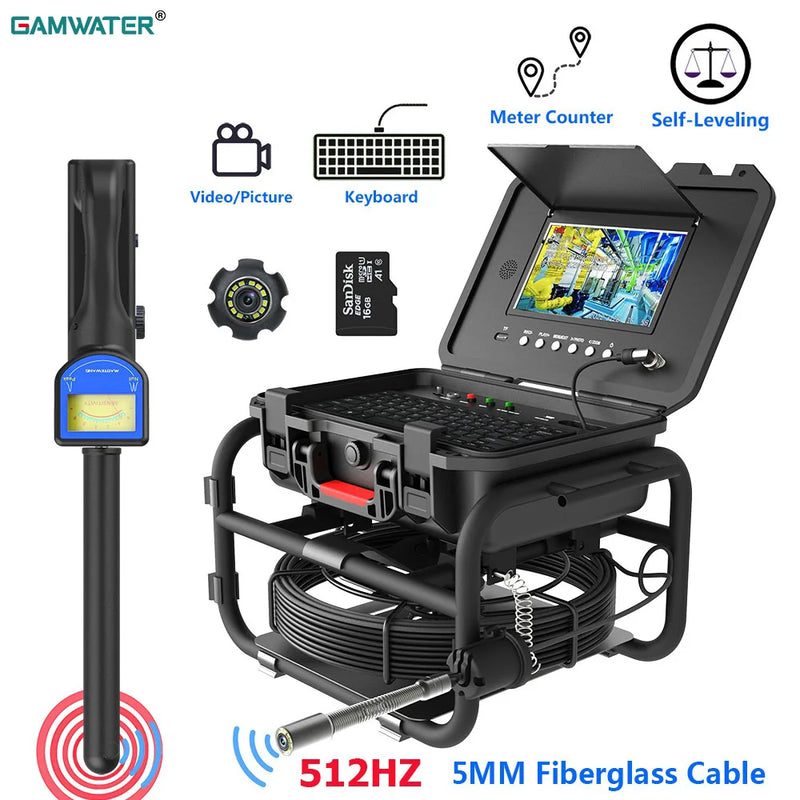

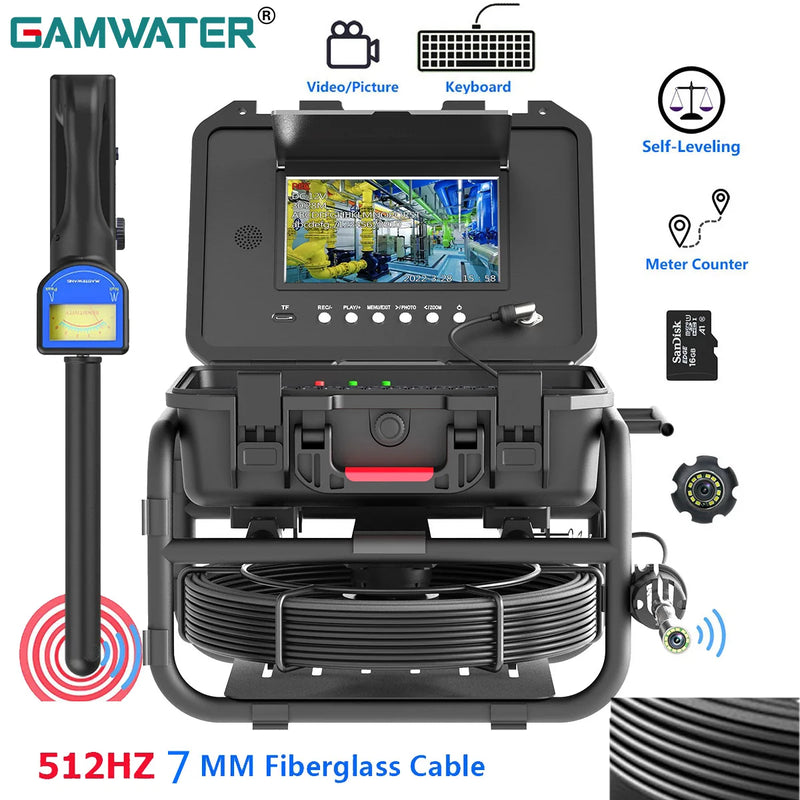

Sewer Pipe Inspection Camera 9Inch IPS 1080P Screen and  512HZ Locator Video+Audio Recording 5X Image Enlarge+Meter Counter

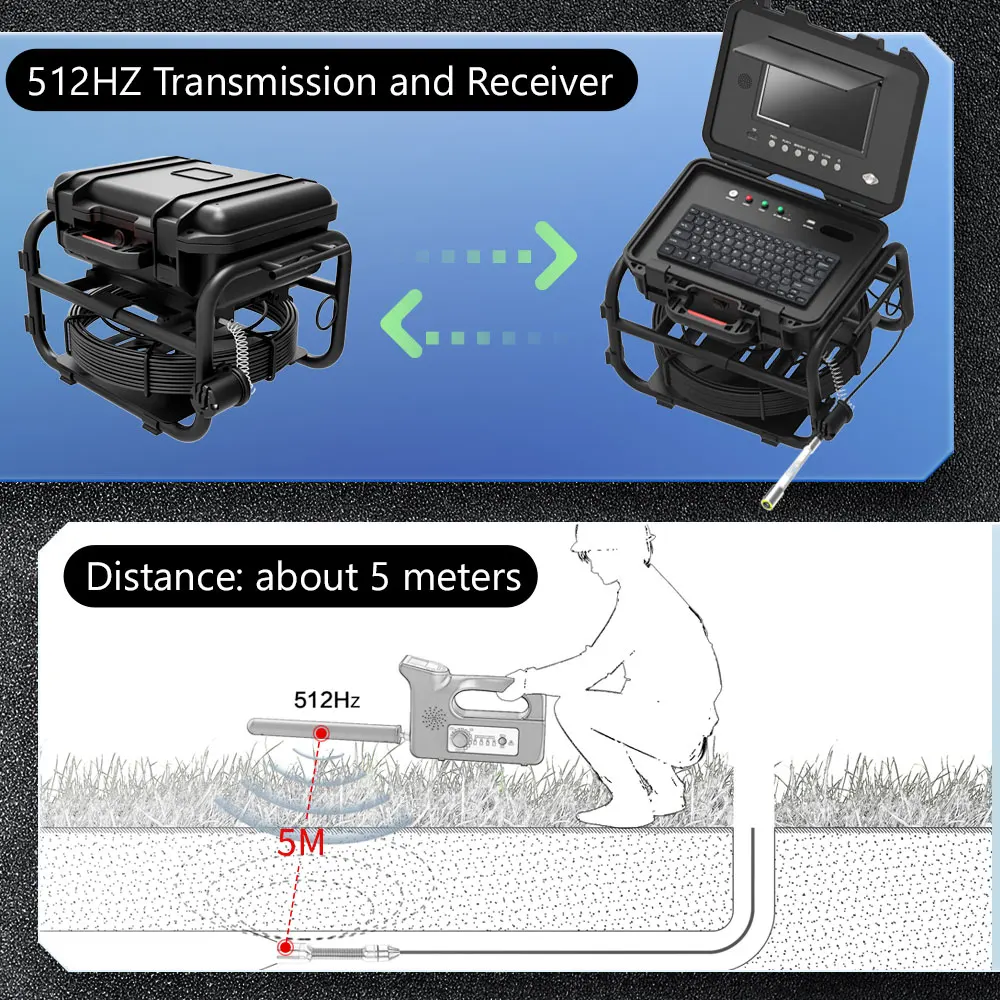

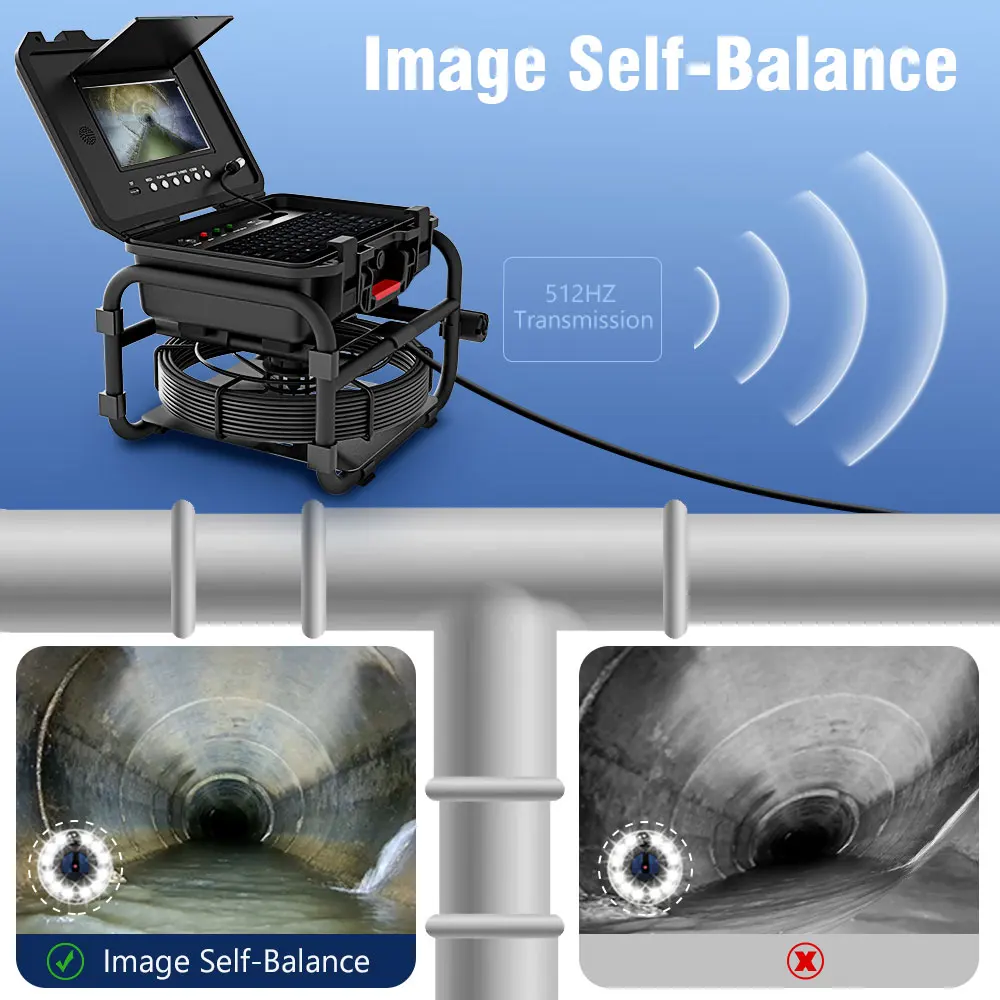

512HZ  TRANSMITTER:

This endoscope camera has a built-in 512 hertz transmitter that helps to easily detect any blockage or area of interest. This greatly helps save time from having to dig and locate the problem. The sonde transmits a 512Hz signal that can be picked up with any compatible locator, allowing you to pinpoint the transmitter’sposition underground.

Video + Audio + 5X Image Enlarge:

Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,16GB TF card included,it is avialiable to view live video and save video recording and photos and audio record.You can record the inspections and playback via the pipe system.（DVR Edition Video Format :MP4  Photo format :JPG)+ZOOM to zoom in or zoom out 0-5 times.

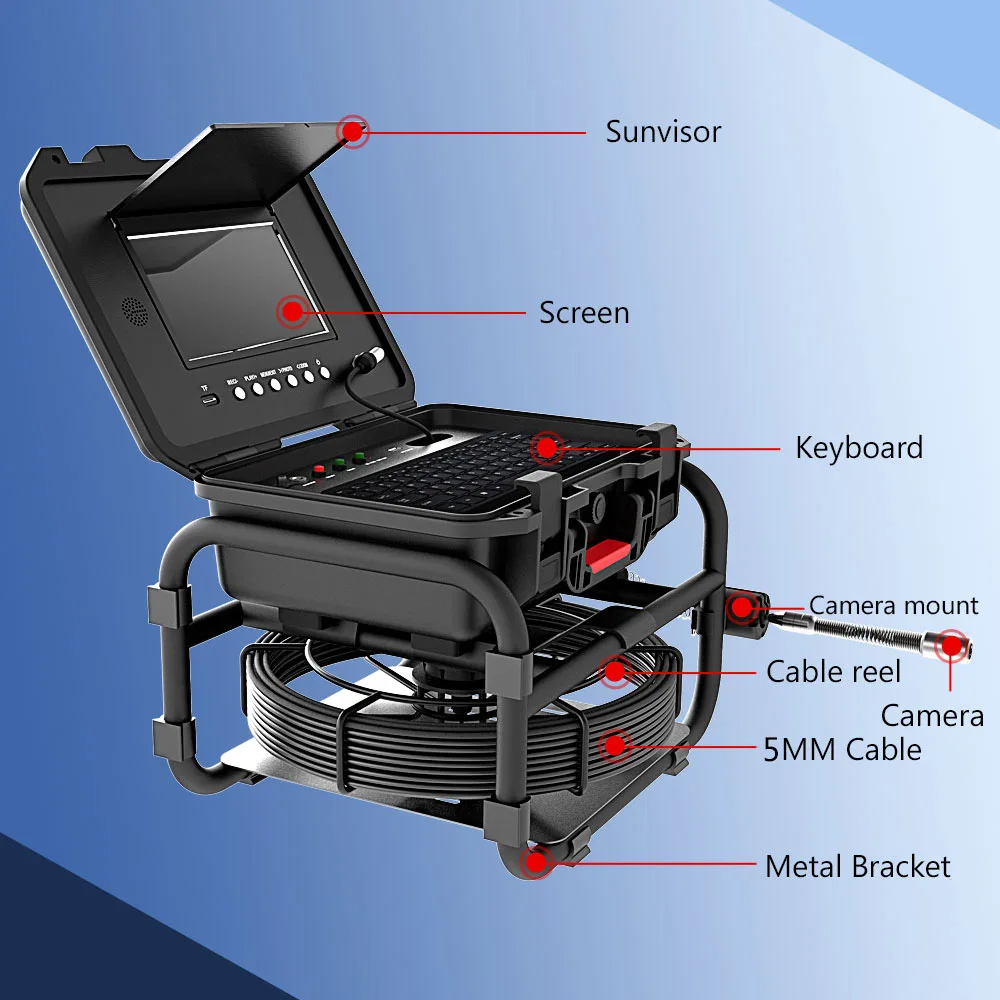

MONITOR&CABLE：

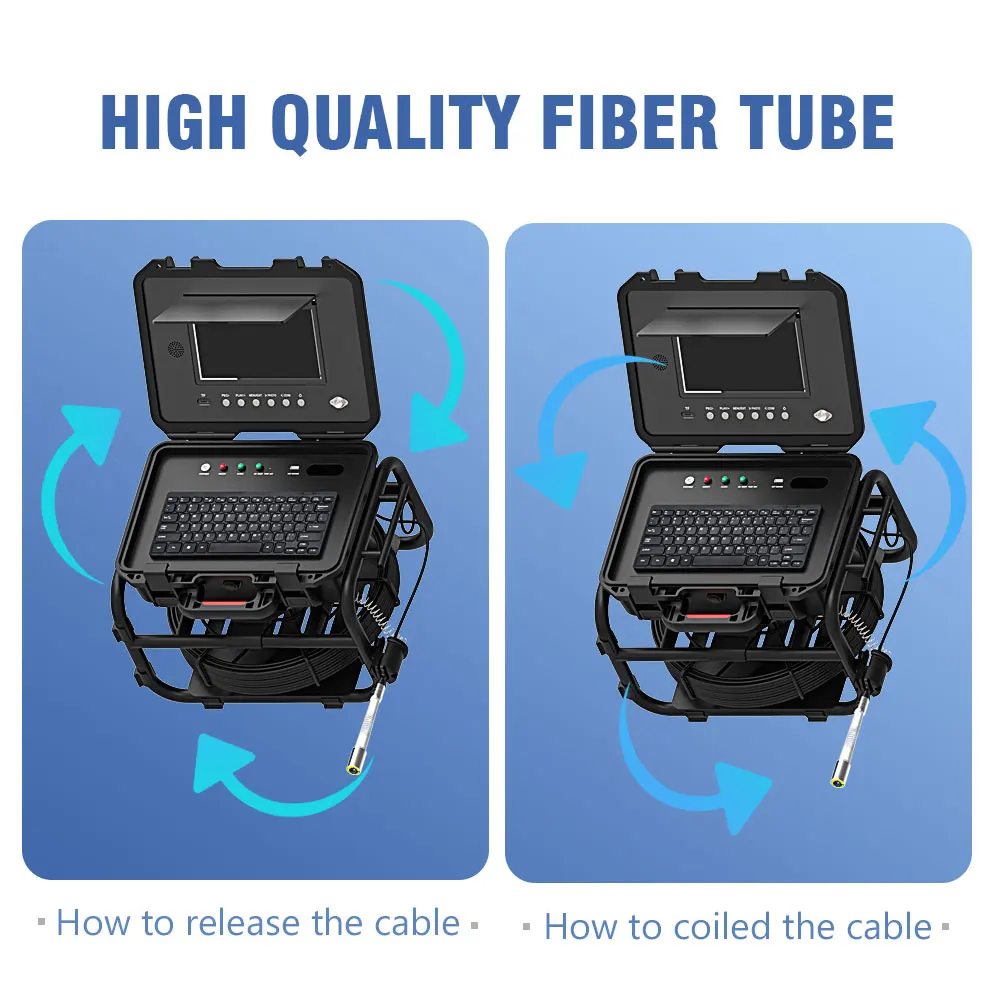

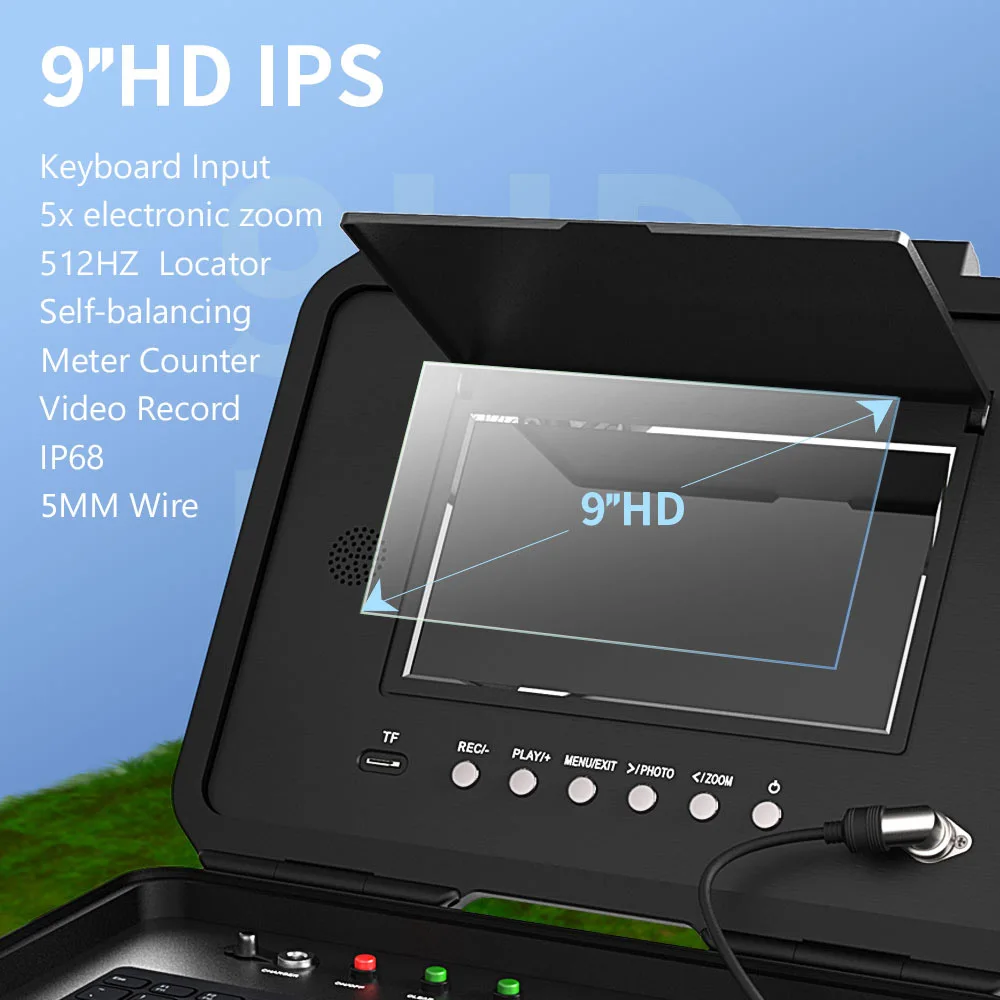

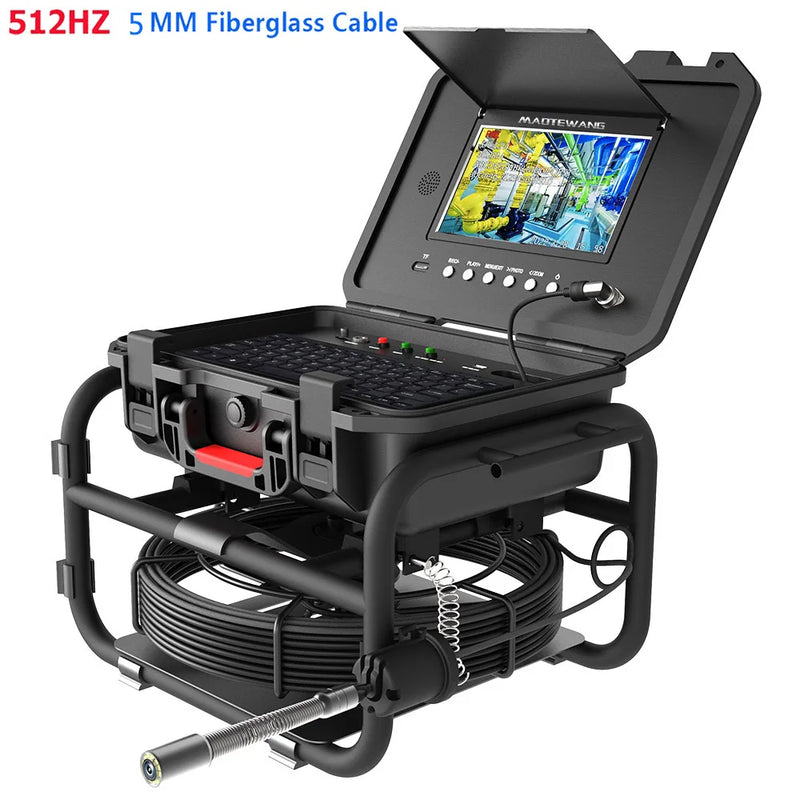

Professional Drain Pipe/Sewer Pipeline Inspection Camera is designed with a 9 inches color IPS LCD monitor with a sun-visor for outdoor inspections.The material of wire is fiberglass rod(diameter: 5/7MM),anti-corrosion/cold/tensile.

DVR Recording Function：

Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,16GB SD card included,it is avialiable to view live video and save video recording and photos and audio record.You can record the inspections and playback via the pipe system.（DVR Edition Video Format :MP4  Photo format :JPG)

PORTABLE CARRY CASE&LONG BATTERY：

Pipe Wall Sewer Inspection Snake Camera Kit with heavy duty padded aluminum case stores all contents, convenient to carry around. 12V 4500mAh Li-battery included supports approximate 8 hours of continuous use.

Applications:

 Blocked / slow draining plumbing.

 Wall / wire inspection.

 Home owners inspection.

Item: parameter

1.Monitor:9 inch IPS color record monitor with sun-visor for bright environment outside

2.SD Card: Memory Support maximum 128G SD card(16G SD card included)

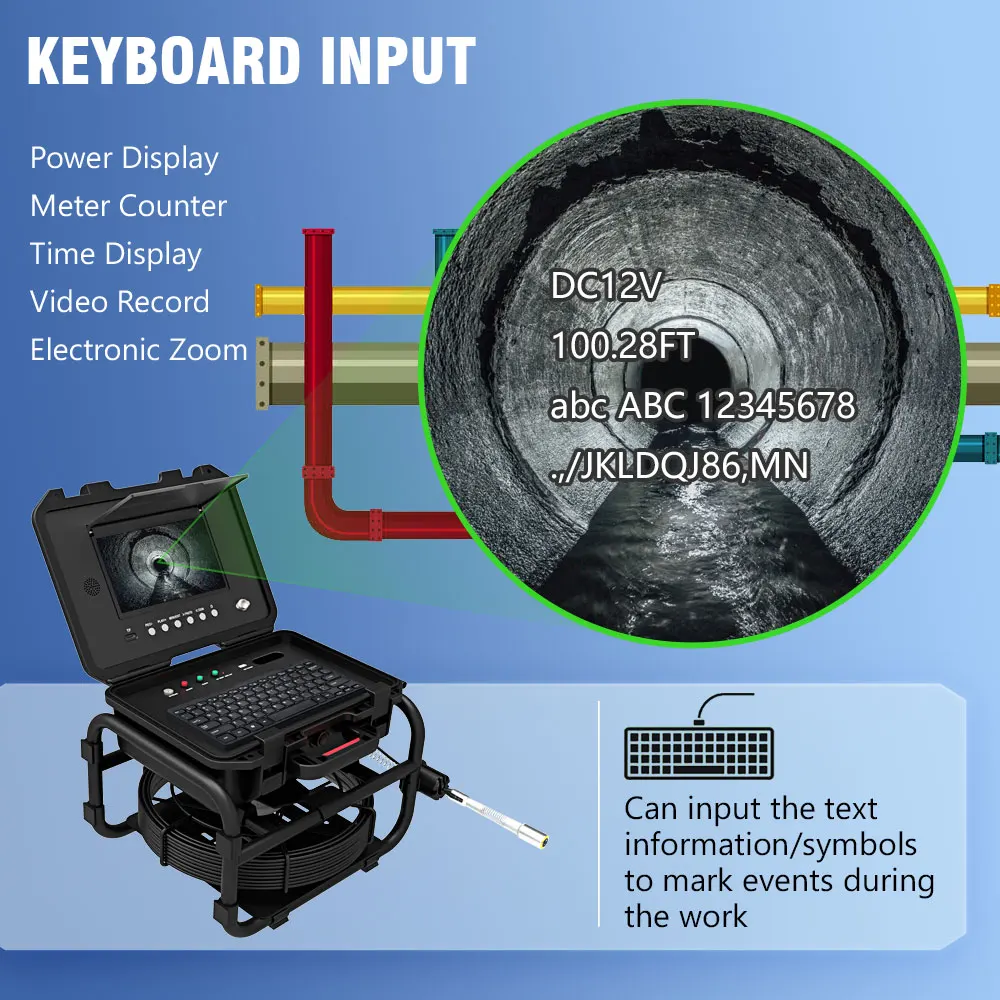

3.Keyboard input  (USB Port)

4.512hz:Built in 512hz transmitter

5.Camera : AHD 1080P

6. Quick photo: press the <key to take a photo.

7. Image Zoom : Press > key to zoom the image from 0 to 5 times.

8. Charger: AC100-240V   DC12.6V

9.Battery: Luminal-cell arrester 4.5AH

10.continuous use time for battery: approximate 8h

11.investigation depth: 20M( selectable line length)

12.material: fiber tube with /high intensity

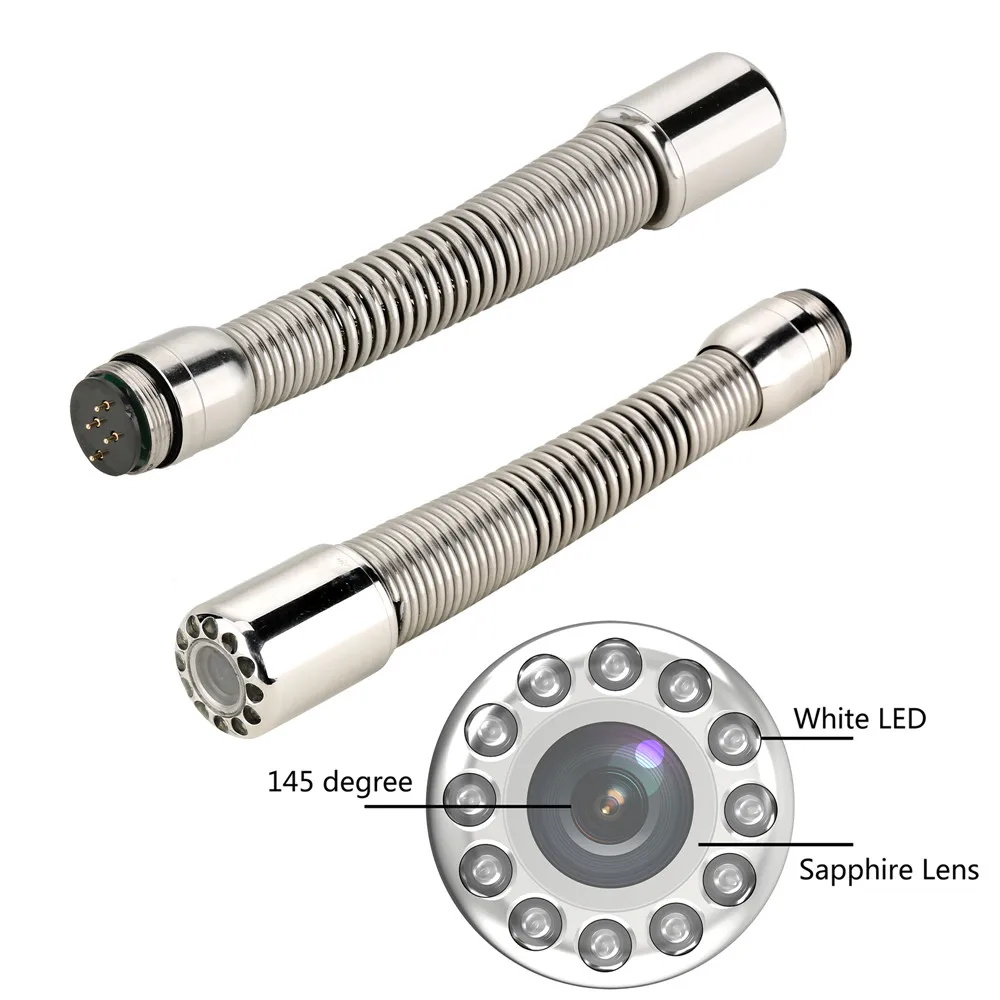

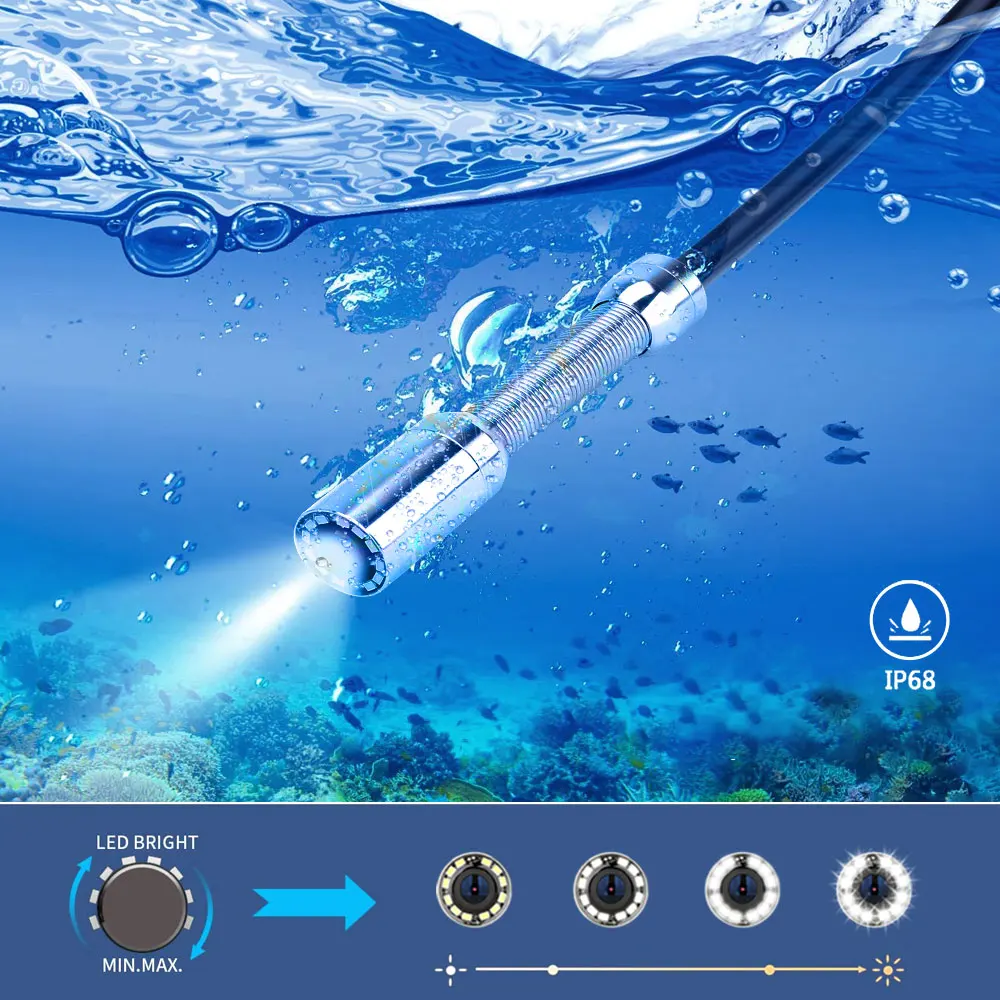

13.camera light source: 12 PCS LED with high while light(adjustable)

14.camera viewing angle: 145°

15.Lens Mirror Material : Sapphire

16.camera size/material: 23MM* 40MM /stainless steel.

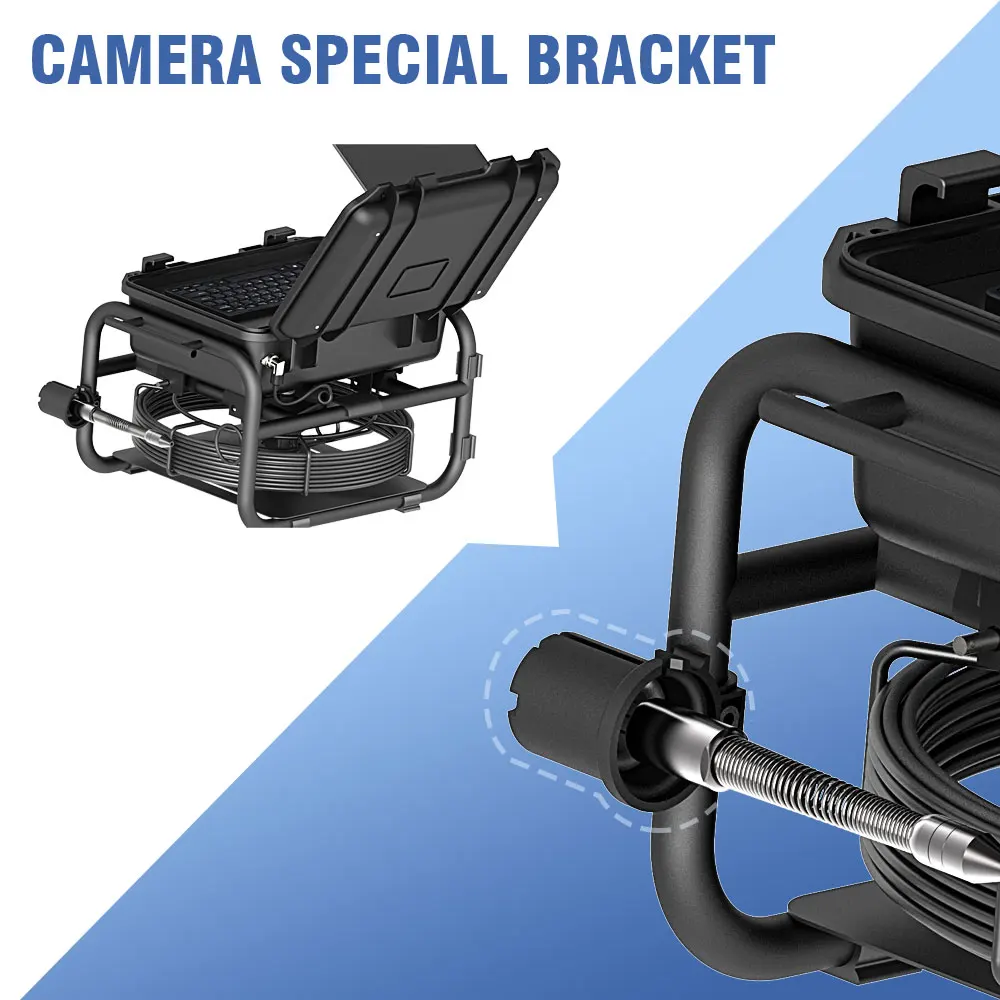

17.camera protective cover parts size/material:38MM* 28MM /plastic-steel

18.camera protective cover parts size/material:90MM* 28MM /plastic-steel with wheel

19.camera picture: color

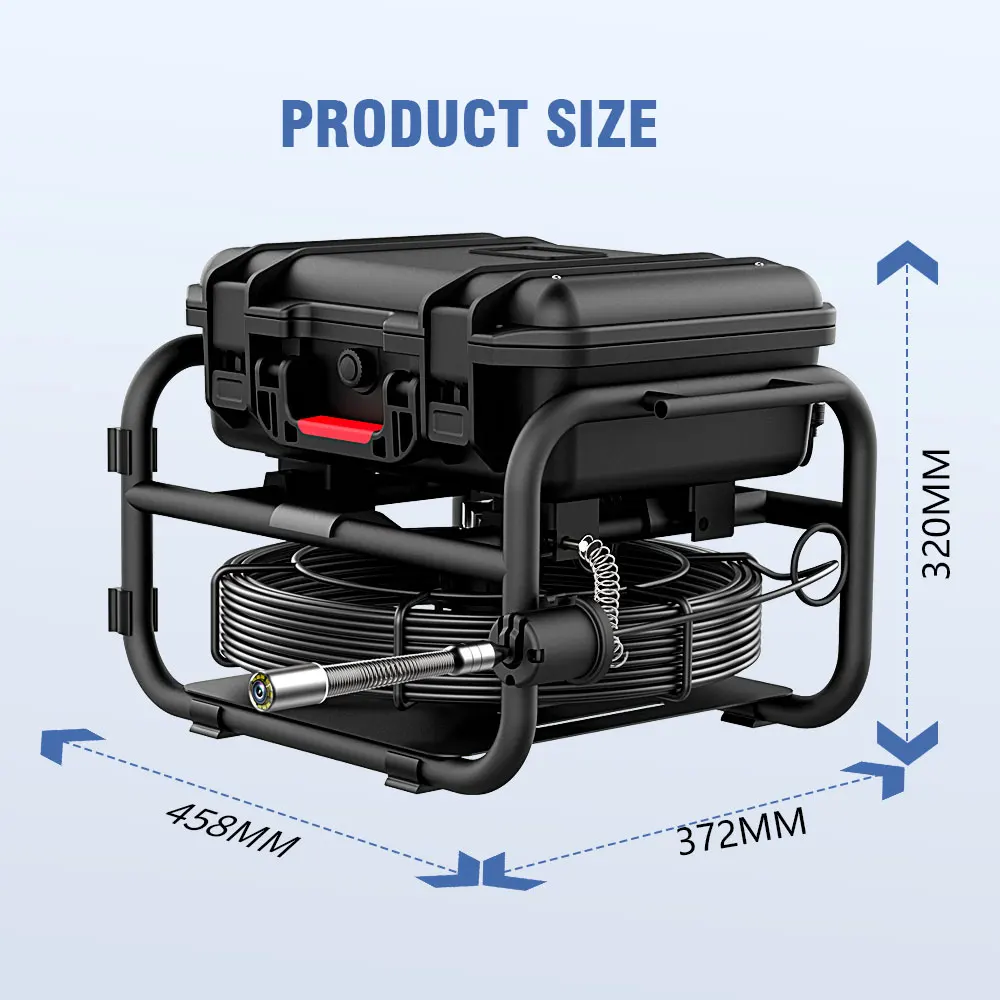

20..Box Installation size: 458*372*320mm

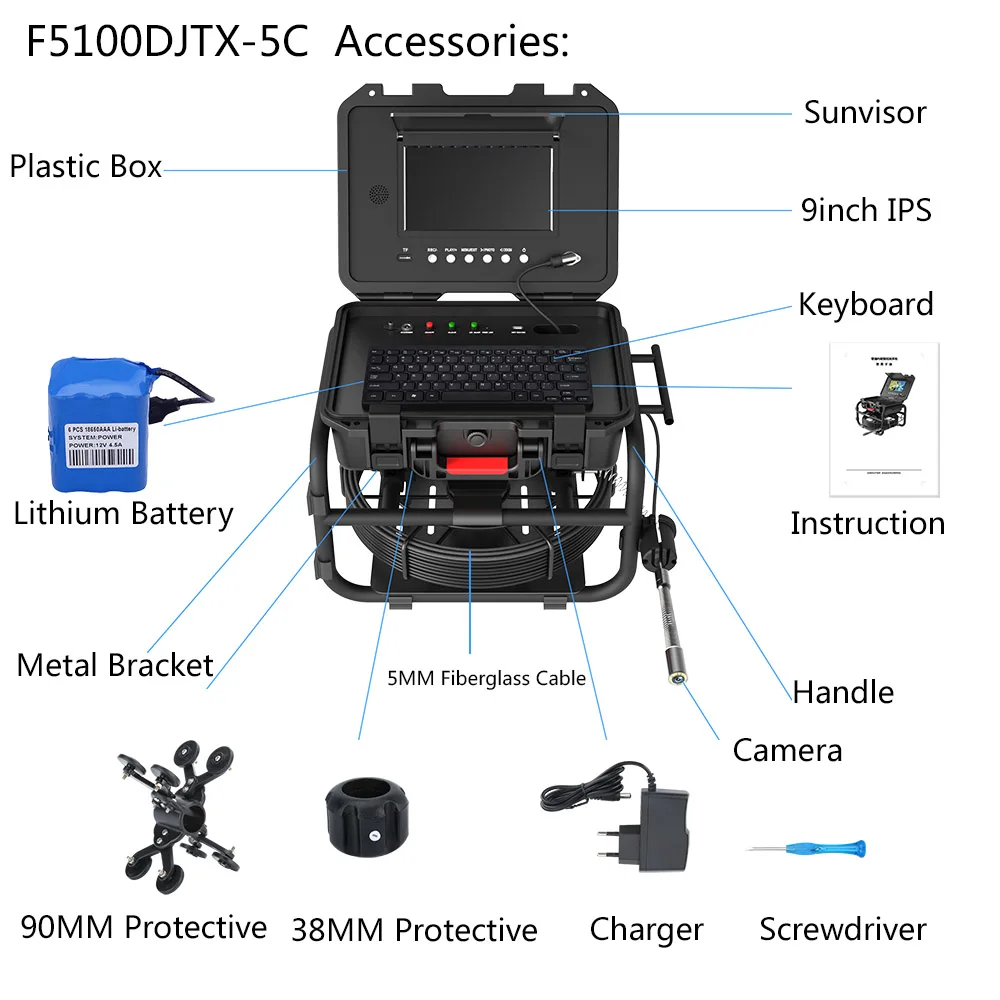

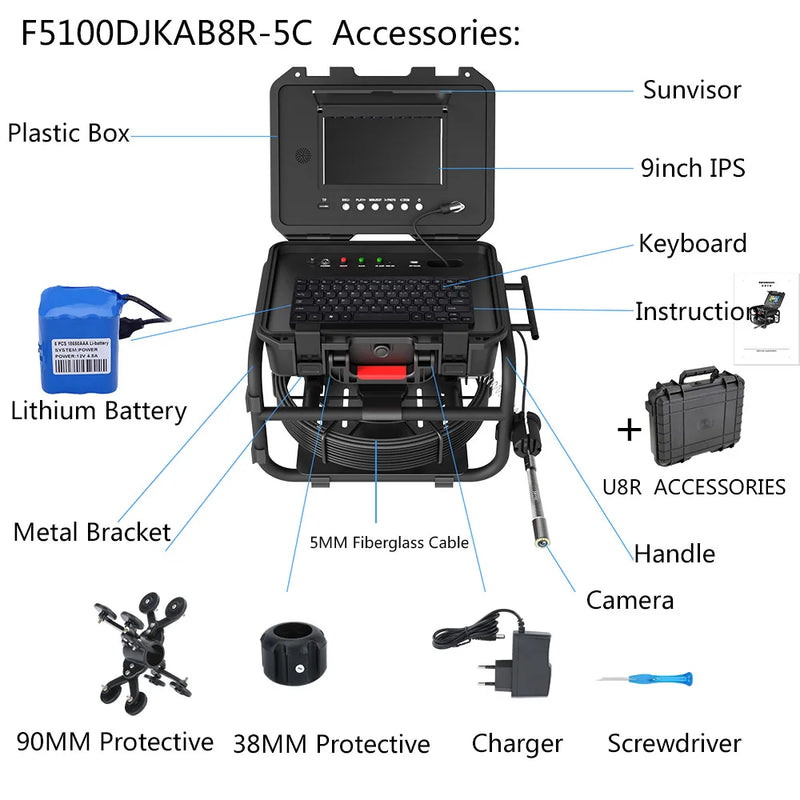

Package List:

 1 * 9inch IPS Monitor（DVR)

 1 * Camera

 1 * 16GB SD Card

 1 * 20M Fiberglass Cable

 2 * Camera Proof Cover

 1 * 4500mah Battery Box

 2 * Charger

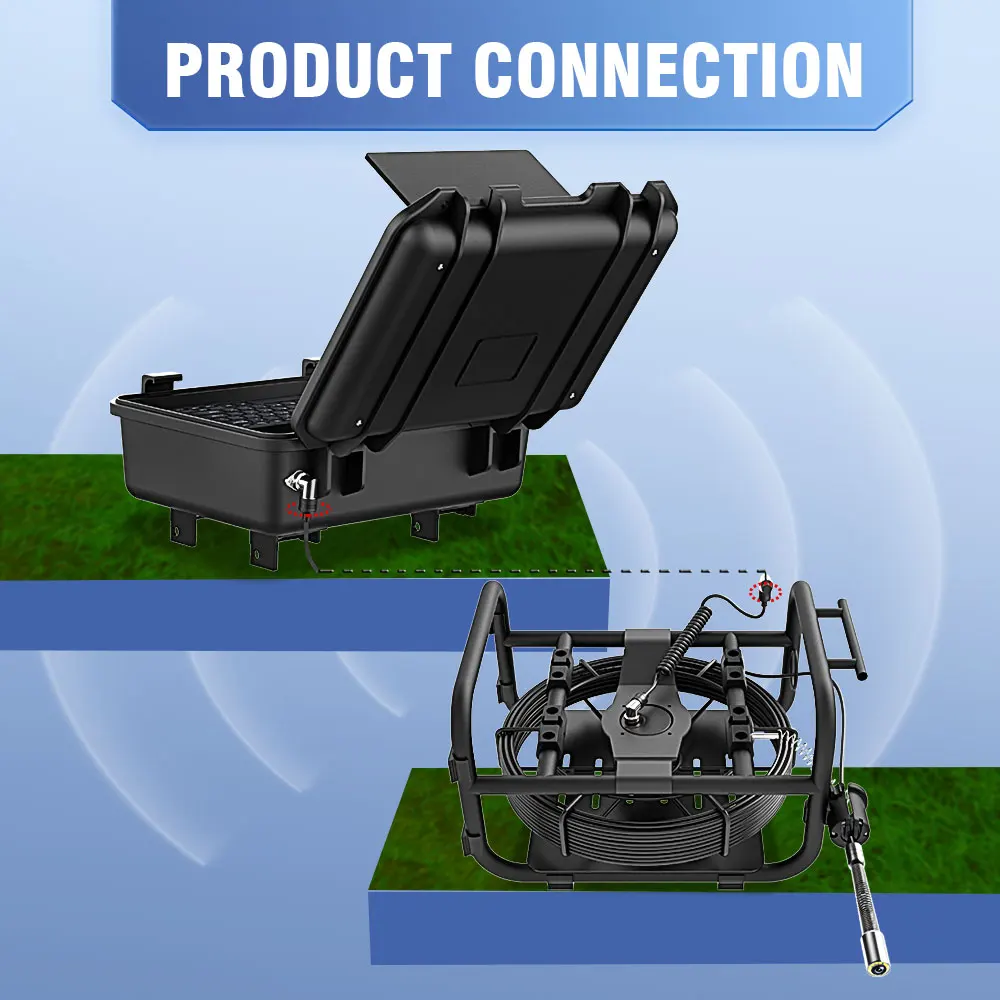

 1 * Connection Cable

 1 * Screw Driver

 1 * User Manual (English)
