Overview:

Why Most Broadcasters Choose FU-1000C FM radio station transmitter?

Pleasenote that the value of the FU-1000C FM audio transmitter is much more than the
above parameters. The FU-1000C broadcast FM transmitter is a 1000W FM transmitter
equipped with a USB interface. But its professional FM broadcast capability can
make you so blown away by the broadcast efficiency of it.

The embedded USB interface truly realizes the function of human-transmitter
interaction, just with a few steps in a few minutes: take out your USB, plug it
into the transmitter, use the jog dial, and the only thing left is to play the
music!

Quite easy, right? That's true, with this 1000 W FM broadcast
transmitter, you can have the high-quality customized audio enjoyment brought
by FMUSER FU-1000C

FU-1000C is the 1000W broadcast FM transmitter equipped with an RDS input interface,
which allows you to explore more of your broadcast density (RCA input is also
supported). You can communicate with your audience with information in words in
addition to audio signals so that your audience can get more information about
your radio broadcast!

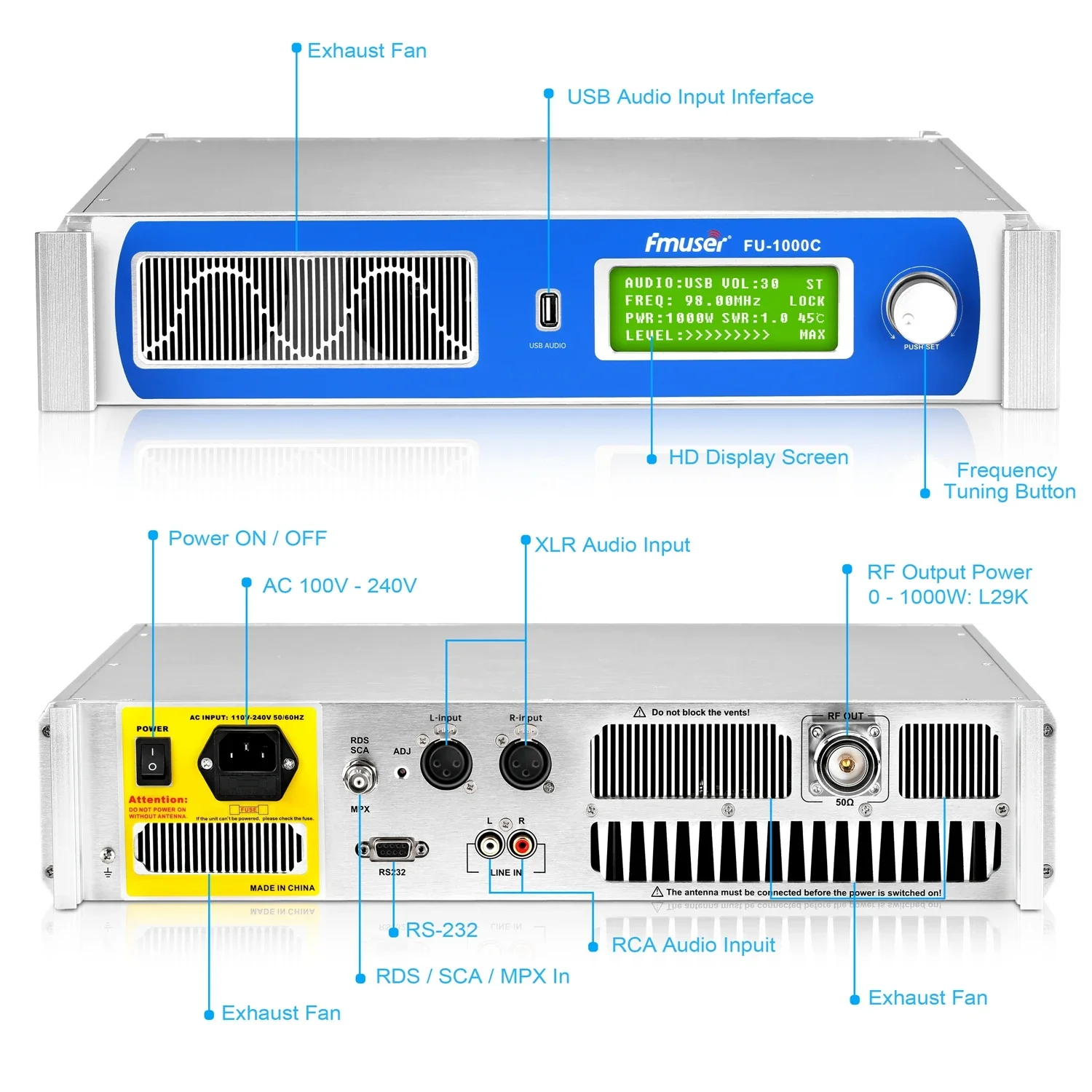

FU-1000C 1000W FM transmitter is equipped with front jog dial input, which is committed
to designing for an excellent user experience. Though this broadcast equipment
is complicated in matters of operation and structure, it is such a gospel for
someone, especially for the users who have strong antipathy towards those
hard-to-use broadcast equipment, the jog dial still makes the equipment
operation become more convenient.

In terms of protection, the FU-1000C FM stereo broadcast transmitter can
efficiently avoid being affected by external and internal issues, for example,
in the aspect of over-heated temperature, here is what traditional FM broadcast
transmitter will be: the working temperature gets higher and higher and won't
stop until the transmitter burns down.

Advantages:

The product technology has the following technical characteristics:

>Powerful all-in-one rack design comes with both reasonable price and ultra-simple operation, it is one of the best choices for budget-buyers

>Single/double audio channel mode is optional, it brings you high-quality audio with a much better experience

>Built-in new USB audio input interface makes it faster to identify custom audio input with larger volume

>Complete single-language (English) system menu significantly improves the user experience

>Integrated single-key shuttle button (JOG DIAL) reduces operating time costs and systemize the operation

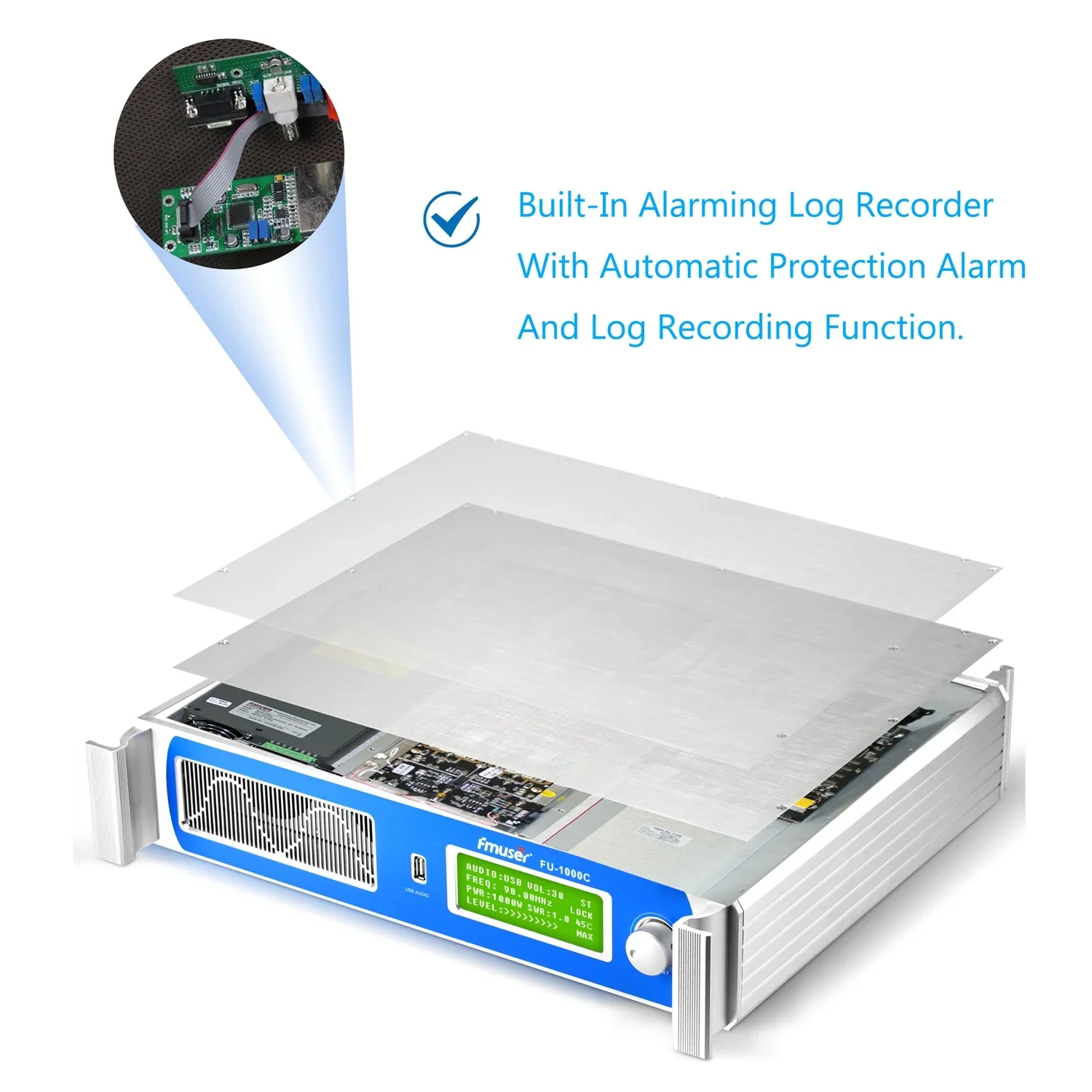

>Alarm and protection of over-current, over-voltage, over-temperature, overpower and standing wave ratio improve the transmitter warning mechanism

>Single RDS or SCA subcarrier input is supported. Collaborative SCA / RDS encoder external interface inputting options,greatly extend the operability of the transmitter.

>RS232 remote communication control interface realizes the real computer-transmitter remote control technology.

>Support XLR stereo audio input, audio gain size can be arbitrarily adjusted to create a perfect CD auditory effect.

>OLED display makes real-time data display more smooth and clearer .

>A reliable micro-processing solution ensures the durability and efficiency of the FM radio transmitter.

>Industry-leading transmitter signal transmission control technology can effectively avoid deviation between emission power and frequency.

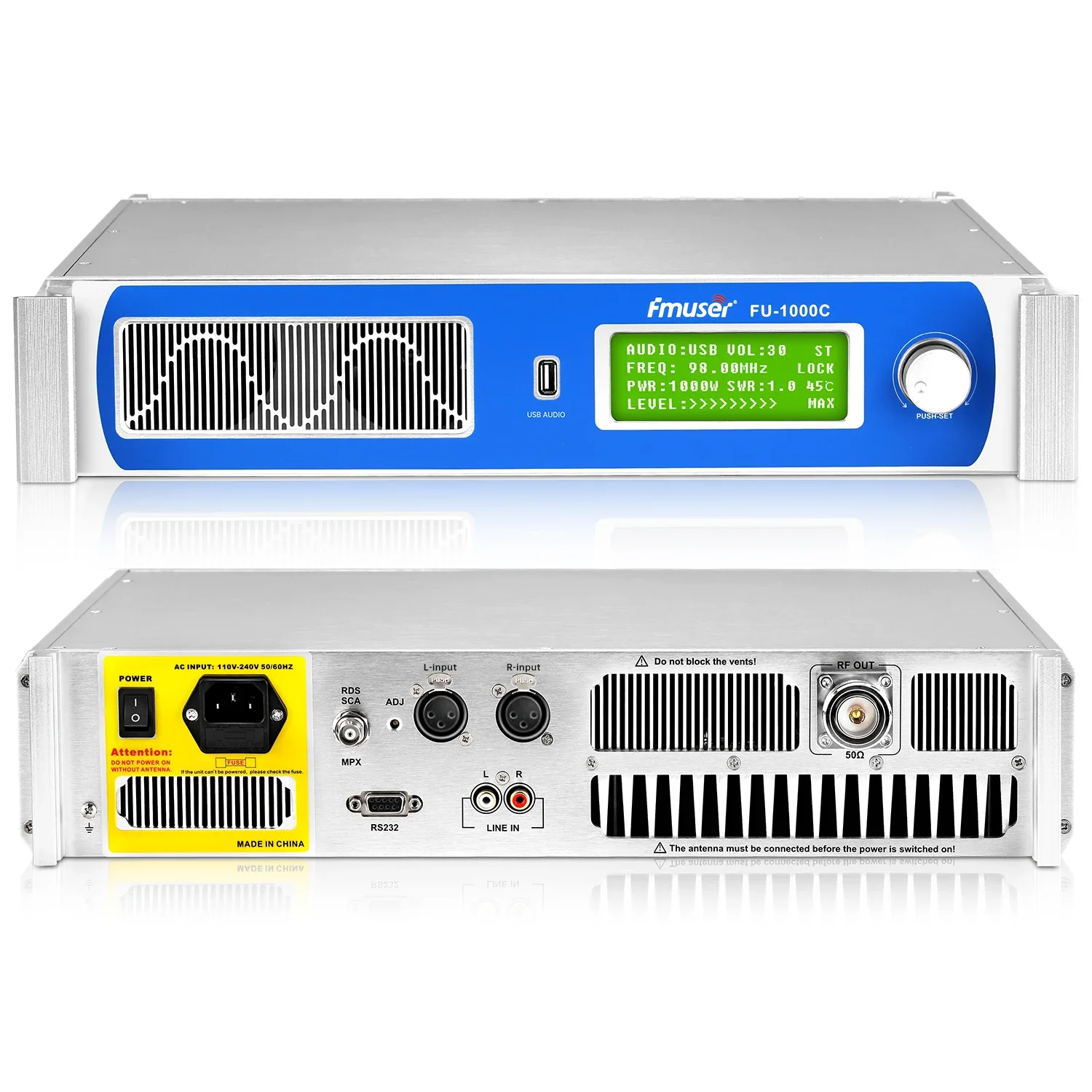

>The 19 inch standard chassis with a height of 2U can totally meet your needs.

Specifications:

Electrical Index

Modulation: Frequency Modulation

Frequency Stabilization Method: PLL Phase-locked loop

Nominal Transmission Frequency: 87 MHz ~ 108 MHz (other frequencies can be customized)

Frequency Deviation ± 75 Hz

The Frequency Step Value: 50 KHz

The Output Impedance:50 Ω

RF Output Connector: N-K or other specified connector

The Output Power: 1000 W cannot be adjustable

The Output Power Deviation:± 10 W

RF Efficiency:> 75%

Pilot Frequency Deviation:± 0.1 Hz

Harmonic Radiation Suppression: <-60 db

Internal Residual Wave Radiation: <-65 dB

High-Temporal Harmonic Radiation: <-60 db

Parasitic Modulation Noise: <-50 db

Audio Index

Audio Input Interface: XLR / USB

Audio Input Level: <1 Vpp

Sign Noise Ratio: ≥ 70 dB (1 KHz, 100% modulation)

Stereo Separation: ≥ 55 db (L → R, R → L)

Distortion: ≤0.05% (30 Hz ~ 15000 Hz, 100% modulation)

Frequency Response: 30 ~ 15000 Hz

Audio Preload: 50 μs / 75 μs optional

Left And Right Channel Level Difference: ≤0.05 dB (100% modulation)

Physical Index

lChassis Size: 2U (length 530 mm × width 340
mm × height 100 mm)

lChassis Size:2U (length 20.8 inch × width
13.3 inch × height 4 inch)

lMachine Weight:10 kg

lMachine Weight:22 lbs

lHeat Dissipation   Mode: Air-cooling

lChassis Standard:19 inches

Other Index

External Control Interface: RS232

The Protection Mode: high temperature and high VSWR protection supported

Working Environment

Relative Humidity: <95%

Altitude Height: <4500 M

Power Supply Voltage: 200 VAC ~ 240 VAC / 50 Hz

Run Ambient Temperature: -10 ° C ~ + 45 ° C

Maximum Power Consumption: 250 W
