Processors

Intel®Core i5-6300U

Intel®Core i3-7100U

Intel®Core i5-7200U

Intel®Core i5-8250

2 cores, 2.4GHz (Up to 3.0GHz)

2 cores, 2.4GHz

2 cores,2.5GHz (Up to 3.1GHz)

4 cores, 1.6GHz（upto 3.4Ghz）

Memory

1* SO-DIMM DDR4, max support to 16GB

Graphics

Intel® HD Graphics 540/610/620/650（depends on CPU）

Display

1* VGA，1*HDMI

Ethernet

2* Realtek RTL8111H Gigabit Ethernet, support Wake up on LAN/PXE

Hard Drives

1* 7pin SATA3.0 conenctor,max 6Gbps

1* M.2 Key-M 2280 NVMe/SATA SSD

Audio

ALC897 7.1，support MIC/Line-out，Amplifier (2 ohms 5W dual channel)

Expansion

1* Mini-PCIe for WiFi/4G LTE

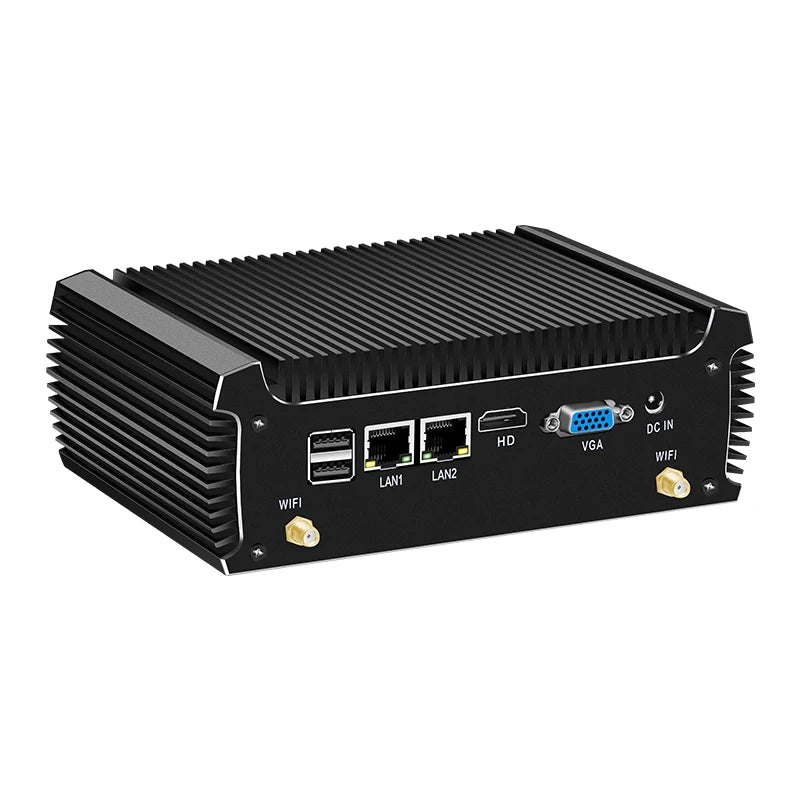

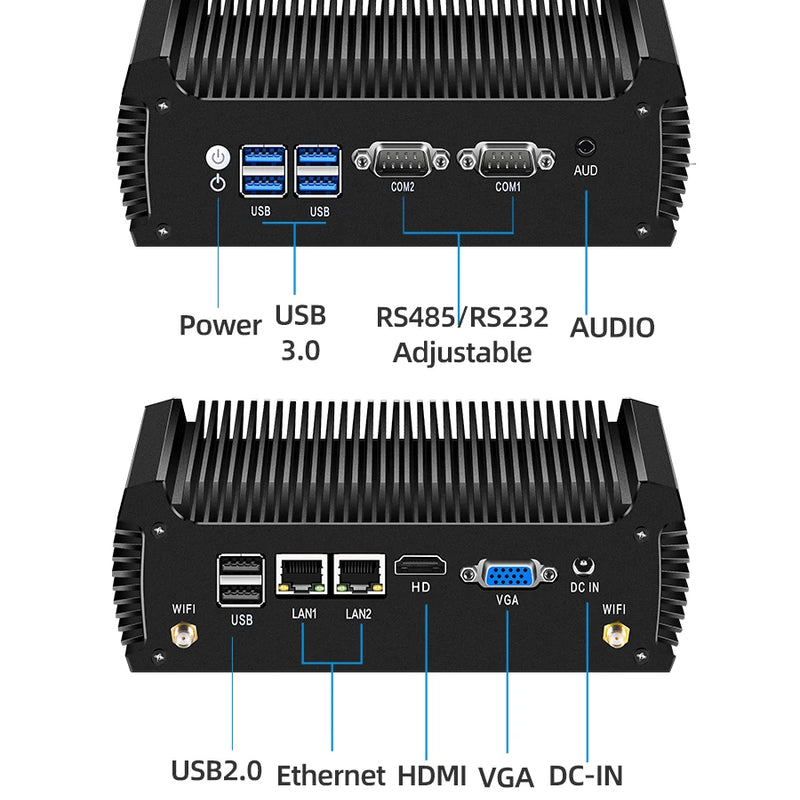

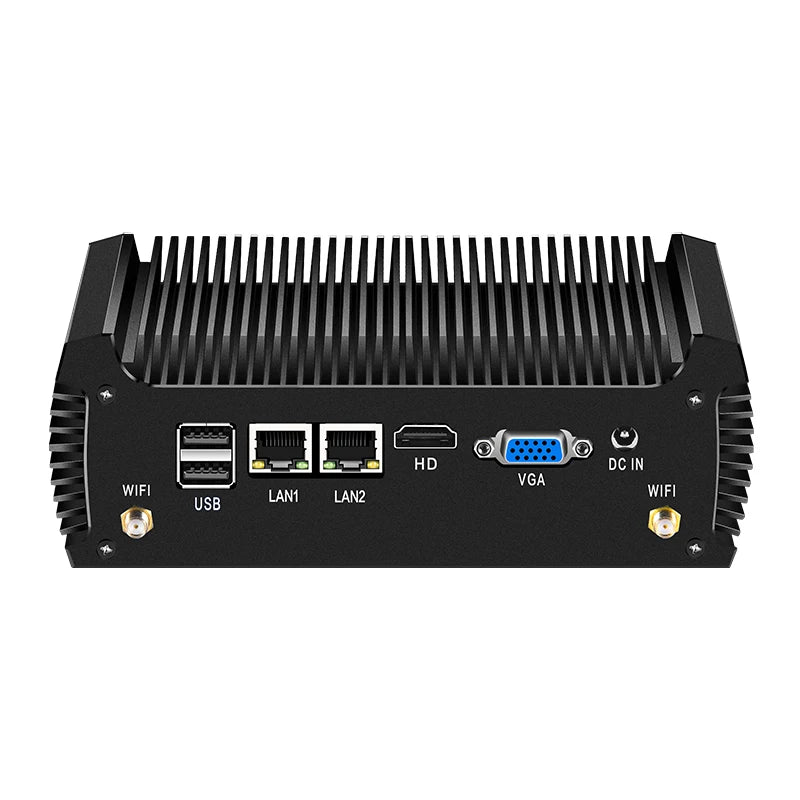

Front I/O

1* HDMI

1* VGA

2* USB 2.0

2* RJ-45

1* 12V DC

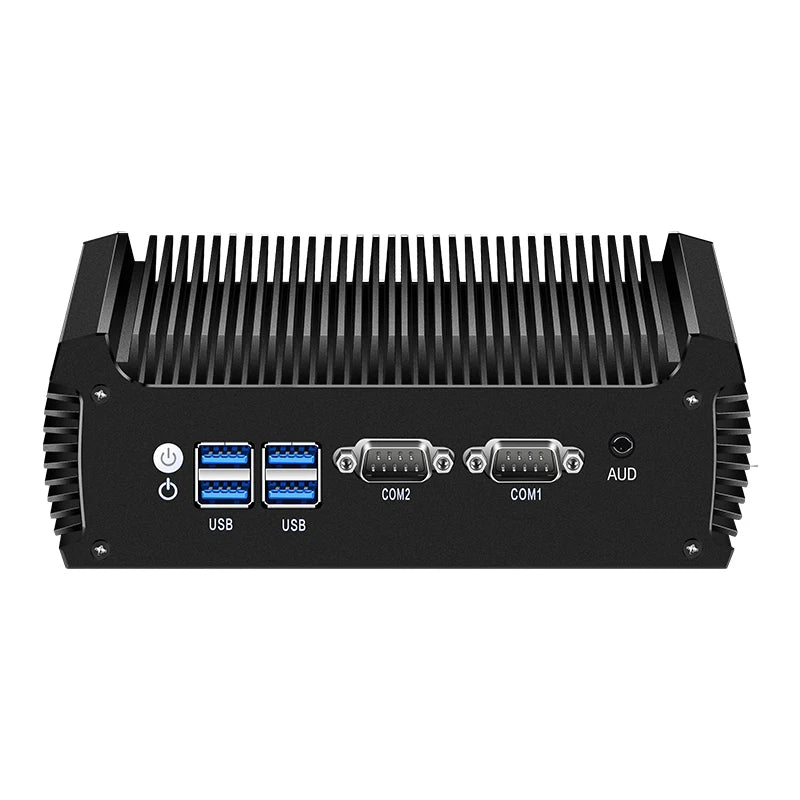

Rear I/O

1* 3.5mm audio jack support Line-OU,MIC in

2* RS232（DB9）support RS485

1* HDD LED

4* USB3.0

1* Power Key

1* Clear COMS key

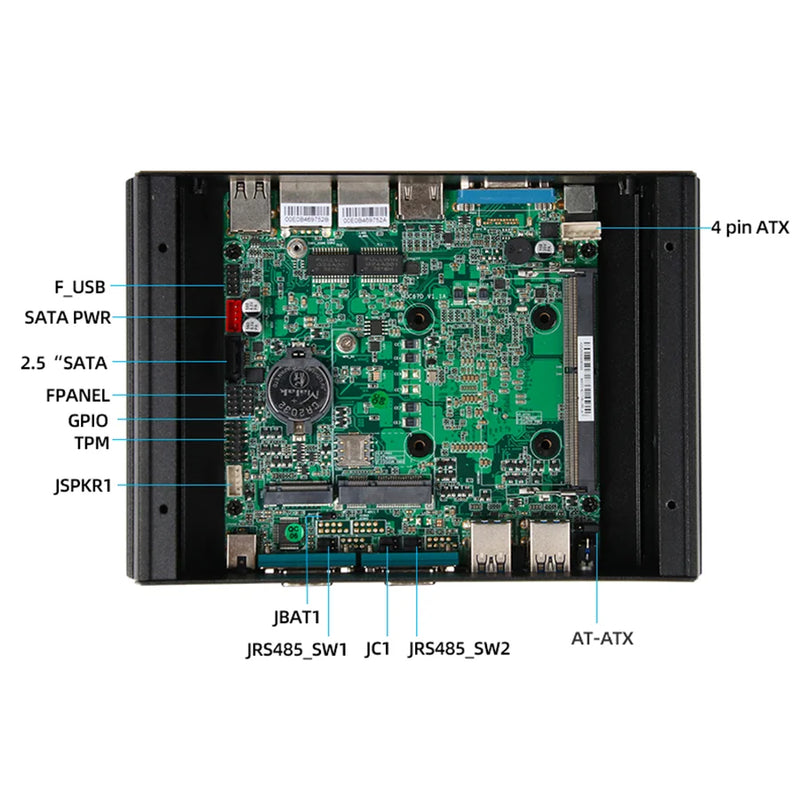

Internal I/O

1 *SIM card slot

1* USB2.0 header,can expand 2x USB2.0

1* Speaker header 1*4pin

1* GPIO header 2*5Pin

1* SATA Power header 1*4Pin

1* 4pin ATX

1* FPANEL header 2*5Pin

TPM

1* TPM2.0 header 2*7Pin

Operating Temp

-10℃～60℃

Storage Temp

-20℃～70℃

Relative humidity

5%-95% Non-condesing

PC Case Size

182*127*58mm

Power SUPPLY

DC12V 5A
