Electric Wheelchair Controller EABS Parking Smoothly
SCORE BIG SALE
£177.00
↓ Save £53.00
£230.00
Default Title
✓
SPECIFICATIONS
Applicable Motor Type: 24V DC brushed motor
Brake Current: Maximum 3A per channel
Brake Voltage: DC 24V
Brand Name: Qiilu
Certification: CE
Choice: yes
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: None
Material: ABS, Rubber, Aluminum Alloy
Model Number: Item Type: Electric Wheelchair Controller
Motor: AC Motor
Motor Type: DC Motor
Operating Temperature: -25℃ to +60℃
Operating Voltage: DC 18V to DC 30V
Origin: Mainland China
Output Current: 45A
Peak Voltage: DC 35V
Power Supply Voltage: DC24V
Standby Current (Idle): ≤50 mA
Standby Current (Power Off): 0.1±0.05 mA
Storage Temperature: -45℃ to +80℃

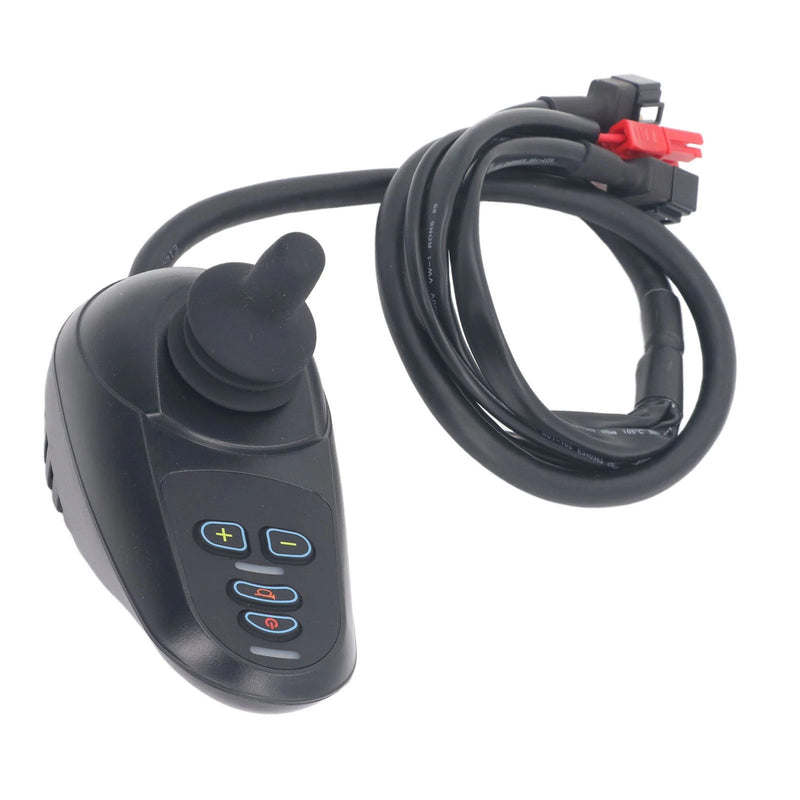

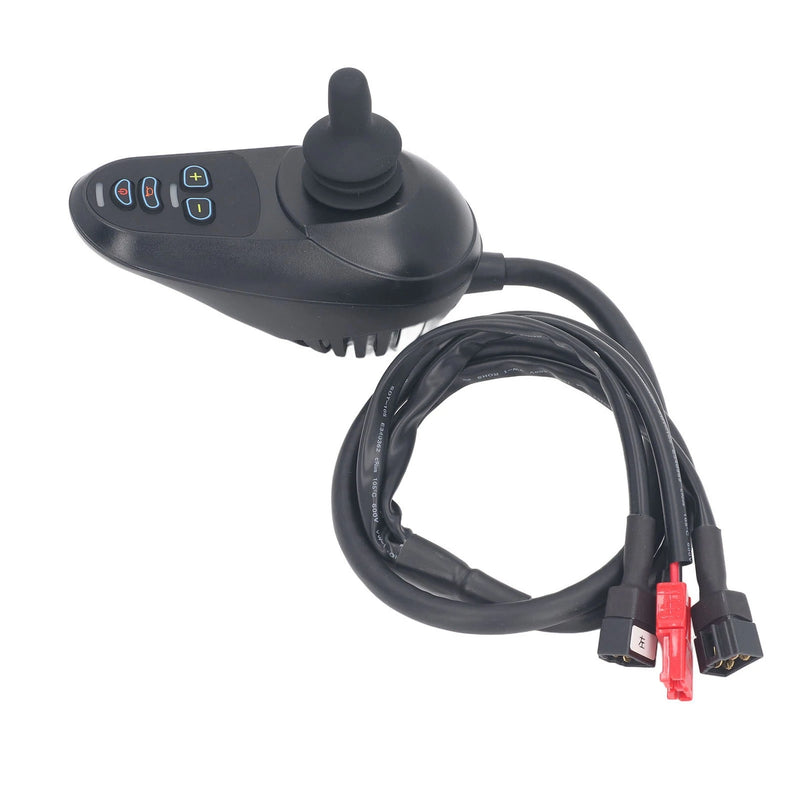

Electric Wheelchair Controller EABS Parking Smoothly Speed Changing Wheel Chair Joystick Controller 45A DC24V
Specification:
Item Type: Electric Wheelchair Controller
Material: ABS, Rubber, Aluminum Alloy
Power Supply Voltage: DC24V
Operating Voltage: DC 18V to DC 30V
Peak Voltage: DC 35V
Output Current: 45A
Brake Voltage: DC 24V
Brake Current: Maximum 3A per channel
Standby Current (Idle): ≤50 mA
Standby Current (Power Off): 0.1±0.05 mA
Operating Temperature: -25℃ to +60℃
Storage Temperature: -45℃ to +80℃
Applicable Motor Type: 24V DC brushed motor

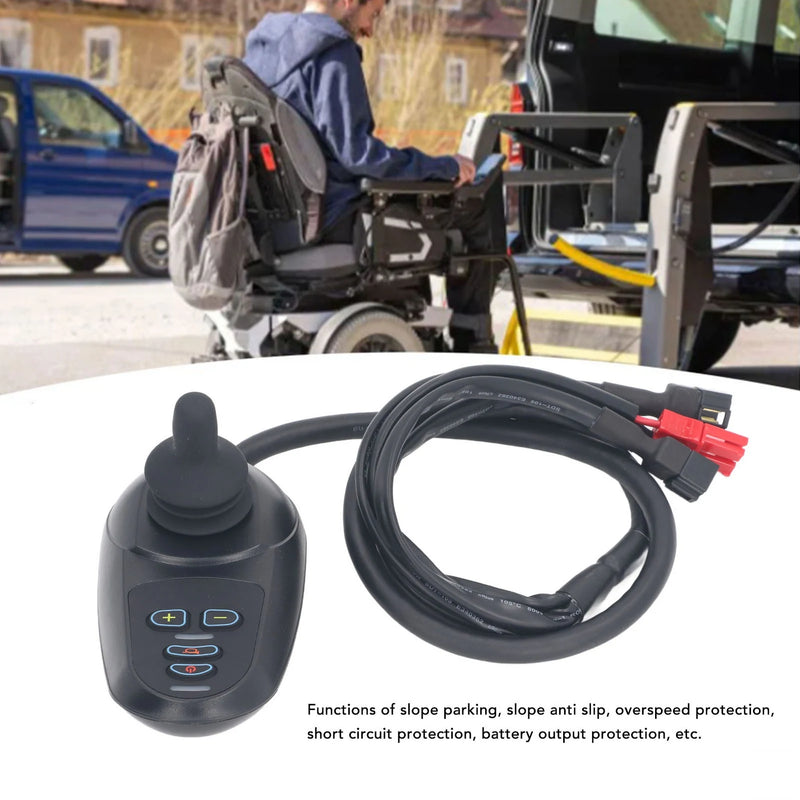

Features: Electromagnetic brake motor with slope hold, slope anti slip, overspeed protection, short circuit protection, battery output protection, temperature protection, charging suppression, connector dropout protection.
Material: ABS, Rubber, Aluminum Alloy
Power Supply Voltage: DC24V
Operating Voltage: DC 18V to DC 30V
Peak Voltage: DC 35V
Output Current: 45A
Brake Voltage: DC 24V
Brake Current: Maximum 3A per channel
Standby Current (Idle): ≤50 mA
Standby Current (Power Off): 0.1±0.05 mA
Operating Temperature: -25℃ to +60℃
Storage Temperature: -45℃ to +80℃
Applicable Motor Type: 24V DC brushed motor
Features: Electromagnetic brake motor with slope hold, slope anti slip, overspeed protection, short circuit protection, battery output protection, temperature protection, charging suppression, connector dropout protection.

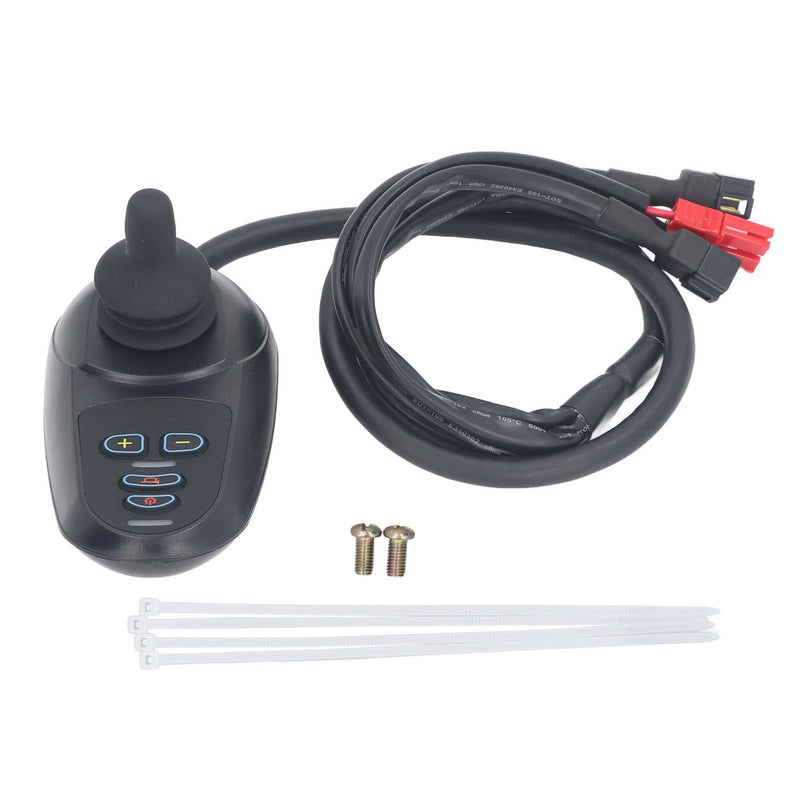

Package List:
1 x Controller
2 x Screws
4 x Ties
1 x User Manual
Note

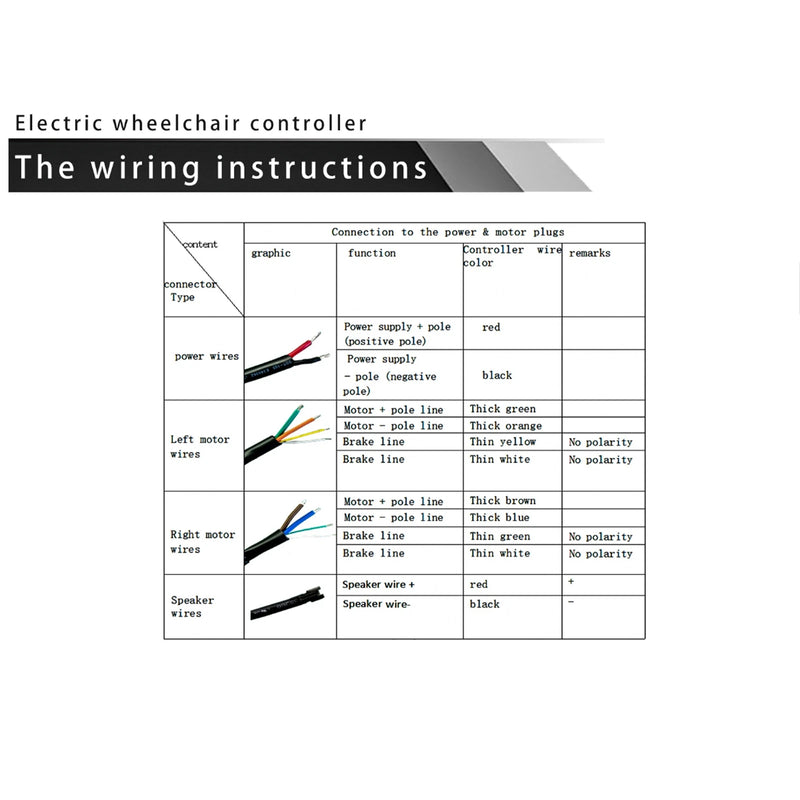

Before purchasing, you need to verify the interface definition is consistent, and you need to contact us if you are not sure.
