SPECIFICATIONS

Battery Capacity(mAh): Others

Battery Voltage: 48 V/60V/72V

Brake System: Front drum+Rear drum

Brand Name: NONE

Certification: CE, Eec, Dot

Charge Time(h): 7-9h

Controller: :Imbor 3528 electric control

Curb Weight: 400-500kg

Dimension: 2980*1250*1900mm

Driving Mileage: 50-70km,≥90km

Fuel Type: Electric

Grade Ability: 10-15°

High-concerned chemical: None

Hub size: 14INCH

Max Speed: 40 - 50 KM/H

Max. loading weight: :510kgs

Maximum Speed: 30-50Km/h

Minimum Grand Clearance: 150-200mm

Origin: Mainland China

Place of Origin: China

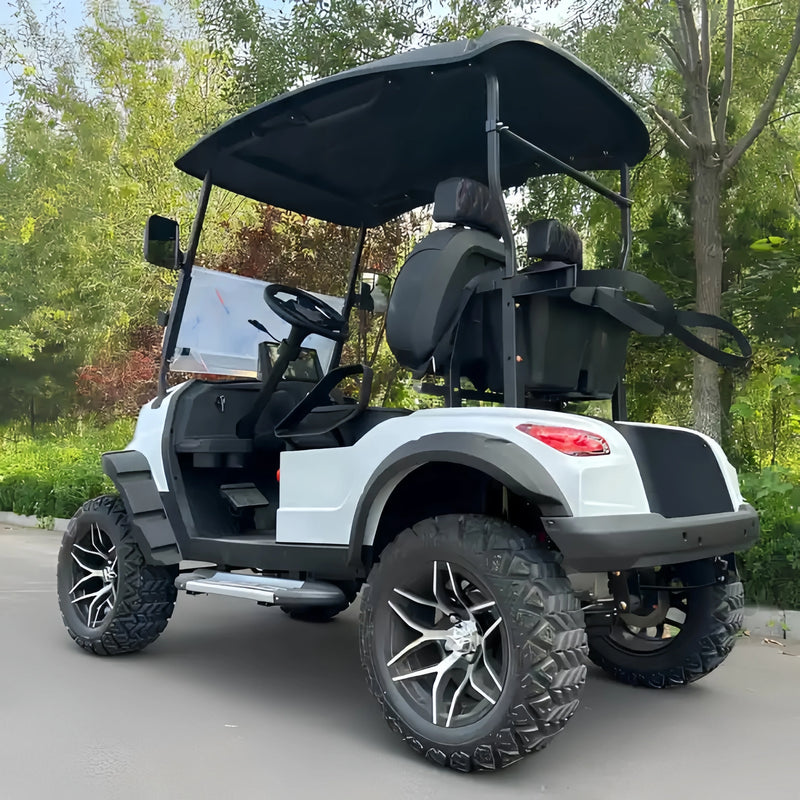

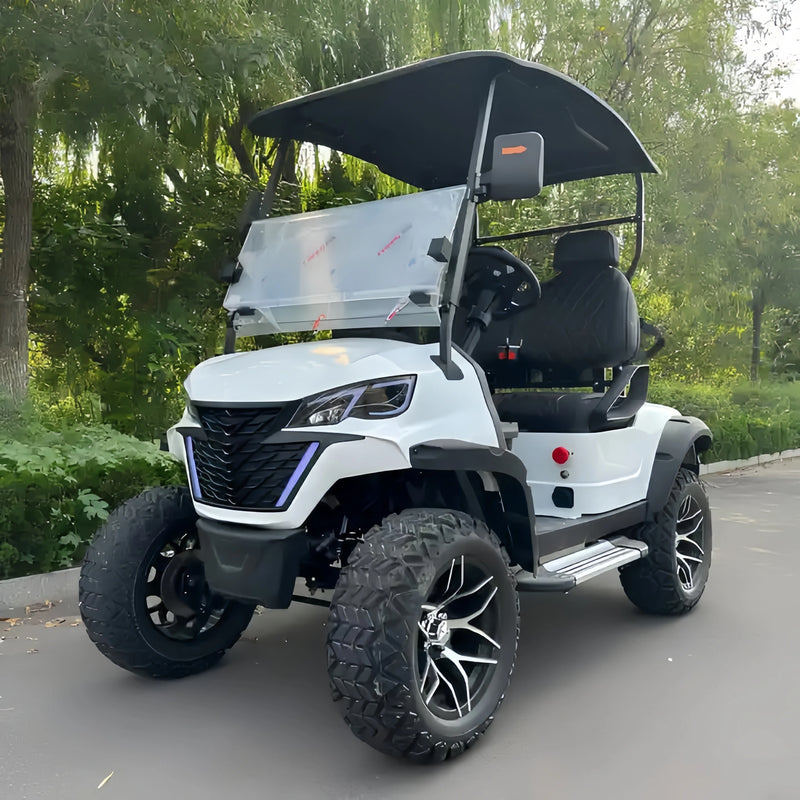

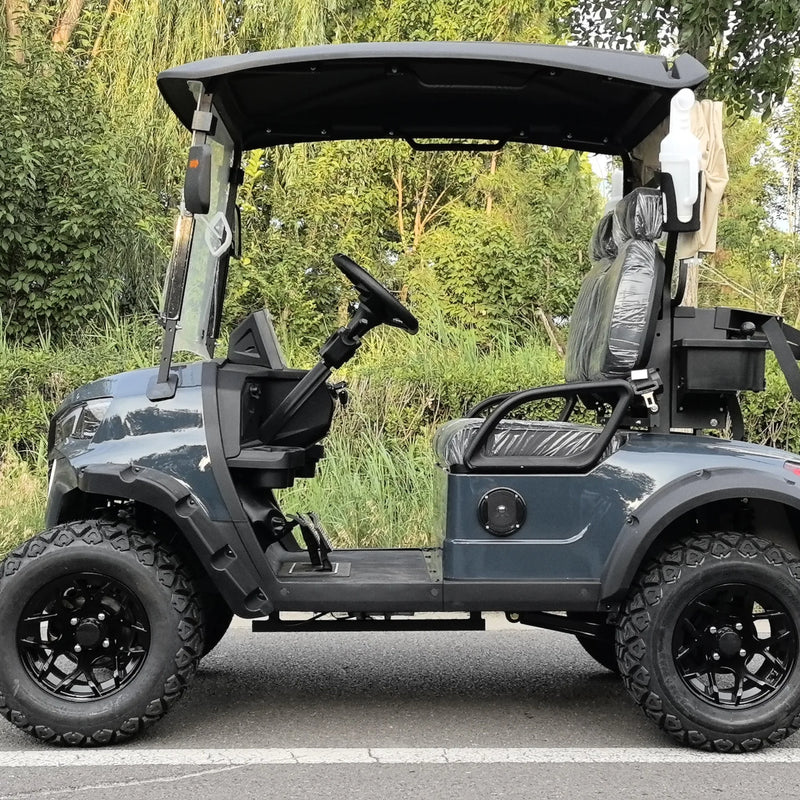

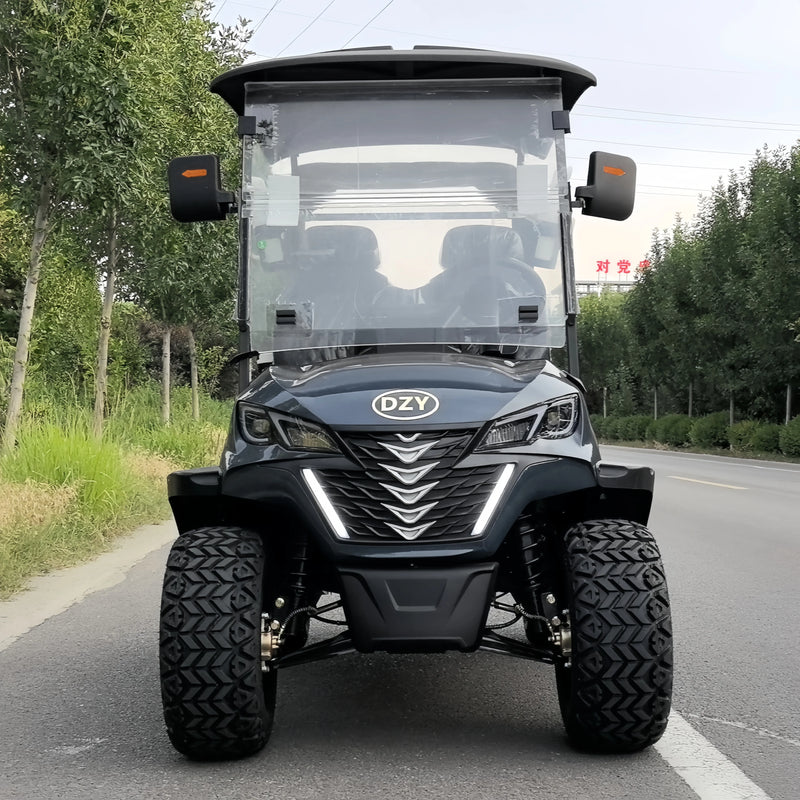

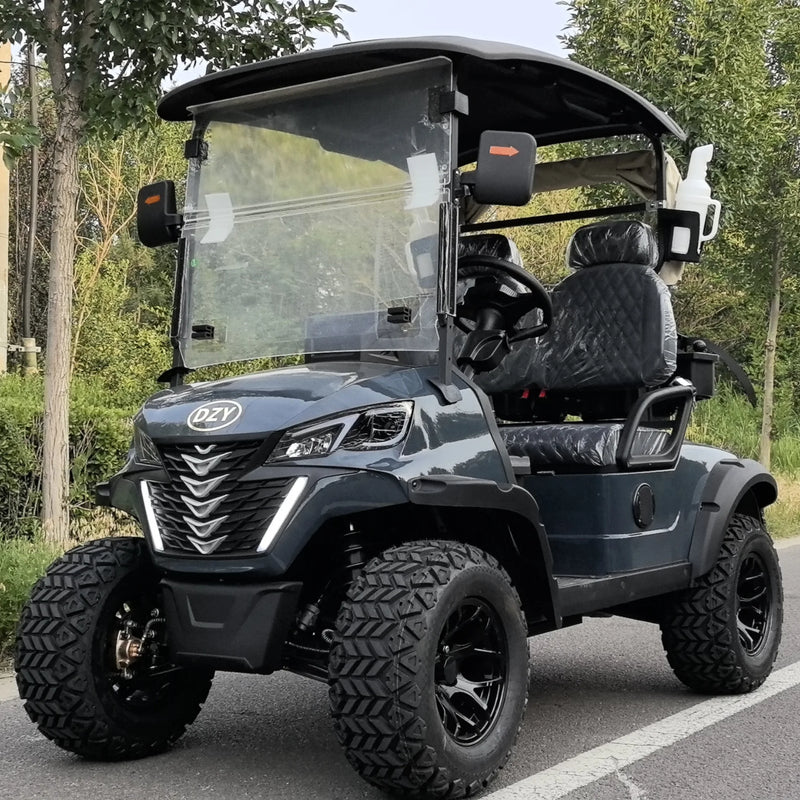

Product name: Golf Cart

Seats: 1 - 2

Standing Postion of Tail Caddie: Equipped

Tire Size: 10 inch

battery voltage: 48V/60V/72V

refit: :according to customer requirements

seats: :Bus cold foam sponge + high rebound PU leather fabric

tire: :22*9.5-10;22*11-10

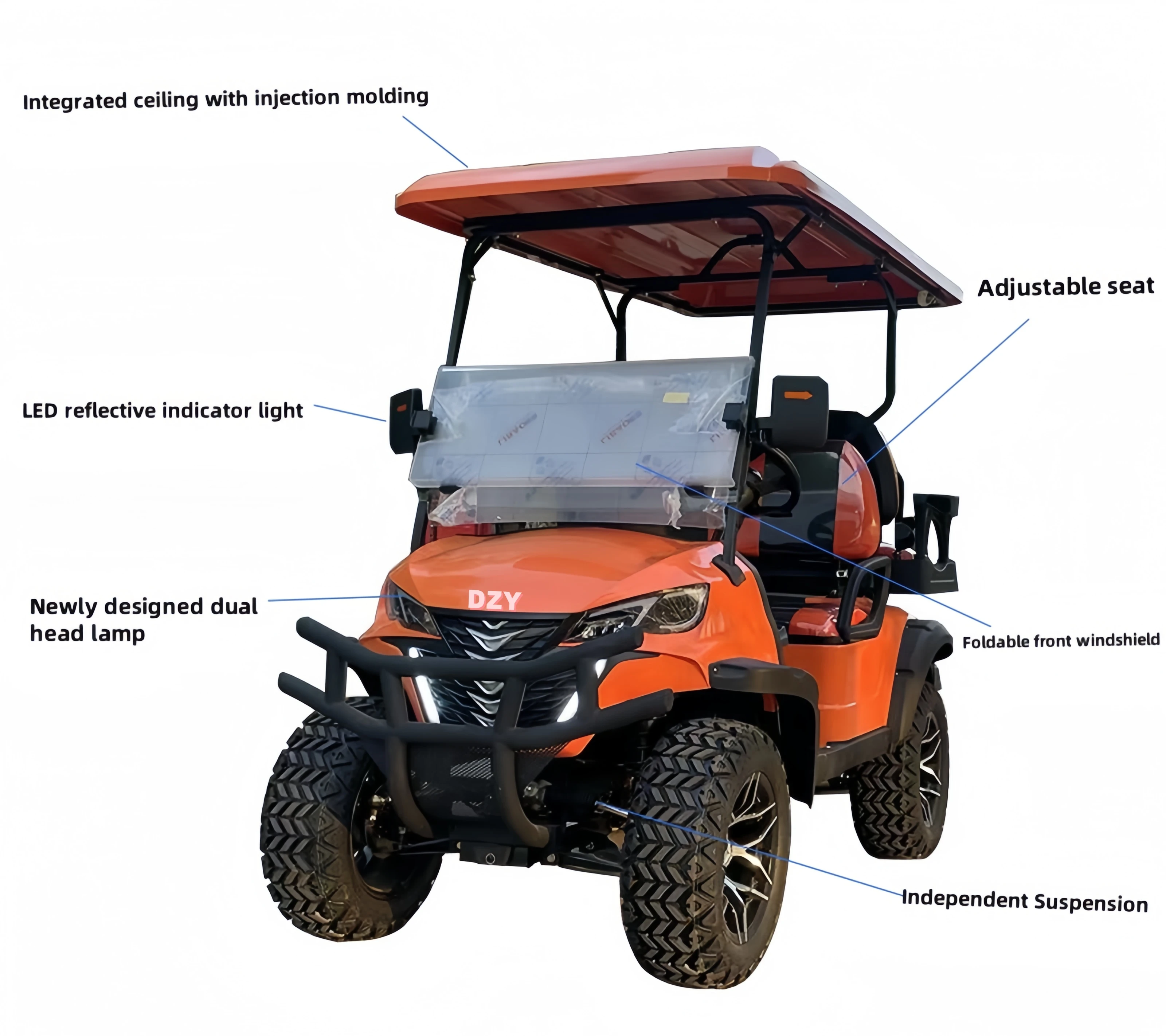

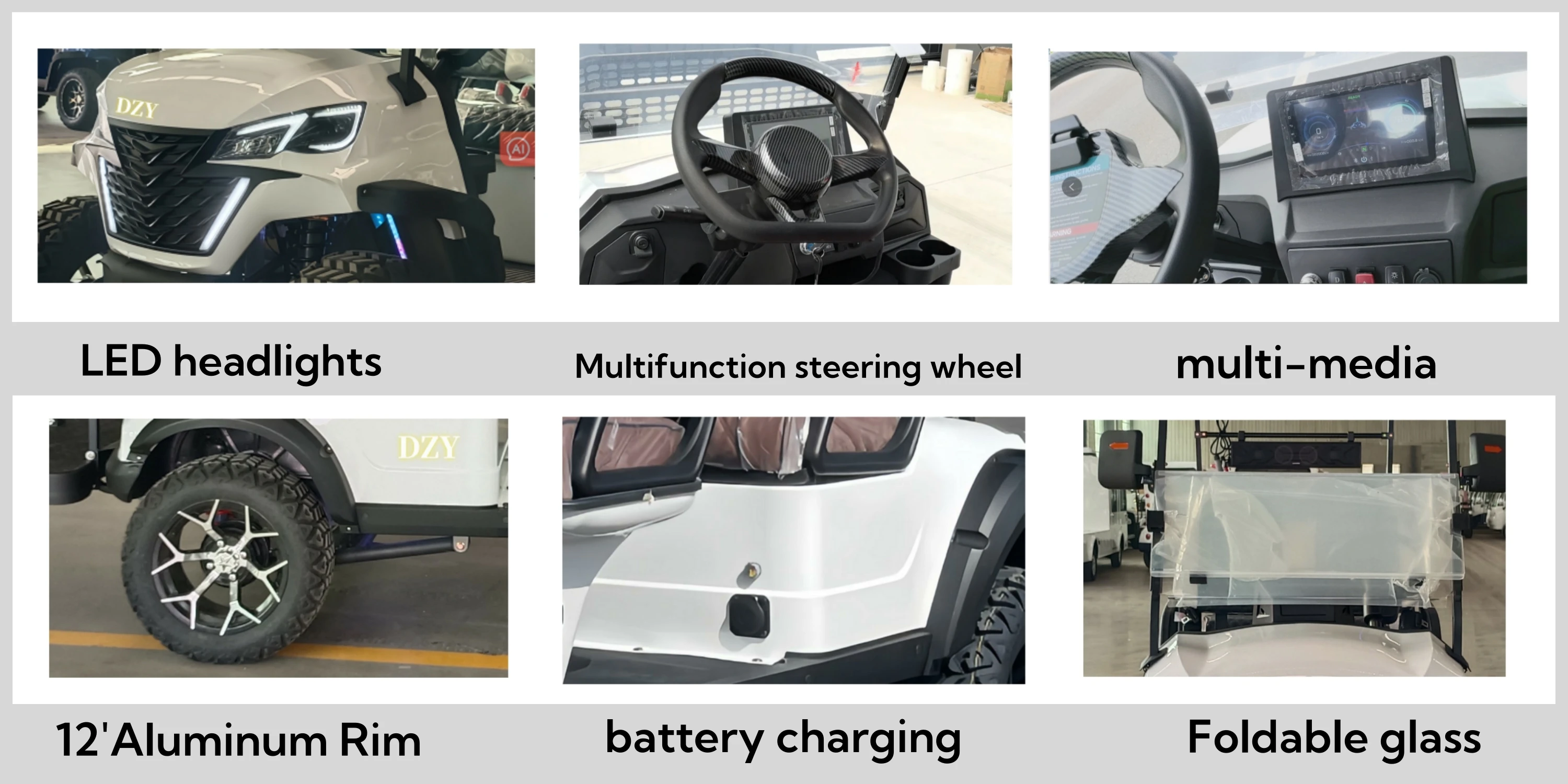

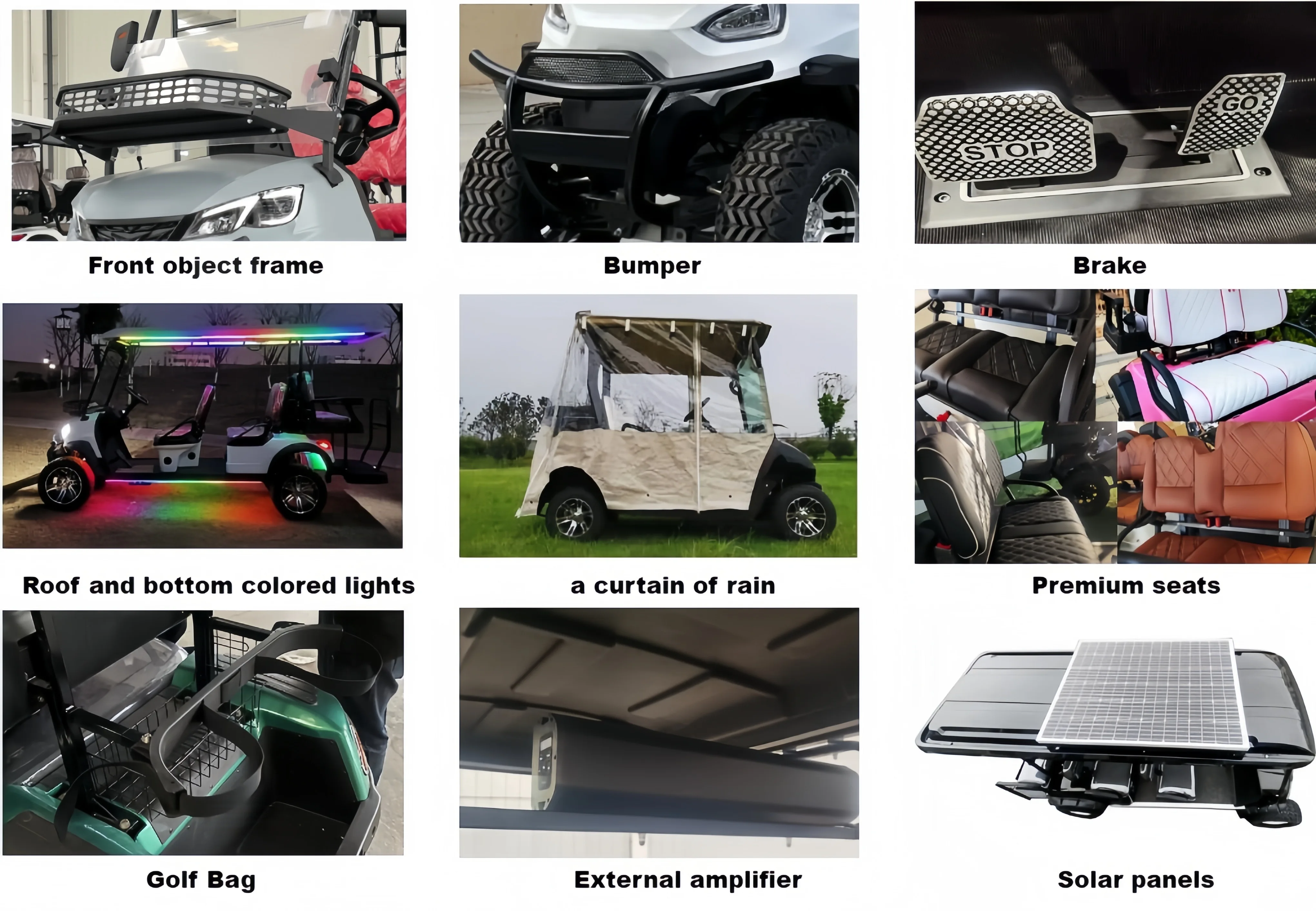

. Details Make Difference

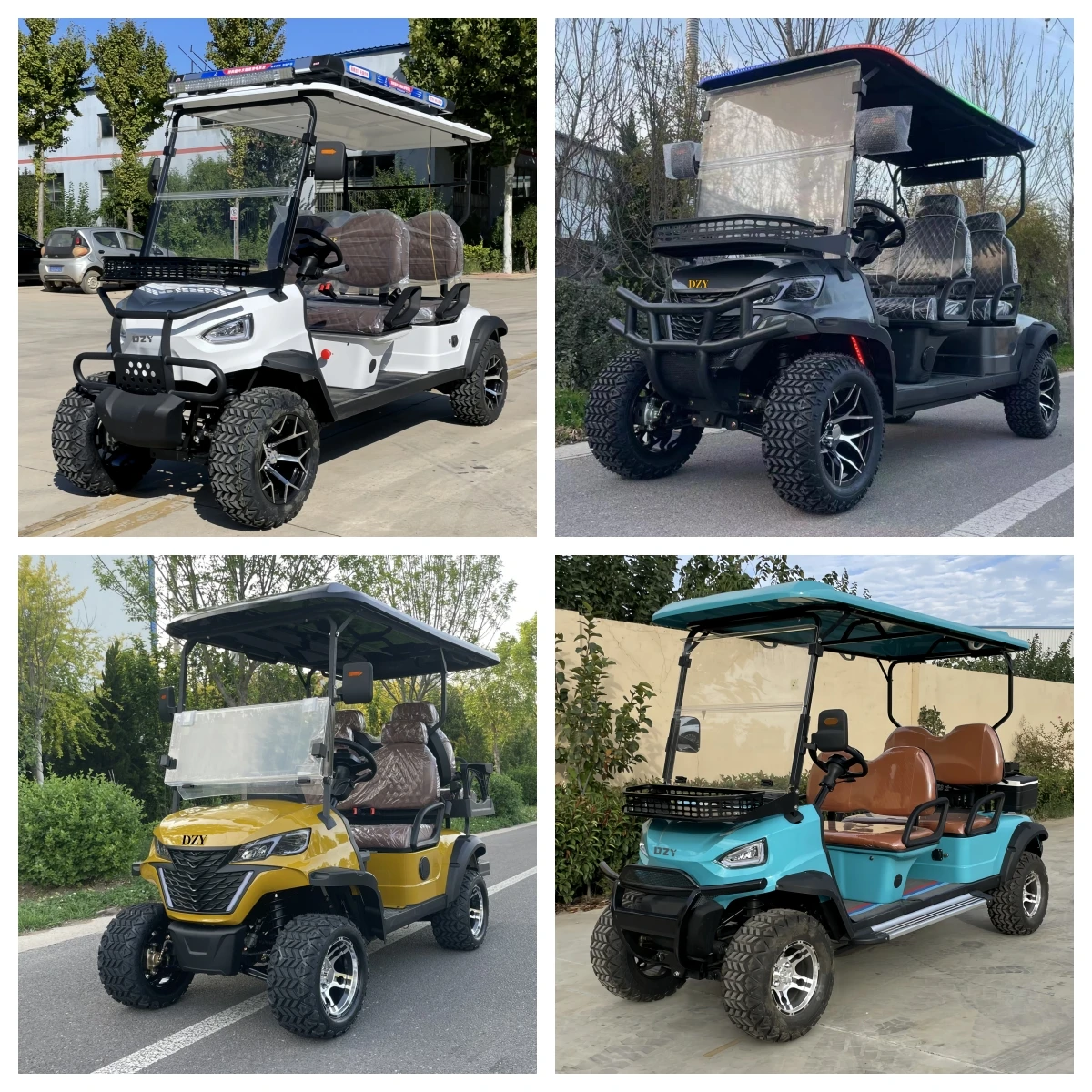

Seats	2 seats	4 seats	6 seats	8 seats
Size	2350*1250*1900	2980*1250*1900	3680*1250*1900	4250*1250*1900
Weight	450KG	510KG	590KG	670KG

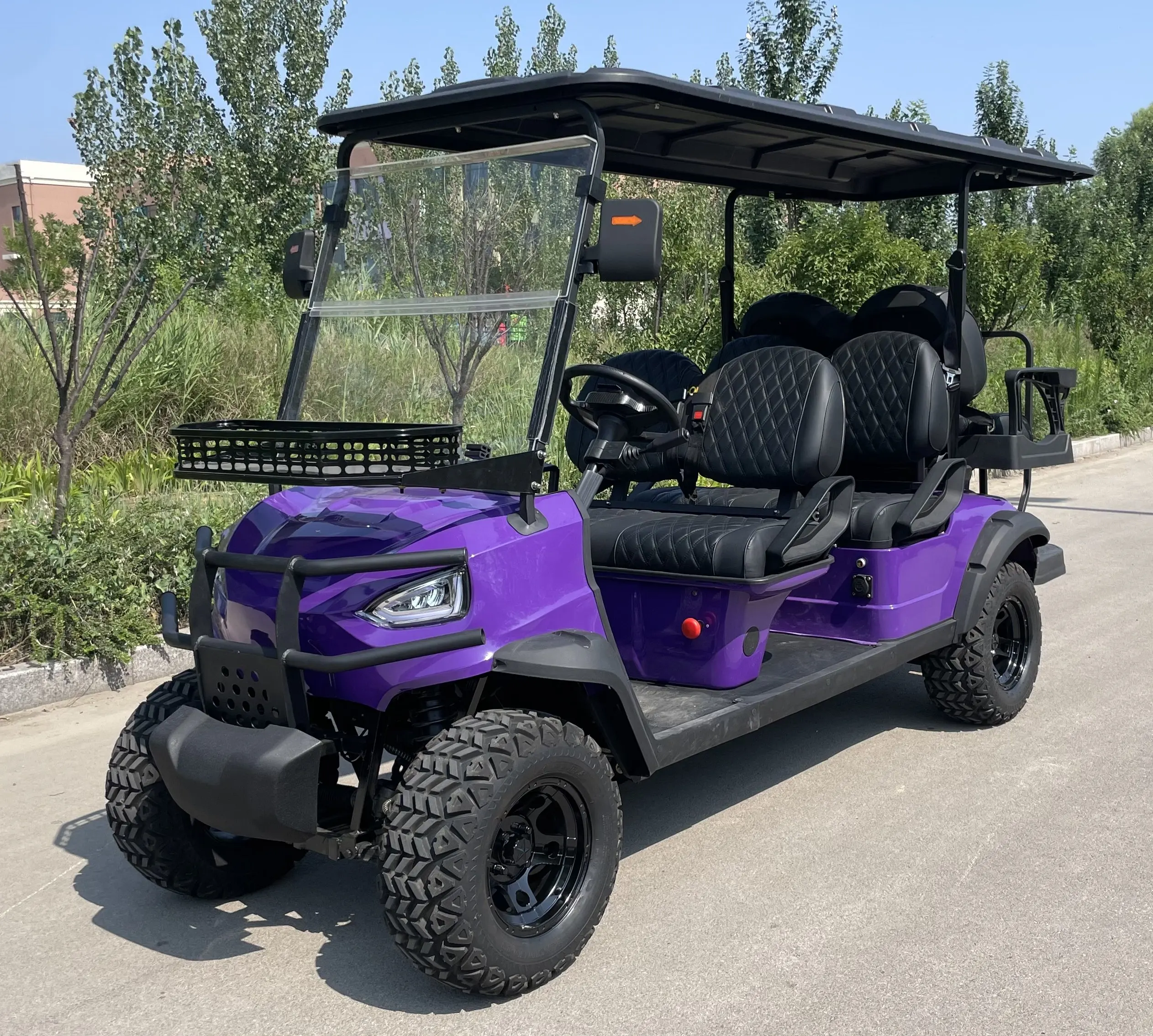

4+2 seater multi-purpose electric golf cart parameters
Key Components	Controller	Inbor, SME or China Local Brand
		Motor	4KW/5KW/7KW AC motor
		Battery	48V/60V/72V120AH  Battery
Performance and Dimensions	Passenger Capacity	6 (4+2)
		Range (Loaded) *	90-100kms
		Max.speed	32-40km/h
		Min. Turning Radius	3.7m
		Max. Gradeability	20%-30%
		Max. Loading Weight	450kgs
		Net Weight	650kgs
		Overall Dimensions	3680*1250*1900mm
Body and Frame
Frame (Chassis)	Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating
Body and Roof	PP plastic front body and rear body; PP vacuum form roof
Windshield	Organic plastic windshield, splited tinted
Roof supports	Carbon Steel, powder coated
Backrest and Seat	Reborn Sponge, artificial leather + plastic armrest
Floor	Galvanized Steel plate and anti-slip rubber floor mat
Dashboard	Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key
Side trim	Plastic
Sider mirror	2pcs, foldable
Electric System
Lighting system and horn	All LED lights, 2 headlights, 2 front turn signals, 2 taillights， electric horn.
Backup Buzzer	12V
Digital Meter	LCD screen, with speedometer, odometer, battery power meter and various indicators
Charger	Smart charger
Steering, Brake, Transmission and Suspension
Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	Four-wheel hydraulic brake + pedal parking brake
Accelerator	Stepless speed change
Suspension system	Cylinder hydraulic shock absorption+integral rear axle+leaf spring
Driving mode	Rear axle secondary reduction, AC motor
Rear axle	Integrated, variable speed gear
Wheel & Tyre	205-50-10, Aluminium wheel hub, vacuum tire

Certifications

Authoritative testing International certification EU certification

OUR COMPANY

The Electric Car specialist Around You Anytime.

Shandong Duya New Energy Vehicle Industry Co., Ltd. is a company that mainly produces electric vehicles. With 15 years of experience in electric vehicle production, it is a high-tech electric vehicle enterprise engaged in the manufacture of environmentally friendly electric vehicles, and is also a key manufacturer of electric vehicles in China.

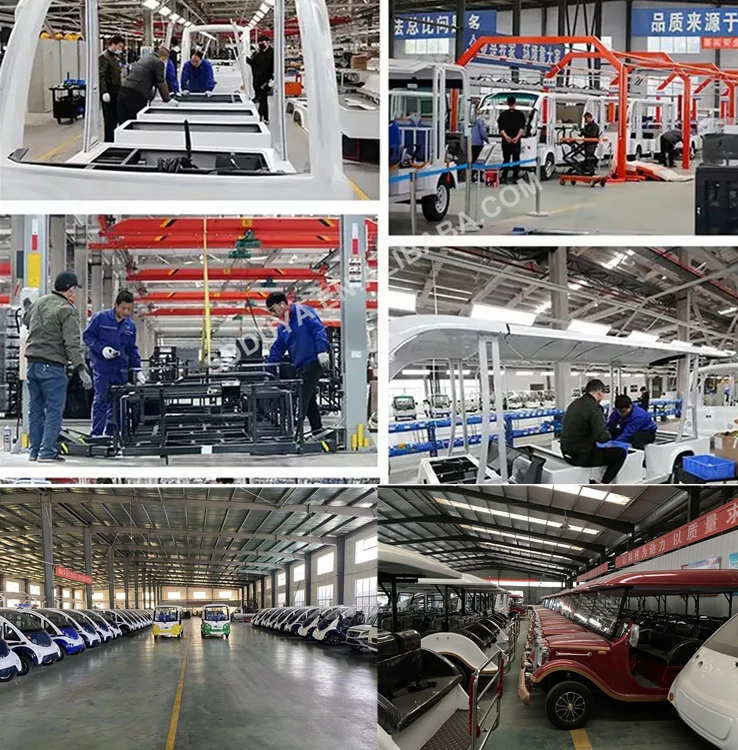

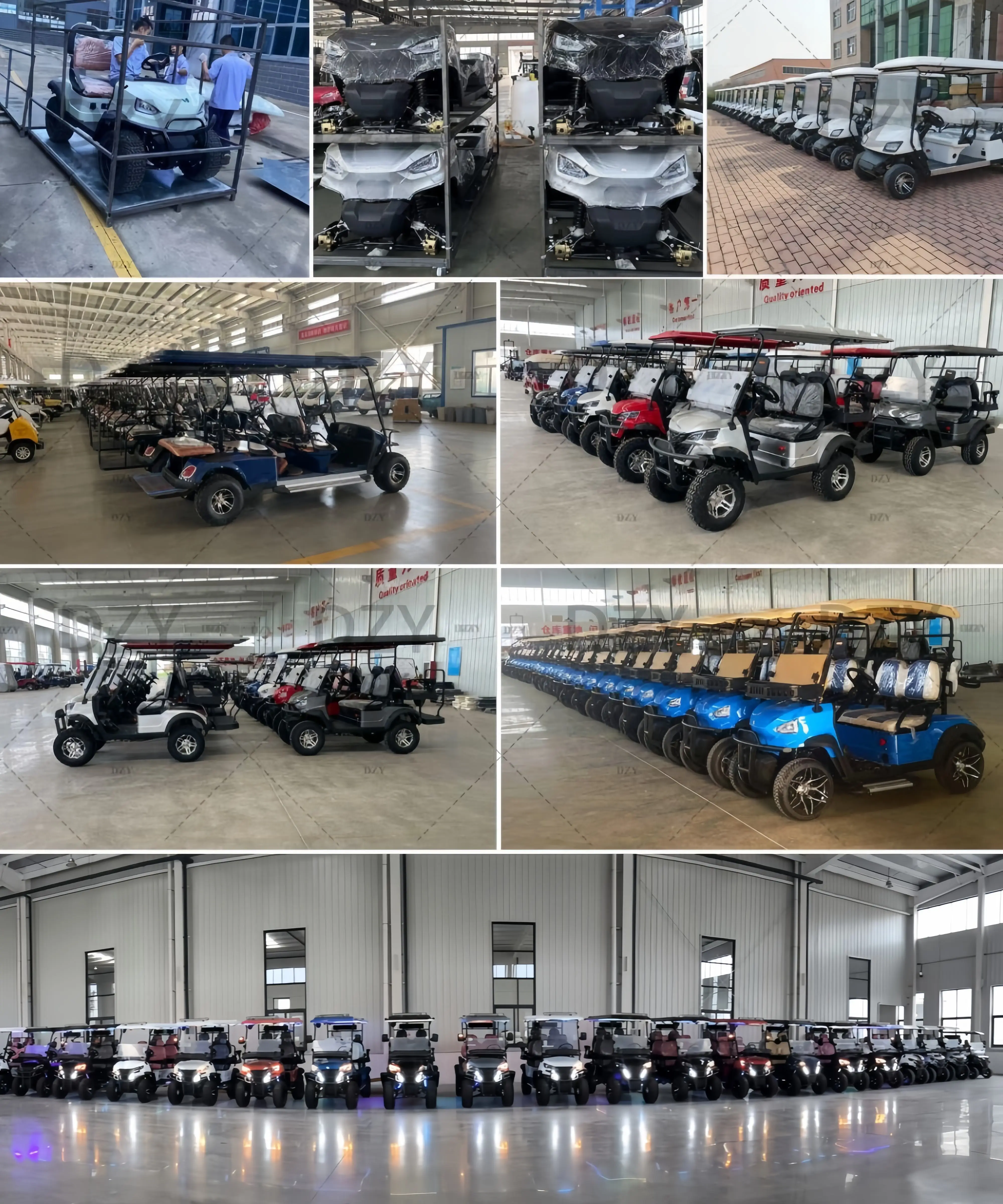

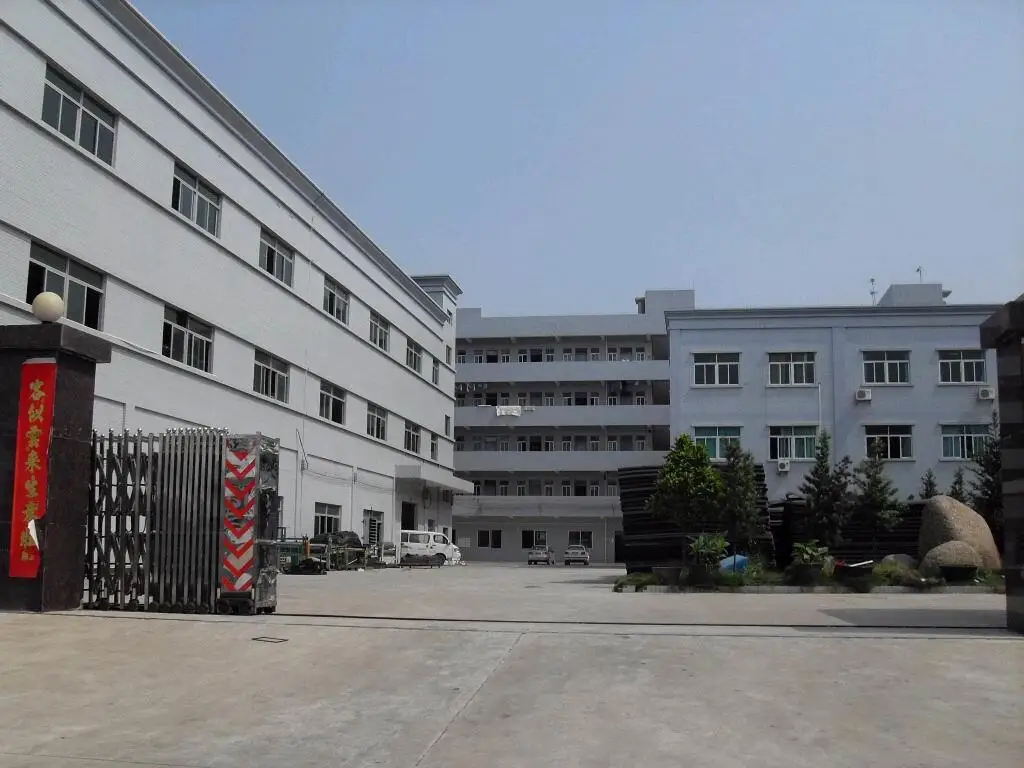

Multiple production lines

Advanced production equipment, first-class standards, with multiple production lines, the annual output can reach 12,000 units, and is constantly being updated and expanded

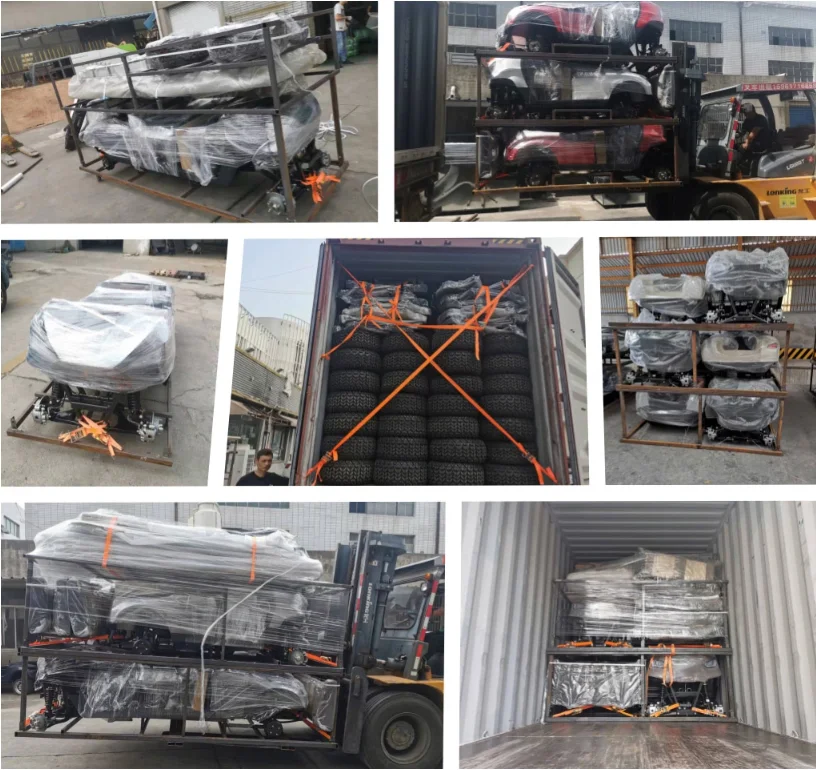

Packaging & Shipping

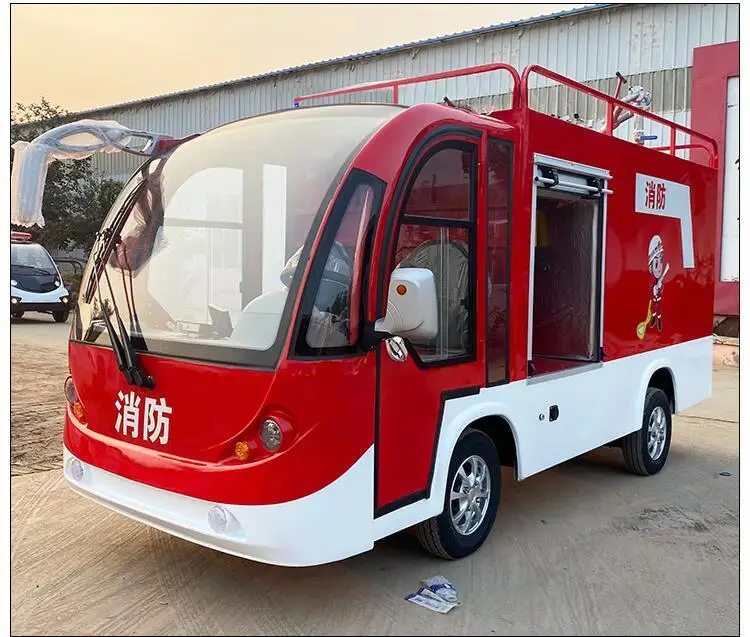

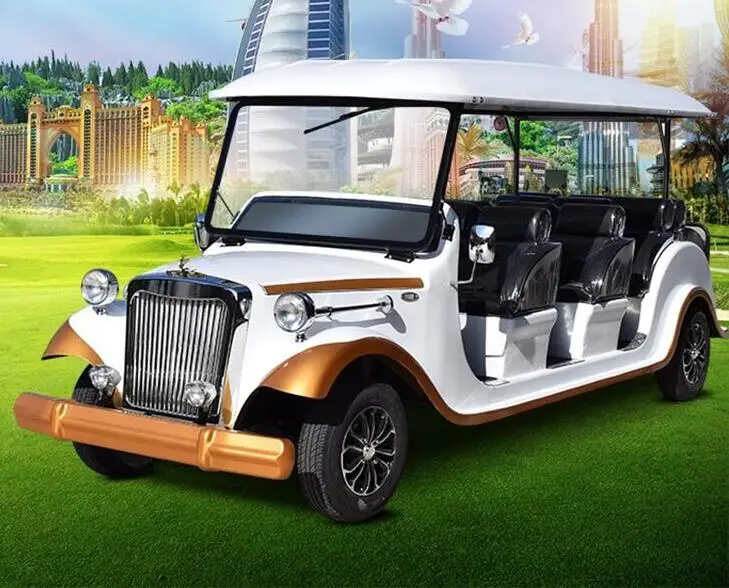

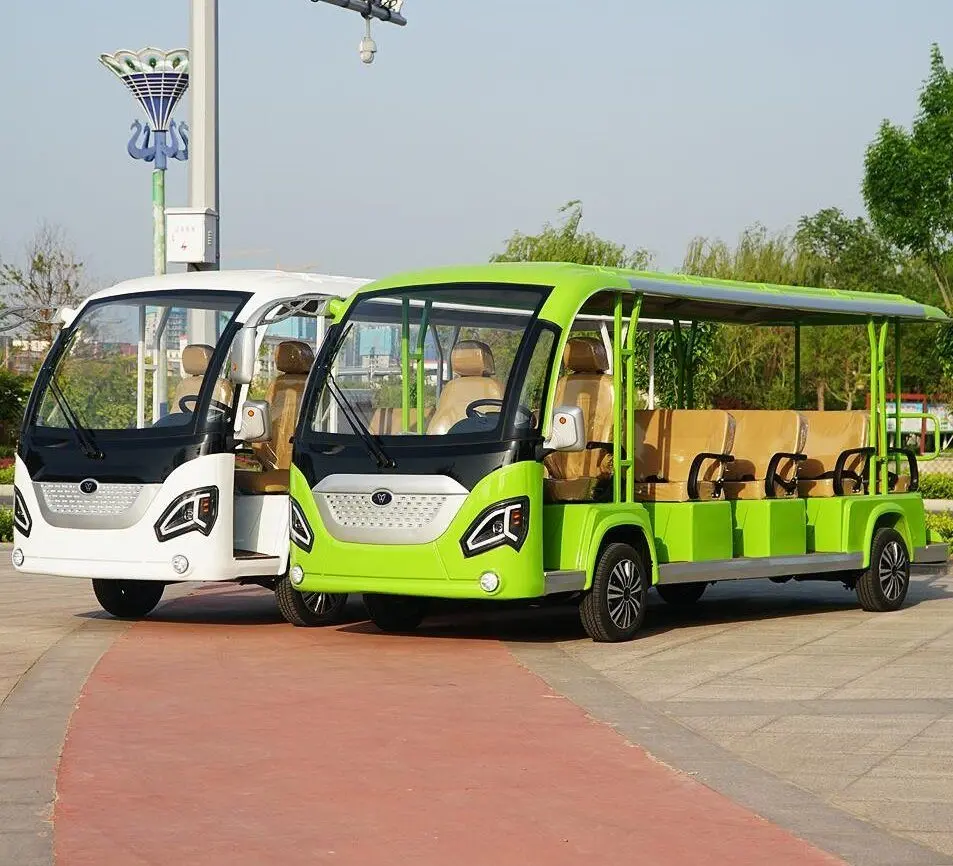

More popular products
