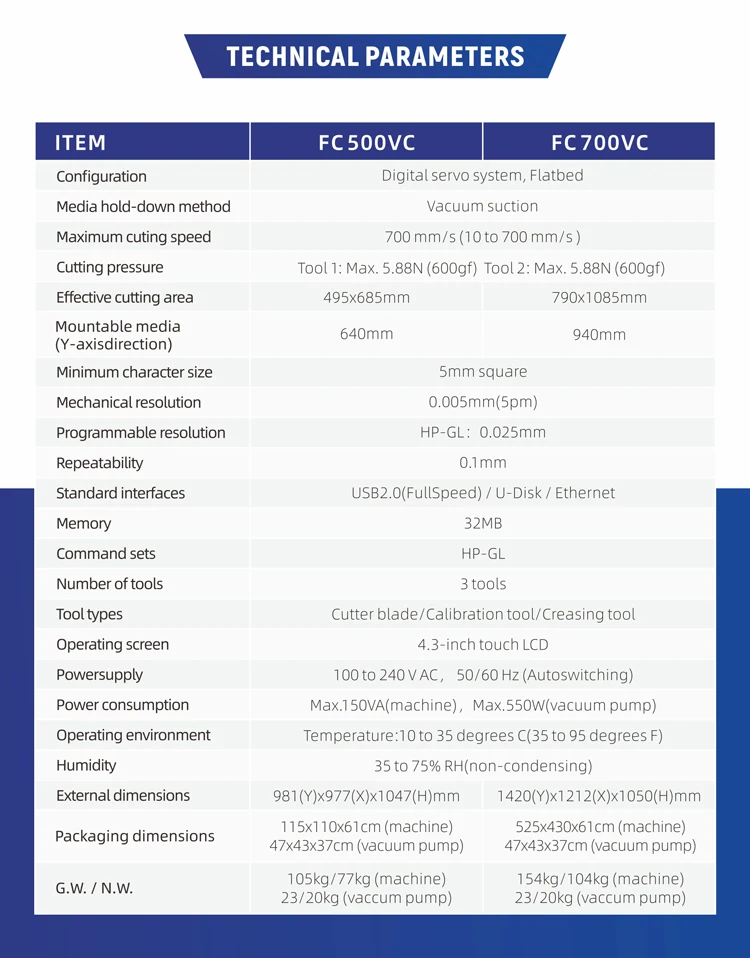

SPECIFICATIONS

Applicable Industries: Home Use, Printing Shops, Advertising Company

Body Frame: With Foothold

Brand Name: XMSJ

Command Mode: HP-GL compatible format

Condition: New

Cutting Images: With Automatic Registration Mark System

Cutting Tool Type: Pen & Blade& Creasing Wheel

DIY Supplies: Handworking

Effective Cutting Area: 790*1085mm

High-concerned chemical: None

Marketing Type: New Product 2020

Material: Stainless steel

Max. Speed: 700mm/s

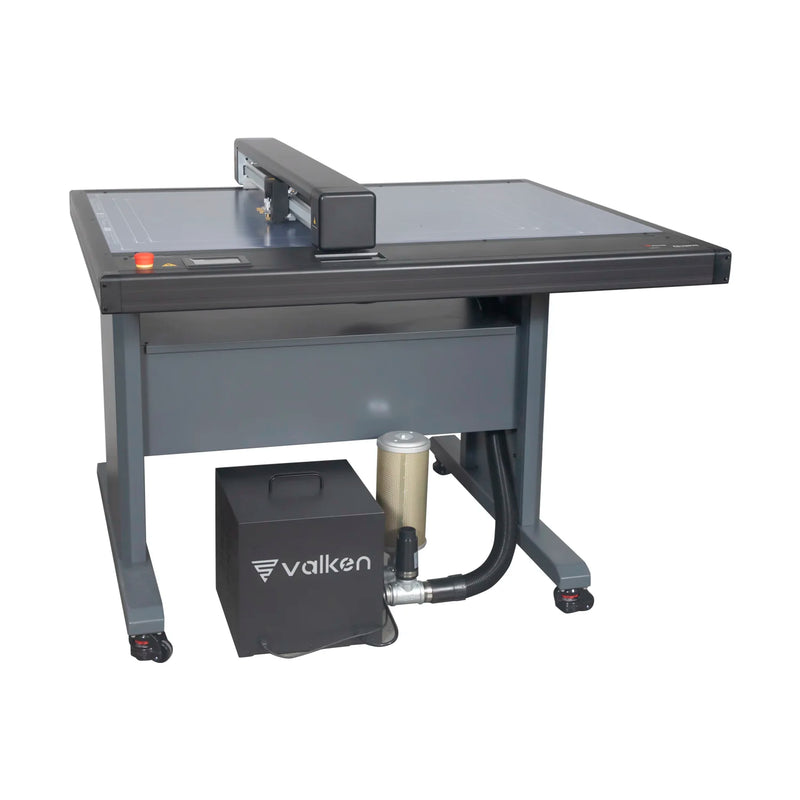

Media Fixture Method: Vacuum suction with Vacuum Pump

Mini character size: 5mm square

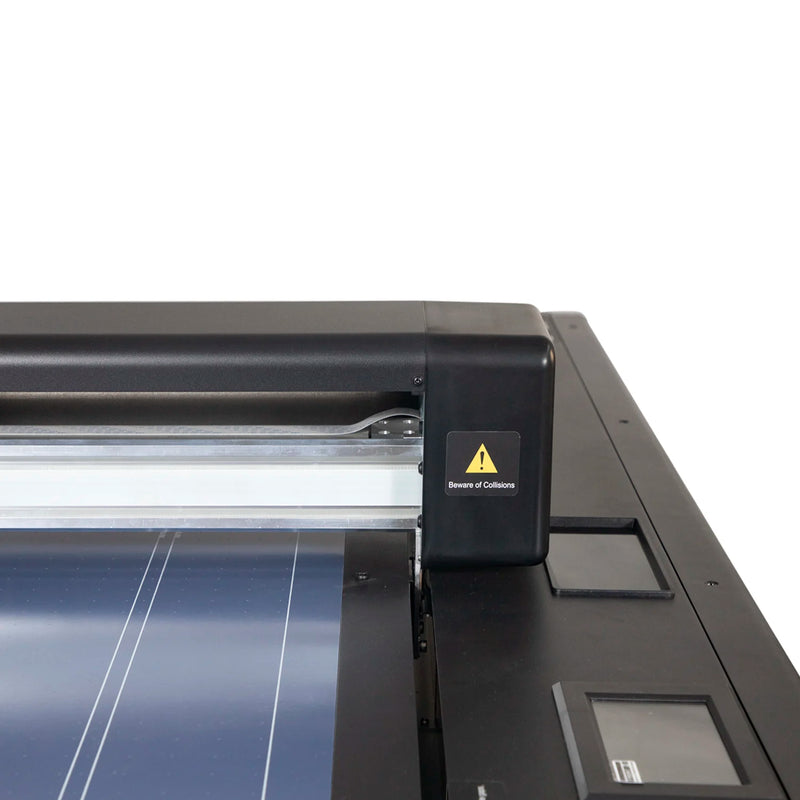

Operating screen: 4.3 inch-touch LCD

Origin: Mainland China

Repeatability: 0.1

Showroom Location: Indonesia

Type: Combination,Saws

Warranty of core components: 2 years

Weight: 105

Working Width: 790*1085mm

brand name: VICUT

computerized: Yes

core components: Motor

dimension(l*w*h): 1420*1212*1050mm

key selling points: High-Accuracy

machinery test report: Provided

place of origin: China

plc brand: ABB

production capacity: 700mm/s

type: Die-Cutting Machine

video outgoing-inspection: Provided

voltage: 110-220V

warranty: 1 Year

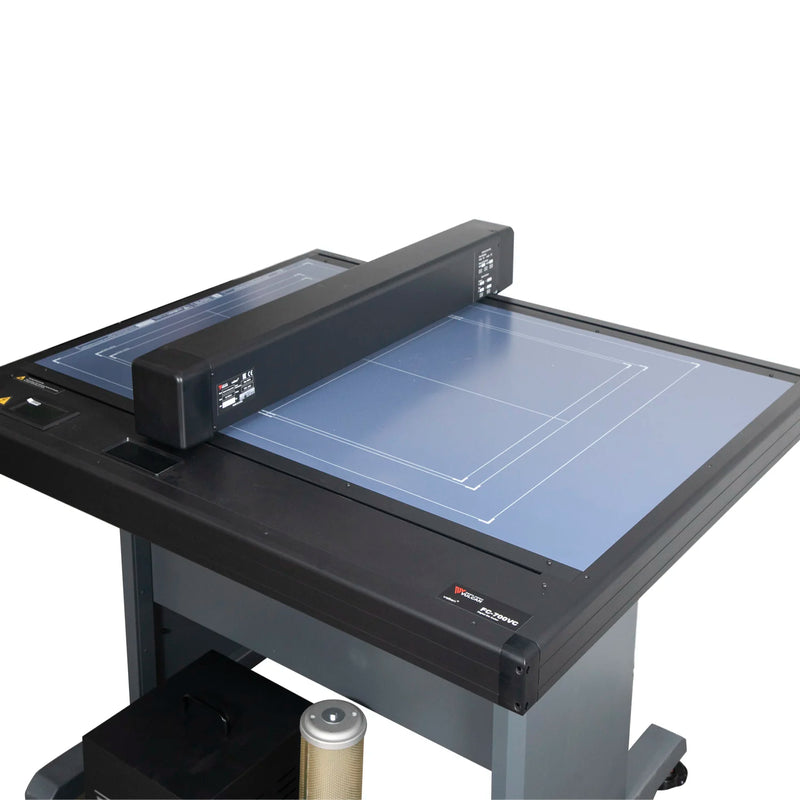

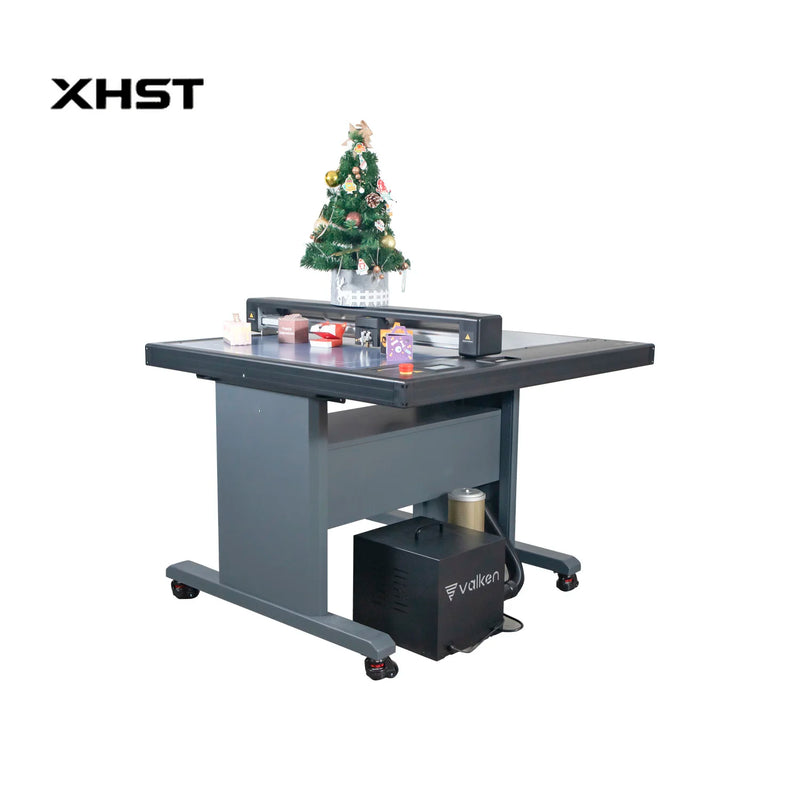

The VICUT Vulcan series flatbed cutter is ideal for small and medium-sized production and samples of packaging, swing tickets,cards and labels. Processing materials include paper, cardboard, synthetics, films and kinds of labels, up to 600gsm.

Using advanced digital contour cutting technology,no cutting dies required, Vulcan series flatbed cutter plotter is able to produce the sheets to any shapes, instantly and directly from the desktop. It can handle full cutting, half cutting, creasing, perforating and plotting.

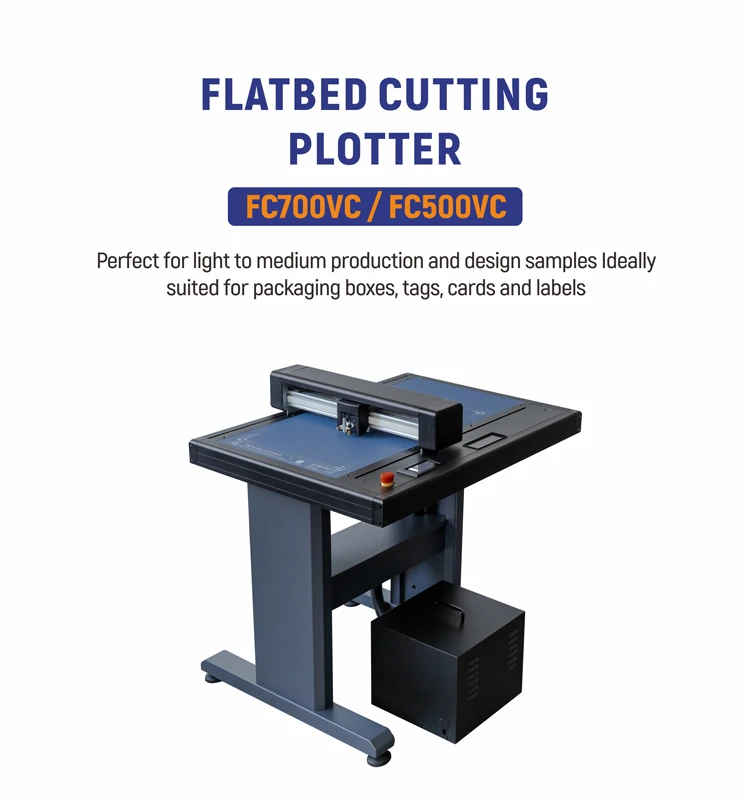

Two models are available, FC500VC flatbed plotter suits for placing 2pcs SRA3 sheets while FC700VC flatbed cutting plotter allows for 2pcs B2 sheets or one B1 sheet. Users can choose suitable size reasonably according to the size of processing materials, production capacity, floor space, project budget, etc.

Application Field	Prototype and light production, DIY paper crafts, tags, on-demand packaging and sheet card cutting system – also suitable for sheet labels.
Process Material	Cardboard, craft paper, fibrous cardboard, eva rubber, PVC, sandblast, vinyl, sticker, magnetic sticker,PET, TPU, reflective film and thin film etc.
