Product Paramenters

Highlights

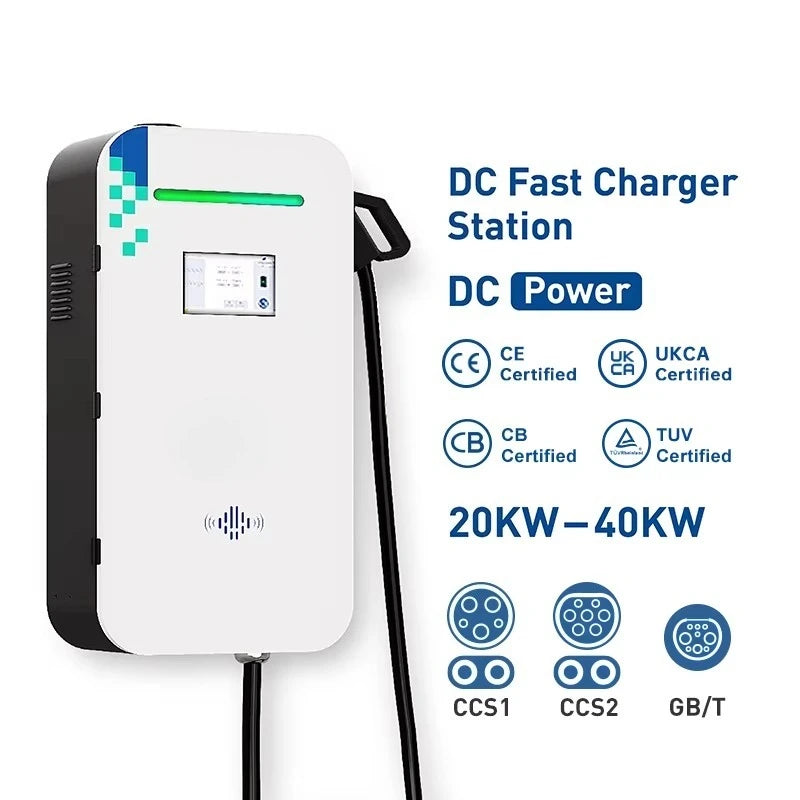

* 20kW - 40kW
* Charging Outlet CCS1 CCS2 GB/T
* 7 inch LCD Screen
* OCPP 1.6
* IP55
* 24 Months Warranty

* Time-saving - Fast charging
* Power saving - High conversion efficiency and low standby power consumption
* High Safety - Dual protection to both manual operation and vehicles

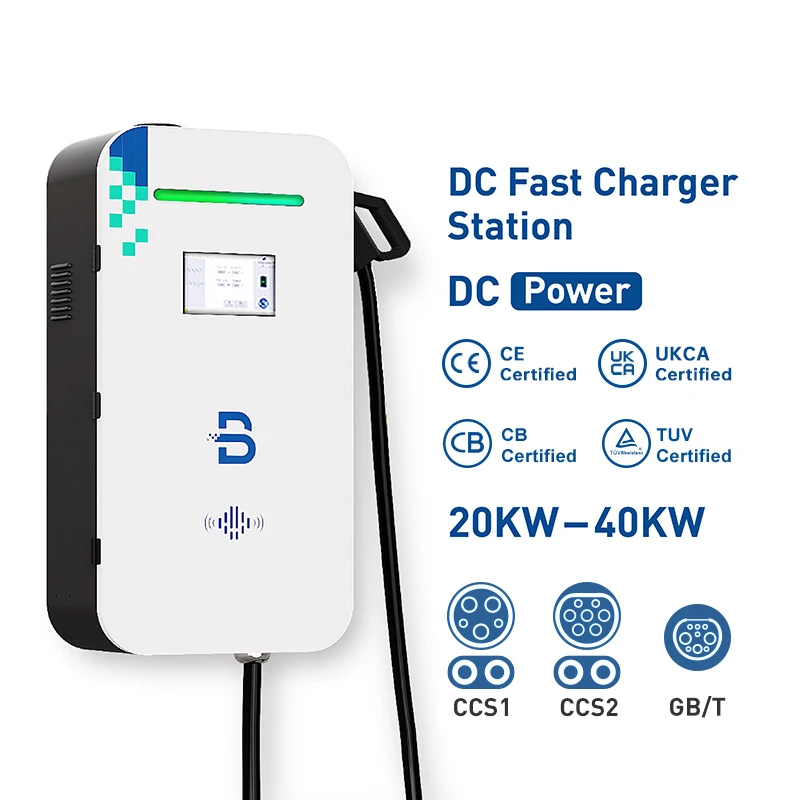

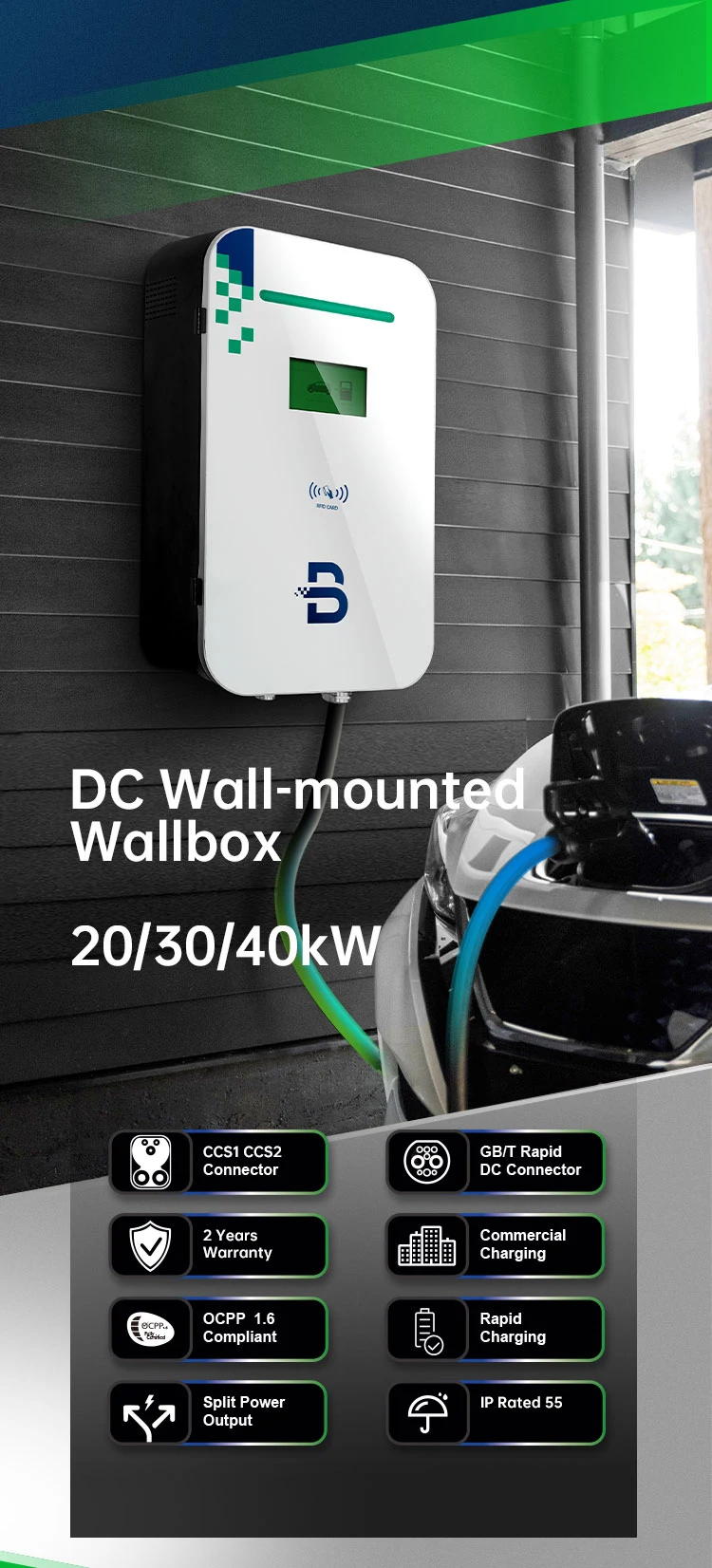

FAST, EFFICIENT AND SAFE EV CHARGING STATION

BENY DC EV charging station has more powerful data calculation and processing capacity, smarter dispatching strategy, better heat dissipation performance and lower noise, and fully meets the requirements of high-power DC charging of vehicles with global standard DC interface.
The product has multiple protection design and active protective function, which can monitor all communication data in the charging process and give early warning to all kinds of abnormal charging to ensure the safety of users and vehicles.

High Safety

Dual protection.Active protective function.No fire or electric shock risk.Safety of network and supply.

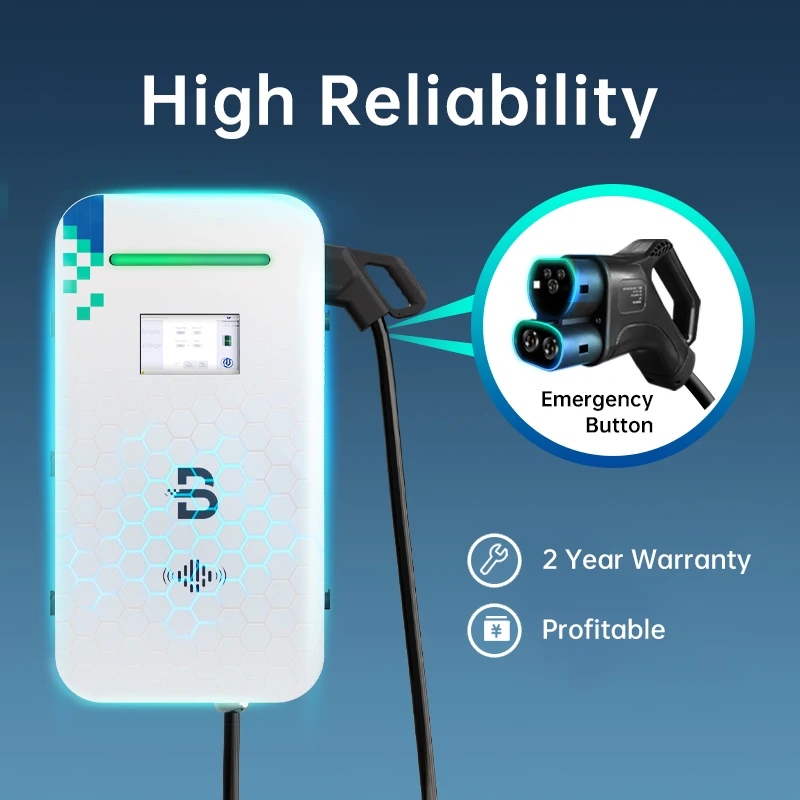

High Reliability

High reliability and low failure rate withlow operation and maintenance costs.Always available easy to use andprofitable

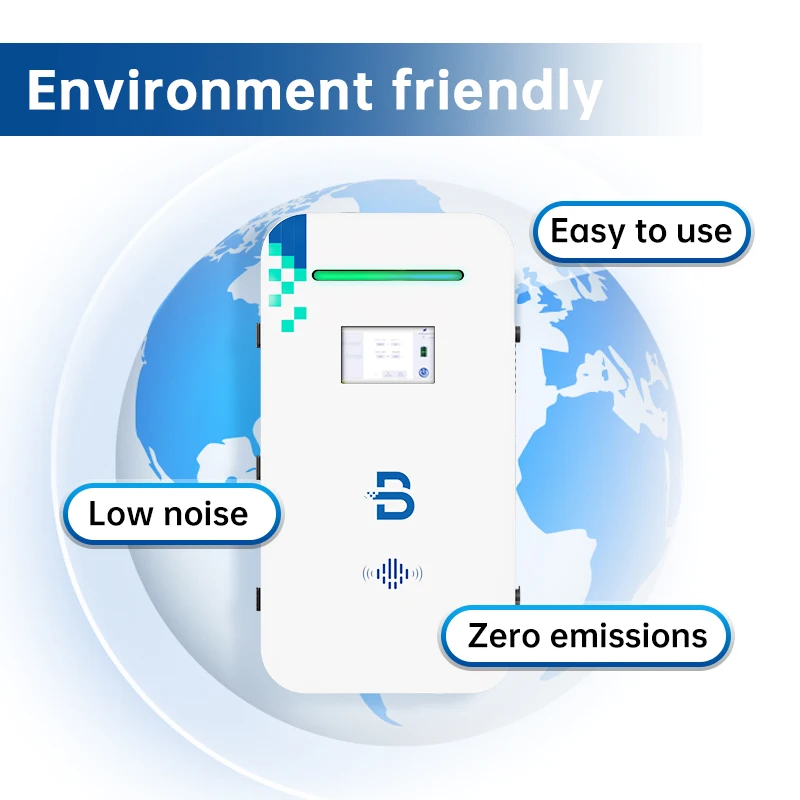

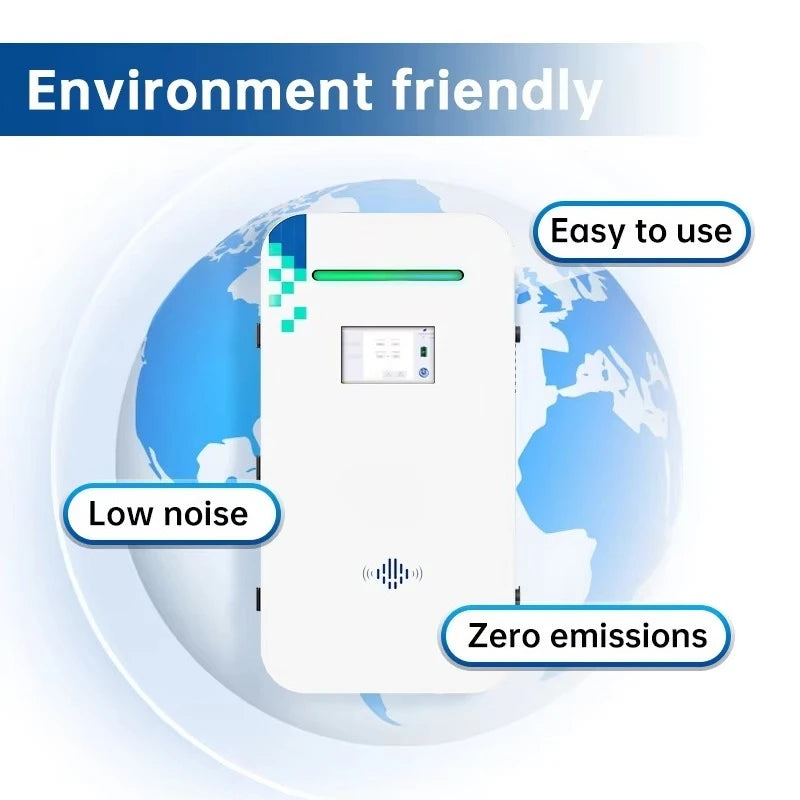

Environment friendly

Low noise and easy to use Environment friendly.

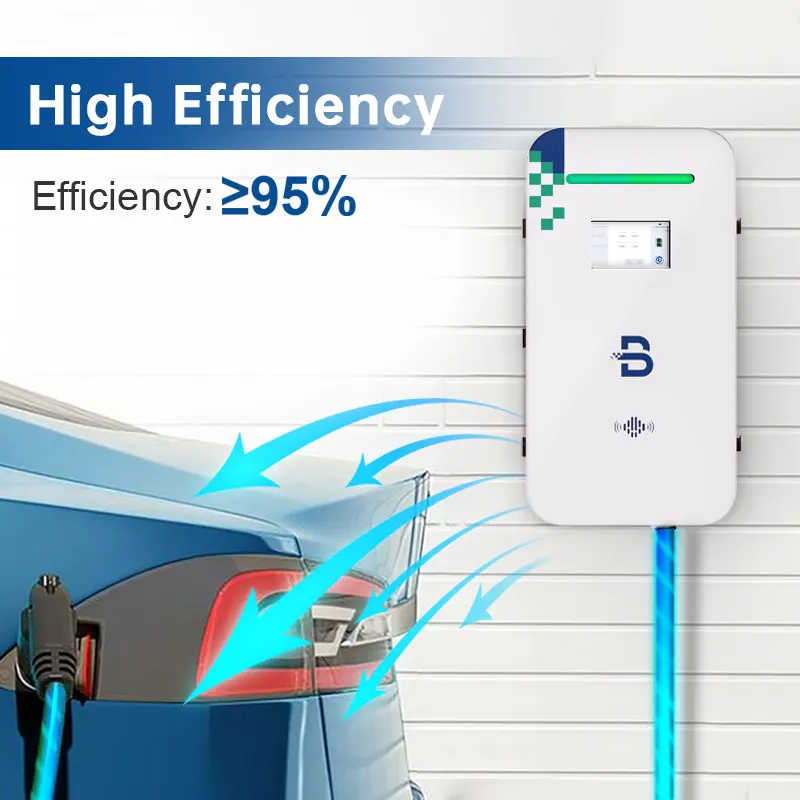

High Efficiency

Efficient and power saving. Low heat loss and heat dissipation.Low overall power consumption and operating costs

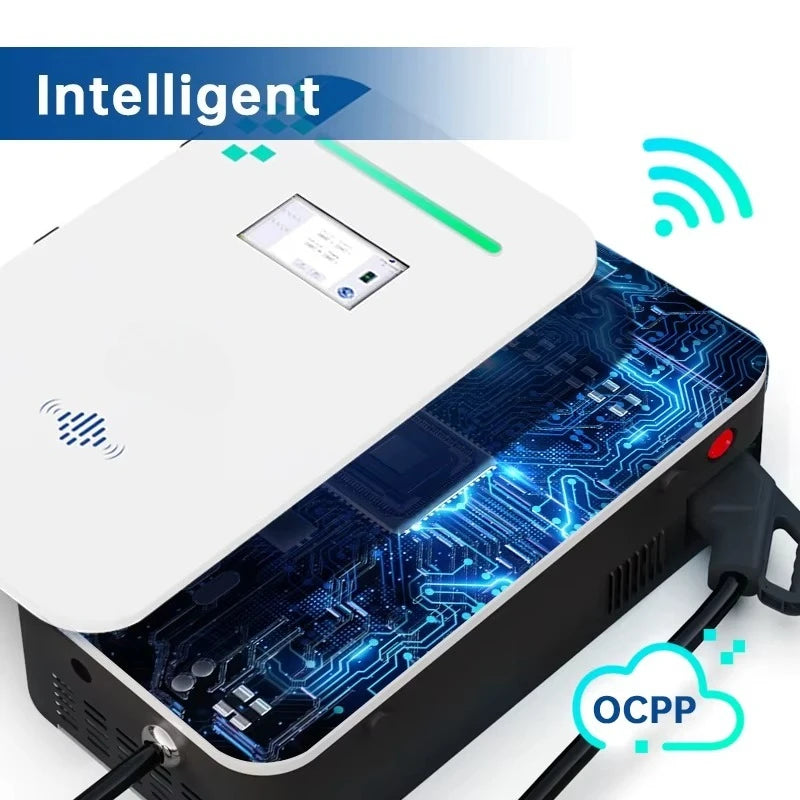

Intelligent

Intelligently connect multiple operating devices with information-based remote operation management.



Fast charging

Constant power output at different voltage and temperatures Fast charging capability in all scenarios,

Dispatching power according todifferent demand

Details Images



Product Paramenters

Model	BBDC20	BBDC30	BBDC40
Shell material	Sheet Meal

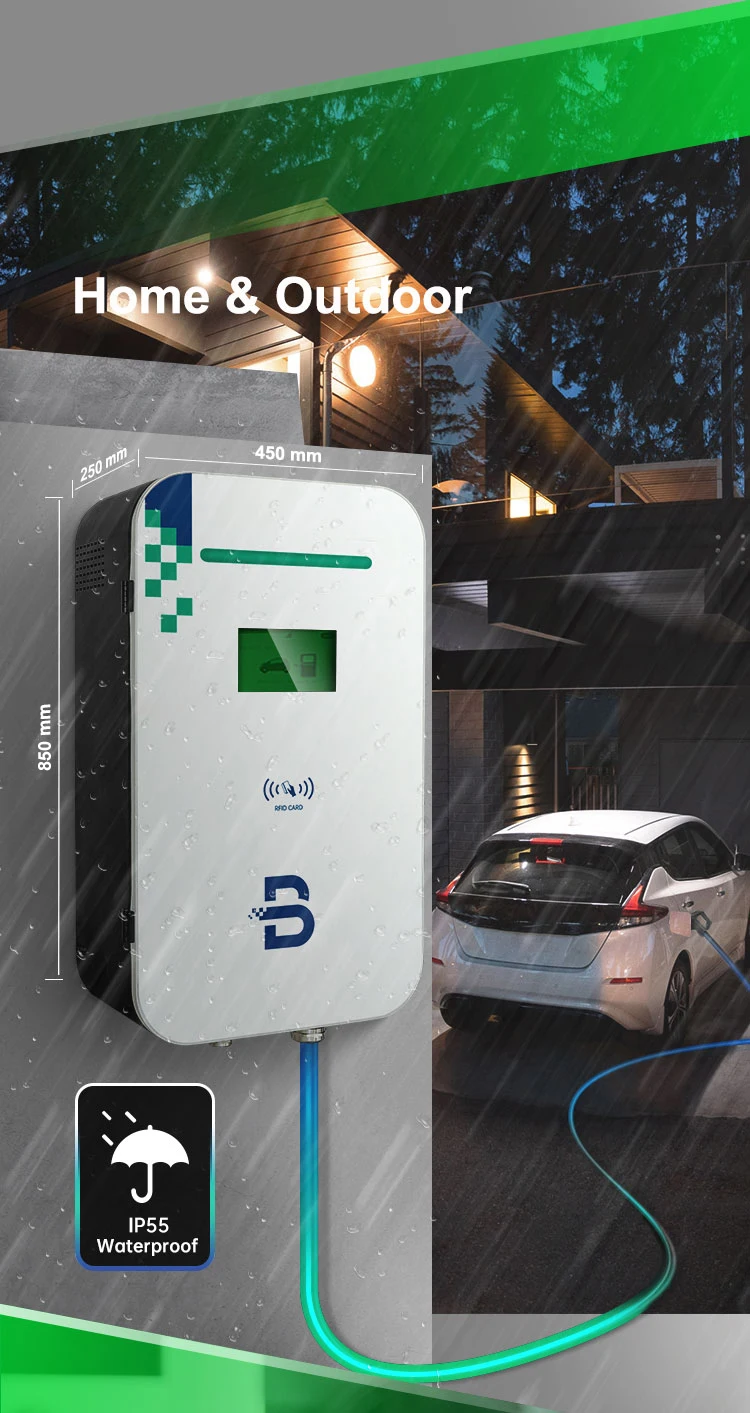

Dimension	450mm*250mm*850mm(L*W*T)
Weight	≤70KG	≤80KG	≤80KG

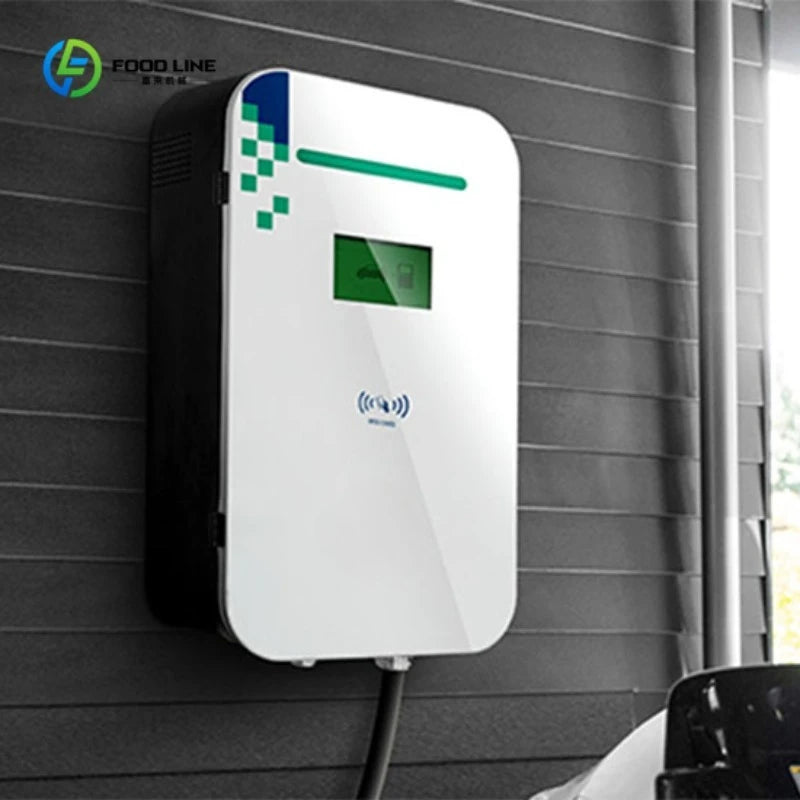

Installation Method	Wall-mounted
Cable routing	Bottom Inlet Wiring, Up Outlet Wiring
Cable length	5 M

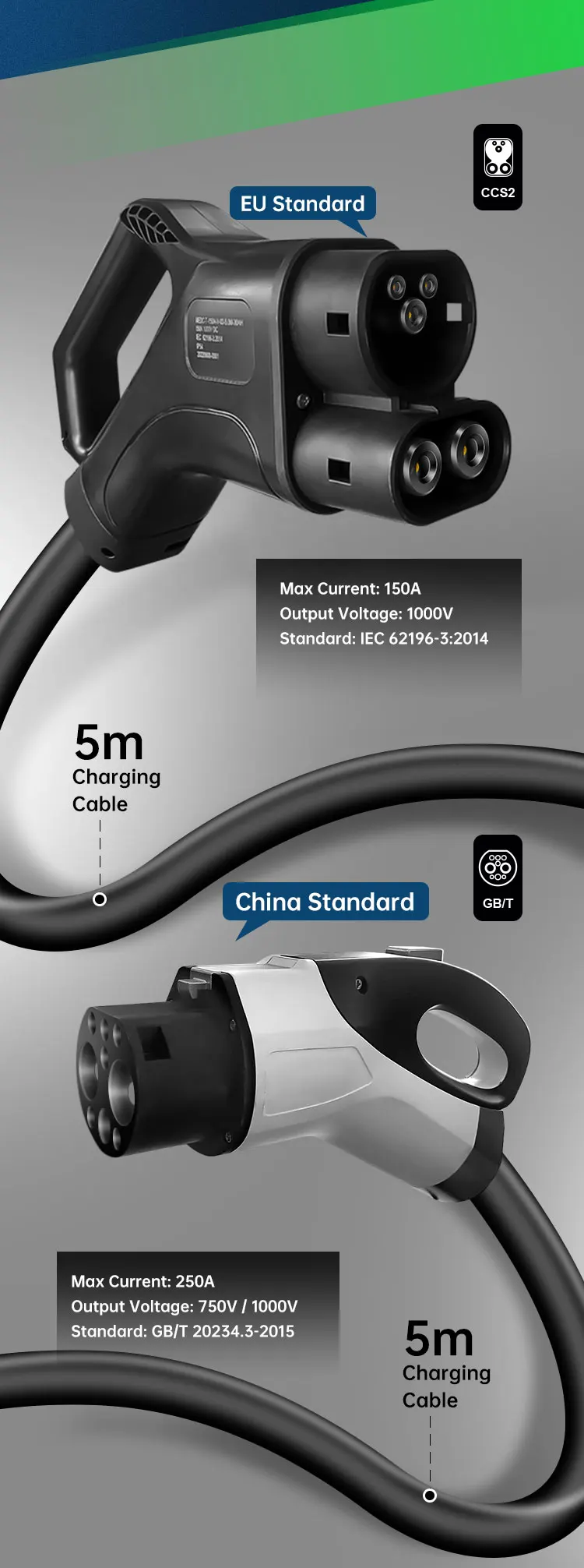

Charging outlets	Single (CCS1/CCS2/GBT)
Connectivity authorization	RFID, App
Screen	7 inch LCD screen/LED light
Electrical Specification
AC input voltage	AC380V±15% ,3P+N+PEAC
Input frequency	50Hz/60Hz
Consumption	≤15wh
Rated power	20KW	30KW	40KW
Output voltage range	CCS1/CCS2/GBT: 150 Vdc –1000 Vdc
Output current	0~66.5A	0~100A	0~133A

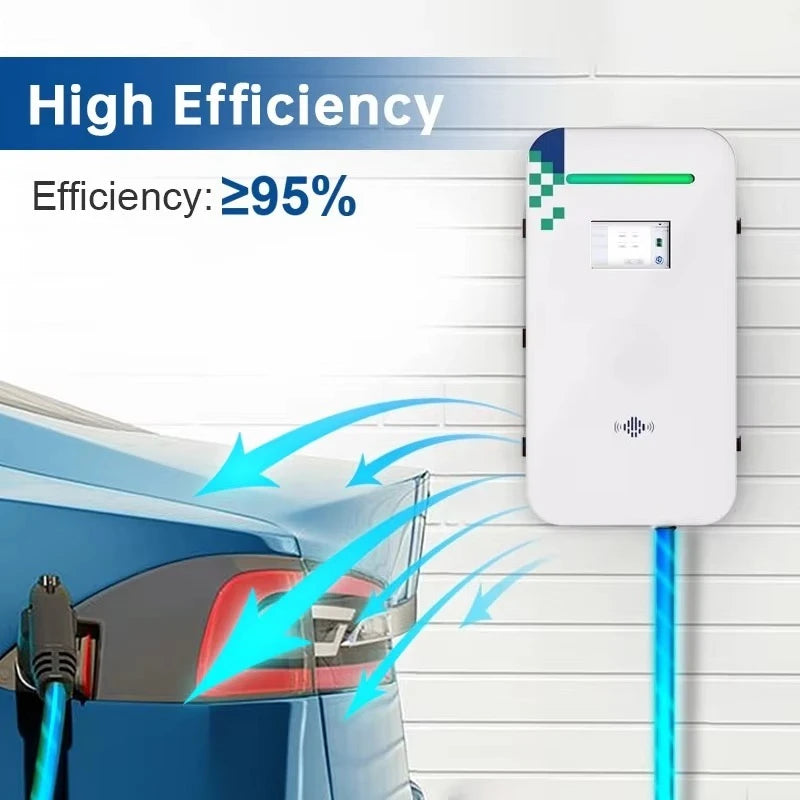

Efficiency	≥95%
Power factor	≥0.99(load:100%)
Functionate design
User Interface	Emergency stop button, LED indicator, Card swiping, Touch screen
Charging stands	IEC 61851-21-2:2021:IEC 61000-6-2:2019:EN61000-6-4:2019:1EC 61851-1:2019:EN61851-23:2014:EN 61851-24:2014
Communication
OCPP	OCPP 1.6
Network interface	Ethernet/4G
Environment condition
Application place	Indoor/Outdoor
Working latitude	<2000m
Working temperature	-30°C-+50°C
Working humidity	5%~95%
Protection level	IP55
Natural cooling	Forced-air cooling
Warranty	24 months warranty

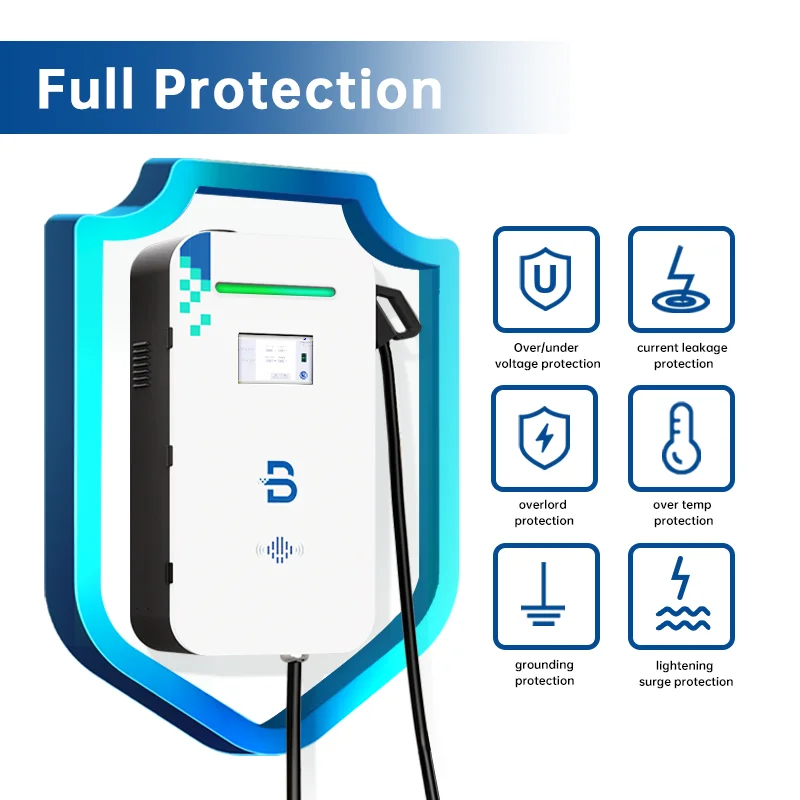

Security design	Over/under voltage protection,Overlord protection,Current leakage protection, Grounding protection,Over temp protection,Lightening surge protection

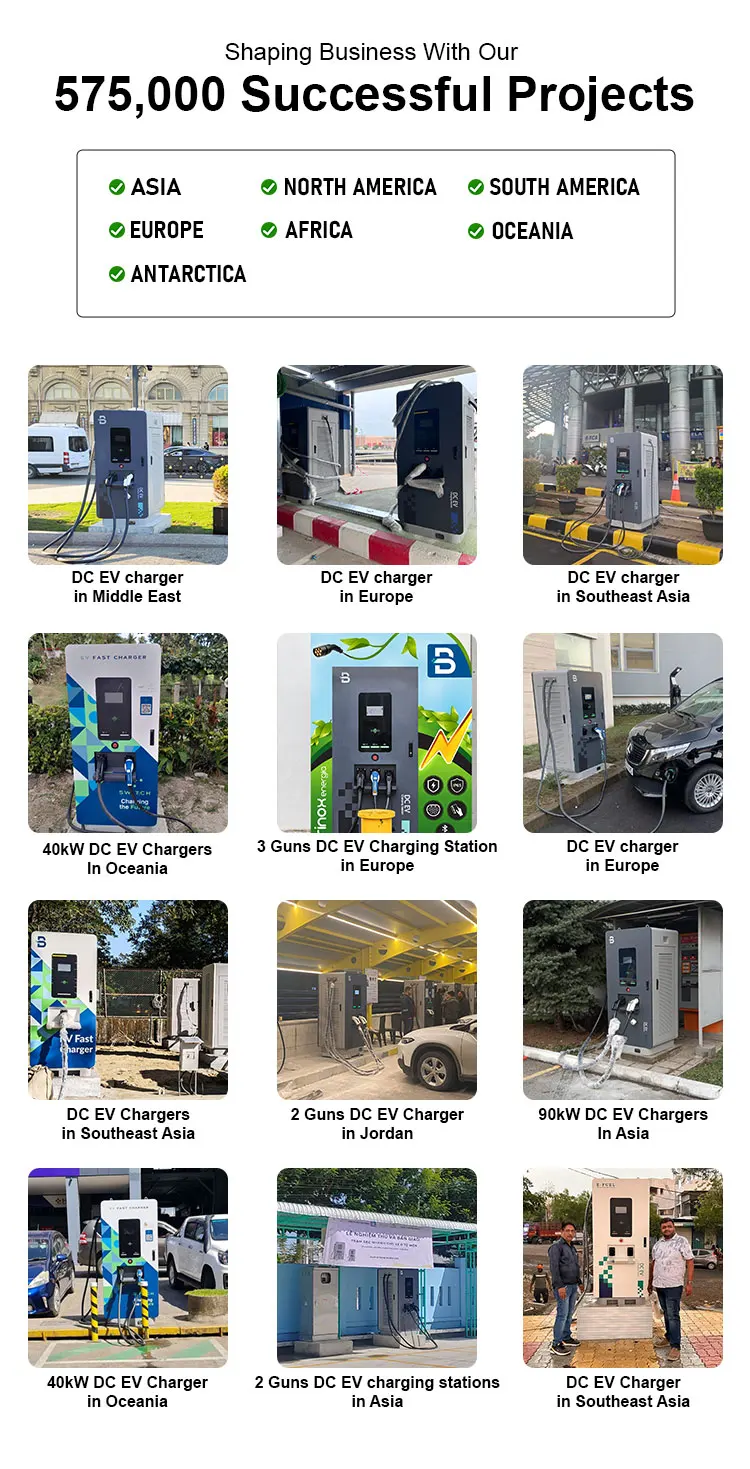

Product Application Case

Across the globe, BENY has forged robust business relationships with clients in the realm of EV charging station construction, offering comprehensive, cost-effective, instant charging solutions for their vehicles.
Our expertise and services in EV charging projects empower numerous individuals worldwide to start global EV charging station development.

These worldwide projects of EV chargers showcase how our innovative global EV charging station solutions have been applied to diverse environments, contributing to EV charging station construction.

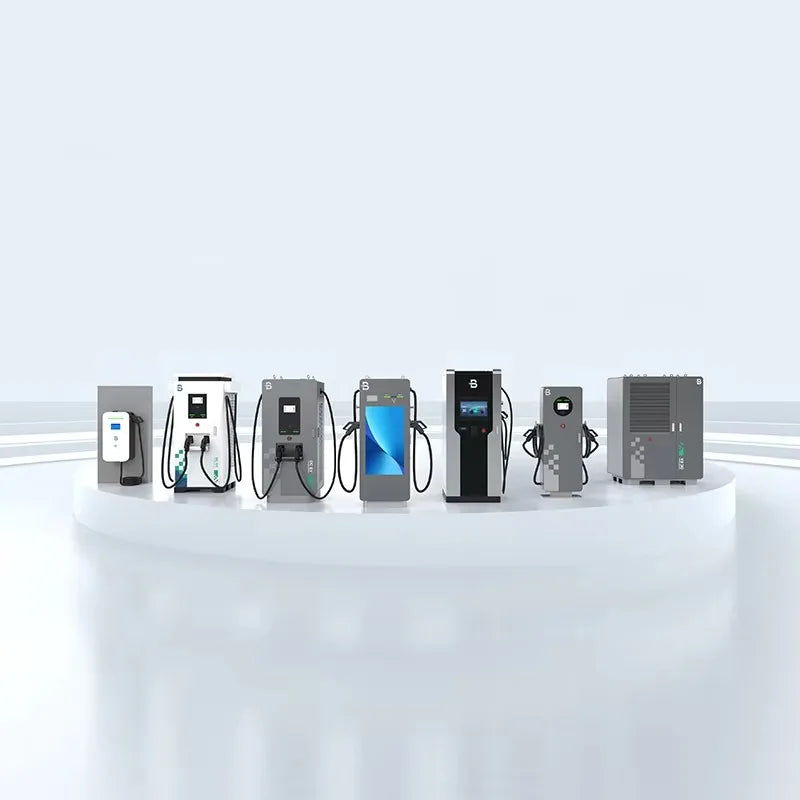

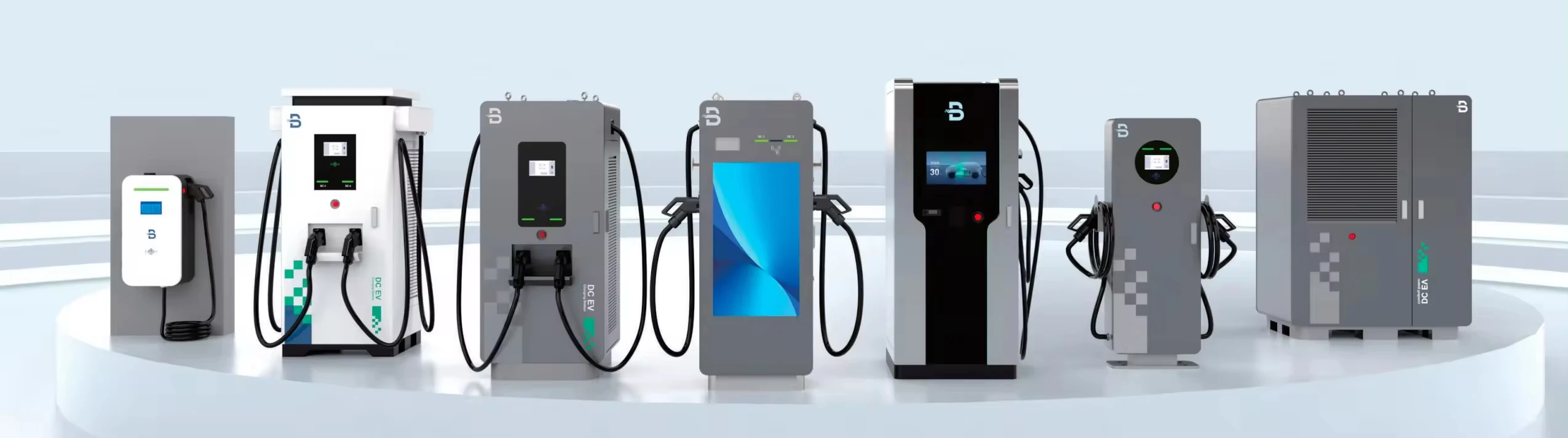

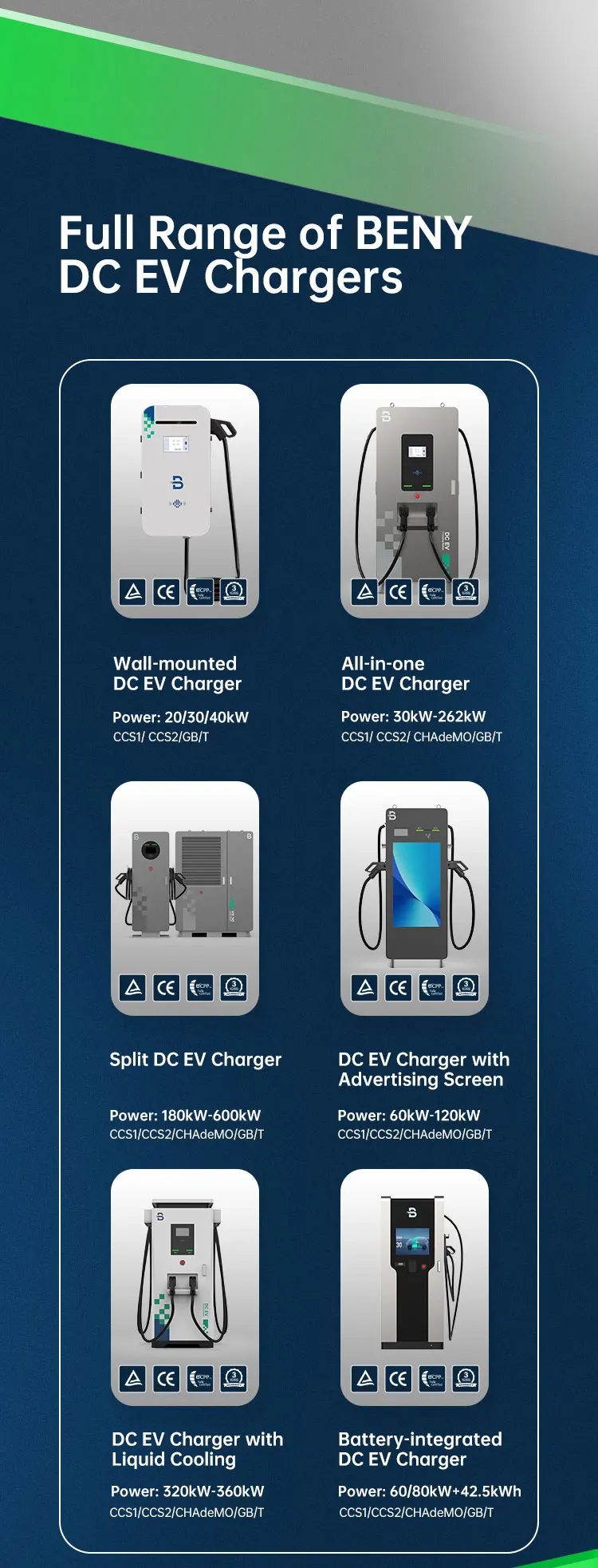

OUR EV CHARGER PRODUCT LINE

Our EV charger supplies power to any electrical vehicle. The wall-mounted and floor-mounted design as well as its IP65 dust and waterproof housing make the EV chargers suitable for outdoor or indoor spaces. The output of our AC EV charger ranges from 16amps to 32amps. And the output power of DC fast EV charging is up to 600kW.

BENY is a long-running EV charger and PV products manufacturer with more than 30 years of experience. Our knowledge in manufacturing PV components ensures all of our EV chargers surpass your expectations in terms of service life and performance.

The robust build of our EV charger lets you satisfy various business goals while driving your brand.

Company Profile

With the sincere service and profesional manufacture towards our customers over 30+ years,our producrs have beenattractingnumerous customers from Europe, Austrilia, the Middle East and tothe South Asia.

BENY EV Charger has been enjoying a good reputation across the world from the coldest area lreland to the hottest area South Africa.

Therefore, BENY EV charger has been catering to the different customers'needs and updating our products in terms of functions, materials etc
