SPECIFICATIONS

Battery: 7.6V/5000mAh

Brand Name: CHWEIDA

CPU: Intel Alder LAKE N100

Camera: Front 5.0MP Rear 8.0MP

Certification: CE,RoHS

Colour Depth: 48 Bit

Customized functions: NFC ,1D/2D Barcode Scanner

High-concerned chemical: None

Interface Type: USB/WIFI/Bluetooth

Memory: 8G RAM 128G ROM

Model Number: RT-I88N

Network Connections: WiFi,Bluetooth,4G,GPS

Novelty: New

OS: Windows 10/11 OS

Optical Resolution: 1920*1200

Origin: Mainland China

Product Type: Portable Scanner

Rugged Feature: IP65 certified, MIL-STD-810H certified

Scan Breadth: A4

Scan Element Type: CMOS

Scan Speed: 200 scans/second

Scanning Light Source: Laser Light

Screen: 8 inch IPS 16:10,1200*1920,550 nits

Signal Connection Type: Bluetooth,Wi-fi

Time to market: Mar-13

Type: Flatbed Scanner



Products Description

Product Paramenters

RT-I88N Specification
ITEM	DESCRIPTION	detail
OS	windows 10
CPU	Intel Alder LAKE N100
RAM/ROM	8GB	128GB
LCD	8 inch IPS 16:10,1200×1920,550 nits
Touch screen	5 point G+G capacitive touch screen
Camera	Front 5.0MP Rear 8.0MP
Power and battery	5000mAh/7.6V	7hrs ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default )

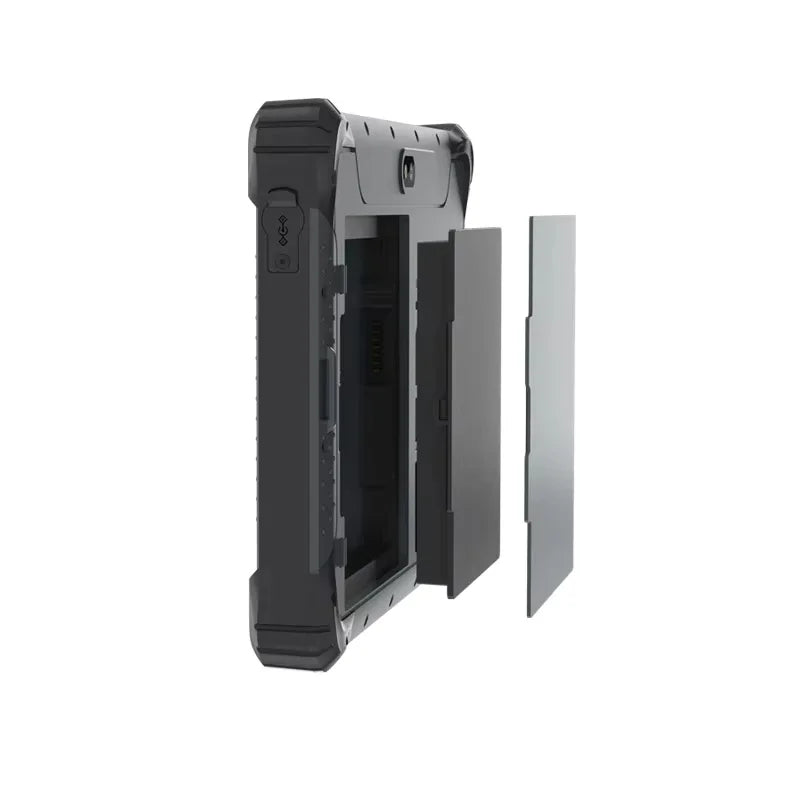

	Removable Li-polymer battery
WWAN	LTE FDD: B1/B3/B7/B8/B20，LTE-TDD: B40 WCDMA: B1/B5/B8，GSM: B3/B8
GPS	Support, GPS, Glonass
wifi	WIFI6 802.11(a/b/g/n/acR2/ax 1x1) frequency 2.4G   +5.8G Dual-bandWIFI intel AX101
BLUE-TOOTH	BT5.2 Transmission distance: 10m
NFC	Optional,13.56 MHz,Supports 14443A/14443B/   15693/18092/mifare protocols of ISO/IEC
size	236.7*155.7*20.8mm
interface in/out port	USB 3.0 Type-A x 1, USB Type-C x 1, SIM Card, TF Card (Three in one card holder), HDMI 2.0a Mini x 1, 12pins Pogo Pin x 1, Φ3.5mm standard earphone jack x 1
casing material	ABS/PC/rubber TPU/aluminum
2D barcode module		optional
NFC		optional
accessories	1. USB cable 2. charger 3. handstrap 4. car holder optional 5. docking station optional 6. car charger optional 7. white box, no logo
proof rate	1. water proof IP65 2. Drapping proof 1.2 meter
Certification	1. 810G 2. CE,FCC
Temperature	1. storate temperature -25 to 80 degree 2. operation temperature -20 to 60 degree
