JH45G4-S-240X-PT

Operating system

embedded LINUX

Main processor

MSTAR338Q

Image Sensor

SONY IMX415 1/2.8" Ultra Low Illumination CMOS Sensor

Day and night mode

Support

Compression standard

Compression standard

Video compression algorithm supports H.265, H.264 High Profile, H.264 Main Profile and H.264 Baseline

Audio compression algorithm

G.726/G.711

Compressed transport stream

32Kbps-6144bps, can be customized, default 1536Kbps

Images

Maximum image size

8MP (3840*2160)

Sharpness

First stream:4K 8MP (3840*2160) 20fps,wifi 15fps,4MP,2MP 25fps

Second stream：800*448,640*352) can be set

Video frame rate

20fps (50HZ),20fps (60HZ)

Character overlay

Support OSD name,time and date information overlay

Image settings

Brightness, contrast, saturation, exposure, up and down reverse, left and right mirroring adjustable

Network Function

Storage function

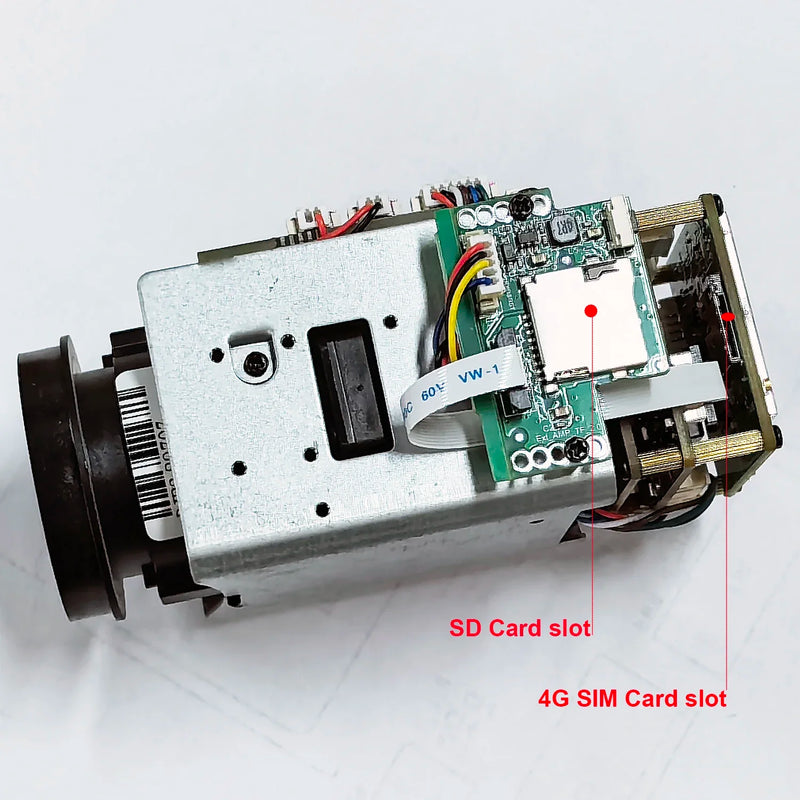

Supports up to 256G Micro SD card storage and supports scheduled video storage

Motion detection

Four independent detection areas can be set (sensitivity 1-100 can be set)

Alarm linkage

alarm sends the picture to the specified mailbox; the alarm uploads the picture and the video is uploaded to the FTP server;

Network Protocol

Supports TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP

Access Protocol

Supports ONVIF 2.4 Protocol

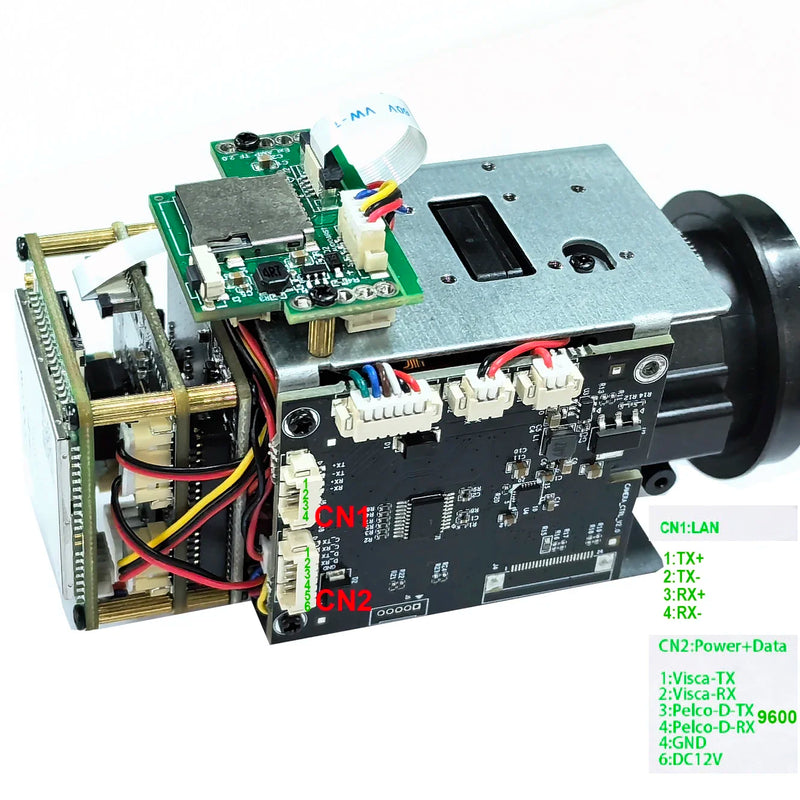

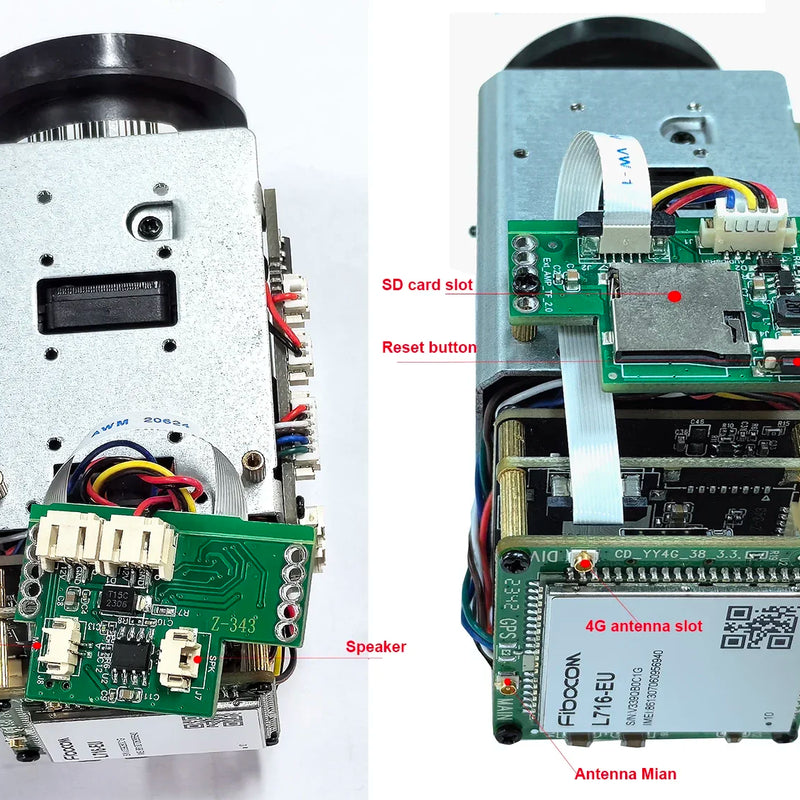

Interface

Audio input

support External MIC

Audio output

External speaker

LAN interface

4G Connection

RJ45 10Base-T/100Base-TX,

Support 4G

IR night distance

support

LEN

360X ZOOM (36X Optical ZOOM (3.3-97mm ) and 10X digital zoom)

waterproof level

indoor

WIFI

Only support 4G connection,it does not support wifi connection

Working temperature

-40 to +85 Celsius

power

DC12V 1A

Working Humidity

-10-95%
