SPECIFICATIONS

Brand Name: BMAD

High-concerned chemical: None

Origin: Mainland China

Power: 1200W

Temperature Adjustment Range: A:-5~100℃ B:-10~100℃ C:-20~100℃ D:-30~100℃ E:-40~100℃

Temperature Resolution: 0.01℃

Type: Low Temperature Circulation Bath Water Tank

brand name: Junmu

customized support: OEM

humidity fluctuation: ±0.05℃

material: Stainless Steel

model number: DXC-6L-AAC

place of origin: Henan, China

temperature fluctuation: ±0.05℃

warranty: 1 Year

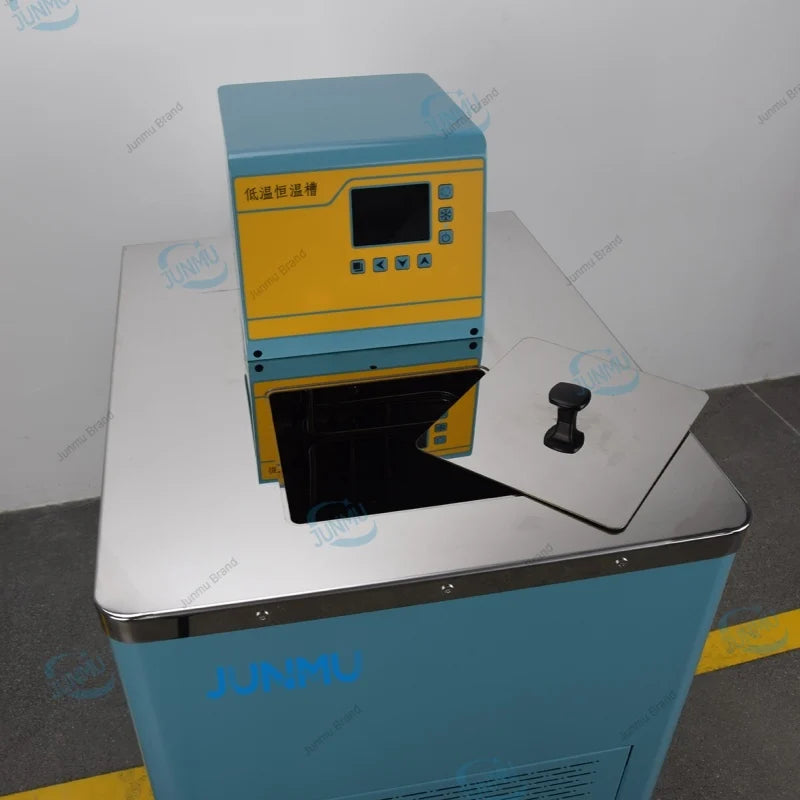

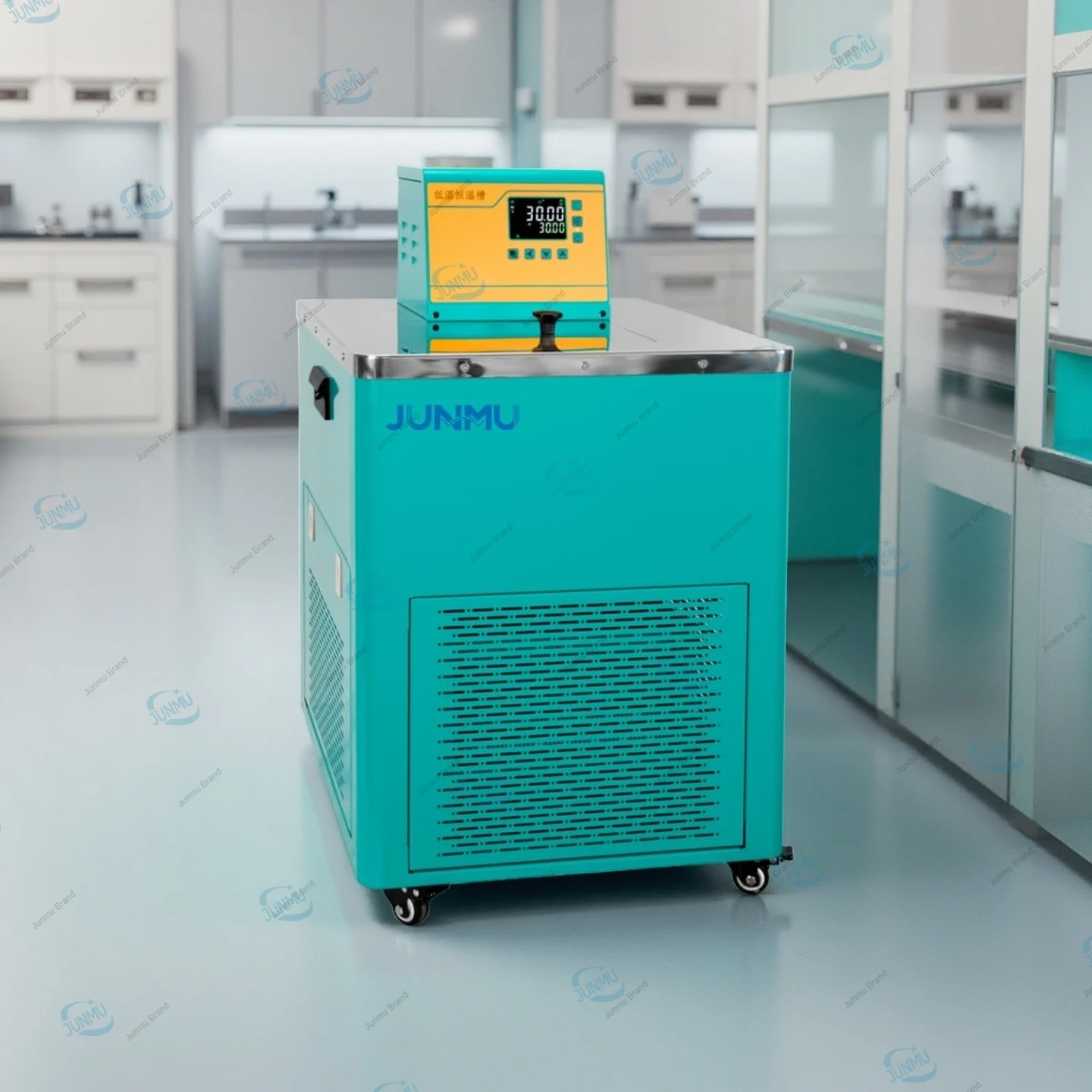

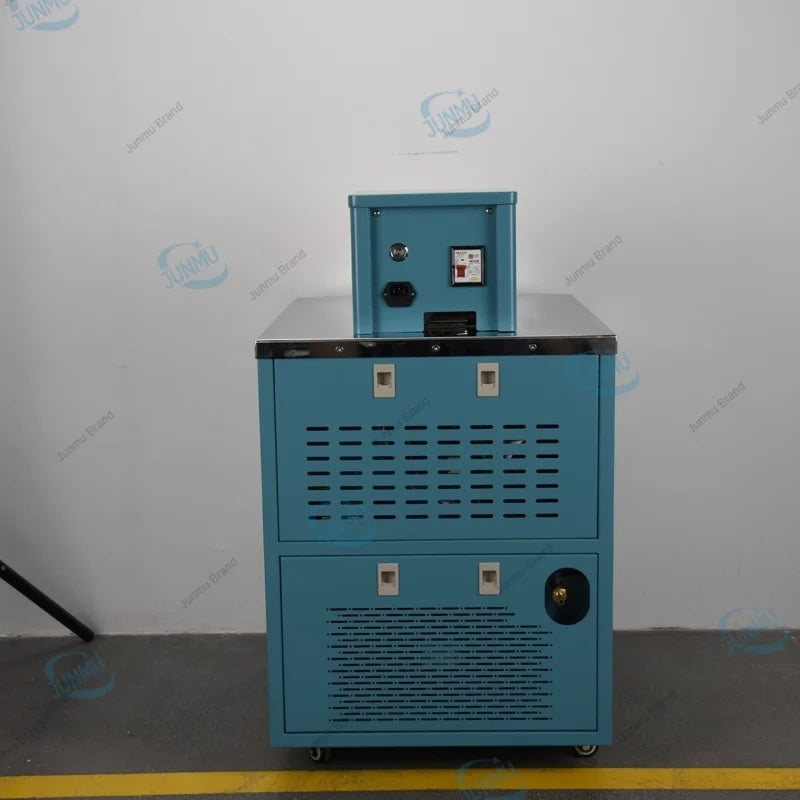

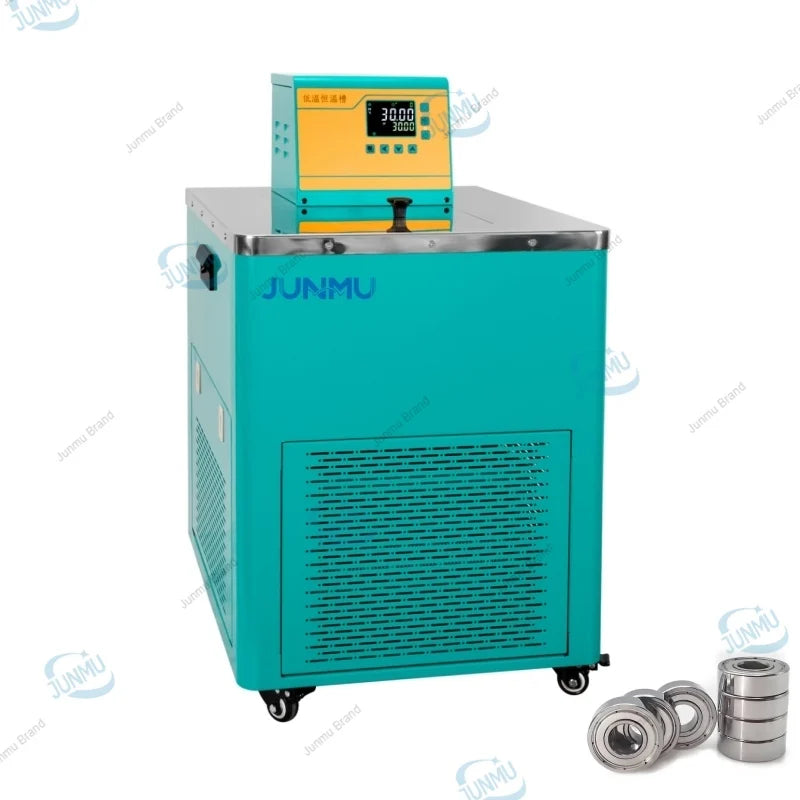

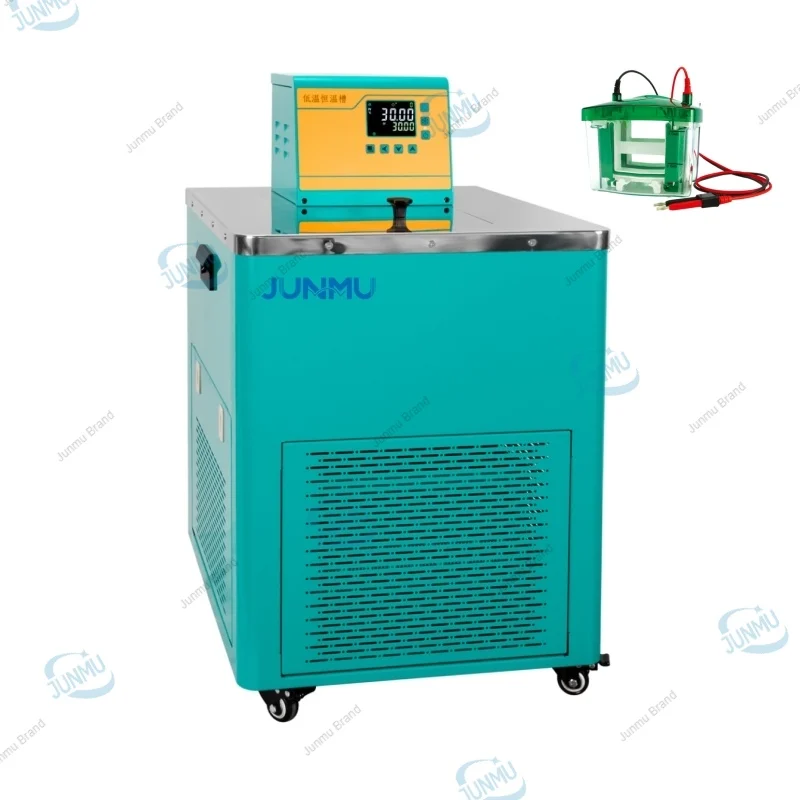

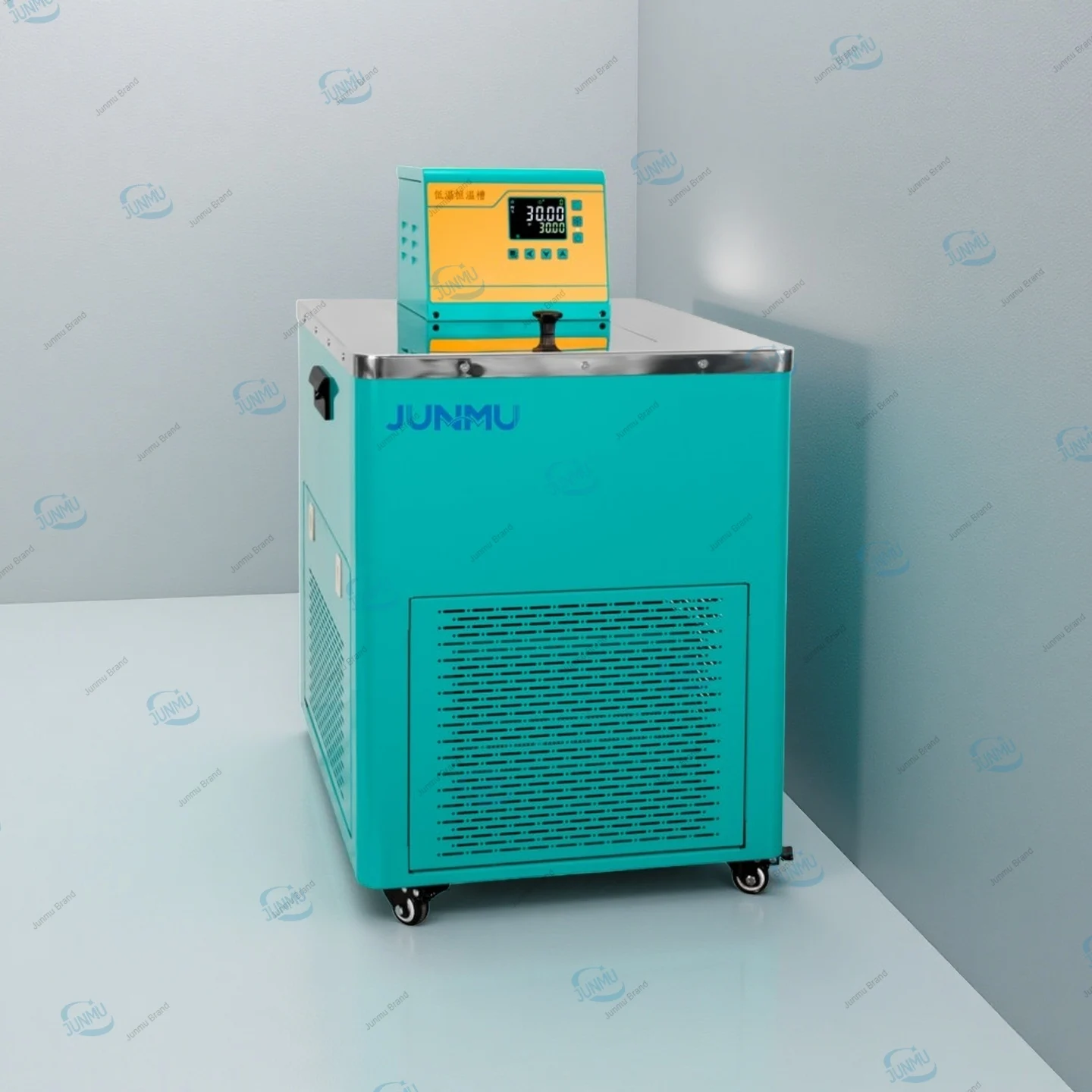

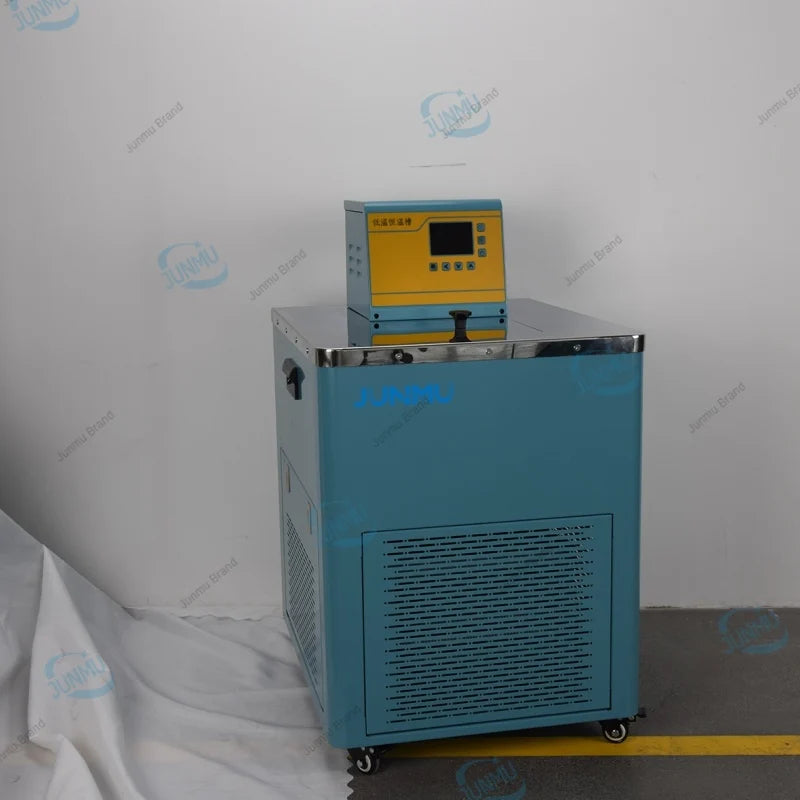

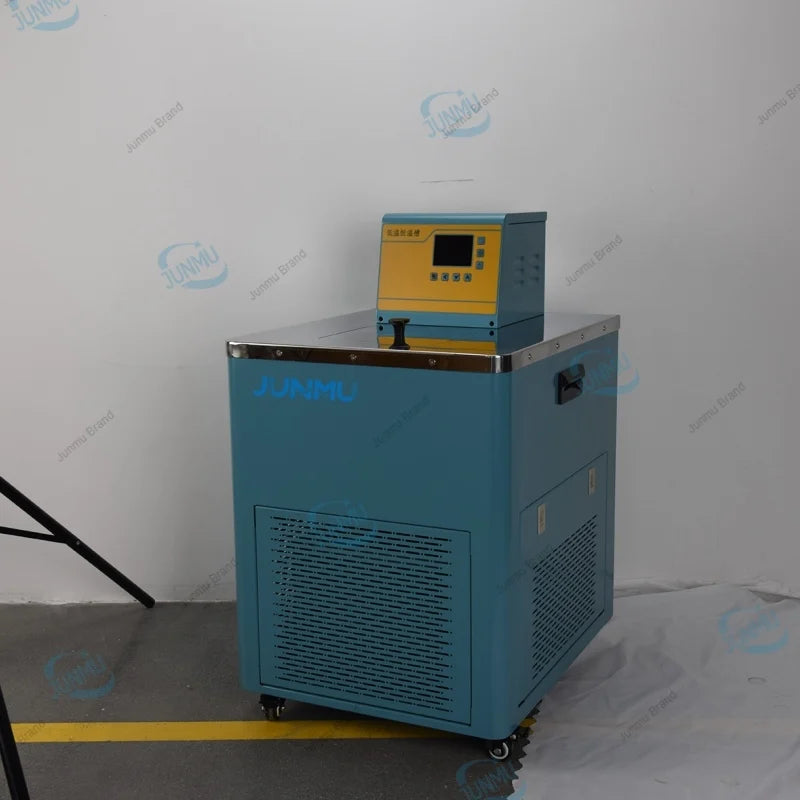

Junmu DXC Series Low Temperature Circulation Bath

PRODUCT DESCRIPTION

Scope of Application:​​

Junmu Low temperature circulation baths are widely used in petroleum, chemical industry, electronic instrumentation, physics, chemistry, bioengineering, medicine and health, life science, light industry food, physical property testing, chemical analysis and other research departments, institutions of higher education, enterprise quality inspection and production departments. They provide users with a thermally and cold controlled, constant and uniform temperature experimental environment for work, enabling constant temperature testing or experimentation on test samples or produced products.

Structural features:

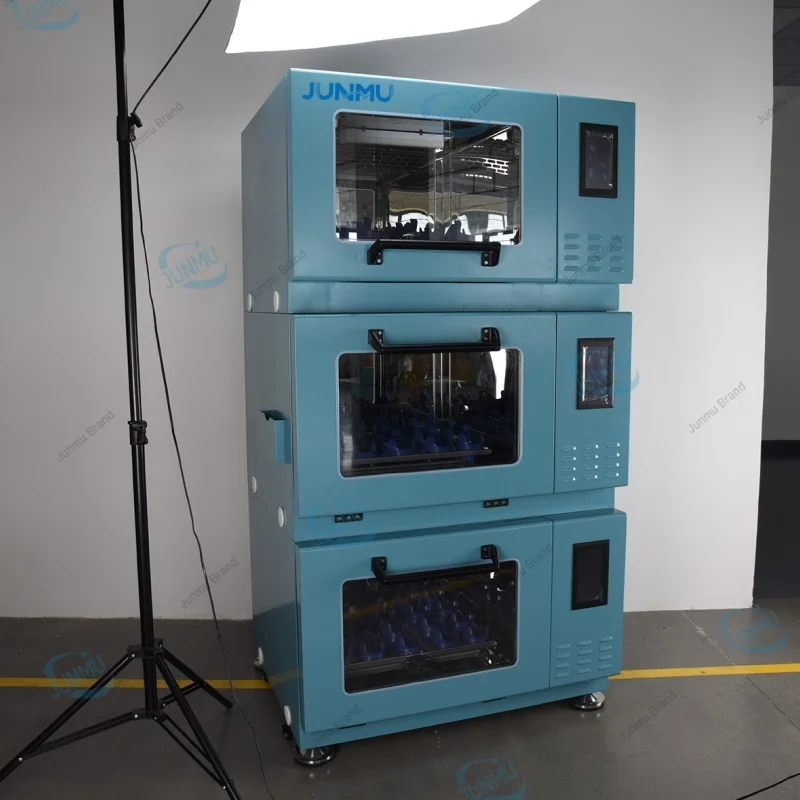

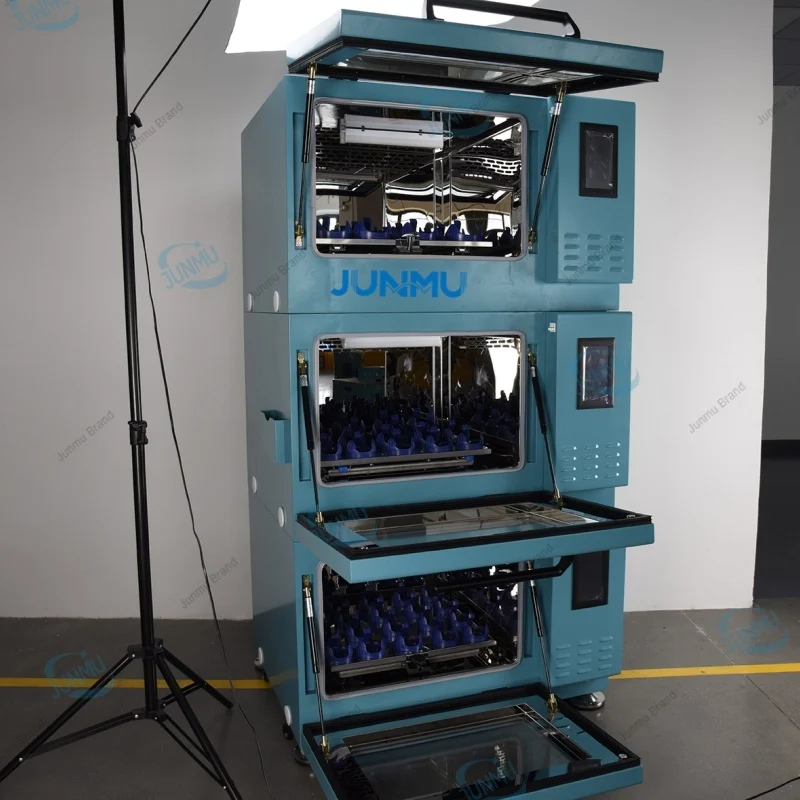

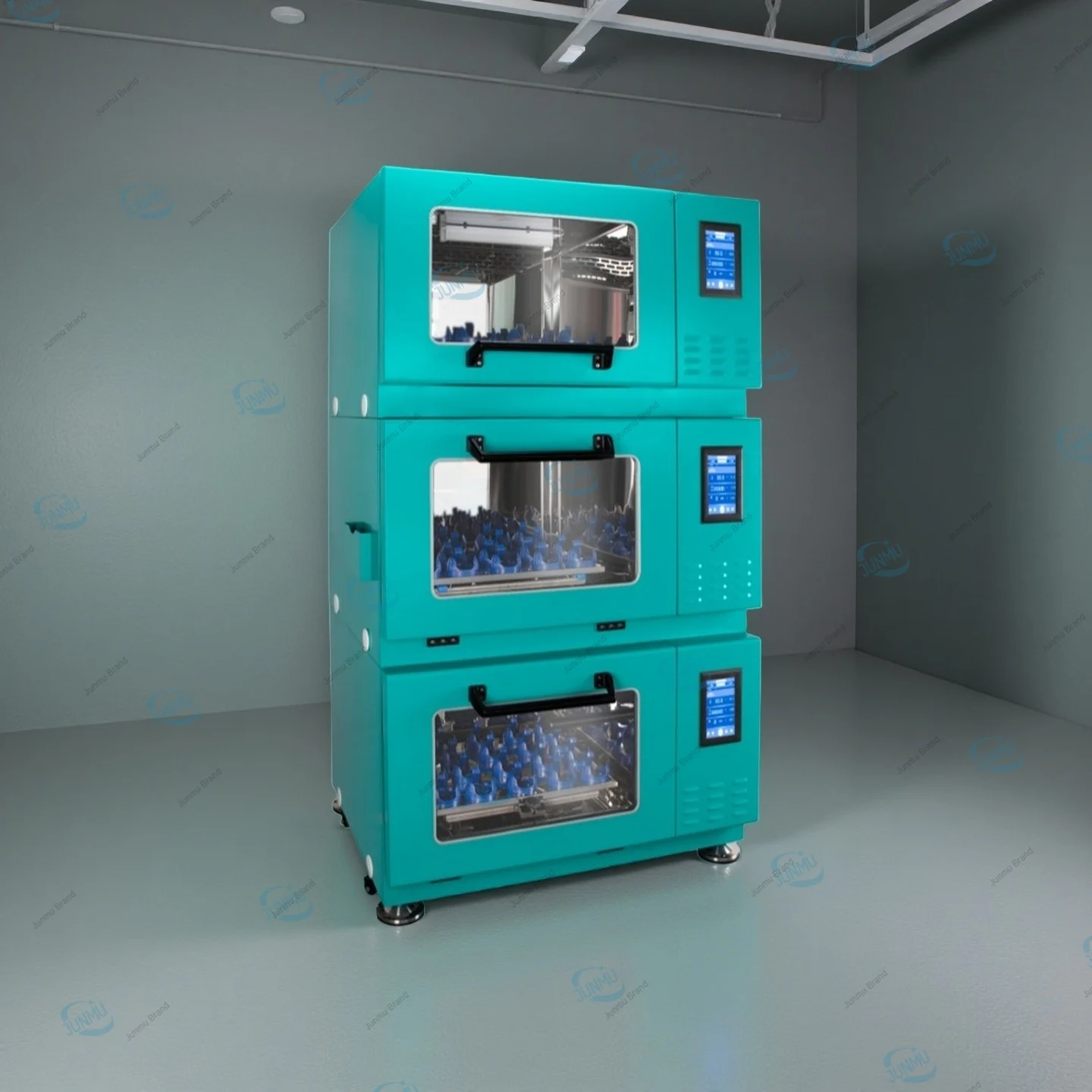

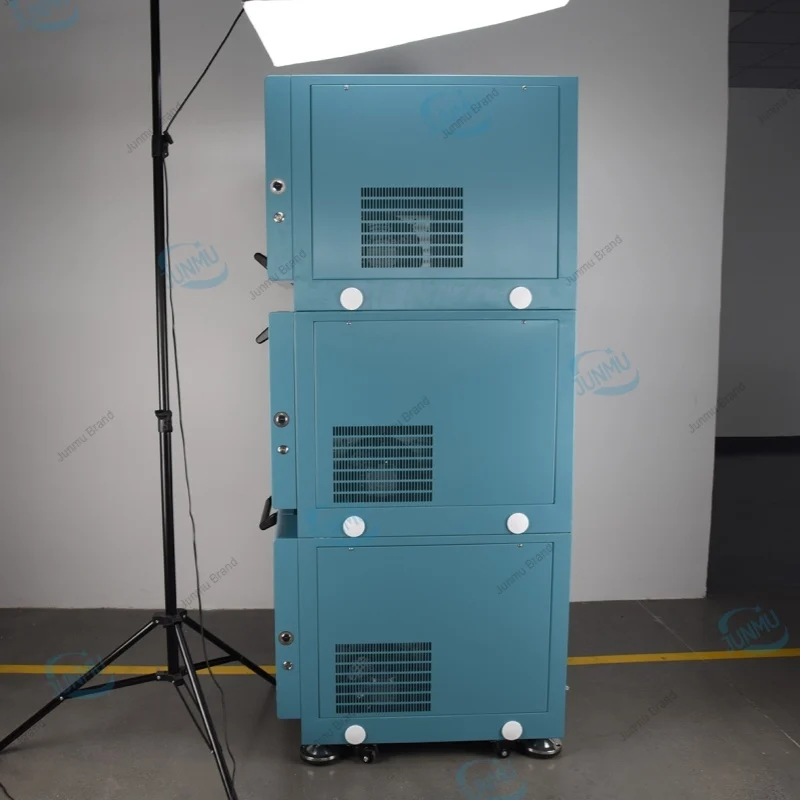

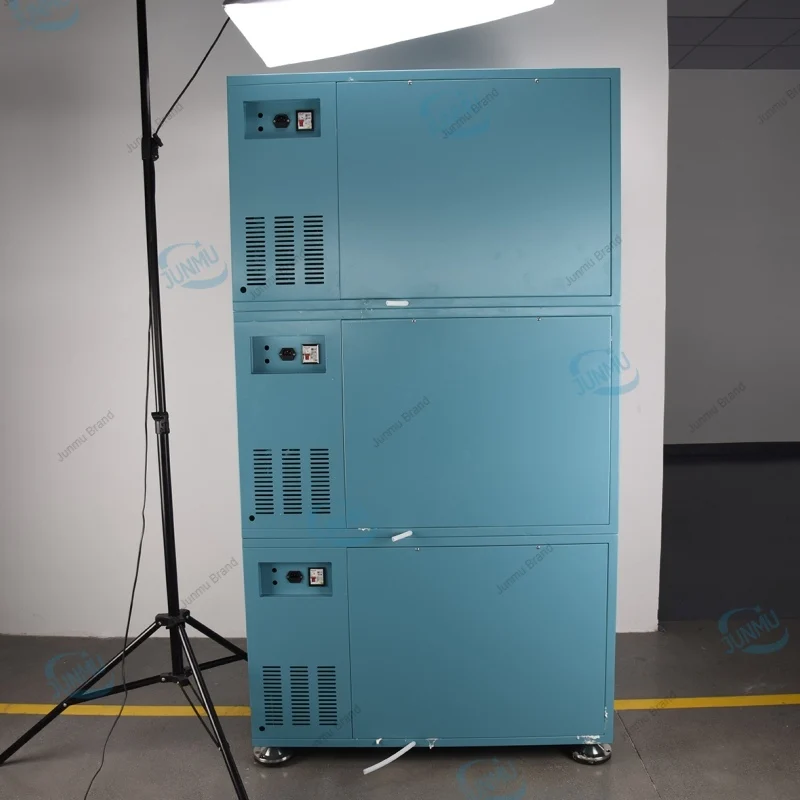

Three-layer Stacking: Three-layer stacked combination with a small footprint; each layer independently controls temperature and speed, and is independently monitored; can be disassembled and placed independently.

Outer Casing: The casing is made from selected cold-rolled steel plate base material, treated with an electrostatic baking paint process. This forms a dense protective layer on the surface, which is hard, robust, and offers excellent rust resistance.

Working Chamber: Interior made of SUS304 stainless steel, mirror-polished, corrosion-resistant. Equipped with built-in UV sterilization lamp and lighting.

Tray: Pull-out slide rail design for convenient and quick experimental operation.

Viewing Glass: Double-layer tempered glass viewing window allows clear observation of items inside the chamber while providing good thermal insulation.

Motor:Servo motor ensures smooth and stable operation, with high starting torque, wide speed regulation, and maintenance-free operation.

Control Panel: Microcomputer-based intelligent touch screen display temperature controller, offering high precision, no overshoot, multi-data display on a single screen, temperature calibration function, timer function, and 30-segment program control.

Supports three-level permission management and audit trail. Equipped with a USB interface for real-time data storage.

Fluorine-free Refrigeration:​​ Selects well-known domestic compressors, uses fluorine-free refrigerant, features low noise and effective cooling, and can operate stably at low temperatures for extended periods.

Safety Functions: Over-temperature alarm, abnormal power failure (power-off recovery function), stops when the door is opened, and resumes operation when the door is closed.

Clamps:Universal spring clamp, adhesive pad, or triangular flask clamp (choose one of the above three).

Optional Features: Optional remote alarm and remote control functions.

Technical Data

Model	DXC-6L-AAC DXC-6L-BAC DXC-6L-CAC DXC-6L-DAC DXC-6L-EAC	DXC-10L-AAC DXC-10L-BAC DXC-10L-CAC DXC-10L-DAC DXC-10L-EAC	DXC-20L-AAC DXC-20L-BAC DXC-20L-CAC DXC-20L-DAC DXC-20L-EAC	DXC-30L-AAC DXC-30L-BAC DXC-30L-CAC DXC-30L-DAC DXC-30L-EAC	DXC-50L-AAC DXC-50L-BAC DXC-50L-CAC DXC-50L-DAC DXC-50L-EAC
Power Supply	AC 220V,50HZ
Temperature Uniformity	±0.05℃
Temperature Resolution	0.01℃
Temperature Adjustment Range	A：-5~100℃ B:-10~100℃ C:-20~100℃ D:-30~100℃ E:-40~100℃
Circulating Pump Flow Rate (L/min)	16 liters per minute
Circulation Mode	automatic cycle
Rated Power	A:1200W B:1200W C:1200W D:1300W E:1300W	A:1500W B:1500W C:1500W D:1600W E:1600W	A:1500W B:1500W C:1500W D:1600W E:1600W	A:2000W B:2000W C:2000W D:2100W E:2100W	A:2400W B:2400W C:2400W D:2500W E:2500W
Inner Dimension W×D×H	20x20x18cm	28x20x18cm	40x29x18cm	40x29x25cm	51x35x28cm
Overall Dimension W×D×H	36x38x80cm	44x38x80cm	56x48x80cm	56x48x88cm	67x53x90cm

Product Details

Scope of Application

Company Profile

Henan Junmu Medical Equipment Co., Ltd. is a leading manufacturer specializing in advanced sterilization equipment and freeze dryers, designed to meet the highest standards of quality and reliability. Our sterilization solutions ensure optimal safety and efficiency for a wide range of industries, including healthcare and research. The main products are vertical autoclave, horizontal autoclave, portable autoclave, plasma sterilizer, EO sterilizer and so on.
Our products are trusted by hospitals, laboratories, and mushroom farms worldwide. Additionally, our freeze dryers are engineered to preserve the integrity of sensitive materials, offering superior performance in lyophilization processes. With a commitment to innovation and customer satisfaction, we provide cutting-edge technology and tailored solutions to support your critical operations.
We have good after-sales service, we are looking forward to providing you with the best service. If you have any favorite
products, we are willing to promote mutual cooperation opportunities with preferential prices.

Certifications

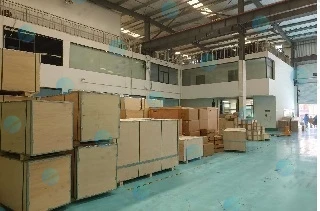

Packing and Delivery

-Global Shipping: We offer worldwide shipping via reliable logistics partners.

-Delivery Time: Typically 2-30 days, depending on the destination.

-Packaging: All products are securely packed to prevent damage during transit.

-Customs Support: We assist with customs clearance and documentation to ensure smooth delivery.

FAQ

1. What's the minimum order quantity?
One set at present.
2. When can the goods be delivered?
2-7 working days after payment for normal models and 5-30working days for customized models.
3. Can you accept OEM or ODM?
Yes, we can.
4. How to choose suitable equipment?
Tell us your requirements, and our professional sales will introduce you to the most suitable model.
